SpringBoot集成Druid 数据源

前置条件

SpringBoot集成MyBatis框架

添加依赖

<dependency>
   <groupId>com.alibaba</groupId>
   <artifactId>druid-spring-boot-starter</artifactId>
   <version>1.1.10</version>
</dependency>

添加配置

• application.yml

# Tomcat
server:
  port: 8088

# DataSource
spring:
  datasource:
    name: druidDataSource
    type: com.alibaba.druid.pool.DruidDataSource
    druid:
      driverClassName: com.mysql.cj.jdbc.Driver
      url: jdbc:mysql://127.0.0.1:3306/tmall?useUnicode=true&zeroDateTimeBehavior=convertToNull&autoReconnect=true&characterEncoding=utf-8
      username: root
      password: 123456
      filters: stat,wall,log4j,config
      max-active: 100
      initial-size: 1
      max-wait: 60000
      min-idle: 1
      time-between-eviction-runs-millis: 60000
      min-evictable-idle-time-millis: 300000
      validation-query: select 'x'
      test-while-idle: true
      test-on-borrow: false
      test-on-return: false
      pool-prepared-statements: true
      max-open-prepared-statements: 50
      max-pool-prepared-statement-per-connection-size: 20

• DruidDataSourceProperties.java

package com.gold.tmall.config;

import org.springframework.boot.context.properties.ConfigurationProperties;

/**
 * @author zhang.fuiqng
 * @date 2021-04-24 14:47:00
 */
@ConfigurationProperties(prefix = "spring.datasource.druid")
public class DruidDataSourceProperties {

    /**
     * 驱动类名
     * mysql：com.mysql.cj.jdbc.Driver（MySQL 8.0 以上版本）
     * oracle：oracle.jdbc.driver.OracleDriver
     */
    private String driverClassName;

    /**
     * 数据库连接地址
     */
    private String url;

    /**
     * 数据库用户名
     */
    private String username;

    /**
     * 数据库密码
     */
    private String password;

    /**
     * 初始化时建立物理连接的个数。初始化发生在显示调用init方法，或者第一次getConnection时
     */
    private int initialSize;

    /**
     * 最小连接池数量
     */
    private int minIdle;

    /**
     * 最大连接池数量
     */
    private int maxActive = 100;

    /**
     * 获取连接时最大等待时间，单位毫秒。配置了maxWait之后，缺省启用公平锁，并发效率会有所下降，
     * 如果需要可以通过配置useUnfairLock属性为true使用非公平锁。
     */
    private long maxWait;

    /**
     * 有两个含义：
     * 1) Destroy线程会检测连接的间隔时间，如果连接空闲时间大于等于minEvictableIdleTimeMillis则关闭物理连接。
     * 2) testWhileIdle的判断依据，详细看testWhileIdle属性的说明
     */
    private long timeBetweenEvictionRunsMillis;

    /**
     * 连接保持空闲而不被驱逐的最小时间
     */
    private long minEvictableIdleTimeMillis;

    /**
     * 用来检测连接是否有效的sql，要求是一个查询语句，常用select 'x'。
     * 如果validationQuery为null，testOnBorrow、testOnReturn、testWhileIdle都不会起作用。
     */
    private String validationQuery;

    /**
     * 建议配置为true，不影响性能，并且保证安全性。
     * 申请连接的时候检测，如果空闲时间大于timeBetweenEvictionRunsMillis，执行validationQuery检测连接是否有效。
     */
    private boolean testWhileIdle;

    /**
     * 申请连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能。
     */
    private boolean testOnBorrow;

    /**
     * 归还连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能。
     */
    private boolean testOnReturn;

    /**
     * 是否缓存preparedStatement，也就是PSCache。PSCache对支持游标的数据库性能提升巨大，比如说oracle。在mysql下建议关闭。
     */
    private boolean poolPreparedStatements;

    /**
     * 要启用PSCache，必须配置大于0，当大于0时，poolPreparedStatements自动触发修改为true。
     * 在Druid中，不会存在Oracle下PSCache占用内存过多的问题，可以把这个数值配置大一些，比如说100
     */
    private int maxPoolPreparedStatementPerConnectionSize;

    /**
     * 属性类型是字符串，通过别名的方式配置扩展插件，常用的插件有：
     * 监控统计用的filter:stat
     * 日志用的filter:log4j
     * 防御sql注入的filter:wall
     */
    private String filters;

    public int getInitialSize() {
        return initialSize;
    }

    public void setInitialSize(int initialSize) {
        this.initialSize = initialSize;
    }

    public int getMinIdle() {
        return minIdle;
    }

    public void setMinIdle(int minIdle) {
        this.minIdle = minIdle;
    }

    public int getMaxActive() {
        return maxActive;
    }

    public void setMaxActive(int maxActive) {
        this.maxActive = maxActive;
    }

    public long getMaxWait() {
        return maxWait;
    }

    public void setMaxWait(long maxWait) {
        this.maxWait = maxWait;
    }

    public long getTimeBetweenEvictionRunsMillis() {
        return timeBetweenEvictionRunsMillis;
    }

    public void setTimeBetweenEvictionRunsMillis(long timeBetweenEvictionRunsMillis) {
        this.timeBetweenEvictionRunsMillis = timeBetweenEvictionRunsMillis;
    }

    public long getMinEvictableIdleTimeMillis() {
        return minEvictableIdleTimeMillis;
    }

    public void setMinEvictableIdleTimeMillis(long minEvictableIdleTimeMillis) {
        this.minEvictableIdleTimeMillis = minEvictableIdleTimeMillis;
    }

    public String getValidationQuery() {
        return validationQuery;
    }

    public void setValidationQuery(String validationQuery) {
        this.validationQuery = validationQuery;
    }

    public boolean isTestWhileIdle() {
        return testWhileIdle;
    }

    public void setTestWhileIdle(boolean testWhileIdle) {
        this.testWhileIdle = testWhileIdle;
    }

    public boolean isTestOnBorrow() {
        return testOnBorrow;
    }

    public void setTestOnBorrow(boolean testOnBorrow) {
        this.testOnBorrow = testOnBorrow;
    }

    public boolean isTestOnReturn() {
        return testOnReturn;
    }

    public void setTestOnReturn(boolean testOnReturn) {
        this.testOnReturn = testOnReturn;
    }

    public boolean isPoolPreparedStatements() {
        return poolPreparedStatements;
    }

    public void setPoolPreparedStatements(boolean poolPreparedStatements) {
        this.poolPreparedStatements = poolPreparedStatements;
    }

    public int getMaxPoolPreparedStatementPerConnectionSize() {
        return maxPoolPreparedStatementPerConnectionSize;
    }

    public void setMaxPoolPreparedStatementPerConnectionSize(int maxPoolPreparedStatementPerConnectionSize) {
        this.maxPoolPreparedStatementPerConnectionSize = maxPoolPreparedStatementPerConnectionSize;
    }

    public String getFilters() {
        return filters;
    }

    public void setFilters(String filters) {
        this.filters = filters;
    }

    public String getDriverClassName() {
        return driverClassName;
    }

    public void setDriverClassName(String driverClassName) {
        this.driverClassName = driverClassName;
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

}

• DruidConfig.java

package com.gold.tmall.config;

import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.annotation.Resource;
import javax.servlet.Filter;
import javax.servlet.Servlet;
import javax.sql.DataSource;
import java.sql.SQLException;

/**
 * EnableConfigurationProperties({DruidDataSourceProperties.class})用于导入上一步DruidDataSourceProperties的配置信息
 * @author zhang.fuiqng
 * @date 2021-04-24 14:59:00
 */
@Configuration
@EnableConfigurationProperties({DruidDataSourceProperties.class})
public class DruidConfig {

    @Resource
    private DruidDataSourceProperties properties;

    @Bean
    @ConditionalOnMissingBean
    public DataSource druidDataSource() {
        DruidDataSource druidDataSource = new DruidDataSource();
        druidDataSource.setDriverClassName(properties.getDriverClassName());
        druidDataSource.setUrl(properties.getUrl());
        druidDataSource.setUsername(properties.getUsername());
        druidDataSource.setPassword(properties.getPassword());
        druidDataSource.setInitialSize(properties.getInitialSize());
        druidDataSource.setMinIdle(properties.getMinIdle());
        druidDataSource.setMaxActive(properties.getMaxActive());
        druidDataSource.setMaxWait(properties.getMaxWait());
        druidDataSource.setTimeBetweenEvictionRunsMillis(properties.getTimeBetweenEvictionRunsMillis());
        druidDataSource.setMinEvictableIdleTimeMillis(properties.getMinEvictableIdleTimeMillis());
        druidDataSource.setValidationQuery(properties.getValidationQuery());
        druidDataSource.setTestWhileIdle(properties.isTestWhileIdle());
        druidDataSource.setTestOnBorrow(properties.isTestOnBorrow());
        druidDataSource.setTestOnReturn(properties.isTestOnReturn());
        druidDataSource.setPoolPreparedStatements(properties.isPoolPreparedStatements());
        druidDataSource.setMaxPoolPreparedStatementPerConnectionSize(properties.getMaxPoolPreparedStatementPerConnectionSize());

        try {
            druidDataSource.setFilters(properties.getFilters());
            druidDataSource.init();
        } catch (SQLException e) {
            e.printStackTrace();
        }

        return druidDataSource;
    }

    /**

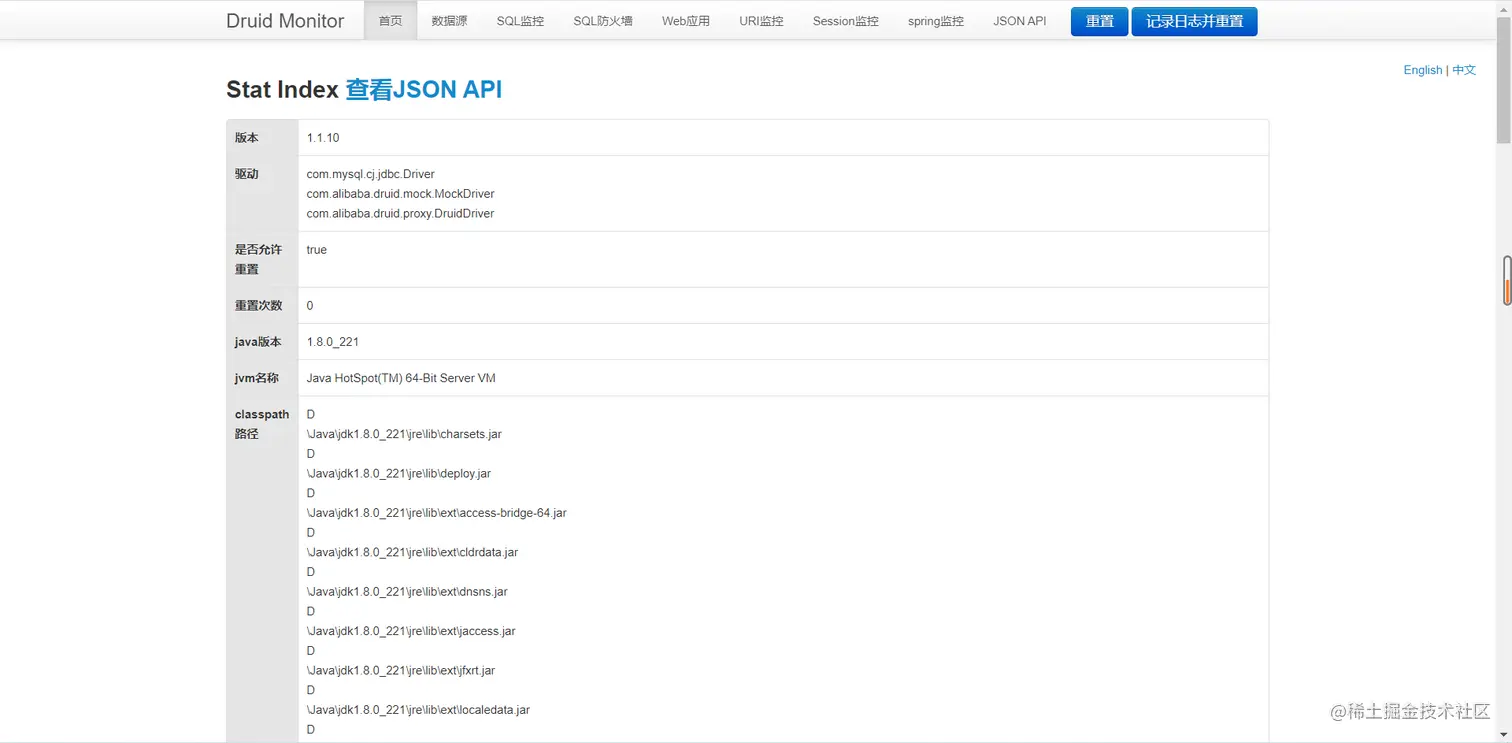

     * 注册Servlet信息，配置监控视图
     * public ServletRegistrationBean druidServlet()相当于Web Servlet配置
     * @return Servlet注册信息
     */
    @Bean
    @ConditionalOnMissingBean
    public ServletRegistrationBean<Servlet> druidServlet() {
        ServletRegistrationBean<Servlet> servletRegistrationBean = new ServletRegistrationBean<>(new StatViewServlet(), "/druid/*");

        // 白名单
        servletRegistrationBean.addInitParameter("allow","127.0.0.1");
        // IP黑名单 (存在共同时，deny优先于allow) : 如果满足deny的话提示:Sorry, you are not permitted to view this page.
        servletRegistrationBean.addInitParameter("deny","127.0.0.1");
        // 登录查看信息的账号密码, 用于登录Druid监控后台
        servletRegistrationBean.addInitParameter("loginUsername", "admin");
        servletRegistrationBean.addInitParameter("loginPassword", "admin");
        // 是否能够重置数据
        servletRegistrationBean.addInitParameter("resetEnable", "true");
        return servletRegistrationBean;

    }

    /**
     * 注册Filter信息，监控拦截器
     * public FilterRegistrationBean filterRegistrationBean()相当于Web Filter配置
     * @return Filter注册信息
     */
    @Bean
    @ConditionalOnMissingBean
    public FilterRegistrationBean<Filter> filterRegistrationBean() {
        FilterRegistrationBean<Filter> filterRegistrationBean = new FilterRegistrationBean<>();
        filterRegistrationBean.setFilter(new WebStatFilter());
        filterRegistrationBean.addUrlPatterns("/*");
        filterRegistrationBean.addInitParameter("exclusions", "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
        return filterRegistrationBean;
    }
}

启动问题

org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'mybatisConfig': Unsatisfied dependency expressed through field 'dataSource'; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'druidDataSource' defined in class path resource [com/louis/kitty/boot/config/DruidConfig.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [javax.sql.DataSource]: Factory method 'druidDataSource' threw exception; nested exception is java.lang.NoClassDefFoundError: org/apache/log4j/Priority
    at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:586) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:91) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessPropertyValues(AutowiredAnnotationBeanPostProcessor.java:372) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1341) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:572) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:495) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:317) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:315) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:199) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:759) ~[spring-beans-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:869) ~[spring-context-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:550) ~[spring-context-5.0.8.RELEASE.jar:5.0.8.RELEASE]
    at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:140) ~[spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:762) [spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:398) [spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:330) [spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:1258) [spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:1246) [spring-boot-2.0.4.RELEASE.jar:2.0.4.RELEASE]
    at com.louis.kitty.boot.KittyApplication.main(KittyApplication.java:10) [classes/:na]
　　　 ...
Caused by: java.lang.ClassNotFoundException: org.apache.log4j.Priority	at java.net.URLClassLoader.findClass(URLClassLoader.java:381) ~[na:1.8.0_131]	at java.lang.ClassLoader.loadClass(ClassLoader.java:424) ~[na:1.8.0_131]	at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:335) ~[na:1.8.0_131]	at java.lang.ClassLoader.loadClass(ClassLoader.java:357) ~[na:1.8.0_131]	... 49 common frames omitted

• 添加依赖

<!-- log4j -->
<dependency>
    <groupId>log4j</groupId>
    <artifactId>log4j</artifactId>
    <version>1.2.17</version>
</dependency>

• 配置log4j 在src/main/resources路径下添加log4j.properties文件

### set log levels ###
log4j.rootLogger = INFO, console, infoFile, errorFile
LocationInfo=true

log4j.appender.console = org.apache.log4j.ConsoleAppender
log4j.appender.console.Target = System.out
log4j.appender.console.layout = org.apache.log4j.PatternLayout

log4j.appender.console.layout.ConversionPattern =[%d{yyyy-MM-dd HH:mm:ss,SSS}]-[%p]:%m   %x %n

log4j.appender.infoFile = org.apache.log4j.DailyRollingFileAppender
log4j.appender.infoFile.Threshold = INFO
log4j.appender.infoFile.File = D:/logs/log
log4j.appender.infoFile.DatePattern = '.'yyyy-MM-dd'.log'
log4j.appender.infoFile.Append=true
log4j.appender.infoFile.layout = org.apache.log4j.PatternLayout
log4j.appender.infoFile.layout.ConversionPattern =[%d{yyyy-MM-dd HH:mm:ss,SSS}]-[%p]:%m  %x %n

log4j.appender.errorFile = org.apache.log4j.DailyRollingFileAppender
log4j.appender.errorFile.Threshold = ERROR
log4j.appender.errorFile.File = D:/logs/error
log4j.appender.errorFile.DatePattern = '.'yyyy-MM-dd'.log'
log4j.appender.errorFile.Append=true
log4j.appender.errorFile.layout = org.apache.log4j.PatternLayout
log4j.appender.errorFile.layout.ConversionPattern =[%d{yyyy-MM-dd HH:mm:ss,SSS}]-[%p]:%m  %x %n

#log4j.appender.debugfile = org.apache.log4j.DailyRollingFileAppender
#log4j.appender.debugfile.Threshold = DEBUG
#log4j.appender.debugfile.File = D:/logs/debug
#log4j.appender.debugfile.DatePattern = '.'yyyy-MM-dd'.log'
#log4j.appender.debugfile.Append=true
#log4j.appender.debugfile.layout = org.apache.log4j.PatternLayout
#log4j.appender.debugfile.layout.ConversionPattern =[%d{yyyy-MM-dd HH:mm:ss,SSS}]-[%p]:%m  %x %n

查看监控

源码下载

gitee.com/zhang_fuqin…
