SAP CRM WebClient UI里如何找到Assignment block和settype的映射关系

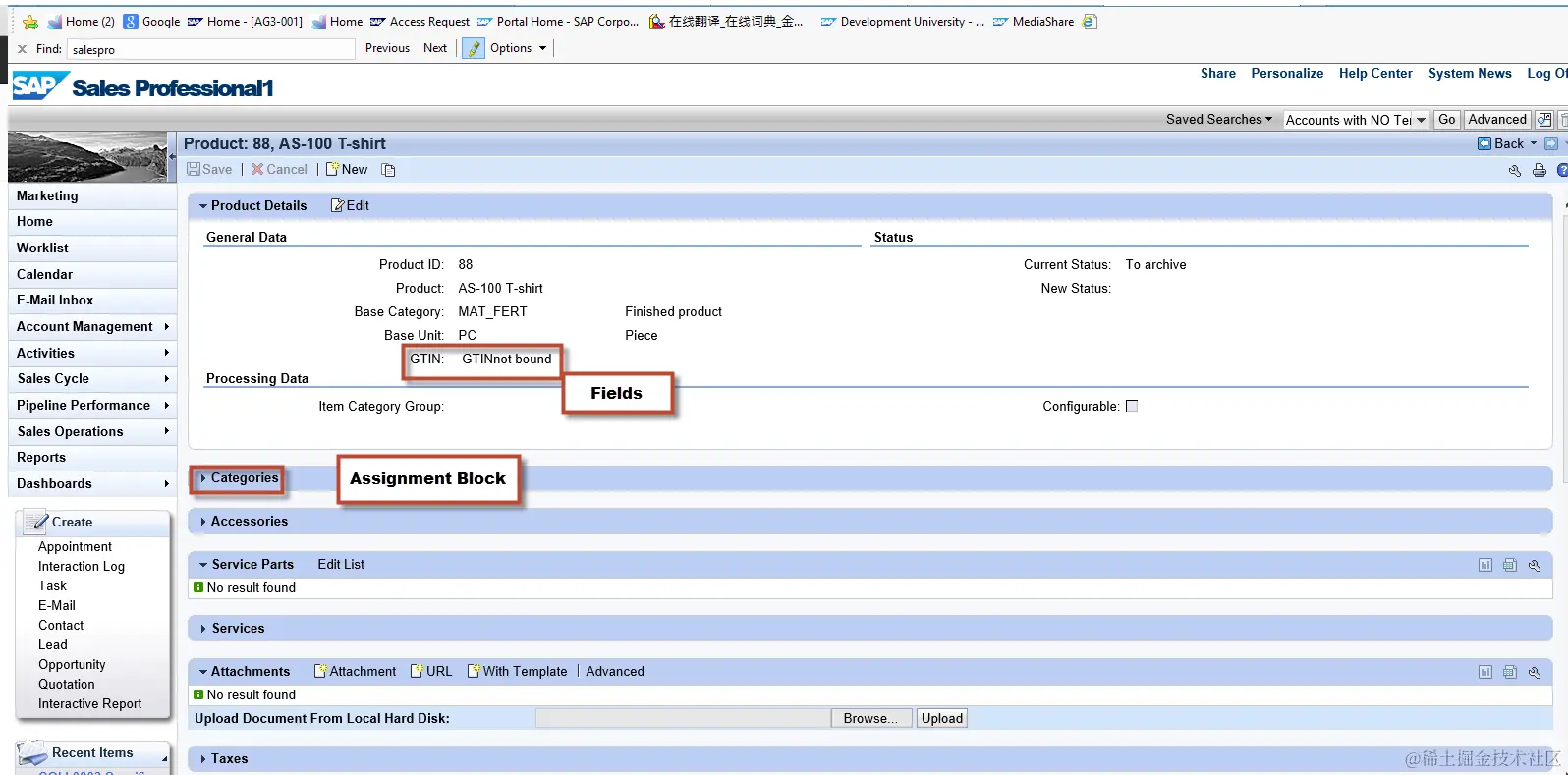

SAP CRM WebClient UI 产品主数据里的assignment block，要么对应一个settype，要么对应一个relationship。

如何根据assignment block，找到对应的模型？

(1) 事务码comm_hierarchy

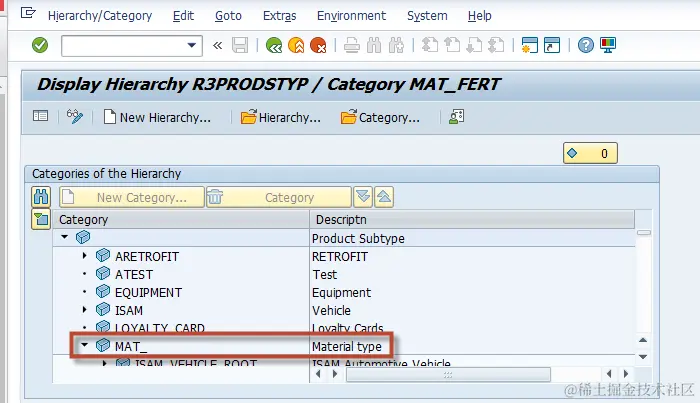

Find the hierarchy ID belong to your product.

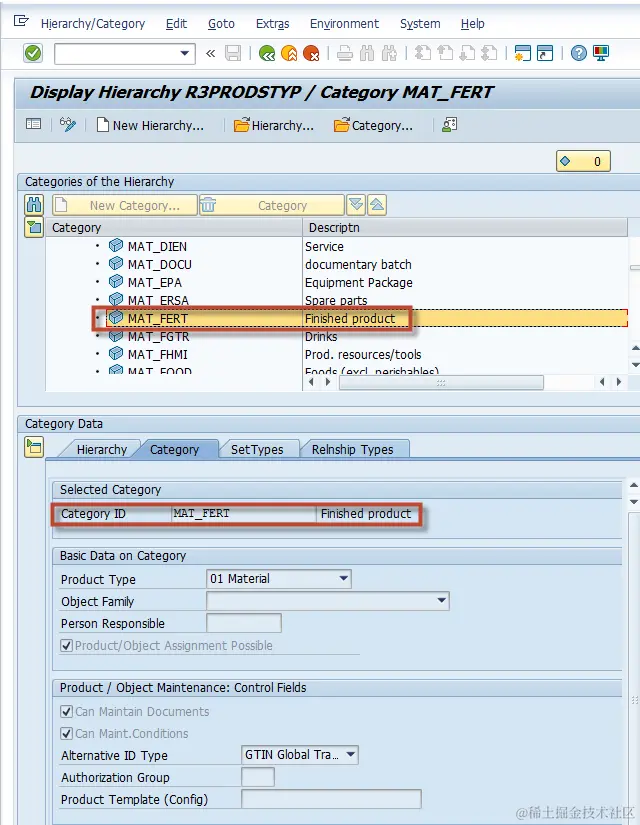

找到产品使用的product category：

(2) Then you can find the Assigned Set Types and Relationship Types for the Assignment block.

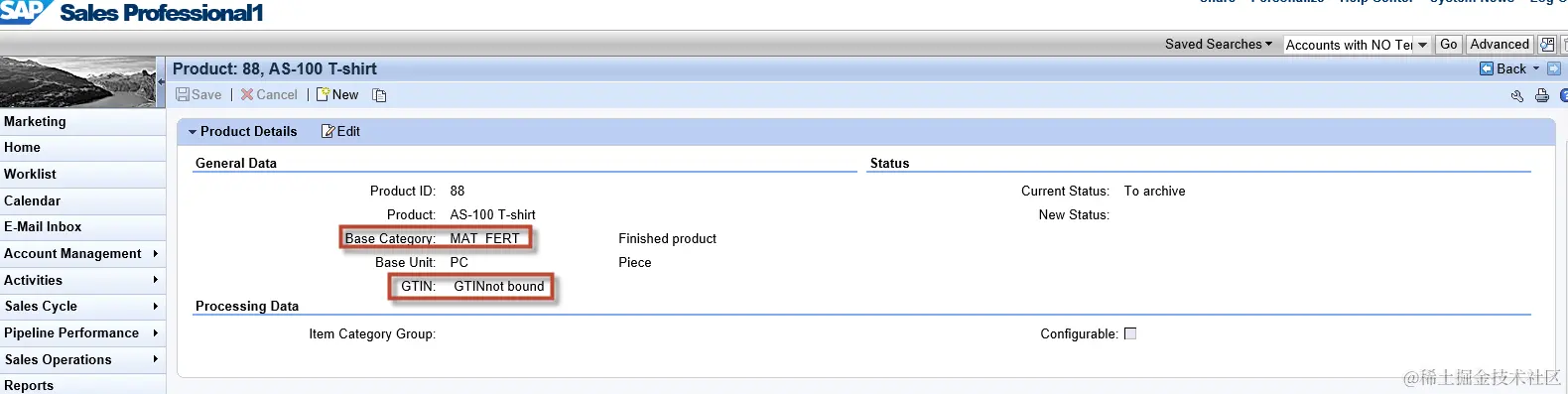

For example, you want to know which set type or relationship is mapping with field ‘GTIN’.

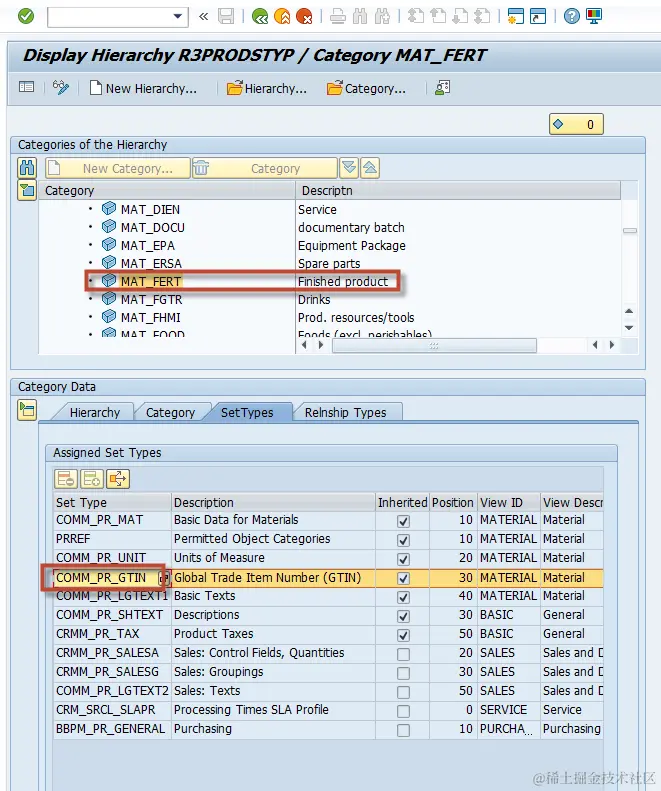

Then you can find the answer. Set Type: COMM_PR_GTIN is mapping with field ‘GTIN’

.

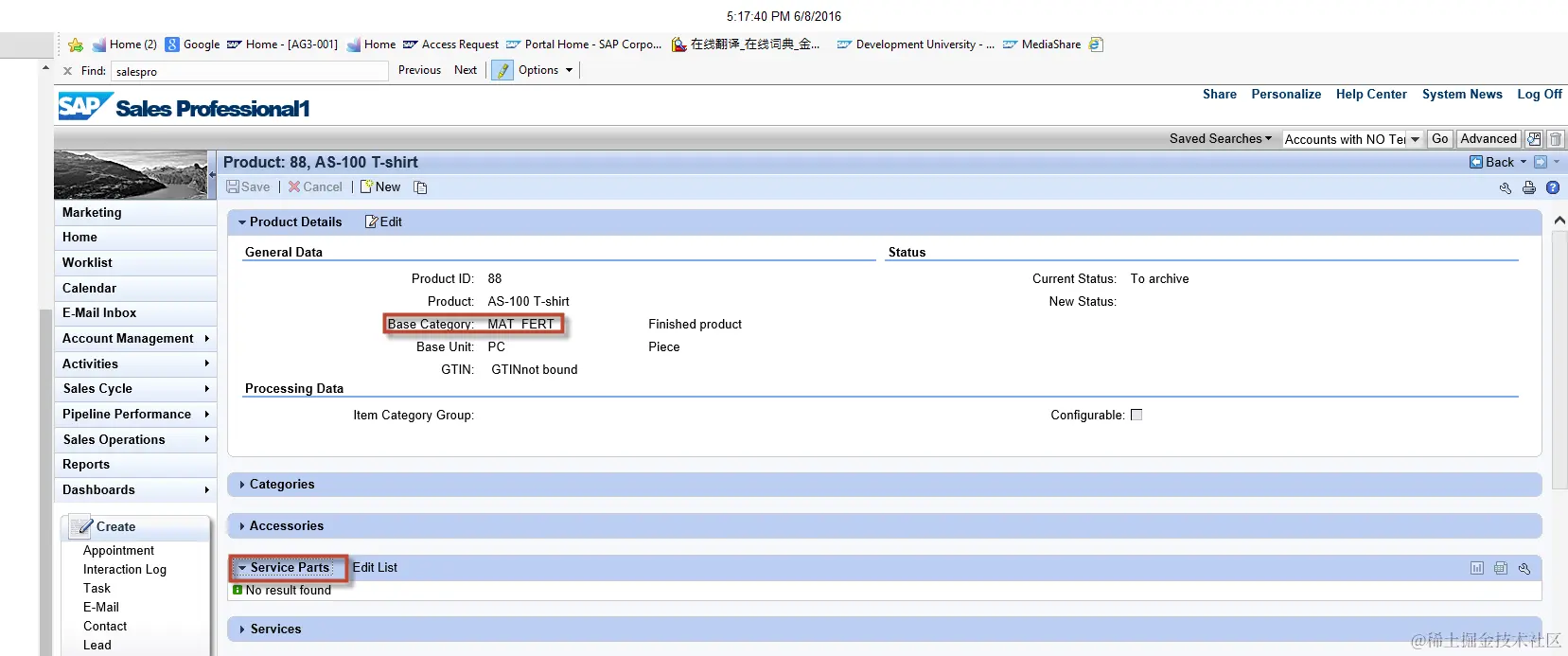

另一个例子：you want to know which set type or relationship is mapping with Assignment block ‘Service Parts’?

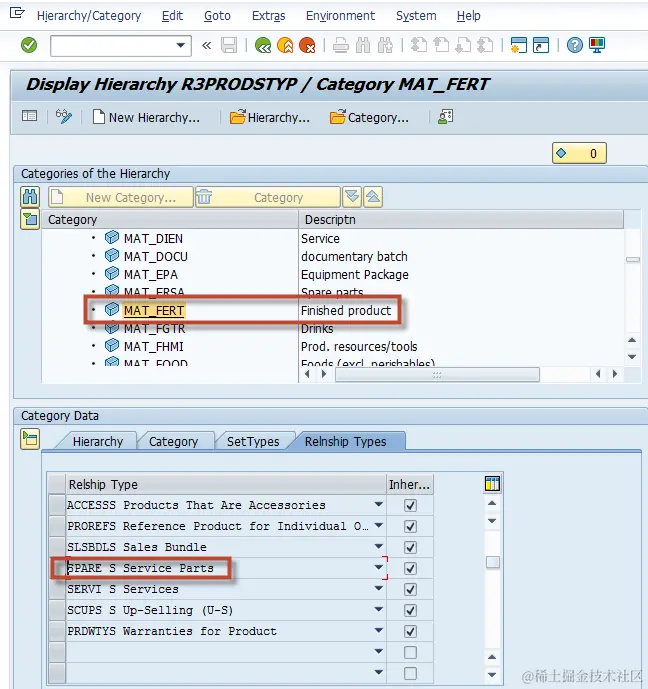

Then you can find the answer. Relationship: SPARE is mapping with Assignment block ‘Service Parts’.

当然，也可以使用另一种办法，参考我写的SAP维基百科
