Flutter仿钉钉打卡

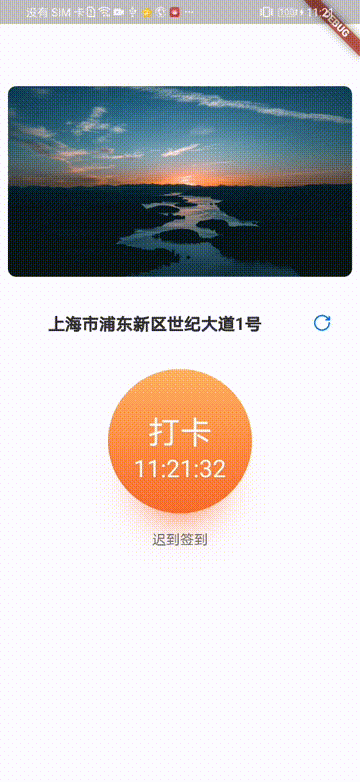

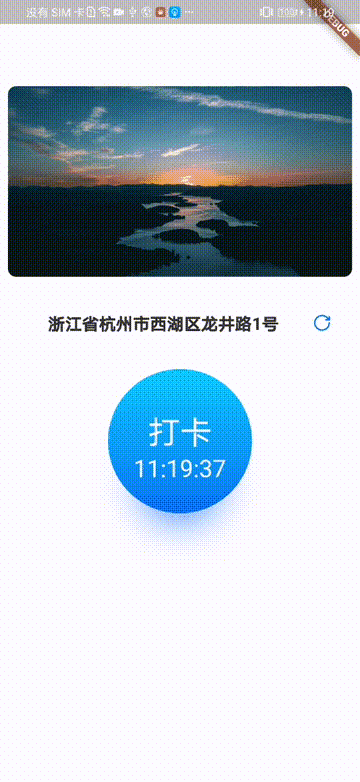

Flutter仿钉钉打卡具体效果如下

开发流程

1. 设置点击按钮样式，这里使用Container()设置:

           Container(
                  height: 144.0,
                  width: 144.0,
                  alignment: Alignment.center,
                  padding: EdgeInsets.only(top: 40.0),
                  decoration: BoxDecoration(
                      shape: BoxShape.circle,
                      ...
                   ),
                  child: Column(
                    children: [
                    ...
                    ],
                  ),
                )

2. 添加文案，文案包含“打卡”和当前时间(HH:mm:ss)，在1中Column的children添加相关文案：

                  child: Column(
                    children: [
                      Text(
                        "打卡",
                        style: TextStyle(
                          fontSize: 32.0,
                          color: Colors.white,
                        ),
                      ),
                      SizedBox(
                        height: 4.0,
                      ),
                      Text(
                        time,
                        style: TextStyle(fontSize: 24.0, color: Colors.white),
                      ),
                    ],
                  ),

3. 设置渐变色背景，正常状态下背景为蓝色，异常状态下背景为橙色，在1中Container的BoxDecoration中添加gradient：

                   gradient: LinearGradient(
                          begin: Alignment.topCenter,
                          end: Alignment.bottomCenter,
                          // 1为正常状态否则为异常状态
                          colors: type == 1
                              ? [
                                  Color(0xFF1DE0FA),
                                  Color(0xFF1376EE),
                                ]
                              : [
                                  Color(0xFFFFB164),
                                  Color(0xFFED6230),
                                ]),

4. 设置阴影，同样在在1中Container的BoxDecoration中添加boxShadow：

                 boxShadow: [
                        BoxShadow(
                            // 阴影偏移
                            offset: Offset(0, 40.0),
                             // 1为正常状态否则为异常状态
                            color: type == 1
                                ? Color(0xFF1376EE)
                                : Color(0xFFED6230),
                            // 投影模糊程度
                            blurRadius: 36.0,
                            // 投影扩散程度，大于0时向外扩散，小于0时呈内聚
                            spreadRadius: -36.0),
                      ]),

5. 设置雷达扫描样式：

class RadarPainter extends CustomPainter {
  final double angle;
  Paint _paint = Paint()..style = PaintingStyle.fill;

  RadarPainter(this.angle);

  @override
  void paint(Canvas canvas, Size size) {
    var radius = min(size.width / 2, size.height / 2);
    // 设置扫描线样式，白色，透明度从0.01过渡到0.5，角度为pi/9=20°
    _paint.shader = ui.Gradient.sweep(
        Offset(size.width / 2, size.height / 2),
        [
          Colors.white.withOpacity(0.01),
          Colors.white.withOpacity(0.1),
          Colors.white.withOpacity(0.2),
          Colors.white.withOpacity(0.3),
          Colors.white.withOpacity(0.4),
          Colors.white.withOpacity(0.5)
        ],
        [0.0, 0.2, 0.4, 0.6, 0.8, 1.0],
        TileMode.clamp,
        .0,
        pi / 9);

    canvas.save();
    // 扫过的角度绘制计算
    double r = sqrt(pow(size.width, 2) + pow(size.height, 2));
    double startAngle = atan(size.height / size.width);
    Point p0 = Point(r * cos(startAngle), r * sin(startAngle));
    Point px = Point(r * cos(angle + startAngle), r * sin(angle + startAngle));
    canvas.translate((p0.x - px.x) / 2, (p0.y - px.y) / 2);
    canvas.rotate(angle);

    canvas.drawArc(
        Rect.fromCircle(
            center: Offset(size.width / 2, size.height / 2), radius: radius),
        0,
        pi / 9,
        true,
        _paint);
    canvas.restore();
  }

  @override
  bool shouldRepaint(CustomPainter oldDelegate) {
    return true;
  }
}

6. 雷达扫描属于动画，点击按钮时显示动画，打卡成功后隐藏动画，设置相关动画:

		// 动画控制器初始化
   		 radarController = AnimationController(duration: const Duration(seconds: 1), vsync: this);
   		 radarController.addStatusListener((status) {
     		 if (status == AnimationStatus.completed) {
       			 isShowRadar = false;
     			}
   		 	});
   		 animation = Tween(begin: .0, end: pi * 2).animate(radarController);
         ...
              Visibility(
                    visible: isShowRadar,
                    child: AnimatedBuilder(
                        animation: animation,
                        builder: (context, child) {
                          return Container(
                            height: 144.0,
                            width: 144.0,
                            child: CustomPaint(
                              painter: RadarPainter(animation.value),
                            ),
                          );
                        }),
                  ),
            	 ...
            	 // 销毁
                @override
 		 void dispose() {
                   radarController.dispose();
                  super.dispose();
                  }

7. 组装，需要将雷达动画覆盖在画好的打卡按钮上，同时打卡按钮需要具备点击功能:

    GestureDetector(
            onTap: () => onTapSign(),
            child: Stack(
              children: [
                // 1中画好的圆圈
                Container(...),
                // 扫描雷达
                radar,
                ]
               )
            )
