基于Nacos实现Spring Cloud Gateway实现动态路由的方法
简介:该文章主要介绍以Nacos为注册、配置中心，实现Spring Cloud GateWay 动态路由的功能。Spring Cloud Gateway启动时候，就将通过路由配置和规则加载到内存里，无法做到不重启网关就可以动态的对应路由的配置和规则进行增加，修改和删除。通过nacos的配置下发的功能可以实现在不重启网关的情况下，实现动态路由的效果
项目介绍
网关 service-gateway
pom 介绍：
` startagaincloud org.example 1.0 4.0.0
<artifactId>service-gateway</artifactId>
<dependencies>
<dependency>
<groupId>org.example</groupId>
<artifactId>service-common</artifactId>
<exclusions>
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-gateway</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
</dependency>
<!-- 该spring-boot-starter-actuator依赖提供了很多监控所需的接口，也是必须引入的 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<!--<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>-->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
</dependency>
<dependency>
<groupId>de.codecentric</groupId>
<artifactId>spring-boot-admin-starter-client</artifactId>
<version>2.3.0</version>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-zipkin</artifactId>
</dependency>
<!--elk依赖 -->
<dependency>
<groupId>net.logstash.logback</groupId>
<artifactId>logstash-logback-encoder</artifactId>
</dependency>
</dependencies>
`
启动类：
` @EnableFeignClients(basePackages = {"com.mlc.cloud.start"}) @SpringBootApplication(exclude= {DataSourceAutoConfiguration.class}) @EnableDiscoveryClient public class GatewayApplication {
public static void main(String[] args) {
SpringApplication.run(GatewayApplication.class,args);
}
}
` 关键的实现动态路由逻辑代码
`/**
-
动态更新路由网关service
-
1）实现一个Spring提供的事件推送接口ApplicationEventPublisherAware
-
2）提供动态路由的基础方法，可通过获取bean操作该类的方法。该类提供新增路由、更新路由、删除路由，然后实现发布的功能。 */ @Slf4j @Service public class DynamicRouteServiceImpl implements ApplicationEventPublisherAware {
@Autowired private RouteDefinitionWriter routeDefinitionWriter;
/**
- 发布事件 */ @Autowired private ApplicationEventPublisher publisher;
@Override public void setApplicationEventPublisher(ApplicationEventPublisher applicationEventPublisher) { this.publisher = applicationEventPublisher; }
/**
- 删除路由
- @param id
- @return / public String delete(String id) { try { log.info("gateway delete route id {}",id); this.routeDefinitionWriter.delete(Mono.just(id)); return "delete success"; } catch (Exception e) { return "delete fail"; } } /*
- 更新路由
- @param definition
- @return */ public String update(RouteDefinition definition) { try { log.info("gateway update route {}",definition); this.routeDefinitionWriter.delete(Mono.just(definition.getId())); } catch (Exception e) { return "update fail,not find route routeId: "+definition.getId(); } try { routeDefinitionWriter.save(Mono.just(definition)).subscribe(); this.publisher.publishEvent(new RefreshRoutesEvent(this)); return "success"; } catch (Exception e) { return "update route fail"; } }
/**
- 增加路由
- @param definition
- @return */ public String add(RouteDefinition definition) { log.info("gateway add route {}",definition); routeDefinitionWriter.save(Mono.just(definition)).subscribe(); this.publisher.publishEvent(new RefreshRoutesEvent(this)); return "success"; } } `

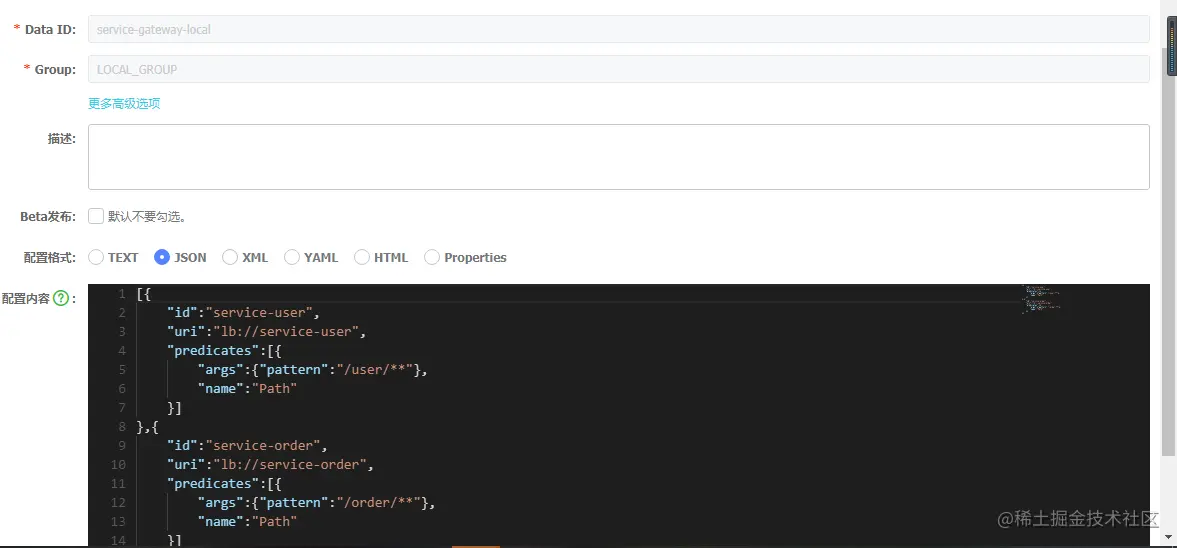

通过nacos下发动态路由配置,监听Nacos中gateway-route配置
`@Component @Slf4j @DependsOn({"gatewayConfig"}) // 依赖于gatewayConfig bean public class DynamicRouteServiceImplByNacos {
@Autowired
private DynamicRouteServiceImpl dynamicRouteService;
private ConfigService configService;
@PostConstruct
public void init() {
log.info("gateway route init...");
try{
configService = initConfigService();
if(configService == null){
log.warn("initConfigService fail");
return;
}
String configInfo = configService.getConfig(GatewayConfig.NACOS_ROUTE_DATA_ID, GatewayConfig.NACOS_ROUTE_GROUP, GatewayConfig.DEFAULT_TIMEOUT);
log.info("获取网关当前配置:\r\n{}",configInfo);
List<RouteDefinition> definitionList = JSON.parseArray(configInfo, RouteDefinition.class);
for(RouteDefinition definition : definitionList){
log.info("update route : {}",definition.toString());
dynamicRouteService.add(definition);
}
} catch (Exception e) {
log.error("初始化网关路由时发生错误",e);
}
dynamicRouteByNacosListener(GatewayConfig.NACOS_ROUTE_DATA_ID,GatewayConfig.NACOS_ROUTE_GROUP);
}
/**
* 监听Nacos下发的动态路由配置
* @param dataId
* @param group
*/
public void dynamicRouteByNacosListener (String dataId, String group){
try {
configService.addListener(dataId, group, new Listener() {
@Override
public void receiveConfigInfo(String configInfo) {
log.info("进行网关更新:\n\r{}",configInfo);
List<RouteDefinition> definitionList = JSON.parseArray(configInfo, RouteDefinition.class);
for(RouteDefinition definition : definitionList){
log.info("update route : {}",definition.toString());
dynamicRouteService.update(definition);
}
}
@Override
public Executor getExecutor() {
log.info("getExecutor\n\r");
return null;
}
});
} catch (NacosException e) {
log.error("从nacos接收动态路由配置出错!!!",e);
}
}
/**
* 初始化网关路由 nacos config
* @return
*/
private ConfigService initConfigService(){
try{
Properties properties = new Properties();
properties.setProperty("serverAddr",GatewayConfig.NACOS_SERVER_ADDR);
properties.setProperty("namespace",GatewayConfig.NACOS_NAMESPACE);
return configService= NacosFactory.createConfigService(properties);
} catch (Exception e) {
log.error("初始化网关路由时发生错误",e);
return null;
}
}
} `
配置文件路由
`@Configuration("gatewayConfig") public class GatewayConfig {
public static final long DEFAULT_TIMEOUT = 30000;
public static String NACOS_SERVER_ADDR;
public static String NACOS_NAMESPACE;
public static String NACOS_ROUTE_DATA_ID;
public static String NACOS_ROUTE_GROUP;
@Value("${spring.cloud.nacos.discovery.server-addr}")
public void setNacosServerAddr(String nacosServerAddr){
NACOS_SERVER_ADDR = nacosServerAddr;
}
@Value("${spring.cloud.nacos.discovery.namespace}")
public void setNacosNamespace(String nacosNamespace){
NACOS_NAMESPACE = nacosNamespace;
}
@Value("${nacos.gateway.route.config.data-id}")
public void setNacosRouteDataId(String nacosRouteDataId){
NACOS_ROUTE_DATA_ID = nacosRouteDataId;
}
@Value("${nacos.gateway.route.config.group}")
public void setNacosRouteGroup(String nacosRouteGroup){
NACOS_ROUTE_GROUP = nacosRouteGroup;
}
} `
