深入浅出带你掌握线程、多线程和线程池

​​​​​​​​​​摘要:一文带你搞懂线程、多线程和线程池。

本文分享自华为云社区《一文搞懂线程与线程池》,原文作者:冰 河。

1.线程

在操作系统中,线程是比进程更小的能够独立运行的基本单位。同时,它也是 CPU 调度的基本单位。线程本身基本上不拥有系统资源,只是拥有一些在运行时需要用到的系统资源,例如程序计数器,寄存器和栈等。一个进程中的所有线程可以共享进程中的所有资源。

2.多线程

多线程可以理解为在同一个程序中能够同时运行多个不同的线程来执行不同的任务,这些线程可以同时利用 CPU 的多个核心运行。多线程编程能够最大限度的利用 CPU 的资源。如果某一个线程的处理不需要占用 CPU 资源时(例如 IO 线程),可以使当前线程让出 CPU 资源来让其他线程能够获取到 CPU 资源,进而能够执行其他线程对应的任务,达到最大化利用 CPU 资源的目的。

线程的实现方式

在 Java 中,实现线程的方式大体上分为三种,通过继承 Thread 类、实现 Runnable 接口,实现 Callable 接口。简单的示例代码分别如下所示。

1.继承 Thread 类代码

package io.binghe.concurrent.executor.test;
/**
 * @author binghe
 * @version 1.0.0
 * @description 继承Thread实现线程
 */
public class ThreadTest extends Thread {
    @Override
    public void run() {
        //TODO 在此写在线程中执行的业务逻辑
    }
}
复制代码

2.实现 Runnable 接口的代码

package io.binghe.concurrent.executor.test;
/**
 * @author binghe
 * @version 1.0.0
 * @description 实现Runnable实现线程
 */
public class RunnableTest implements Runnable {
    @Override
    public void run() {
        //TODO 在此写在线程中执行的业务逻辑
    }
}
复制代码

3.实现 Callable 接口的代码

package io.binghe.concurrent.executor.test;
​
import java.util.concurrent.Callable;
​
/**
 * @author binghe
 * @version 1.0.0
 * @description 实现Callable实现线程
 */
public class CallableTest implements Callable<String> {
    @Override
    public String call() throws Exception {
        //TODO 在此写在线程中执行的业务逻辑
        return null;
    }
}
复制代码

线程的生命周期

1.生命周期

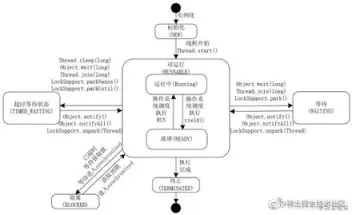

一个线程从创建,到最终的消亡,需要经历多种不同的状态,而这些不同的线程状态,由始至终也构成了线程生命周期的不同阶段。线程的生命周期可以总结为下图。

其中,几个重要的状态如下所示。

  • NEW:初始状态,线程被构建,但是还没有调用 start()方法。

  • RUNNABLE:可运行状态,可运行状态可以包括:运行中状态和就绪状态。

  • BLOCKED:阻塞状态,处于这个状态的线程需要等待其他线程释放锁或者等待进入 synchronized。

  • WAITING:表示等待状态,处于该状态的线程需要等待其他线程对其进行通知或中断等操作,进而进入下一个状态。

  • TIME_WAITING:超时等待状态。可以在一定的时间自行返回。

  • TERMINATED:终止状态,当前线程执行完毕。

2.代码示例

为了更好的理解线程的生命周期,以及生命周期中的各个状态,接下来使用代码示例来输出线程的每个状态信息。

  • WaitingTime

创建 WaitingTime 类,在 while(true)循环中调用 TimeUnit.SECONDS.sleep(long)方法来验证线程的 TIMED_WARTING 状态,代码如下所示。

package io.binghe.concurrent.executor.state;
import java.util.concurrent.TimeUnit;
​
/**
 * @author binghe
 * @version 1.0.0
 * @description 线程不断休眠
 */
public class WaitingTime implements Runnable{
    @Override
    public void run() {
        while (true){
            waitSecond(200);
        }
    }
    //线程等待多少秒
    public static final void waitSecond(long seconds){
        try {
            TimeUnit.SECONDS.sleep(seconds);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}
复制代码
  • WaitingState

创建 WaitingState 类,此线程会在一个 while(true)循环中,获取当前类 Class 对象的 synchronized 锁,也就是说,这个类无论创建多少个实例,synchronized 锁都是同一个,并且线程会处于等待状态。接下来,在 synchronized 中使用当前类的 Class 对象的 wait()方法,来验证线程的 WAITING 状态,代码如下所示。

package io.binghe.concurrent.executor.state;
/**
 * @author binghe
 * @version 1.0.0
 * @description 线程在Warting上等待
 */
public class WaitingState implements Runnable {
    @Override
    public void run() {
        while (true){
            synchronized (WaitingState.class){
                try {
                    WaitingState.class.wait();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        }
    }
}
复制代码
  • BlockedThread

BlockedThread 主要是在 synchronized 代码块中的 while(true)循环中调用 TimeUnit.SECONDS.sleep(long)方法来验证线程的 BLOCKED 状态。当启动两个 BlockedThread 线程时,首先启动的线程会处于 TIMED_WAITING 状态,后启动的线程会处于 BLOCKED 状态。代码如下所示。

package io.binghe.concurrent.executor.state;
/**
 * @author binghe
 * @version 1.0.0
 * @description 加锁后不再释放锁
 */
public class BlockedThread implements Runnable {
    @Override
    public void run() {
        synchronized (BlockedThread.class){
            while (true){
                WaitingTime.waitSecond(100);
            }
        }
    }
}
复制代码
  • ThreadState

启动各个线程,验证各个线程输出的状态,代码如下所示。

package io.binghe.concurrent.executor.state;
​
/**
 * @author binghe
 * @version 1.0.0
 * @description 线程的各种状态,测试线程的生命周期
 */
public class ThreadState {
​
    public static void main(String[] args){
        new Thread(new WaitingTime(), "WaitingTimeThread").start();
        new Thread(new WaitingState(), "WaitingStateThread").start();
​
        //BlockedThread-01线程会抢到锁,BlockedThread-02线程会阻塞
        new Thread(new BlockedThread(), "BlockedThread-01").start();
        new Thread(new BlockedThread(), "BlockedThread-02").start();
    }
}
复制代码

​运行 ThreadState 类,如下所示。

可以看到,未输出任何结果信息。可以在命令行输入“jps”命令来查看运行的 Java 进程。

c:\>jps
21584 Jps
17828 KotlinCompileDaemon
12284 Launcher
24572
28492 ThreadState
复制代码

可以看到 ThreadSate 进程的进程号为 28492,接下来,输入“jstack 28492”来查看 ThreadSate 进程栈的信息,如下所示。

c:\>jstack 28492
2020-02-15 00:27:08
Full thread dump Java HotSpot(TM) 64-Bit Server VM (25.202-b08 mixed mode):
​
"DestroyJavaVM" #16 prio=5 os_prio=0 tid=0x000000001ca05000 nid=0x1a4 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"BlockedThread-02" #15 prio=5 os_prio=0 tid=0x000000001ca04800 nid=0x6eb0 waiting for monitor entry [0x000000001da4f000]
   java.lang.Thread.State: BLOCKED (on object monitor)
        at io.binghe.concurrent.executor.state.BlockedThread.run(BlockedThread.java:28)
        - waiting to lock <0x0000000780a7e4e8> (a java.lang.Class for io.binghe.concurrent.executor.state.BlockedThread)
        at java.lang.Thread.run(Thread.java:748)
​
"BlockedThread-01" #14 prio=5 os_prio=0 tid=0x000000001ca01800 nid=0x6e28 waiting on condition [0x000000001d94f000]
   java.lang.Thread.State: TIMED_WAITING (sleeping)
        at java.lang.Thread.sleep(Native Method)
        at java.lang.Thread.sleep(Thread.java:340)
        at java.util.concurrent.TimeUnit.sleep(TimeUnit.java:386)
        at io.binghe.concurrent.executor.state.WaitingTime.waitSecond(WaitingTime.java:36)
        at io.binghe.concurrent.executor.state.BlockedThread.run(BlockedThread.java:28)
        - locked <0x0000000780a7e4e8> (a java.lang.Class for io.binghe.concurrent.executor.state.BlockedThread)
        at java.lang.Thread.run(Thread.java:748)
​
"WaitingStateThread" #13 prio=5 os_prio=0 tid=0x000000001ca06000 nid=0x6fe4 in Object.wait() [0x000000001d84f000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x0000000780a7b488> (a java.lang.Class for io.binghe.concurrent.executor.state.WaitingState)
        at java.lang.Object.wait(Object.java:502)
        at io.binghe.concurrent.executor.state.WaitingState.run(WaitingState.java:29)
        - locked <0x0000000780a7b488> (a java.lang.Class for io.binghe.concurrent.executor.state.WaitingState)
        at java.lang.Thread.run(Thread.java:748)
​
"WaitingTimeThread" #12 prio=5 os_prio=0 tid=0x000000001c9f8800 nid=0x3858 waiting on condition [0x000000001d74f000]
   java.lang.Thread.State: TIMED_WAITING (sleeping)
        at java.lang.Thread.sleep(Native Method)
        at java.lang.Thread.sleep(Thread.java:340)
        at java.util.concurrent.TimeUnit.sleep(TimeUnit.java:386)
        at io.binghe.concurrent.executor.state.WaitingTime.waitSecond(WaitingTime.java:36)
        at io.binghe.concurrent.executor.state.WaitingTime.run(WaitingTime.java:29)
        at java.lang.Thread.run(Thread.java:748)
​
"Service Thread" #11 daemon prio=9 os_prio=0 tid=0x000000001c935000 nid=0x6864 runnable [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"C1 CompilerThread3" #10 daemon prio=9 os_prio=2 tid=0x000000001c88c800 nid=0x6a28 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"C2 CompilerThread2" #9 daemon prio=9 os_prio=2 tid=0x000000001c880000 nid=0x6498 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"C2 CompilerThread1" #8 daemon prio=9 os_prio=2 tid=0x000000001c87c000 nid=0x693c waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"C2 CompilerThread0" #7 daemon prio=9 os_prio=2 tid=0x000000001c87b800 nid=0x5d00 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"Monitor Ctrl-Break" #6 daemon prio=5 os_prio=0 tid=0x000000001c862000 nid=0x6034 runnable [0x000000001d04e000]
   java.lang.Thread.State: RUNNABLE
        at java.net.SocketInputStream.socketRead0(Native Method)
        at java.net.SocketInputStream.socketRead(SocketInputStream.java:116)
        at java.net.SocketInputStream.read(SocketInputStream.java:171)
        at java.net.SocketInputStream.read(SocketInputStream.java:141)
        at sun.nio.cs.StreamDecoder.readBytes(StreamDecoder.java:284)
        at sun.nio.cs.StreamDecoder.implRead(StreamDecoder.java:326)
        at sun.nio.cs.StreamDecoder.read(StreamDecoder.java:178)
        - locked <0x0000000780b2fd88> (a java.io.InputStreamReader)
        at java.io.InputStreamReader.read(InputStreamReader.java:184)
        at java.io.BufferedReader.fill(BufferedReader.java:161)
        at java.io.BufferedReader.readLine(BufferedReader.java:324)
        - locked <0x0000000780b2fd88> (a java.io.InputStreamReader)
        at java.io.BufferedReader.readLine(BufferedReader.java:389)
        at com.intellij.rt.execution.application.AppMainV2$1.run(AppMainV2.java:64)
​
"Attach Listener" #5 daemon prio=5 os_prio=2 tid=0x000000001c788800 nid=0x6794 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"Signal Dispatcher" #4 daemon prio=9 os_prio=2 tid=0x000000001c7e3800 nid=0x3354 runnable [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
​
"Finalizer" #3 daemon prio=8 os_prio=1 tid=0x000000001c771000 nid=0x6968 in Object.wait() [0x000000001cd4f000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x0000000780908ed0> (a java.lang.ref.ReferenceQueue$Lock)
        at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:144)
        - locked <0x0000000780908ed0> (a java.lang.ref.ReferenceQueue$Lock)
        at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:165)
        at java.lang.ref.Finalizer$FinalizerThread.run(Finalizer.java:216)
​
"Reference Handler" #2 daemon prio=10 os_prio=2 tid=0x000000001c770800 nid=0x6590 in Object.wait() [0x000000001cc4f000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(Native Method)
        - waiting on <0x0000000780906bf8> (a java.lang.ref.Reference$Lock)
        at java.lang.Object.wait(Object.java:502)
        at java.lang.ref.Reference.tryHandlePending(Reference.java:191)
        - locked <0x0000000780906bf8> (a java.lang.ref.Reference$Lock)
        at java.lang.ref.Reference$ReferenceHandler.run(Reference.java:153)
​
"VM Thread" os_prio=2 tid=0x000000001a979800 nid=0x5c2c runnable
​
"GC task thread#0 (ParallelGC)" os_prio=0 tid=0x00000000033b9000 nid=0x4dc0 runnable
​
"GC task thread#1 (ParallelGC)" os_prio=0 tid=0x00000000033ba800 nid=0x6690 runnable
​
"GC task thread#2 (ParallelGC)" os_prio=0 tid=0x00000000033bc000 nid=0x30b0 runnable
​
"GC task thread#3 (ParallelGC)" os_prio=0 tid=0x00000000033be800 nid=0x6f68 runnable
​
"GC task thread#4 (ParallelGC)" os_prio=0 tid=0x00000000033c1000 nid=0x6478 runnable
​
"GC task thread#5 (ParallelGC)" os_prio=0 tid=0x00000000033c2000 nid=0x4fe4 runnable
​
"GC task thread#6 (ParallelGC)" os_prio=0 tid=0x00000000033c5000 nid=0x584 runnable
​
"GC task thread#7 (ParallelGC)" os_prio=0 tid=0x00000000033c6800 nid=0x6988 runnable
​
"VM Periodic Task Thread" os_prio=2 tid=0x000000001c959800 nid=0x645c waiting on condition
​
JNI global references: 12
复制代码

由以上输出的信息可以看出:名称为 WaitingTimeThread 的线程处于 TIMED_WAITING 状态;名称为 WaitingStateThread 的线程处于 WAITING 状态;名称为 BlockedThread-01 的线程处于 TIMED_WAITING 状态;名称为 BlockedThread-02 的线程处于 BLOCKED 状态。

注意:使用 jps 结合 jstack 命令可以分析线上生产环境的 Java 进程的异常信息。

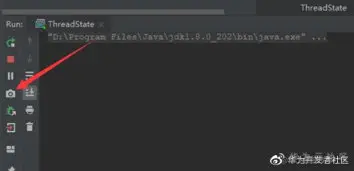

也可以直接点击 IDEA 下图所示的图表直接打印出线程的堆栈信息。

​输出的结果信息与使用“jstack 进程号”命令输出的信息基本一致。
