ThreadPoolExecutor线程池源码分析

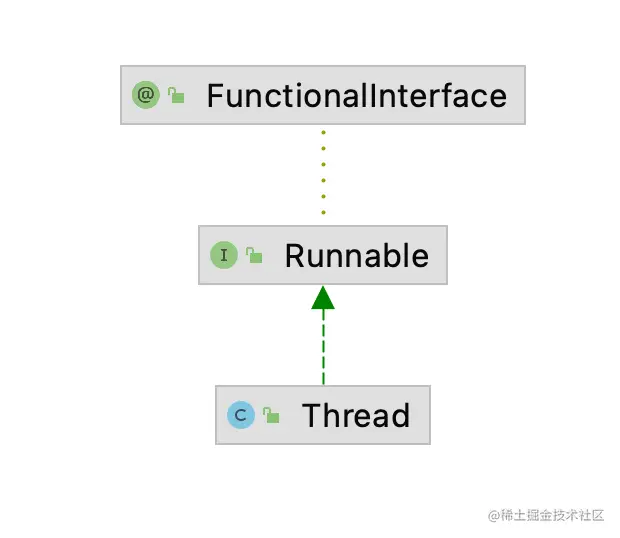

1、Thread、Runnable

• Runnable接口，定义run()方法。
• Thread类实现Runnable接口，重写run()方法。

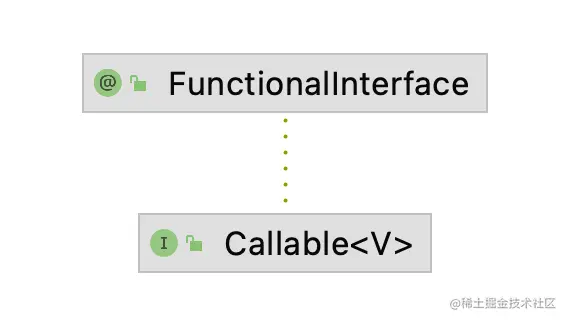

2、Callable

• Callable接口，定义call()方法。

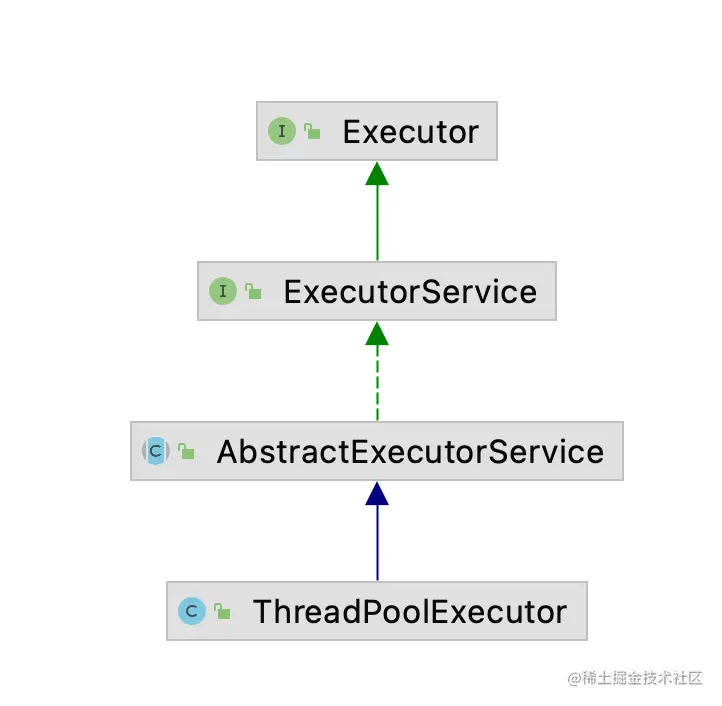

3、Executor、AbstractExecutorService、ExecutorService、ThreadPoolExecutor

• Executor接口，定义execute()方法，只接收 Runnable 对象。
• ExecutorService接口，定义submit()方法，既可以支持 Runnable ，也支持 Callable。
• AbstractExecutorService类，实现ExecutorService接口，重写submit()方法。
• ThreadPoolExecutor类，继承AbstractExecutorService类，重写execute()。

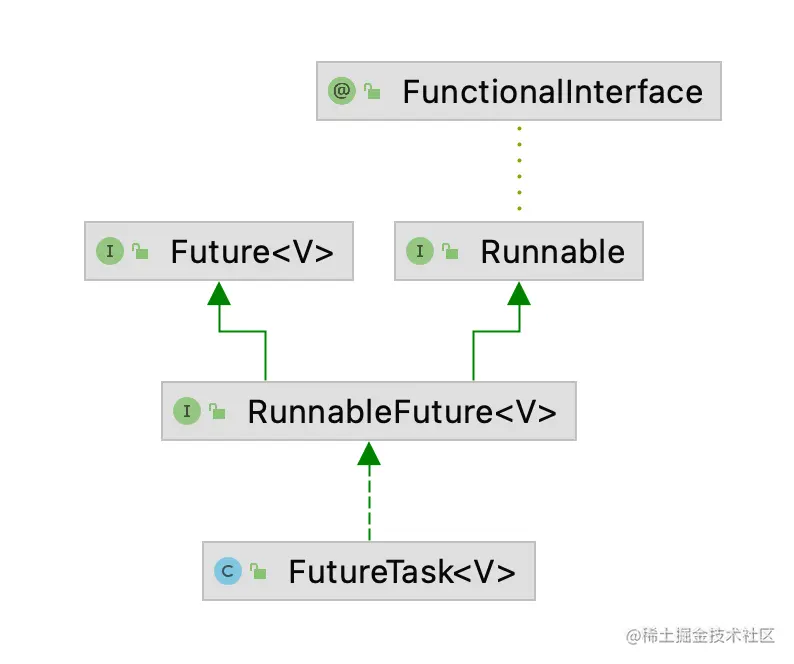

4、Future、RunnableFuture、FutureTask

• Future接口，定义get()方法。
• RunnableFuture接口，继承Runalbe接口和Future接口，一般用来将Callable 转换为 Runnable，也可以得到返回值。
• FutureTask类，实现RunnableFuture接口，执行run()方法。

5、举例

• 新建一个线程池

ExecutorService executorService = new ThreadPoolExecutor(int corePoolSize,
                              int maximumPoolSize,
                              long keepAliveTime,
                              TimeUnit unit,
                              BlockingQueue<Runnable> workQueue,
                              ThreadFactory threadFactory,
                              RejectedExecutionHandler handler)

• 构造Callable/Runnable类，重写Call/Run方法，实现任务的业务逻辑

new Callable<Object>(){
            @Override
            public Object call() throws Exception {

                return "hello,ThreadPool";
            }
        };

• 调用线程池的submit方法提交任务，得到一个Future对象

Future<Object> future = executorService.submit(callable);

• ThreadPoolExecutor继承AbstractExecutorService类，没有重写submit方法，故ExecutorService的submit方法在AbstractExecutorService类中实现

public <T> Future<T> submit(Callable<T> task) {
    if (task == null) throw new NullPointerException();
    RunnableFuture<T> ftask = newTaskFor(task);
    execute(ftask);
    return ftask;
}

• 将Callable/Runnable对象转成RunnableFuture对象，后执行execute方法，具体实现是在ThreadPoolExecutor类里面完成，下面对源码做了删减，其中主要是执行了addWorker方法，提交了任务，如果addWorker方法执行成功，则返回。

    public void execute(Runnable command) {
        if (command == null)
            throw new NullPointerException();
        int c = ctl.get();
        if (workerCountOf(c) < corePoolSize) {
            if (addWorker(command, true))
                return;
            c = ctl.get();
        }
    }

• addWorker方法做了删减如下，其中就是要将Runnable对象作为参数构建Worker对象，将Worker对象里面的线程拿到后执行start方法

    private boolean addWorker(Runnable firstTask, boolean core) {
        boolean workerStarted = false;
        boolean workerAdded = false;
        Worker w = null;
        try {
            w = new Worker(firstTask);
            final Thread t = w.thread;
            if (t != null) {

                if (workerAdded) {
                    t.start();
                    workerStarted = true;
                }
            }
        }
        return workerStarted;
    }

• Worker对象定义如下，实现了Runnable接口，继承AQS类。可以看到Worker构造方法中，传入一个Runnable对象，同时会用此Runnable对象作为参数新建一个线程（没有启动）。上面调用start方法其实就是启动了线程，且start方法会调用了Worker对象的run方法。

private final class Worker
        extends AbstractQueuedSynchronizer
        implements Runnable{
  Worker(Runnable firstTask) {
            setState(-1); // inhibit interrupts until runWorker
            this.firstTask = firstTask;
            this.thread = getThreadFactory().newThread(this);
        }
  public void run() {
            runWorker(this);
        }
}

• Worker对象的run方法实际是调用了runWorker方法，里面再调用了run方法。问题：为什么要做这一步？

    final void runWorker(Worker w) {
        Thread wt = Thread.currentThread();
        Runnable task = w.firstTask;
        w.firstTask = null;
        w.unlock(); // allow interrupts

                    try {
                        task.run();
                        afterExecute(task, null);
                    }
    }

• 上面的run方法实际是执行了FutureTask类的run方法。

public class FutureTask<V> implements RunnableFuture<V> {

  public FutureTask(Callable<V> callable) {
        if (callable == null)
            throw new NullPointerException();
        this.callable = callable;
        this.state = NEW;       // ensure visibility of callable
    }

  public FutureTask(Runnable runnable, V result) {
        this.callable = Executors.callable(runnable, result);
        this.state = NEW;       // ensure visibility of callable
    }

}

• 不管是Runnable还是Callable对象，都会转成Callable对象，执行的run方法如下

    public void run() {

        try {
            Callable<V> c = callable;
            if (c != null && state == NEW) {
                V result;
                boolean ran;
                try {
                    result = c.call();
                    ran = true;
                }
              if (ran)
                    set(result);
            }
        }
    }

• 看到在run方法中会执行Callable对象的call方法，返回的结果，通过set方法放进outcome中（CAS）

    protected void set(V v) {
        if (STATE.compareAndSet(this, NEW, COMPLETING)) {
            outcome = v;
            STATE.setRelease(this, NORMAL); // final state
            finishCompletion();
        }
    }

• 调用get方法获得任务执行结果

try {
            System.out.println(future.get());
        } catch (InterruptedException e) {
            e.printStackTrace();
        } catch (ExecutionException e) {
            e.printStackTrace();
        }

• get方法调用了report方法

    public V get() throws InterruptedException, ExecutionException {
        int s = state;
        if (s <= COMPLETING)
            s = awaitDone(false, 0L);
        return report(s);
    }

• report方法将outcome值返回输出

    private V report(int s) throws ExecutionException {
        Object x = outcome;
        if (s == NORMAL)
            return (V)x;
        if (s >= CANCELLED)
            throw new CancellationException();
        throw new ExecutionException((Throwable)x);
    }
