Activiti6.0引擎配置

概述

Activiti流程引擎配置

流程引擎配置类的作用

ProcessEngineConfiguration

• 查找并解析xml配置文件activiti.cfg.xml
• 提供多个静态方法创建配置对象
• 实现几个基于不同场景的子类，配置方式灵活

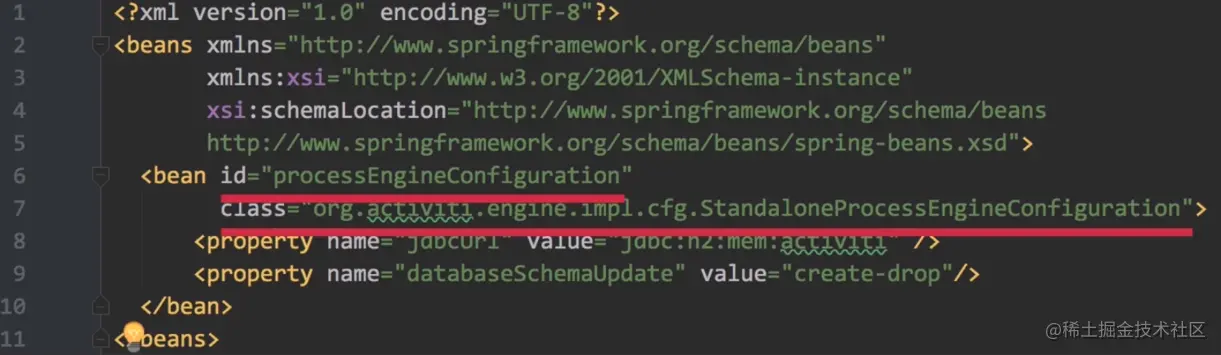

activiti.cfg.xml

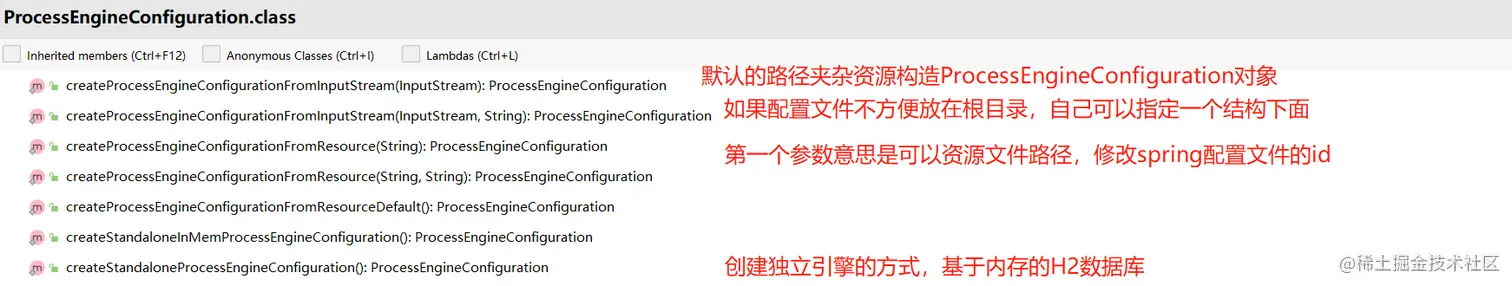

静态方法创建配置对象

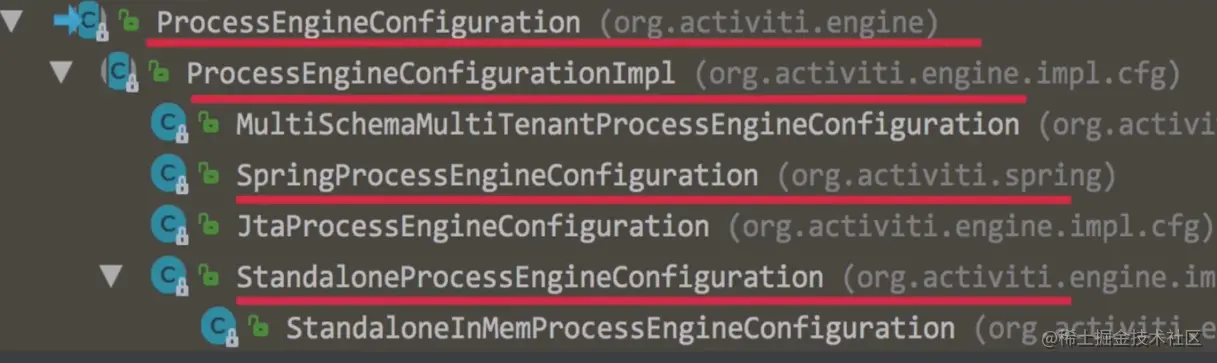

多个子类适配不同场景

ProcessEngineConfiguration 类

• ProcessEngineConfigurationImpl 它不是一个实现类是一个抽象类，配置ProcessEngineConfiguration百分之80的属性和一些get，set方法
• StandloneProcessEngineConfiguration 根据new的方式创建对象,使用java代码调用策略方法
• SpringProcessEngineConfiguration 基于Spring的集成Spring对它的功能扩展数据源扩展，事物扩展定一个了一个事物可以装载的目录

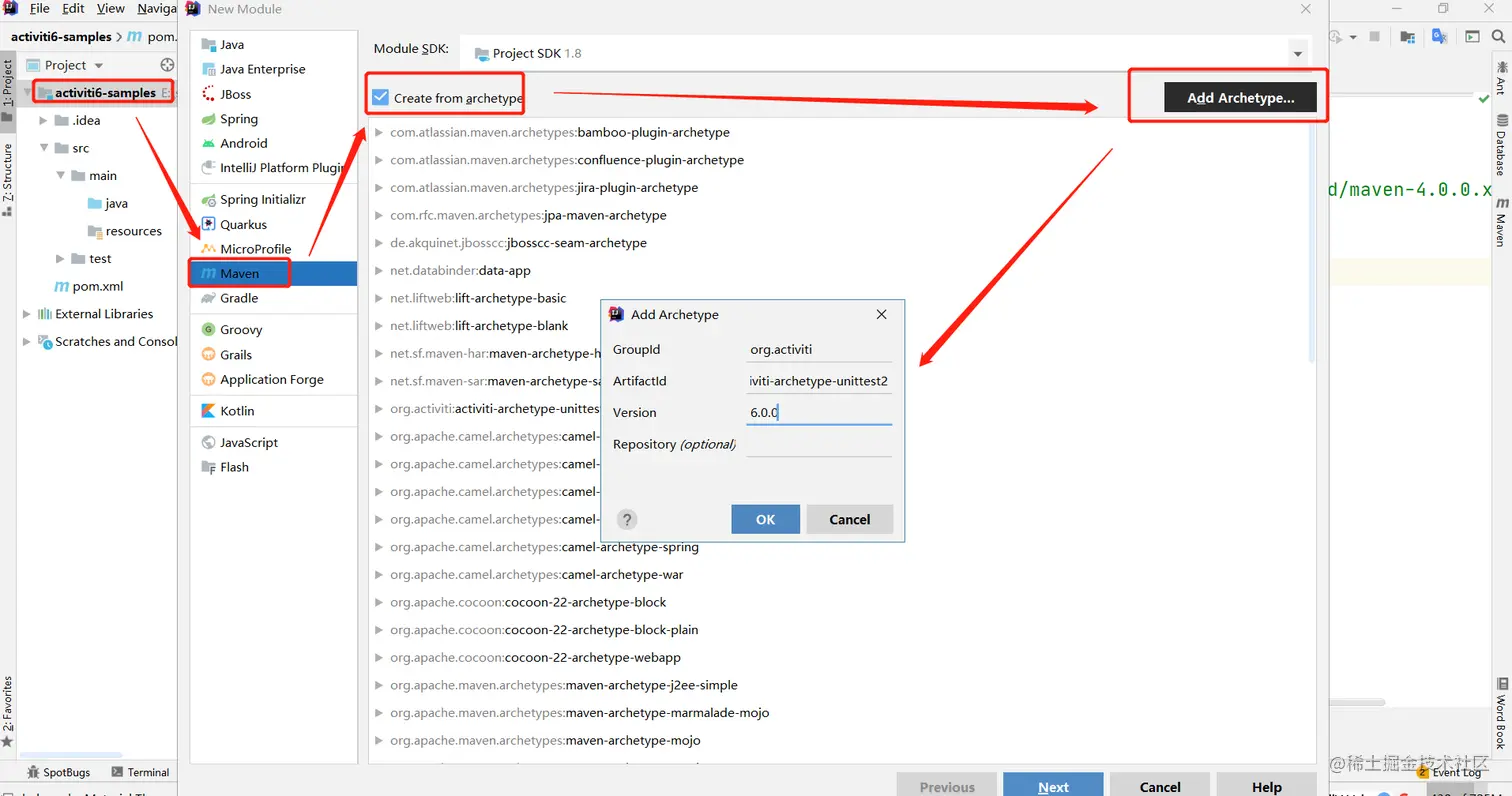

创建流程引擎配置-archetype

创建脚手架

• 工程目录位置 Activiti-boot2/tooling/activiti-archetype-unittest

擎配置-config_samples

创建流程引擎配置-config_samples

createProcessEngineConfigurationFromResourceDefault

• 代码如下

public class ConfigTest {
    private static final Logger LOGGER = LoggerFactory.getLogger(ConfigTest.class);

    @Test
    public void testConfig1() {
        ProcessEngineConfiguration configuration = ProcessEngineConfiguration
                .createProcessEngineConfigurationFromResourceDefault();

        LOGGER.info("configuration = {}", configuration);
    }
}

• 日志打印结果如下

  09:58:22.914[main][INFO ]Loading XML bean definitions from class path resource [activiti.cfg.xml]  ProcessDefinitionId= executionId= mdcProcessInstanceID= mdcBusinessKey= o.s.b.f.x.XmlBeanDefinitionReader.loadBeanDefinitions:316


  09:58:23.682[main][INFO ]configuration = org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration@279fedbd  ProcessDefinitionId= executionId= mdcProcessInstanceID= mdcBusinessKey= c.ConfigTest.testConfig1:21

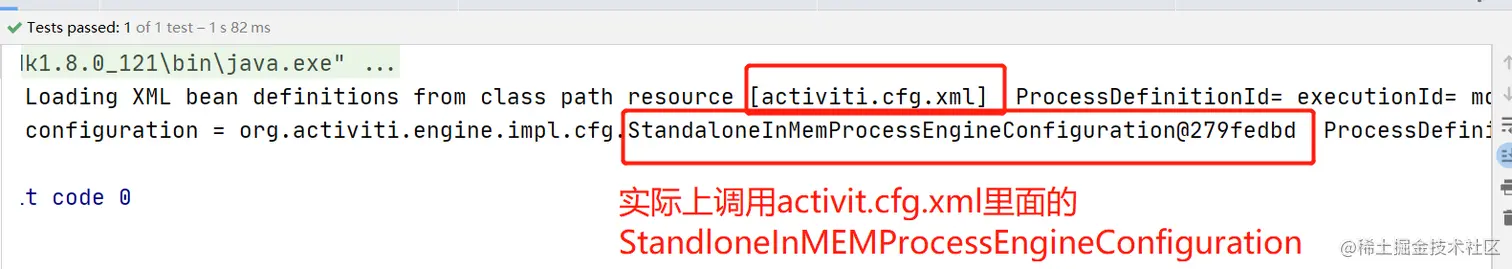

  日志分析如下

createStandaloneInMemProcessEngineConfiguration

代码如下

    @Test
    public void testConfig2() {
        ProcessEngineConfiguration configuration = ProcessEngineConfiguration
                .createStandaloneInMemProcessEngineConfiguration();
        LOGGER.info("configuration = {}", configuration);
    }

打印日志如下

10:15:47.331[main][INFO ]configuration = org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration@78e94dcf  ProcessDefinitionId= executionId= mdcProcessInstanceID= mdcBusinessKey= c.ConfigTest.testConfig2:28

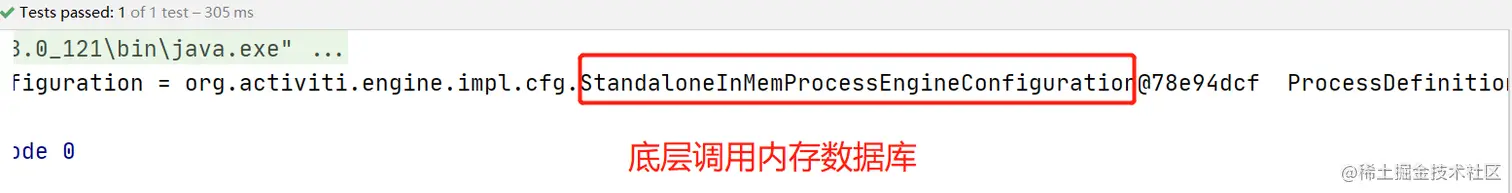

日志分析如下

源码分析

createStandaloneInMemProcessEngineConfiguration

ProcessEngineConfiguration
        .createStandaloneInMemProcessEngineConfiguration()

• 底层源码分析得到

• 实质上调用了h2数据库

• 不依赖Spring

  public class StandaloneInMemProcessEngineConfiguration extends StandaloneProcessEngineConfiguration {
      public StandaloneInMemProcessEngineConfiguration() {
          this.databaseSchemaUpdate = "create-drop";
          this.jdbcUrl = "jdbc:h2:mem:activiti";
      }
  }


createProcessEngineConfigurationFromResourceDefault

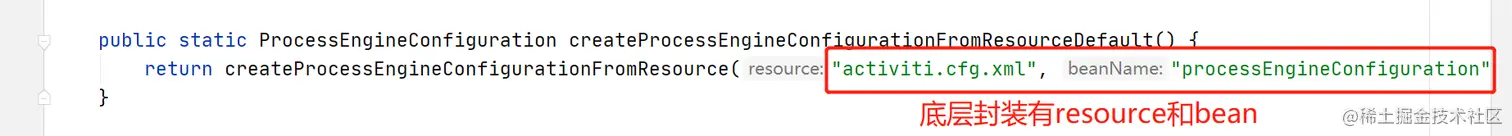

• 点击进入下一层源码

  public static ProcessEngineConfiguration createProcessEngineConfigurationFromResourceDefault() {
          return createProcessEngineConfigurationFromResource("activiti.cfg.xml", "processEngineConfiguration");
      }

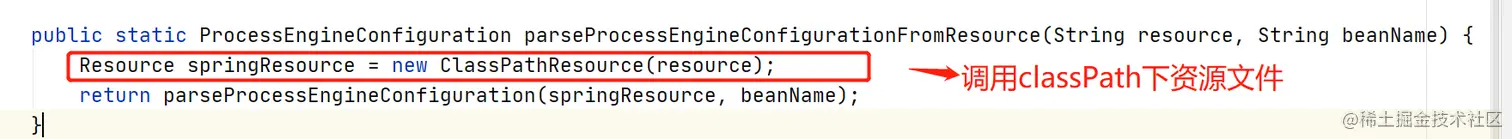

• 获取classPath下的resource文件

  public static ProcessEngineConfiguration parseProcessEngineConfigurationFromResource(String resource, String beanName) {
          Resource springResource = new ClassPathResource(resource);
          return parseProcessEngineConfiguration(springResource, beanName);
      }

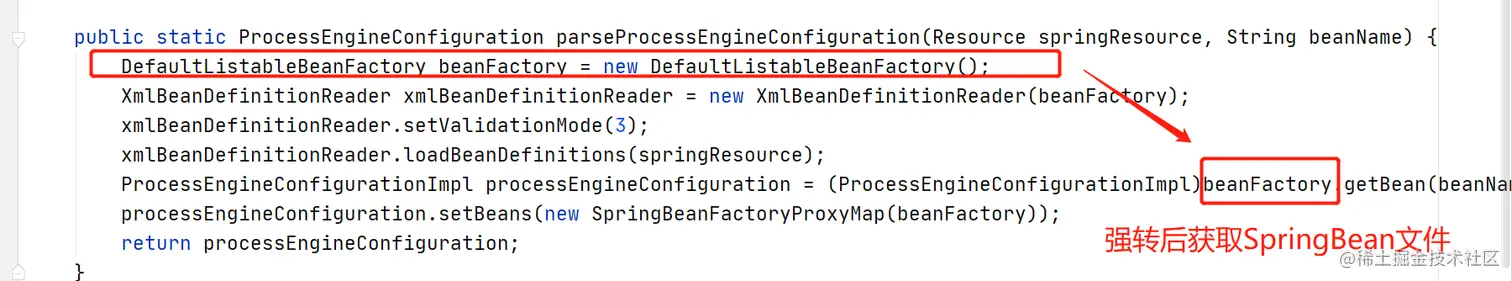

• 和SpringBean文件一起组装一起

  public static ProcessEngineConfiguration parseProcessEngineConfiguration(Resource springResource, String beanName) {
          DefaultListableBeanFactory beanFactory = new DefaultListableBeanFactory();
          XmlBeanDefinitionReader xmlBeanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
          xmlBeanDefinitionReader.setValidationMode(3);
          xmlBeanDefinitionReader.loadBeanDefinitions(springResource);
          ProcessEngineConfigurationImpl processEngineConfiguration = (ProcessEngineConfigurationImpl)beanFactory.getBean(beanName);
          processEngineConfiguration.setBeans(new SpringBeanFactoryProxyMap(beanFactory));
          return processEngineConfiguration;
      }


ProcessEngineConfiguration 源码分析

ProcessEngineConfigurationImp是继承ProcessEngineConfiguration类

  // false 是不会对数据库做修改的
  public static final String DB_SCHEMA_UPDATE_FALSE = "false";
  // 启动时候创建销毁的时候销毁
  public static final String DB_SCHEMA_UPDATE_CREATE_DROP = "create-drop";
  public static final String DB_SCHEMA_UPDATE_TRUE = "true";
  public static final String NO_TENANT_ID = "";
  protected String processEngineName = "default";

  // 集成邮件的配置
  protected String mailServerHost;
  protected String mailServerUsername;
  protected String mailServerPassword;

  // 默认是使用的H2数据库，生产环境默认不推荐使用
  this.databaseSchemaUpdate = "false";
  this.jdbcDriver = "org.h2.Driver";
  this.jdbcUrl = "jdbc:h2:tcp://localhost/~/activiti";

  // 生成流程图设置字体
   this.xmlEncoding = "UTF-8";
   this.defaultCamelContext = "camelContext";
   this.activityFontName = "Arial";
   this.labelFontName = "Arial";
   this.annotationFontName = "Arial";

  // 对流程图渲染生成渲染的工具
  public ProcessDiagramGenerator getProcessDiagramGenerator() {
      return this.processDiagramGenerator;
  }

 // 对数据库表名生成做配置
 this.databaseTablePrefix = "";

最重要的方法

  @Override
  public ProcessEngine buildProcessEngine() {
    init();
    ProcessEngineImpl processEngine = new ProcessEngineImpl(this);

    // trigger build of Activiti 5 Engine
    if (isActiviti5CompatibilityEnabled && activiti5CompatibilityHandler != null) {
      Context.setProcessEngineConfiguration(processEngine.getProcessEngineConfiguration());
      activiti5CompatibilityHandler.getRawProcessEngine();
    }

    postProcessEngineInitialisation();

    return processEngine;
  }

• init()

  public void init() {
      initConfigurators();
      configuratorsBeforeInit();
      initProcessDiagramGenerator();
      initHistoryLevel();
      initExpressionManager();

      if (usingRelationalDatabase) {
        initDataSource();
      }

      initAgendaFactory();
      initHelpers();
      initVariableTypes();
      initBeans();
      initFormEngines();
      initFormTypes();
      initScriptingEngines();
      initClock();
      initBusinessCalendarManager();
      initCommandContextFactory();
      initTransactionContextFactory();
      initCommandExecutors();
      initServices();
      initIdGenerator();
      initBehaviorFactory();
      initListenerFactory();
      initBpmnParser();
      initProcessDefinitionCache();
      initProcessDefinitionInfoCache();
      initKnowledgeBaseCache();
      initJobHandlers();
      initJobManager();
      initAsyncExecutor();

      initTransactionFactory();

      if (usingRelationalDatabase) {
        initSqlSessionFactory();
      }

      initSessionFactories();
      initDataManagers();
      initEntityManagers();
      initHistoryManager();
      initJpa();
      initDeployers();
      initDelegateInterceptor();
      initEventHandlers();
      initFailedJobCommandFactory();
      initEventDispatcher();
      initProcessValidator();
      initDatabaseEventLogging();
      initActiviti5CompatibilityHandler();
      configuratorsAfterInit();
    }

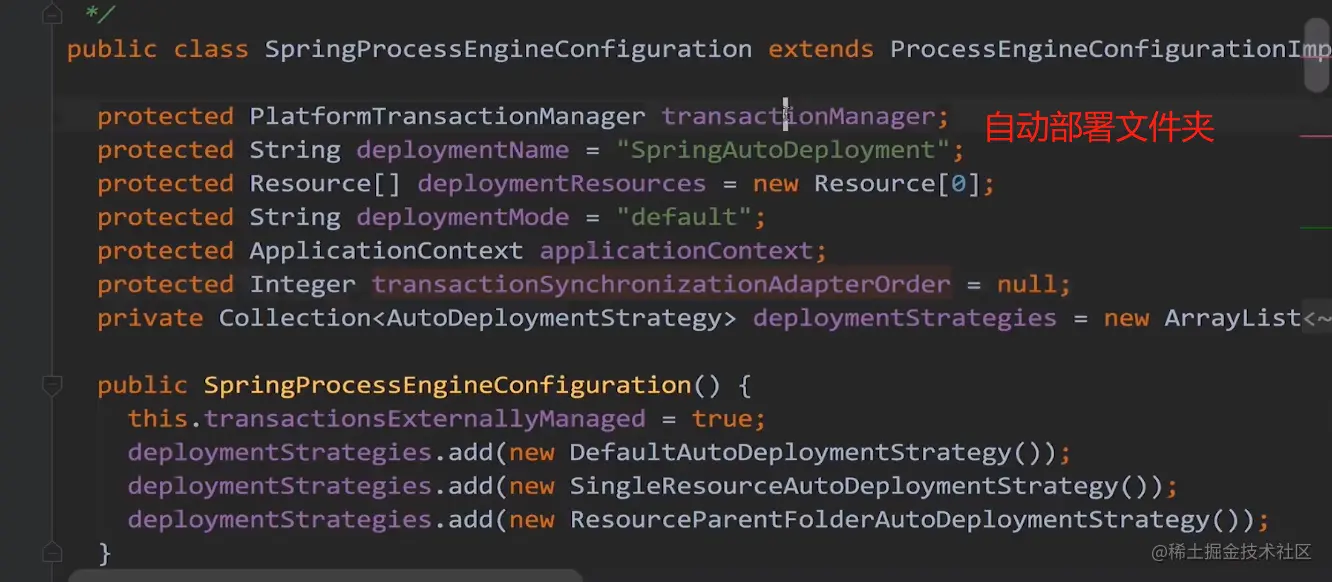

SpringProcessEngineConfiguration

数据库配置-dbconfig

数据库配置

• 确实默认配置，使用H2内存数据库

• 配置JDBC属性，使用Mybatis提供的连接池

• 配置DataSource，可自选第三方实现

• 配置JDBC属性使用mybatis提供的连接池

数据原配置

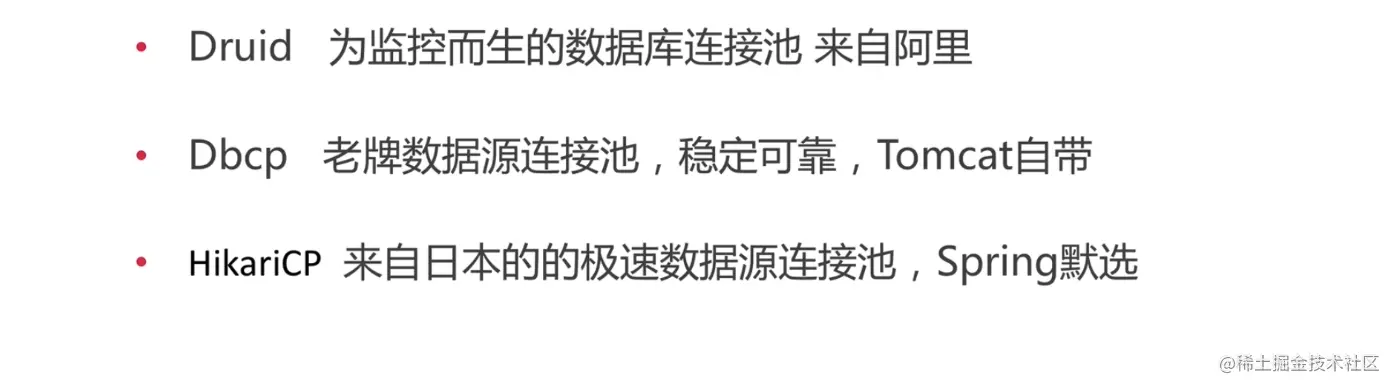

• 配置第三方实现的DataSource

• Druid 数据源连接池

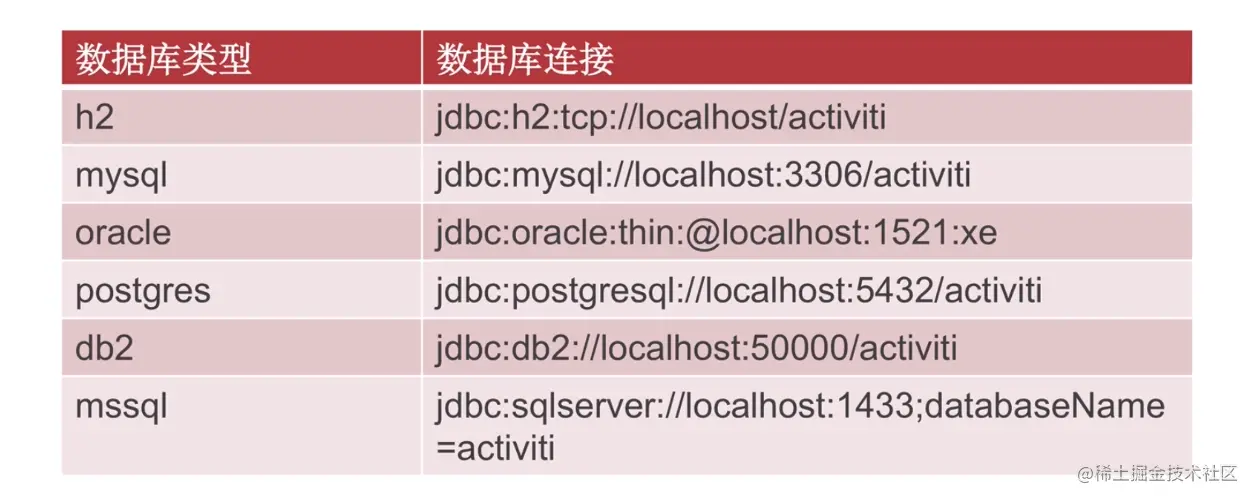

支持的数据库类型

• 配置databaseType

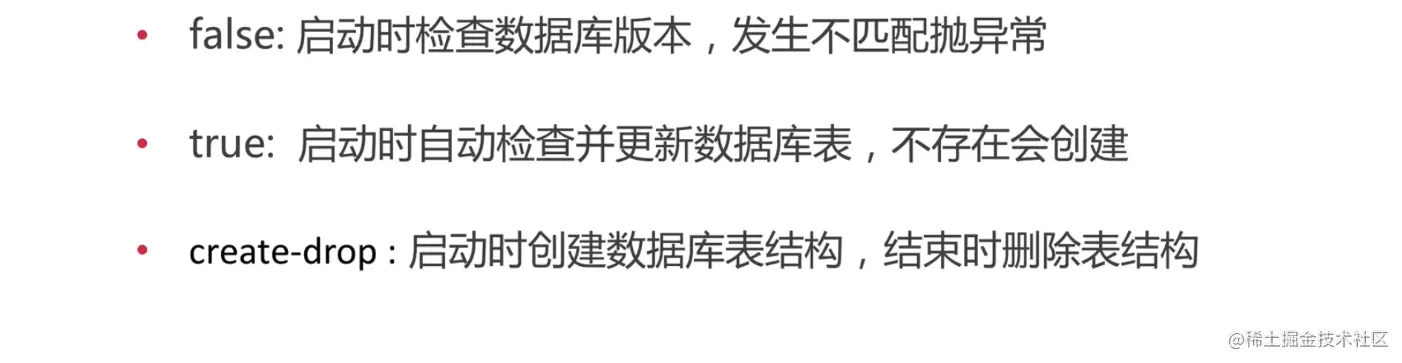

数据库更新策略

• 配置dataSourceSchemaUpdate

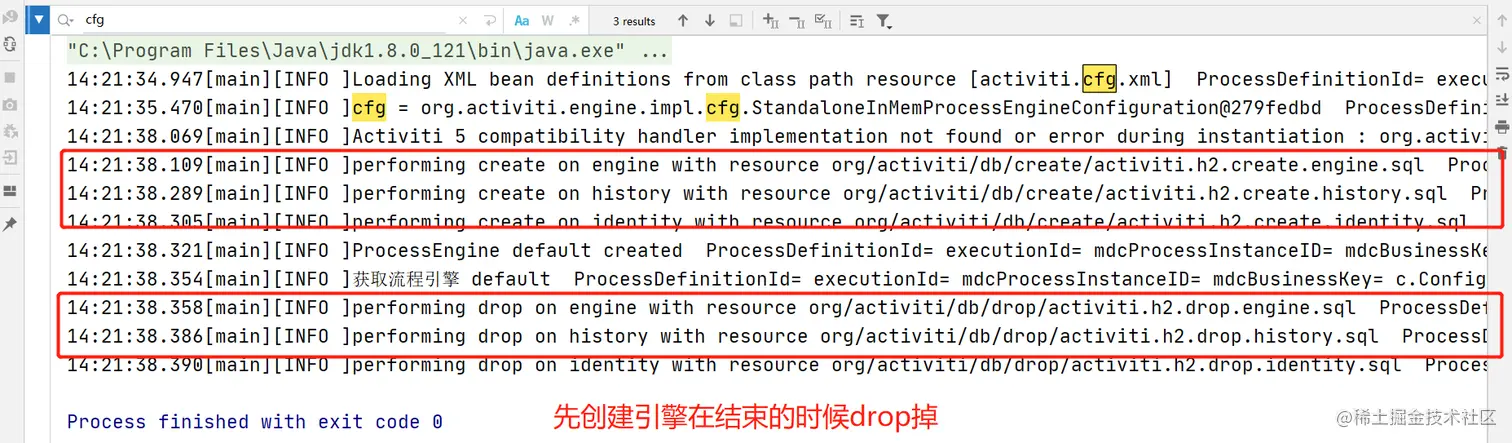

数据库配置-dbconfig_code

使用默认数据创建数据源

• Java代码

public class ConfigDBTests {
    private static final Logger LOGGER = LoggerFactory.getLogger(ConfigDBTests.class);

    @Test
    public void testConfig1() {
        ProcessEngineConfiguration cfg = ProcessEngineConfiguration.createProcessEngineConfigurationFromResourceDefault();
        LOGGER.info("cfg = {}", cfg);
        ProcessEngine processEngine = cfg.buildProcessEngine(); // 创建引擎
        LOGGER.info("获取流程引擎 {}", processEngine.getName());
        processEngine.close();
    }
}

• activiti.cfg.xml配置

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd">

      <bean id="processEngineConfiguration"
            class="org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration">
          <property name="jdbcUrl"
                    value="jdbc:mysql://localhost:3306/activiti6unit?useUnicode=true&amp;characterEncoding=utf-8&amp;useSSL=false"/>
          <property name="jdbcDriver" value="com.mysql.jdbc.Driver"/>
          <property name="jdbcUsername" value="root"/>
          <property name="jdbcPassword" value="root123456"/>
          <property name="databaseSchemaUpdate" value="create-drop"/> <!--避免忽略把这个加上-->
          <!--        <property name="databaseSchemaUpdate" value="true"/>--><!--这样配置就算数据库里面有表也会执行过去，但是单元测试遗留的脏数据会遗留在库里面-->
      </bean>

  </beans>

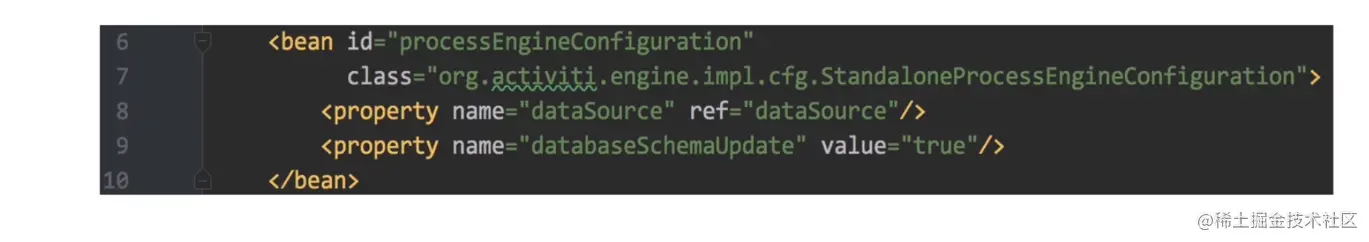

使用DataSource数据源的方式

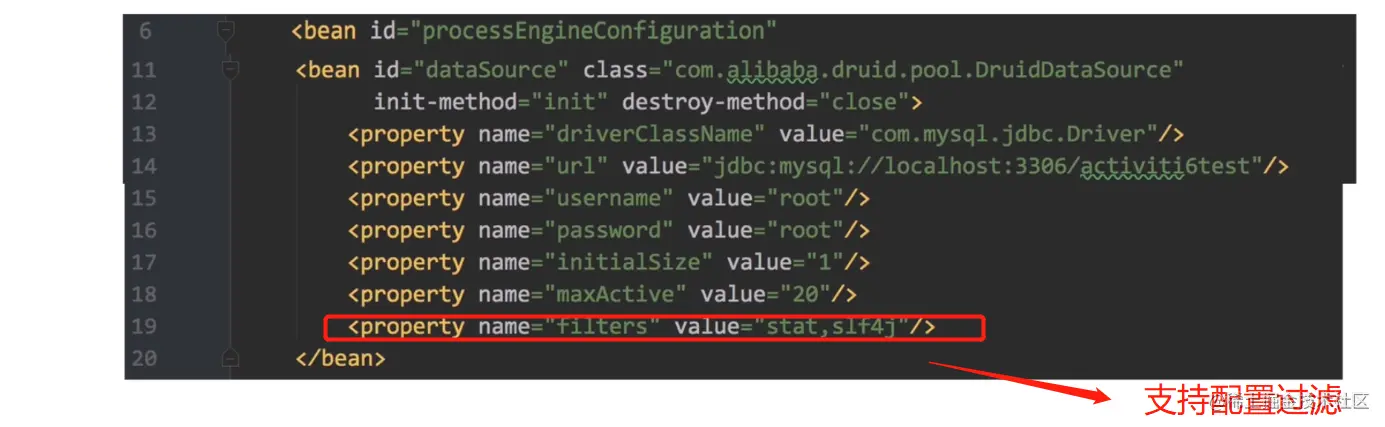

• 使用Druid数据源
• JavaTest代码

    @Test
    public void testConfig2() {
        ProcessEngineConfiguration processEngineConfiguration = ProcessEngineConfiguration
                .createProcessEngineConfigurationFromResource("activiti_druid.cfg.xml");
        LOGGER.info("processEngineConfiguration = {}", processEngineConfiguration);
        ProcessEngine processEngine = processEngineConfiguration.buildProcessEngine();
        LOGGER.info("获取流程引擎 = {}", processEngine.getName());
        processEngine.close();
    }

• activiti_druid.cfg.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd">

      <bean id="processEngineConfiguration"
            class="org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration">
          <!--
                  这样配置就算数据库里面有表也会执行过去，但是单元测试遗留的脏数据会遗留在库里面
          -->
          <property name="databaseSchemaUpdate" value="true"/>
          <property name="dataSource" ref="dataSource"/>
          <property name="dbHistoryUsed" value="true"/>
          <property name="dbIdentityUsed" value="true"/>
          <property name="databaseTablePrefix" value="t_"/>
          <property name="databaseType" value="mysql"/>
      </bean>
      <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
          <property name="url"
                    value="jdbc:mysql://localhost:3306/activiti6unit?useUnicode=true&amp;characterEncoding=utf-8&amp;useSSL=false"/>
          <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
          <property name="username" value="root"/>
          <property name="password" value="root123456"/>
          <property name="initialSize" value="1"/>
          <property name="maxActive" value="10"/>
          <property name="filters" value="stat,sl4j"/>
    </bean>
  </beans>



日志记录配置-logging

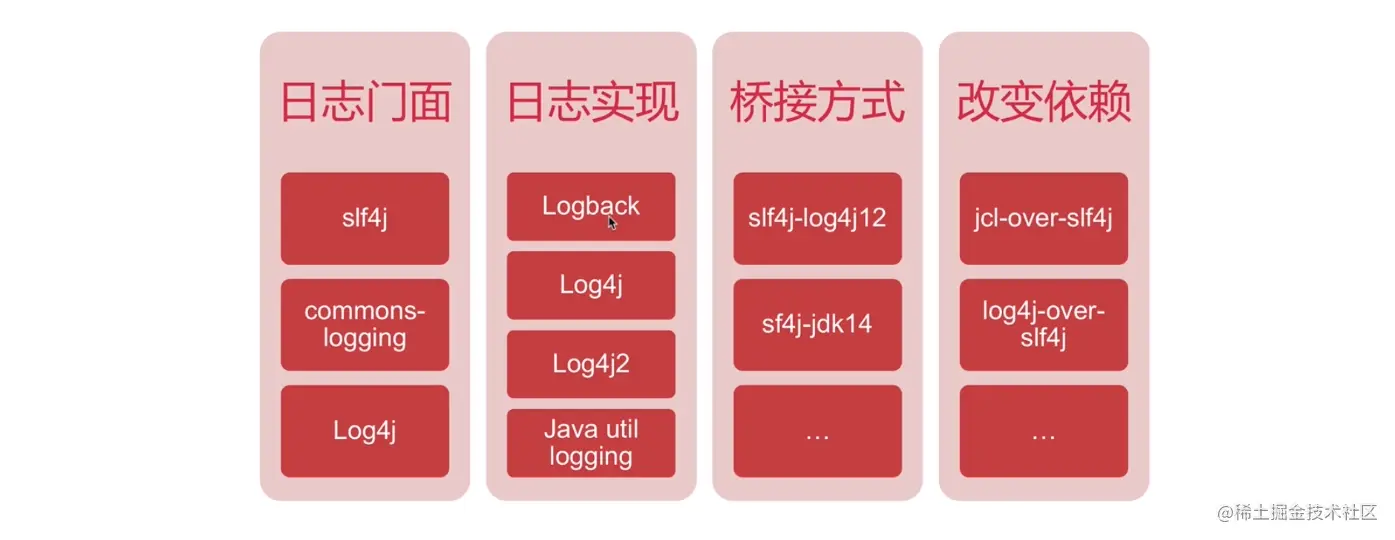

日志组件的关系级MDC

日志组件

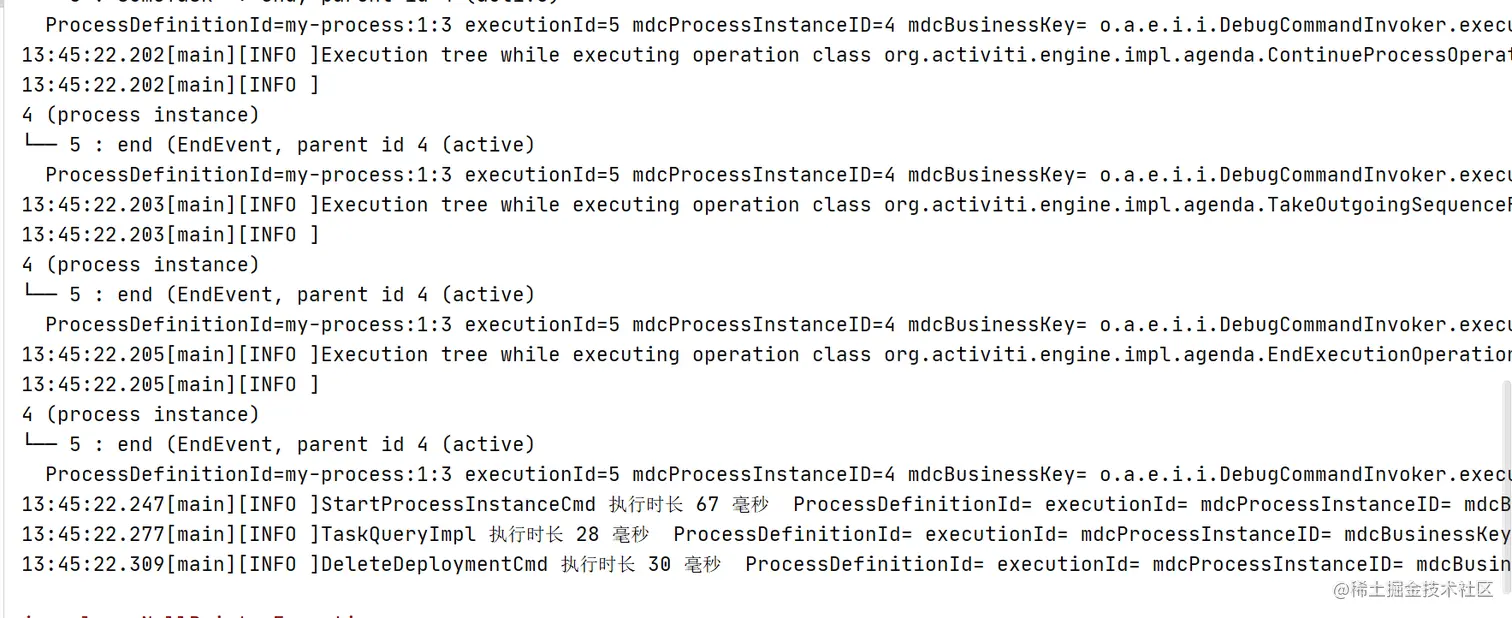

日志记录与MDC

配置开启MDC(Mapped Diagnostic Contexts)

• 默认没有开启，需要手动设置LogMDC.setMDCEnable(true)
• 配置logback.xml日志模板%X{mdcProcessInstanceID}

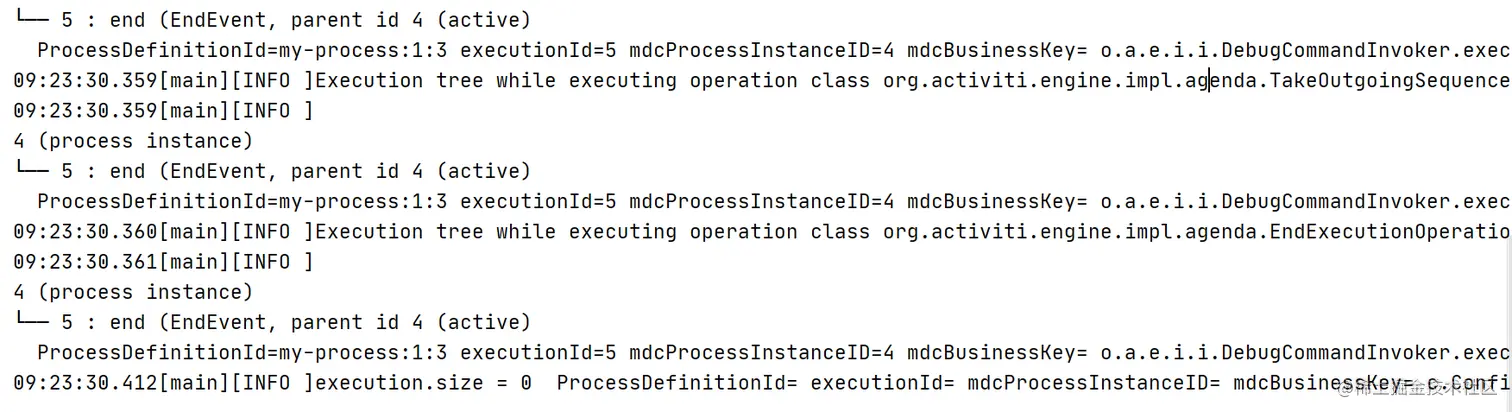

• 流程只有在执行的过程中出现异常时才会记录MDC信息

配置HistoryLevel

• none:不记录历史流程，性能高，流程结束后不可读取
• activiti：归档流程实例和活动实例，流程变量不同步
• audit: 默认值，在acitviti基础上同步变量值，保存单表属性
• full：性能比较差，记录所有实例和变量细节变化

配置基于DB的事件日志

配置Event Logging

• 实验性的事件记录机制，性能影响较大
• 开启默认记录所有数据的变化过程，表记录快速增长
• 日志内容JSON格式,建议使用mogoDB，Elastic Search

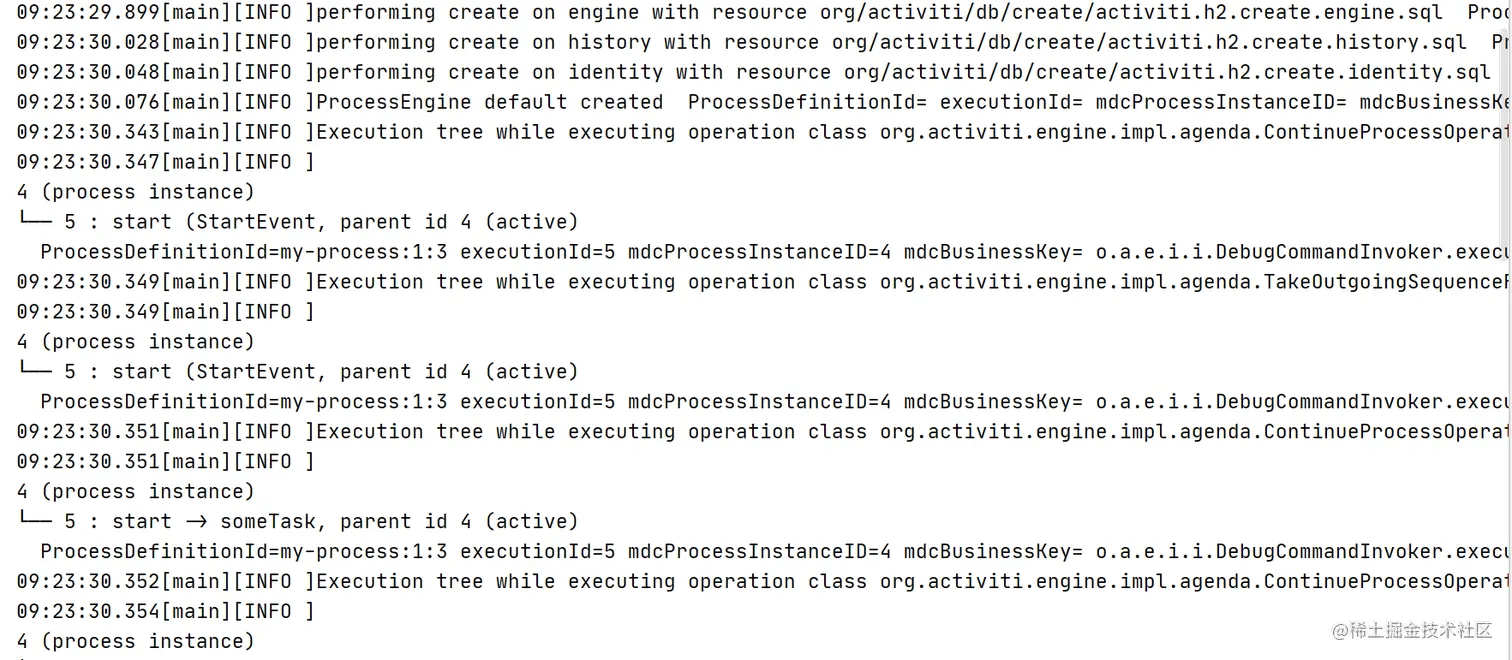

日志记录配置-logging_mdc

java配置测试类

public class ConfigMDCTests {
    private static final Logger LOGGER = LoggerFactory.getLogger(ConfigMDCTests.class);

    @Rule
    public ActivitiRule activitiRule = new ActivitiRule();

    @Test
    @Deployment(resources = {"com/imooc/activiti/my-process.bpmn20.xml"})
    public void test() {
        LogMDC.setMDCEnabled(true);
        ProcessInstance processInstance = activitiRule.getRuntimeService().startProcessInstanceByKey("my-process");
        assertNotNull(processInstance);

        Task task = activitiRule.getTaskService().createTaskQuery().singleResult();
        assertEquals("Activiti is awesome!", task.getName());
        activitiRule.getTaskService().complete(task.getId());
    }


}

my-process.bpmn20.xml

<?xml version="1.0" encoding="UTF-8"?>

<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:activiti="http://activiti.org/bpmn"
             xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
             xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
             xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema"
             expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/test">

    <process id="my-process">

        <startEvent id="start"/>
        <sequenceFlow id="flow1" sourceRef="start" targetRef="someTask"/>

        <!--		<userTask id="someTask" name="Activiti is awesome!" />-->
        <serviceTask id="someTask" activiti:class="com.imooc.activiti.delegage.MDCErrorDelegage"/>
        <sequenceFlow id="flow2" sourceRef="someTask" targetRef="end"/>

        <endEvent id="end"/>

    </process>

</definitions>

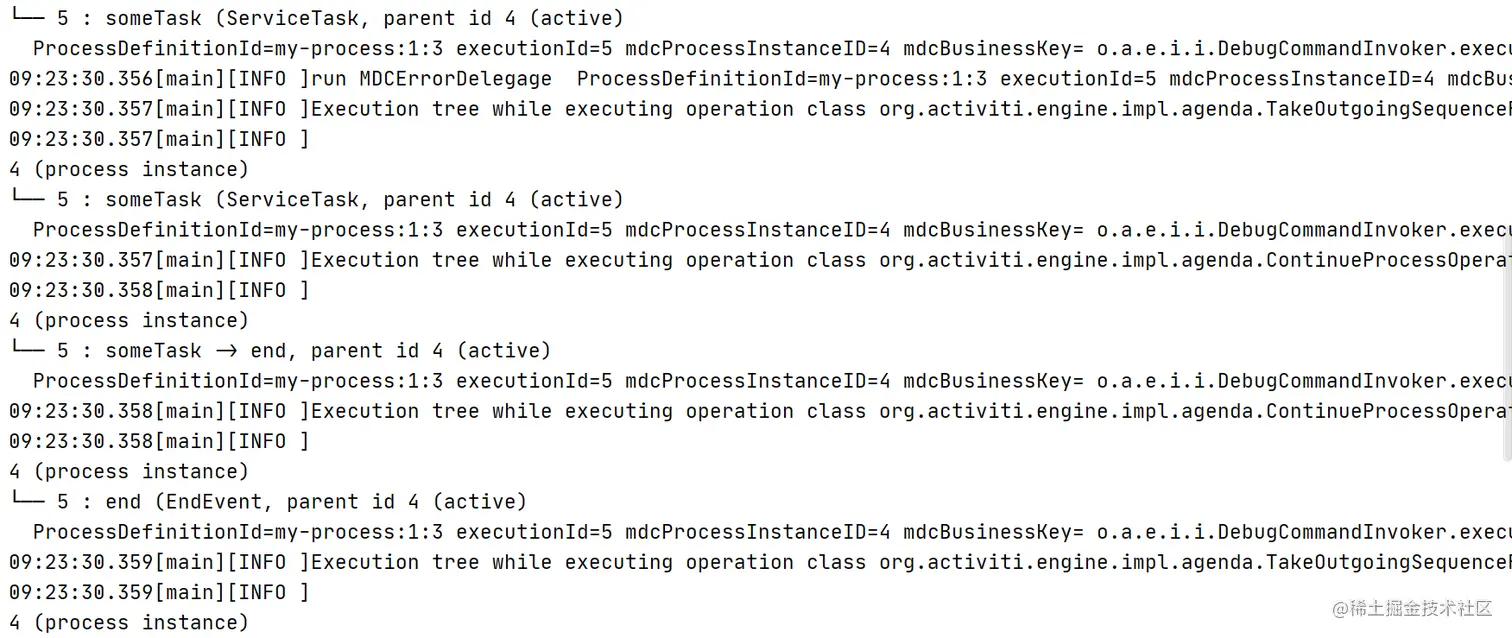

测试异常类

public class MDCErrorDelegage implements JavaDelegate {
    private static final Logger LOGGER = LoggerFactory.getLogger(MDCErrorDelegage.class);


    @Override
    public void execute(DelegateExecution execution) {
        LOGGER.info("run MDCErrorDelegage");
        throw new RuntimeException("only test");
    }
}

历史记录配置-history-1

Java代码，xml代码如下

• ConfigHistoryLevelTests

public class ConfigHistoryLevelTests {
    private static final Logger LOGGER = LoggerFactory.getLogger(ConfigHistoryLevelTests.class);

    @Rule
    public ActivitiRule activitiRule = new ActivitiRule("activiti_history.cfg.xml");

    @Test
    @Deployment(resources = {"com/imooc/activiti/my-process.bpmn20.xml"})
    public void test() {
        // 启动流程
        startProcessInstance();

        // 修改变量
        changeVariable();

        // 提交表单 task
        submitTaskFormData();

        // 输出历史内容
        // 输出历史活动
        showHistoryActivity();

        // 输出历史变量
        showHistoryVariable();

        // 输出历史用户任务
        showHistoryTask();

        // 输出历史表单
        showHistoryForm();

        // 输出历史详情
        showHistoricDetails();

    }

    private void showHistoricDetails() {
        List<HistoricDetail> historicDetails = activitiRule.getHistoryService()
                .createHistoricDetailQuery().listPage(0, 100);
        for (HistoricDetail historicDetail : historicDetails) {
            LOGGER.info("historicDetail = {}", toString(historicDetail));
        }
        LOGGER.info("historicDetail.size() = {}", historicDetails.size());
    }

    private void showHistoryForm() {
        List<HistoricDetail> historicDetailForm = activitiRule.getHistoryService()
                .createHistoricDetailQuery().listPage(0, 100);
        for (HistoricDetail historicDetail : historicDetailForm) {
            LOGGER.info("historicDetail = {}", toString(historicDetail));
        }
        LOGGER.info("historicDetailForm.size = {}", historicDetailForm.size());
    }

    private void showHistoryTask() {
        List<HistoricTaskInstance> historicTaskInstances = activitiRule.getHistoryService()
                .createHistoricTaskInstanceQuery().listPage(0, 100);
        for (HistoricTaskInstance historicTaskInstance : historicTaskInstances) {
            LOGGER.info("historicTaskInstance = {}", historicTaskInstance);
        }
        LOGGER.info("historicTaskInstance.size = {}", historicTaskInstances.size());
    }

    private void showHistoryVariable() {
        List<HistoricVariableInstance> historicVariableInstances = activitiRule.getHistoryService()
                .createHistoricVariableInstanceQuery()
                .listPage(0, 100);
        for (HistoricVariableInstance historicVariableInstance : historicVariableInstances) {
            LOGGER.info("historicVariableInstance = {}", historicVariableInstance);
        }
        LOGGER.info("historicVariableInstance.size() = {}", historicVariableInstances.size());
    }

    private void showHistoryActivity() {
        List<HistoricActivityInstance> historicActivityInstances = activitiRule.getHistoryService()
                .createHistoricActivityInstanceQuery().listPage(0, 100);
        for (HistoricActivityInstance historicActivityInstance : historicActivityInstances) {
            LOGGER.info("historicActivityInstance {} =", historicActivityInstance);
        }
        LOGGER.info("historicActivityInstance.size = {}", historicActivityInstances.size());
    }

    private void submitTaskFormData() {
        Task task = activitiRule.getTaskService().createTaskQuery().singleResult();
        HashMap<String, String> properties = Maps.newHashMap();
        properties.put("formkey1", "valuef1");
        properties.put("formkey2", "valuef2");
        activitiRule.getFormService().submitStartFormData(task.getId(), properties);
    }

    private void changeVariable() {
        List<Execution> executions = activitiRule.getRuntimeService().createExecutionQuery()
                .listPage(0, 100);
        for (Execution execution : executions) {
            LOGGER.info("execution ={}", execution);
        }
        LOGGER.info("execution.size = {}", executions.size());
        String id = executions.iterator().next().getId();
        activitiRule.getRuntimeService().setVariable(id, "keyStart1", "value1_");
    }

    private void startProcessInstance() {
        HashMap<String, Object> params = Maps.newHashMap();
        params.put("keyStart1", "value1");
        params.put("keyStart2", "value2");
        ProcessInstance processInstance = activitiRule.getRuntimeService()
                .startProcessInstanceByKey("my-process");
    }

    static String toString(HistoricDetail historicDetail) {
        return ToStringBuilder.reflectionToString(historicDetail, ToStringStyle.SHORT_PREFIX_STYLE);
    }


}

• activiti_history.cfg.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="processEngineConfiguration"
          class="org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration">
      <property name="commandInvoker" ref="commandInvoker"/>
      <!--<property name="history" value="none"/>-->
      <!--<property name="history" value="activity"/>-->
      <!--<property name="history" value="audit"/>-->
      <property name="history" value="none"/>
    </bean>
    <bean id="commandInvoker" class="com.imooc.activiti.interceptor.MDCComandInvoker"/>

  </beans>



• 拦截器（MDCComandInvoker）

  public class MDCComandInvoker extends DebugCommandInvoker {
      @Override
      public void executeOperation(Runnable runnable) {
          boolean mdcEnabled = LogMDC.isMDCEnabled(); // 获取是否生效
          LogMDC.setMDCEnabled(true);
          if (runnable instanceof AbstractOperation) {
              AbstractOperation operation = (AbstractOperation) runnable;
              if (operation.getExecution() != null) {
                  LogMDC.putMDCExecution(operation.getExecution());
              }
          }
          super.executeOperation(runnable);
          LogMDC.clear();
          if (!mdcEnabled) {
              LogMDC.setMDCEnabled(false);
          }
      }
  }


• 测试结果

事件处理及监听器配置-eventlog

Java代码及xml代码

public class ConfigEventLogTests {
    private static final Logger LOGGER = LoggerFactory.getLogger(ConfigEventLogTests.class);

    @Rule
    public ActivitiRule activitiRule = new ActivitiRule("activiti_eventlog.cfg.xml");

    @Test
    @Deployment(resources = {"com/imooc/activiti/my-process.bpmn20.xml"})
    public void test() {
        ProcessInstance processInstance = activitiRule.getRuntimeService()
                .startProcessInstanceByKey("my-process");
        Task task = activitiRule.getTaskService().createTaskQuery().singleResult();
        activitiRule.getTaskService().complete(task.getId());
        List<EventLogEntry> eventLogEntries = activitiRule.getManagementService()
                .getEventLogEntriesByProcessInstanceId(processInstance.getProcessInstanceId());
        for (EventLogEntry eventLogEntry : eventLogEntries) {
            LOGGER.info("eventLogEntry.type = {},eventLogEntry.data = {}", eventLogEntry.getType(), eventLogEntry.getData());
        }
        LOGGER.info("eventLogEntries.size = {}", eventLogEntries.size());
    }


}

• activiti_eventlog.cfg.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="processEngineConfiguration"
          class="org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration">
        <property name="commandInvoker" ref="commandInvoker"/>
        <property name="enableDatabaseEventLogging" value="true"/>
    </bean>
    <bean id="commandInvoker" class="com.imooc.activiti.interceptor.MDCComandInvoker"/>

</beans>

事件处理及监听器配置-eventLinstener-1

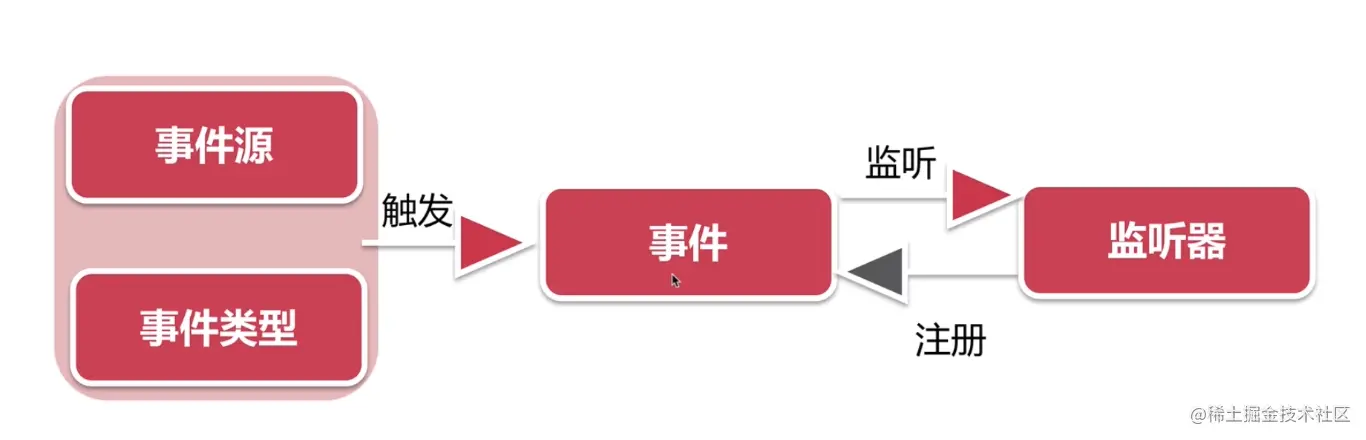

监听器原理

• 监听器
• 事件源 ：是流程引擎对象
• 事件类型：创建类型

监听器配置方式

配置Listener

• eventListener:监听所有事件派发通知
• typeEventListerners: 监听指定事件类型的通知
• activiti:eventListener:只监听特定流程事件

Activiti的事件监听

相关API

• ActivitiEvent:事件监听
• ActivitiEventListener:监听器(所有类的监听抽象接口)
• ActivitiEventType:事件类型（是一个枚举类型30多个枚举类型）

事件处理及监听器配置-eventLinstener-2

监听器的配置方式

Activiti的事件监听

命令拦截器配置-command-1

命令模式和责任链模式

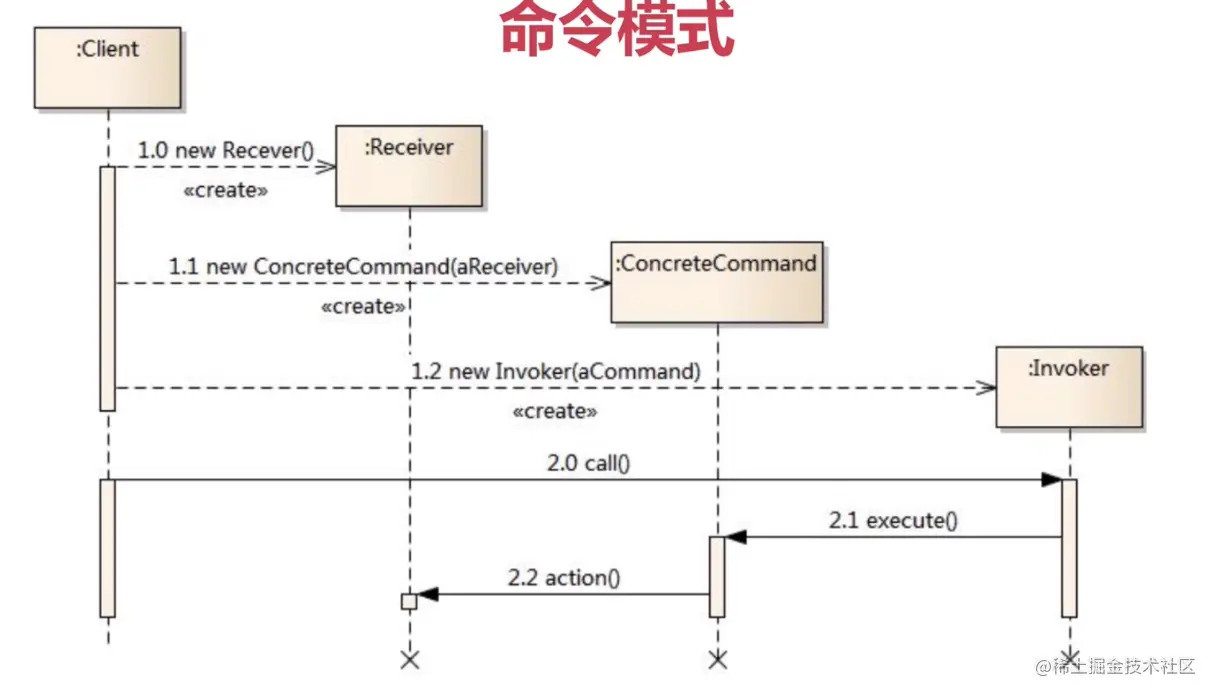

命令模式

责任链模式

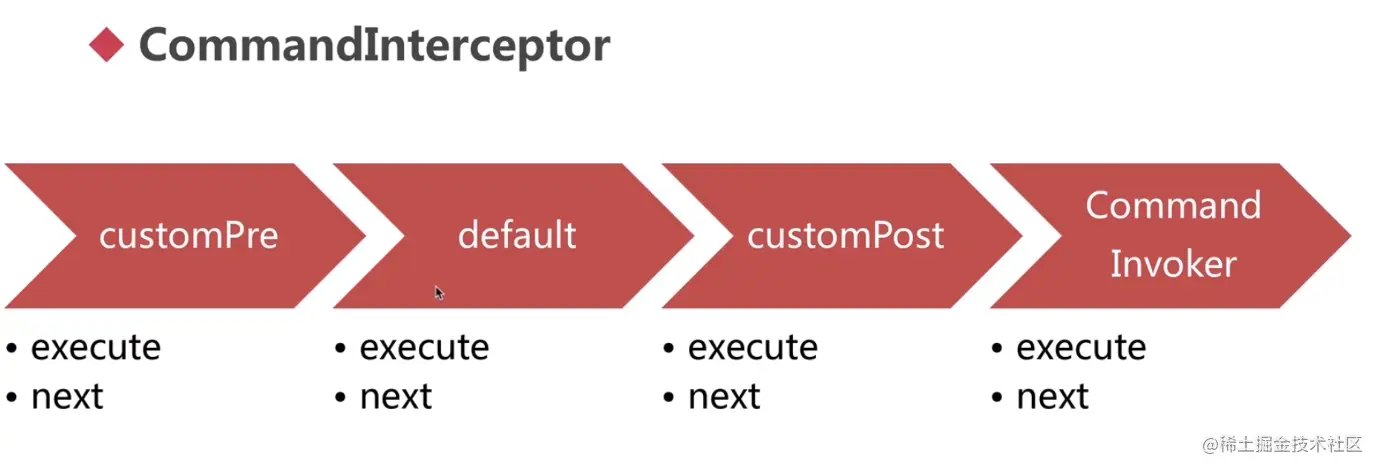

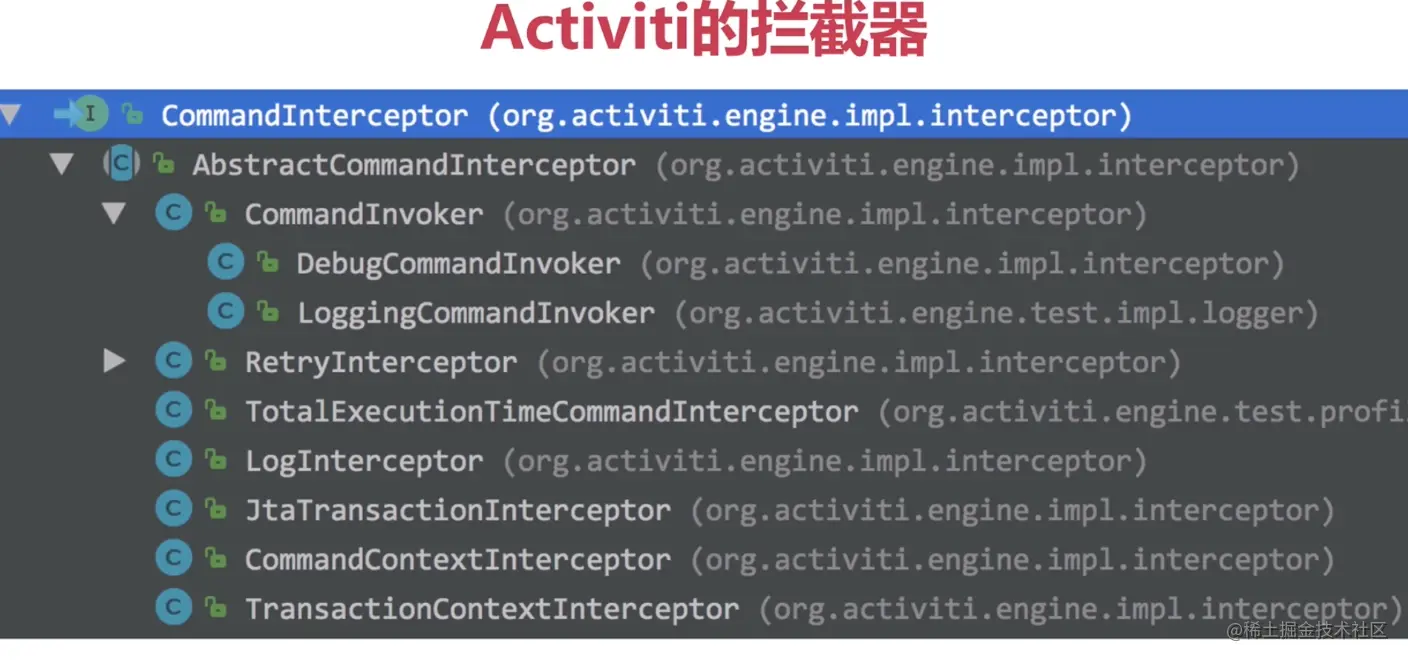

命令拦截器的配置

配置Interceptor

• customPreCommandInterceptors :配置在默认拦截器之前
• customPostCommandInterceptors: 配置在默认拦截器之后
• commandInvoke: 配置最后的拦截器

拦截器的配置方式

• Java代码

  public class ConfigInterceptorTests {
      private static final Logger LOGGER = LoggerFactory.getLogger(ConfigInterceptorTests.class);

      @Rule
      public ActivitiRule activitiRule = new ActivitiRule("activiti_intercptor.cfg.xml");

      @Test
      @Deployment(resources = {"com/imooc/activiti/my-process.bpmn20.xml"})
      public void test() {
          ProcessInstance processInstance = activitiRule.getRuntimeService()
                  .startProcessInstanceByKey("my-process");
          Task task = activitiRule.getTaskService().createTaskQuery().singleResult();
          activitiRule.getTaskService().complete(task.getId());
      }


  }


• activiti_intercptor.cfg.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd">

      <bean id="processEngineConfiguration"
            class="org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration">
          <property name="commandInvoker" ref="commandInvoker"/>
          <property name="enableVerboseExecutionTreeLogging" value="false"/><!--记录怎个过程的日志-->
          <property name="enableDatabaseEventLogging" value="false"/>
          <property name="customPreCommandInterceptors">
              <list>
                  <bean class="com.imooc.activiti.interceptor.DurationCommandInterceptor"/>
              </list>
          </property>
      </bean>

      <bean id="commandInvoker" class="com.imooc.activiti.interceptor.MDCComandInvoker"/>

  </beans>



• 执行结果

作业执行器配置-job-1

作业执行器的配置

• asyncExecutorActivitate:激活作业执行器
• asyncExecutorXXX :异步执行器属性配置
• asyncExecutor: 异步执行器Bean

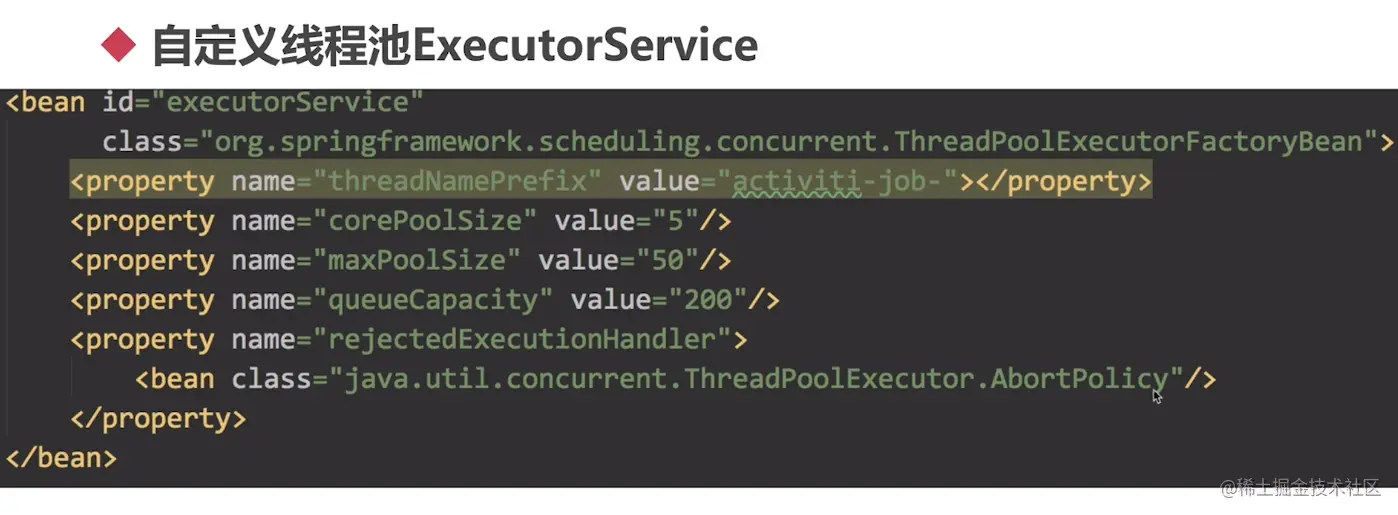

自定义线程池ExecutorService

• corePoolSize :核心线程数
• maxPoolSize: 最大线程数
• queueCapacity: 阻塞队列大小

定时开始事件（Timer Start Event）

• timeDate：指定启动时间
• timeDuration:指定持续时间间隔后执行
• timeCycle:R5/P1DT1H指定事件段后期执行

作业执行器配置-job-2

配置自定义线程池

    <bean id="executorService" class="org.springframework.scheduling.concurrent.ThreadPoolExecutorFactoryBean">
        <property name="threadNamePrefix" value="activiti-job-"/>
        <property name="corePoolSize" value="5"/>
        <property name="maxPoolSize" value="20"/>
        <property name="queueCapacity" value="100"/>
        <property name="rejectedExecutionHandler">
            <bean class="java.util.concurrent.ThreadPoolExecutor$AbortPolicy"/>
        </property>
    </bean>

• activiti_job.cfg.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="processEngineConfiguration"
          class="org.activiti.engine.impl.cfg.StandaloneInMemProcessEngineConfiguration">
<!--        <property name="commandInvoker" ref="commandInvoker"/>-->
        <property name="enableDatabaseEventLogging" value="true"/>
        <!--异步激活器-->
        <property name="asyncExecutorActivate" value="true"/>
        <!--异步执行器-->
        <property name="asyncExecutor" ref="asyncExecutor"/>
        <!--配置事件监听-->
        <property name="eventListeners">
            <list>
                <bean class="com.imooc.activiti.event.JobEventListener"/>
            </list>
        </property>
    </bean>
    <bean id="asyncExecutor" class="org.activiti.engine.impl.asyncexecutor.DefaultAsyncJobExecutor">
        <property name="executorService" ref="executorService"/>
    </bean>
    <bean id="executorService" class="org.springframework.scheduling.concurrent.ThreadPoolExecutorFactoryBean">
        <property name="threadNamePrefix" value="activiti-job-"/>
        <property name="corePoolSize" value="5"/>
        <property name="maxPoolSize" value="20"/>
        <property name="queueCapacity" value="100"/>
        <property name="rejectedExecutionHandler">
            <bean class="java.util.concurrent.ThreadPoolExecutor$AbortPolicy"/>
        </property>
    </bean>
    <bean id="commandInvoker" class="com.imooc.activiti.interceptor.MDCComandInvoker"/>

</beans>

• my-process_job.bpmn20.xml

      <process id="my-process">

          <!--        <startEvent id="start"/>-->
          <startEvent id="start">
              <timerEventDefinition>
                  <timeCycle>R5/PT10S</timeCycle><!--间隔10s去执行-->
              </timerEventDefinition>

          </startEvent>
          <sequenceFlow id="flow1" sourceRef="start" targetRef="someTask"/>

          <!--		<userTask id="someTask" name="Activiti is awesome!" />-->
          <serviceTask id="someTask" activiti:class="com.imooc.activiti.delegage.MDCErrorDelegage"/>
          <sequenceFlow id="flow2" sourceRef="someTask" targetRef="end"/>

          <endEvent id="end"/>

      </process>

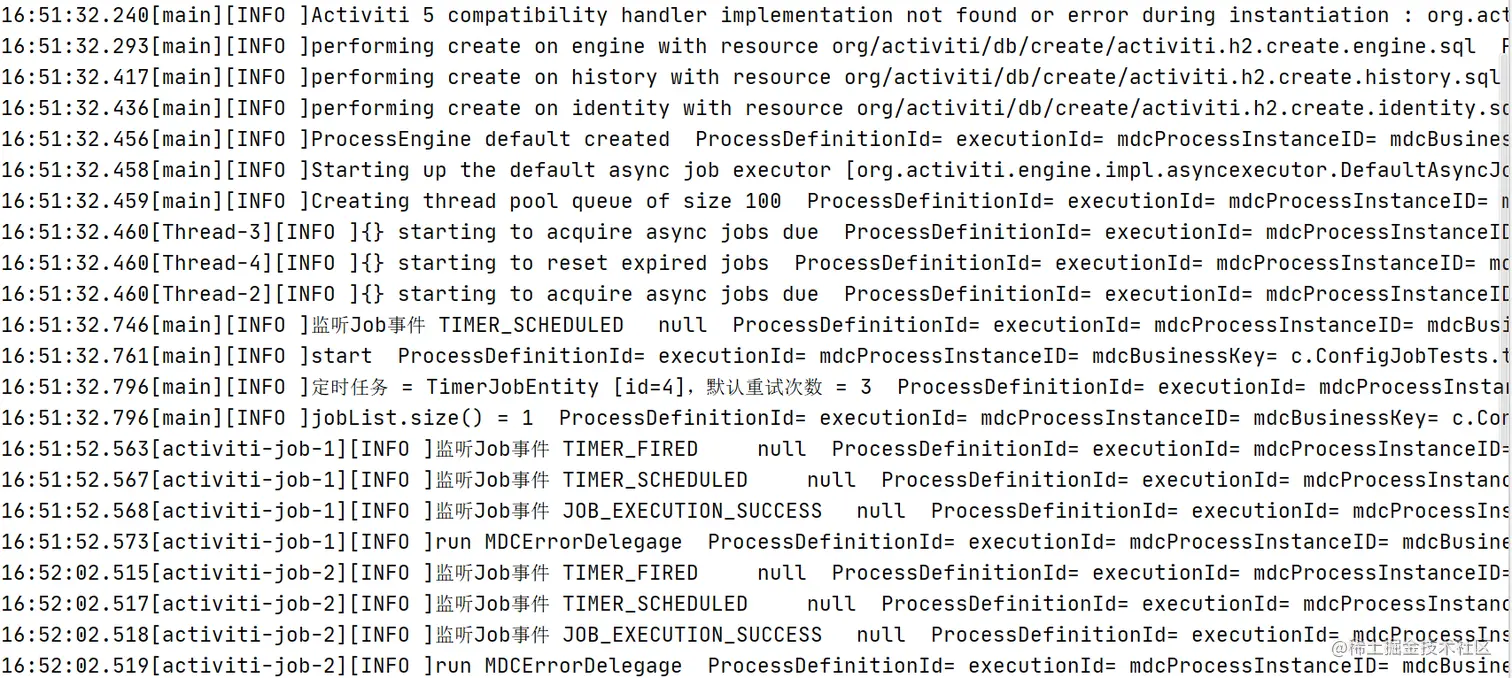

• ConfigJobTest

  public class ConfigJobTests {
      private static final Logger LOGGER = LoggerFactory.getLogger(ConfigJobTests.class);

      @Rule
      public ActivitiRule activitiRule = new ActivitiRule("activiti_job.cfg.xml");

      @Test
      @Deployment(resources = {"com/imooc/activiti/my-process_job.bpmn20.xml"})
      public void test() throws InterruptedException {
          LOGGER.info("start");
          List<Job> jobList = activitiRule.getManagementService().createTimerJobQuery().listPage(0, 100);
          for (Job job : jobList) {
              LOGGER.info("定时任务 = {}，默认重试次数 = {}", job, job.getRetries());
          }
          LOGGER.info("jobList.size() = {}", jobList.size());
          Thread.sleep(1000*1000);
          LOGGER.info("end");
      }


  }


• JobEventListener

  public class JobEventListener implements ActivitiEventListener {
      private static final Logger LOGGER = LoggerFactory.getLogger(JobEventListener.class);

      @Override
      public void onEvent(ActivitiEvent event) {
          ActivitiEventType eventType = event.getType();
          String name = eventType.name();
          if (name.startsWith("TIMER") || name.startsWith("JOB")) {
              LOGGER.info("监听Job事件 {}\t {}", eventType,event.getProcessInstanceId() );
          }
      }

      @Override
      public boolean isFailOnException() {
          return false;
      }
  }


• 执行结果

Activiti与spring集成-1

集成Spring配置

相关配置

• 添加pom依赖activit-spring
• 基于Spring的默认配置activiti-content.xml
• Acitiviti核心服务注入Spring

功能特性

• 集成Sping事物管理器
• 定义文件表达式中使用Spring bean
• 自动部署资源文件

单元测试

• 添加pom依赖Spring-test
• 辅助测试Rule：ActivitiRule
• 辅助测试TestCase：SpringActivitiTestCase (早期Junit3的扩展方式)

基于Spring对Activiti的管理

• ConfigSpringTests

  @RunWith(SpringJUnit4ClassRunner.class)
  @ContextConfiguration(locations = {"classpath:activiti-content.xml"})
  public class ConfigSpringTests {
      private static final Logger LOGGER = LoggerFactory.getLogger(ConfigSpringTests.class);

      @Rule
      @Autowired
      public ActivitiRule activitiRule;

      @Resource
      private RuntimeService runtimeService;

      @Resource
      private TaskService taskService;

      @Test
      @Deployment(resources = {"com/imooc/activiti/my-process.bpmn20.xml"})
      public void test() {
          ProcessInstance processInstance = runtimeService
                  .startProcessInstanceByKey("my-process");
          assertNotNull(processInstance);
          Task task = taskService.createTaskQuery().singleResult();
          taskService.complete(task.getId());
      }


  }


• activiti-content.xml

  <?xml version="1.0" encoding="UTF-8"?>
  <beans xmlns="http://www.springframework.org/schema/beans"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://www.springframework.org/schema/beans
         http://www.springframework.org/schema/beans/spring-beans.xsd">

      <bean id="processEngineConfiguration"
            class="org.activiti.spring.SpringProcessEngineConfiguration">
          <!--连接数据源-->
          <property name="dataSource" ref="dataSource"/>
          <!--连接事物管理-->
          <property name="transactionManager" ref="transactionManager"/>
          <!--数据源创建格式-->
          <property name="databaseSchemaUpdate" value="true"/>
      </bean>

      <!--新建数据源-->
      <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
          <property name="url" value="jdbc:h2:mem:activiti"/>
          <property name="driverClassName" value="org.h2.Driver"/>
          <property name="username" value="sa"/>
          <property name="password" value=""/>
      </bean>

      <!--事物管理-->
      <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
          <property name="dataSource" ref="dataSource"/>
      </bean>
      <!--构造流程引擎对象-->
      <bean id="processEngine" class="org.activiti.spring.ProcessEngineFactoryBean">
          <property name="processEngineConfiguration" ref="processEngineConfiguration"/>
      </bean>
      <!--获取流程引擎对象后把服务暴露给Spring-->
      <!--基Sping原理-->
      <bean id="runtimeService" factory-bean="processEngine" factory-method="getRuntimeService"/>
      <bean id="repositoryService" factory-bean="processEngine" factory-method="getRepositoryService"/>
      <bean id="formService" factory-bean="processEngine" factory-method="getFormService"/>
      <bean id="taskService" factory-bean="processEngine" factory-method="getTaskService"/>
      <bean id="historyService" factory-bean="processEngine" factory-method="getHistoryService"/>

      <!--配置ActivityRule,主要是为测试使用的rule-->
      <bean id="acitvityRule" class="org.activiti.engine.test.ActivitiRule">
          <property name="processEngine" ref="processEngine"/>
      </bean>
  </beans>





• 执行结果

Activiti与spring集成-3

• my-process_spring.bpmn20.xml

      <process id="my-process">

          <startEvent id="start"/>
          <sequenceFlow id="flow1" sourceRef="start" targetRef="someTask"/>
          <serviceTask id="someTask" name="Activiti is awsome!"/>
          <sequenceFlow id="flow2" sourceRef="someTask" targetRef="end"/>
          <serviceTask id="hellobean" activiti:expression="${helloBean.sayHello()}"/>
          <sequenceFlow id="flow3" sourceRef="hellobean" targetRef="end"/>
          <endEvent id="end"/>

      </process>


• HelloBean

public class HelloBean {
    private static final Logger LOGGER = LoggerFactory.getLogger(HelloBean.class);

    public void sayHello() {
        LOGGER.info("sayHello");
    }
}

• 配置helloBean
