GB/T28181国标流媒体协议中移动位置MobilePosition订阅及上报示例及如何在LiveGBS中配置移动位置MobilePosition订阅
- 1、移动位置MobilePosition订阅下发示例
- 2、移动位置MobilePosition设备应答
- 3、移动位置MobilePosition上报
- 4、LiveGBS中配置订阅周期
- 5、搭建GB28181视频直播平台
1、移动位置MobilePosition订阅下发示例
SUBSCRIBE sip:13110300111327100001@3402000000 SIP/2.0
Via: SIP/2.0/TCP 192.168.2.135:5060;rport;branch=z9hG4bK640369446
From: <sip:34020000002000000001@3402000000>;tag=506369446
To: <sip:13110300111327100001@3402000000>
Call-ID: 541369446
CSeq: 7962 SUBSCRIBE
Content-Type: Application/MANSCDP+xml
Contact: <sip:34020000002000000001@192.168.2.135:5060>
Max-Forwards: 70
User-Agent: LiveGBS v201221
Expires: 3600
Event: presence
Content-Length: 190
<?xml version="1.0" encoding="GB2312"?>
<Query>
<CmdType>MobilePosition</CmdType>
<SN>421369446</SN>
<DeviceID>13110300111327100001</DeviceID>
<Interval>5</Interval>
</Query>
2、移动位置MobilePosition设备应答
SIP/2.0 200 OK
Via: SIP/2.0/TCP 192.168.2.135:5060;rport=5060;branch=z9hG4bK640369446
From: <sip:34020000002000000001@3402000000>;tag=506369446
To: <sip:13110300111327100001@3402000000>;tag=71988095
Call-ID: 541369446
CSeq: 7962 SUBSCRIBE
Contact: <sip:13110300111327100001@192.168.2.111:2057;transport=TCP>
Content-Type: Application/MANSCDP+xml
Event: presence
User-Agent: IP Camera
Expires: 3600
Content-Length: 178
<?xml version="1.0" encoding="GB2312"?>
<Response>
<CmdType>MobilePosition</CmdType>
<SN>421369446</SN>
<DeviceID>13110300111327100001</DeviceID>
<Result>OK</Result>
</Response>
3、移动位置MobilePosition上报
NOTIFY sip:34020000002000000001@192.168.2.135:5060 SIP/2.0
Via: SIP/2.0/TCP 192.168.11.22:42409;rport;branch=z9hG4bK1387537329
From: <sip:13110300111327100001@3402000000>;tag=71988095
To: <sip:34020000002000000001@3402000000>;tag=506369446
Call-ID: 541369446
CSeq: 2 NOTIFY
Contact: <sip:13110300111327100001@192.168.2.111:2057;transport=TCP>
Content-Type: Application/MANSCDP+xml
Max-Forwards: 70
User-Agent: IP Camera
Subscription-State: active;expires=3600
Event: presence
Content-Length: 313
<?xml version="1.0" encoding="GB2312"?>
<Notify>
<DeviceID>13110300111327100001</DeviceID>
<CmdType>MobilePosition</CmdType>
<SN>11164</SN>
<Time>2020-12-23T09:38:11</Time>
<Longitude>115.302</Longitude>
<Latitude>37.580</Latitude>
<Speed>0.0</Speed>
<Direction>0.0</Direction>
<Altitude>0.0</Altitude>
</Notify>

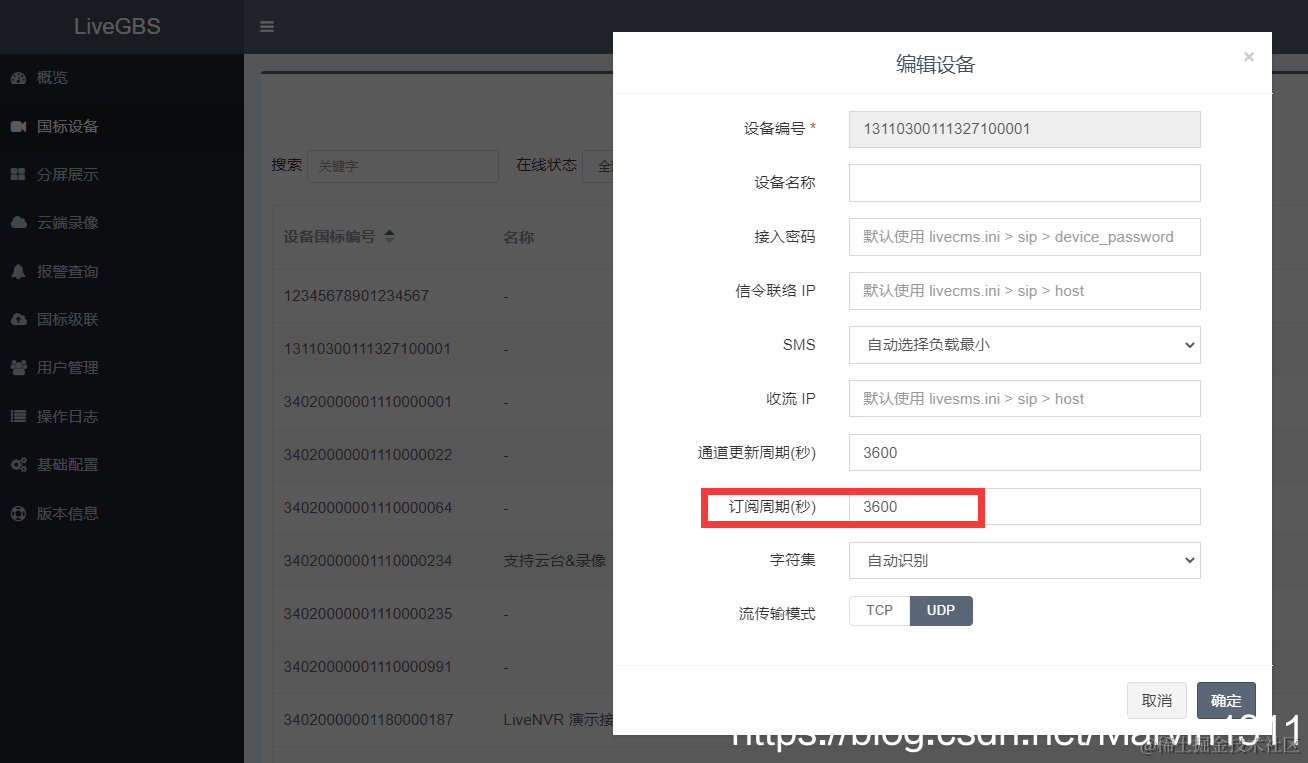

4、LiveGBS中配置订阅周期
默认下发的设备上报周期是5秒
