SpringSecurity认证过程

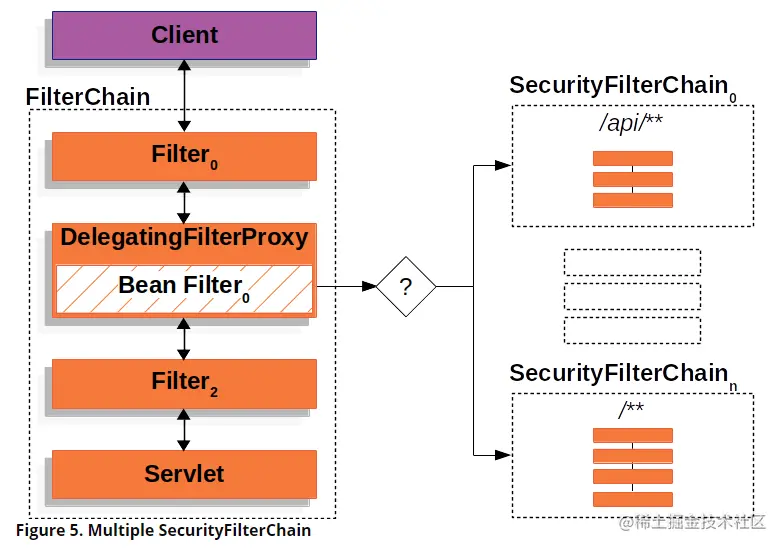

<核心过滤器加载>这篇已经分析过了, FilterChainProxy获取到过滤器链后,开始走过滤器链的逻辑.如图所示

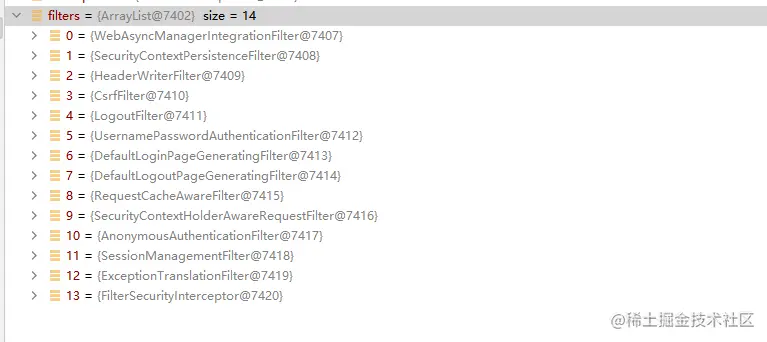

这些过滤器链包括下图所示

<核心过滤器介绍>那节讲了表单认证方式的认证逻辑主要是在UsernamePasswordAuthenticationFilter进行的,所以咱们开始分析UsernamePasswordAuthenticationFilter, 分析它之前咱们不妨先分析一下他的父类吧

public abstract class AbstractAuthenticationProcessingFilter extends GenericFilterBean
		implements ApplicationEventPublisherAware, MessageSourceAware {
	// ~ Static fields/initializers
	// =====================================================================================

	// ~ Instance fields
	// ================================================================================================

	protected ApplicationEventPublisher eventPublisher;
	protected AuthenticationDetailsSource<HttpServletRequest, ?> authenticationDetailsSource = new WebAuthenticationDetailsSource();
	private AuthenticationManager authenticationManager;
	protected MessageSourceAccessor messages = SpringSecurityMessageSource.getAccessor();
	private RememberMeServices rememberMeServices = new NullRememberMeServices();

	private RequestMatcher requiresAuthenticationRequestMatcher;

	private boolean continueChainBeforeSuccessfulAuthentication = false;

	private SessionAuthenticationStrategy sessionStrategy = new NullAuthenticatedSessionStrategy();

	private boolean allowSessionCreation = true;

	private AuthenticationSuccessHandler successHandler = new SavedRequestAwareAuthenticationSuccessHandler();
	private AuthenticationFailureHandler failureHandler = new SimpleUrlAuthenticationFailureHandler();

	// 过滤器认证入口
	public void doFilter(ServletRequest req, ServletResponse res, FilterChain chain)
			throws IOException, ServletException {

		HttpServletRequest request = (HttpServletRequest) req;
		HttpServletResponse response = (HttpServletResponse) res;

        // 该过滤器是否要对登录请求进行验证
		if (!requiresAuthentication(request, response)) {
        // 若不验证,跳过
			chain.doFilter(request, response);
			return;
		}

		Authentication authResult;

		try {
        // 调用子类 获取Authentication对象(认证成功的信息,比如用户名,密码等等封装成此类)
			authResult = attemptAuthentication(request, response);
			if (authResult == null) {
				 // 为空表示
				return;
			}
			sessionStrategy.onAuthentication(authResult, request, response);
		}
		catch (InternalAuthenticationServiceException failed) {
			logger.error(
					"An internal error occurred while trying to authenticate the user.",
					failed);
             // 处理异常
			unsuccessfulAuthentication(request, response, failed);

			return;
		}
		catch (AuthenticationException failed) {
			// // 处理异常
			unsuccessfulAuthentication(request, response, failed);

			return;
		}

		if (continueChainBeforeSuccessfulAuthentication) {
			chain.doFilter(request, response);
		}
		// 认证成功逻辑,比如保存上下文信息,跳转登录成功页面
		successfulAuthentication(request, response, chain, authResult);
	}

	protected boolean requiresAuthentication(HttpServletRequest request,
			HttpServletResponse response) {
		return requiresAuthenticationRequestMatcher.matches(request);
	}

	// 子类认证逻辑
	public abstract Authentication attemptAuthentication(HttpServletRequest request,
			HttpServletResponse response) throws AuthenticationException, IOException,
			ServletException;


}

我们从源码中看出父类主要的工作

• 看当前过滤器是否拦截登录请求
• 调用子类的认证逻辑
• 根据子类的认证结果执行登录成功或登录失败处理

我们再来看看子类的认证逻辑

public class UsernamePasswordAuthenticationFilter extends
		AbstractAuthenticationProcessingFilter {
	// ~ Static fields/initializers
	// =====================================================================================

    // 用户名,密码接收参数,已经预定义好了
	public static final String SPRING_SECURITY_FORM_USERNAME_KEY = "username";
	public static final String SPRING_SECURITY_FORM_PASSWORD_KEY = "password";

	private String usernameParameter = SPRING_SECURITY_FORM_USERNAME_KEY;
	private String passwordParameter = SPRING_SECURITY_FORM_PASSWORD_KEY;
	private boolean postOnly = true;

	// ~ Constructors
	// ===================================================================================================

	public UsernamePasswordAuthenticationFilter() {
        // 登录认证路径
		super(new AntPathRequestMatcher("/login", "POST"));
	}

	// ~ Methods
	// ========================================================================================================

	public Authentication attemptAuthentication(HttpServletRequest request,
			HttpServletResponse response) throws AuthenticationException {
		if (postOnly && !request.getMethod().equals("POST")) {
			throw new AuthenticationServiceException(
					"Authentication method not supported: " + request.getMethod());
		}

		String username = obtainUsername(request);
		String password = obtainPassword(request);

		if (username == null) {
			username = "";
		}

		if (password == null) {
			password = "";
		}

		username = username.trim();
		// 将其封装成UsernamePasswordAuthenticationToken
		UsernamePasswordAuthenticationToken authRequest = new UsernamePasswordAuthenticationToken(
				username, password);

		// Allow subclasses to set the "details" property
		setDetails(request, authRequest);
		// 获取认证管理器,进行认证
		return this.getAuthenticationManager().authenticate(authRequest);
	}

}

所以,子类主要干了:

• 获取用户名, 密码,将其封装为UsernamePasswordAuthenticationToken
• 获取认证管理器,将token传入其中进行认证

我们看看认证管理器是如何工作的, 不过在此之前我们先看看Authentication,还有UsernamePasswordAuthenticationToken是个啥玩意吧(PS:<SpringSecurity核心概念也简单介绍过了>), 这里就不多说了(里面介绍的大量的概念,下面解说也用的到,可以先熟悉一下)

而认证过管理器AuthenticationManager我们也在<SpringSecurity核心概念>中介绍过了,它的实现类通常是ProviderManager, 所以咱们看看ProviderManager源码怎么实现的

public class ProviderManager implements AuthenticationManager, MessageSourceAware,
		InitializingBean {
	// ~ Static fields/initializers
	// =====================================================================================

	private static final Log logger = LogFactory.getLog(ProviderManager.class);

	// ~ Instance fields
	// ================================================================================================

	private AuthenticationEventPublisher eventPublisher = new NullEventPublisher();
	private List<AuthenticationProvider> providers = Collections.emptyList();
	protected MessageSourceAccessor messages = SpringSecurityMessageSource.getAccessor();
	private AuthenticationManager parent;
	private boolean eraseCredentialsAfterAuthentication = true;

	public Authentication authenticate(Authentication authentication)
			throws AuthenticationException {
		Class<? extends Authentication> toTest = authentication.getClass();
		AuthenticationException lastException = null;
		AuthenticationException parentException = null;
		Authentication result = null;
		Authentication parentResult = null;
		boolean debug = logger.isDebugEnabled();
		// 获取身份认证提供者
		for (AuthenticationProvider provider : getProviders()) {
			if (!provider.supports(toTest)) {
				continue;
			}

			try {
                // 做认证操作
				result = provider.authenticate(authentication);

				if (result != null) {
					copyDetails(authentication, result);
					break;
				}
			}
            // 有问题抛异常,由ExceptionTransactionFilter处理
			catch (AccountStatusException e) {
				prepareException(e, authentication);
				// SEC-546: Avoid polling additional providers if auth failure is due to
				// invalid account status
				throw e;
			}
			catch (InternalAuthenticationServiceException e) {
				prepareException(e, authentication);
				throw e;
			}
			catch (AuthenticationException e) {
				lastException = e;
			}
		}

		if (result == null && parent != null) {
			// Allow the parent to try.
			try {
				result = parentResult = parent.authenticate(authentication);
			}
			catch (ProviderNotFoundException e) {
				// ignore as we will throw below if no other exception occurred prior to
				// calling parent and the parent
				// may throw ProviderNotFound even though a provider in the child already
				// handled the request
			}
			catch (AuthenticationException e) {
				lastException = parentException = e;
			}
		}

		if (result != null) {
			if (eraseCredentialsAfterAuthentication
					&& (result instanceof CredentialsContainer)) {
				// Authentication is complete. Remove credentials and other secret data
				// from authentication
				((CredentialsContainer) result).eraseCredentials();
			}

			// If the parent AuthenticationManager was attempted and successful than it will publish an AuthenticationSuccessEvent
			// This check prevents a duplicate AuthenticationSuccessEvent if the parent AuthenticationManager already published it
			if (parentResult == null) {
				eventPublisher.publishAuthenticationSuccess(result);
			}
			return result;
		}

		// Parent was null, or didn't authenticate (or throw an exception).

		if (lastException == null) {
			lastException = new ProviderNotFoundException(messages.getMessage(
					"ProviderManager.providerNotFound",
					new Object[] { toTest.getName() },
					"No AuthenticationProvider found for {0}"));
		}

		// If the parent AuthenticationManager was attempted and failed than it will publish an AbstractAuthenticationFailureEvent
		// This check prevents a duplicate AbstractAuthenticationFailureEvent if the parent AuthenticationManager already published it
		if (parentException == null) {
			prepareException(lastException, authentication);
		}

		throw lastException;
	}

}

从代码中得知, ProviderManager会遍历所有所有AuthenticationProvider集合, 真正的认证逻辑由AuthenticationProvider来做

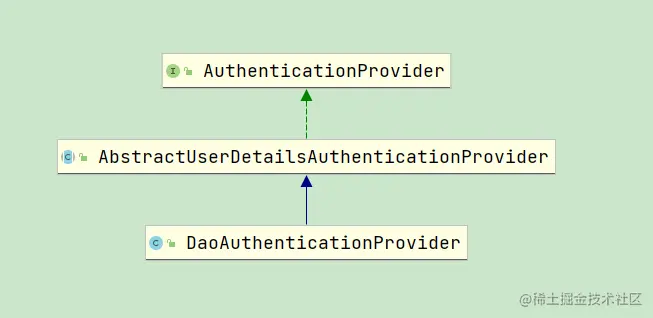

我们继续看一下AuthenticationProvider的实现类

我们挑一个常用的实现类DaoAuthenticationProvider,通过它的名字就知道这个类跟数据库有关系. 我们还是跟之前一样先分析他的父类

public abstract class AbstractUserDetailsAuthenticationProvider implements
		AuthenticationProvider, InitializingBean, MessageSourceAware {

	protected final Log logger = LogFactory.getLog(getClass());

	// ~ Instance fields
	// ================================================================================================

	protected MessageSourceAccessor messages = SpringSecurityMessageSource.getAccessor();
	private UserCache userCache = new NullUserCache();
	private boolean forcePrincipalAsString = false;
	protected boolean hideUserNotFoundExceptions = true;
	private UserDetailsChecker preAuthenticationChecks = new DefaultPreAuthenticationChecks();
	private UserDetailsChecker postAuthenticationChecks = new DefaultPostAuthenticationChecks();
	private GrantedAuthoritiesMapper authoritiesMapper = new NullAuthoritiesMapper();

	public Authentication authenticate(Authentication authentication)
			throws AuthenticationException {
		Assert.isInstanceOf(UsernamePasswordAuthenticationToken.class, authentication,
				() -> messages.getMessage(
						"AbstractUserDetailsAuthenticationProvider.onlySupports",
						"Only UsernamePasswordAuthenticationToken is supported"));

		// Determine username
		String username = (authentication.getPrincipal() == null) ? "NONE_PROVIDED"
				: authentication.getName();

		boolean cacheWasUsed = true;
        // 从缓存中获取用户信息
		UserDetails user = this.userCache.getUserFromCache(username);

		if (user == null) {
			cacheWasUsed = false;

			try {
                // 重新拉取中用户信息,比如从数据库中,有子类实现
				user = retrieveUser(username,
						(UsernamePasswordAuthenticationToken) authentication);
			}
			catch (UsernameNotFoundException notFound) {
				logger.debug("User '" + username + "' not found");

				if (hideUserNotFoundExceptions) {
					throw new BadCredentialsException(messages.getMessage(
							"AbstractUserDetailsAuthenticationProvider.badCredentials",
							"Bad credentials"));
				}
				else {
					throw notFound;
				}
			}

			Assert.notNull(user,
					"retrieveUser returned null - a violation of the interface contract");
		}

		try {
            // 判断账号是否被锁定,或者不可使用等等
			preAuthenticationChecks.check(user);
            // 密码比对,由子类实现
			additionalAuthenticationChecks(user,
					(UsernamePasswordAuthenticationToken) authentication);
		}
		catch (AuthenticationException exception) {
			if (cacheWasUsed) {
				// There was a problem, so try again after checking
				// we're using latest data (i.e. not from the cache)
				cacheWasUsed = false;
				user = retrieveUser(username,
						(UsernamePasswordAuthenticationToken) authentication);
				preAuthenticationChecks.check(user);
				additionalAuthenticationChecks(user,
						(UsernamePasswordAuthenticationToken) authentication);
			}
			else {
				throw exception;
			}
		}
		// 密码过期校验
		postAuthenticationChecks.check(user);

		if (!cacheWasUsed) {
			this.userCache.putUserInCache(user);
		}

		Object principalToReturn = user;

		if (forcePrincipalAsString) {
			principalToReturn = user.getUsername();
		}
		// 没有问题,返回一个Authentication对象
		return createSuccessAuthentication(principalToReturn, authentication, user);
	}

}

所以我们大致理一下父类的逻辑

• 从缓存中获取用户信息,默认实现类为NullUserCache,返回为null
• 从子类写好的逻辑中获取用户信息
• 对用户信息做一些前置前置校验
• 做密码比对,这部分也由子类实现
• 对用户信息做后置校验
• 没有问题,返回一个Authentication对象

我们再来看一下子类逻辑

public class DaoAuthenticationProvider extends AbstractUserDetailsAuthenticationProvider {
	// ~ Static fields/initializers
	// =====================================================================================

	/**
	 * The plaintext password used to perform
	 * PasswordEncoder#matches(CharSequence, String)}  on when the user is
	 * not found to avoid SEC-2056.
	 */
	private static final String USER_NOT_FOUND_PASSWORD = "userNotFoundPassword";

	// ~ Instance fields
	// ================================================================================================

	private PasswordEncoder passwordEncoder;

	/**
	 * The password used to perform
	 * {@link PasswordEncoder#matches(CharSequence, String)} on when the user is
	 * not found to avoid SEC-2056. This is necessary, because some
	 * {@link PasswordEncoder} implementations will short circuit if the password is not
	 * in a valid format.
	 */
	private volatile String userNotFoundEncodedPassword;

    // 用户信息获取的实现逻辑类
	private UserDetailsService userDetailsService;

	private UserDetailsPasswordService userDetailsPasswordService;

	public DaoAuthenticationProvider() {
		setPasswordEncoder(PasswordEncoderFactories.createDelegatingPasswordEncoder());
	}

	// ~ Methods
	// ========================================================================================================

	@SuppressWarnings("deprecation")
	protected void additionalAuthenticationChecks(UserDetails userDetails,
			UsernamePasswordAuthenticationToken authentication)
			throws AuthenticationException {
		if (authentication.getCredentials() == null) {
			logger.debug("Authentication failed: no credentials provided");

			throw new BadCredentialsException(messages.getMessage(
					"AbstractUserDetailsAuthenticationProvider.badCredentials",
					"Bad credentials"));
		}

		String presentedPassword = authentication.getCredentials().toString();
		// 密码比对
		if (!passwordEncoder.matches(presentedPassword, userDetails.getPassword())) {
			logger.debug("Authentication failed: password does not match stored value");

			throw new BadCredentialsException(messages.getMessage(
					"AbstractUserDetailsAuthenticationProvider.badCredentials",
					"Bad credentials"));
		}
	}

	protected void doAfterPropertiesSet() throws Exception {
		Assert.notNull(this.userDetailsService, "A UserDetailsService must be set");
	}

    // 获取用户信息
	protected final UserDetails retrieveUser(String username,
			UsernamePasswordAuthenticationToken authentication)
			throws AuthenticationException {
		prepareTimingAttackProtection();
		try {
            // 获取用户信息
			UserDetails loadedUser = this.getUserDetailsService().loadUserByUsername(username);
			if (loadedUser == null) {
				throw new InternalAuthenticationServiceException(
						"UserDetailsService returned null, which is an interface contract violation");
			}
			return loadedUser;
		}
		catch (UsernameNotFoundException ex) {
			mitigateAgainstTimingAttack(authentication);
			throw ex;
		}
		catch (InternalAuthenticationServiceException ex) {
			throw ex;
		}
		catch (Exception ex) {
			throw new InternalAuthenticationServiceException(ex.getMessage(), ex);
		}
	}

	@Override
	protected Authentication createSuccessAuthentication(Object principal,
			Authentication authentication, UserDetails user) {
		boolean upgradeEncoding = this.userDetailsPasswordService != null
				&& this.passwordEncoder.upgradeEncoding(user.getPassword());
		if (upgradeEncoding) {
			String presentedPassword = authentication.getCredentials().toString();
			String newPassword = this.passwordEncoder.encode(presentedPassword);
			user = this.userDetailsPasswordService.updatePassword(user, newPassword);
		}
		return super.createSuccessAuthentication(principal, authentication, user);
	}

}

我们再来讲解一个UserDetailsService常用实现类JdbcDaoImpl,看它的loadUserByUsername

	@Override
	public UserDetails loadUserByUsername(String username)
			throws UsernameNotFoundException {
		List<UserDetails> users = loadUsersByUsername(username);

		if (users.size() == 0) {
			this.logger.debug("Query returned no results for user '" + username + "'");

			throw new UsernameNotFoundException(
					this.messages.getMessage("JdbcDaoImpl.notFound",
							new Object[] { username }, "Username {0} not found"));
		}
		// 获取用户信息
		UserDetails user = users.get(0); // contains no GrantedAuthority[]

		Set<GrantedAuthority> dbAuthsSet = new HashSet<>();

		if (this.enableAuthorities) {
			dbAuthsSet.addAll(loadUserAuthorities(user.getUsername()));
		}

		if (this.enableGroups) {
			dbAuthsSet.addAll(loadGroupAuthorities(user.getUsername()));
		}

		List<GrantedAuthority> dbAuths = new ArrayList<>(dbAuthsSet);

		addCustomAuthorities(user.getUsername(), dbAuths);

		if (dbAuths.size() == 0) {
			this.logger.debug("User '" + username
					+ "' has no authorities and will be treated as 'not found'");

			throw new UsernameNotFoundException(this.messages.getMessage(
					"JdbcDaoImpl.noAuthority", new Object[] { username },
					"User {0} has no GrantedAuthority"));
		}

		return createUserDetails(username, user, dbAuths);
	}

	// 从数据库查找用户信息
	protected List<UserDetails> loadUsersByUsername(String username) {
		return getJdbcTemplate().query(this.usersByUsernameQuery,
				new String[] { username }, new RowMapper<UserDetails>() {
					@Override
					public UserDetails mapRow(ResultSet rs, int rowNum)
							throws SQLException {
						String username = rs.getString(1);
						String password = rs.getString(2);
						boolean enabled = rs.getBoolean(3);
						return new User(username, password, enabled, true, true, true,
								AuthorityUtils.NO_AUTHORITIES);
					}

				});
	}

	// 创建User对象
	protected UserDetails createUserDetails(String username,
			UserDetails userFromUserQuery, List<GrantedAuthority> combinedAuthorities) {
		String returnUsername = userFromUserQuery.getUsername();

		if (!this.usernameBasedPrimaryKey) {
			returnUsername = username;
		}

		return new User(returnUsername, userFromUserQuery.getPassword(),
				userFromUserQuery.isEnabled(), true, true, true, combinedAuthorities);
	}

所以 JdbcDaoImpl就是从数据库中查出用户名,密码,权限等信息组成个User对象返回给UserDetailService

所以我们可以模仿Spring,自己实现一个UserDetailsService,从而满足某种业务需求

@Service
@Transactional
public class UserServiceImpl implements UserService {
    @Autowired
    private UserDao userDao;

    @Autowired
    private RoleService roleService;

    @Override
    public void save(SysUser user) {
        userDao.save(user);
    }

    @Override
    public List<SysUser> findAll() {
        return userDao.findAll();
    }

    @Override
    public Map<String, Object> toAddRolePage(Integer id) {
        List<SysRole> allRoles = roleService.findAll();
        List<Integer> myRoles = userDao.findRolesByUid(id);
        Map<String, Object> map = new HashMap<>();
        map.put("allRoles", allRoles);
        map.put("myRoles", myRoles);
        return map;
    }

    @Override
    public void addRoleToUser(Integer userId, Integer[] ids) {
        userDao.removeRoles(userId);
        for (Integer rid : ids) {
            userDao.addRoles(userId, rid);
        }
    }

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        SysUser sysUser = userDao.findByName(username);
        if (sysUser == null) {
            return null;
        }
        List<SimpleGrantedAuthority> list = new ArrayList<>();
        List<SysRole> roles = sysUser.getRoles();
        List<SimpleGrantedAuthority> collect = roles.stream()
                .map(SysRole::getRoleName)
                .map(SimpleGrantedAuthority::new)
                .collect(Collectors.toList());

        // {noop}不加密认证
        UserDetails userDetails = new User(username, sysUser.getPassword(),
                sysUser.getStatus() == 1,
                true,
                true,
                true,
                collect);
//        UserDetails userDetails = new User(username, "{noop}"+sysUser.getPassword(), collect);
        return userDetails;
    }
}

然后此类加入Security配置类中

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(securedEnabled = true)
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Autowired
    private UserService userService

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(userService);
    }
    // ...
}

参考:

• Spring Security源码分析一：Spring Security认证过程
• SpringSecurity
