过滤器默认配置
基于SpringBoot2.x分析加载过程.首先我们知道SpringBoot通过提前加载一系列的配置类帮我们配置某些组件需要的运行环境, 所以我们首先要找到SpringSecurity的自动配置类
先来看SecurityFilterAutoConfiguration类
@Configuration
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(SecurityProperties.class)
@ConditionalOnClass({ AbstractSecurityWebApplicationInitializer.class,
SessionCreationPolicy.class })
@AutoConfigureAfter(SecurityAutoConfiguration.class)
public class SecurityFilterAutoConfiguration {
private static final String DEFAULT_FILTER_NAME = AbstractSecurityWebApplicationInitializer.DEFAULT_FILTER_NAME;
@Bean
@ConditionalOnBean(name = DEFAULT_FILTER_NAME)//springSecurityFilterChain
// 将springSecurityFilterChain(DelegatingFilterProxy)注册到Servlet容器中
public DelegatingFilterProxyRegistrationBean securityFilterChainRegistration(
SecurityProperties securityProperties) {
DelegatingFilterProxyRegistrationBean registration = new DelegatingFilterProxyRegistrationBean(
DEFAULT_FILTER_NAME);
registration.setOrder(securityProperties.getFilter().getOrder());
registration.setDispatcherTypes(getDispatcherTypes(securityProperties));
return registration;
}
//...
}
所以这个配置类主要是将DelegatingFilterProxy注册的到Servlet容器中
再来看看SecurityAutoConfiguration
@Configuration
@ConditionalOnClass(DefaultAuthenticationEventPublisher.class)
@EnableConfigurationProperties(SecurityProperties.class)
@Import({ SpringBootWebSecurityConfiguration.class, WebSecurityEnablerConfiguration.class,
SecurityDataConfiguration.class })
public class SecurityAutoConfiguration {
//似乎没什么东西
@Bean
@ConditionalOnMissingBean(AuthenticationEventPublisher.class)
public DefaultAuthenticationEventPublisher authenticationEventPublisher(
ApplicationEventPublisher publisher) {
return new DefaultAuthenticationEventPublisher(publisher);
}
}
似乎这个类没什么东西,再看一下它@import的类
@Configuration
@ConditionalOnClass(WebSecurityConfigurerAdapter.class)
@ConditionalOnMissingBean(WebSecurityConfigurerAdapter.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
public class SpringBootWebSecurityConfiguration {
@Configuration
@Order(SecurityProperties.BASIC_AUTH_ORDER)
static class DefaultConfigurerAdapter extends WebSecurityConfigurerAdapter {
}
}
WebSecurityConfigurerAdapter,这个类好熟悉啊,我们配置SpringSecurity时都会继承这个类的, 那我们重点分析一下这个类都做了些什么
@Order(100)
public abstract class WebSecurityConfigurerAdapter implements
WebSecurityConfigurer<WebSecurity> {
/**
* 创建默认的http配置
*/
protected WebSecurityConfigurerAdapter() {
this(false);
}
// 这是他的核心默认配置
@SuppressWarnings({ "rawtypes", "unchecked" })
protected final HttpSecurity getHttp() throws Exception {
if (http != null) {
return http;
}
DefaultAuthenticationEventPublisher eventPublisher = objectPostProcessor
.postProcess(new DefaultAuthenticationEventPublisher());
localConfigureAuthenticationBldr.authenticationEventPublisher(eventPublisher);
AuthenticationManager authenticationManager = authenticationManager();
authenticationBuilder.parentAuthenticationManager(authenticationManager);
authenticationBuilder.authenticationEventPublisher(eventPublisher);
Map<Class<? extends Object>, Object> sharedObjects = createSharedObjects();
http = new HttpSecurity(objectPostProcessor, authenticationBuilder,
sharedObjects);
// 加载默认配置
if (!disableDefaults) {
// @formatter:off
http
.csrf().and()//开启csrf过滤器
.addFilter(new WebAsyncManagerIntegrationFilter())//开启WebAsyncManagerIntegrationFilter过滤器
.exceptionHandling().and()// 开启ExceptionTransactionFilter过滤器
.headers().and()开启HeaderWriterFilter过滤器
.sessionManagement().and()// 开启SessionManagementFilter过滤器
.securityContext().and()// 开启SecurityContextPersistenceFilter过滤器
.requestCache().and()// 开启RequestCacheAwareFilter过滤器
.anonymous().and()// 开启AnonymousAuthenticationFilter过滤器
.servletApi().and()//开启securityContextRequestFilter过滤器
.apply(new DefaultLoginPageConfigurer<>()).and()// 添加登录页面
.logout();//开启logoutFilter过滤器
// @formatter:on
ClassLoader classLoader = this.context.getClassLoader();
List<AbstractHttpConfigurer> defaultHttpConfigurers =
SpringFactoriesLoader.loadFactories(AbstractHttpConfigurer.class, classLoader);
for (AbstractHttpConfigurer configurer : defaultHttpConfigurers) {
http.apply(configurer);
}
}
configure(http);
return http;
}
}

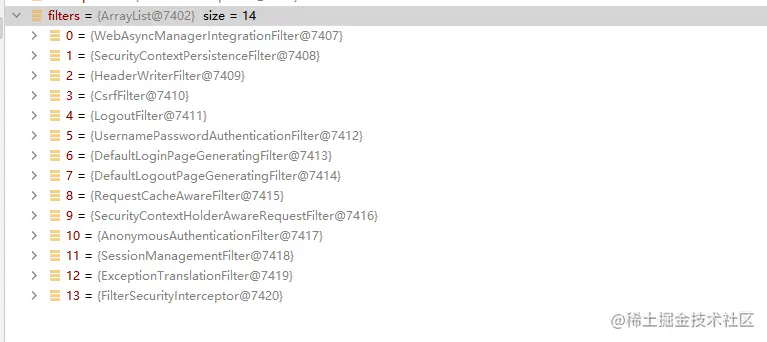

所以默认加载的类就是在这个配置类中自动加载的,下面是debug的截图
过滤器的顺序
我们以http.csrf()为例,点进去csrf()方法,我们发现, 进入到了HttpSecurity这个类中去了
public final class HttpSecurity extends
AbstractConfiguredSecurityBuilder<DefaultSecurityFilterChain, HttpSecurity>
implements SecurityBuilder<DefaultSecurityFilterChain>,
HttpSecurityBuilder<HttpSecurity> {
private final RequestMatcherConfigurer requestMatcherConfigurer;
// 过滤器链
private List<Filter> filters = new ArrayList<>();
private RequestMatcher requestMatcher = AnyRequestMatcher.INSTANCE;
// 过滤器比较器,过滤器的排序就是通过这玩意排的
private FilterComparator comparator = new FilterComparator();
public CsrfConfigurer<HttpSecurity> csrf() throws Exception {
ApplicationContext context = getContext();
return getOrApply(new CsrfConfigurer<>(context));
}
// 通过CsrfConfigurer#configure()方法调用addFilter加入的
public HttpSecurity addFilter(Filter filter) {
Class<? extends Filter> filterClass = filter.getClass();
if (!comparator.isRegistered(filterClass)) {
throw new IllegalArgumentException(
"The Filter class "
+ filterClass.getName()
+ " does not have a registered order and cannot be added without a specified order. Consider using addFilterBefore or addFilterAfter instead.");
}
this.filters.add(filter);
return this;
}
}
发现通过创建CsrfConfigurer类来创建csrf过滤器的,那顺序如何保证的呢, 通过CsrfConfigurer#configure()方法调用addFilter加入的
再看源码
@Override
protected DefaultSecurityFilterChain performBuild() throws Exception {
Collections.sort(filters, comparator);
return new DefaultSecurityFilterChain(requestMatcher, filters);
}
然后在获取过滤器的时候通过调用这个方法排一下序,再创建默认过滤器链,是不是很巧妙啊
咱们再看看FilterComparator这个类具体是怎么定义过滤器顺序的
final class FilterComparator implements Comparator<Filter>, Serializable {
private static final int INITIAL_ORDER = 100;
private static final int ORDER_STEP = 100;
private final Map<String, Integer> filterToOrder = new HashMap<>();
FilterComparator() {
Step order = new Step(INITIAL_ORDER, ORDER_STEP);
put(ChannelProcessingFilter.class, order.next());
put(ConcurrentSessionFilter.class, order.next());
put(WebAsyncManagerIntegrationFilter.class, order.next());
put(SecurityContextPersistenceFilter.class, order.next());
put(HeaderWriterFilter.class, order.next());
put(CorsFilter.class, order.next());
put(CsrfFilter.class, order.next());
put(LogoutFilter.class, order.next());
filterToOrder.put(
"org.springframework.security.oauth2.client.web.OAuth2AuthorizationRequestRedirectFilter",
order.next());
put(X509AuthenticationFilter.class, order.next());
put(AbstractPreAuthenticatedProcessingFilter.class, order.next());
filterToOrder.put("org.springframework.security.cas.web.CasAuthenticationFilter",
order.next());
filterToOrder.put(
"org.springframework.security.oauth2.client.web.OAuth2LoginAuthenticationFilter",
order.next());
put(UsernamePasswordAuthenticationFilter.class, order.next());
put(ConcurrentSessionFilter.class, order.next());
filterToOrder.put(
"org.springframework.security.openid.OpenIDAuthenticationFilter", order.next());
put(DefaultLoginPageGeneratingFilter.class, order.next());
put(DefaultLogoutPageGeneratingFilter.class, order.next());
put(ConcurrentSessionFilter.class, order.next());
put(DigestAuthenticationFilter.class, order.next());
filterToOrder.put(
"org.springframework.security.oauth2.server.resource.web.BearerTokenAuthenticationFilter", order.next());
put(BasicAuthenticationFilter.class, order.next());
put(RequestCacheAwareFilter.class, order.next());
put(SecurityContextHolderAwareRequestFilter.class, order.next());
put(JaasApiIntegrationFilter.class, order.next());
put(RememberMeAuthenticationFilter.class, order.next());
put(AnonymousAuthenticationFilter.class, order.next());
filterToOrder.put(
"org.springframework.security.oauth2.client.web.OAuth2AuthorizationCodeGrantFilter",
order.next());
put(SessionManagementFilter.class, order.next());
put(ExceptionTranslationFilter.class, order.next());
put(FilterSecurityInterceptor.class, order.next());
put(SwitchUserFilter.class, order.next());
}
}
所以最终获取的过滤器链一定是按照上面定义好的顺序定义的
过滤器链的获取
上面分析了首先将DelegatingFilterProxy注册到Servlet容器中,当服务收到请求时,请求会先经过此过滤器,执行他的doFilter()
public class DelegatingFilterProxy extends GenericFilterBean {
@Nullable
private volatile Filter delegate;
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
// Lazily initialize the delegate if necessary.
Filter delegateToUse = this.delegate;
if (delegateToUse == null) {
synchronized (this.delegateMonitor) {
delegateToUse = this.delegate;
if (delegateToUse == null) {
WebApplicationContext wac = findWebApplicationContext();
if (wac == null) {
throw new IllegalStateException("No WebApplicationContext found: " +
"no ContextLoaderListener or DispatcherServlet registered?");
}
delegateToUse = initDelegate(wac);
}
this.delegate = delegateToUse;
}
}
// Let the delegate perform the actual doFilter operation.
invokeDelegate(delegateToUse, request, response, filterChain);
}
}
似乎也看不出什么

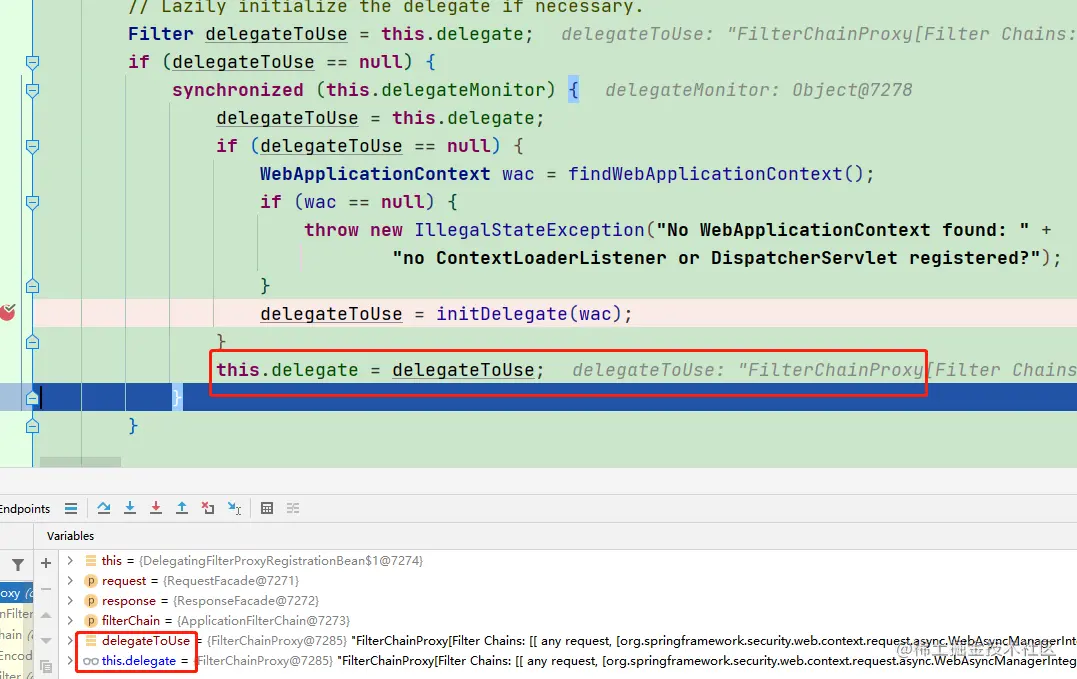

遇事不决debug
我们发现, 这个方法获取一个叫FilterChainProxy的Filter,然后将他赋值给this.delegate这个变量, 我们再看源码
public class DelegatingFilterProxy extends GenericFilterBean {
@Nullable
private volatile Filter delegate;
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
// Lazily initialize the delegate if necessary.
Filter delegateToUse = this.delegate;
if (delegateToUse == null) {
synchronized (this.delegateMonitor) {
delegateToUse = this.delegate;
if (delegateToUse == null) {
WebApplicationContext wac = findWebApplicationContext();
if (wac == null) {
throw new IllegalStateException("No WebApplicationContext found: " +
"no ContextLoaderListener or DispatcherServlet registered?");
}
// 从spring容器中找到一个Filter
delegateToUse = initDelegate(wac);
}
this.delegate = delegateToUse;
}
}
// Let the delegate perform the actual doFilter operation.
invokeDelegate(delegateToUse, request, response, filterChain);
}
protected void invokeDelegate(
Filter delegate, ServletRequest request, ServletResponse response, FilterChain filterChain)
throws ServletException, IOException {
// 由FilterChainProxy执行过滤工作
delegate.doFilter(request, response, filterChain);
}
}
所以从源码中得知,DelegatingFilterProxy从SpringContext中获取FilterChainProxy,将过滤工作委托给此类.
所以通过DelegatingFilterProxy, 将Spring Bean与 Servlet Filter衔接起来,使用类似委托者模式,将过滤任务交给Spring bean来处理
我们再来看看FilterChainProxy的doFilter如果做到过滤
public class FilterChainProxy extends GenericFilterBean {
private List<SecurityFilterChain> filterChains;
private FilterChainValidator filterChainValidator = new NullFilterChainValidator();
private HttpFirewall firewall = new StrictHttpFirewall();
// ~ Methods
// ========================================================================================================
@Override
public void doFilter(ServletRequest request, ServletResponse response,
FilterChain chain) throws IOException, ServletException {
boolean clearContext = request.getAttribute(FILTER_APPLIED) == null;
if (clearContext) {
try {
request.setAttribute(FILTER_APPLIED, Boolean.TRUE);
doFilterInternal(request, response, chain);
}
finally {
SecurityContextHolder.clearContext();
request.removeAttribute(FILTER_APPLIED);
}
}
else {
doFilterInternal(request, response, chain);
}
}
private void doFilterInternal(ServletRequest request, ServletResponse response,
FilterChain chain) throws IOException, ServletException {
FirewalledRequest fwRequest = firewall
.getFirewalledRequest((HttpServletRequest) request);
HttpServletResponse fwResponse = firewall
.getFirewalledResponse((HttpServletResponse) response);
// 获取过滤器链
List<Filter> filters = getFilters(fwRequest);
if (filters == null || filters.size() == 0) {
if (logger.isDebugEnabled()) {
logger.debug(UrlUtils.buildRequestUrl(fwRequest)
+ (filters == null ? " has no matching filters"
: " has an empty filter list"));
}
fwRequest.reset();
chain.doFilter(fwRequest, fwResponse);
return;
}
// 创建虚拟过滤器链
VirtualFilterChain vfc = new VirtualFilterChain(fwRequest, chain, filters);
vfc.doFilter(fwRequest, fwResponse);
}
// 返回匹配的一个过滤器链
private List<Filter> getFilters(HttpServletRequest request) {
for (SecurityFilterChain chain : filterChains) {
if (chain.matches(request)) {
return chain.getFilters();
}
}
return null;
}
}
那是如何执行匹配的呢
我们在看一下SecurityFilterChain这个接口,这个接口的实现类就一个DefaultSecurityFilterChain,
public final class DefaultSecurityFilterChain implements SecurityFilterChain {
private static final Log logger = LogFactory.getLog(DefaultSecurityFilterChain.class);
private final RequestMatcher requestMatcher;
private final List<Filter> filters;
public DefaultSecurityFilterChain(RequestMatcher requestMatcher, Filter... filters) {
this(requestMatcher, Arrays.asList(filters));
}
public DefaultSecurityFilterChain(RequestMatcher requestMatcher, List<Filter> filters) {
logger.info("Creating filter chain: " + requestMatcher + ", " + filters);
this.requestMatcher = requestMatcher;
this.filters = new ArrayList<>(filters);
}
public RequestMatcher getRequestMatcher() {
return requestMatcher;
}
public List<Filter> getFilters() {
return filters;
}
// 通过RequestMatcher匹配
public boolean matches(HttpServletRequest request) {
return requestMatcher.matches(request);
}
}
整个流程大致为:
