Android 源码 Camera2 预览流程分析四

非典型程序猿
878 阅读10分钟

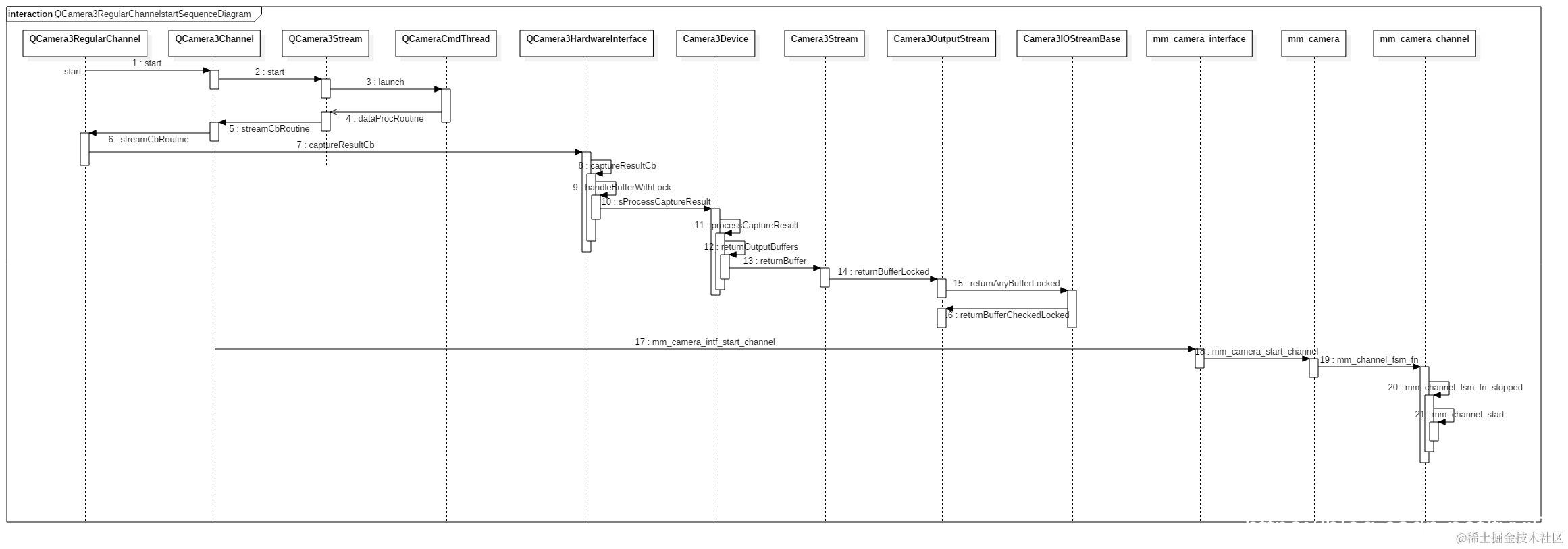

《Android 源码 Camera2 预览流程分析二》中进行了流启动，这是调用 QCamera3Channel start() 方法实现的，对应于 HAL_PIXEL_FORMAT_YCbCr_420_888 格式创建的 QCamera3Channel 实现类指向了 QCamera3RegularChannel。
在这里插入图片描述
device/moto/shamu/camera/QCamera2/HAL3/QCamera3Channel.cpp

int32_t QCamera3RegularChannel::start()
{
    ATRACE_CALL();
    int32_t rc = NO_ERROR;

    if (0 < mMemory.getCnt()) {
        rc = QCamera3Channel::start();
    }
    return rc;
}
  1. 启动流，流的类型为 QCamera3Stream，这是在 addStream 中添加的；
  2. 启动 channel。

device/moto/shamu/camera/QCamera2/HAL3/QCamera3Channel.cpp

int32_t QCamera3Channel::start()
{
    ATRACE_CALL();
    int32_t rc = NO_ERROR;

    if (m_numStreams > 1) {
        ALOGE("%s: bundle not supported", __func__);
    } else if (m_numStreams == 0) {
        return NO_INIT;
    }

    if(m_bIsActive) {
        ALOGD("%s: Attempt to start active channel", __func__);
        return rc;
    }

    for (int i = 0; i < m_numStreams; i++) {
        if (mStreams[i] != NULL) {
            mStreams[i]->start();
        }
    }
    rc = m_camOps->start_channel(m_camHandle, m_handle);

    if (rc != NO_ERROR) {
        for (int i = 0; i < m_numStreams; i++) {
            if (mStreams[i] != NULL) {
                mStreams[i]->stop();
            }
        }
    } else {
        m_bIsActive = true;
    }

    return rc;
}

开始流。将启动主流线程来处理与流相关的操作。

  1. 初始化 QCameraQueue；
  2. 启动流线程，调用 dataProcRoutine 例程。

device/moto/shamu/camera/QCamera2/HAL3/QCamera3Stream.cpp

int32_t QCamera3Stream::start()
{
    int32_t rc = 0;

    mDataQ.init();
    rc = mProcTh.launch(dataProcRoutine, this);
    return rc;
}

调用 pthread_create 创建并开始运行线程。

device/moto/shamu/camera/QCamera2/util/QCameraCmdThread.cpp

int32_t QCameraCmdThread::launch(void *(*start_routine)(void *),
                                 void* user_data)
{
    /* launch the thread */
    pthread_create(&cmd_pid,
                   NULL,
                   start_routine,
                   user_data);
    return NO_ERROR;
}

用于处理主流线程中的数据的函数。处理 cmd 队列新的通知，如果 camera_cmd_type_t 类型为 CAMERA_CMD_TYPE_DO_NEXT_JOB，则从 QCameraQueue 队列中 dequeue 数据，并调用 mDataCB 指向的函数。

device/moto/shamu/camera/QCamera2/HAL3/QCamera3Stream.cpp

void *QCamera3Stream::dataProcRoutine(void *data)
{
    int running = 1;
    int ret;
    QCamera3Stream *pme = (QCamera3Stream *)data;
    QCameraCmdThread *cmdThread = &pme->mProcTh;
    cmdThread->setName("cam_stream_proc");

    CDBG("%s: E", __func__);
    do {
        do {
            ret = cam_sem_wait(&cmdThread->cmd_sem);
            if (ret != 0 && errno != EINVAL) {
                ALOGE("%s: cam_sem_wait error (%s)",
                      __func__, strerror(errno));
                return NULL;
            }
        } while (ret != 0);

        // 收到有关cmd队列中新cmd可用的通知
        camera_cmd_type_t cmd = cmdThread->getCmd();
        switch (cmd) {
        case CAMERA_CMD_TYPE_DO_NEXT_JOB:
            {
                CDBG("%s: Do next job", __func__);
                mm_camera_super_buf_t *frame =
                    (mm_camera_super_buf_t *)pme->mDataQ.dequeue();
                if (NULL != frame) {
                    if (pme->mDataCB != NULL) {
                        pme->mDataCB(frame, pme, pme->mUserData);
                    } else {
                        // 没有数据cb例程，在这里返回buf
                        pme->bufDone(frame->bufs[0]->buf_idx);
                    }
                }
            }
            break;
        case CAMERA_CMD_TYPE_EXIT:
            CDBG_HIGH("%s: Exit", __func__);
            /* 刷新数据buf队列 */
            pme->mDataQ.flush();
            running = 0;
            break;
        default:
            break;
        }
    } while (running);
    CDBG("%s: X", __func__);
    return NULL;
}

流的回调例程。

device/moto/shamu/camera/QCamera2/HAL3/QCamera3Channel.cpp

void QCamera3Channel::streamCbRoutine(mm_camera_super_buf_t *super_frame,
                QCamera3Stream *stream, void *userdata)
{
    QCamera3Channel *channel = (QCamera3Channel *)userdata;
    if (channel == NULL) {
        ALOGE("%s: invalid channel pointer", __func__);
        return;
    }
    channel->streamCbRoutine(super_frame, stream);
}
  1. 参数校验；
  2. 填充 camera3_stream_buffer_t 结构，准备回调到 framework；
  3. 调用 mChannelCB 指向的函数，实际上指向 QCamera3HardwareInterface::captureResultCb；

device/moto/shamu/camera/QCamera2/HAL3/QCamera3Channel.cpp

void QCamera3RegularChannel::streamCbRoutine(
                            mm_camera_super_buf_t *super_frame,
                            QCamera3Stream *stream)
{
    ATRACE_CALL();
    //FIXME Q Buf back in case of error?
    uint8_t frameIndex;
    buffer_handle_t *resultBuffer;
    int32_t resultFrameNumber;
    camera3_stream_buffer_t result;

    if (NULL == stream) {
        ALOGE("%s: Invalid stream", __func__);
        return;
    }

    if(!super_frame) {
         ALOGE("%s: Invalid Super buffer",__func__);
         return;
    }

    if(super_frame->num_bufs != 1) {
         ALOGE("%s: Multiple streams are not supported",__func__);
         return;
    }
    if(super_frame->bufs[0] == NULL ) {
         ALOGE("%s: Error, Super buffer frame does not contain valid buffer",
                  __func__);
         return;
    }

    frameIndex = (uint8_t)super_frame->bufs[0]->buf_idx;
    if(frameIndex >= mNumBufs) {
         ALOGE("%s: Error, Invalid index for buffer",__func__);
         stream->bufDone(frameIndex);
         return;
    }

    使用以下数据发布 framework 回调
    resultBuffer = (buffer_handle_t *)mMemory.getBufferHandle(frameIndex);
    resultFrameNumber = mMemory.getFrameNumber(frameIndex);

    result.stream = mCamera3Stream;
    result.buffer = resultBuffer;
    result.status = CAMERA3_BUFFER_STATUS_OK;
    result.acquire_fence = -1;
    result.release_fence = -1;
    int32_t rc = stream->bufRelease(frameIndex);
    if (NO_ERROR != rc) {
        ALOGE("%s: Error %d releasing stream buffer %d",
                __func__, rc, frameIndex);
    }

    rc = mMemory.unregisterBuffer(frameIndex);
    if (NO_ERROR != rc) {
        ALOGE("%s: Error %d unregistering stream buffer %d",
                __func__, rc, frameIndex);
    }

    if (0 <= resultFrameNumber){
        mChannelCB(NULL, &result, (uint32_t)resultFrameNumber, mUserData);
    } else {
        ALOGE("%s: Bad frame number", __func__);
    }

    free(super_frame);
    return;
}

所有 channel 的回调处理程序（流以及元数据）

device/moto/shamu/camera/QCamera2/HAL3/QCamera3HWI.cpp

void QCamera3HardwareInterface::captureResultCb(mm_camera_super_buf_t *metadata,
                camera3_stream_buffer_t *buffer,
                uint32_t frame_number, void *userdata)
{
    QCamera3HardwareInterface *hw = (QCamera3HardwareInterface *)userdata;
    if (hw == NULL) {
        ALOGE("%s: Invalid hw %p", __func__, hw);
        return;
    }

    hw->captureResultCb(metadata, buffer, frame_number);
    return;
}

此处重点跟 handleBufferWithLock 函数，处理持有 mMutex 锁的图像缓冲区回调。

device/moto/shamu/camera/QCamera2/HAL3/QCamera3HWI.cpp

void QCamera3HardwareInterface::captureResultCb(mm_camera_super_buf_t *metadata_buf,
                camera3_stream_buffer_t *buffer, uint32_t frame_number)
{
    pthread_mutex_lock(&mMutex);

    /*假设在任何重新处理之前调用flush()。收到任何回调后立即发送通知和结果*/
    if (mLoopBackResult) {
        /* 发送通知 */
        camera3_notify_msg_t notify_msg;
        notify_msg.type = CAMERA3_MSG_SHUTTER;
        notify_msg.message.shutter.frame_number = mLoopBackResult->frame_number;
        notify_msg.message.shutter.timestamp = mLoopBackTimestamp;
        mCallbackOps->notify(mCallbackOps, &notify_msg);
        /* 发送捕获结果 */
        mCallbackOps->process_capture_result(mCallbackOps, mLoopBackResult);
        free_camera_metadata((camera_metadata_t *)mLoopBackResult->result);
        free(mLoopBackResult);
        mLoopBackResult = NULL;
    }

    if (metadata_buf)
        handleMetadataWithLock(metadata_buf);
    else
        handleBufferWithLock(buffer, frame_number);
    pthread_mutex_unlock(&mMutex);
}

帧号不在待处理列表直接调用 process_capture_result 处理。

device/moto/shamu/camera/QCamera2/HAL3/QCamera3HWI.cpp

void QCamera3HardwareInterface::handleBufferWithLock(
    camera3_stream_buffer_t *buffer, uint32_t frame_number)
{
    ATRACE_CALL();
    // 如果待处理的请求列表中不存在帧号，则直接将缓冲区发送到 framework，
    // 并更新待处理的缓冲区映射，否则，记录缓冲区。
    List<PendingRequestInfo>::iterator i = mPendingRequestsList.begin();
    while (i != mPendingRequestsList.end() && i->frame_number != frame_number){
        i++;
    }
    if (i == mPendingRequestsList.end()) {
        // 验证所有挂起的请求frame_number是否更大
        for (List<PendingRequestInfo>::iterator j = mPendingRequestsList.begin();
                j != mPendingRequestsList.end(); j++) {
            if (j->frame_number < frame_number) {
                ALOGE("%s: Error: pending frame number %d is smaller than %d",
                        __func__, j->frame_number, frame_number);
            }
        }
        camera3_capture_result_t result;
        memset(&result, 0, sizeof(camera3_capture_result_t));
        result.result = NULL;
        result.frame_number = frame_number;
        result.num_output_buffers = 1;
        result.partial_result = 0;
        for (List<PendingFrameDropInfo>::iterator m = mPendingFrameDropList.begin();
                m != mPendingFrameDropList.end(); m++) {
            QCamera3Channel *channel = (QCamera3Channel *)buffer->stream->priv;
            uint32_t streamID = channel->getStreamID(channel->getStreamTypeMask());
            if((m->stream_ID == streamID) && (m->frame_number==frame_number) ) {
                buffer->status=CAMERA3_BUFFER_STATUS_ERROR;
                CDBG("%s: Stream STATUS_ERROR frame_number=%d, streamID=%d",
                        __func__, frame_number, streamID);
                m = mPendingFrameDropList.erase(m);
                break;
            }
        }
        result.output_buffers = buffer;
        CDBG("%s: result frame_number = %d, buffer = %p",
                __func__, frame_number, buffer->buffer);

        for (List<PendingBufferInfo>::iterator k =
                mPendingBuffersMap.mPendingBufferList.begin();
                k != mPendingBuffersMap.mPendingBufferList.end(); k++ ) {
            if (k->buffer == buffer->buffer) {
                CDBG("%s: Found Frame buffer, take it out from list",
                        __func__);

                mPendingBuffersMap.num_buffers--;
                k = mPendingBuffersMap.mPendingBufferList.erase(k);
                break;
            }
        }
        CDBG("%s: mPendingBuffersMap.num_buffers = %d",
            __func__, mPendingBuffersMap.num_buffers);

        mCallbackOps->process_capture_result(mCallbackOps, &result);
    } else {
        if (i->input_buffer) {
            CameraMetadata settings;
            camera3_notify_msg_t notify_msg;
            memset(&notify_msg, 0, sizeof(camera3_notify_msg_t));
            nsecs_t capture_time = systemTime(CLOCK_MONOTONIC);
            if(i->settings) {
                settings = i->settings;
                if (settings.exists(ANDROID_SENSOR_TIMESTAMP)) {
                    capture_time = settings.find(ANDROID_SENSOR_TIMESTAMP).data.i64[0];
                } else {
                    ALOGE("%s: No timestamp in input settings! Using current one.",
                            __func__);
                }
            } else {
                ALOGE("%s: Input settings missing!", __func__);
            }

            notify_msg.type = CAMERA3_MSG_SHUTTER;
            notify_msg.message.shutter.frame_number = frame_number;
            notify_msg.message.shutter.timestamp = capture_time;

            if (i->input_buffer->release_fence != -1) {
               int32_t rc = sync_wait(i->input_buffer->release_fence, TIMEOUT_NEVER);
               close(i->input_buffer->release_fence);
               if (rc != OK) {
               ALOGE("%s: input buffer sync wait failed %d", __func__, rc);
               }
            }

            for (List<PendingBufferInfo>::iterator k =
                    mPendingBuffersMap.mPendingBufferList.begin();
                    k != mPendingBuffersMap.mPendingBufferList.end(); k++ ) {
                if (k->buffer == buffer->buffer) {
                    CDBG("%s: Found Frame buffer, take it out from list",
                            __func__);

                    mPendingBuffersMap.num_buffers--;
                    k = mPendingBuffersMap.mPendingBufferList.erase(k);
                    break;
                }
            }
            CDBG("%s: mPendingBuffersMap.num_buffers = %d",
                __func__, mPendingBuffersMap.num_buffers);

            bool notifyNow = true;
            for (List<PendingRequestInfo>::iterator j = mPendingRequestsList.begin();
                    j != mPendingRequestsList.end(); j++) {
                if (j->frame_number < frame_number) {
                    notifyNow = false;
                    break;
                }
            }

            if (notifyNow) {
                camera3_capture_result result;
                memset(&result, 0, sizeof(camera3_capture_result));
                result.frame_number = frame_number;
                result.result = i->settings;
                result.input_buffer = i->input_buffer;
                result.num_output_buffers = 1;
                result.output_buffers = buffer;
                result.partial_result = PARTIAL_RESULT_COUNT;

                mCallbackOps->notify(mCallbackOps, &notify_msg);
                mCallbackOps->process_capture_result(mCallbackOps, &result);
                CDBG("%s: Notify reprocess now %d!", __func__, frame_number);
                i = mPendingRequestsList.erase(i);
                mPendingRequest--;
            } else {
                // 缓存重新处理结果以供以后使用
                PendingReprocessResult pendingResult;
                memset(&pendingResult, 0, sizeof(PendingReprocessResult));
                pendingResult.notify_msg = notify_msg;
                pendingResult.buffer = *buffer;
                pendingResult.frame_number = frame_number;
                mPendingReprocessResultList.push_back(pendingResult);
                CDBG("%s: Cache reprocess result %d!", __func__, frame_number);
            }
        } else {
            for (List<RequestedBufferInfo>::iterator j = i->buffers.begin();
                j != i->buffers.end(); j++) {
                if (j->stream == buffer->stream) {
                    if (j->buffer != NULL) {
                        ALOGE("%s: Error: buffer is already set", __func__);
                    } else {
                        j->buffer = (camera3_stream_buffer_t *)malloc(
                            sizeof(camera3_stream_buffer_t));
                        *(j->buffer) = *buffer;
                        CDBG("%s: cache buffer %p at result frame_number %d",
                            __func__, buffer, frame_number);
                    }
                }
            }
        }
    }
}

打开 camera 设备时候，会给 camera3_callback_ops::process_capture_result 赋值，上面的函数调用实际调用到 sProcessCaptureResult 函数。

frameworks/av/services/camera/libcameraservice/device3/Camera3Device.cpp

Camera3Device::Camera3Device(int id):
        mId(id),
        mIsConstrainedHighSpeedConfiguration(false),
        mHal3Device(NULL),
        mStatus(STATUS_UNINITIALIZED),
        mStatusWaiters(0),
        mUsePartialResult(false),
        mNumPartialResults(1),
        mNextResultFrameNumber(0),
        mNextReprocessResultFrameNumber(0),
        mNextShutterFrameNumber(0),
        mNextReprocessShutterFrameNumber(0),
        mListener(NULL)
{
    ATRACE_CALL();
    camera3_callback_ops::notify = &sNotify;
    camera3_callback_ops::process_capture_result = &sProcessCaptureResult;
    ALOGV("%s: Created device for camera %d", __FUNCTION__, id);
}

从HAL到实例的静态回调转发方法。

frameworks/av/services/camera/libcameraservice/device3/Camera3Device.cpp

void Camera3Device::sProcessCaptureResult(const camera3_callback_ops *cb,
        const camera3_capture_result *result) {
    Camera3Device *d =
            const_cast<Camera3Device*>(static_cast<const Camera3Device*>(cb));

    d->processCaptureResult(result);
}

相机HAL设备的回调方法。重点分析 returnOutputBuffers(…) 函数。

frameworks/av/services/camera/libcameraservice/device3/Camera3Device.cpp

void Camera3Device::processCaptureResult(const camera3_capture_result *result) {
    ATRACE_CALL();

    status_t res;

    uint32_t frameNumber = result->frame_number;
    if (result->result == NULL && result->num_output_buffers == 0 &&
            result->input_buffer == NULL) {
        SET_ERR("No result data provided by HAL for frame %d",
                frameNumber);
        return;
    }

    // 对于HAL3.2或更高版本，如果 HAL 不支持 partial，
    // 则当此结果中包含元数据时，必须始终将 partial_result 设置为1。
    if (!mUsePartialResult &&
            mDeviceVersion >= CAMERA_DEVICE_API_VERSION_3_2 &&
            result->result != NULL &&
            result->partial_result != 1) {
        SET_ERR("Result is malformed for frame %d: partial_result %u must be 1"
                " if partial result is not supported",
                frameNumber, result->partial_result);
        return;
    }

    bool isPartialResult = false;
    CameraMetadata collectedPartialResult;
    CaptureResultExtras resultExtras;
    bool hasInputBufferInRequest = false;

    // 从进行中的请求列表中获取快门时间戳和resultExtras，
    // 并在此帧的快门通知中添加。 如果尚未收到快门时间戳，
    // 将输出缓冲区附加到进行中的请求中，当快门时间戳到达时，将返回它们。
    // 如果已收到所有结果数据和快门时间戳，更新进行中状态并删除进行中条目。
    nsecs_t shutterTimestamp = 0;

    {
        Mutex::Autolock l(mInFlightLock);
        ssize_t idx = mInFlightMap.indexOfKey(frameNumber);
        if (idx == NAME_NOT_FOUND) {
            SET_ERR("Unknown frame number for capture result: %d",
                    frameNumber);
            return;
        }
        InFlightRequest &request = mInFlightMap.editValueAt(idx);
        ALOGVV("%s: got InFlightRequest requestId = %" PRId32
                ", frameNumber = %" PRId64 ", burstId = %" PRId32
                ", partialResultCount = %d",
                __FUNCTION__, request.resultExtras.requestId,
                request.resultExtras.frameNumber, request.resultExtras.burstId,
                result->partial_result);
        // 如果部分计数不是0(仅用于缓冲区)，则始终将其更新为最新的数。
        // 当框架将相邻的部分结果聚合为一个时，将使用最新的部分计数。
        if (result->partial_result != 0)
            request.resultExtras.partialResultCount = result->partial_result;

        // 检查此结果是否只包含部分元数据
        if (mUsePartialResult && result->result != NULL) {
            if (mDeviceVersion >= CAMERA_DEVICE_API_VERSION_3_2) {
                if (result->partial_result > mNumPartialResults || result->partial_result < 1) {
                    SET_ERR("Result is malformed for frame %d: partial_result %u must be  in"
                            " the range of [1, %d] when metadata is included in the result",
                            frameNumber, result->partial_result, mNumPartialResults);
                    return;
                }
                isPartialResult = (result->partial_result < mNumPartialResults);
                if (isPartialResult) {
                    request.partialResult.collectedResult.append(result->result);
                }
            } else {
                camera_metadata_ro_entry_t partialResultEntry;
                res = find_camera_metadata_ro_entry(result->result,
                        ANDROID_QUIRKS_PARTIAL_RESULT, &partialResultEntry);
                if (res != NAME_NOT_FOUND &&
                        partialResultEntry.count > 0 &&
                        partialResultEntry.data.u8[0] ==
                        ANDROID_QUIRKS_PARTIAL_RESULT_PARTIAL) {
                    // A partial result. Flag this as such, and collect this
                    // set of metadata into the in-flight entry.
                    isPartialResult = true;
                    request.partialResult.collectedResult.append(
                        result->result);
                    request.partialResult.collectedResult.erase(
                        ANDROID_QUIRKS_PARTIAL_RESULT);
                }
            }

            if (isPartialResult) {
                // Fire off a 3A-only result if possible
                if (!request.partialResult.haveSent3A) {
                    request.partialResult.haveSent3A =
                            processPartial3AResult(frameNumber,
                                    request.partialResult.collectedResult,
                                    request.resultExtras);
                }
            }
        }

        shutterTimestamp = request.shutterTimestamp;
        hasInputBufferInRequest = request.hasInputBuffer;

        // 我们是否得到了这次捕获的（最终的）结果元数据？
        if (result->result != NULL && !isPartialResult) {
            if (request.haveResultMetadata) {
                SET_ERR("Called multiple times with metadata for frame %d",
                        frameNumber);
                return;
            }
            if (mUsePartialResult &&
                    !request.partialResult.collectedResult.isEmpty()) {
                collectedPartialResult.acquire(
                    request.partialResult.collectedResult);
            }
            request.haveResultMetadata = true;
        }

        uint32_t numBuffersReturned = result->num_output_buffers;
        if (result->input_buffer != NULL) {
            if (hasInputBufferInRequest) {
                numBuffersReturned += 1;
            } else {
                ALOGW("%s: Input buffer should be NULL if there is no input"
                        " buffer sent in the request",
                        __FUNCTION__);
            }
        }
        request.numBuffersLeft -= numBuffersReturned;
        if (request.numBuffersLeft < 0) {
            SET_ERR("Too many buffers returned for frame %d",
                    frameNumber);
            return;
        }

        camera_metadata_ro_entry_t entry;
        res = find_camera_metadata_ro_entry(result->result,
                ANDROID_SENSOR_TIMESTAMP, &entry);
        if (res == OK && entry.count == 1) {
            request.sensorTimestamp = entry.data.i64[0];
        }

        // 如果还没有接收到shutter事件，则将输出缓冲区附加到正在处理的请求。
        // 否则，将输出缓冲区返回到流。
        if (shutterTimestamp == 0) {
            request.pendingOutputBuffers.appendArray(result->output_buffers,
                result->num_output_buffers);
        } else {
            returnOutputBuffers(result->output_buffers,
                result->num_output_buffers, shutterTimestamp);
        }

        if (result->result != NULL && !isPartialResult) {
            if (shutterTimestamp == 0) {
                request.pendingMetadata = result->result;
                request.partialResult.collectedResult = collectedPartialResult;
            } else {
                CameraMetadata metadata;
                metadata = result->result;
                sendCaptureResult(metadata, request.resultExtras,
                    collectedPartialResult, frameNumber, hasInputBufferInRequest,
                    request.aeTriggerCancelOverride);
            }
        }

        removeInFlightRequestIfReadyLocked(idx);
    } // scope for mInFlightLock

    if (result->input_buffer != NULL) {
        if (hasInputBufferInRequest) {
            Camera3Stream *stream =
                Camera3Stream::cast(result->input_buffer->stream);
            res = stream->returnInputBuffer(*(result->input_buffer));
            // Note: stream may be deallocated at this point, if this buffer was the
            // last reference to it.
            if (res != OK) {
                ALOGE("%s: RequestThread: Can't return input buffer for frame %d to"
                      "  its stream:%s (%d)",  __FUNCTION__,
                      frameNumber, strerror(-res), res);
            }
        } else {
            ALOGW("%s: Input buffer should be NULL if there is no input"
                    " buffer sent in the request, skipping input buffer return.",
                    __FUNCTION__);
        }
    }
}

先获取 Camera3Stream 对象，然后调用其 returnBuffer 方法。

frameworks/av/services/camera/libcameraservice/device3/Camera3Device.cpp

void Camera3Device::returnOutputBuffers(
        const camera3_stream_buffer_t *outputBuffers, size_t numBuffers,
        nsecs_t timestamp) {
    for (size_t i = 0; i < numBuffers; i++)
    {
        Camera3Stream *stream = Camera3Stream::cast(outputBuffers[i].stream);
        status_t res = stream->returnBuffer(outputBuffers[i], timestamp);
        // 如果该缓冲区是对流的最后引用，则流可能在此时被释放。
        if (res != OK) {
            ALOGE("Can't return buffer to its stream: %s (%d)",
                strerror(-res), res);
        }
    }
}

此处调用 returnBufferLocked 继续返回。

frameworks/av/services/camera/libcameraservice/device3/Camera3Stream.cpp

status_t Camera3Stream::returnBuffer(const camera3_stream_buffer &buffer,
        nsecs_t timestamp) {
    ATRACE_CALL();
    Mutex::Autolock l(mLock);

    /**
     * TODO: 首先检查状态是否有效。
     *
     * <HAL3.2 IN_CONFIG and IN_RECONFIG in addition to CONFIGURED.
     * >= HAL3.2 CONFIGURED only
     *
     * 也对getBuffer执行此操作。
     */
    status_t res = returnBufferLocked(buffer, timestamp);
    if (res == OK) {
        fireBufferListenersLocked(buffer, /*acquired*/false, /*output*/true);
    }

    // 即使缓冲区返回失败，我们仍然希望向等待缓冲区返回的人发送信号。
    mOutputBufferReturnedSignal.signal();

    return res;
}

在《Android 源码 Camera2 预览流程分析一》中创建了 Camera3OutputStream 对象。此处调用了 returnAnyBufferLocked 函数。

frameworks/av/services/camera/libcameraservice/device3/Camera3OutputStream.cpp

status_t Camera3OutputStream::returnBufferLocked(
        const camera3_stream_buffer &buffer,
        nsecs_t timestamp) {
    ATRACE_CALL();

    status_t res = returnAnyBufferLocked(buffer, timestamp, /*output*/true);

    if (res != OK) {
        return res;
    }

    mLastTimestamp = timestamp;

    return OK;
}

此处重点来看 returnBufferCheckedLocked 方法。

frameworks/av/services/camera/libcameraservice/device3/Camera3IOStreamBase.cpp

status_t Camera3IOStreamBase::returnAnyBufferLocked(
        const camera3_stream_buffer &buffer,
        nsecs_t timestamp,
        bool output) {
    status_t res;

    // returnBuffer may be called from a raw pointer, not a sp<>, and we'll be
    // decrementing the internal refcount next. In case this is the last ref, we
    // might get destructed on the decStrong(), so keep an sp around until the
    // end of the call - otherwise have to sprinkle the decStrong on all exit
    // points.
    sp<Camera3IOStreamBase> keepAlive(this);
    decStrong(this);

    if ((res = returnBufferPreconditionCheckLocked()) != OK) {
        return res;
    }

    sp<Fence> releaseFence;
    res = returnBufferCheckedLocked(buffer, timestamp, output,
                                    &releaseFence);
    // Res may be an error, but we still want to decrement our owned count
    // to enable clean shutdown. So we'll just return the error but otherwise
    // carry on

    if (releaseFence != 0) {
        mCombinedFence = Fence::merge(mName, mCombinedFence, releaseFence);
    }

    if (output) {
        mHandoutOutputBufferCount--;
    }

    mHandoutTotalBufferCount--;
    if (mHandoutTotalBufferCount == 0 && mState != STATE_IN_CONFIG &&
            mState != STATE_IN_RECONFIG && mState != STATE_PREPARING) {
        /**
         * Avoid a spurious IDLE->ACTIVE->IDLE transition when using buffers
         * before/after register_stream_buffers during initial configuration
         * or re-configuration, or during prepare pre-allocation
         */
        ALOGV("%s: Stream %d: All buffers returned; now idle", __FUNCTION__,
                mId);
        sp<StatusTracker> statusTracker = mStatusTracker.promote();
        if (statusTracker != 0) {
            statusTracker->markComponentIdle(mStatusId, mCombinedFence);
        }
    }

    mBufferReturnedSignal.signal();

    if (output) {
        mLastTimestamp = timestamp;
    }

    return res;
}

在回过头看《Android 源码 Camera2 预览流程分析二》，这里消费者 queueBuffer，正真开始消费 Camera 帧。

frameworks/av/services/camera/libcameraservice/device3/Camera3OutputStream.cpp

status_t Camera3OutputStream::returnBufferCheckedLocked(
            const camera3_stream_buffer &buffer,
            nsecs_t timestamp,
            bool output,
            /*out*/
            sp<Fence> *releaseFenceOut) {

    (void)output;
    ALOG_ASSERT(output, "Expected output to be true");

    status_t res;

    // Fence management - always honor release fence from HAL
    sp<Fence> releaseFence = new Fence(buffer.release_fence);
    int anwReleaseFence = releaseFence->dup();

    /**
     * 简单释放锁以避免死锁
     * StreamingProcessor::startStream -> Camera3Stream::isConfiguring
     * 在 queueBuffer 期间（此线程将进入StreamingProcessor::onFrameAvailable）
     */
    sp<ANativeWindow> currentConsumer = mConsumer;
    mLock.unlock();

    /**
     * 将缓冲区返回到 ANativeWindow
     */
    if (buffer.status == CAMERA3_BUFFER_STATUS_ERROR) {
        // 取消 buffer
        res = currentConsumer->cancelBuffer(currentConsumer.get(),
                container_of(buffer.buffer, ANativeWindowBuffer, handle),
                anwReleaseFence);
        if (res != OK) {
            ALOGE("%s: Stream %d: Error cancelling buffer to native window:"
                  " %s (%d)", __FUNCTION__, mId, strerror(-res), res);
        }
    } else {
        if (mTraceFirstBuffer && (stream_type == CAMERA3_STREAM_OUTPUT)) {
            {
                char traceLog[48];
                snprintf(traceLog, sizeof(traceLog), "Stream %d: first full buffer\n", mId);
                ATRACE_NAME(traceLog);
            }
            mTraceFirstBuffer = false;
        }
        // 设置时间戳
        res = native_window_set_buffers_timestamp(mConsumer.get(), timestamp);
        if (res != OK) {
            ALOGE("%s: Stream %d: Error setting timestamp: %s (%d)",
                  __FUNCTION__, mId, strerror(-res), res);
            return res;
        }
        // 消费者 queueBuffer
        res = currentConsumer->queueBuffer(currentConsumer.get(),
                container_of(buffer.buffer, ANativeWindowBuffer, handle),
                anwReleaseFence);
        if (res != OK) {
            ALOGE("%s: Stream %d: Error queueing buffer to native window: "
                  "%s (%d)", __FUNCTION__, mId, strerror(-res), res);
        }
    }
    mLock.lock();

    // 一旦一个有效的缓冲区被返回到队列中，就不能再将所有的缓冲区取出来进行预分配。
    if (buffer.status != CAMERA3_BUFFER_STATUS_ERROR) {
        mStreamUnpreparable = true;
    }

    if (res != OK) {
        close(anwReleaseFence);
    }

    *releaseFenceOut = releaseFence;

    return res;
}

现在继续分析启动 channel。

  1. 根据相机句柄找到 mm_camera_obj_t 对象；
  2. 调用 mm_camera_start_channel 进一步处理。

device/moto/shamu/camera/QCamera2/stack/mm-camera-interface/src/mm_camera_interface.c

static int32_t mm_camera_intf_start_channel(uint32_t camera_handle,
                                            uint32_t ch_id)
{
    int32_t rc = -1;
    mm_camera_obj_t * my_obj = NULL;

    pthread_mutex_lock(&g_intf_lock);
    my_obj = mm_camera_util_get_camera_by_handler(camera_handle);

    if(my_obj) {
        pthread_mutex_lock(&my_obj->cam_lock);
        pthread_mutex_unlock(&g_intf_lock);
        rc = mm_camera_start_channel(my_obj, ch_id);
    } else {
        pthread_mutex_unlock(&g_intf_lock);
    }
    CDBG("%s :X rc = %d", __func__, rc);
    return rc;
}
  1. 查找到 mm_channel_t 对象；
  2. 调用 mm_channel_fsm_fn 进一步处理。

device/moto/shamu/camera/QCamera2/stack/mm-camera-interface/src/mm_camera.c

int32_t mm_camera_start_channel(mm_camera_obj_t *my_obj,
                                uint32_t ch_id)
{
    int32_t rc = -1;
    mm_channel_t * ch_obj =
        mm_camera_util_get_channel_by_handler(my_obj, ch_id);

    if (NULL != ch_obj) {
        pthread_mutex_lock(&ch_obj->ch_lock);
        pthread_mutex_unlock(&my_obj->cam_lock);

        rc = mm_channel_fsm_fn(ch_obj,
                               MM_CHANNEL_EVT_START,
                               NULL,
                               NULL);
    } else {
        pthread_mutex_unlock(&my_obj->cam_lock);
    }

    return rc;
}

此时 mm_channel_t 状态为 MM_CHANNEL_STATE_STOPPED。

device/moto/shamu/camera/QCamera2/stack/mm-camera-interface/src/mm_camera_channel.c

int32_t mm_channel_fsm_fn(mm_channel_t *my_obj,
                          mm_channel_evt_type_t evt,
                          void * in_val,
                          void * out_val)
{
    int32_t rc = -1;

    CDBG("%s : E state = %d", __func__, my_obj->state);
    switch (my_obj->state) {
    ......
    case MM_CHANNEL_STATE_STOPPED:
        rc = mm_channel_fsm_fn_stopped(my_obj, evt, in_val, out_val);
        break;
    ......
    default:
        CDBG("%s: Not a valid state (%d)", __func__, my_obj->state);
        break;
    }

    /* unlock ch_lock */
    pthread_mutex_unlock(&my_obj->ch_lock);
    CDBG("%s : X rc = %d", __func__, rc);
    return rc;
}
  1. 调用 mm_channel_start 进一步启动；
  2. 此时 mm_channel_t 状态更改为 MM_CHANNEL_STATE_ACTIVE。

device/moto/shamu/camera/QCamera2/stack/mm-camera-interface/src/mm_camera_channel.c

int32_t mm_channel_fsm_fn_stopped(mm_channel_t *my_obj,
                                  mm_channel_evt_type_t evt,
                                  void * in_val,
                                  void * out_val)
{
    int32_t rc = 0;
    CDBG("%s : E evt = %d", __func__, evt);
    switch (evt) {
    ......
    case MM_CHANNEL_EVT_START:
        {
            rc = mm_channel_start(my_obj);
            /* 第一个流以停止状态启动，然后变为活动状态 */
            if (0 == rc) {
                my_obj->state = MM_CHANNEL_STATE_ACTIVE;
            }
        }
        break;
    ......
    default:
        CDBG_ERROR("%s: invalid state (%d) for evt (%d)",
                   __func__, my_obj->state, evt);
        break;
    }
    CDBG("%s : E rc = %d", __func__, rc);
    return rc;
}

核心步骤：

  1. 启动cb线程、启动cmd线程；
  2. 启动 channel 中的所有流；

device/moto/shamu/camera/QCamera2/stack/mm-camera-interface/src/mm_camera_channel.c

int32_t mm_channel_start(mm_channel_t *my_obj)
{
    int32_t rc = 0;
    int i, j;
    mm_stream_t *s_objs[MAX_STREAM_NUM_IN_BUNDLE] = {NULL};
    uint8_t num_streams_to_start = 0;
    mm_stream_t *s_obj = NULL;
    int meta_stream_idx = 0;

    for (i = 0; i < MAX_STREAM_NUM_IN_BUNDLE; i++) {
        if (my_obj->streams[i].my_hdl > 0) {
            s_obj = mm_channel_util_get_stream_by_handler(my_obj,
                                                          my_obj->streams[i].my_hdl);
            if (NULL != s_obj) {
                /* 记住元数据流索引 */
                if (s_obj->stream_info->stream_type == CAM_STREAM_TYPE_METADATA) {
                    meta_stream_idx = num_streams_to_start;
                }
                s_objs[num_streams_to_start++] = s_obj;
            }
        }
    }

    if (meta_stream_idx > 0 ) {
        /* 总是先启动元数据流，所以将流对象与第一个对象交换 */
        s_obj = s_objs[0];
        s_objs[0] = s_objs[meta_stream_idx];
        s_objs[meta_stream_idx] = s_obj;
    }

    if (NULL != my_obj->bundle.super_buf_notify_cb) {
        /* 需要向上发送cb，因此启动线程 */
        /* 初始化 superbuf 队列 */
        mm_channel_superbuf_queue_init(&my_obj->bundle.superbuf_queue);
        my_obj->bundle.superbuf_queue.num_streams = num_streams_to_start;
        my_obj->bundle.superbuf_queue.expected_frame_id = 0;
        my_obj->bundle.superbuf_queue.expected_frame_id_without_led = 0;
        my_obj->bundle.superbuf_queue.led_off_start_frame_id = 0;
        my_obj->bundle.superbuf_queue.led_on_start_frame_id = 0;
        my_obj->bundle.superbuf_queue.led_on_num_frames = 0;

        for (i = 0; i < num_streams_to_start; i++) {
            /* 为流设置 bundled 标志 */
            s_objs[i]->is_bundled = 1;
            /* 将 bundled 流初始化为无效值-1 */
            my_obj->bundle.superbuf_queue.bundled_streams[i] = s_objs[i]->my_hdl;
        }

        /* 启动cb线程，通过cb分发超级buf */
        mm_camera_cmd_thread_launch(&my_obj->cb_thread,
                                    mm_channel_dispatch_super_buf,
                                    (void*)my_obj);

        /* 启动cmd线程以获取超级buf dataCB */
        mm_camera_cmd_thread_launch(&my_obj->cmd_thread,
                                    mm_channel_process_stream_buf,
                                    (void*)my_obj);

        /* 设置标志位 TRUE */
        my_obj->bundle.is_active = TRUE;
    }

    for (i = 0; i < num_streams_to_start; i++) {
        /* 一个 channel 中的所有流应该同时启动 */
        if (s_objs[i]->state == MM_STREAM_STATE_ACTIVE) {
            CDBG_ERROR("%s: stream already started idx(%d)", __func__, i);
            rc = -1;
            break;
        }

        /* 分配 buf */
        rc = mm_stream_fsm_fn(s_objs[i],
                              MM_STREAM_EVT_GET_BUF,
                              NULL,
                              NULL);
        if (0 != rc) {
            CDBG_ERROR("%s: get buf failed at idx(%d)", __func__, i);
            break;
        }

        /* 注册 buf */
        rc = mm_stream_fsm_fn(s_objs[i],
                              MM_STREAM_EVT_REG_BUF,
                              NULL,
                              NULL);
        if (0 != rc) {
            CDBG_ERROR("%s: reg buf failed at idx(%d)", __func__, i);
            break;
        }

        /* 启动流 */
        rc = mm_stream_fsm_fn(s_objs[i],
                              MM_STREAM_EVT_START,
                              NULL,
                              NULL);
        if (0 != rc) {
            CDBG_ERROR("%s: start stream failed at idx(%d)", __func__, i);
            break;
        }
    }

    /* 错误处理 */
    if (0 != rc) {
        for (j=0; j<=i; j++) {
            /* 停止流*/
            mm_stream_fsm_fn(s_objs[j],
                             MM_STREAM_EVT_STOP,
                             NULL,
                             NULL);

            /* 取消注册 buf */
            mm_stream_fsm_fn(s_objs[j],
                             MM_STREAM_EVT_UNREG_BUF,
                             NULL,
                             NULL);

            /* put buf back */
            mm_stream_fsm_fn(s_objs[j],
                             MM_STREAM_EVT_PUT_BUF,
                             NULL,
                             NULL);
        }

        /* 销毁超级buf cmd 线程 */
        if (TRUE == my_obj->bundle.is_active) {
            /* first stop bundle thread */
            mm_camera_cmd_thread_release(&my_obj->cmd_thread);
            mm_camera_cmd_thread_release(&my_obj->cb_thread);

            /* 反初始化 superbuf 队列 */
            mm_channel_superbuf_queue_deinit(&my_obj->bundle.superbuf_queue);

            /* memset bundle 信息 */
            memset(&my_obj->bundle, 0, sizeof(mm_channel_bundle_t));
        }
    }
    my_obj->bWaitForPrepSnapshotDone = 0;

    return rc;
}
avatar
文章
阅读
粉丝
