java POI读取docx中图片位置

一 序

   之前用POI读取Word内容，但是图片位置没有（能获得文档中的所有图片，但是你并不能知道这些图片是在哪里）。

看了大佬写的文章，才动手试一下：

pom.xml:

这个要注意，很多留言咨询问的主要是版本的问题。

 <!-- https://mvnrepository.com/artifact/org.apache.poi/poi -->
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi</artifactId>
            <version>3.17</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.poi/poi-ooxml -->
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml</artifactId>
            <version>3.17</version>
        </dependency>
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>ooxml-schemas</artifactId>
            <version>1.3</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.poi/poi-scratchpad -->
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-scratchpad</artifactId>
            <version>3.17</version>
        </dependency>

util 代码：www.cnblogs.com/ct-csu/p/81…

import org.apache.commons.collections.CollectionUtils;

import org.apache.poi.xwpf.usermodel.XWPFDocument;
import org.apache.poi.xwpf.usermodel.XWPFParagraph;
import org.apache.poi.xwpf.usermodel.XWPFPictureData;


import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.Collections;
import java.util.List;



public class XWPFUtilsTest {


    public static void main(String[] args)  throws IOException {
        InputStream in = new FileInputStream("/Users/benmu/Documents/17.医学心理学 第7版(1).docx");
        XWPFDocument xwpfDocument = new XWPFDocument(in);
        List<XWPFParagraph> paragraphList = xwpfDocument.getParagraphs();
        System.out.println("图片的索引\t|图片名称\t|图片下一段文字的内容\t");
        System.out.println("------------------------------------------");
        for(int i = 0;i < paragraphList.size();i++){
            List<String> imageBundleList = XWPFUtils.readImageInParagraph(paragraphList.get(i));
            if(CollectionUtils.isNotEmpty(imageBundleList)){
                for(String pictureId:imageBundleList){
                    XWPFPictureData pictureData = xwpfDocument.getPictureDataByID(pictureId);
                    String imageName = pictureData.getFileName();
                    String lastParagraphText = paragraphList.get(i+1).getParagraphText();
                    System.out.println(pictureId +"\t|" + imageName + "\t|" + lastParagraphText);
                }
            }
        }
    }

}

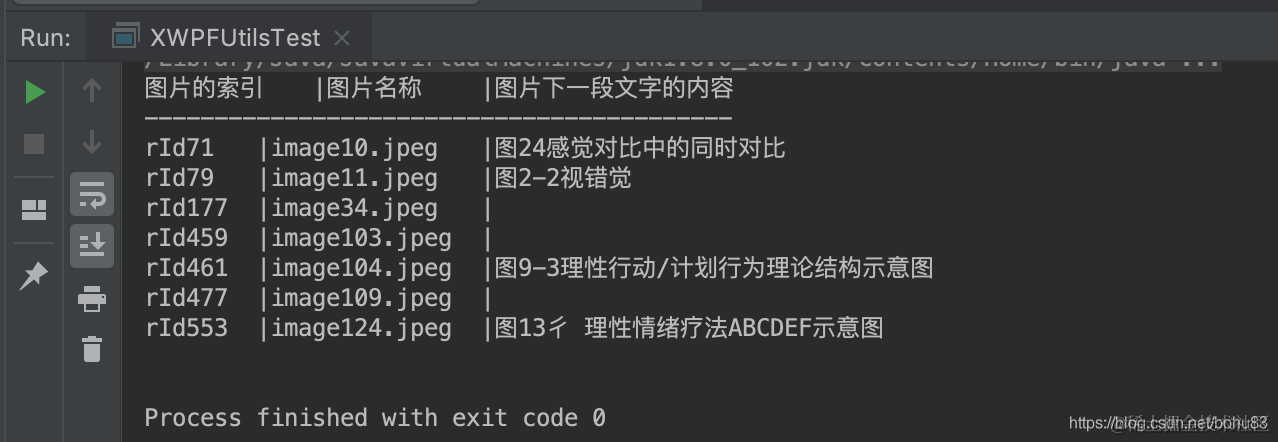

效果：
