Sqoop2数据迁移

把分析完的结果迁移到mysql数据库里

sqoop是数据迁移工具，可以双向迁移，可以把大数据集群里的数据迁出到关系型数据库里，也可以把关系型数据库里的数据迁移到到大数据集群里。

是关系型数据库和大数据集群之前数据迁入迁出工具。

1.依赖环境

操作系统：centos8
大数据环境：hdfs，hadoop-3.2.1
数据库：MySQL-8.0.19
Sqoop2版本：1.99.7蛇和新技术学习
Sqoop1版本：1.4.7，稳定版本，用于生产环境

2.服务启动

hdfs服务我们的数据在hive上面，归根到底就是在hdfs上面

我们要把这里的数据迁出去

yarn服务迁移不是剪切哈，底层默认基于mapreduce，n多个并发，reduce规约，要开着资源管理的服务
sqoop2-server服务

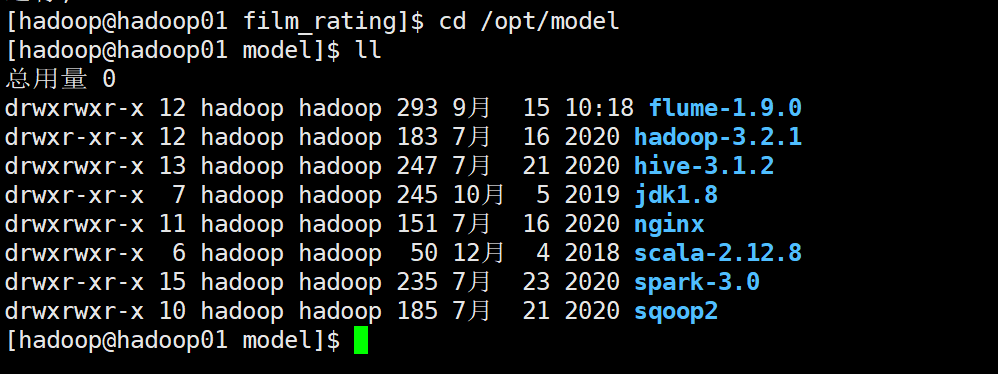

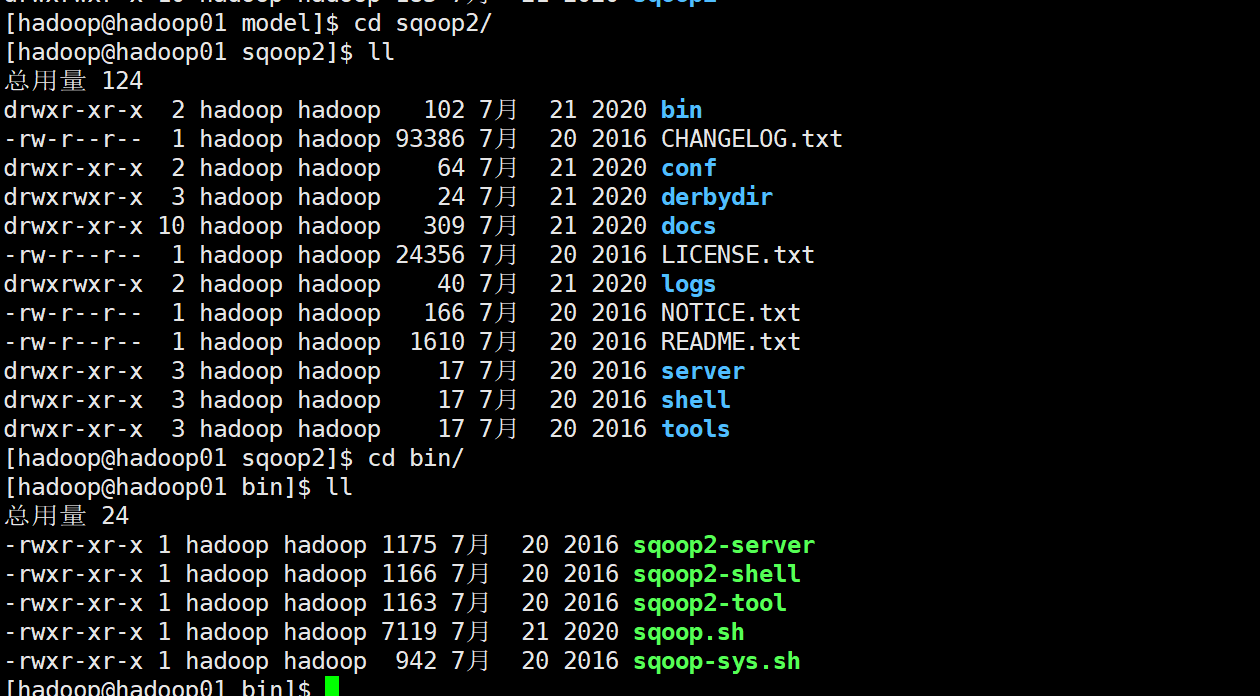

sqoop2依然在这个文件夹

sqoop2-server：启动服务

sqoop2-shell：进入sqoop2客户端

这些命令之所以能够直接使用，是因为配置了环境变量

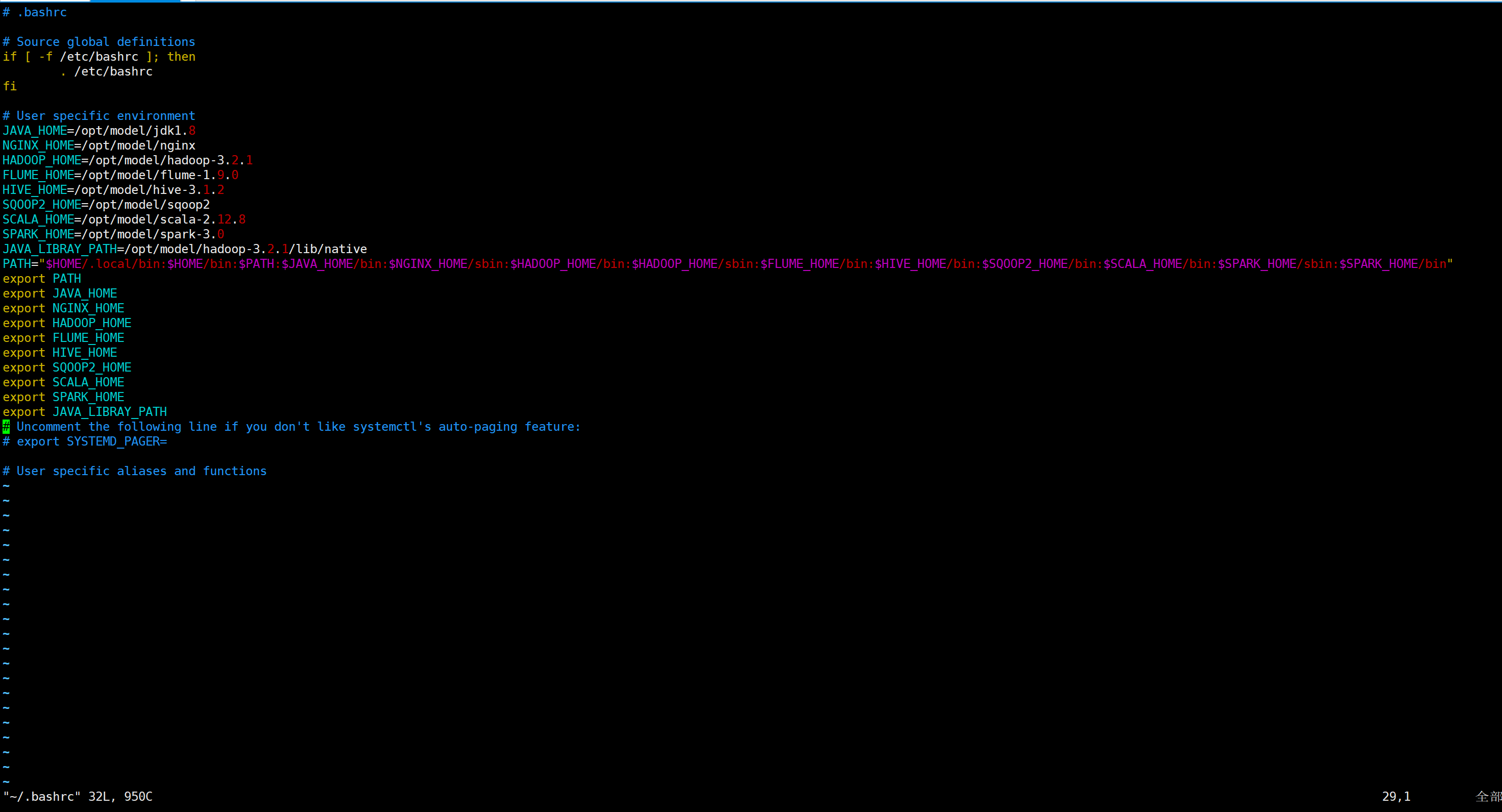

[hadoop@hadoop01 sqoop2]$ vi ~/.bashrc

说法一：

~/是进入当前用户的主目录。比如我用的用户名是aaa
那么命令
cd ~/   就进入了/home/aaa 目录。

.bashrc 是进入.bashrc文件夹，就是用户目录下的名字是.bashrc的目录。

说法二：wido.me/sunteya/und…

2.1 启动服务进程

2.2 启动服务进程

[hadoop@hadoop01 ~]$ sqoop2-server start #启动服务

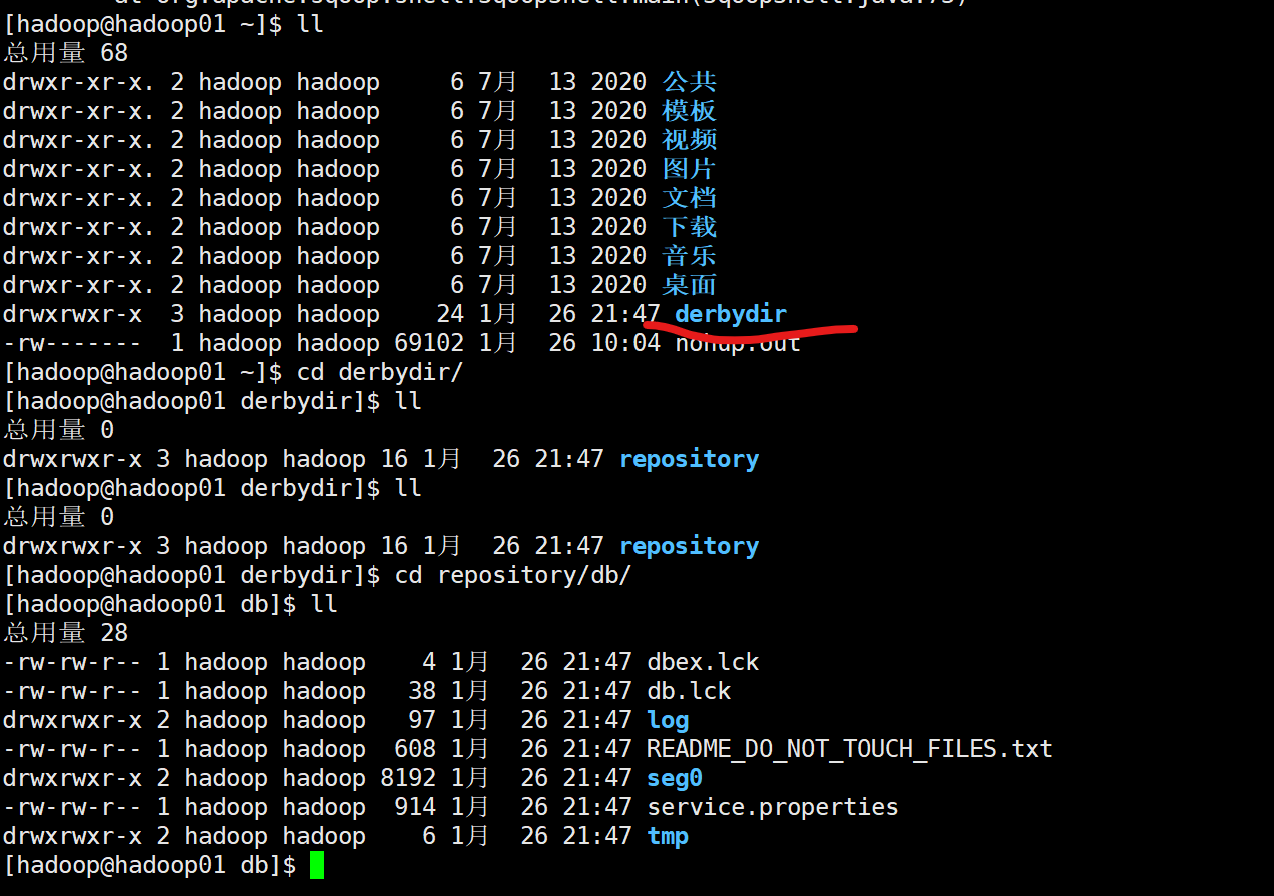

在哪里启动就会在哪里产生一个derbydir的文件夹【有点像clone git仓库？】

这次在哪里启动，下次还在哪里启动就行

[hadoop@hadoop01 data]$ sqoop2-server stop #停止Sqoop2-server

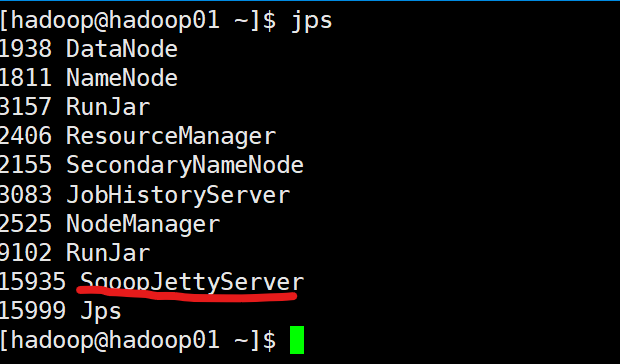

检查进程：

没问题

2.2启动sqoop2客户端

以及启动了服务端，要在客户端界面才能实现数据迁移

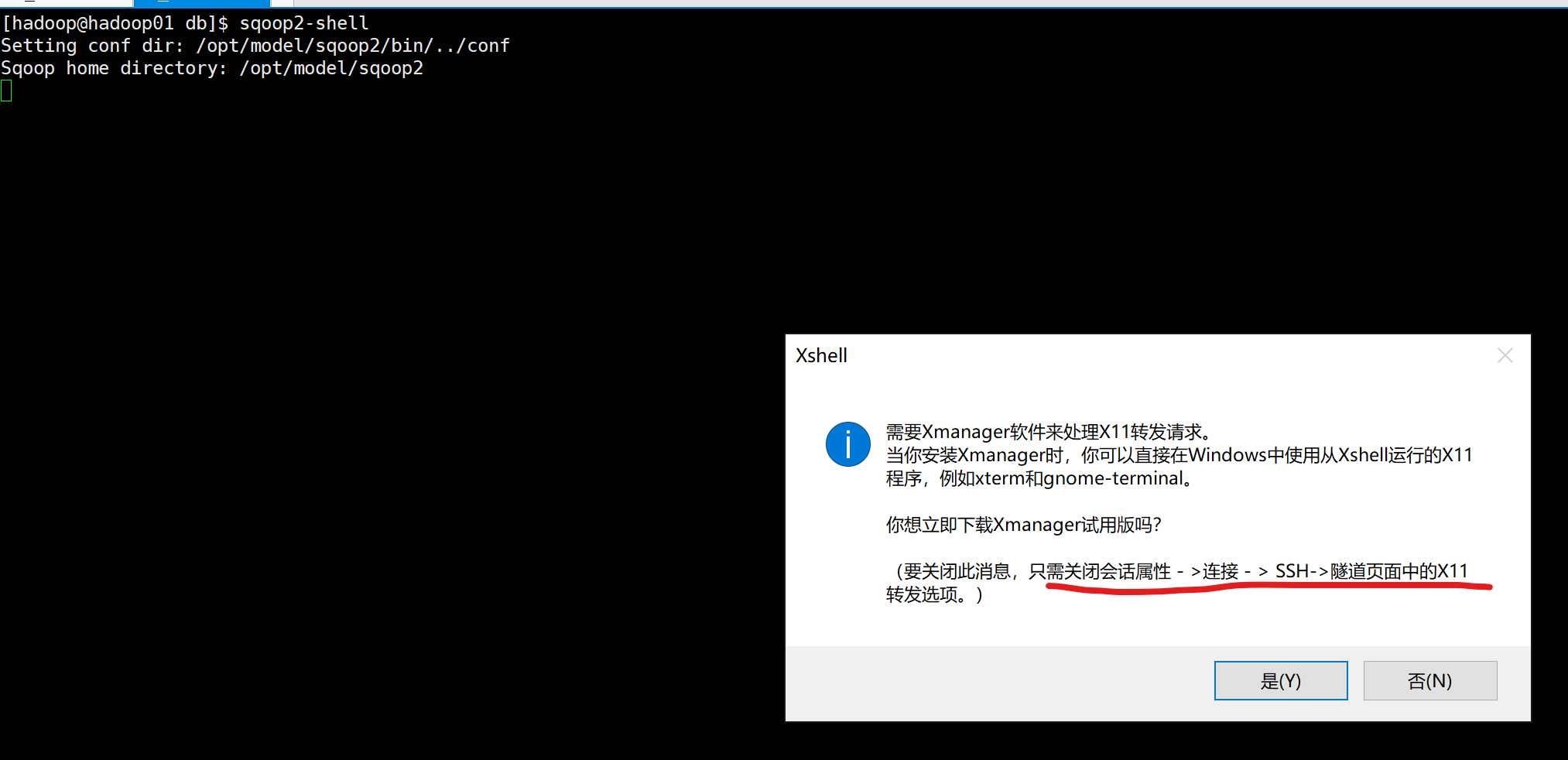

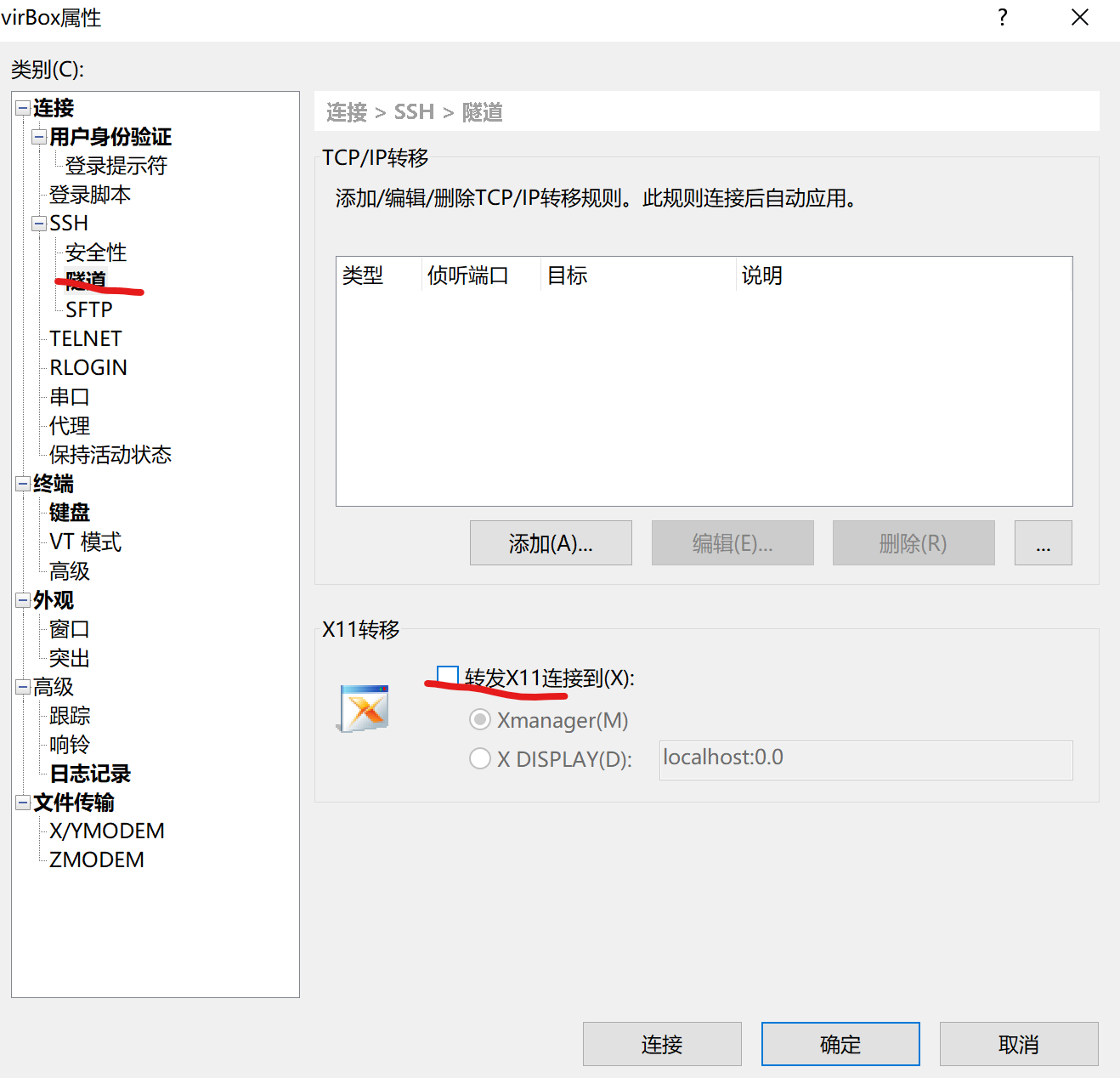

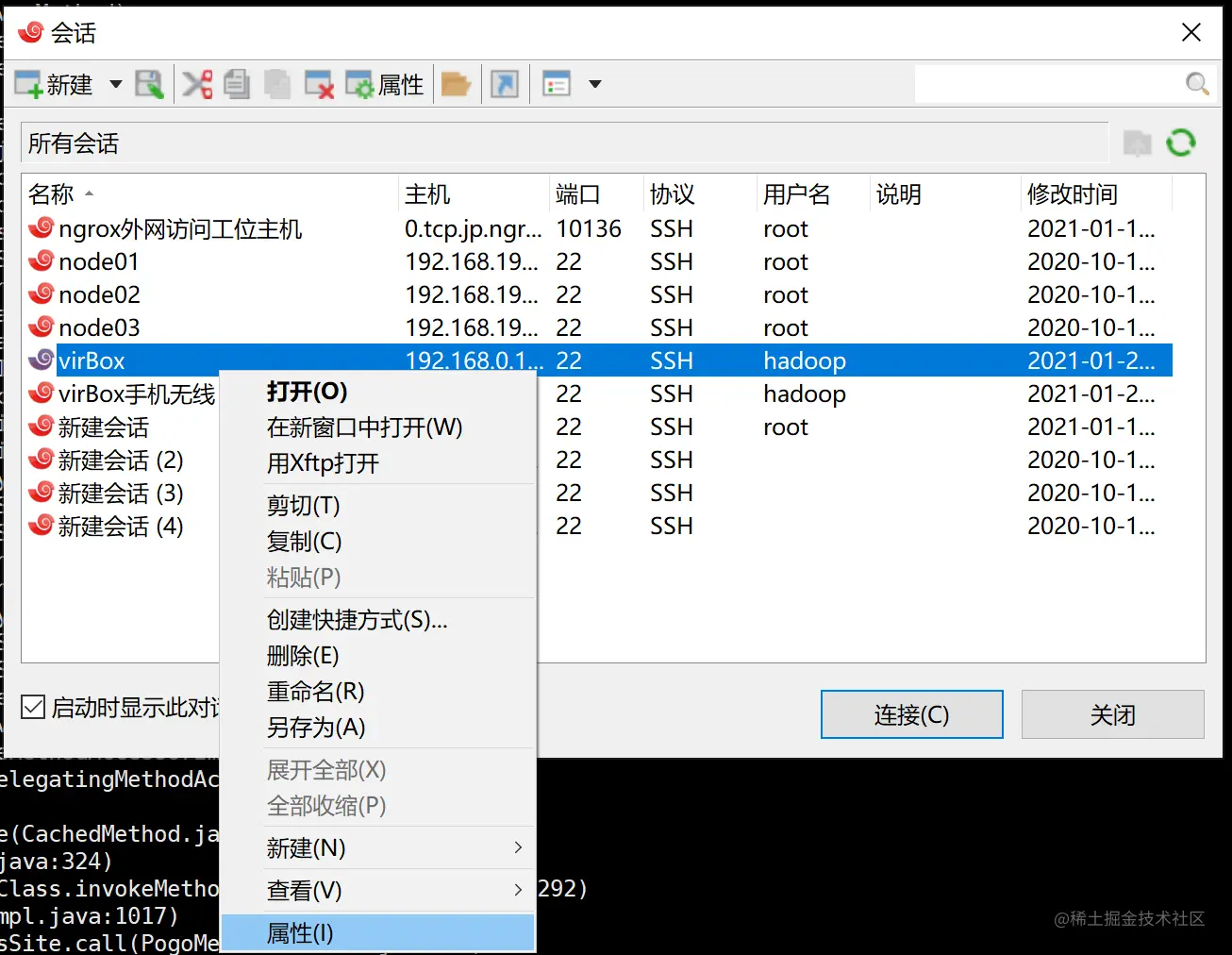

启动时，回出现这个错误，根据提示解决就行

[hadoop@hadoop01 ~]$ sqoop2-shell  #1. 开启客户端
Setting conf dir: /opt/model/sqoop2/bin/../conf
Sqoop home directory: /opt/model/sqoop2
Sqoop Shell: Type 'help' or '\h' for help.

sqoop:000> set server --host hadoop01 --port 12000 #2.每次都必须设置服务器连接信息
Server is set successfully
sqoop:000> show server -all #查看服务器的配置信息
Server host: hadoop01
Server port: 12000
Server webapp: sqoop
sqoop:000> show connector #查看连接器
0    [main] WARN  org.apache.hadoop.util.NativeCodeLoader  - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
+------------------------+---------+------------------------------------------------------------+----------------------+
|          Name          | Version |                           Class                            | Supported Directions |
+------------------------+---------+------------------------------------------------------------+----------------------+
#generic-jdbc-connector是sqoop和关系型数据库连接的驱动
| generic-jdbc-connector | 1.99.7  | org.apache.sqoop.connector.jdbc.GenericJdbcConnector       | FROM/TO              |
| kite-connector         | 1.99.7  | org.apache.sqoop.connector.kite.KiteConnector              | FROM/TO              |
| oracle-jdbc-connector  | 1.99.7  | org.apache.sqoop.connector.jdbc.oracle.OracleJdbcConnector | FROM/TO              |
| ftp-connector          | 1.99.7  | org.apache.sqoop.connector.ftp.FtpConnector                | TO         #    hdfs-connector是sqoop和hdfs连接的驱动      |
| hdfs-connector         | 1.99.7  | org.apache.sqoop.connector.hdfs.HdfsConnector              | FROM/TO              |
| kafka-connector        | 1.99.7  | org.apache.sqoop.connector.kafka.KafkaConnector            | TO                   |
| sftp-connector         | 1.99.7  | org.apache.sqoop.connector.sftp.SftpConnector              | TO                   |
+------------------------+---------+------------------------------------------------------------+----------------------+
sqoop:000> show link
+------+----------------+---------+
| Name | Connector Name | Enabled |
+------+----------------+---------+
+------+----------------+---------+
sqoop:000> show job
+----+------+----------------+--------------+---------+
| Id | Name | From Connector | To Connector | Enabled |
+----+------+----------------+--------------+---------+
+----+------+----------------+--------------+---------+
sqoop:000>

3.Sqoop数据迁移

3.1依赖的服务

hdfs服务
yarn服务
sqoop2-server服务
mysqld服务： sudo systemctl status mysqld

3.2 迁移HDFS数据到MySQL

3.2.1 功能需求

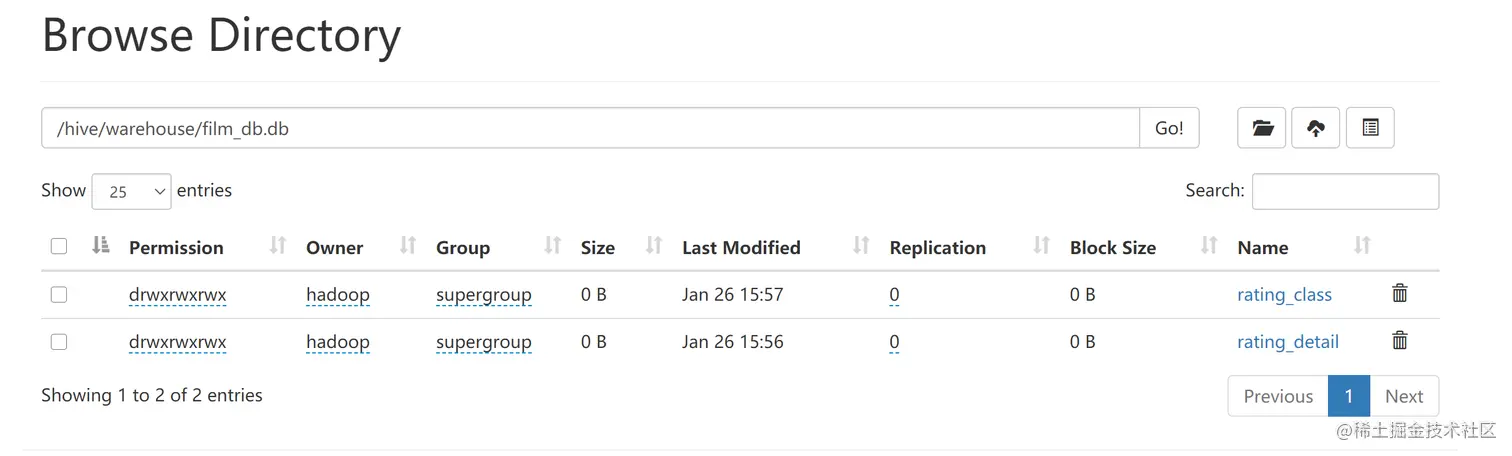

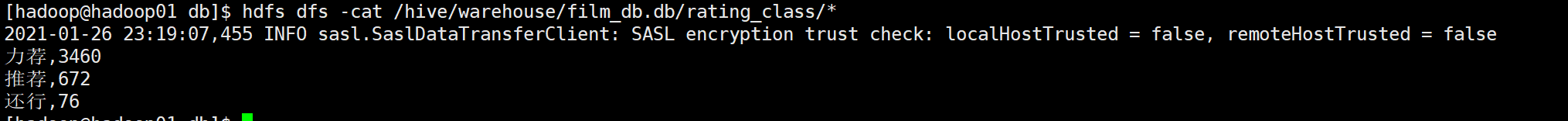

hive数据仓库(film_db),rating_class(文件)

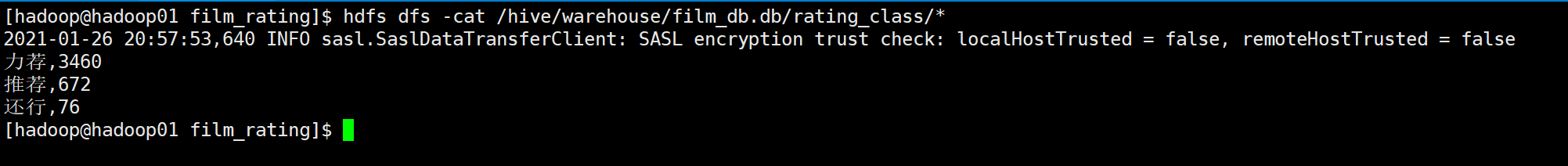

将/hive/warehouse/film_db.db/rating_class/000000_0 文件迁移到 MySQL数据库表中

3.2.2 在MySQL中创建rating_class表

[hadoop@hadoop01 data]$ mysql -uroot -p
数据密码: ROOTroot_1
mysql> use world; --1.引用该数据库
mysql> create table rating_class( --2.创建空表结构（没有数据）
-> rating_score varchar(20),
-> count int);
Query OK, 0 rows affected (0.38 sec)
mysql> select * from rating_class;
Empty set (0.00 sec)

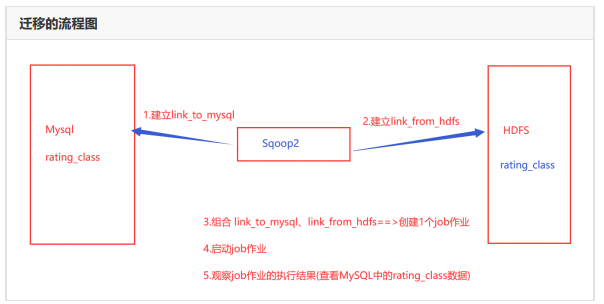

3.2.3 Sqoop2-shell 创建job

3.2.3.1创建from_link(HDFS)

sqoop:000> create link -c hdfs-connector #1)命令
Creating link for connector with name hdfs-connector
Please fill following values to create new link object
Name: link_from_hdfs_rating_class #2)给link设置名字
HDFS cluster
URI: hdfs://hadoop01:9000 #3)hdfs集群文件的访问根路径
Conf directory: /opt/model/hadoop-3.2.1/etc/hadoop #4)hadoop本地的配置目录路径
Additional configs::
There are currently 0 values in the map:
entry#
New link was successfully created with validation status OK and name
link_from_hdfs_rating_class
【检查link创建列表】
sqoop:000> show link
+-----------------------------+----------------+---------+
| Name | Connector Name | Enabled |
+-----------------------------+----------------+---------+
| link_from_hdfs_rating_class | hdfs-connector | true |
+-----------------------------+----------------+---------+

3.2.3.2 创建to_link(MySQL)

sqoop:000> create link -c generic-jdbc-connector #1)命令 生成一个link 使用内置generic-jdbc-connector驱动
Creating link for connector with name generic-jdbc-connector
Please fill following values to create new link object
Name: link_to_mysql_rating_class #2）link名字

Database connection

Driver class: com.mysql.cj.jdbc.Driver #3）mysql8的驱动字符串
Connection String: jdbc:mysql://hadoop01:3306/world?serverTimezone=Asia/Shanghai #4)url 导入本机hadoop01的数据库
Username: root
Password: ********** #6）密码ROOTroot_1
Fetch Size:
Connection Properties:
There are currently 0 values in the map:
entry#

SQL Dialect

Identifier enclose:  #7)注意：必须输入“1”个空格
New link was successfully created with validation status OK and name link_to_mysql_rating_class
sqoop:000> show link
+-----------------------------+------------------------+---------+
|            Name             |     Connector Name     | Enabled |
+-----------------------------+------------------------+---------+
| link_to_mysql_rating_class  | generic-jdbc-connector | true    |
| link_from_hdfs_rating_class | hdfs-connector         | true    |

3.2.33 创建job

sqoop:000> create job -f link_from_hdfs_rating_class -t link_to_mysql_rating_class #1)命令

Creating job for links with from name link_from_hdfs_rating_class and to name link_to_mysql_rating_class
Please fill following values to create new job object
Name: job_hdfs2mysql_rating_class #2）job的名字

Input configuration

Input directory: /hive/warehouse/film_db.db/rating_class  #3）hdfs文件所在的目录位置
Override null value:
Null value:

Incremental import

Incremental type: #自增方式
  0 : NONE
  1 : NEW_FILES
Choose: 0 #4)输入0
Last imported date: #5)直接Enter

Database target

Schema name: world #6)输入mysql的数据库名
Table name: rating_class #7) 数据表的名字
Column names:
There are currently 0 values in the list:
element#
Staging table:
Clear stage table:

Throttling resources

Extractors:
Loaders:

Classpath configuration

Extra mapper jars:
There are currently 0 values in the list:
element#
New job was successfully created with validation status OK  and name job_hdfs2mysql_rating_class

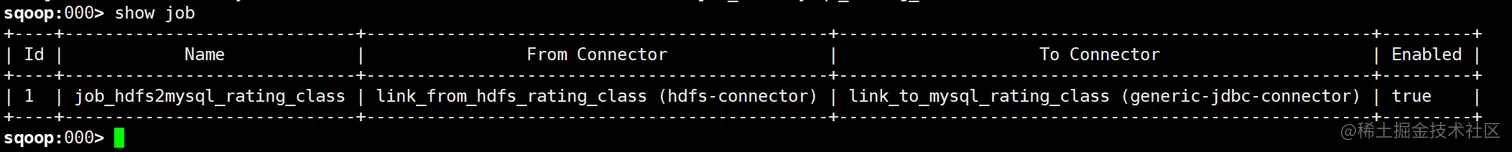

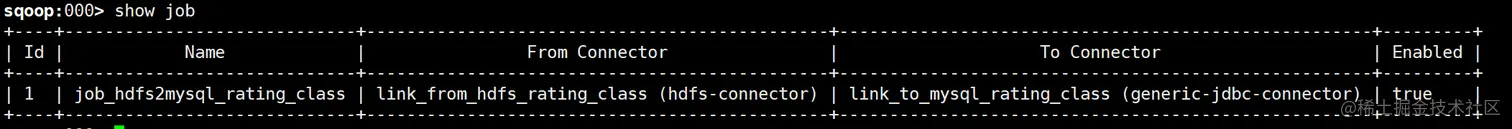

【查看效果】
sqoop:000> show job

:couple_with_heart: 怎么关闭连接？

修改连接

update link -n link_name

常用命令sqoop.apache.org/docs/1.99.7…

3.2.4 启动job

sqoop:000> start job -n job_hdfs2mysql_rating_class

Submission details
Job Name: job_hdfs2mysql_rating_class
Server URL: http://localhost:12000/sqoop/
Created by: hadoop
Creation date: 2021-01-27 15:33:53 CST
Lastly updated by: hadoop
External ID: job_1611728449342_0001
	http://hadoop01:8088/proxy/application_1611728449342_0001/
2021-01-27 15:33:53 CST: BOOTING  - Progress is not available

3.2.5 查看Job执行的状态

sqoop:000> status job -n job_hdfs2mysql_rating_class

查看mysql效果

结论：

现在已经完成了分析完的数据导出到mysql里，接下来就可以用springBoot访问mysql，然后再前台界面进行渲染
