0x00 摘要
本系列我们介绍消息队列 Kombu。Kombu 的定位是一个兼容 AMQP 协议的消息队列抽象。通过本文，大家可以了解 Kombu 中的 mailbox 概念，顺便可以把之前几篇文章内容再次梳理下。
0x01 示例代码
本文实例代码来自 liqiang.io/post/celery…
示例代码分为两部分˛
Node可以理解为广播Consumer。Client可以认为是广播发起者。
1.1 Node
import sys
import kombu
from kombu import pidbox
hostname = "localhost"
connection = kombu.Connection('redis://localhost:6379')
mailbox = pidbox.Mailbox("testMailbox", type="direct")
node = mailbox.Node(hostname, state={"a": "b"})
node.channel = connection.channel()
def callback(body, message):
print(body)
print(message)
def main(arguments):
consumer = node.listen(callback=callback)
try:
while True:
print('Consumer Waiting')
connection.drain_events()
finally:
consumer.cancel()
if __name__ == '__main__':
sys.exit(main(sys.argv[1:]))
1.2 client
import sys
import kombu
from kombu import pidbox
def callback():
print("callback")
def main(arguments):
connection = kombu.Connection('redis://localhost:6379')
mailbox = pidbox.Mailbox("testMailbox", type="direct")
bound = mailbox(connection)
bound._broadcast("print_msg", {'msg': 'Message for you'})
if __name__ == '__main__':
sys.exit(main(sys.argv[1:]))
0x02 核心思路
广播功能是利用了Redis的 pubSub 机制完成。
2.1 Redis PubSub
为了支持消息多播，Redis单独使用了一个模块，也就是PubSub。
Redis作为消息发布和订阅之间的服务器，起到桥梁的作用。在Redis里面有一个channel的概念，也就是频道，发布者通过指定发布到某个频道，只要有订阅者订阅了该频道，该消息就会发送给订阅者。
2.2 概述
在 Kombu 的 mailbox 实现中，分为 Consumer 和 Producer两部分。

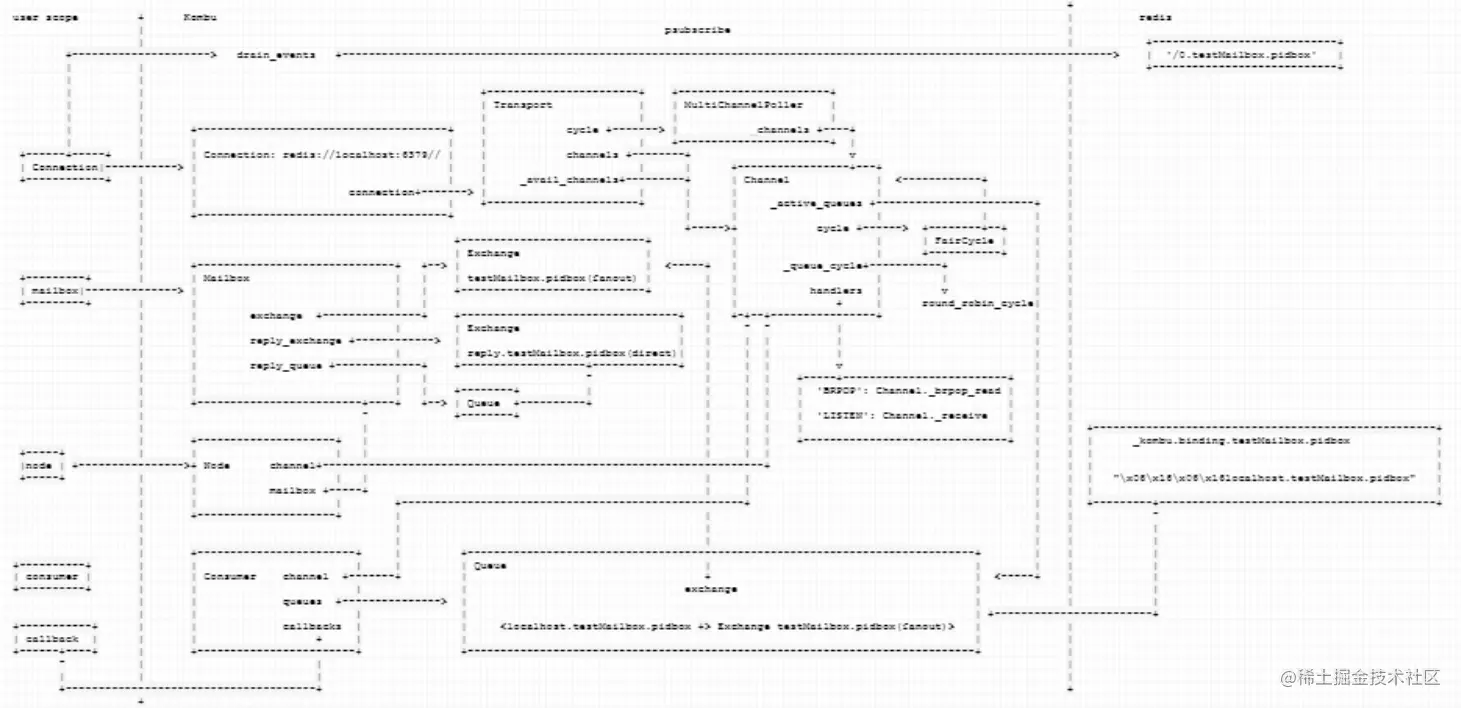

在 Kombu 的 Channel 类中，当注册 listener 时候，实际就是利用了 redis 驱动的 PubSub功能，把 consumer 注册订阅到了一个 key 上。从而 Consumer 的 queue 和 回调函数 就通过 Channel 与 redis 联系起来。这样后续就可以从 Redis 读取消息。
psubscribe, client.py:3542
_subscribe, redis.py:664
_register_LISTEN, redis.py:322
get, redis.py:375
drain_events, base.py:960
drain_events, connection.py:318
main, node.py:24
0x03 Consumer
下面我们依据示例代码，一步一步剖析如何完成广播功能。
3.1 建立Connection
完成以下代码之后，系统建立了Connection。
connection = kombu.Connection('redis://localhost:6379')
具体如下，我把问题域分为用户域和Kombu域，以便理解：
user scope + kombu scope
|
|
+------------+ | +--------------------------------------+
| connection | +----------------------> | Connection: redis://localhost:6379// |
+------------+ | +--------------------------------------+
|
|
|
|
|
+
3.2 建立mailbox
完成以下代码后，系统建立了Connection和mailbox。
connection = kombu.Connection('redis://localhost:6379')
mailbox = pidbox.Mailbox("testMailbox", type="fanout")
但此时两者没有建立联系，mailbox的某些成员变量也没有实际含义。举例如下：
mailbox = {Mailbox} <kombu.pidbox.Mailbox object at 0x7fea4b81df28>
accept = {list: 1} ['json']
clock = {LamportClock} 0
connection = {NoneType} None
exchange = {Exchange} Exchange testMailbox.pidbox(fanout)
exchange_fmt = {str} '%s.pidbox'
namespace = {str} 'testMailbox'
node_cls = {type} <class 'kombu.pidbox.Node'>
oid = {str} '9386a23b-ae96-3c6c-b036-ae7646455ebb'
producer_pool = {NoneType} None
queue_expires = {NoneType} None
queue_ttl = {NoneType} None
reply_exchange = {Exchange} Exchange reply.testMailbox.pidbox(direct)
reply_exchange_fmt = {str} 'reply.%s.pidbox'
reply_queue = {Queue} <unbound Queue 9386a23b-ae96-3c6c-b036-ae7646455ebb.reply.testMailbox.pidbox -> <unbound Exchange reply.testMailbox.pidbox(direct)> -> 9386a23b-ae96-3c6c-b036-ae7646455ebb>
reply_queue_expires = {float} 10.0
reply_queue_ttl = {NoneType} None
serializer = {NoneType} None
type = {str} 'fanout'
unclaimed = {defaultdict: 0} defaultdict(<class 'collections.deque'>, {})

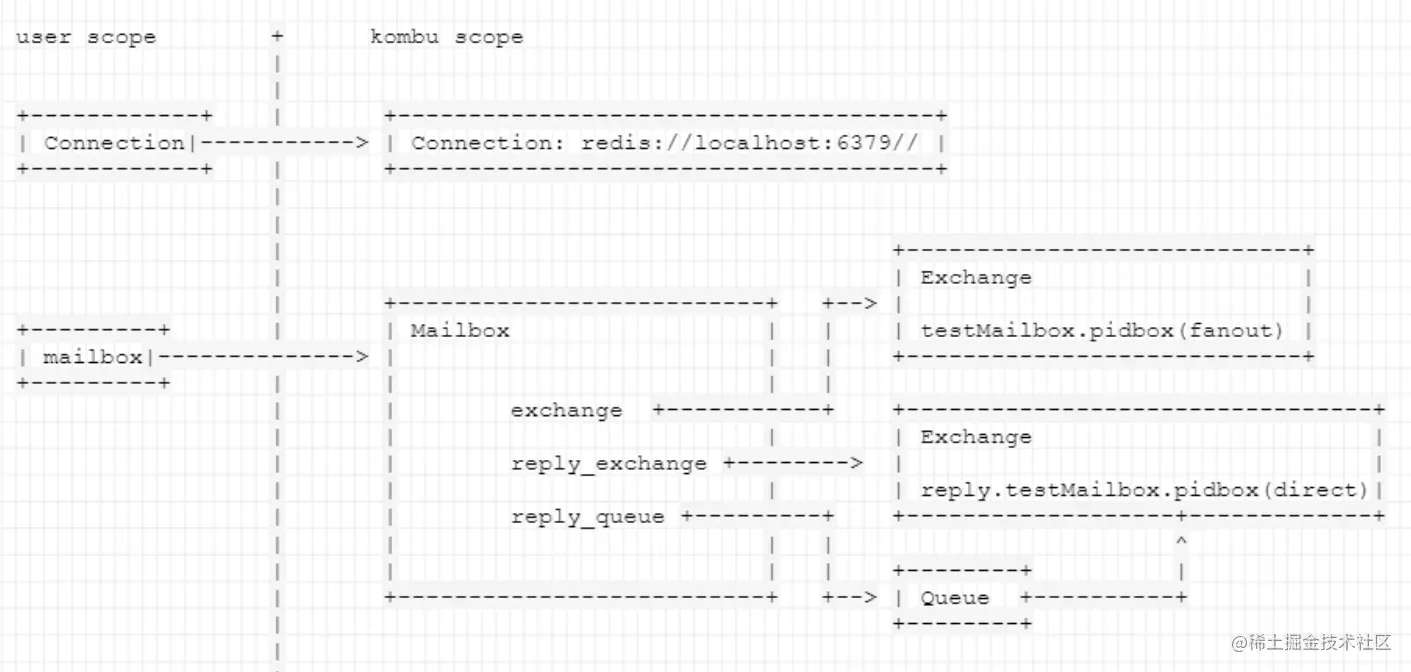

此时逻辑如下：
3.3 建立Node
完成以下代码之后，系统建立了Connection，mailbox和node。
Node是mailbox中的概念，可以理解为具体邮箱。
connection = kombu.Connection('redis://localhost:6379')
mailbox = pidbox.Mailbox("testMailbox", type="fanout")
node = mailbox.Node(hostname, state={"a": "b"})
node举例如下：
node = {Node} <kombu.pidbox.Node object at 0x7fea4b8bffd0>
channel = {NoneType} None
handlers = {dict: 0} {}
hostname = {str} 'localhost'
mailbox = {Mailbox} <kombu.pidbox.Mailbox object at 0x7fea4b81df28>
state = {dict: 1} {'a': 'b'}

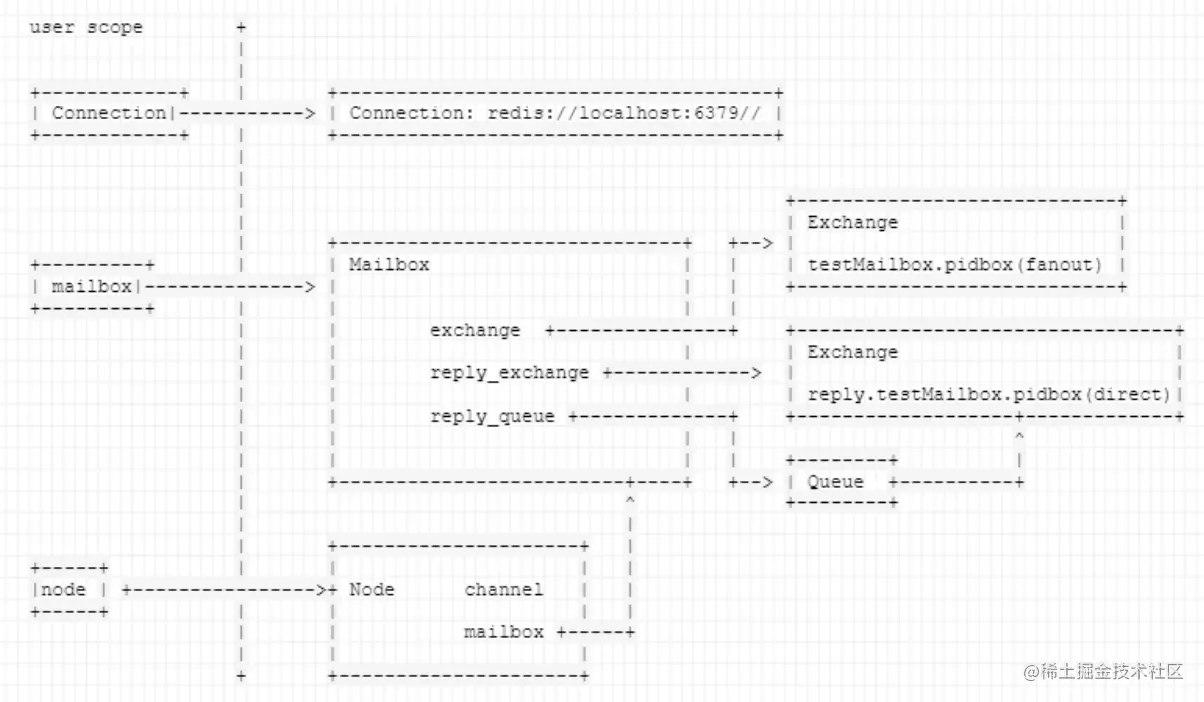

逻辑如下：
3.4 建立channel
经过如下代码后，才建立channel。
connection = kombu.Connection('redis://localhost:6379')
mailbox = pidbox.Mailbox("testMailbox", type="fanout")
node = mailbox.Node(hostname, state={"a": "b"})
node.channel = connection.channel()
3.4.1 联系
关于channel，Connection 与 Transport 联系解释如下：
- Connection：对 MQ 连接的抽象，一个 Connection 就对应一个 MQ 的连接；Connection 是 AMQP 对 连接的封装；
- Channel：与AMQP中概念类似，可以理解成共享一个Connection的多个轻量化连接；Channel 是 AMQP 对 MQ 的操作的封装；
- Transport：kombu 支持将不同的消息中间件以插件的方式进行灵活配置，使用transport这个术语来表示一个具体的消息中间件，可以认为是对broker的抽象：
- 对 MQ 的操作必然离不开连接，但是，Kombu 并不直接让 Channel 使用 Connection 来发送/接受请求，而是引入了一个新的抽象 Transport，Transport 负责具体的 MQ 的操作，也就是说 Channel 的操作都会落到 Transport 上执行。引入transport这个抽象概念可以使得后续添加对non-AMQP的transport非常简单；
- Transport是真实的 MQ 连接，也是真正连接到 MQ(redis/rabbitmq) 的实例，区分底层消息队列的实现；
- 当前Kombu中build-in支持有Redis、Beanstalk、Amazon SQS、CouchDB,、MongoDB,、ZeroMQ,、ZooKeeper、SoftLayer MQ和Pyro；
3.4.2 Channel
在 Transport 有两个channels 列表：
self._avail_channels
self.channels
如果_avail_channels 有内容则直接获取，否则生成一个新的Channel。
在真正连接时候，会调用 establish_connection 放入self._avail_channels。
def establish_connection(self):
# creates channel to verify connection.
# this channel is then used as the next requested channel.
# (returned by ``create_channel``).
self._avail_channels.append(self.create_channel(self))
return self # for drain events
Channel关键初始化代码如下：
class Channel(virtual.Channel):
"""Redis Channel."""
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
self._queue_cycle = cycle_by_name(self.queue_order_strategy)()
self.Client = self._get_client()
self.active_fanout_queues = set()
self.auto_delete_queues = set()
self._fanout_to_queue = {}
self.handlers = {'BRPOP': self._brpop_read, 'LISTEN': self._receive}
self.connection.cycle.add(self) # add to channel poller. # 加入消息循环
if register_after_fork is not None:
register_after_fork(self, _after_fork_cleanup_channel)
3.4.3 MultiChannelPoller
MultiChannelPoller 定义如下，可以理解为执行engine，主要作用是：
- 收集channel；
- 建立fd到channel的映射；
- 建立channel到socks的映射；
- 使用poll；
class MultiChannelPoller:
def __init__(self):
# active channels
self._channels = set()
# file descriptor -> channel map.
self._fd_to_chan = {}
# channel -> socket map
self._chan_to_sock = {}
# poll implementation (epoll/kqueue/select)
self.poller = poll()
# one-shot callbacks called after reading from socket.
self.after_read = set()
def add(self, channel):
self._channels.add(channel)
最后Channel变量举例如下：
self = {Channel} <kombu.transport.redis.Channel object at 0x7ffc6d9c5fd0>
Client = {type} <class 'redis.client.Redis'>
Message = {type} <class 'kombu.transport.virtual.base.Message'>
QoS = {type} <class 'kombu.transport.redis.QoS'>
active_fanout_queues = {set: 0} set()
active_queues = {set: 0} set()
async_pool = {ConnectionPool} ConnectionPool<Connection<host=localhost,port=6379,db=0>>
auto_delete_queues = {set: 0} set()
body_encoding = {str} 'base64'
channel_id = {int} 1
client = {Redis} Redis<ConnectionPool<Connection<host=localhost,port=6379,db=0>>>
connection = {Transport} <kombu.transport.redis.Transport object at 0x7ffc6d9c5f60>
cycle = {FairCycle} <FairCycle: 0/0 []>
exchange_types = {dict: 3} {'direct': <kombu.transport.virtual.exchange.DirectExchange object at 0x7ffc6d9c5f98>, 'topic': <kombu.transport.virtual.exchange.TopicExchange object at 0x7ffc6d9c5d68>, 'fanout': <kombu.transport.virtual.exchange.FanoutExchange object at 0x7ffc6d9d2b70>}
handlers = {dict: 2} {'BRPOP': <bound method Channel._brpop_read of <kombu.transport.redis.Channel object at 0x7ffc6d9c5fd0>>, 'LISTEN': <bound method Channel._receive of <kombu.transport.redis.Channel object at 0x7ffc6d9c5fd0>>}
health_check_interval = {int} 25
keyprefix_fanout = {str} '/0.'
keyprefix_queue = {str} '_kombu.binding.%s'
pool = {ConnectionPool} ConnectionPool<Connection<host=localhost,port=6379,db=0>>
priority_steps = {list: 4} [0, 3, 6, 9]
qos = {QoS} <kombu.transport.redis.QoS object at 0x7ffc6d9fbc88>
queue_order_strategy = {str} 'round_robin'
state = {BrokerState} <kombu.transport.virtual.base.BrokerState object at 0x7ffc6d969e10>
subclient = {PubSub} <redis.client.PubSub object at 0x7ffc6d9fbd68>
最后Transport变量举例如下：
connection = {Transport} <kombu.transport.redis.Transport object at 0x7ffc6d9c5f60>
Channel = {type} <class 'kombu.transport.redis.Channel'>
Cycle = {type} <class 'kombu.utils.scheduling.FairCycle'>
Management = {type} <class 'kombu.transport.virtual.base.Management'>
channels = {list: 1} [<kombu.transport.redis.Channel object at 0x7ffc6da8c748>]
client = {Connection} <Connection: redis://localhost:6379// at 0x7ffc6d5f0e80>
connection_errors = {tuple: 8} (<class 'amqp.exceptions.ConnectionError'>, <class 'kombu.exceptions.InconsistencyError'>, <class 'OSError'>, <class 'OSError'>, <class 'OSError'>, <class 'redis.exceptions.ConnectionError'>, <class 'redis.exceptions.AuthenticationError'>, <class 'redis.exceptions.TimeoutError'>)
cycle = {MultiChannelPoller} <kombu.transport.redis.MultiChannelPoller object at 0x7ffc6d9d2198>
after_read = {set: 0} set()
eventflags = {int} 25
fds = {dict: 0} {}
poller = {_poll} <kombu.utils.eventio._poll object at 0x7ffc6d9d21d0>
driver_name = {str} 'redis'
driver_type = {str} 'redis'
implements = {Implements: 3} {'asynchronous': True, 'exchange_type': frozenset({'direct', 'fanout', 'topic'}), 'heartbeats': False}
manager = {Management} <kombu.transport.virtual.base.Management object at 0x7ffc6da8c6d8>
state = {BrokerState} <kombu.transport.virtual.base.BrokerState object at 0x7ffc6d969e10>

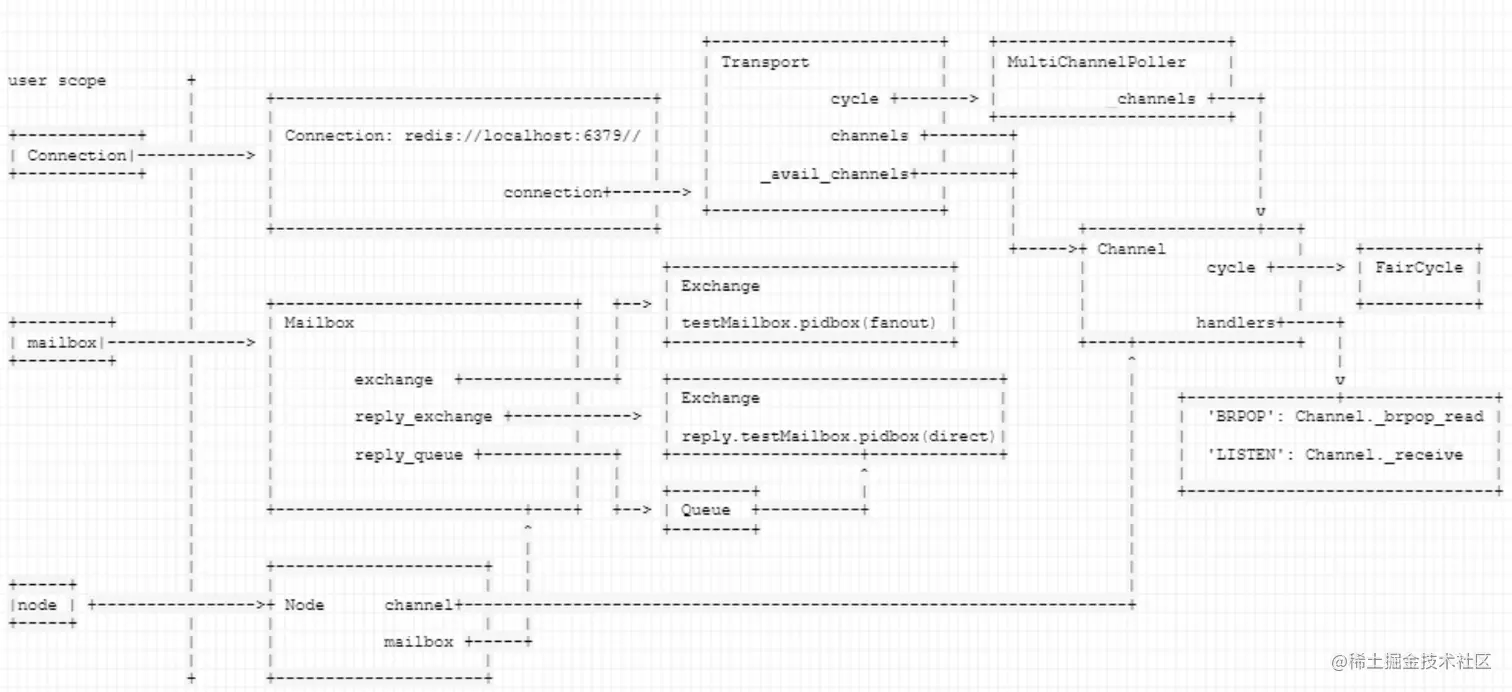

此时逻辑如下：
3.5 建立 Consumer
如下代码建立一个Consumer，也建立了对应的Queue。就是说，广播还是需要依赖Consumer完成，或者说是借助Consumer功能。
def main(arguments):
consumer = node.listen(callback=callback)
listen代码如下：
def listen(self, channel=None, callback=None):
consumer = self.Consumer(channel=channel,
callbacks=[callback or self.handle_message],
on_decode_error=self.on_decode_error)
consumer.consume()
return consumer
此时对应Queue变量如下：
queue = {Queue} <unbound Queue localhost.testMailbox.pidbox -> <unbound Exchange testMailbox.pidbox(fanout)> -> >
ContentDisallowed = {type} <class 'kombu.exceptions.ContentDisallowed'>
alias = {NoneType} None
auto_delete = {bool} True
binding_arguments = {NoneType} None
bindings = {set: 0} set()
can_cache_declaration = {bool} False
channel = {str} 'line 178, in _getPyDictionary\n attr = getattr(var, n)\n File "
consumer_arguments = {NoneType} None
durable = {bool} False
exchange = {Exchange} Exchange testMailbox.pidbox(fanout)

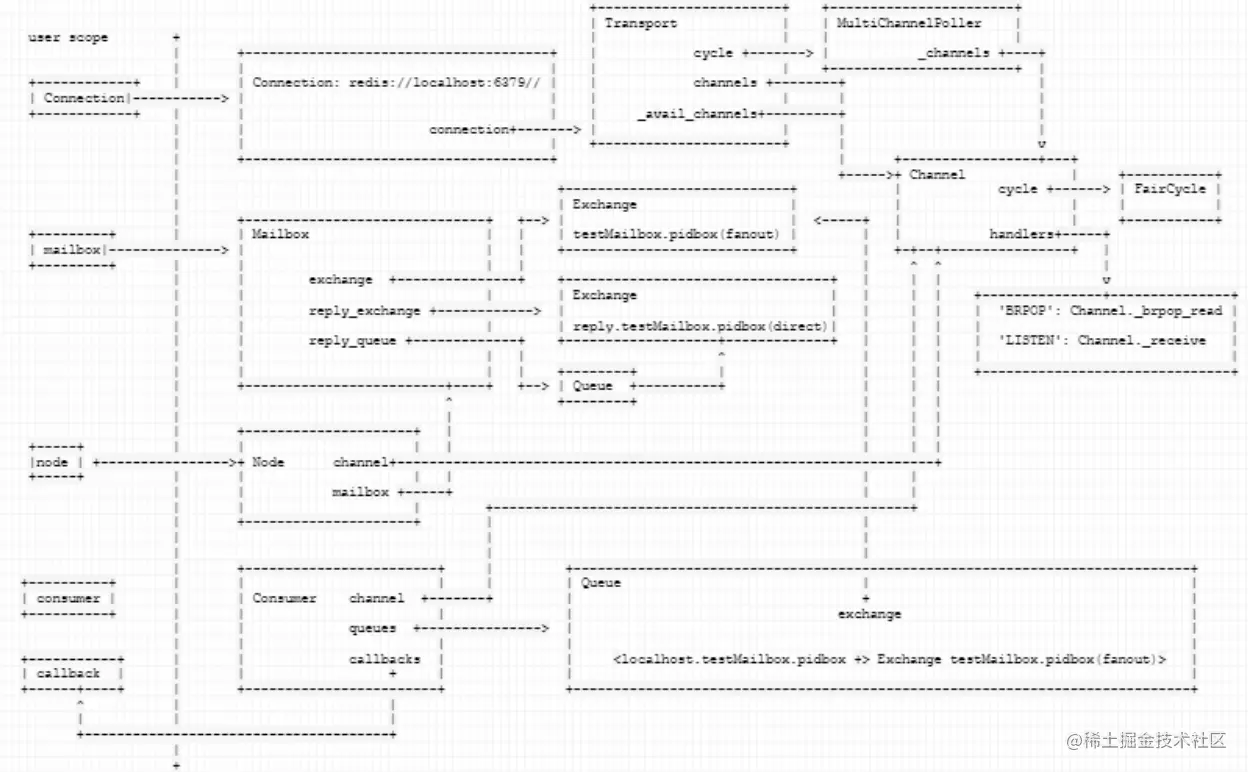

逻辑如下：
3.5.1 binding 写入Redis
此时会把binding关系写入Redis，这样后续就可以利用这个binding来进行路由。
具体堆栈如下：
sadd, client.py:2243
_queue_bind, redis.py:817
queue_bind, base.py:568
bind_to, entity.py:674
queue_bind, entity.py:662
_create_queue, entity.py:617
declare, entity.py:606
declare, messaging.py:417
revive, messaging.py:404
__init__, messaging.py:382
Consumer, pidbox.py:78
listen, pidbox.py:91
main, node.py:20
<module>, node.py:29

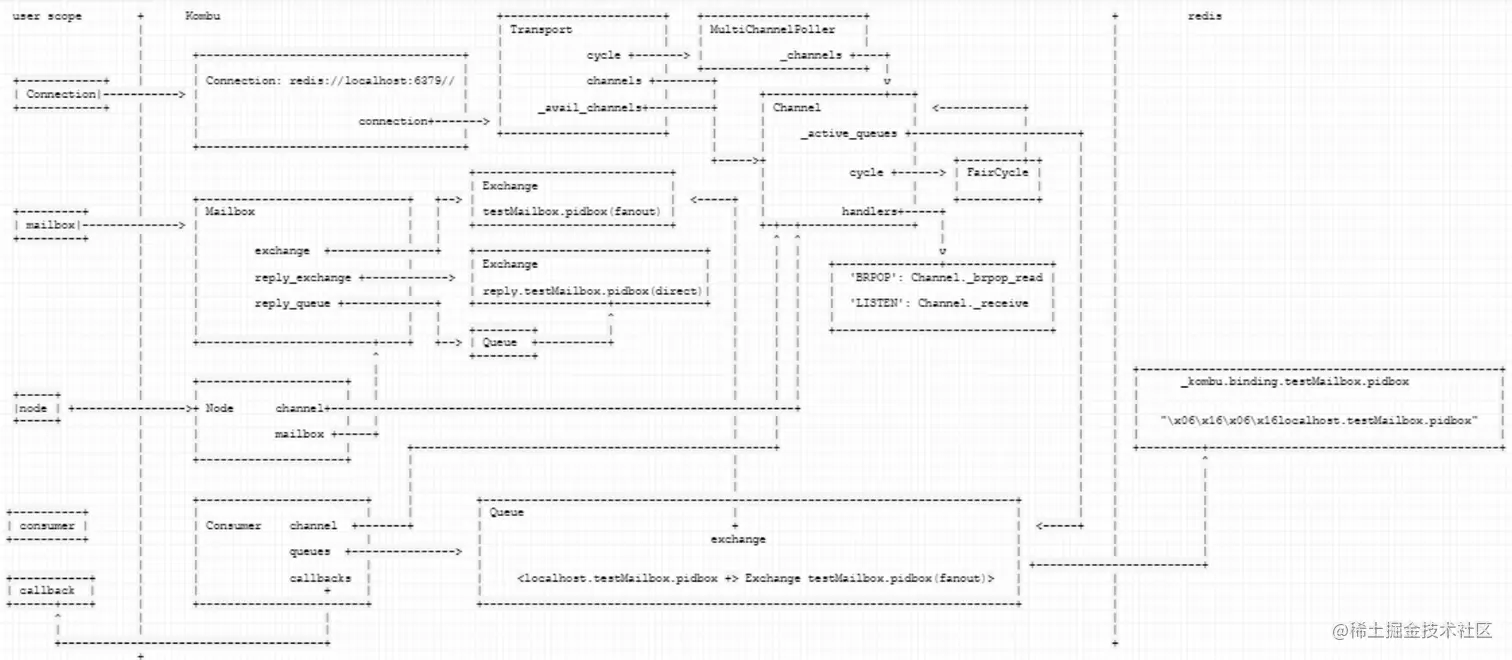

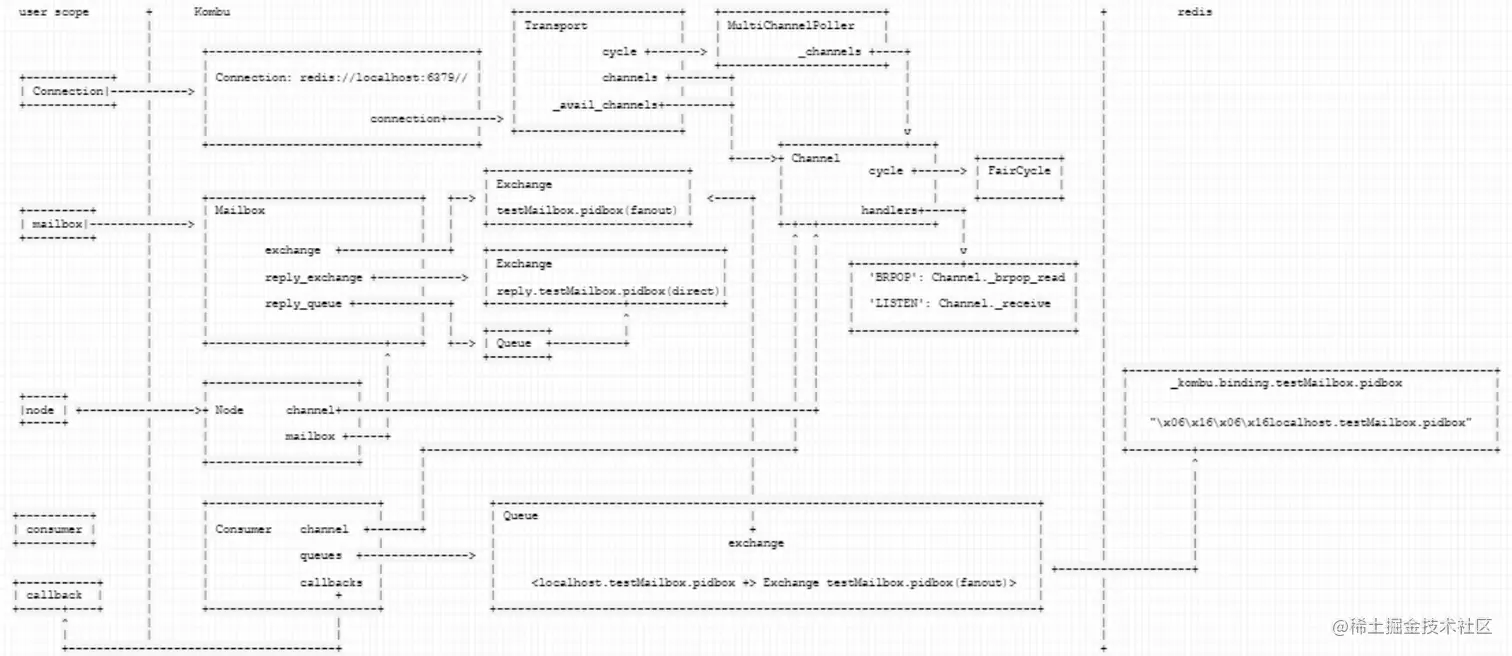

逻辑如图，此时出现了Redis。
3.5.2 配置
代码来到了kombu/transport/virtual/base.py，这里工作如下：
- 把 consumer 的 queue 加入到 Channel;
- 把回调函数加入到 Channel；
- 把 Consumer 加入循环；
这样，Comuser 的 queue 和 回调函数 就通过 Channel 联系起来。
代码如下：
def basic_consume(self, queue, no_ack, callback, consumer_tag, **kwargs):
"""Consume from `queue`."""
self._tag_to_queue[consumer_tag] = queue
self._active_queues.append(queue)
def _callback(raw_message):
message = self.Message(raw_message, channel=self)
if not no_ack:
self.qos.append(message, message.delivery_tag)
return callback(message)
self.connection._callbacks[queue] = _callback
self._consumers.add(consumer_tag)
self._reset_cycle()
调用堆栈如下：
basic_consume, base.py:635
basic_consume, redis.py:598
consume, entity.py:738
_basic_consume, messaging.py:594
consume, messaging.py:473
listen, pidbox.py:92
main, node.py:20
<module>, node.py:29

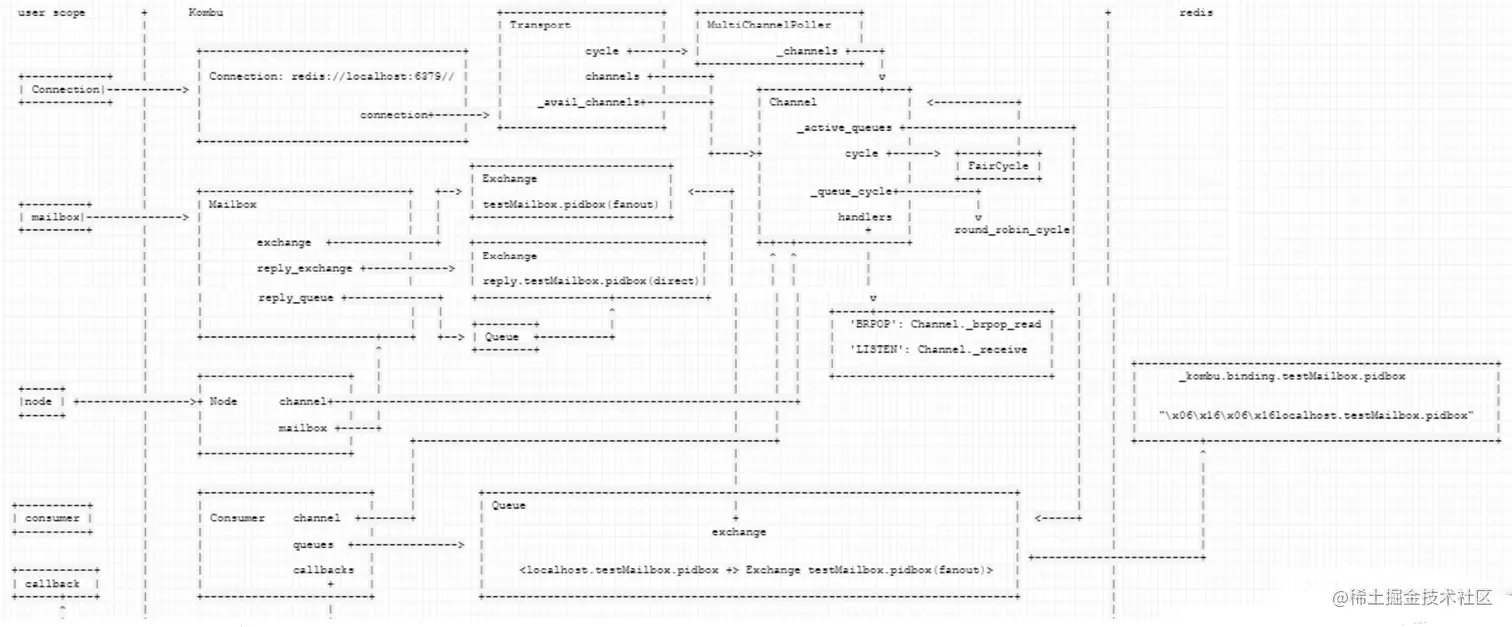

此时依然在Channel
self = {Channel} <kombu.transport.redis.Channel object at 0x7fc252239908>
Client = {type} <class 'redis.client.Redis'>
Message = {type} <class 'kombu.transport.virtual.base.Message'>
active_fanout_queues = {set: 1} {'localhost.testMailbox.pidbox'}
active_queues = {set: 0} set()
async_pool = {ConnectionPool} ConnectionPool<Connection<host=localhost,port=6379,db=0>>
auto_delete_queues = {set: 1} {'localhost.testMailbox.pidbox'}
body_encoding = {str} 'base64'
channel_id = {int} 1
client = {Redis} Redis<ConnectionPool<Connection<host=localhost,port=6379,db=0>>>
closed = {bool} False
codecs = {dict: 1} {'base64': <kombu.transport.virtual.base.Base64 object at 0x7fc25218f5c0>}
connection = {Transport} <kombu.transport.redis.Transport object at 0x7fc2522295f8>
cycle = {FairCycle} <FairCycle: 0/1 ['localhost.testMailbox.pidbox']>
deadletter_queue = {NoneType} None
default_priority = {int} 0
do_restore = {bool} True
exchange_types = {dict: 3} {'direct': <kombu.transport.virtual.exchange.DirectExchange object at 0x7fc252239fd0>, 'topic': <kombu.transport.virtual.exchange.TopicExchange object at 0x7fc252239f60>, 'fanout': <kombu.transport.virtual.exchange.FanoutExchange object at 0x7fc252239f28>}
handlers = {dict: 2} {'BRPOP': <bound method Channel._brpop_read of <kombu.transport.redis.Channel object at 0x7fc252239908>>, 'LISTEN': <bound method Channel._receive of <kombu.transport.redis.Channel object at 0x7fc252239908>>}
keyprefix_fanout = {str} '/0.'
keyprefix_queue = {str} '_kombu.binding.%s'
pool = {ConnectionPool} ConnectionPool<Connection<host=localhost,port=6379,db=0>>
priority_steps = {list: 4} [0, 3, 6, 9]
qos = {QoS} <kombu.transport.redis.QoS object at 0x7fc252264320>
queue_order_strategy = {str} 'round_robin'
state = {BrokerState} <kombu.transport.virtual.base.BrokerState object at 0x7fc25218f6a0>
subclient = {PubSub} <redis.client.PubSub object at 0x7fc252264400>
具体循环如下：
def _reset_cycle(self):
self._cycle = FairCycle(
self._get_and_deliver, self._active_queues, Empty)
FairCycle定义如下：
class FairCycle:
"""Cycle between resources.
Consume from a set of resources, where each resource gets
an equal chance to be consumed from.
Arguments:
fun (Callable): Callback to call.
resources (Sequence[Any]): List of resources.
predicate (type): Exception predicate.
"""
def __init__(self, fun, resources, predicate=Exception):
self.fun = fun
self.resources = resources
self.predicate = predicate
self.pos = 0
def _next(self):
while 1:
try:
resource = self.resources[self.pos]
self.pos += 1
return resource
except IndexError:
self.pos = 0
if not self.resources:
raise self.predicate()
def get(self, callback, **kwargs):
"""Get from next resource."""
for tried in count(0): # for infinity
resource = self._next()
try:
return self.fun(resource, callback, **kwargs)
except self.predicate:
# reraise when retries exchausted.
if tried >= len(self.resources) - 1:
raise
回调函数如下：
fun = {method} <bound method AbstractChannel._get_and_deliver of <kombu.transport.redis.Channel object at 0x7fc252239908>>
resources = {list: 1} ['localhost.testMailbox.pidbox']
逻辑如下：
user scope + Kombu +-----------------------+ +-----------------------+ + redis
| | Transport | | MultiChannelPoller | |
| | | | | |
| +--------------------------------------+ | cycle +-------> | _channels +----+ |
| | | | | +-----------------------+ | |
+------------+ | | Connection: redis://localhost:6379// | | channels +--------+ v |
| Connection|-----------> | | | | | +-----------------+---+ |
+------------+ | | | | _avail_channels+---------+ | Channel | <------------+ |
| | connection+-------> | | | | | | |
| | | +-----------------------+ | | _active_queues +------------------------+ |
| +--------------------------------------+ | | | | | |
| +----->+ | +---------+-+ | |
| +----------------------------+ | cycle +------> | FairCycle | | |
| | Exchange | | | | | | |
| +------------------------------+ +--> | | <-----+ | | +-----------+ | |
+---------+ | | Mailbox | | | testMailbox.pidbox(fanout) | | | handlers+-----+ | |
| mailbox|--------------> | | | +----------------------------+ | +-+--+----------------+ | | |
+---------+ | | | | | ^ ^ | | |
| | exchange +---------------+ +---------------------------------+ | | | v | |
| | | | Exchange | | | | +---------------+---------------+ | |
| | reply_exchange +------------> | | | | | | 'BRPOP': Channel._brpop_read | | |
| | | | reply.testMailbox.pidbox(direct)| | | | | | | |
| | reply_queue +-------------+ +-------------------+-------------+ | | | | 'LISTEN': Channel._receive | | |
| | | | ^ | | | | | | |
| | | | +--------+ | | | | +-------------------------------+ | |
| +-------------------------+----+ +--> | Queue +----------+ | | | | |
| ^ +--------+ | | | | |
| | | | | | | +----------------------------------------------------+
| +---------------------+ | | | | | | | _kombu.binding.testMailbox.pidbox |
+-----+ | | | | | | | | | | |
|node | +---------------->+ Node channel+-------------------------------------------------------------------+ | | | |
+-----+ | | | | | | | | | "\x06\x16\x06\x16localhost.testMailbox.pidbox" |
| | mailbox +-----+ | | | | | |
| | | +----------------------------------------------------+ | | +---------+------------------------------------------+
| +---------------------+ | | | | ^
| | | | | |
| | | | | |
| +------------------------+ | +-----------------------------------------------------------------------------+ | | |
+----------+ | | | | | Queue | | | | |
| consumer | | | Consumer channel +-------+ | + | <-----+ | |
+----------+ | | | | exchange | | |
| | queues +---------------> | | | |
| | | | | +------------------------+
+-----------+ | | callbacks | | <localhost.testMailbox.pidbox -> Exchange testMailbox.pidbox(fanout)> | |
| callback | | | + | | | |
+------+----+ | +------------------------+ +-----------------------------------------------------------------------------+ |
^ | | |
| | | |
+--------------------------------------+ +
|
手机如下
3.5.3 配置负载均衡
回到 Channel 类，这里最后会配置负载均衡，就是具体下一次使用哪一个 Queue 的消息。
def basic_consume(self, queue, *args, **kwargs):
if queue in self._fanout_queues:
exchange, _ = self._fanout_queues[queue]
self.active_fanout_queues.add(queue)
self._fanout_to_queue[exchange] = queue
ret = super().basic_consume(queue, *args, **kwargs)
# Update fair cycle between queues.
#
# We cycle between queues fairly to make sure that
# each queue is equally likely to be consumed from,
# so that a very busy queue will not block others.
#
# This works by using Redis's `BRPOP` command and
# by rotating the most recently used queue to the
# and of the list. See Kombu github issue #166 for
# more discussion of this method.
self._update_queue_cycle()
return ret
def _update_queue_cycle(self):
self._queue_cycle.update(self.active_queues)
堆栈如下：
update, scheduling.py:75
_update_queue_cycle, redis.py:1018
basic_consume, redis.py:610
consume, entity.py:738
_basic_consume, messaging.py:594
consume, messaging.py:473
listen, pidbox.py:92
main, node.py:20
<module>, node.py:29
策略如下：
class round_robin_cycle:
"""Iterator that cycles between items in round-robin."""
def __init__(self, it=None):
self.items = it if it is not None else []
def update(self, it):
"""Update items from iterable."""
self.items[:] = it
def consume(self, n):
"""Consume n items."""
return self.items[:n]
def rotate(self, last_used):
"""Move most recently used item to end of list."""
items = self.items
try:
items.append(items.pop(items.index(last_used)))
except ValueError:
pass
return last_used
逻辑如下：
user scope + Kombu +-----------------------+ +-----------------------+ + redis
| | Transport | | MultiChannelPoller | |
| | | | | |
| +--------------------------------------+ | cycle +-------> | _channels +----+ |
| | | | | +-----------------------+ | |
+------------+ | | Connection: redis://localhost:6379// | | channels +--------+ v |
| Connection|-----------> | | | | | +-----------------+---+ |
+------------+ | | | | _avail_channels+---------+ | Channel | <------------+ |
| | connection+-------> | | | | | | |
| | | +-----------------------+ | | _active_queues +------------------------+ |
| +--------------------------------------+ | | | | | |
| +----->+ cycle +------> +--------+--+ | |
| +----------------------------+ | | | FairCycle | | |
| | Exchange | | | +-----------+ | |
| +------------------------------+ +--> | | <-----+ | _queue_cycle+-----------+ | |
+---------+ | | Mailbox | | | testMailbox.pidbox(fanout) | | | | | | |
| mailbox|--------------> | | | +----------------------------+ | | handlers | v | |
+---------+ | | | | | | + | round_robin_cycle| |
| | exchange +---------------+ +---------------------------------+ | +-+--+----------------+ | |
| | | | Exchange | | ^ ^ | | |
| | reply_exchange +------------> | | | | | | | |
| | | | reply.testMailbox.pidbox(direct)| | | | | | |
| | reply_queue +-------------+ +-------------------+-------------+ | | | v | |
| | | | ^ | | | +-----+-------------------------+ | |
| | | | +--------+ | | | | | 'BRPOP': Channel._brpop_read | | |
| +-------------------------+----+ +--> | Queue +----------+ | | | | | | |
| ^ +--------+ | | | | 'LISTEN': Channel._receive | | |
| | | | | | | | | +----------------------------------------------------+
| +---------------------+ | | | | +-------------------------------+ | | | _kombu.binding.testMailbox.pidbox |
+-----+ | | | | | | | | | | |
|node | +---------------->+ Node channel+-------------------------------------------------------------------+ | | | |
+-----+ | | | | | | | | | "\x06\x16\x06\x16localhost.testMailbox.pidbox" |
| | mailbox +-----+ | | | | | |
| | | +----------------------------------------------------+ | | +---------+------------------------------------------+
| +---------------------+ | | | | ^
| | | | | |
| | | | | |
| +------------------------+ | +-----------------------------------------------------------------------------+ | | |
+----------+ | | | | | Queue | | | | |
| consumer | | | Consumer channel +-------+ | + | <-----+ | |
+----------+ | | | | exchange | | |
| | queues +---------------> | | | |
| | | | | +------------------------+
+-----------+ | | callbacks | | <localhost.testMailbox.pidbox -> Exchange testMailbox.pidbox(fanout)> | |
| callback | | | + | | | |
+------+----+ | +------------------------+ +-----------------------------------------------------------------------------+ |
^ | | |
| | | |
+--------------------------------------+ +
|
手机如下：
3.6 消费
3.2.1 消费主体
如下代码完成消费。
def main(arguments):
consumer = node.listen(callback=callback)
try:
while True:
print('Consumer Waiting')
connection.drain_events()
finally:
consumer.cancel()
具体就是使用 drain_events 里读取消息，其代码如下：
def drain_events(self, connection, timeout=None):
time_start = monotonic()
get = self.cycle.get
polling_interval = self.polling_interval
if timeout and polling_interval and polling_interval > timeout:
polling_interval = timeout
while 1:
try:
get(self._deliver, timeout=timeout)
except Empty:
if timeout is not None and monotonic() - time_start >= timeout:
raise socket.timeout()
if polling_interval is not None:
sleep(polling_interval)
else:
break
3.2.2 业务逻辑
3.2.2.1 注册
get方法功能如下（需要注意的是，每次消费都要使用一次get函数，即，都要进行注册，消费....）：
- 注册响应方式；
- 进行poll操作，这是通用操作，或者 BRPOP，或者 LISTEN；
- 调用 handle_event 进行读取redis，具体消费；
def get(self, callback, timeout=None):
self._in_protected_read = True
try:
for channel in self._channels:
if channel.active_queues: # BRPOP mode?
if channel.qos.can_consume():
self._register_BRPOP(channel)
if channel.active_fanout_queues: # LISTEN mode?
self._register_LISTEN(channel)
events = self.poller.poll(timeout)
if events:
for fileno, event in events:
ret = self.handle_event(fileno, event) # 具体读取redis，进行消费
if ret:
return
# - no new data, so try to restore messages.
# - reset active redis commands.
self.maybe_restore_messages()
raise Empty()
finally:
self._in_protected_read = False
while self.after_read:
try:
fun = self.after_read.pop()
except KeyError:
break
else:
fun()
因为这里利用了pubsub，所以调用到 channel._subscribe 来注册订阅，具体如下：
def _register_LISTEN(self, channel):
"""Enable LISTEN mode for channel."""
if not self._client_registered(channel, channel.subclient, 'LISTEN'):
channel._in_listen = False
self._register(channel, channel.subclient, 'LISTEN')
if not channel._in_listen:
channel._subscribe() # send SUBSCRIBE
具体类如下：
self = {MultiChannelPoller} <kombu.transport.redis.MultiChannelPoller object at 0x7fc2522297f0>
_register会把channel，socket fd的信息结合起来，作用就是：如果对应的socket fd有poll，就会调用对应的channel。
def _register(self, channel, client, type):
if (channel, client, type) in self._chan_to_sock:
self._unregister(channel, client, type)
if client.connection._sock is None: # not connected yet.
client.connection.connect()
sock = client.connection._sock
self._fd_to_chan[sock.fileno()] = (channel, type)
self._chan_to_sock[(channel, client, type)] = sock
self.poller.register(sock, self.eventflags)
具体_subscribe就是与具体redis联系，进行注册。
这样，对于 consumer 来说，redis 也联系上了，poll 也联系上了，下面就可以消费了。
def _subscribe(self):
keys = [self._get_subscribe_topic(queue)
for queue in self.active_fanout_queues]
if not keys:
return
c = self.subclient
if c.connection._sock is None:
c.connection.connect()
self._in_listen = c.connection
c.psubscribe(keys)
堆栈如下：
_subscribe, redis.py:663
_register_LISTEN, redis.py:322
get, redis.py:375
drain_events, base.py:960
drain_events, connection.py:318
main, node.py:24
<module>, node.py:29
相应变量如下，这里 client 是 redis 驱动的 PubSub 对象：
c = {PubSub} <redis.client.PubSub object at 0x7fc252264400>
keys = {list: 1} ['/0.testMailbox.pidbox']
self = {Channel} <kombu.transport.redis.Channel object at 0x7fc252239908>
此时逻辑如下：
+
user scope + Kombu | redis
| psubscribe |
| | +----------------------------+
+---------------------> drain_events +---------------------------------------------------------------------------------------------------------------------> | '/0.testMailbox.pidbox' |
| | | +----------------------------+
| | |
| | +-----------------------+ +-----------------------+ |
| | | Transport | | MultiChannelPoller | |
| | | | | | |
| | +--------------------------------------+ | cycle +-------> | _channels +----+ |
| | | | | | +-----------------------+ | |
+------+-----+ | | Connection: redis://localhost:6379// | | channels +--------+ v |
| Connection|-----------> | | | | | +-----------------+---+ |
+------------+ | | | | _avail_channels+---------+ | Channel | <------------+ |
| | connection+-------> | | | | | | |
| | | +-----------------------+ | | _active_queues +------------------------+ |
| +--------------------------------------+ | | | | | |
| +----->+ cycle +------> +--------+--+ | |
| +----------------------------+ | | | FairCycle | | |
| | Exchange | | | +-----------+ | |
| +------------------------------+ +--> | | <-----+ | _queue_cycle+-----------+ | |
+---------+ | | Mailbox | | | testMailbox.pidbox(fanout) | | | | | | |
| mailbox|--------------> | | | +----------------------------+ | | handlers | v | |
+---------+ | | | | | | + | round_robin_cycle| |
| | exchange +---------------+ +---------------------------------+ | +-+--+----------------+ | |
| | | | Exchange | | ^ ^ | | |
| | reply_exchange +------------> | | | | | | | |
| | | | reply.testMailbox.pidbox(direct)| | | | | | |
| | reply_queue +-------------+ +-------------------+-------------+ | | | v | |
| | | | ^ | | | +-----+-------------------------+ | |
| | | | +--------+ | | | | | 'BRPOP': Channel._brpop_read | | |
| +-------------------------+----+ +--> | Queue +----------+ | | | | | | |
| ^ +--------+ | | | | 'LISTEN': Channel._receive | | |
| | | | | | | | | +----------------------------------------------------+
| +---------------------+ | | | | +-------------------------------+ | | | _kombu.binding.testMailbox.pidbox |
+-----+ | | | | | | | | | | |
|node | +---------------->+ Node channel+-------------------------------------------------------------------+ | | | |
+-----+ | | | | | | | | | "\x06\x16\x06\x16localhost.testMailbox.pidbox" |
| | mailbox +-----+ | | | | | |
| | | +----------------------------------------------------+ | | +---------+------------------------------------------+
| +---------------------+ | | | | ^
| | | | | |
| | | | | |
| +------------------------+ | +-----------------------------------------------------------------------------+ | | |
+----------+ | | | | | Queue | | | | |
| consumer | | | Consumer channel +-------+ | + | <-----+ | |
+----------+ | | | | exchange | | |
| | queues +---------------> | | | |
| | | | | +------------------------+
+-----------+ | | callbacks | | <localhost.testMailbox.pidbox -> Exchange testMailbox.pidbox(fanout)> | |
| callback | | | + | | | |
+------+----+ | +------------------------+ +-----------------------------------------------------------------------------+ |
^ | | |
| | | |
+--------------------------------------+ +
|
手机如下
3.2.2.2 消费
前小节提到了，handle_event 之中会具体读取redis，进行消费。
当接受到信息之后，会调用如下：
def _deliver(self, message, queue):
try:
callback = self._callbacks[queue]
except KeyError:
self._reject_inbound_message(message)
else:
callback(message)
堆栈如下：
_deliver, base.py:975
_receive_one, redis.py:721
_receive, redis.py:692
on_readable, redis.py:358
handle_event, redis.py:362
get, redis.py:380
drain_events, base.py:960
drain_events, connection.py:318
main, node.py:24
<module>, node.py:29
此时变量如下，就是 basic_consume 之中的 _callback ：
self._callbacks = {dict: 1}
'localhost.testMailbox.pidbox' = {function} <function Channel.basic_consume.<locals>._callback at 0x7fc2522c1840>
继续调用，处理信息
def receive(self, body, message):
"""Method called when a message is received.
This dispatches to the registered :attr:`callbacks`.
Arguments:
body (Any): The decoded message body.
message (~kombu.Message): The message instance.
Raises:
NotImplementedError: If no consumer callbacks have been
registered.
"""
callbacks = self.callbacks
[callback(body, message) for callback in callbacks]
堆栈如下：
receive, messaging.py:583
_receive_callback, messaging.py:620
_callback, base.py:630
_deliver, base.py:980
_receive_one, redis.py:721
_receive, redis.py:692
on_readable, redis.py:358
handle_event, redis.py:362
get, redis.py:380
drain_events, base.py:960
drain_events, connection.py:318
main, node.py:24
<module>, node.py:29
变量如下：
body = {dict: 5} {'method': 'print_msg', 'arguments': {'msg': 'Message for you'}, 'destination': None, 'pattern': None, 'matcher': None}
message = {Message} <Message object at 0x7fc2522e20d8 with details {'state': 'RECEIVED', 'content_type': 'application/json', 'delivery_tag': '7dd6ad01-4162-42c3-b8db-bb40dc7dfda0', 'body_length': 119, 'properties': {}, 'delivery_info': {'exchange': 'testMailbox.pidbox', 'rout
self = {Consumer} <Consumer: [<Queue localhost.testMailbox.pidbox -> <Exchange testMailbox.pidbox(fanout) bound to chan:1> -> bound to chan:1>]>
最后调用到用户方法：
callback, node.py:15
<listcomp>, messaging.py:586
receive, messaging.py:586
_receive_callback, messaging.py:620
_callback, base.py:630
_deliver, base.py:980
_receive_one, redis.py:721
_receive, redis.py:692
on_readable, redis.py:358
handle_event, redis.py:362
get, redis.py:380
drain_events, base.py:960
drain_events, connection.py:318
main, node.py:24
<module>, node.py:29
这样，mailbox consumer 端分析完毕。
0x04 Producer
Producer 就是发送邮件，此处逻辑要简单许多。
代码如下：
def main(arguments):
connection = kombu.Connection('redis://localhost:6379')
mailbox = pidbox.Mailbox("testMailbox", type="fanout")
bound = mailbox(connection)
bound._broadcast("print_msg", {'msg': 'Message for you'})
4.1 Mailbox
现在位于Mailbox，可以看到就是调用 _publish。
def _broadcast(self, command, arguments=None, destination=None,
reply=False, timeout=1, limit=None,
callback=None, channel=None, serializer=None,
pattern=None, matcher=None):
arguments = arguments or {}
reply_ticket = reply and uuid() or None
chan = channel or self.connection.default_channel
# Set reply limit to number of destinations (if specified)
if limit is None and destination:
limit = destination and len(destination) or None
serializer = serializer or self.serializer
self._publish(command, arguments, destination=destination,
reply_ticket=reply_ticket,
channel=chan,
timeout=timeout,
serializer=serializer,
pattern=pattern,
matcher=matcher)
if reply_ticket:
return self._collect(reply_ticket, limit=limit,
timeout=timeout,
callback=callback,
channel=chan)
变量如下：
arguments = {dict: 1} {'msg': 'Message for you'}
self = {Mailbox} <kombu.pidbox.Mailbox object at 0x7fccf19514e0>
继续调用 _publish，其中如果需要回复，则做相应设置，否则直接调用 producer 进行发送。
def _publish(self, type, arguments, destination=None,
reply_ticket=None, channel=None, timeout=None,
serializer=None, producer=None, pattern=None, matcher=None):
message = {'method': type,
'arguments': arguments,
'destination': destination,
'pattern': pattern,
'matcher': matcher}
chan = channel or self.connection.default_channel
exchange = self.exchange
if reply_ticket:
maybe_declare(self.reply_queue(channel))
message.update(ticket=reply_ticket,
reply_to={'exchange': self.reply_exchange.name,
'routing_key': self.oid})
serializer = serializer or self.serializer
with self.producer_or_acquire(producer, chan) as producer:
producer.publish(
message, exchange=exchange.name, declare=[exchange],
headers={'clock': self.clock.forward(),
'expires': time() + timeout if timeout else 0},
serializer=serializer, retry=True,
)
此时变量如下：
exchange = {Exchange} Exchange testMailbox.pidbox(fanout)
message = {dict: 5} {'method': 'print_msg', 'arguments': {'msg': 'Message for you'}, 'destination': None, 'pattern': None, 'matcher': None}
4.2 producer
下面产生了producer。于是由producer进行操作。
def _publish(self, body, priority, content_type, content_encoding,
headers, properties, routing_key, mandatory,
immediate, exchange, declare):
channel = self.channel
message = channel.prepare_message(
body, priority, content_type,
content_encoding, headers, properties,
)
# handle autogenerated queue names for reply_to
reply_to = properties.get('reply_to')
if isinstance(reply_to, Queue):
properties['reply_to'] = reply_to.name
return channel.basic_publish(
message,
exchange=exchange, routing_key=routing_key,
mandatory=mandatory, immediate=immediate,
)
4.3 Channel
继续执行到 Channel，就是要对 redis 进行处理了。
def basic_publish(self, message, exchange, routing_key, **kwargs):
"""Publish message."""
self._inplace_augment_message(message, exchange, routing_key)
if exchange:
return self.typeof(exchange).deliver( # 这里
message, exchange, routing_key, **kwargs
)
# anon exchange: routing_key is the destination queue
return self._put(routing_key, message, **kwargs)
4.4 FanoutExchange
直接用 Exchange 进行发送。
class FanoutExchange(ExchangeType):
type = 'fanout'
def lookup(self, table, exchange, routing_key, default):
return {queue for _, _, queue in table}
def deliver(self, message, exchange, routing_key, **kwargs):
if self.channel.supports_fanout:
self.channel._put_fanout(
exchange, message, routing_key, **kwargs)
4.5 Channel
流程进入到 Channel，这时候调用 redis 驱动进行发送。
def _put_fanout(self, exchange, message, routing_key, **kwargs):
"""Deliver fanout message."""
with self.conn_or_acquire() as client:
client.publish(
self._get_publish_topic(exchange, routing_key),
dumps(message),
)
4.6 redis 驱动
最后，redis 驱动进行发送。
def publish(self, channel, message):
"""
Publish ``message`` on ``channel``.
Returns the number of subscribers the message was delivered to.
"""
return self.execute_command('PUBLISH', channel, message)
关键变量如下：
channel = {str} '/0.testMailbox.pidbox'
message = {str} '{"body": "eyJtZXRob2QiOiAicHJpbnRfbXNnIiwgImFyZ3VtZW50cyI6IHsibXNnIjogIk1lc3NhZ2UgZm9yIHlvdSJ9LCAiZGVzdGluYXRpb24iOiBudWxsLCAicGF0dGVybiI6IG51bGwsICJtYXRjaGVyIjogbnVsbH0=", "content-encoding": "utf-8", "content-type": "application/json", "headers": {"cloc
self = {Redis} Redis<ConnectionPool<Connection<host=localhost,port=6379,db=0>>>
0xEE 个人信息
★★★★★★关于生活和技术的思考★★★★★★
微信公众账号：罗西的思考
如果您想及时得到个人撰写文章的消息推送，或者想看看个人推荐的技术资料，敬请关注。
