摘要：最近看到了一篇文章，细讲了各种分布式调度原理，其中加权轮询算法（Weighted Round-Robin）应该是离我们最近的一种方式了，Nginx 的 Upstream 就是用的这个算法，这个算法可以根据权重使得每个服务器能够均匀的负载请求，本篇主要就是来总结下使用这个算法以及 Go 内置的方法来实现一个简单的加权轮询的 HTTP 负载分发代理，并对负载分发及路由做一些延伸思考。
本篇主要从以下两个方面进行展开：
-
使用 Go 实现一个反向代理
-
使用 WRR 算法实现此反向代理的加权轮询
什么是代理
代理一般情况下我们是分为正向代理和反向代理两种形式
正向代理一般是配置在客户端，客户端需要知道代理的地址并自行配置
反向代理一般情况下对客户端是透明的，主要是配置在服务器上，大部分我们访问的 Web 应用都是通过反向代理进行配置的，这块主要是 Nginx 和 Apache 提供的功能，比如 Nginx：
`location / {`
`proxy_pass: http://127.0.0.1:3000`
`}`
还有一个简单区分的方式，我们可以看这个代理的作用，如果已知转发的后端，那这个应该是反向代理，如果被转发到哪里去是一个不确定性因素，那这应该是一个正向代理，这是我的个人理解，欢迎读者批评指正 :)
Go ReverseProxy
Go 提供了一个 httputil.ReverseProxy 代理框架，能够让我们快速的实现一个反向代理而无需关注其他细节。
打开reverseproxy.go源码可以看到对 ReverseProxy 的简介
`// ReverseProxy is an HTTP Handler that takes an incoming request and`
`// sends it to another server, proxying the response back to the`
`// client.`
`//`
`// ReverseProxy automatically sets the client IP as the value of the`
`// X-Forwarded-For header.`
`// If an X-Forwarded-For header already exists, the client IP is`
`// appended to the existing values.`
`// To prevent IP spoofing, be sure to delete any pre-existing`
`// X-Forwarded-For header coming from the client or`
`// an untrusted proxy.`
ReverseProxy 是一个用来转发请求的服务，并把相关的响应原封不动的返回给客户端，这个过程中 ReverseProxy 会自动给X-Forwarded-For添加或者追加客户端 IP
继续往下看
`type ReverseProxy struct {`
`// Director must be a function which modifies`
`// the request into a new request to be sent`
`// using Transport. Its response is then copied`
`// back to the original client unmodified.`
`// Director must not access the provided Request`
`// after returning.`
`Director func(*http.Request)`
`// The transport used to perform proxy requests.`
`// If nil, http.DefaultTransport is used.`
`Transport http.RoundTripper`
`...`
ReverseProxy 是一个结构体，其中最重要的是 Director，我们需要实现一个 Director 函数，这个函数主要就是让我们可以定义对request的修改，比如修改协议、回源地址、路径等信息，然后传递给http.RoundTripper进行转发，RoundTripper 主要的功能就是返回响应给一个给定的请求，具体可以查看client.go源码，这里不再发散
一个简单的反向代理服务
下面是使用 ReverseProxy 实现的一个简单的反向代理服务：
`package main`
`import (`
`"fmt"`
`"net/http"`
`"net/http/httputil"`
`"net/url"`
`)`
`func main() {`
`// generateBackend`
`node := url.URL{Host: "127.0.0.1:7791", Scheme: "http"}`
`// generate a reverse proxy`
`reverseProxy := httputil.NewSingleHostReverseProxy(&node)`
`fmt.Println("Server started on port 7788...")`
`if err := http.ListenAndServe("127.0.0.1:7788", reverseProxy); err != nil {`
`fmt.Printf("Server failed to start, error: %s \n", err.Error())`
`}`
`}`
我们启动此服务，并且使用我自己写的一个testServer.go进行测试
`// generate 3 server to handle request for test`
`package main`
`import (`
`"fmt"`
`"net/http"`
`)`
`type testServer struct {`
`addr string`
`requestCount int`
`}`
`func (server *testServer) handler(res http.ResponseWriter, req *http.Request) {`
`server.requestCount += 1`
`fmt.Printf("%s: %s %s on serverHandlerPort: %s, Total: %d\n",`
`req.Proto, req.Method, req.RequestURI, server.addr, server.requestCount)`
`res.Write([]byte(server.addr))`
`}`
`func main() {`
`nodeA := testServer{"127.0.0.1:7791", 0}`
`nodeB := testServer{"127.0.0.1:7792", 0}`
`nodeC := testServer{"127.0.0.1:7793", 0}`
`nodes := []testServer{nodeA, nodeB, nodeC}`
`serverA := http.NewServeMux()`
`serverA.HandleFunc("/", nodeA.handler)`
`go http.ListenAndServe(nodeA.addr, serverA)`
`serverB := http.NewServeMux()`
`serverB.HandleFunc("/", nodeB.handler)`
`go http.ListenAndServe(nodeB.addr, serverB)`
`serverC := http.NewServeMux()`
`serverC.HandleFunc("/", nodeC.handler)`
`go http.ListenAndServe(nodeC.addr, serverC)`
`var comm int`
`for _, node := range nodes {`
`fmt.Printf("Server %s started...\n", node.addr)`
`}`
`fmt.Println("All server are started, input any key and enter to quit...")`
`fmt.Scan(&comm)`
`fmt.Printf("Result: ServerA: %d ServerB: %d ServerC: %d\n",`
`nodeA.requestCount, nodeB.requestCount, nodeC.requestCount)`
`}`

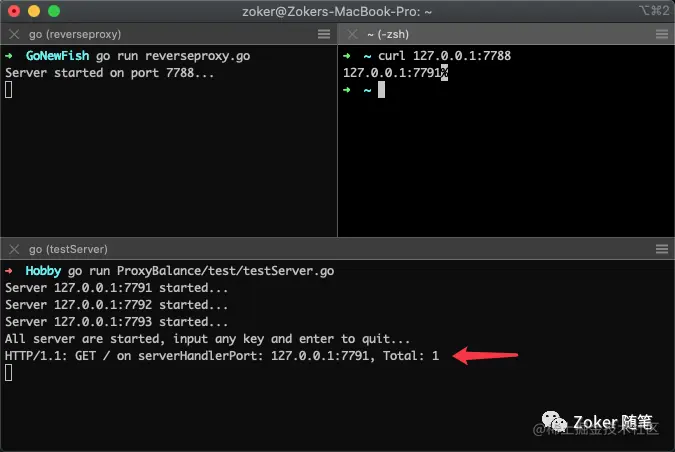

使用命令访问curl 127.0.0.1:7788，可以看到已经将请求转发到后端127.0.0.1:7791了
以上，我们就已经实现了一个反向代理，用来对请求进行代理，但这并不是我们想要的，我们想要的是分发，所以我们继续改造此脚本，使它能够配置多个后端进行轮询
支持多个后端轮询的反向代理服务
参照源码中NewSingleHostReverseProxy函数自定义即可
`package main`
`import (`
`"fmt"`
`"math/rand"`
`"net/http"`
`"net/http/httputil"`
`"net/url"`
`)`
`//func NewSingleHostReverseProxy(target *url.URL) *ReverseProxy {`
`// targetQuery := target.RawQuery`
`// director := func(req *http.Request) {`
`// req.URL.Scheme = target.Scheme`
`// req.URL.Host = target.Host`
`// req.URL.Path = singleJoiningSlash(target.Path, req.URL.Path)`
`// if targetQuery == "" || req.URL.RawQuery == "" {`
`// req.URL.RawQuery = targetQuery + req.URL.RawQuery`
`// } else {`
`// req.URL.RawQuery = targetQuery + "&" + req.URL.RawQuery`
`// }`
`// if _, ok := req.Header["User-Agent"]; !ok {`
`// // explicitly disable User-Agent so it's not set to default value`
`// req.Header.Set("User-Agent", "")`
`// }`
`// }`
`// return &ReverseProxy{Director: director}`
`//}`
`// config for backends`
`var nodes = [] *url.URL{`
`{Host: "127.0.0.1:7791", Scheme: "http"},`
`{Host: "127.0.0.1:7792", Scheme: "http"},`
`{Host: "127.0.0.1:7793", Scheme: "http"},`
`}`
`func generateReverseProxy() *httputil.ReverseProxy{`
`// generate director`
`director := func(req *http.Request) {`
`backend := nodes[rand.Int()%len(nodes)]`
`req.URL.Scheme = backend.Scheme`
`req.URL.Host = backend.Host`
`fmt.Printf("Scheme: %s Host: %s Path: %s\n", req.Proto, req.Host, req.RequestURI)`
`}`
`return &httputil.ReverseProxy{Director: director}`
`}`
`func main() {`
`// generate a reverse proxy`
`reverseProxy := generateReverseProxy()`
`fmt.Println("Server started on port 7788...")`
`if err := http.ListenAndServe("127.0.0.1:7788", reverseProxy); err != nil {`
`fmt.Printf("Server failed to start, error: %s \n", err.Error())`
`}`
`}`

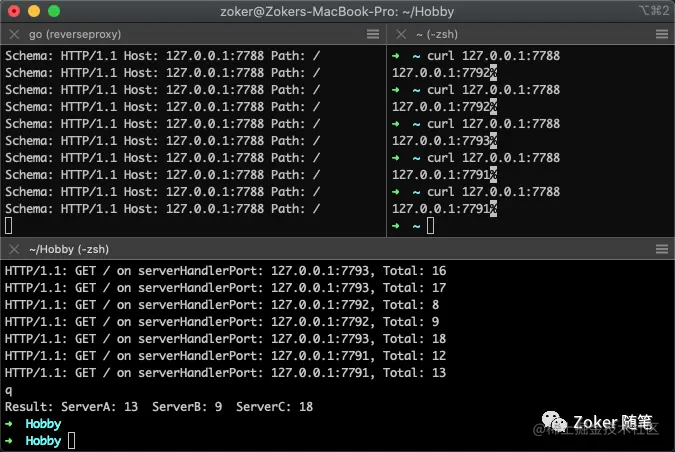

结果如下图
一共访问40次，分布均匀性一般般，所以接下来就是改造为加权轮询算法进行后端服务器的选择
加权轮询算法（Weighted Round-Robin）
加权轮询算法的实现可以参见 Nginx 的一次代码提交 Upstream: smooth weighted round-robin balancing.
简单来说，Nginx 的这个加权轮询算法不仅仅可以实现按照权重进行分发负载，也实现了平滑性，什么叫平滑呢，就是说你设置了这么一组带权重的后端
`{HostA: "127.0.0.1:7791", Weight: 3},`
`{HostB: "127.0.0.1:7792", Weight: 1},`
`{HostC: "127.0.0.1:7793", Weight: 1}`
比如这时来了5次访问，那么它的分发如果是AAABC，我们就不能说这个是「平滑」的，因为可能会给第一台机器造成压力过大，虽然我们认为它的性能比较好，但是还是会造成同一时间压力过大的问题。而 WRR 算法就可以实现平滑的分发，使分发变成ABACA，避免同一时间造成压力过大的问题，来看看这个算法如何实现的：
`For edge case weights like { 5, 1, 1 } we now produce { a, a, b, a, c, a, a }`
`sequence instead of { c, b, a, a, a, a, a } produced previously.`
`Algorithm is as follows: on each peer selection we increase current_weight`
`of each eligible peer by its weight, select peer with greatest current_weight`
`and reduce its current_weight by total number of weight points distributed`
`among peers.`
`In case of { 5, 1, 1 } weights this gives the following sequence of`
`current_weight's:`
`a b c`
`0 0 0 (initial state)`
`5 1 1 (a selected)`
`-2 1 1`
`3 2 2 (a selected)`
`-4 2 2`
`1 3 3 (b selected)`
`1 -4 3`
`6 -3 4 (a selected)`
`-1 -3 4`
`4 -2 5 (c selected)`
`4 -2 -2`
`9 -1 -1 (a selected)`
`2 -1 -1`
`7 0 0 (a selected)`
`0 0 0`
`To preserve weight reduction in case of failures the effective_weight`
`variable was introduced, which usually matches peer's weight, but is`
`reduced temporarily on peer failures.`
简单来说就是：
-
每一轮选择都用自身的权重加到当前权重
-
当前选中的节点的当前权重需要减去总权重
先来看看算法用 Go 的实现
`package main`
`import "fmt"`
`type wrrServer struct {`
`address string`
`weight int`
`currentWeight int`
`}`
`// nginx weighted round-robin balancing`
`// view: https://github.com/phusion/nginx/commit/27e94984486058d73157038f7950a0a36ecc6e35`
`func getBestServer(servers []*wrrServer) (b *wrrServer) {`
`allWeight := 0`
`for _, server := range servers {`
`if server == nil {`
`return nil`
`}`
`allWeight += server.weight // 计算总权重`
`server.currentWeight += server.weight // 当前权重加上权重`
`if b == nil || server.currentWeight > b.currentWeight { // 如果最优节点不存在或者当前节点由于最优节点，则赋值或者替换`
`b = server`
`}`
`}`
`if b == nil {`
`return nil`
`}`
`b.currentWeight -= allWeight`
`return b`
`}`
`func main() {`
`servers := []*wrrServer{`
`{"zoker.server.wtm:5555", 5, 0},`
`{"zoker.server.wtm:2222", 2, 0},`
`{"zoker.server.wtm:1111", 1, 0},`
`}`
`for i := 0; i < 20; i++ {`
`bestServer := getBestServer(servers)`
`if bestServer == nil {`
`continue`
`}`
`fmt.Printf("Selected server: %s Weight: %d\n", bestServer.address, bestServer.weight)`
`}`
`}`
执行结果:
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:2222 Weight: 2`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:1111 Weight: 1`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:2222 Weight: 2`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:2222 Weight: 2`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:1111 Weight: 1`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:2222 Weight: 2`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:2222 Weight: 2`
`Selected server: zoker.server.wtm:5555 Weight: 5`
`Selected server: zoker.server.wtm:5555 Weight: 5`
可以看到，是比较分散的，也就是我们称之为的「平滑」
实现基于 WRR 的反向代理
了解了加权轮询算法之后，我们来改造上面的分发代理，上面是直接取随机数然后取余来达到随机的效果的，我们来改造 generateReverseProxy()使它能够具备加权分发的能力
`package main`
`import (`
`"fmt"`
`"net/http"`
`"net/http/httputil"`
`"net/url"`
`)`
`type Nodes struct {`
`node url.URL`
`weight int`
`currentWeight int`
`}`
`// config backends and weight`
`var nodes = []*Nodes{`
`{url.URL{Host: "127.0.0.1:7791", Scheme: "http"}, 5, 0},`
`{url.URL{Host: "127.0.0.1:7792", Scheme: "http"}, 1, 0},`
`{url.URL{Host: "127.0.0.1:7793", Scheme: "http"}, 1, 0},`
`}`
`// using wrr to select nodes`
`func getBestNode() (bestNode *Nodes) {`
`allWeight := 0`
`for _, node := range nodes {`
`allWeight += node.weight`
`node.currentWeight += node.weight`
`if bestNode == nil || node.currentWeight > bestNode.currentWeight {`
`bestNode = node`
`}`
`}`
`bestNode.currentWeight -= allWeight`
`fmt.Printf("Select %s %d %d \n", bestNode.node.Host, bestNode.weight, bestNode.currentWeight)`
`return bestNode`
`}`
`func generateReverseProxy() *httputil.ReverseProxy {`
`// generate director`
`director := func(req *http.Request) {`
`backend := getBestNode().node`
`req.URL.Scheme = backend.Scheme`
`req.URL.Host = backend.Host`
`//fmt.Printf("Scheme: %s Host: %s Path: %s\n", req.Scheme, req.Host, req.RequestURI)`
`}`
`return &httputil.ReverseProxy{Director: director}`
`}`
`func main() {`
`// generate a reverse proxy`
`reverseProxy := generateReverseProxy()`
`fmt.Println("Server started on port 7788...")`
`if err := http.ListenAndServe("127.0.0.1:7788", reverseProxy); err != nil {`
`fmt.Printf("Server failed to start, error: %s \n", err.Error())`
`}`
`}`

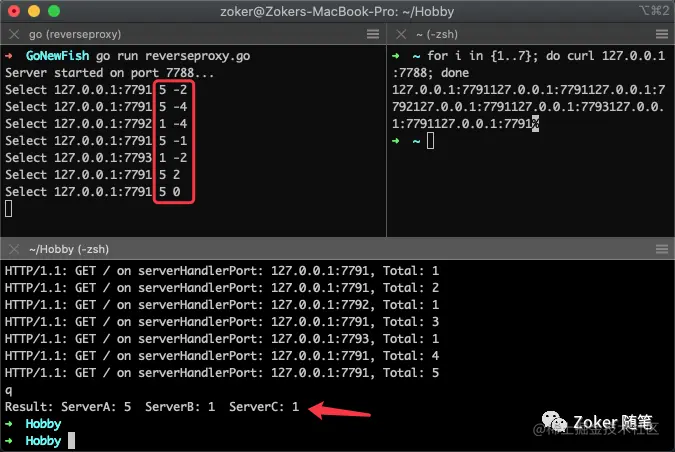

启动服务后，我们模拟7次请求
for i in {1..7}; do curl 127.0.0.1:7788; done
可以看到7次请求刚好按照权重分布，并且整个过程是按照 WRR 算法均匀分布的。
至此，一个基于加权轮询算法的反向代理就实现了，整个例子还缺少一些错误判定之类的工作，加上之后基本就可以使用了。
进阶思考
上面的例子我们通过修改请求的Scheme和Host来实现分发
`req.URL.Scheme = backend.Scheme`
`req.URL.Host = backend.Host`
我们打开url.go查看 URL 结构体的定义
`// A URL represents a parsed URL (technically, a URI reference).`
`//`
`// The general form represented is:`
`//`
`// [scheme:][//[userinfo@]host][/]path[?query][#fragment]`
`//`
`// URLs that do not start with a slash after the scheme are interpreted as:`
`//`
`// scheme:opaque[?query][#fragment]`
`//`
`// Note that the Path field is stored in decoded form: /%47%6f%2f becomes /Go/.`
`// A consequence is that it is impossible to tell which slashes in the Path were`
`// slashes in the raw URL and which were %2f. This distinction is rarely important,`
`// but when it is, the code should use RawPath, an optional field which only gets`
`// set if the default encoding is different from Path.`
`//`
`// URL's String method uses the EscapedPath method to obtain the path. See the`
`// EscapedPath method for more details.`
`type URL struct {`
`Scheme string`
`Opaque string // encoded opaque data`
`User *Userinfo // username and password information`
`Host string // host or host:port`
`Path string // path (relative paths may omit leading slash)`
`RawPath string // encoded path hint (see EscapedPath method)`
`ForceQuery bool // append a query ('?') even if RawQuery is empty`
`RawQuery string // encoded query values, without '?'`
`Fragment string // fragment for references, without '#'`
`}`
有这么多属性可以使用，能够带给我们更多的思考：
-
通过请求的 Path 进行逻辑判定，可以指定后端服务器或者进行 URL rewrite （Gitee 就是使用 Path 进行路由的指定和分片的）
-
可以追加 URL RawQuery，比如添加一个
from=xxx，告诉后端，这个请求是从哪个反代发出的 -
根据 User 以及 Path 实现鉴权，可以实现类似网关的功能
-
通过请求的 Host 和 Path 来判定转发到什么目录，可以实现类似于 Gitee Pages 的多租户静态网站功能
-
...
