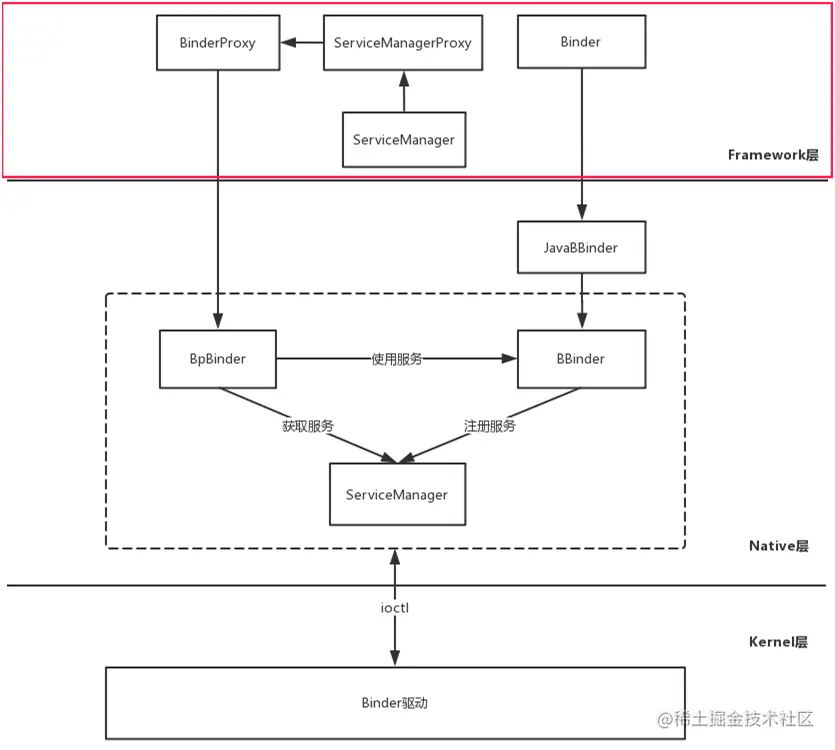

在了解了Binder系统Native层后，再来看下Binder系统的Java层框架(即下图所示的Framework层)
Java层的Binder架构是Native层Binder架构的一个镜像，需借助Native层Binder系统来开展工作，一定要在Java层Binder正式工作之前建立关系。下面分析Java层Binder框架是如何初始化的。
在Android系统启动过程中，Zygote启动时会有一个虚拟机注册过程，该过程调用AndroidRuntime::startReg方法来完成jni方法的注册。
源码路径4.2.2：/frameworks/base/core/jni/AndroidRuntime.cpp
/*
* Register android native functions with the VM.
*/
/*static*/ int AndroidRuntime::startReg(JNIEnv* env)
{
/*
* This hook causes all future threads created in this process to be
* attached to the JavaVM. (This needs to go away in favor of JNI
* Attach calls.)
*/
androidSetCreateThreadFunc((android_create_thread_fn) javaCreateThreadEtc);
ALOGV("--- registering native functions ---\n");
/*
* Every "register" function calls one or more things that return
* a local reference (e.g. FindClass). Because we haven't really
* started the VM yet, they're all getting stored in the base frame
* and never released. Use Push/Pop to manage the storage.
*/
env->PushLocalFrame(200);
if (register_jni_procs(gRegJNI, NELEM(gRegJNI), env) < 0) {
env->PopLocalFrame(NULL);
return -1;
}
env->PopLocalFrame(NULL);
//createJavaThread("fubar", quickTest, (void*) "hello");
return 0;
}
static const RegJNIRec gRegJNI[] = {
...
REG_JNI(register_android_os_Binder),
...
};
gRegJNI是一个记录所有需要注册的jni方法的数组，其中一项REG_JNI(register_android_os_Binder)，register_android_os_Binder正是负责搭建Java Binder和Native Binder交互关系的函数，下面看下register_android_os_Binder。
源码路径：/frameworks/base/core/jni/android_util_Binder.cpp
int register_android_os_Binder(JNIEnv* env)
{
if (int_register_android_os_Binder(env) < 0)//初始化Java Binder和Native层的关系
return -1;
if (int_register_android_os_BinderInternal(env) < 0)//初始化Java BinderInternal和Native层的关系
return -1;
if (int_register_android_os_BinderProxy(env) < 0)//初始化Java BinderProxy和Native层的关系
return -1;
...
return 0;
}
register_android_os_Binder完成了对Binder、BinderProxy和BinderInternal的初始化，下边分别分析
１、Binder类的初始化
static struct bindernative_offsets_t
{
// Class state.
jclass mClass;
jmethodID mExecTransact;//Binder类中成员函数execTransact()
// Object state.
jfieldID mObject;//Binder类中成员变量mObject
} gBinderOffsets;//静态类对象，保存Binder类的一些在JNI层中使用的信息
const char* const kBinderPathName = "android/os/Binder";
static int int_register_android_os_Binder(JNIEnv* env)
{
jclass clazz;
clazz = env->FindClass(kBinderPathName);//根据Binder类的全路径kBinderPathName找到代表该类的jclass对象
LOG_FATAL_IF(clazz == NULL, "Unable to find class android.os.Binder");
gBinderOffsets.mClass = (jclass) env->NewGlobalRef(clazz);//gBinderOffsets见上述结构
gBinderOffsets.mExecTransact
= env->GetMethodID(clazz, "execTransact", "(IIII)Z");
assert(gBinderOffsets.mExecTransact);
gBinderOffsets.mObject
= env->GetFieldID(clazz, "mObject", "I");
assert(gBinderOffsets.mObject);
//以下代码注册Binder类中native函数的实现
return AndroidRuntime::registerNativeMethods(
env, kBinderPathName,
gBinderMethods, NELEM(gBinderMethods));
}
gBinderOffsets对象保存了和Binder类相关的在JNI层中使用的信息，用来在JNI层对Java层的Binder对象进行调用操作。
２、BinderInternal类的初始化
static struct binderinternal_offsets_t
{
// Class state.
jclass mClass;
jmethodID mForceGc;
} gBinderInternalOffsets;
const char* const kBinderInternalPathName = "com/android/internal/os/BinderInternal";
static int int_register_android_os_BinderInternal(JNIEnv* env)
{
jclass clazz;
clazz = env->FindClass(kBinderInternalPathName);//根据BinderInternal类的全路径kBinderInternalPathName找到代表该类的jclass对象
LOG_FATAL_IF(clazz == NULL, "Unable to find class com.android.internal.os.BinderInternal");
gBinderInternalOffsets.mClass = (jclass) env->NewGlobalRef(clazz);//gBinderInternalOffsets见上述结构
gBinderInternalOffsets.mForceGc
= env->GetStaticMethodID(clazz, "forceBinderGc", "()V");//获取forceBinderGc的methodID
assert(gBinderInternalOffsets.mForceGc);
//以下代码注册BinderInternal类中native函数的实现
return AndroidRuntime::registerNativeMethods(
env, kBinderInternalPathName,
gBinderInternalMethods, NELEM(gBinderInternalMethods));
}
gBinderInternalOffsets对象保存了和BinderInternal类相关的在JNI层中使用的信息，用来在JNI层对Java层的BinderInternal对象进行调用操作。
３、BinderProxy类的初始化
static struct binderproxy_offsets_t
{
// Class state.
jclass mClass;
jmethodID mConstructor;
jmethodID mSendDeathNotice;
// Object state.
jfieldID mObject;
jfieldID mSelf;
jfieldID mOrgue;
} gBinderProxyOffsets;
const char* const kBinderProxyPathName = "android/os/BinderProxy";
static int int_register_android_os_BinderProxy(JNIEnv* env)
{
jclass clazz;
clazz = env->FindClass("java/lang/ref/WeakReference");//gWeakReferenceOffsets用于使用Java WeakReference类
LOG_FATAL_IF(clazz == NULL, "Unable to find class java.lang.ref.WeakReference");
gWeakReferenceOffsets.mClass = (jclass) env->NewGlobalRef(clazz);
gWeakReferenceOffsets.mGet
= env->GetMethodID(clazz, "get", "()Ljava/lang/Object;");//获取WeakReference类get()的methodID
assert(gWeakReferenceOffsets.mGet);
clazz = env->FindClass("java/lang/Error");//gErrorOffsets用于使用Java Error类
LOG_FATAL_IF(clazz == NULL, "Unable to find class java.lang.Error");
gErrorOffsets.mClass = (jclass) env->NewGlobalRef(clazz);
clazz = env->FindClass(kBinderProxyPathName);
LOG_FATAL_IF(clazz == NULL, "Unable to find class android.os.BinderProxy");
gBinderProxyOffsets.mClass = (jclass) env->NewGlobalRef(clazz);//gBinderProxyOffsets见上述结构
gBinderProxyOffsets.mConstructor
= env->GetMethodID(clazz, "<init>", "()V");
assert(gBinderProxyOffsets.mConstructor);
gBinderProxyOffsets.mSendDeathNotice
= env->GetStaticMethodID(clazz, "sendDeathNotice", "(Landroid/os/IBinder$DeathRecipient;)V");
assert(gBinderProxyOffsets.mSendDeathNotice);
gBinderProxyOffsets.mObject
= env->GetFieldID(clazz, "mObject", "I");
assert(gBinderProxyOffsets.mObject);
gBinderProxyOffsets.mSelf
= env->GetFieldID(clazz, "mSelf", "Ljava/lang/ref/WeakReference;");
assert(gBinderProxyOffsets.mSelf);
gBinderProxyOffsets.mOrgue
= env->GetFieldID(clazz, "mOrgue", "I");
assert(gBinderProxyOffsets.mOrgue);
clazz = env->FindClass("java/lang/Class");////gClassOffsets用于使用Java Class类
LOG_FATAL_IF(clazz == NULL, "Unable to find java.lang.Class");
gClassOffsets.mGetName = env->GetMethodID(clazz, "getName", "()Ljava/lang/String;");
assert(gClassOffsets.mGetName);
//以下代码注册BinderProxy类中native函数的实现
return AndroidRuntime::registerNativeMethods(
env, kBinderProxyPathName,
gBinderProxyMethods, NELEM(gBinderProxyMethods));
}
类似上述gBinderOffsets和gBinderInternalOffsets对象，gBinderProxyOffsets对象保存了和BinderProxy类相关的在JNI层中使用的信息，用来在JNI层对Java层的BinderProxy对象进行调用操作，除此之外，int_register_android_os_BinderProxy()还获取了WeakReference类和Error类的一些信息，也就是说BinderProxy对象的生命周期会委托WeakReference来管理。
经过上述分析，Java Binder几个重要成员的初始化已完成，同时在代码中定义了几个全局静态对象，分别是gBinderOffsets、gBinderInternalOffsets和gBinderProxyOffsets。框架的初始化其实就是提前获取一些JNI层的使用信息，如类成员函数的MethodID、类成员变量的fieldID等。这项工作是必需的，因为它能节省每次使用时获取这些信息的时间。当Binder调用频繁时，这些时间累积起来还是不容小觑的。另外，这个过程中所创建的几个全局静态对象为JNI层访问Java层的对象提供了依据。而在每个初始化函数中所执行的registerNativeMethods（）方法则为Java层访问JNI层打通了道路。换句话说，Binder初始化的工作就是通过JNI建立起Native Binder与Java Binder之间互相通信的桥梁。
下面我们分析一下Java Binder的工作流程。以ActivityManagerService（以下简称AMS）为例来揭示Java层Binder的工作原理。
分析分为两步进行：
１、分析AMS如何将自己注册到ServiceManager。
２、然后分析AMS如何响应客户端的Binder调用请求。
一、AMS如何将自己注册到ServiceManager
ActivityManagerService是在SystemServer进程里面注册的
SystemServer:main()
->run()
->startBootstrapServices()
->mActivityManagerService.setSystemProcess();
在ActivityManagerService的setSystemProcess()方法中会将AMS服务注册到ServiceManager中
源码路径：/frameworks/base/services/java/com/android/server/am/ActivityManagerService.java
1363 public static void setSystemProcess() {
1364 try {
1365 ActivityManagerService m = mSelf;
1366
1367 ServiceManager.addService("activity", m, true);//这里就是注册AMS的地方
1368 ServiceManager.addService("meminfo", new MemBinder(m));
1369 ServiceManager.addService("gfxinfo", new GraphicsBinder(m));
1370 ServiceManager.addService("dbinfo", new DbBinder(m));
1371 if (MONITOR_CPU_USAGE) {
1372 ServiceManager.addService("cpuinfo", new CpuBinder(m));
1373 }
1374 ServiceManager.addService("permission", new PermissionController(m));
1375
1376 ApplicationInfo info =
1377 mSelf.mContext.getPackageManager().getApplicationInfo(
1378 "android", STOCK_PM_FLAGS);
1379 mSystemThread.installSystemApplicationInfo(info);
1380
1381 synchronized (mSelf) {
1382 ProcessRecord app = mSelf.newProcessRecordLocked(
1383 mSystemThread.getApplicationThread(), info,
1384 info.processName, false);
1385 app.persistent = true;
1386 app.pid = MY_PID;
1387 app.maxAdj = ProcessList.SYSTEM_ADJ;
1388 mSelf.mProcessNames.put(app.processName, app.uid, app);
1389 synchronized (mSelf.mPidsSelfLocked) {
1390 mSelf.mPidsSelfLocked.put(app.pid, app);
1391 }
1392 mSelf.updateLruProcessLocked(app, true);
1393 }
1394 } catch (PackageManager.NameNotFoundException e) {
1395 throw new RuntimeException(
1396 "Unable to find android system package", e);
1397 }
1398 }
在整个Android系统中有一个Native的ServiceManager进程，它统筹管理Android系统上的所有服务。成为一个服务的首要条件是先在SM中注册。下面来看Java层的服务是如何向SM注册的。
源码路径：/frameworks/base/core/java/android/os/ServiceManager.java
１、使用addService()向ServiceManager注册服务
78 /**
79 * Place a new @a service called @a name into the service
80 * manager.
81 *
82 * @param name the name of the new service
83 * @param service the service object
84 * @param allowIsolated set to true to allow isolated sandboxed processes
85 * to access this service
86 */
87 public static void addService(String name, IBinder service, boolean allowIsolated) {
88 try {
89 getIServiceManager().addService(name, service, allowIsolated);//service是AMS对象
90 } catch (RemoteException e) {
91 Log.e(TAG, "error in addService", e);
92 }
93 }
会调用getIServiceManager()的addService()，那就要看下getIServiceManager()方法了
33 private static IServiceManager getIServiceManager() {
34 if (sServiceManager != null) {
35 return sServiceManager;
36 }
37
38 // Find the service manager
39 sServiceManager = ServiceManagerNative.asInterface(BinderInternal.getContextObject());
40 return sServiceManager;
41 }
会调用ServiceManagerNative.asInterface()返回，asInterface()需要参数BinderInternal.getContextObject()，我们先看下BinderInternal.getContextObject()
源码路径：/frameworks/base/core/java/com/android/internal/os/BinderInternal.java
public static final native IBinder getContextObject();
可以看到BinderInternal的getContextObject()是一个native方法，具体会调用到android_os_BinderInternal_getContextObject()
源码路径：/frameworks/base/core/jni/android_util_Binder.cpp
862static jobject android_os_BinderInternal_getContextObject(JNIEnv* env, jobject clazz)
863{
864 sp<IBinder> b = ProcessState::self()->getContextObject(NULL);
865 return javaObjectForIBinder(env, b);
866}
然后会调用ProcessState的getContextObject()，这个方法我们在Native Binder中讲解过，这里不再赘述，它会返回了一个IBinder对象，具体是一个BpBinder对象，其中NULL即０，代表通信目的端是ServiceManager，可以看到Java层的ServiceManager需要在Native层获取指向Native进程中ServiceManager的BpBinder对象。
我们看到拿到BpBinder对象对象后，调用了这个javaObjectForIBinder()，这是因为BpBinder对象不能由Java层的ServiceManager直接使用，于是通过javaObjectForIBinder()将创建一个封装了这个BpBinder的一个Java对象并返回给调用者。ServiceManager便可以通过这个Java对象实现对BpBinder的访问。下面看下javaObjectForIBinder()
555jobject javaObjectForIBinder(JNIEnv* env, const sp<IBinder>& val)
556{
557 if (val == NULL) return NULL;
558
559 if (val->checkSubclass(&gBinderOffsets)) {
560 // One of our own!
561 jobject object = static_cast<JavaBBinder*>(val.get())->object();
562 LOGDEATH("objectForBinder %p: it's our own %p!\n", val.get(), object);
563 return object;
564 }
565
566 // For the rest of the function we will hold this lock, to serialize
567 // looking/creation of Java proxies for native Binder proxies.
568 AutoMutex _l(mProxyLock);
569
570 // Someone else's... do we know about it?
571 jobject object = (jobject)val->findObject(&gBinderProxyOffsets);//根据上述分析，val是一个BpBinder对象
572 if (object != NULL) {
573 jobject res = env->CallObjectMethod(object, gWeakReferenceOffsets.mGet);
574 if (res != NULL) {
575 ALOGV("objectForBinder %p: found existing %p!\n", val.get(), res);
576 return res;
577 }
578 LOGDEATH("Proxy object %p of IBinder %p no longer in working set!!!", object, val.get());
579 android_atomic_dec(&gNumProxyRefs);
580 val->detachObject(&gBinderProxyOffsets);
581 env->DeleteGlobalRef(object);
582 }
583
584 object = env->NewObject(gBinderProxyOffsets.mClass, gBinderProxyOffsets.mConstructor);//创建一个新的BinderProxy对象，这里便是使用到了上述的gBinderProxyOffsets来生成Java对象(JNI层对Java层的BinderProxy对象进行调用操作)，并将该BinderProxy对象注册到Native BpBinder对象的ObjectManager中。
585 if (object != NULL) {
586 LOGDEATH("objectForBinder %p: created new proxy %p !\n", val.get(), object);
587 // The proxy holds a reference to the native object.
588 env->SetIntField(object, gBinderProxyOffsets.mObject, (int)val.get());//把Native层BpBinder的指针保存到BinderProxy对象的mObject成员变量中，这是连接BinderProxy和BpBinder的桥梁。
589 val->incStrong(object);
590
591 // The native object needs to hold a weak reference back to the
592 // proxy, so we can retrieve the same proxy if it is still active.
593 jobject refObject = env->NewGlobalRef(
594 env->GetObjectField(object, gBinderProxyOffsets.mSelf));
595 val->attachObject(&gBinderProxyOffsets, refObject,
596 jnienv_to_javavm(env), proxy_cleanup);//将新建的BinderProxy对象注册(attach)到BpBinder的ObjectManager中，同时注册一个回收函数proxy_cleanup，当BinderProxy对象撤销(detach)时，proxy_cleanup会被调用用来释放一些资源。
597
598 // Also remember the death recipients registered on this proxy
599 sp<DeathRecipientList> drl = new DeathRecipientList;//DeathRecipientList保存一个用于死亡通知的list
600 drl->incStrong((void*)javaObjectForIBinder);
601 env->SetIntField(object, gBinderProxyOffsets.mOrgue, reinterpret_cast<jint>(drl.get()));//将死亡通知list和BinderProxy关联
602
603 // Note that a new object reference has been created.
604 android_atomic_inc(&gNumProxyRefs);//增加该BinderProxy对象的引用计数用于下面的incRefsCreated函数
605 incRefsCreated(env);//根据上面的引用计数，如果创建的BinderProxy对象超过200个，则会调用BinderInternal的ForceGC做一次垃圾回收。
606 }
607
608 return object;
609}
源码路径：/frameworks/native/libs/binder/BpBinder.cpp
295void* BpBinder::findObject(const void* objectID) const
296{
297 AutoMutex _l(mLock);
298 return mObjects.find(objectID);
299}
在BpBinder中，有一个ObjectManager(代码如下)，用于管理在Native BpBinder上创建Java BpBinder(BinderProxy)对象，上述findObject()用来判断gBinderProxyOffsets是否已经保存在ObjectManager中，如果已经保存，就把旧的对象删除。
64 class ObjectManager
65 {
66 public:
67 ObjectManager();
68 ~ObjectManager();
69
70 void attach( const void* objectID,
71 void* object,
72 void* cleanupCookie,
73 IBinder::object_cleanup_func func);
74 void* find(const void* objectID) const;
75 void detach(const void* objectID);
76
77 void kill();
78
79 private:
80 ObjectManager(const ObjectManager&);
81 ObjectManager& operator=(const ObjectManager&);
82
83 struct entry_t
84 {
85 void* object;
86 void* cleanupCookie;
87 IBinder::object_cleanup_func func;
88 };
89
90 KeyedVector<const void*, entry_t> mObjects;
91 };
通过上述分析，可以看到BinderInternal.getContextObject()其实就是创建了一个Java层的BinderProxy对象，通过JNI，该BinderProxy对象和Native层的BpBinder对象挂钩，而BpBinder对象的通信目标就是ServiceManager。
BinderInternal.getContextObject()返回BinderProxy对象后，回传给ManagerNative.asInterface(BinderInternal.getContextObject());
接下来看下ManagerNative的sInterface方法
源码路径：/frameworks/base/core/java/android/os/ServiceManagerNative.java
33 static public IServiceManager asInterface(IBinder obj)
34 {
35 if (obj == null) {
36 return null;
37 }
38 IServiceManager in =
39 (IServiceManager)obj.queryLocalInterface(descriptor);
40 if (in != null) {
41 return in;
42 }
43
44 return new ServiceManagerProxy(obj);
45 }
上面代码和Native层interface_cast宏(已经在Native Binder一文中介绍过)非常类似，都是以一个BpProxy对象(Native层是BpBinder，Java层是BinderProxy)为参数构造一个和业务相关的Proxy对象，例如这里的ServiceManagerProxy对象。ServiceManagerProxy对象的各个业务函数会将相应请求打包后交给BpProxy对象，最终由BpProxy对象发送给Binder驱动以完成一次通信(真正和Binder驱动交互的是IPCThreadState)。
接着分析，setIServiceManager()返回ServiceManagerProxy对象后，会调用addService()，代码如下
源码路径：/frameworks/base/core/java/android/os/ServiceManagerNative.java
ServiceManagerNative中有个内部类ServiceManagerProxy，我们看下ServiceManagerProxy的addService()
142 public void addService(String name, IBinder service, boolean allowIsolated)
143 throws RemoteException {
144 Parcel data = Parcel.obtain();
145 Parcel reply = Parcel.obtain();
146 data.writeInterfaceToken(IServiceManager.descriptor);
147 data.writeString(name);
148 data.writeStrongBinder(service);
149 data.writeInt(allowIsolated ? 1 : 0);
150 mRemote.transact(ADD_SERVICE_TRANSACTION, data, reply, 0);//mRemote就是上述创建的BinderProxy对象，调用transact，发送添加服务命令ADD_SERVICE_TRANSACTION。
151 reply.recycle();
152 data.recycle();
153 }
然后看下BinderProxy的transact方法，BinderProxy是定义Binder的内部类
源码路径：/frameworks/base/core/java/android/os/Binder.java
final class BinderProxy implements IBinder {
...
public native boolean transact(int code, Parcel data, Parcel reply,
int flags) throws RemoteException;
...
}
可以看到BinderProxy的transact是一个native函数，实现如下
1047static jboolean android_os_BinderProxy_transact(JNIEnv* env, jobject obj,
1048 jint code, jobject dataObj, jobject replyObj, jint flags) // throws RemoteException
1049{
1050 if (dataObj == NULL) {
1051 jniThrowNullPointerException(env, NULL);
1052 return JNI_FALSE;
1053 }
1054
1055 Parcel* data = parcelForJavaObject(env, dataObj);//从Java的Parcel对象中得到作为参数的Native的Parcel对象
1056 if (data == NULL) {
1057 return JNI_FALSE;
1058 }
1059 Parcel* reply = parcelForJavaObject(env, replyObj);//创建一个用于接收回复的Parcel
1060 if (reply == NULL && replyObj != NULL) {
1061 return JNI_FALSE;
1062 }
1063
1064 IBinder* target = (IBinder*)
1065 env->GetIntField(obj, gBinderProxyOffsets.mObject);//从Java的BinderProxy对象中得到Native层的BpBinder对象(保存在mObject中)
1066 if (target == NULL) {
1067 jniThrowException(env, "java/lang/IllegalStateException", "Binder has been finalized!");
1068 return JNI_FALSE;
1069 }
1070
1071 ALOGV("Java code calling transact on %p in Java object %p with code %d\n",
1072 target, obj, code);
1073
1074 // Only log the binder call duration for things on the Java-level main thread.
1075 // But if we don't
1076 const bool time_binder_calls = should_time_binder_calls();
1077
1078 int64_t start_millis;
1079 if (time_binder_calls) {
1080 start_millis = uptimeMillis();
1081 }
1082 //printf("Transact from Java code to %p sending: ", target); data->print();
1083 status_t err = target->transact(code, *data, reply, flags);//通过BpBinder对象将请求发送给ServiceManager
1084 //if (reply) printf("Transact from Java code to %p received: ", target); reply->print();
1085 if (time_binder_calls) {
1086 conditionally_log_binder_call(start_millis, target, code);
1087 }
1088
1089 if (err == NO_ERROR) {
1090 return JNI_TRUE;
1091 } else if (err == UNKNOWN_TRANSACTION) {
1092 return JNI_FALSE;
1093 }
1094
1095 signalExceptionForError(env, obj, err, true /*canThrowRemoteException*/);
1096 return JNI_FALSE;
1097}
看到上述代码也就是最终还是要通过native层将请求发送出去。
从架构的角度看，在Java中搭建了一整套框架，如IBinder接口、Binder类和BinderProxy类。但是从通信角度看，不论架构的编写采用的是Native语言还是Java语言，只要把请求传递到Binder驱动就可以了，所以通信的目的是向binder发送请求和接收回复。在这个目的之上，考虑到软件的灵活性和可扩展性，于是编写了一个架构。反过来说，也可以不使用架构（即没有使用任何接口、派生之类的东西）而直接和binder交互，例如ServiceManager作为Binder的一个核心程序，就是直接读取/dev/binder设备，获取并处理请求。从这一点上看，Binder的目的虽然简单（即打开binder设备，然后读请求和写回复），但是架构复杂（编写各种接口类和封装类等）。我们在研究源码时，一定要先搞清楚目的。实现只不过是达到该目的的一种手段和方式。脱离目的的实现，如缘木求鱼，很容易偏离事物本质。
我们再回过头看一下ServiceManagerProxy.addService()方法中，有一处调用data.writeStrongBinder(service);这里我们单独分析一下，这个service是一个AMS对象，先介绍Binder、JavaBBinderHolder和JavaBBinder
首先ActivityManagerService从ActivityManagerNative类派生，并实现了一些接口
public final class ActivityManagerService extends ActivityManagerNative
implements Watchdog.Monitor, BatteryStatsImpl.BatteryCallback {
｝
而ActivityManagerNative又继承自Binder，实现了IActivityManager
public abstract class ActivityManagerNative extends Binder implements IActivityManager{
}
看下ActivityManagerNative的父类Binder的构造函数，会调用init()
/**
* Default constructor initializes the object.
*/
public Binder() {
init();
if (FIND_POTENTIAL_LEAKS) {
final Class<? extends Binder> klass = getClass();
if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) &&
(klass.getModifiers() & Modifier.STATIC) == 0) {
Log.w(TAG, "The following Binder class should be static or leaks might occur: " +
klass.getCanonicalName());
}
}
}
private native final void init();
而init()是一个native方法，具体实现
源码路径：/frameworks/base/core/jni/android_util_Binder.cpp
766static void android_os_Binder_init(JNIEnv* env, jobject obj)
767{
768 JavaBBinderHolder* jbh = new JavaBBinderHolder();
769 if (jbh == NULL) {
770 jniThrowException(env, "java/lang/OutOfMemoryError", NULL);
771 return;
772 }
773 ALOGV("Java Binder %p: acquiring first ref on holder %p", obj, jbh);
774 jbh->incStrong((void*)android_os_Binder_init);
775 env->SetIntField(obj, gBinderOffsets.mObject, (int)jbh);
776}
可以看到创建了一个JavaBBinderHolder对象，并且将这个JavaBBinderHolder对象保存到Java Binder对象的mObject成员中，那接下来我们看下JavaBBinderHolder是个什么东东。
源码路径：/frameworks/base/core/jni/android_util_Binder.cpp
335JavaBBinderHolder : public RefBase
336{
337public:
338 sp<JavaBBinder> get(JNIEnv* env, jobject obj)
339 {
340 AutoMutex _l(mLock);
341 sp<JavaBBinder> b = mBinder.promote();
342 if (b == NULL) {
343 b = new JavaBBinder(env, obj);//创建一个JavaBBinder对象，obj是一个Java Binder对象
344 mBinder = b;
345 ALOGV("Creating JavaBinder %p (refs %p) for Object %p, weakCount=%d\n",
346 b.get(), b->getWeakRefs(), obj, b->getWeakRefs()->getWeakCount());
347 }
348
349 return b;
350 }
351
352 sp<JavaBBinder> getExisting()
353 {
354 AutoMutex _l(mLock);
355 return mBinder.promote();
356 }
357
358private:
359 Mutex mLock;
360 wp<JavaBBinder> mBinder;//和垃圾回收（内存管理）有关，可能也是不直接让Java层的Binder对象指向Native层的JavaBBinder对象的原因
361};
从派生关系上可以发现，JavaBBinderHolder仅从RefBase派生，所以它不属于Binder家族。Java层的Binder对象为什么会和Native层的一个与Binder家族无关的JavaBBinderHolder对象绑定呢？仔细观察JavaBBinderHolder的定义可知：JavaBBinderHolder类的get函数中创建了一个JavaBBinder对象，这个对象就是从BnBinder派生的。那么JavaBBinderHolder中的get函数是在哪里调用的呢？正是上述提到的data.writeStrongBinder(service)，writeStrongBinder会做一个替换工作，下面是它的native代码实现
源码路径：/frameworks/base/core/jni/android_os_Parcel.cpp
252static void android_os_Parcel_writeStrongBinder(JNIEnv* env, jclass clazz, jint nativePtr, jobject object)
253{
254 Parcel* parcel = reinterpret_cast<Parcel*>(nativePtr);
255 if (parcel != NULL) {
256 const status_t err = parcel->writeStrongBinder(ibinderForJavaObject(env, object));//parcel是一个native对象，writeStrongBinder的参数是ibinderForJavaObject(env, object)
257 if (err != NO_ERROR) {
258 signalExceptionForError(env, clazz, err);
259 }
260 }
261}
然后看下ibinderForJavaObject(env, object)
611sp<IBinder> ibinderForJavaObject(JNIEnv* env, jobject obj)
612{
613 if (obj == NULL) return NULL;
614 //如果Java obj对象是Binder类型，就先获取它的JavaBBinderHolder对象(在Java Binder的mObject中)，然后调用JavaBBinderHolder的get()函数，get()函数就会返回JavaBBinder对象
615 if (env->IsInstanceOf(obj, gBinderOffsets.mClass)) {
616 JavaBBinderHolder* jbh = (JavaBBinderHolder*)
617 env->GetIntField(obj, gBinderOffsets.mObject);
618 return jbh != NULL ? jbh->get(env, obj) : NULL;
619 }
620 //如果Java obj对象是BinderProxy类型，则返回Native层的BpBinder对象(Native层的BpBinder对象保存在Java BinderProxy对象的mObject中)
621 if (env->IsInstanceOf(obj, gBinderProxyOffsets.mClass)) {
622 return (IBinder*)
623 env->GetIntField(obj, gBinderProxyOffsets.mObject);
624 }
625
626 ALOGW("ibinderForJavaObject: %p is not a Binder object", obj);
627 return NULL;
628}
根据上面的分析可以看到，addService实际添加到Parcel的并不是AMS本身，而是一个叫JavaBBinder的对象。而最终传递到Binder驱动的正是这个JavaBBinder对象。Java层中所有的Binder对应的都是这个JavaBBinder。当然，不同的Binder对象对应不同的JavaBBinder对象。下图展示了Java Binder、JavaBBinderHolder和JavaBBinder的关系。

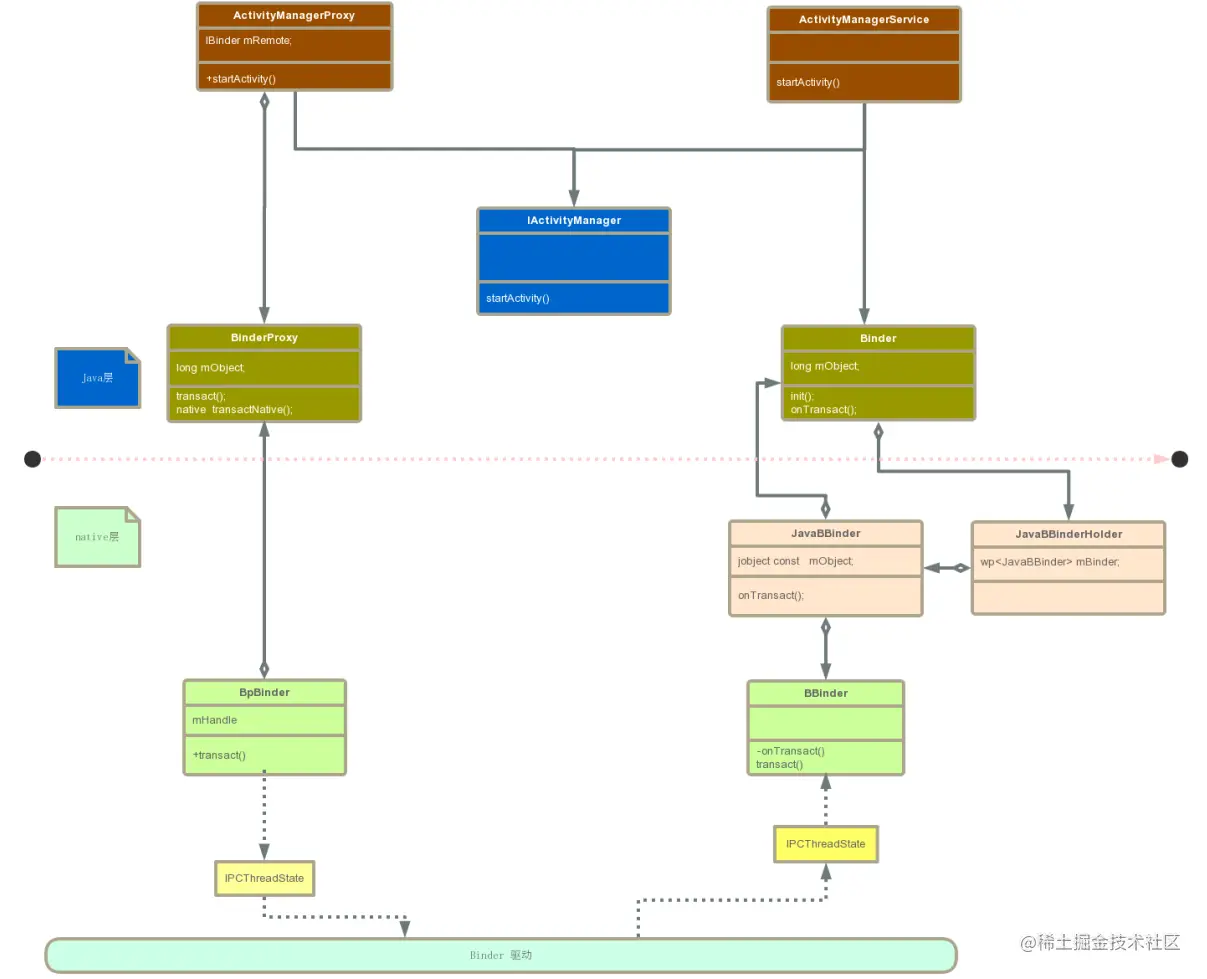

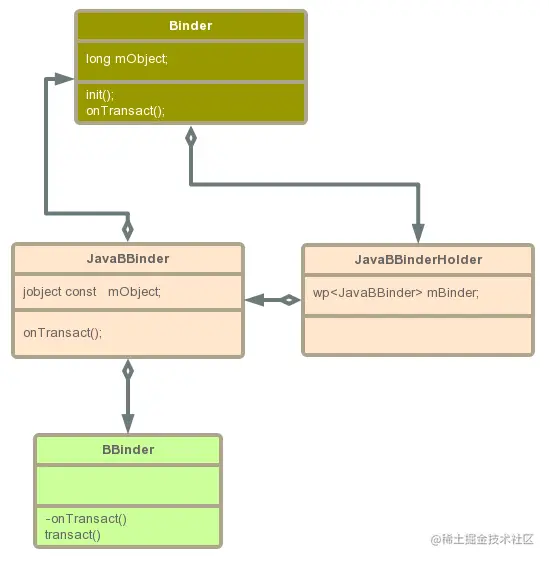

由上图可知：
1、Java层的Binder通过mObject指向一个Native层的JavaBBinderHolder对象。
２、Native层的JavaBBinderHolder对象通过mBinder成员变量指向一个Native的JavaBBinder对象。
３、Native的JavaBBinder对象又通过mObject变量指向一个Java层的Binder对象。
二、ActivityManagerService响应请求

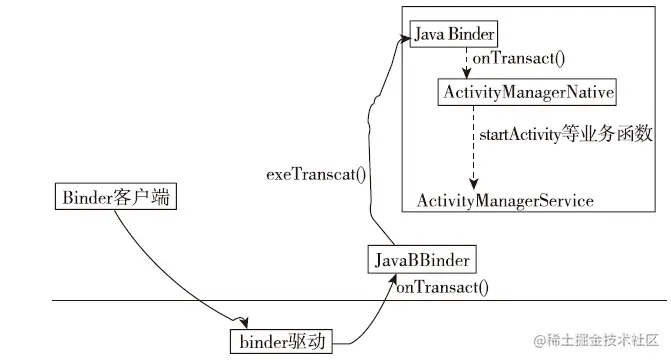

根据上述分析，用户进程对AMS服务的跨进程请求，最终还是要调用到JavaBBinder，它是BBinder的子类。JavaBBinder并没有重写transact()函数，所以会复用BBinder中的transact()函数，transact()中会调用onTransact()函数。JavaBBinder重写了onTransact()的实现，也就是最后是会调到JavaBBinder的onTransact()，下面看下JavaBBinder的onTransact()的代码
源码路径：/frameworks/base/core/jni/android_util_Binder.cpp
263 virtual status_t onTransact(
264 uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags = 0)
265 {
266 JNIEnv* env = javavm_to_jnienv(mVM);
267
268 ALOGV("onTransact() on %p calling object %p in env %p vm %p\n", this, mObject, env, mVM);
269
270 IPCThreadState* thread_state = IPCThreadState::self();
271 const int strict_policy_before = thread_state->getStrictModePolicy();
272 thread_state->setLastTransactionBinderFlags(flags);
273
274 //printf("Transact from %p to Java code sending: ", this);
275 //data.print();
276 //printf("\n");
277 jboolean res = env->CallBooleanMethod(mObject, gBinderOffsets.mExecTransact,
278 code, (int32_t)&data, (int32_t)reply, flags);//实际会调用Java Binder对象的execTransact()方法
279 jthrowable excep = env->ExceptionOccurred();
280
281 if (excep) {
282 report_exception(env, excep,
283 "*** Uncaught remote exception! "
284 "(Exceptions are not yet supported across processes.)");
285 res = JNI_FALSE;
286
287 /* clean up JNI local ref -- we don't return to Java code */
288 env->DeleteLocalRef(excep);
289 }
290
291 // Restore the Java binder thread's state if it changed while
292 // processing a call (as it would if the Parcel's header had a
293 // new policy mask and Parcel.enforceInterface() changed
294 // it...)
295 const int strict_policy_after = thread_state->getStrictModePolicy();
296 if (strict_policy_after != strict_policy_before) {
297 // Our thread-local...
298 thread_state->setStrictModePolicy(strict_policy_before);
299 // And the Java-level thread-local...
300 set_dalvik_blockguard_policy(env, strict_policy_before);
301 }
302
303 jthrowable excep2 = env->ExceptionOccurred();
304 if (excep2) {
305 report_exception(env, excep2,
306 "*** Uncaught exception in onBinderStrictModePolicyChange");
307 /* clean up JNI local ref -- we don't return to Java code */
308 env->DeleteLocalRef(excep2);
309 }
310
311 // Need to always call through the native implementation of
312 // SYSPROPS_TRANSACTION.
313 if (code == SYSPROPS_TRANSACTION) {
314 BBinder::onTransact(code, data, reply, flags);
315 }
316
317 //aout << "onTransact to Java code; result=" << res << endl
318 // << "Transact from " << this << " to Java code returning "
319 // << reply << ": " << *reply << endl;
320 return res != JNI_FALSE ? NO_ERROR : UNKNOWN_TRANSACTION;
321 }
就本例而言，上面代码中的mObject就是AMS，也就是调用它的execTransact()方法，该方法在Binder类中实现，具体代码如下：
源码路径：/frameworks/base/core/java/android/os/Binder.java
341 // Entry point from android_util_Binder.cpp's onTransact
342 private boolean execTransact(int code, int dataObj, int replyObj,
343 int flags) {
344 Parcel data = Parcel.obtain(dataObj);
345 Parcel reply = Parcel.obtain(replyObj);
346 // theoretically, we should call transact, which will call onTransact,
347 // but all that does is rewind it, and we just got these from an IPC,
348 // so we'll just call it directly.
349 boolean res;
350 try {
351 res = onTransact(code, data, reply, flags);//调用onTransact()，子类实现该方法，实现相应业务功能
352 } catch (RemoteException e) {
353 reply.setDataPosition(0);
354 reply.writeException(e);
355 res = true;
356 } catch (RuntimeException e) {
357 reply.setDataPosition(0);
358 reply.writeException(e);
359 res = true;
360 } catch (OutOfMemoryError e) {
361 RuntimeException re = new RuntimeException("Out of memory", e);
362 reply.setDataPosition(0);
363 reply.writeException(re);
364 res = true;
365 }
366 reply.recycle();
367 data.recycle();
368 return res;
369 }
这里那我们就看ActivityManagerNative类实现的onTransact函数
112public boolean onTransact(int code, Parcel data, Parcel reply, int flags)
113 throws RemoteException {
114 switch (code) {
115 case START_ACTIVITY_TRANSACTION://启动Activity请求，下边其他请求太多了就不具体分析了，有兴趣的自己看吧
116 {
117 data.enforceInterface(IActivityManager.descriptor);
118 IBinder b = data.readStrongBinder();
119 IApplicationThread app = ApplicationThreadNative.asInterface(b);
120 Intent intent = Intent.CREATOR.createFromParcel(data);
121 String resolvedType = data.readString();
122 IBinder resultTo = data.readStrongBinder();
123 String resultWho = data.readString();
124 int requestCode = data.readInt();
125 int startFlags = data.readInt();
126 String profileFile = data.readString();
127 ParcelFileDescriptor profileFd = data.readInt() != 0
128 ? data.readFileDescriptor() : null;
129 Bundle options = data.readInt() != 0
130 ? Bundle.CREATOR.createFromParcel(data) : null;
131 int result = startActivity(app, intent, resolvedType,
132 resultTo, resultWho, requestCode, startFlags,
133 profileFile, profileFd, options);//比如START_ACTIVITY_TRANSACTION，这里就会由AMS实现startActivity()方法
134 reply.writeNoException();
135 reply.writeInt(result);
136 return true;
137 }
163 ...
//其他请求处理case
1822 ...
1823 return super.onTransact(code, data, reply, flags);
1824 }
由此可以看出，JavaBBinder仅是一个中间传递者，它本身不实现任何业务函数，它完成的工作主要包括：
１、当它收到请求时，只是简单地调用它所绑定的Java层Binder对象的exeTransact。
２、该Binder对象的exeTransact调用其子类实现的onTransact函数。
３、子类的onTransact函数将业务又派发给其子类来完成。
通过这种多层继承关系方式，来自客户端的请求就能传递到正确的Java Binder对象了。下图(右上方框表示AMS对象，其中的虚线箭头表示调用子类重载的函数)展示了AMS响应请求的整个流程。
经过对Binder的Native层和Framework层的分析，总结整体的结构见下图
