ReferenceConfig.java
public synchronized T get() {
// 检测更新<dubbo:reference/>及其子标签
checkAndUpdateSubConfigs();
if (destroyed) {
throw new IllegalStateException("The invoker of ReferenceConfig(" + url + ") has already destroyed!");
}
// ref就是代理对象
if (ref == null) {
// 创建并初始化代理对象
init();
}
return ref;
}
private void init() {
// 若代理对象创建并初始化完毕，则直接结束
if (initialized) {
return;
}
checkStubAndLocal(interfaceClass);
checkMock(interfaceClass);
// 收集消费者元数据
Map<String, String> map = new HashMap<String, String>();
map.put(SIDE_KEY, CONSUMER_SIDE);
appendRuntimeParameters(map);
if (!isGeneric()) {
String revision = Version.getVersion(interfaceClass, version);
if (revision != null && revision.length() > 0) {
map.put(REVISION_KEY, revision);
}
String[] methods = Wrapper.getWrapper(interfaceClass).getMethodNames();
if (methods.length == 0) {
logger.warn("No method found in service interface " + interfaceClass.getName());
map.put(METHODS_KEY, ANY_VALUE);
} else {
map.put(METHODS_KEY, StringUtils.join(new HashSet<String>(Arrays.asList(methods)), COMMA_SEPARATOR));
}
}
map.put(INTERFACE_KEY, interfaceName);
appendParameters(map, metrics);
appendParameters(map, application);
appendParameters(map, module);
// remove 'default.' prefix for configs from ConsumerConfig
// appendParameters(map, consumer, Constants.DEFAULT_KEY);
appendParameters(map, consumer);
appendParameters(map, this);
Map<String, Object> attributes = null;
if (CollectionUtils.isNotEmpty(methods)) {
attributes = new HashMap<String, Object>();
for (MethodConfig methodConfig : methods) {
appendParameters(map, methodConfig, methodConfig.getName());
String retryKey = methodConfig.getName() + ".retry";
if (map.containsKey(retryKey)) {
String retryValue = map.remove(retryKey);
if ("false".equals(retryValue)) {
map.put(methodConfig.getName() + ".retries", "0");
}
}
attributes.put(methodConfig.getName(), convertMethodConfig2AyncInfo(methodConfig));
}
}
String hostToRegistry = ConfigUtils.getSystemProperty(DUBBO_IP_TO_REGISTRY);
if (StringUtils.isEmpty(hostToRegistry)) {
hostToRegistry = NetUtils.getLocalHost();
} else if (isInvalidLocalHost(hostToRegistry)) {
throw new IllegalArgumentException("Specified invalid registry ip from property:" + DUBBO_IP_TO_REGISTRY + ", value:" + hostToRegistry);
}
map.put(REGISTER_IP_KEY, hostToRegistry);
// ------------------ 以上代码都是在初始化map ---------------
// 创建并初始化消费者代理对象
ref = createProxy(map);
String serviceKey = URL.buildKey(interfaceName, group, version);
ApplicationModel.initConsumerModel(serviceKey, buildConsumerModel(serviceKey, attributes));
// 修改初始化状态变量
initialized = true;
}
//创建代理对象
private T createProxy(Map<String, String> map) {
if (shouldJvmRefer(map)) { // 处理本地调用
URL url = new URL(LOCAL_PROTOCOL, LOCALHOST_VALUE, 0, interfaceClass.getName()).addParameters(map);
invoker = REF_PROTOCOL.refer(interfaceClass, url);
if (logger.isInfoEnabled()) {
logger.info("Using injvm service " + interfaceClass.getName());
}
} else { // 处理远程调用
urls.clear(); // reference retry init will add url to urls, lead to OOM
// 处理直连式的远程调用（即没有注册中心）
if (url != null && url.length() > 0) { // user specified URL, could be peer-to-peer address, or register center's address.
String[] us = SEMICOLON_SPLIT_PATTERN.split(url);
if (us != null && us.length > 0) {
for (String u : us) {
URL url = URL.valueOf(u);
if (StringUtils.isEmpty(url.getPath())) {
url = url.setPath(interfaceName);
}
if (REGISTRY_PROTOCOL.equals(url.getProtocol())) {
urls.add(url.addParameterAndEncoded(REFER_KEY, StringUtils.toQueryString(map)));
} else {
urls.add(ClusterUtils.mergeUrl(url, map));
}
}
}
} else { // assemble URL from register center's configuration
// 处理具有注册中心的远程调用
// if protocols not injvm checkRegistry
// 若不是本地调用
if (!LOCAL_PROTOCOL.equalsIgnoreCase(getProtocol())){
// 检测所有注册中心的可用性
checkRegistry();
// 获取到所有注册中心的标准化URL
List<URL> us = loadRegistries(false);
if (CollectionUtils.isNotEmpty(us)) {
// 遍历所有注册中心url
for (URL u : us) {
URL monitorUrl = loadMonitor(u);
if (monitorUrl != null) {
map.put(MONITOR_KEY, URL.encode(monitorUrl.toFullString()));
}
// add()中的参数是一个url，该url中包含注册中心url与消费者url
urls.add(u.addParameterAndEncoded(REFER_KEY, StringUtils.toQueryString(map)));
}
}
if (urls.isEmpty()) {
throw new IllegalStateException("No such any registry to reference " + interfaceName + " on the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion() + ", please config <dubbo:registry address=\"...\" /> to your spring config.");
}
}
}

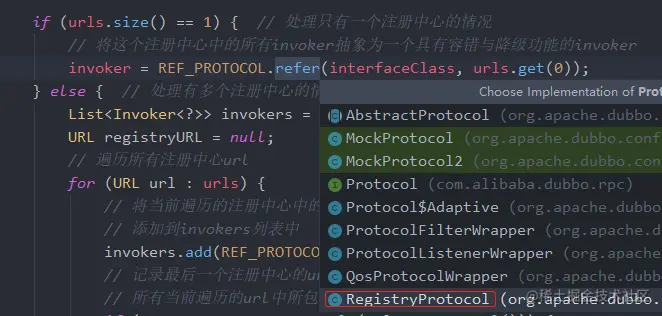

if (urls.size() == 1) { // 处理只有一个注册中心的情况
// 将这个注册中心中的所有invoker抽象为一个具有容错与降级功能的invoker
invoker = REF_PROTOCOL.refer(interfaceClass, urls.get(0));
} else { // 处理有多个注册中心的情况
List<Invoker<?>> invokers = new ArrayList<Invoker<?>>();
URL registryURL = null;
// 遍历所有注册中心url
for (URL url : urls) {
// 将当前遍历的注册中心中的所有invoker抽象为一个具有容错与降级功能的invoker后，
// 添加到invokers列表中
invokers.add(REF_PROTOCOL.refer(interfaceClass, url));
// 记录最后一个注册中心的url，因为我们在后面要使用该url中所包含的消费者url，
// 所有当前遍历的url中所包含的消费者url都是相同的。故，获取一个即可
if (REGISTRY_PROTOCOL.equals(url.getProtocol())) {
registryURL = url; // use last registry url
}
}
// 若具有可用的注册中心
if (registryURL != null) { // registry url is available
// use RegistryAwareCluster only when register's CLUSTER is available
URL u = registryURL.addParameter(CLUSTER_KEY, RegistryAwareCluster.NAME);
// The invoker wrap relation would be: RegistryAwareClusterInvoker(StaticDirectory) -> FailoverClusterInvoker(RegistryDirectory, will execute route) -> Invoker
// 将所有注册中心抽象出的invoker再次抽象为一个具有容错与降级功能的invoker
// 由于注册中心的数量是不会变化的，所以这里创建的Directory为静态Directory
// 从列表中拿出第一个invoker
invoker = CLUSTER.join(new StaticDirectory(u, invokers));
} else { // not a registry url, must be direct invoke.
invoker = CLUSTER.join(new StaticDirectory(invokers));
}
}
}
if (shouldCheck() && !invoker.isAvailable()) {
throw new IllegalStateException("Failed to check the status of the service " + interfaceName + ". No provider available for the service " + (group == null ? "" : group + "/") + interfaceName + (version == null ? "" : ":" + version) + " from the url " + invoker.getUrl() + " to the consumer " + NetUtils.getLocalHost() + " use dubbo version " + Version.getVersion());
}
if (logger.isInfoEnabled()) {
logger.info("Refer dubbo service " + interfaceClass.getName() + " from url " + invoker.getUrl());
}
/**
* @since 2.7.0
* ServiceData Store
*/
// 将消费者元数据写入到元数据中心
MetadataReportService metadataReportService = null;
if ((metadataReportService = getMetadataReportService()) != null) {
URL consumerURL = new URL(CONSUMER_PROTOCOL, map.remove(REGISTER_IP_KEY), 0, map.get(INTERFACE_KEY), map);
metadataReportService.publishConsumer(consumerURL);
}
// create service proxy 创建消费者代理对象
return (T) PROXY_FACTORY.getProxy(invoker);
}
(T) PROXY_FACTORY.getProxy(invoker);还是会生成一个Adaptive自适应类，上一章源码阅读中，我们已经把该类的源代码复制出来了，如下：
package org.apache.dubbo.rpc;
import org.apache.dubbo.common.extension.ExtensionLoader;
public class ProxyFactory$Adaptive implements org.apache.dubbo.rpc.ProxyFactory {
public org.apache.dubbo.rpc.Invoker getInvoker(java.lang.Object arg0, java.lang.Class arg1, org.apache.dubbo.common.URL arg2) throws org.apache.dubbo.rpc.RpcException {
if (arg2 == null) throw new IllegalArgumentException("url == null");
org.apache.dubbo.common.URL url = arg2;
// 可以看到这里使用javassist来进行动态代理
String extName = url.getParameter("proxy", "javassist");
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.ProxyFactory) name from url (" + url.toString() + ") use keys([proxy])");
org.apache.dubbo.rpc.ProxyFactory extension = (org.apache.dubbo.rpc.ProxyFactory) ExtensionLoader.getExtensionLoader(org.apache.dubbo.rpc.ProxyFactory.class).getExtension(extName);
// 使用javassit创建的代理对象
// StubProxyFactoryWrapper.java -> getInvoker
return extension.getInvoker(arg0, arg1, arg2);
}
public java.lang.Object getProxy(org.apache.dubbo.rpc.Invoker arg0, boolean arg1) throws org.apache.dubbo.rpc.RpcException {
if (arg0 == null) throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument == null");
if (arg0.getUrl() == null)
throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument getUrl() == null");
org.apache.dubbo.common.URL url = arg0.getUrl();
String extName = url.getParameter("proxy", "javassist");
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.ProxyFactory) name from url (" + url.toString() + ") use keys([proxy])");
org.apache.dubbo.rpc.ProxyFactory extension = (org.apache.dubbo.rpc.ProxyFactory) ExtensionLoader.getExtensionLoader(org.apache.dubbo.rpc.ProxyFactory.class).getExtension(extName);
return extension.getProxy(arg0, arg1);
}
public java.lang.Object getProxy(org.apache.dubbo.rpc.Invoker arg0) throws org.apache.dubbo.rpc.RpcException {
if (arg0 == null) throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument == null");
if (arg0.getUrl() == null)
throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument getUrl() == null");
org.apache.dubbo.common.URL url = arg0.getUrl();
String extName = url.getParameter("proxy", "javassist");
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.ProxyFactory) name from url (" + url.toString() + ") use keys([proxy])");
org.apache.dubbo.rpc.ProxyFactory extension = (org.apache.dubbo.rpc.ProxyFactory) ExtensionLoader.getExtensionLoader(org.apache.dubbo.rpc.ProxyFactory.class).getExtension(extName);
return extension.getProxy(arg0);
}
}
JavassistProxyFactory.java
public <T> T getProxy(Invoker<T> invoker, Class<?>[] interfaces) {
// 为指定接口创建代理对象并调用带参构造器
return (T) Proxy.getProxy(interfaces).newInstance(new InvokerInvocationHandler(invoker));
}
InvokerInvocationHandler.java
public InvokerInvocationHandler(Invoker<?> handler) {
this.invoker = handler;
}
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
// 获取到RPC远程调用的方法名
String methodName = method.getName();
Class<?>[] parameterTypes = method.getParameterTypes();
// 若当前方法为Object的方法，则为本地方法调用
if (method.getDeclaringClass() == Object.class) {
return method.invoke(invoker, args);
}
if ("toString".equals(methodName) && parameterTypes.length == 0) {
return invoker.toString();
}
if ("hashCode".equals(methodName) && parameterTypes.length == 0) {
return invoker.hashCode();
}
if ("equals".equals(methodName) && parameterTypes.length == 1) {
return invoker.equals(args[0]);
}
// 远程调用
return invoker.invoke(new RpcInvocation(method, args)).recreate();
}
核心代理调用类触发点找到了，接下来我们先回去ReferenceConfig.java中深跟一下还没跟踪的方法。它们在 **init()-》createProxy()-》shouldJvmRefer() -》shouldJvmRefer() -》isInjvmRefer() **如下：
InjvmProtocol.java
//根据标签生产URL信息中再判断到时是本地调用还是远程调用
public boolean isInjvmRefer(URL url) {
// 获取<dubbo:reference/>的scope属性
String scope = url.getParameter(SCOPE_KEY);
// 若scope为local或injvm属性为true，则为本地调用
if (SCOPE_LOCAL.equals(scope) || (url.getParameter(LOCAL_PROTOCOL, false))) {
// if it's declared as local reference
// 'scope=local' is equivalent to 'injvm=true', injvm will be deprecated in the future release
return true;
// 若scope为remote 则是远程调用
} else if (SCOPE_REMOTE.equals(scope)) {
// it's declared as remote reference
return false;
// 是泛化服务, 则也是远程调用
} else if (url.getParameter(GENERIC_KEY, false)) {
// generic invocation is not local reference
return false;
// 从缓存中拿, 如果有。则说明是本地调用。因为Map是本地缓存
} else if (getExporter(exporterMap, url) != null) {
// by default, go through local reference if there's the service exposed locally
return true;
} else {
return false;
}
}
RegistryProtocol.java
public <T> Invoker<T> refer(Class<T> type, URL url) throws RpcException {
url = URLBuilder.from(url)
.setProtocol(url.getParameter(REGISTRY_KEY, DEFAULT_REGISTRY))
.removeParameter(REGISTRY_KEY)
.build();
// 获取注册对象
Registry registry = registryFactory.getRegistry(url);
// 当前是否是注册中心类型
if (RegistryService.class.equals(type)) {
return proxyFactory.getInvoker((T) registry, type, url);
}
// group="a,b" or group="*"
Map<String, String> qs = StringUtils.parseQueryString(url.getParameterAndDecoded(REFER_KEY));
String group = qs.get(GROUP_KEY);
if (group != null && group.length() > 0) {
if ((COMMA_SPLIT_PATTERN.split(group)).length > 1 || "*".equals(group)) {
return doRefer(getMergeableCluster(), registry, type, url);
}
}
return doRefer(cluster, registry, type, url);
}
private <T> Invoker<T> doRefer(Cluster cluster, Registry registry, Class<T> type, URL url) {
// 创建一个动态Directory
RegistryDirectory<T> directory = new RegistryDirectory<T>(type, url);
directory.setRegistry(registry);
directory.setProtocol(protocol);
// all attributes of REFER_KEY
Map<String, String> parameters = new HashMap<String, String>(directory.getUrl().getParameters());
URL subscribeUrl = new URL(CONSUMER_PROTOCOL, parameters.remove(REGISTER_IP_KEY), 0, type.getName(), parameters);
if (!ANY_VALUE.equals(url.getServiceInterface()) && url.getParameter(REGISTER_KEY, true)) {
directory.setRegisteredConsumerUrl(getRegisteredConsumerUrl(subscribeUrl, url));
// 将consumer注册到zk
registry.register(directory.getRegisteredConsumerUrl());
}
// 获取到RouterFactory的所有激活类创建的router实例，添加到directory中
directory.buildRouterChain(subscribeUrl);
// 服务订阅(为三个分类节点添加watcher监听，并获取当前zk中三个分类节点下的所有子节点url)
/**
* 订阅zk注册中心的节点变更。订阅的节点为:
* 1.providers
* 2.configurators
* 3.routers
**/
directory.subscribe(subscribeUrl.addParameter(CATEGORY_KEY,
PROVIDERS_CATEGORY + "," + CONFIGURATORS_CATEGORY + "," + ROUTERS_CATEGORY));
// 将动态列表directory中invoker列表抽象(创建)出一个具有容错与降级功能的invoker
Invoker invoker = cluster.join(directory);
ProviderConsumerRegTable.registerConsumer(invoker, url, subscribeUrl, directory);
return invoker;
}
RegistryDirectory.java
public void subscribe(URL url) {
setConsumerUrl(url);
CONSUMER_CONFIGURATION_LISTENER.addNotifyListener(this);
serviceConfigurationListener = new ReferenceConfigurationListener(this, url);
registry.subscribe(url, this); //
}
FailbackRegistry.java
public void subscribe(URL url, NotifyListener listener) {
super.subscribe(url, listener);
removeFailedSubscribed(url, listener);
try {
// Sending a subscription request to the server side
doSubscribe(url, listener); // 发送订阅请求到zk
} catch (Exception e) {
Throwable t = e;
List<URL> urls = getCacheUrls(url);
if (CollectionUtils.isNotEmpty(urls)) {
notify(url, listener, urls);
logger.error("Failed to subscribe " + url + ", Using cached list: " + urls + " from cache file: " + getUrl().getParameter(FILE_KEY, System.getProperty("user.home") + "/dubbo-registry-" + url.getHost() + ".cache") + ", cause: " + t.getMessage(), t);
} else {
// If the startup detection is opened, the Exception is thrown directly.
boolean check = getUrl().getParameter(Constants.CHECK_KEY, true)
&& url.getParameter(Constants.CHECK_KEY, true);
boolean skipFailback = t instanceof SkipFailbackWrapperException;
if (check || skipFailback) {
if (skipFailback) {
t = t.getCause();
}
throw new IllegalStateException("Failed to subscribe " + url + ", cause: " + t.getMessage(), t);
} else {
logger.error("Failed to subscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
}
}
// Record a failed registration request to a failed list, retry regularly
addFailedSubscribed(url, listener);
}
}
ZookeeperRegistry.java
public void doSubscribe(final URL url, final NotifyListener listener) {
try {
if (ANY_VALUE.equals(url.getServiceInterface())) { // 处理interface属性值设置的为*的情况
String root = toRootPath();
ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
if (listeners == null) {
zkListeners.putIfAbsent(url, new ConcurrentHashMap<>());
listeners = zkListeners.get(url);
}
ChildListener zkListener = listeners.get(listener);
if (zkListener == null) {
listeners.putIfAbsent(listener, (parentPath, currentChilds) -> {
for (String child : currentChilds) {
child = URL.decode(child);
if (!anyServices.contains(child)) {
anyServices.add(child);
subscribe(url.setPath(child).addParameters(INTERFACE_KEY, child,
Constants.CHECK_KEY, String.valueOf(false)), listener);
}
}
});
zkListener = listeners.get(listener);
}
zkClient.create(root, false);
List<String> services = zkClient.addChildListener(root, zkListener);
if (CollectionUtils.isNotEmpty(services)) {
for (String service : services) {
service = URL.decode(service);
anyServices.add(service);
subscribe(url.setPath(service).addParameters(INTERFACE_KEY, service,
Constants.CHECK_KEY, String.valueOf(false)), listener);
}
}
} else { // 理interface属性值为普通接口的情况
// 该urls列表中将来会存放所有分类节点下的所有子节点
List<URL> urls = new ArrayList<>();
// 遍历所有分类节点
for (String path : toCategoriesPath(url)) {
ConcurrentMap<NotifyListener, ChildListener> listeners = zkListeners.get(url);
if (listeners == null) {
zkListeners.putIfAbsent(url, new ConcurrentHashMap<>());
listeners = zkListeners.get(url);
}
ChildListener zkListener = listeners.get(listener);
if (zkListener == null) {
listeners.putIfAbsent(listener, (parentPath, currentChilds) -> ZookeeperRegistry.this.notify(url, listener, toUrlsWithEmpty(url, parentPath, currentChilds)));
zkListener = listeners.get(listener);
}
// 创建当前分类节点(持久节点)
zkClient.create(path, false);
// 为当前分类节点添加“子节点列表变更的”watcher监听
// 返回值为当前分类节点的所有子节点列表
List<String> children = zkClient.addChildListener(path, zkListener);
if (children != null) {
urls.addAll(toUrlsWithEmpty(url, path, children));
}
}
// 主动调用各个分类节点的监听器，将zk中的数据更新到本地
notify(url, listener, urls);
}
} catch (Throwable e) {
throw new RpcException("Failed to subscribe " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);
}
}
FailbackRegistry.java
protected void notify(URL url, NotifyListener listener, List<URL> urls) {
if (url == null) {
throw new IllegalArgumentException("notify url == null");
}
if (listener == null) {
throw new IllegalArgumentException("notify listener == null");
}
try {
doNotify(url, listener, urls); //准备跟踪
} catch (Exception t) {
// Record a failed registration request to a failed list, retry regularly
addFailedNotified(url, listener, urls);
logger.error("Failed to notify for subscribe " + url + ", waiting for retry, cause: " + t.getMessage(), t);
}
}
protected void doNotify(URL url, NotifyListener listener, List<URL> urls) {
super.notify(url, listener, urls);
}
AbstractRegistry.java
protected void notify(URL url, NotifyListener listener, List<URL> urls) {
if (url == null) {
throw new IllegalArgumentException("notify url == null");
}
if (listener == null) {
throw new IllegalArgumentException("notify listener == null");
}
if ((CollectionUtils.isEmpty(urls))
&& !ANY_VALUE.equals(url.getServiceInterface())) {
logger.warn("Ignore empty notify urls for subscribe url " + url);
return;
}
if (logger.isInfoEnabled()) {
logger.info("Notify urls for subscribe url " + url + ", urls: " + urls);
}
// keep every provider's category.
Map<String, List<URL>> result = new HashMap<>();
for (URL u : urls) {
if (UrlUtils.isMatch(url, u)) {
String category = u.getParameter(CATEGORY_KEY, DEFAULT_CATEGORY);
List<URL> categoryList = result.computeIfAbsent(category, k -> new ArrayList<>());
categoryList.add(u);
}
}
if (result.size() == 0) {
return;
}
Map<String, List<URL>> categoryNotified = notified.computeIfAbsent(url, u -> new ConcurrentHashMap<>());
for (Map.Entry<String, List<URL>> entry : result.entrySet()) {
String category = entry.getKey();
List<URL> categoryList = entry.getValue();
categoryNotified.put(category, categoryList);
listener.notify(categoryList); // 调用分类节点的监听
// We will update our cache file after each notification.
// When our Registry has a subscribe failure due to network jitter, we can return at least the existing cache URL.
saveProperties(url);
}
}
RegistryDirectory.java
public synchronized void notify(List<URL> urls) {
Map<String, List<URL>> categoryUrls = urls.stream()
.filter(Objects::nonNull)
.filter(this::isValidCategory)
.filter(this::isNotCompatibleFor26x)
.collect(Collectors.groupingBy(url -> {
if (UrlUtils.isConfigurator(url)) {
return CONFIGURATORS_CATEGORY;
} else if (UrlUtils.isRoute(url)) {
return ROUTERS_CATEGORY;
} else if (UrlUtils.isProvider(url)) {
return PROVIDERS_CATEGORY;
}
return "";
}));
// 处理configurators分类节点情况
List<URL> configuratorURLs = categoryUrls.getOrDefault(CONFIGURATORS_CATEGORY, Collections.emptyList());
this.configurators = Configurator.toConfigurators(configuratorURLs).orElse(this.configurators);
// 处理routers分类节点情况
List<URL> routerURLs = categoryUrls.getOrDefault(ROUTERS_CATEGORY, Collections.emptyList());
toRouters(routerURLs) // 返回Optional
// 若Optional中封装的对象不空，则调用Lambda的实例方法引用addRouters()，即将这个路由添加到directory
.ifPresent(this::addRouters);
// providers
// 处理providers分类节点情况
List<URL> providerURLs = categoryUrls.getOrDefault(PROVIDERS_CATEGORY, Collections.emptyList());
// 从zk中获取最新的提供者更新到directory
refreshOverrideAndInvoker(providerURLs);
}
private Optional<List<Router>> toRouters(List<URL> urls) {
if (urls == null || urls.isEmpty()) {
return Optional.empty();
}
List<Router> routers = new ArrayList<>();
for (URL url : urls) {
// 若当前url以empty作为protocol，则说明其不是一个有效url
if (EMPTY_PROTOCOL.equals(url.getProtocol())) {
continue;
}
// 获取到url中的router属性值，当前值为condition，表示这是一个条件路由
String routerType = url.getParameter(ROUTER_KEY);
if (routerType != null && routerType.length() > 0) {
// 将路由类型作为url的protocol，即当前的url变为了condition://...
url = url.setProtocol(routerType);
}
try {
// 创建路由
Router router = ROUTER_FACTORY.getRouter(url);
// 将该路由实例记录下来
if (!routers.contains(router)) {
routers.add(router);
}
} catch (Throwable t) {
logger.error("convert router url to router error, url: " + url, t);
}
}
return Optional.of(routers);
}
private void refreshOverrideAndInvoker(List<URL> urls) {
// mock zookeeper://xxx?mock=return null
overrideDirectoryUrl();
refreshInvoker(urls); //
}
private void refreshInvoker(List<URL> invokerUrls) {
Assert.notNull(invokerUrls, "invokerUrls should not be null");
if (invokerUrls.size() == 1
&& invokerUrls.get(0) != null
&& EMPTY_PROTOCOL.equals(invokerUrls.get(0).getProtocol())) {
this.forbidden = true; // Forbid to access 禁止远程调用
this.invokers = Collections.emptyList();
routerChain.setInvokers(this.invokers);
destroyAllInvokers(); // Close all invokers 销毁缓存中的所有invoker
} else { // 处理远程调用的情况
this.forbidden = false; // Allow to access
Map<String, Invoker<T>> oldUrlInvokerMap = this.urlInvokerMap; // local reference
if (invokerUrls == Collections.<URL>emptyList()) {
invokerUrls = new ArrayList<>();
}
if (invokerUrls.isEmpty() && this.cachedInvokerUrls != null) {
invokerUrls.addAll(this.cachedInvokerUrls);
} else {
this.cachedInvokerUrls = new HashSet<>();
this.cachedInvokerUrls.addAll(invokerUrls);//Cached invoker urls, convenient for comparison
}
if (invokerUrls.isEmpty()) {
return;
}
// 获取到最新的invoker，key为zk中的节点名称，即url，value为该url对应的invoker
Map<String, Invoker<T>> newUrlInvokerMap = toInvokers(invokerUrls);// Translate url list to Invoker map
/**
* If the calculation is wrong, it is not processed.
*
* 1. The protocol configured by the client is inconsistent with the protocol of the server.
* eg: consumer protocol = dubbo, provider only has other protocol services(rest).
* 2. The registration center is not robust and pushes illegal specification data.
*
*/
if (CollectionUtils.isEmptyMap(newUrlInvokerMap)) {
logger.error(new IllegalStateException("urls to invokers error .invokerUrls.size :" + invokerUrls.size() + ", invoker.size :0. urls :" + invokerUrls
.toString()));
return;
}
// 从map中获取所有最新的invoker
List<Invoker<T>> newInvokers = Collections.unmodifiableList(new ArrayList<>(newUrlInvokerMap.values()));
// pre-route and build cache, notice that route cache should build on original Invoker list.
// toMergeMethodInvokerMap() will wrap some invokers having different groups, those wrapped invokers not should be routed.
// 将所有当前可用的invoker写入到routerChain，即写入到了directory中
// 后面进行服务路由时,就是在这一堆invoker中进行路由
routerChain.setInvokers(newInvokers);
this.invokers = multiGroup ? toMergeInvokerList(newInvokers) : newInvokers;
this.urlInvokerMap = newUrlInvokerMap;
try {
// 销毁所有不可用的invoker
destroyUnusedInvokers(oldUrlInvokerMap, newUrlInvokerMap); // Close the unused Invoker
} catch (Exception e) {
logger.warn("destroyUnusedInvokers error. ", e);
}
}
}
private void destroyAllInvokers() {
// 获取缓存中的invoker
Map<String, Invoker<T>> localUrlInvokerMap = this.urlInvokerMap; // local reference
if (localUrlInvokerMap != null) {
// 遍历缓存中的所有invoker
for (Invoker<T> invoker : new ArrayList<>(localUrlInvokerMap.values())) {
try {
// 销毁当前遍历invoker
invoker.destroy();
} catch (Throwable t) {
logger.warn("Failed to destroy service " + serviceKey + " to provider " + invoker.getUrl(), t);
}
}
localUrlInvokerMap.clear();
}
invokers = null;
}
private void destroyUnusedInvokers(Map<String, Invoker<T>> oldUrlInvokerMap, Map<String, Invoker<T>> newUrlInvokerMap) {
// 若存放最新的invoker的map为空，则意味着没有可用的invoker，
// 则将缓存中的所有invoker全部销毁
if (newUrlInvokerMap == null || newUrlInvokerMap.size() == 0) {
// 销毁缓存中的所有invoker
destroyAllInvokers();
return;
}
// check deleted invoker
List<String> deleted = null;
if (oldUrlInvokerMap != null) {
Collection<Invoker<T>> newInvokers = newUrlInvokerMap.values();
// 遍历缓存中的所有invoker
for (Map.Entry<String, Invoker<T>> entry : oldUrlInvokerMap.entrySet()) {
// 若最新的invoker中不包含当前遍历的invoker，
// 则说明这个遍历的invoker主机已经挂了，可以销毁了（将其放入到一个销毁列表中）
if (!newInvokers.contains(entry.getValue())) {
if (deleted == null) {
deleted = new ArrayList<>();
}
deleted.add(entry.getKey());
}
}
}
// 如果存在挂了的主机将逐个进行销毁
if (deleted != null) {
// 销毁deleted列表中的所有invoker
for (String url : deleted) {
if (url != null) {
Invoker<T> invoker = oldUrlInvokerMap.remove(url);
if (invoker != null) {
try {
invoker.destroy();
if (logger.isDebugEnabled()) {
logger.debug("destroy invoker[" + invoker.getUrl() + "] success. ");
}
} catch (Exception e) {
logger.warn("destroy invoker[" + invoker.getUrl() + "] failed. " + e.getMessage(), e);
}
}
}
}
}
}
