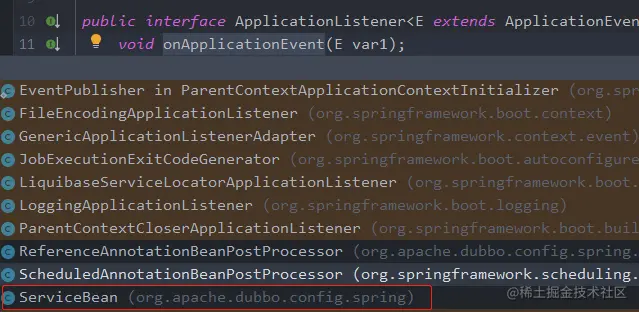

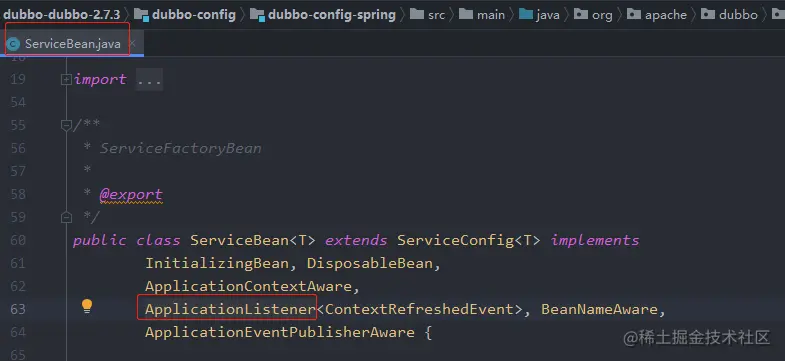

// 当Spring容器被刷新时会触发该方法的执行
@Override
public void onApplicationEvent(ContextRefreshedEvent event) {
// 若当前服务尚未暴露，且也没有被取消暴露，则进行服务暴露
if (!isExported() && !isUnexported()) {
if (logger.isInfoEnabled()) {
logger.info("The service ready on spring started. service: " + getInterface());
}
// 服务暴露
export();
}
}
public void export() {
// 服务暴露
super.export();
// Publish ServiceBeanExportedEvent
publishExportEvent();
}
ServiceConfig.java
public synchronized void export() {
// 检测所有的注册中心可用性，并进一步完善<dubbo:service/>的配置
checkAndUpdateSubConfigs();
// 若设置的export为false，则不进行服务暴露，直接结束
if (!shouldExport()) {
return;
}
// 若设置了delay属性，则进行延迟暴露
if (shouldDelay()) {
//使用线程池(底层由延迟阻塞队列实现)。定时延迟暴露服务
DELAY_EXPORT_EXECUTOR.schedule(this::doExport, getDelay(), TimeUnit.MILLISECONDS);
} else {
doExport();
}
}
//执行服务暴露业务
protected synchronized void doExport() {
//如果当前监测到被取消暴露,直接抛错
if (unexported) {
throw new IllegalStateException("The service " + interfaceClass.getName() + " has already unexported!");
}
//如果服务已经暴露过
if (exported) {
return;
}
// 修改服务暴露状态变量
exported = true;
// URL的构成为： protocol://host:port/path?元数据
// 若<dubbo:service/>中没有指定path属性，则取interface属性的值
if (StringUtils.isEmpty(path)) {
path = interfaceName;
}
// 将注册中心与服务暴露协议相结合进行服务暴露
doExportUrls();
}
private void doExportUrls() {
// 把所有的注册中心都处理成标准的URL化
List<URL> registryURLs = loadRegistries(true);
// 遍历当前服务所支持的所有服务暴露协议
for (ProtocolConfig protocolConfig : protocols) {
String pathKey = URL.buildKey(getContextPath(protocolConfig).map(p -> p + "/" + path).orElse(path), group, version);
ProviderModel providerModel = new ProviderModel(pathKey, ref, interfaceClass);
ApplicationModel.initProviderModel(pathKey, providerModel);
// 使用当前遍历的服务暴露协议，将服务暴露到所有注册中心
doExportUrlsFor1Protocol(protocolConfig, registryURLs);
}
}
AbstractInterfaceConfig.java
// 暴露注册中心
// 把所有的注册中心都处理成标准的URL化返回一个列表
// 因为可能存在多个<ddubbo:registry >
protected List<URL> loadRegistries(boolean provider) {
// check && override if necessary
List<URL> registryList = new ArrayList<URL>();
// 若配置文件中配置了<dubbo:registry/>标签，则获取所有注册中心的url
// 由于dubbo支持多注册中心，所以可能会存在多个<dubbo:registry/>标签
if (CollectionUtils.isNotEmpty(registries)) {
// 遍历所有<dubbo:registry/>标签
for (RegistryConfig config : registries) {
// 获取<dubbo:registry/>的address属性
String address = config.getAddress();
// 若没有指定address，则返回一个可以匹配所有ip的地址
if (StringUtils.isEmpty(address)) {
//如果是空采用默认地址
address = ANYHOST_VALUE;
}
// 若address不等于N/A，即不是直接方式
if (!RegistryConfig.NO_AVAILABLE.equalsIgnoreCase(address)) {
// 定义一个map，其中用于存放来自于各种标签的属性及其它属性值，
// 这些值将来要作为URL中的元数据出现
Map<String, String> map = new HashMap<String, String>();
// 将<dubbo:application/>标签中的属性写入到map
appendParameters(map, application);
// 将<dubbo:registry/>标签中的属性写入到map
appendParameters(map, config);
map.put(PATH_KEY, RegistryService.class.getName());
// 将运行时的一些参数值写入到map
// 其写入的内容如下
// 1:Dubbo的版本号
// 2:Dubbo的协议号
// 3:当前运行的时间戳,当前进程IP
appendRuntimeParameters(map);
if (!map.containsKey(PROTOCOL_KEY)) {
map.put(PROTOCOL_KEY, DUBBO_PROTOCOL);
}
// 获取当前的address属性解析出的所有注册中心URL
List<URL> urls = UrlUtils.parseURLs(address, map);
for (URL url : urls) {
// URL的标准化：将所有注册中心地址变为了如下形式
// registry://host:port/。。。.RegistryService?。。。®istry=zookeeper&。。。
url = URLBuilder.from(url)
.addParameter(REGISTRY_KEY, url.getProtocol())
.setProtocol(REGISTRY_PROTOCOL)
.build();
if ((provider && url.getParameter(REGISTER_KEY, true))
|| (!provider && url.getParameter(SUBSCRIBE_KEY, true))) {
registryList.add(url);
}
}
}
}
}
return registryList;
}
ServiceConfig.java
//暴露服务
private void doExportUrlsFor1Protocol(ProtocolConfig protocolConfig,
List<URL> registryURLs) {
// 获取服务暴露协议
String name = protocolConfig.getName();
if (StringUtils.isEmpty(name)) {
//如果没有指定协议,默认使用dubbo协议
name = DUBBO;
}
// 创建一个map(和刚才暴露注册中心一样的道理)，用于存放各种属性，将来要作为URL中的元数据
Map<String, String> map = new HashMap<String, String>();
map.put(SIDE_KEY, PROVIDER_SIDE);
appendRuntimeParameters(map);
appendParameters(map, metrics);
appendParameters(map, application);
appendParameters(map, module);
// remove 'default.' prefix for configs from ProviderConfig
// appendParameters(map, provider, Constants.DEFAULT_KEY);
appendParameters(map, provider);
appendParameters(map, protocolConfig);
appendParameters(map, this);
if (CollectionUtils.isNotEmpty(methods)) {
//如果<dubbo:reference >里面有<dubbo:method >标签,则解析
for (MethodConfig method : methods) {
appendParameters(map, method, method.getName());
String retryKey = method.getName() + ".retry";
if (map.containsKey(retryKey)) {
String retryValue = map.remove(retryKey);
if ("false".equals(retryValue)) {
map.put(method.getName() + ".retries", "0");
}
}
List<ArgumentConfig> arguments = method.getArguments();
if (CollectionUtils.isNotEmpty(arguments)) {
for (ArgumentConfig argument : arguments) {
// convert argument type
if (argument.getType() != null && argument.getType().length() > 0) {
Method[] methods = interfaceClass.getMethods();
// visit all methods
if (methods != null && methods.length > 0) {
for (int i = 0; i < methods.length; i++) {
String methodName = methods[i].getName();
// target the method, and get its signature
if (methodName.equals(method.getName())) {
Class<?>[] argtypes = methods[i].getParameterTypes();
// one callback in the method
if (argument.getIndex() != -1) {
if (argtypes[argument.getIndex()].getName().equals(argument.getType())) {
appendParameters(map, argument, method.getName() + "." + argument.getIndex());
} else {
throw new IllegalArgumentException("Argument config error : the index attribute and type attribute not match :index :" + argument.getIndex() + ", type:" + argument.getType());
}
} else {
// multiple callbacks in the method
for (int j = 0; j < argtypes.length; j++) {
Class<?> argclazz = argtypes[j];
if (argclazz.getName().equals(argument.getType())) {
appendParameters(map, argument, method.getName() + "." + j);
if (argument.getIndex() != -1 && argument.getIndex() != j) {
throw new IllegalArgumentException("Argument config error : the index attribute and type attribute not match :index :" + argument.getIndex() + ", type:" + argument.getType());
}
}
}
}
}
}
}
} else if (argument.getIndex() != -1) {
appendParameters(map, argument, method.getName() + "." + argument.getIndex());
} else {
throw new IllegalArgumentException("Argument config must set index or type attribute.eg: <dubbo:argument index='0' .../> or <dubbo:argument type=xxx .../>");
}
}
}
} // end of methods for
}
//是否开启服务泛化
if (ProtocolUtils.isGeneric(generic)) {
map.put(GENERIC_KEY, generic);
map.put(METHODS_KEY, ANY_VALUE);
} else {
String revision = Version.getVersion(interfaceClass, version);
if (revision != null && revision.length() > 0) {
map.put(REVISION_KEY, revision);
}
String[] methods = Wrapper.getWrapper(interfaceClass).getMethodNames();
if (methods.length == 0) {
logger.warn("No method found in service interface " + interfaceClass.getName());
map.put(METHODS_KEY, ANY_VALUE);
} else {
map.put(METHODS_KEY, StringUtils.join(new HashSet<String>(Arrays.asList(methods)), ","));
}
}
if (!ConfigUtils.isEmpty(token)) {
if (ConfigUtils.isDefault(token)) {
map.put(TOKEN_KEY, UUID.randomUUID().toString());
} else {
map.put(TOKEN_KEY, token);
}
}
// export service
// 获取到host与port
String host = this.findConfigedHosts(protocolConfig, registryURLs, map);
Integer port = this.findConfigedPorts(protocolConfig, name, map);
// 形成服务暴露URL protocol://host:port/path?map中的key-value形成的元数据
URL url = new URL(name, host, port, getContextPath(protocolConfig).map(p -> p + "/" + path).orElse(path), map);
// 我们可以通过自定义某一SPI接口实现类的方式来扩展Dubbo的功能，同时，也可以
// 对现有扩展类进行再配置：只需要定义ConfiguratorFactory SPI接口的实现类，去实现再配置即可
if (ExtensionLoader.getExtensionLoader(ConfiguratorFactory.class)
.hasExtension(url.getProtocol())) { // 判断是否具有dubbo协议的再扩展类
url = ExtensionLoader.getExtensionLoader(ConfiguratorFactory.class)
.getExtension(url.getProtocol()).getConfigurator(url).configure(url);
}
// 获取<dubbo:service/>中的scope属性
String scope = url.getParameter(SCOPE_KEY);
// don't export when none is configured
// 若scope的值不为none，则进行服务暴露
if (!SCOPE_NONE.equalsIgnoreCase(scope)) {
// export to local if the config is not remote (export to remote only when config is remote)
// 若scope的值不为remote，则进行本地暴露
if (!SCOPE_REMOTE.equalsIgnoreCase(scope)) {
exportLocal(url); // 本地暴露
}
// export to remote if the config is not local (export to local only when config is local)
// 若scope的值不为local，则进行远程暴露
if (!SCOPE_LOCAL.equalsIgnoreCase(scope)) {
if (!isOnlyInJvm() && logger.isInfoEnabled()) {
logger.info("Export dubbo service " + interfaceClass.getName() + " to url " + url);
}
if (CollectionUtils.isNotEmpty(registryURLs)) {
// 遍历所有注册中心
for (URL registryURL : registryURLs) {
//if protocol is only injvm ,not register
if (LOCAL_PROTOCOL.equalsIgnoreCase(url.getProtocol())) {
continue;
}
url = url.addParameterIfAbsent(DYNAMIC_KEY, registryURL.getParameter(DYNAMIC_KEY));
URL monitorUrl = loadMonitor(registryURL);
if (monitorUrl != null) {
url = url.addParameterAndEncoded(MONITOR_KEY, monitorUrl.toFullString());
}
if (logger.isInfoEnabled()) {
logger.info("Register dubbo service " + interfaceClass.getName() + " url " + url + " to registry " + registryURL);
}
// For providers, this is used to enable custom proxy to generate invoker
String proxy = url.getParameter(PROXY_KEY);
if (StringUtils.isNotEmpty(proxy)) {
registryURL = registryURL.addParameter(PROXY_KEY, proxy);
}

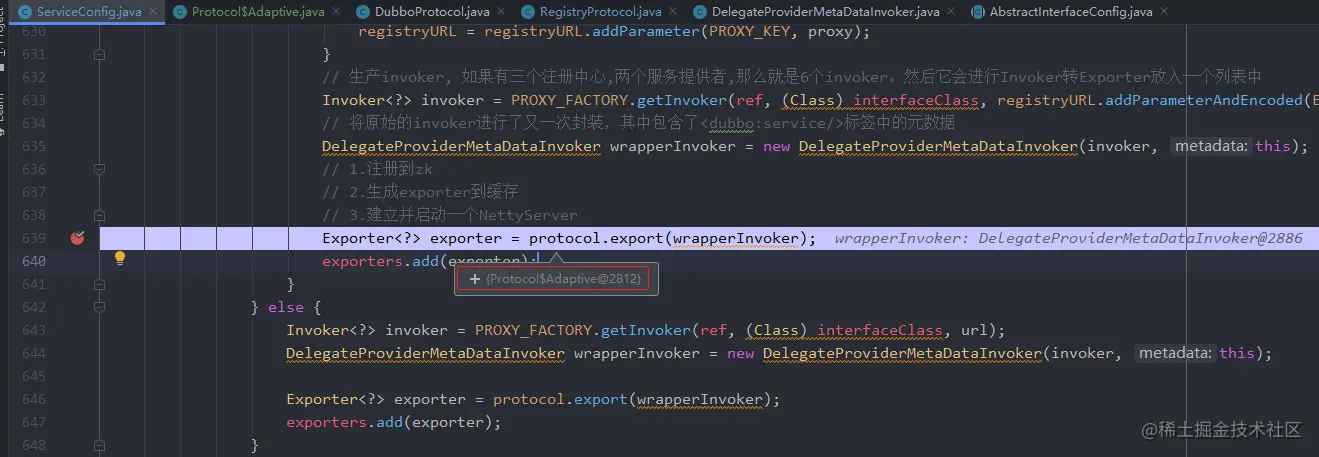

// 生成invoker，这里使用的url中包含了注册中心的数据与提供者的数据
Invoker<?> invoker = PROXY_FACTORY.getInvoker(ref, (Class) interfaceClass, registryURL.addParameterAndEncoded(EXPORT_KEY, url.toFullString()));
// 将原始的invoker进行了又一次封装，其中包含了<dubbo:service/>标签中的元数据
DelegateProviderMetaDataInvoker wrapperInvoker = new DelegateProviderMetaDataInvoker(invoker, this);
// 远程暴露（完成三项任务：注册到zk，生成exporter并写入到一个缓存map，创建并启动一个netty server)
Exporter<?> exporter = protocol.export(wrapperInvoker);
exporters.add(exporter);
}
} else { // 处理没有注册中心的情况，即直连的情况
Invoker<?> invoker = PROXY_FACTORY.getInvoker(ref, (Class) interfaceClass, url);
DelegateProviderMetaDataInvoker wrapperInvoker = new DelegateProviderMetaDataInvoker(invoker, this);
// 远程暴露（完成两项任务：生成exporter并写入到一个缓存map，创建并启动一个netty server)
Exporter<?> exporter = protocol.export(wrapperInvoker);
exporters.add(exporter);
}
/**
* @since 2.7.0
* ServiceData Store
*/
MetadataReportService metadataReportService = null;
if ((metadataReportService = getMetadataReportService()) != null) {
metadataReportService.publishProvider(url);
}
}
}
this.urls.add(url);
}

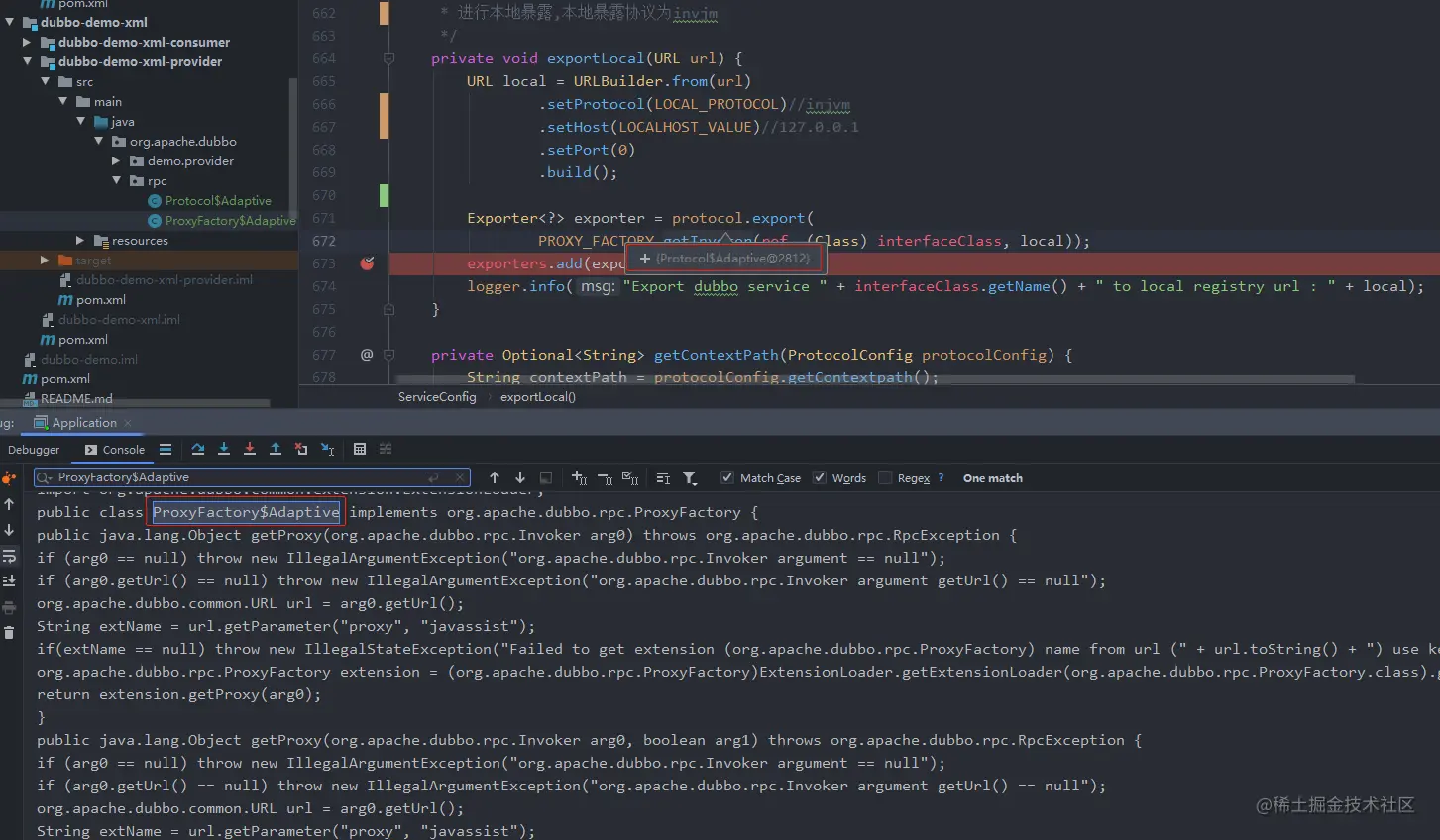

先着重跟踪一下ServerConfig.java中的**exportLocal()**方法。这个方法是进行本地服务暴露。
此时，会生成一个代理对象。我们先生成的代码复制出来。放在demo项目package org.apache.dubbo.rpc; 路径下
生成的代码
package org.apache.dubbo.rpc;
import org.apache.dubbo.common.extension.ExtensionLoader;
public class ProxyFactory$Adaptive implements org.apache.dubbo.rpc.ProxyFactory {
public org.apache.dubbo.rpc.Invoker getInvoker(java.lang.Object arg0, java.lang.Class arg1, org.apache.dubbo.common.URL arg2) throws org.apache.dubbo.rpc.RpcException {
if (arg2 == null) throw new IllegalArgumentException("url == null");
org.apache.dubbo.common.URL url = arg2;
// 可以看到这里使用javassist来进行动态代理
String extName = url.getParameter("proxy", "javassist");
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.ProxyFactory) name from url (" + url.toString() + ") use keys([proxy])");
org.apache.dubbo.rpc.ProxyFactory extension = (org.apache.dubbo.rpc.ProxyFactory) ExtensionLoader.getExtensionLoader(org.apache.dubbo.rpc.ProxyFactory.class).getExtension(extName);
// 使用javassit创建的代理对象
// StubProxyFactoryWrapper.java -> getInvoker
return extension.getInvoker(arg0, arg1, arg2);
}
public java.lang.Object getProxy(org.apache.dubbo.rpc.Invoker arg0, boolean arg1) throws org.apache.dubbo.rpc.RpcException {
if (arg0 == null) throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument == null");
if (arg0.getUrl() == null)
throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument getUrl() == null");
org.apache.dubbo.common.URL url = arg0.getUrl();
String extName = url.getParameter("proxy", "javassist");
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.ProxyFactory) name from url (" + url.toString() + ") use keys([proxy])");
org.apache.dubbo.rpc.ProxyFactory extension = (org.apache.dubbo.rpc.ProxyFactory) ExtensionLoader.getExtensionLoader(org.apache.dubbo.rpc.ProxyFactory.class).getExtension(extName);
return extension.getProxy(arg0, arg1);
}
public java.lang.Object getProxy(org.apache.dubbo.rpc.Invoker arg0) throws org.apache.dubbo.rpc.RpcException {
if (arg0 == null) throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument == null");
if (arg0.getUrl() == null)
throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument getUrl() == null");
org.apache.dubbo.common.URL url = arg0.getUrl();
String extName = url.getParameter("proxy", "javassist");
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.ProxyFactory) name from url (" + url.toString() + ") use keys([proxy])");
org.apache.dubbo.rpc.ProxyFactory extension = (org.apache.dubbo.rpc.ProxyFactory) ExtensionLoader.getExtensionLoader(org.apache.dubbo.rpc.ProxyFactory.class).getExtension(extName);
return extension.getProxy(arg0);
}
}
接下来对获取到的Invoker使用Wrapper进行增强。也是以自适应生成代码的方式
package org.apache.dubbo.rpc;
import org.apache.dubbo.common.extension.ExtensionLoader;
public class Protocol$Adaptive implements org.apache.dubbo.rpc.Protocol {
public void destroy() {
throw new UnsupportedOperationException("The method public abstract void org.apache.dubbo.rpc.Protocol.destroy() of interface org.apache.dubbo.rpc.Protocol is not adaptive method!");
}
public int getDefaultPort() {
throw new UnsupportedOperationException("The method public abstract int org.apache.dubbo.rpc.Protocol.getDefaultPort() of interface org.apache.dubbo.rpc.Protocol is not adaptive method!");
}
public org.apache.dubbo.rpc.Invoker refer(Class arg0, org.apache.dubbo.common.URL arg1) throws org.apache.dubbo.rpc.RpcException {
if (arg1 == null) throw new IllegalArgumentException("url == null");
org.apache.dubbo.common.URL url = arg1;
String extName = (url.getProtocol() == null ? "dubbo" : url.getProtocol());
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.Protocol) name from url (" + url.toString() + ") use keys([protocol])");
org.apache.dubbo.rpc.Protocol extension = (org.apache.dubbo.rpc.Protocol) ExtensionLoader.getExtensionLoader(org.apache.dubbo.rpc.Protocol.class).getExtension(extName);
return extension.refer(arg0, arg1);
}
public org.apache.dubbo.rpc.Exporter export(org.apache.dubbo.rpc.Invoker arg0) throws org.apache.dubbo.rpc.RpcException {
if (arg0 == null) throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument == null");
if (arg0.getUrl() == null)
throw new IllegalArgumentException("org.apache.dubbo.rpc.Invoker argument getUrl() == null");
org.apache.dubbo.common.URL url = arg0.getUrl();
// 当前需要包装增强的是injvm协议
String extName = (url.getProtocol() == null ? "dubbo" : url.getProtocol());
if (extName == null)
throw new IllegalStateException("Failed to get extension (org.apache.dubbo.rpc.Protocol) name from url (" + url.toString() + ") use keys([protocol])");
// 指定加载injvm扩展类
org.apache.dubbo.rpc.Protocol extension = (org.apache.dubbo.rpc.Protocol) ExtensionLoader
.getExtensionLoader(org.apache.dubbo.rpc.Protocol.class)
.getExtension(extName);
// ProtocolListenerWrapper.java - > export
return extension.export(arg0);
}
}
ProtocolListenerWrapper.java
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
// REGISTRY_PROTOCOL=registry。 如果当前是注册协议
if (REGISTRY_PROTOCOL.equals(invoker.getUrl().getProtocol())) {
return protocol.export(invoker);
}
// 进行包装 -> protocol.export(invoker)
return new ListenerExporterWrapper<T>(protocol.export(invoker),
Collections.unmodifiableList(ExtensionLoader.getExtensionLoader(ExporterListener.class)
.getActivateExtension(invoker.getUrl(), EXPORTER_LISTENER_KEY)));
}
InjvmProtocol.java
@Override
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
// 本地暴露返回Injvm的同异步转换对象Exporte
return new InjvmExporter<T>(invoker, invoker.getUrl().getServiceKey(), exporterMap);
}
InjvmExporter.java
class InjvmExporter<T> extends AbstractExporter<T> {
private final String key;
private final Map<String, Exporter<?>> exporterMap;
InjvmExporter(Invoker<T> invoker, String key, Map<String, Exporter<?>> exporterMap) {
super(invoker);
// key: org.apache.dubbo.demo.DemoService
this.key = key;
// 将协议为Injvm协议的Exporter同异步转换对象缓存到当前协议的Map中
// 注意, 并不是所有的协议的Exporter对象都在这个Map中, 每一种不同的暴露协议都会独自有这样一个缓存Map
this.exporterMap = exporterMap;
exporterMap.put(key, this);
}
@Override
public void unexport() {
super.unexport();
exporterMap.remove(key);
}
}
接下来我们再次回到ServerConfig.java 继续跟踪本地暴露后的源代码
这里是远程暴露，可以会去加载我们上面刚才生成的扩展类代码里面。

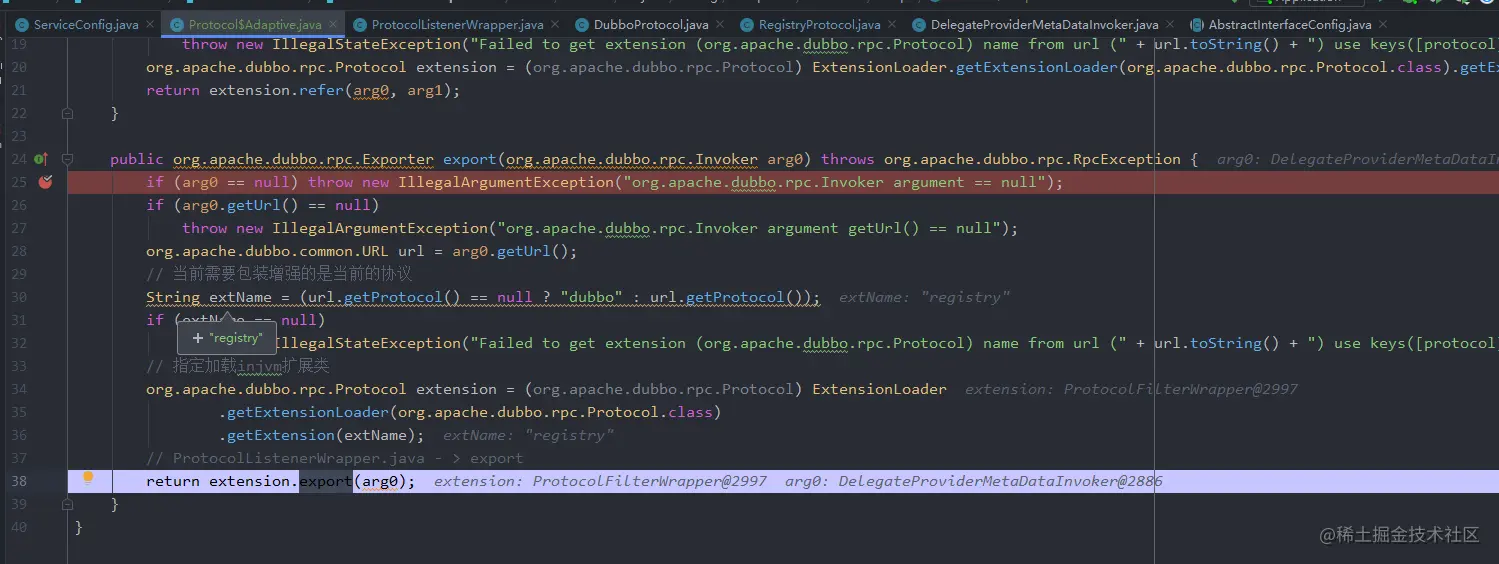

首先加载的是注册中心 registry 暴露协议，流程还是一样的。走ProtocolListenerWrapper.java - > export。 跟上面本地暴露是一样的流程。
ProtocolListenerWrapper.java
@Override
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
// REGISTRY_PROTOCOL=registry。 如果当前是注册协议
if (REGISTRY_PROTOCOL.equals(invoker.getUrl().getProtocol())) {
// 跟踪这里
return protocol.export(invoker);
}
// 进行包装 -> protocol.export(invoker)
return new ListenerExporterWrapper<T>(protocol.export(invoker),
Collections.unmodifiableList(ExtensionLoader.getExtensionLoader(ExporterListener.class)
.getActivateExtension(invoker.getUrl(), EXPORTER_LISTENER_KEY)));
}
RegistryProtocol.java
@Override
public <T> Exporter<T> export(final Invoker<T> originInvoker) throws RpcException {
// 注册中心URL暴露
URL registryUrl = getRegistryUrl(originInvoker);
// 服务提供者URL暴露
URL providerUrl = getProviderUrl(originInvoker);
// Subscribe the override data
// FIXME When the provider subscribes, it will affect the scene : a certain JVM exposes the service and call
// the same service. Because the subscribed is cached key with the name of the service, it causes the
// subscription information to cover.
final URL overrideSubscribeUrl = getSubscribedOverrideUrl(providerUrl);
// 给该Invoker注册监听器
final OverrideListener overrideSubscribeListener = new OverrideListener(overrideSubscribeUrl, originInvoker);
overrideListeners.put(overrideSubscribeUrl, overrideSubscribeListener);
providerUrl = overrideUrlWithConfig(providerUrl, overrideSubscribeListener);
//export invoker
final ExporterChangeableWrapper<T> exporter = doLocalExport(originInvoker, providerUrl);
// url to registry
// 获取注册中心实例
final Registry registry = getRegistry(originInvoker);
final URL registeredProviderUrl = getRegisteredProviderUrl(providerUrl, registryUrl);
ProviderInvokerWrapper<T> providerInvokerWrapper = ProviderConsumerRegTable.registerProvider(originInvoker,
registryUrl, registeredProviderUrl);
//to judge if we need to delay publish
boolean register = registeredProviderUrl.getParameter("register", true);
if (register) {
// 执行注册 ----》 跟踪这里
register(registryUrl, registeredProviderUrl);
providerInvokerWrapper.setReg(true);
}
// Deprecated! Subscribe to override rules in 2.6.x or before.
// 订阅
registry.subscribe(overrideSubscribeUrl, overrideSubscribeListener);
exporter.setRegisterUrl(registeredProviderUrl);
exporter.setSubscribeUrl(overrideSubscribeUrl);
//Ensure that a new exporter instance is returned every time export
return new DestroyableExporter<>(exporter);
}
AbstractRegistryFactory.java
@Override
public Registry getRegistry(URL url) {
url = URLBuilder.from(url)
.setPath(RegistryService.class.getName())
.addParameter(INTERFACE_KEY, RegistryService.class.getName())
.removeParameters(EXPORT_KEY, REFER_KEY)
.build();
String key = url.toServiceStringWithoutResolving();
// Lock the registry access process to ensure a single instance of the registry
LOCK.lock();
try {
// 从缓存里拿
// key: zookeeper://127.0.0.1:2181/org.apache.dubbo.registry.RegistryService
// 就是接口的全路径限定名
Registry registry = REGISTRIES.get(key);
if (registry != null) {
return registry;
}
//create registry by spi/ioc
// 我们这里是注册, 所以跟踪 -》 ZookeeperRegistryFactory的
registry = createRegistry(url);
if (registry == null) {
throw new IllegalStateException("Can not create registry " + url);
}
REGISTRIES.put(key, registry);
return registry;
} finally {
// Release the lock
LOCK.unlock();
}
}
ZookeeperRegistryFactory.java
public Registry createRegistry(URL url) {
// 注册中心的URL, 及ZK客户端
return new ZookeeperRegistry(url, zookeeperTransporter);
}
ZookeeperRegistry.java
public ZookeeperRegistry(URL url, ZookeeperTransporter zookeeperTransporter) {
super(url);
if (url.isAnyHost()) {
throw new IllegalStateException("registry address == null");
}
String group = url.getParameter(GROUP_KEY, DEFAULT_ROOT);
if (!group.startsWith(PATH_SEPARATOR)) {
group = PATH_SEPARATOR + group;
}
this.root = group;
// 与zk建立连接
zkClient = zookeeperTransporter.connect(url);
zkClient.addStateListener(state -> {
if (state == StateListener.RECONNECTED) {
try {
recover();
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
}
});
}
接下来我们在跟踪阅读以下
DubboProtocol.java
@Override
public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {
URL url = invoker.getUrl();
// export service.
String key = serviceKey(url);
// 创建Dubbo类型的服务暴露对象，并写入到缓存map
DubboExporter<T> exporter = new DubboExporter<T>(invoker, key, exporterMap);
exporterMap.put(key, exporter);
//export an stub service for dispatching event
Boolean isStubSupportEvent = url.getParameter(STUB_EVENT_KEY, DEFAULT_STUB_EVENT);
Boolean isCallbackservice = url.getParameter(IS_CALLBACK_SERVICE, false);
if (isStubSupportEvent && !isCallbackservice) {
String stubServiceMethods = url.getParameter(STUB_EVENT_METHODS_KEY);
if (stubServiceMethods == null || stubServiceMethods.length() == 0) {
if (logger.isWarnEnabled()) {
logger.warn(new IllegalStateException("consumer [" + url.getParameter(INTERFACE_KEY) +
"], has set stubproxy support event ,but no stub methods founded."));
}
} else {
stubServiceMethodsMap.put(url.getServiceKey(), stubServiceMethods);
}
}
openServer(url); // 创建并启动一个Netty Server
optimizeSerialization(url);
return exporter;
}
private void openServer(URL url) {
// find server.
// key的值为当前提供者的ip与当前服务暴露协议的port
String key = url.getAddress();
//client can export a service which's only for server to invoke
// 是否是一个服务提供者
boolean isServer = url.getParameter(IS_SERVER_KEY, true);
if (isServer) {
ExchangeServer server = serverMap.get(key);
if (server == null) {
synchronized (this) {
server = serverMap.get(key);
if (server == null) {
// 一个ExchangeServer只会负责一个NettyServer的同异步转换工作
// 既-》一个ExchangeServer只会对应一个NettyServer
// NettyServer的数量跟提供者的的协议类型有关系
// 既-》 提供者数量 * 协议数 = NettyServer数
serverMap.put(key, createServer(url));
}
}
} else {
// server supports reset, use together with override
// 重置URL
// 当同一个服务中有多个接口实现类时并协议相同时,因为前面已经缓存了NettyServer了。
// 会将后面这个URL 拼接到第一个URL中。更新第一个URL
// 这就叫重置URL
server.reset(url);
}
}
}
//创建服务端NettyServer绑定
private ExchangeServer createServer(URL url) {
url = URLBuilder.from(url)
// send readonly event when server closes, it's enabled by default
.addParameterIfAbsent(CHANNEL_READONLYEVENT_SENT_KEY, Boolean.TRUE.toString())
// enable heartbeat by default
.addParameterIfAbsent(HEARTBEAT_KEY, String.valueOf(DEFAULT_HEARTBEAT))
.addParameter(CODEC_KEY, DubboCodec.NAME)
.build();
String str = url.getParameter(SERVER_KEY, DEFAULT_REMOTING_SERVER);
if (str != null && str.length() > 0 && !ExtensionLoader.getExtensionLoader(Transporter.class).hasExtension(str)) {
throw new RpcException("Unsupported server type: " + str + ", url: " + url);
}
ExchangeServer server;
try {
//连接地址绑定

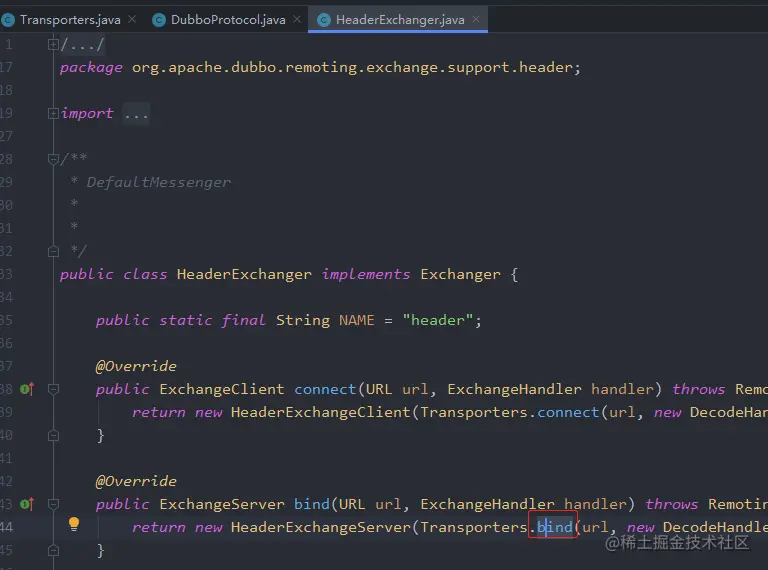

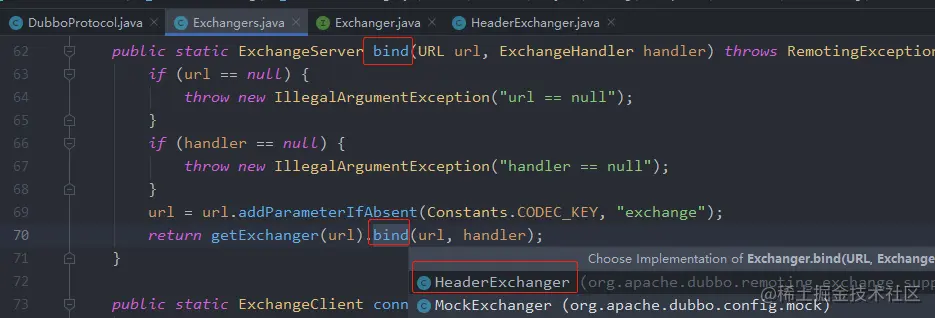

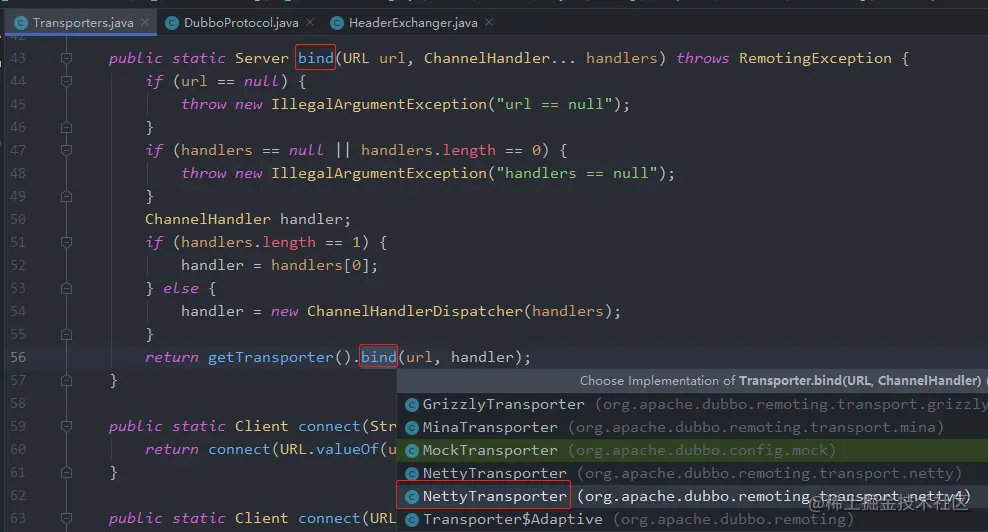

server = Exchangers.bind(url, requestHandler);
} catch (RemotingException e) {
throw new RpcException("Fail to start server(url: " + url + ") " + e.getMessage(), e);
}
str = url.getParameter(CLIENT_KEY);
if (str != null && str.length() > 0) {
Set<String> supportedTypes = ExtensionLoader.getExtensionLoader(Transporter.class).getSupportedExtensions();
if (!supportedTypes.contains(str)) {
throw new RpcException("Unsupported client type: " + str);
}
}
return server;
}
NettyServer.java
public NettyServer(URL url, ChannelHandler handler) throws RemotingException {
// you can customize name and type of client thread pool by THREAD_NAME_KEY and THREADPOOL_KEY in CommonConstants.
// the handler will be warped: MultiMessageHandler->HeartbeatHandler->handler
super(url, ChannelHandlers.wrap(handler, ExecutorUtil.setThreadName(url, SERVER_THREAD_POOL_NAME)));
}
AbstractServer.java
public AbstractServer(URL url, ChannelHandler handler) throws RemotingException {
super(url, handler);
localAddress = getUrl().toInetSocketAddress();
String bindIp = getUrl().getParameter(Constants.BIND_IP_KEY, getUrl().getHost());
int bindPort = getUrl().getParameter(Constants.BIND_PORT_KEY, getUrl().getPort());
if (url.getParameter(ANYHOST_KEY, false) || NetUtils.isInvalidLocalHost(bindIp)) {
bindIp = ANYHOST_VALUE;
}
bindAddress = new InetSocketAddress(bindIp, bindPort);
this.accepts = url.getParameter(ACCEPTS_KEY, DEFAULT_ACCEPTS);
this.idleTimeout = url.getParameter(IDLE_TIMEOUT_KEY, DEFAULT_IDLE_TIMEOUT);
try {
doOpen(); // 创建并启动Netty Server
if (logger.isInfoEnabled()) {
logger.info("Start " + getClass().getSimpleName() + " bind " + getBindAddress() + ", export " + getLocalAddress());
}
} catch (Throwable t) {
throw new RemotingException(url.toInetSocketAddress(), null, "Failed to bind " + getClass().getSimpleName()
+ " on " + getLocalAddress() + ", cause: " + t.getMessage(), t);
}
//fixme replace this with better method
DataStore dataStore = ExtensionLoader.getExtensionLoader(DataStore.class).getDefaultExtension();
executor = (ExecutorService) dataStore.get(Constants.EXECUTOR_SERVICE_COMPONENT_KEY, Integer.toString(url.getPort()));
}
NettyServer.java
protected void doOpen() throws Throwable {
bootstrap = new ServerBootstrap();
// 处理连接的Group
bossGroup = new NioEventLoopGroup(1, new DefaultThreadFactory("NettyServerBoss", true));
// 处理IO业务的Group
workerGroup = new NioEventLoopGroup(getUrl().getPositiveParameter(IO_THREADS_KEY, Constants.DEFAULT_IO_THREADS),
new DefaultThreadFactory("NettyServerWorker", true));
//提供者的URL
final NettyServerHandler nettyServerHandler = new NettyServerHandler(getUrl(), this);
channels = nettyServerHandler.getChannels();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.childOption(ChannelOption.TCP_NODELAY, Boolean.TRUE)
.childOption(ChannelOption.SO_REUSEADDR, Boolean.TRUE)
.childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT)
.childHandler(new ChannelInitializer<NioSocketChannel>() {
@Override
protected void initChannel(NioSocketChannel ch) throws Exception {
// FIXME: should we use getTimeout()?
int idleTimeout = UrlUtils.getIdleTimeout(getUrl());
NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec(), getUrl(), NettyServer.this);
ch.pipeline()//.addLast("logging",new LoggingHandler(LogLevel.INFO))//for debug
// 解码器
.addLast("decoder", adapter.getDecoder())
// 编码器
.addLast("encoder", adapter.getEncoder())
// 读写空闲监测
.addLast("server-idle-handler", new IdleStateHandler(0, 0, idleTimeout, MILLISECONDS))
// Dubbo的自定义处理器
.addLast("handler", nettyServerHandler);
}
});
// bind
ChannelFuture channelFuture = bootstrap.bind(getBindAddress());
channelFuture.syncUninterruptibly();
channel = channelFuture.channel();
}
