一般说,iOS界面的一些长列表，比如首页、活动页、长的会比较长，组与组之间可能会有顺序变动等，那么写起来总感觉没有那么优雅，那么如何才能做到优雅呢? 我在实践工作利用swift枚举的关联值和自定义组模型方法来实现了

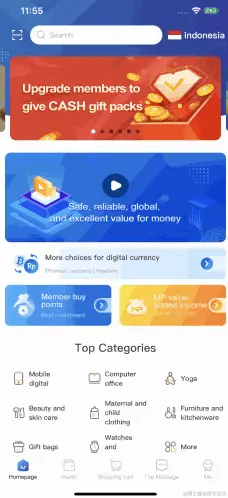

- 下面是gif图效果
可以看到,有些组是杂乱无章的排列着,而且运营那边要求,他们可以在后台自定义这些组的顺序 这可怎么办!🥺 下面看我的实现方式
定义一个组模型枚举
- 包含可能的定义,每个枚举关联当前组需要显示的数据模型,有可能是一个对象数组,也有可能是一个对象
/// 新版首页组cell的类型
enum OriginGroupCellType {
case marquee(list: [MarqueeModel]) // 跑马灯
case beltAndRoad(list: [GlobalAdModel]) // 一带一路广告位
case shoppingCarnival(list: [GlobalAdModel]) // 购物狂欢节
case walletCard(smallWelfare: WelfareSmallResutlModel) // 钱包卡片
case wallet(list: [HomeNavigationModel]) // 钱包cell
case otc(list: [GlobalAdModel]) // OTC
case hxPrefecture(list: [GlobalAdModel]) // HX商品专区
case middleNav(list: [HomeNavigationModel]) // 中部导航
case bottomNav(list: [HomeNavigationModel]) // 底部导航
case broadcast(topSale: HomeNavigationModel, hot: OriginBroadcastModel, choiceness: OriginBroadcastModel) // 直播cell
case middleAd(list: [GlobalAdModel]) // 中间广告cell
case localService(list: [LocalServiceModel]) // 本地服务cell
case bottomFloat(headerList: [OriginBottomFloatHeaderModel]) // 底部悬停cell
}
- 考虑到要下拉刷新等问题,可以这些枚举都得遵守
Equatable协议
extension OriginGroupCellType: Equatable {
public static func == (lhs: OriginGroupCellType, rhs: OriginGroupCellType) -> Bool {
switch (lhs, rhs) {
case (.marquee, .marquee): return true
case (.beltAndRoad, .beltAndRoad): return true
case (.shoppingCarnival, .shoppingCarnival): return true
case (.walletCard, .walletCard): return true
case (.wallet, .wallet): return true
case (.otc, .otc): return true
case (.hxPrefecture, .hxPrefecture): return true
case (.middleNav, .middleNav): return true
case (.bottomNav, .bottomNav): return true
case (.broadcast, .broadcast): return true
case (.middleAd, .middleAd): return true
case (.localService, .localService): return true
case (.bottomFloat, .bottomFloat): return true
default:
return false
}
}
}
接下来就是组模型的定义
- 同时我抽取一个协议
GroupProvider,方便复用
protocol GroupProvider {
/// 占位
associatedtype GroupModel where GroupModel: Equatable
/// 是否需要往组模型列表中添加当前组模型
func isNeedAppend(with current: GroupModel, listMs: [GroupModel]) -> Bool
/// 获取当前组模型在组模型列表的下标
func index(with current: GroupModel, listMs: [GroupModel]) -> Int
}
extension GroupProvider {
func isNeedAppend(with current: GroupModel, listMs: [GroupModel]) -> Bool {
return !listMs.contains(current)
}
func index(with current: GroupModel, listMs: [GroupModel]) -> Int {
return listMs.firstIndex(of: current) ?? 0
}
}
- OriginGroupModel,同样也遵守
Equatable协议,防止重复添加
func addTo(listMs: inout [OriginGroupModel])
- 这个方法是方便于下拉刷新时,替换最新数据所用
public struct OriginGroupModel: GroupProvider {
typealias GroupModel = OriginGroupModel
/// 组模型的类型
var cellType: OriginGroupCellType
/// 排序
var sortIndex: Int
/// 把groupModel添加或替换到listMs中
func addTo(listMs: inout [OriginGroupModel]) {
if isNeedAppend(with: self, listMs: listMs) {
listMs.append(self)
} else {
let index = self.index(with: self, listMs: listMs)
listMs[index] = self
}
}
}
extension OriginGroupModel: Equatable {
public static func == (lhs: OriginGroupModel, rhs: OriginGroupModel) -> Bool {
return lhs.cellType == rhs.cellType
}
}
- 考虑要自定义顺序,所以需要定义一个排序的实体
// MARK: - 新版首页组模型的排序规则模型
struct OriginGroupSortModel {
/// 搜索历史的排序
var marqueeIndex: Int
var beltAndRoadIndex: Int
var shoppingCarnivalIndex: Int
var walletCardIndex: Int
var walletIndex: Int
var otcIndex: Int
var hxPrefectureIndex: Int
var middleNavIndex: Int
var bottomNavIndex: Int
var broadcastIndex: Int
var middleAdIndex: Int
var localServiceIndex: Int
var bottomFloatIndex: Int
static var defaultSort: OriginGroupSortModel {
return OriginGroupSortModel(
marqueeIndex: 0,
beltAndRoadIndex: 1,
shoppingCarnivalIndex: 2,
walletCardIndex: 3,
walletIndex: 4,
otcIndex: 5,
hxPrefectureIndex: 6,
middleNavIndex: 7,
bottomNavIndex: 8,
broadcastIndex: 9,
middleAdIndex: 10,
localServiceIndex: 11,
bottomFloatIndex: 99)
}
}
控制器里定义一个 组模型数组
- 这里有关键代码是
listMs.sort(by: { return $0.sortIndex < $1.sortIndex })
- 所有的数据加载完毕后,会根据我们的自定义排序规则去排序
/// 组模型数据
public var listMs: [OriginGroupModel] = [] {
didSet {
listMs.sort(by: {
return $0.sortIndex < $1.sortIndex
})
collectionView.reloadData()
}
}
/// 组模型排序规则(可以由后台配置返回,在这里我们先给一个默认值)
/// 需要做一个请求依赖,先请求排序接口,再请求各组的数据
public lazy var sortModel: OriginGroupSortModel = OriginGroupSortModel.defaultSort
网络请求代码
func loadData(_ update: Bool = false, _ isUHead: Bool = false) {
// 定义队列组
let queue = DispatchQueue.init(label: "getOriginData")
let group = DispatchGroup()
// MARK: - 文字跑马灯
group.enter()
queue.async(group: group, execute: {
HomeNetworkService.shared.getMarqueeList { [weak self] (state, message, data) in
guard let `self` = self else { return }
self.collectionView.uHead.endRefreshing()
defer { group.leave() }
let groupModel = OriginGroupModel(cellType: .marquee(list: data), sortIndex: self.sortModel.marqueeIndex)
guard !data.isEmpty else { return }
/// 把groupModel添加到listMs中
groupModel.addTo(listMs: &self.listMs)
}
})
/// .... 此处省略其它多个请求
group.notify(queue: queue) {
// 队列中线程全部结束,刷新UI
DispatchQueue.main.sync { [weak self] in
self?.collectionView.reloadData()
}
}
}
collectionView的代理方法处理
func numberOfSections(in collectionView: UICollectionView) -> Int {
return listMs.count
}
func collectionView(_: UICollectionView, numberOfItemsInSection section: Int) -> Int {
let groupModel = listMs[section]
switch groupModel.cellType {
case .marquee, .beltAndRoad, .walletCard, .wallet, .otc, .hxPrefecture, .shoppingCarnival, .middleAd:
return 1
case .middleNav(let list):
return list.count
case .bottomNav(let list):
return list.count
case .broadcast:
return 1
case .localService(let list):
return list.count
case .bottomFloat:
return 1
}
}
- 同理,collectionView的代理方法中,都是先拿到 cellType 来判断,达到精准定位, 举个
栗子
/// Cell大小
func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, sizeForItemAt indexPath: IndexPath) -> CGSize {
let groupModel = listMs[indexPath.section]
let width = screenWidth - 2 * margin
switch groupModel.cellType {
case .marquee:
return CGSize(width: screenWidth, height: 32)
case .beltAndRoad:
return CGSize(width: width, height: 46)
case .walletCard:
return CGSize(width: width, height: 85)
case .wallet:
return CGSize(width: width, height: OriginWalletCell.eachHeight * 2 + 10)
case .otc, .hxPrefecture:
return CGSize(width: width, height: 60)
case .middleNav:
let row: CGFloat = 5
let totalWidth: CGFloat = 13 * (row - 1) + 2 * margin
return CGSize(width: (screenWidth - totalWidth) / row, height: CGFloat(98.zh(80).vi(108)))
case .bottomNav:
let isFirstRow: Bool = indexPath.item < 2
let row: CGFloat = isFirstRow ? 2 : 3
let totalWidth: CGFloat = 4 * (row - 1) + 2 * margin
let width = (screenWidth - totalWidth) / row
return CGSize(width: floor(Double(width)), height: 70)
case .shoppingCarnival:
return CGSize(width: width, height: 150)
case .broadcast:
return CGSize(width: screenWidth - 20, height: 114)
case .middleAd:
return CGSize(width: width, height: 114)
case .localService:
let width = (82 * screenWidth) / 375
return CGSize(width: width, height: 110)
case .bottomFloat:
let h = bottomCellHeight > OriginBottomH ? bottomCellHeight : OriginBottomH
return CGSize(width: screenWidth, height: h)
}
}
总结一下这种写法的优势
-
方便修改组和组之前的顺序问题,甚至可以由服务器下发顺序
-
方便删减组,只要把数据的添加组注释掉
-
用枚举的方式,定义每个组,更清晰,加上swift的关联值优势,可以不用在控制器里定义多个数组
-
考虑到要下拉刷新,所以抽取了一个协议 GroupProvider,里面提供两个默认的实现方法
- 方法一:获取当前cellType在listMs中的下标
- 方法二:是否要添加到listMs中
-
界面长什么样,全部由数据来驱动,这组没有数据,界面就对应的不显示(
皮之不存,毛将焉附),有数据就按预先设计好的显示
