flex布局项目元素超出容器元素

360 阅读1分钟
  .box {
      width: 800px;
      height: 400px;
      display: flex;
      border: 1px solid red;
  }
  .children{
        flex-grow: 1;
        background-color: rgb(119, 80, 80);
        position: relative;
        opacity: .3;
  }
  .left{
      width: 200px;
      flex-shrink: 0;
      background: pink;
  }

    <div class="box">
        <div class="left">
            left
        </div>
        <div class="children">
            children
        </div>
    </div>

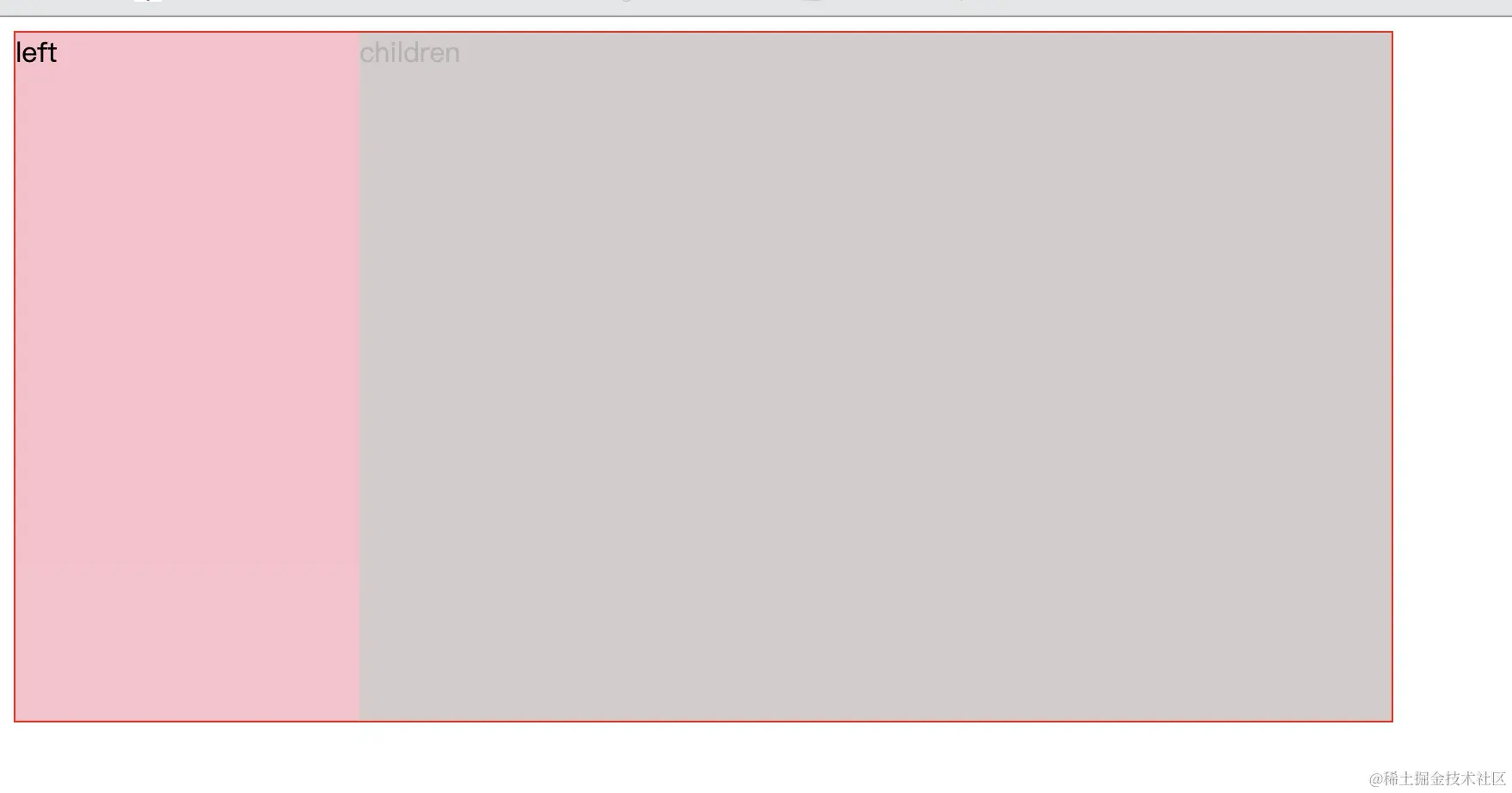

首先是一个很简单的flex布局

这里children 占据了容器元素剩余的位置,并且没有超出父元素

改造一下:

    <div class="box">
        <div class="left">
            left
        </div>
        <div class="children">
            children
+           <div style="width:10000px;height:20px;background-color: pink;">
+           </div>
        </div>
    </div>

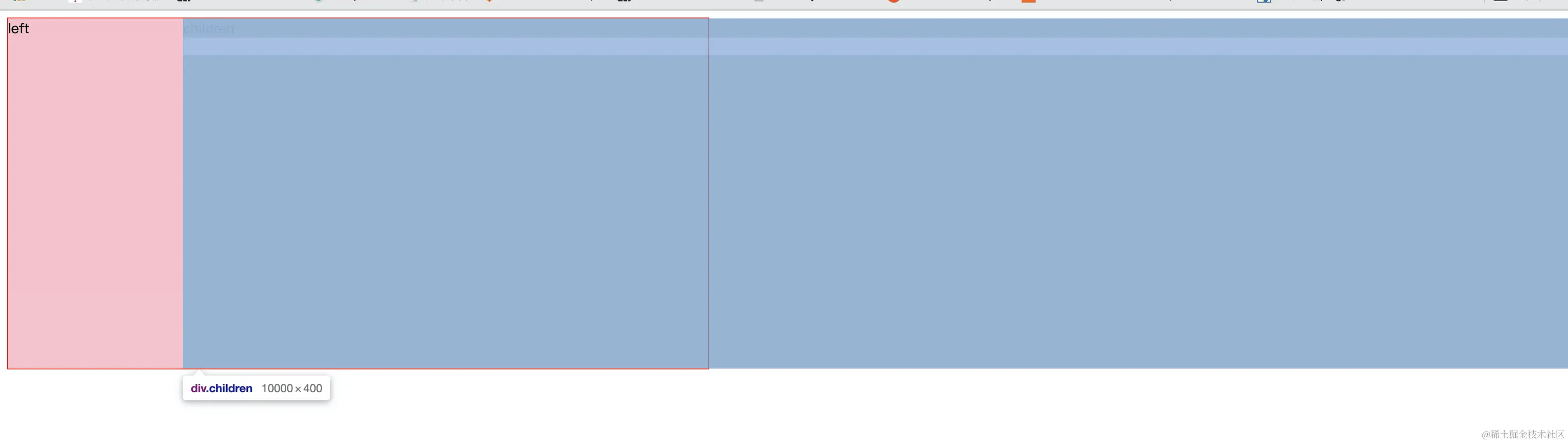

这里可以看到 children元素 超出了 容器元素,很奇怪,解决方式:

    .children{
        flex-grow: 1;
        background-color: rgb(119, 80, 80);
        position: relative;
        opacity: .3;
+       min-width: 1px;
    }

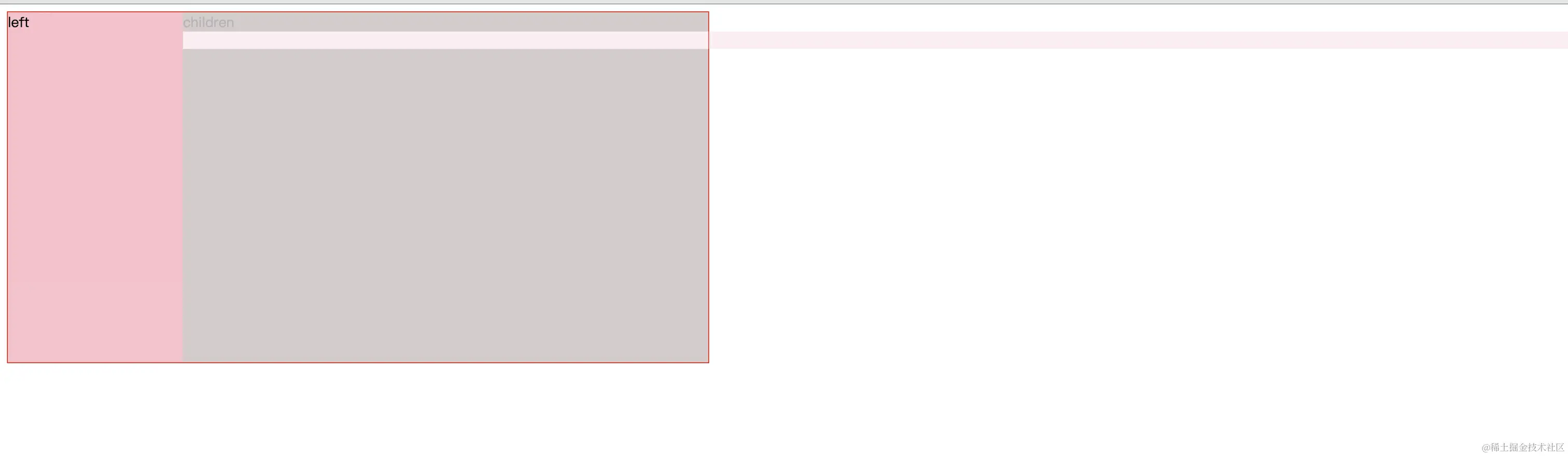

children 元素遵循了包裹性的原则 没有超出容器元素大的小,这里的解决方案就是给项目元素加一个 min-width:1px;

问题来源于: antd 低版本 走马灯 容器元素的父元素使用flex布局 容器元素超出父元素大小,走马灯无法自适应,且超出大小
