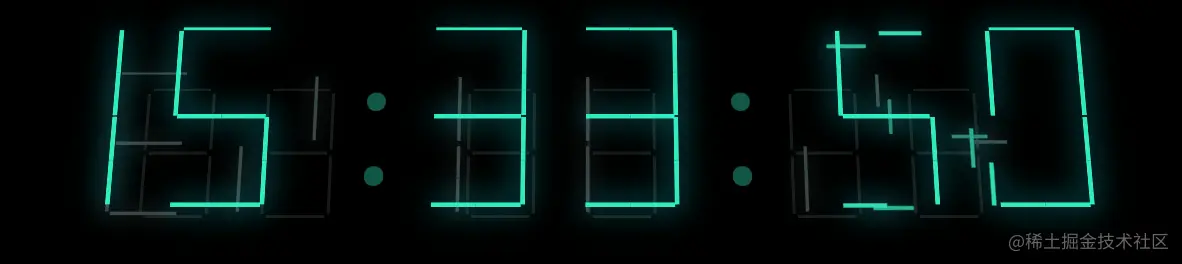

实现 3D 时间动画展示效果

那些年丶ny
2,231 阅读2分钟

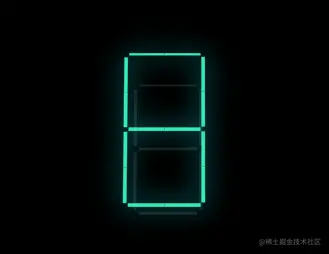

搭建舞台

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Document</title>
    <style type="text/css">
      html,
      body {
        width: 100%;
        height: 100%;
        background-color: #000;
        overflow: hidden;
      }

      /* 设置视距1000px 子元素在3D中变换  */
      .preserve {
        transform-style: preserve-3d;
        perspective: 1000px;
      }

      /* 容器 */
      .container {
        position: relative;
        margin-top: 10vh;
        text-align: center;
        /* animation: rotateReverse 10s infinite linear; */
      }

      /* 舞台 */
      .stage {
        transform: rotateX(10deg) rotateZ(0);
        /* animation: rotate 10s infinite linear; */
      }
      /* 数字样式  */
      .number {
        position: relative;
        width: 3vw;
        height: 12vw;
        display: inline-block;
        margin: 3vw 3vw 0 0;
      }

      .line {
        position: absolute;
        top: 0;
        left: 0;
        width: 3vw;
        height: 2px;
        background: #181919;
      }

      .line::before,
      .line::after {
        content: "";
        position: absolute;
        top: 0;
        width: 50%;
        height: 100%;
        background-color: #34eabc;
        box-shadow: 0 0 1vw #0bfdfd, inset 0 0 0.125vmin #0bfdfd;
      }
      .line::before {
        left: 0;
        transition: all 0.5s ease-in;
      }
      .line::after {
        right: 0;
        transition: all 0.5s ease-out;
      }

      /* 计算每根线的位置 */
      .line:nth-child(1) {
        top: -0.2vw;
      }
      .line:nth-child(2) {
        top: 3.2vw;
      }
      .line:nth-child(3) {
        top: 6.6vw;
      }

      .line:nth-child(4) {
        transform: rotate(90deg) translateY(0.2vw);
        /* 设置 旋转中心为 最左边 元素中点  */
        transform-origin: 0 center;
      }
      .line:nth-child(5) {
        transform: rotate(-90deg) translateY(0.2vw);
        /* 设置 旋转中心为 最右边 元素中点  */
        transform-origin: 100% center;
      }

      .line:nth-child(6) {
        top: 3.4vw;
        transform: rotate(90deg) translateY(0.2vw);
        transform-origin: 0 center;
      }
      .line:nth-child(7) {
        top: 3.4vw;
        transform: rotate(-90deg) translateY(0.2vw);
        transform-origin: 100% center;
      }

      /* 减少我们的距离 实现阴影效果 */
      .translate::before,
      .translate::after {
        transform: translateZ(50px);
      }
    </style>
  </head>
  <body>
    <div class="container preserve">
      <div class="stage preserve">
        <div class="number preserve">
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
        </div>
      </div>
    </div>
  </body>
</html>
  • 确认组成数字需要多少个块元素
  • 使用伪元素和元素的颜色差，让伪元素向我们的方向移动，实现影子效果。
  • 使用transform属性，计算每一个块元素的位置组成一个数字。

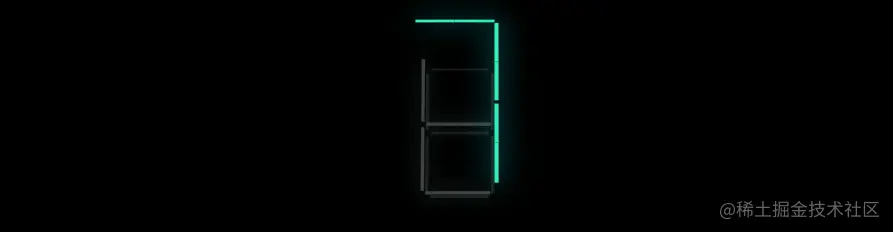

添加数字变换动画

...
      .number[data-digit="1"] .line:nth-child(1)::before,
      .number[data-digit="1"] .line:nth-child(1)::after,
      .number[data-digit="1"] .line:nth-child(2)::before,
      .number[data-digit="1"] .line:nth-child(2)::after,
      .number[data-digit="1"] .line:nth-child(3)::before,
      .number[data-digit="1"] .line:nth-child(3)::after,
      .number[data-digit="1"] .line:nth-child(4)::before,
      .number[data-digit="1"] .line:nth-child(4)::after,
      .number[data-digit="1"] .line:nth-child(6)::before,
      .number[data-digit="1"] .line:nth-child(6)::after,

      .number[data-digit="2"] .line:nth-child(4)::before,
      .number[data-digit="2"] .line:nth-child(4)::after,
      .number[data-digit="2"] .line:nth-child(7)::before,
      .number[data-digit="2"] .line:nth-child(7)::after,

      .number[data-digit="3"] .line:nth-child(4)::before,
      .number[data-digit="3"] .line:nth-child(4)::after,
      .number[data-digit="3"] .line:nth-child(6)::before,
      .number[data-digit="3"] .line:nth-child(6)::after,

      .number[data-digit="4"] .line:nth-child(1)::before,
      .number[data-digit="4"] .line:nth-child(1)::after,
      .number[data-digit="4"] .line:nth-child(3)::before,
      .number[data-digit="4"] .line:nth-child(3)::after,
      .number[data-digit="4"] .line:nth-child(6)::before,
      .number[data-digit="4"] .line:nth-child(6)::after,

      .number[data-digit="5"] .line:nth-child(5)::before,
      .number[data-digit="5"] .line:nth-child(5)::after,
      .number[data-digit="5"] .line:nth-child(6)::before,
      .number[data-digit="5"] .line:nth-child(6)::after,

      .number[data-digit="6"] .line:nth-child(5)::before,
      .number[data-digit="6"] .line:nth-child(5)::after,

      .number[data-digit="7"] .line:nth-child(2)::before,
      .number[data-digit="7"] .line:nth-child(2)::after,
      .number[data-digit="7"] .line:nth-child(3)::before,
      .number[data-digit="7"] .line:nth-child(3)::after,
      .number[data-digit="7"] .line:nth-child(4)::before,
      .number[data-digit="7"] .line:nth-child(4)::after,
      .number[data-digit="7"] .line:nth-child(6)::before,
      .number[data-digit="7"] .line:nth-child(6)::after,

      .number[data-digit="9"] .line:nth-child(6)::before,
      .number[data-digit="9"] .line:nth-child(6)::after,

      .number[data-digit="0"] .line:nth-child(2)::before,
      .number[data-digit="0"] .line:nth-child(2)::after {
        transform: translateZ(25px);
        background: #3c4444;
        box-shadow: 0 0 1vw #425454;
      }
 ...

    <script type="text/javascript">
      (function () {
        let numbers = document.getElementsByClassName("number")
        setInterval(() => {
          Array.prototype.slice.call(numbers).forEach((key) => {
            key.setAttribute("data-digit",parseInt(Math.random() * 9));
          });
        }, 1000);
      })()
    </script>
...
  • 使用transition属性给line::before和line::after设置过度动画。
  • 通过css属性选择器，获取自定义属性的值。通过变换的值来设置在不同数字下，哪些块需要改变。
  • 使用js修改自定义属性的值。

加入时间

...

      .colon{
        position: relative;
        display: inline-block;
        width: 2vw;
        height: 12vw;
        margin: 1vw 2vw 0 0;
        animation:colonFra 1s linear infinite ;
      }
      .colon::before {
        content: "";
        position: absolute;
        top: 0;
        left: 0;
        width: 1vw;
        height: 1vw;
        background-color: #34eabc;
        border-radius: 50%;
      }
      .colon::after {
        content: "";
        position: absolute;
        top: 4vw;
        left: 0;
        width: 1vw;
        height: 1vw;
        background-color: #34eabc;
        border-radius: 50%;
      }
      .colonS{
        left: -1.3vw;
      }
      .colonF{
        left: 1vw;
      }
      @keyframes colonFra {
        0% {
          opacity: 0;
        }
        100% {
          opacity: 1;
        }
      }
...

        <div class="number preserve" data-digit="0">
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
        </div>
        <div class="colon preserve colonS"></div>
        <div class="number preserve" data-digit="0">
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
        </div>
        <div class="number preserve" data-digit="0">
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
        </div>
        <div class="colon preserve colonF"></div>
        <div class="number preserve" data-digit="0">
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
        </div>
        <div class="number preserve" data-digit="0">
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
          <div class="line preserve translate"></div>
        </div>
...

    <script type="text/javascript">
      function time() {
        let timeTem = new Date();
        let a = "0";
        let b = "0";
        if (String(timeTem.getHours()).length > 1) {
          a = String(timeTem.getHours()).substring(0, 1);
          b = String(timeTem.getHours()).substring(1, 2);
        } else {
          a = "0";
          b = String(timeTem.getHours()).substring(0, 1);
        }

        let c = "0";
        let d = "0";
        if (String(timeTem.getMinutes()).length > 1) {
          c = String(timeTem.getMinutes()).substring(0, 1);
          d = String(timeTem.getMinutes()).substring(1, 2);
        } else {
          c = "0";
          d = String(timeTem.getMinutes()).substring(0, 1);
        }

        let e = "0";
        let f = "0";
        if (String(timeTem.getSeconds()).length > 1) {
          e = String(timeTem.getSeconds()).substring(0, 1);
          f = String(timeTem.getSeconds()).substring(1, 2);
        } else {
          e = "0";
          f = String(timeTem.getSeconds()).substring(0, 1);
        }
        return [a, b, c, d, e, f];
      }
      (function () {
        let numbers = document.getElementsByClassName("number")
        setInterval(() => {
          let arr = time();
          Array.prototype.slice.call(numbers).forEach((key,index) => {
            key.setAttribute("data-digit",arr[index]);
          });
        }, 1000);
      })()
    </script>
  • 先定义时分秒钟的，间隔。
  • 使用js获取当前时间，依次修改自定义变量的值。
