【开发笔记】Masonry 的 distributeViewsAlongAxis 方法

如下，在 Masonry 的官方Demo中看到了该方法的示例用法，可以达到类似 UIStackView 的效果，在此备忘一下，以便日后用于~~

/**
 *  distribute with fixed spacing
 *
 *  @param axisType     which axis to distribute items along
 *  @param fixedSpacing the spacing between each item
 *  @param leadSpacing  the spacing before the first item and the container
 *  @param tailSpacing  the spacing after the last item and the container
 */
- (void)mas_distributeViewsAlongAxis:(MASAxisType)axisType withFixedSpacing:(CGFloat)fixedSpacing leadSpacing:(CGFloat)leadSpacing tailSpacing:(CGFloat)tailSpacing;

/**
 *  distribute with fixed item size
 *
 *  @param axisType        which axis to distribute items along
 *  @param fixedItemLength the fixed length of each item
 *  @param leadSpacing     the spacing before the first item and the container
 *  @param tailSpacing     the spacing after the last item and the container
 */
- (void)mas_distributeViewsAlongAxis:(MASAxisType)axisType withFixedItemLength:(CGFloat)fixedItemLength leadSpacing:(CGFloat)leadSpacing tailSpacing:(CGFloat)tailSpacing;

示例代码

#import "MASExampleDistributeView.h"

@implementation MASExampleDistributeView

- (id)init {
    self = [super init];
    if (!self) return nil;

    NSMutableArray *arr = @[].mutableCopy;
    for (int i = 0; i < 4; i++) {
        UIView *view = UIView.new;
        view.backgroundColor = [self randomColor];
        view.layer.borderColor = UIColor.blackColor.CGColor;
        view.layer.borderWidth = 2;
        [self addSubview:view];
        [arr addObject:view];
    }

    // 此处略去具体示例，详见用法部分...

    return self;
}

- (UIColor *)randomColor {
    CGFloat hue = ( arc4random() % 256 / 256.0 );  //  0.0 to 1.0
    CGFloat saturation = ( arc4random() % 128 / 256.0 ) + 0.5;  //  0.5 to 1.0, away from white
    CGFloat brightness = ( arc4random() % 128 / 256.0 ) + 0.5;  //  0.5 to 1.0, away from black
    return [UIColor colorWithHue:hue saturation:saturation brightness:brightness alpha:1];
}

@end

用法

横向拉伸以均分

[arr mas_distributeViewsAlongAxis:MASAxisTypeHorizontal withFixedSpacing:20 leadSpacing:5 tailSpacing:5];
[arr makeConstraints:^(MASConstraintMaker *make) {
    make.top.equalTo(@60);
    make.height.equalTo(@60);
}];

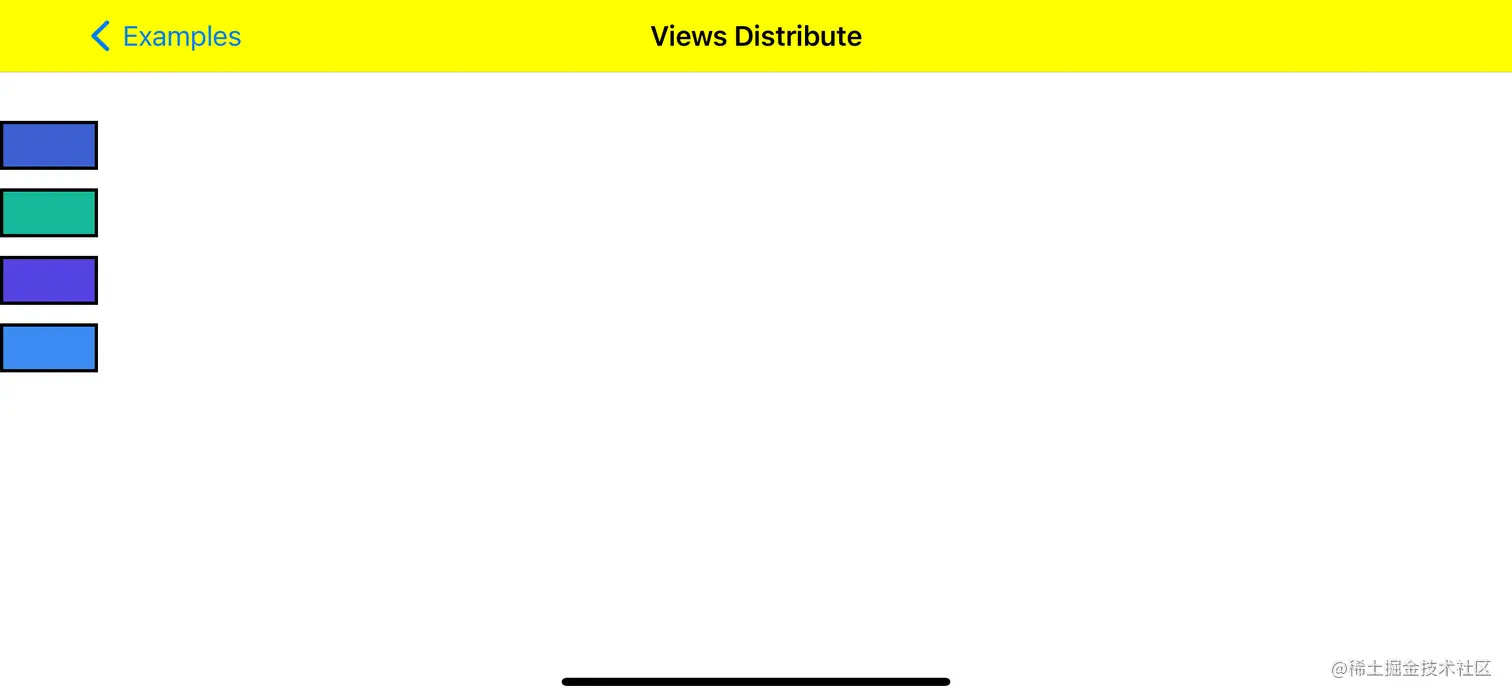

竖向拉伸以均分

[arr mas_distributeViewsAlongAxis:MASAxisTypeVertical withFixedSpacing:20 leadSpacing:5 tailSpacing:5];
[arr makeConstraints:^(MASConstraintMaker *make) {
    make.left.equalTo(@0);
    make.width.equalTo(@60);
}];

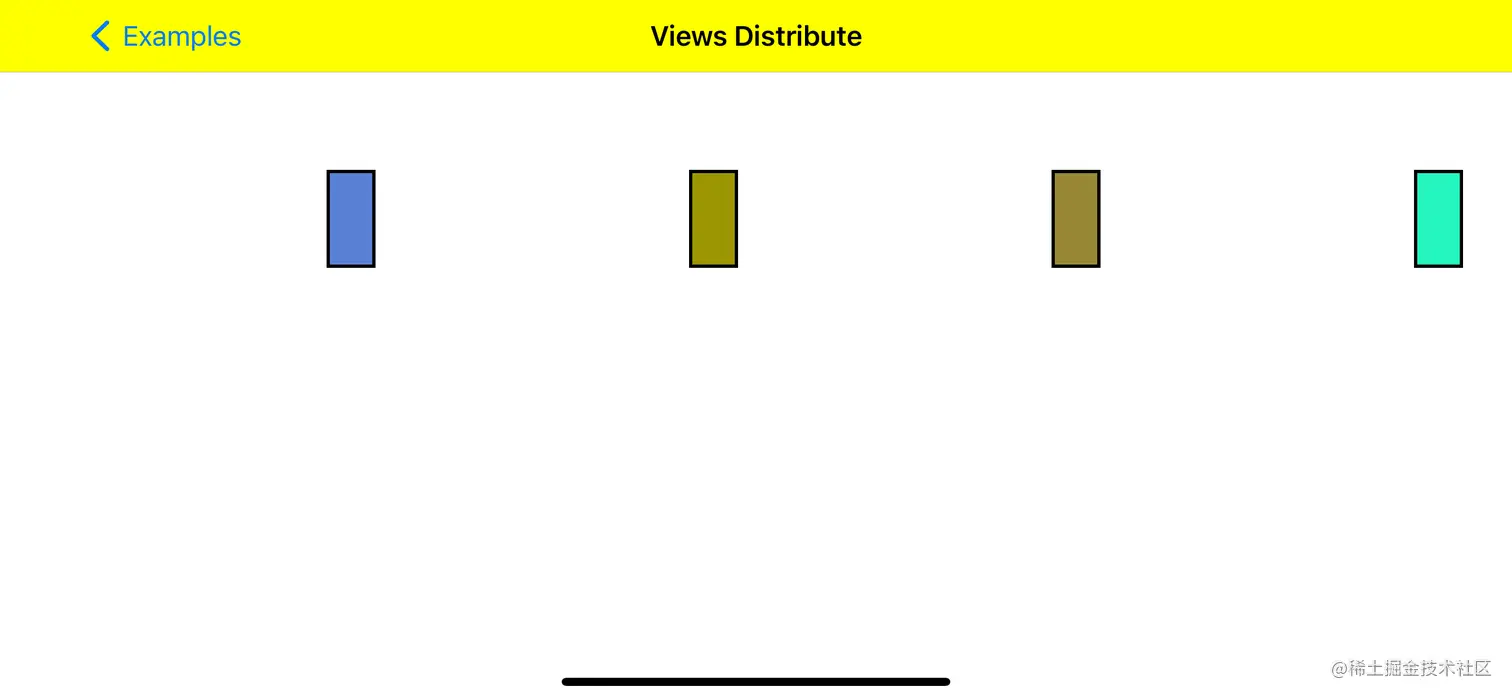

横向固定大小显示

[arr mas_distributeViewsAlongAxis:MASAxisTypeHorizontal withFixedItemLength:30 leadSpacing:200 tailSpacing:30];
[arr makeConstraints:^(MASConstraintMaker *make) {
    make.top.equalTo(@60);
    make.height.equalTo(@60);
}];

竖向固定大小显示

[arr mas_distributeViewsAlongAxis:MASAxisTypeVertical withFixedItemLength:30 leadSpacing:30 tailSpacing:200];
[arr makeConstraints:^(MASConstraintMaker *make) {
    make.left.equalTo(@0);
    make.width.equalTo(@60);
}];
