前言
我们编写的代码，通过编译后形成可执行文件machO，那么这些类信息是什么时候加载到内存的呢？分类是什么？分类中的方法是什么时候加载到本类的呢？带着这些问题，下面逐步分析！
我们在进行dyld分析时研究过的，在objc_init()中有一个重要的方法：
map_images：管理文件中和动态库中所有的符号，完成类class、方法selector、协议protocol、分类category的加载；load_images：加载执行load方法。
1.objc_init()流程分析

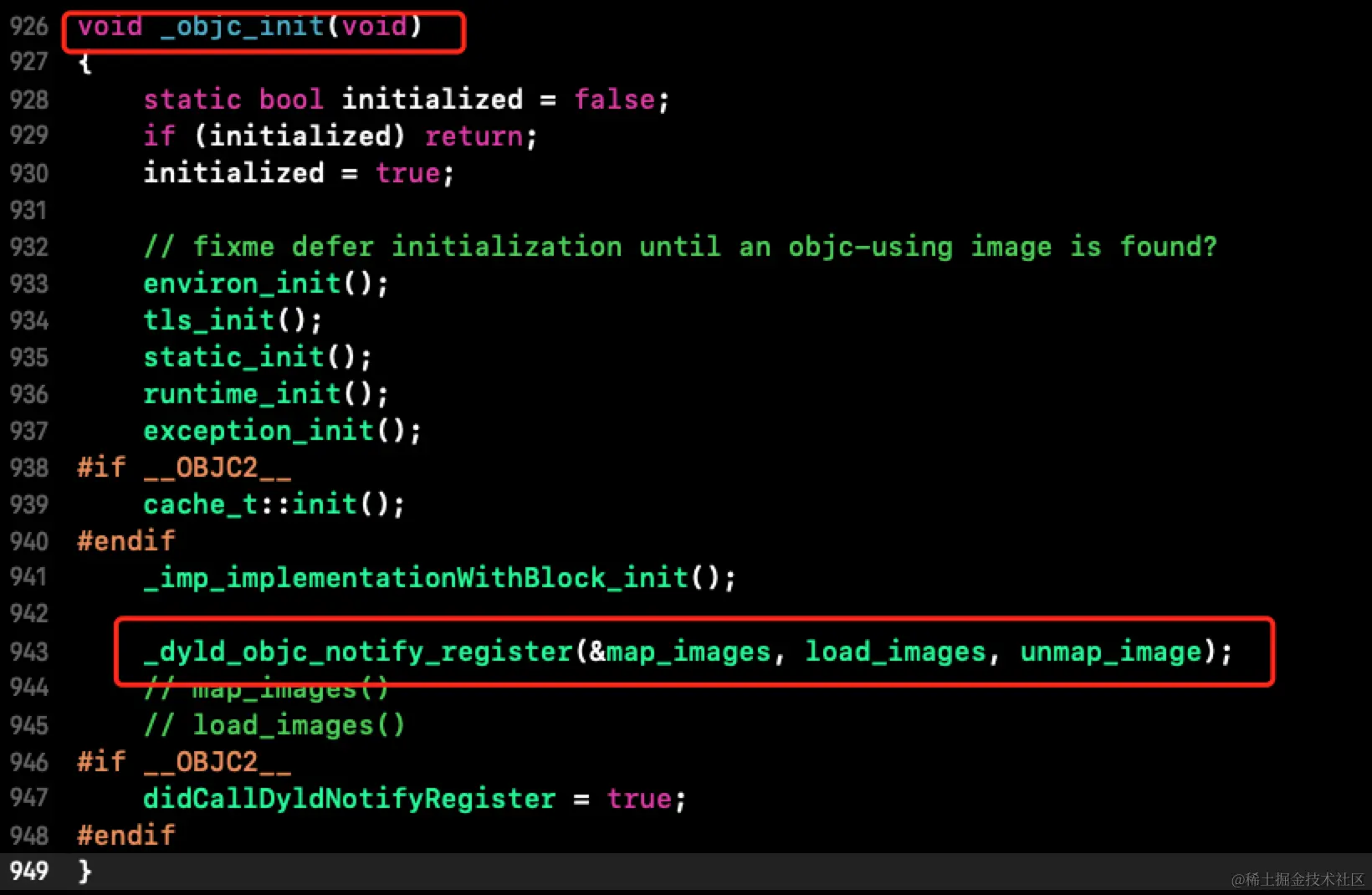

已经学习了objc_init()的初始化时机。objc_init()实现源码：
void _objc_init(void)
{
static bool initialized = false;
if (initialized) return;
initialized = true;
// fixme defer initialization until an objc-using image is found?
environ_init();
tls_init();
static_init();
runtime_init();
exception_init();
#if __OBJC2__
cache_t::init();
#endif
_imp_implementationWithBlock_init();
_dyld_objc_notify_register(&map_images, load_images, unmap_image);
#if __OBJC2__
didCallDyldNotifyRegister = true;
#endif
}
1.environ_init()

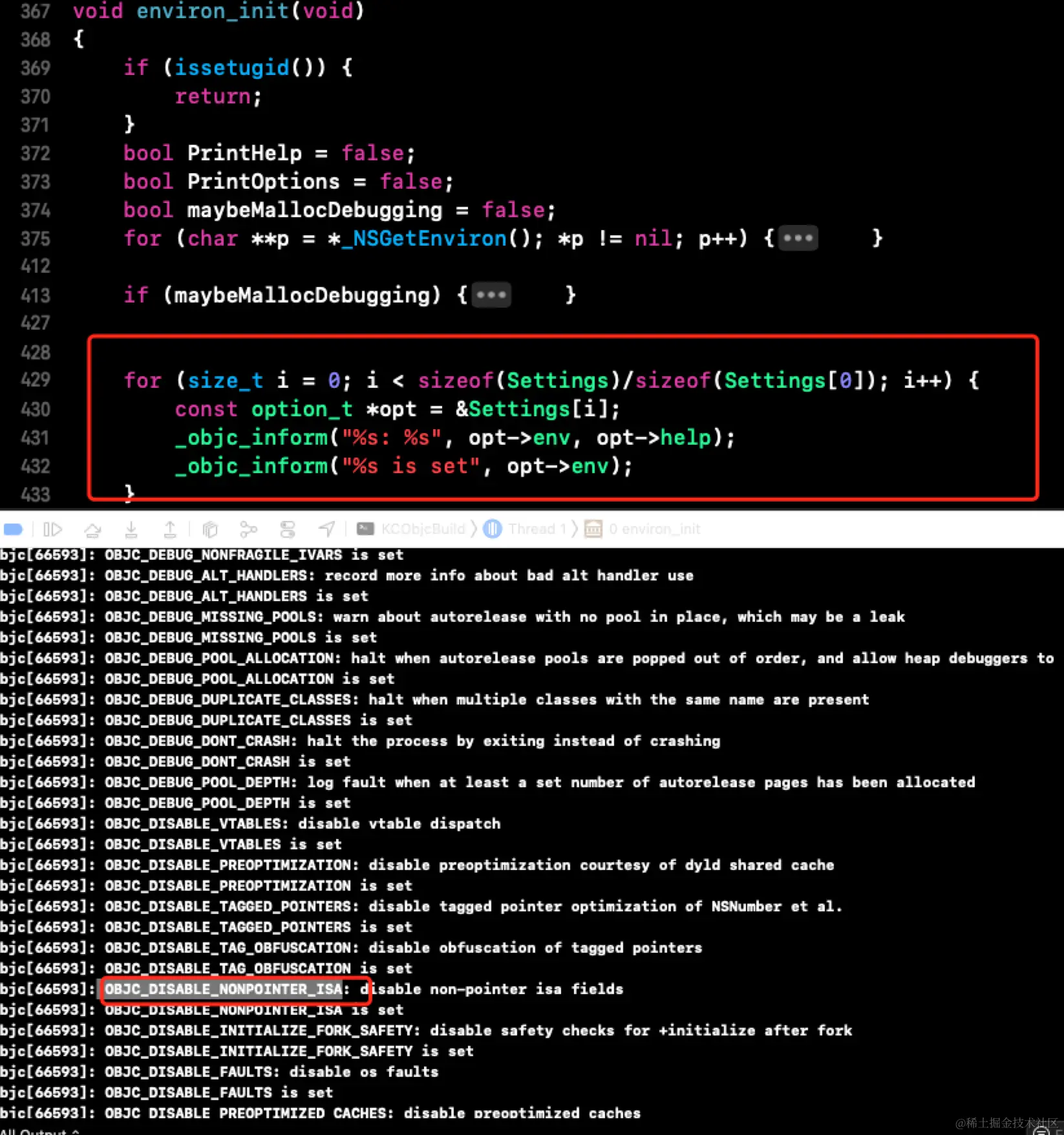

读取影响运⾏时的环境变量。在源码中做一些修改，可以打印环境变量信息。添加图中的代码：
控制台打印了环境变量信息，比如
- 是否针对
isa进行优化OBJC_DISABLE_NONPOINTER_ISA - 是否打印输出

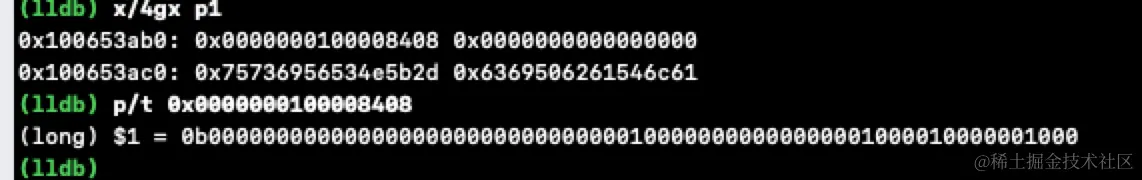

load方法OBJC_PRINT_LOAD_METHODS比如我们可以打印一个对象指向类的isa指针，见下如：

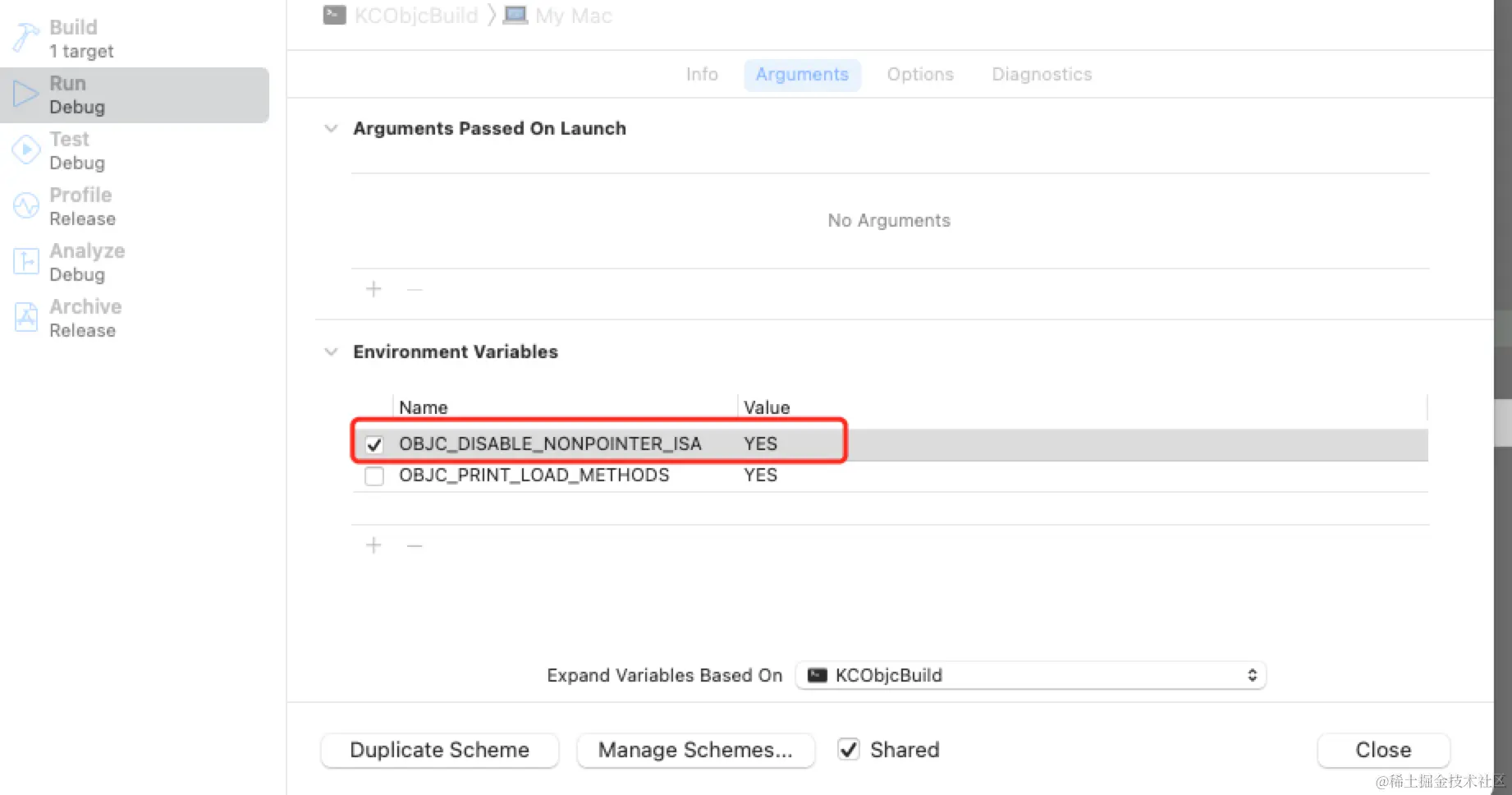

尾数为1，此时开启了isa指针优化。下面做个环境变量的配置，将OBJC_DISABLE_NONPOINTER_ISA设置为YES。配置方式见下图：
再次运行程序，再次打印指向类对象的isa指针，以二进制输出：
尾数为0，未进行isa指针的优化。
我们还可以设置OBJC_PRINT_LOAD_METHODS环境变量，来打印load方法。添加环境变量，将OBJC_PRINT_LOAD_METHODS设置YES。
2.tls_init()
初始化本地线程池，关于线程key的绑定。
3.static_init()
运⾏C ++静态构造函数。在dyld调⽤我们的静态构造函数之前，libc会调⽤ _objc_init()，因此我们必须⾃⼰做。
static void static_init()
{
size_t count;
auto inits = getLibobjcInitializers(&_mh_dylib_header, &count);
for (size_t i = 0; i < count; i++) {
inits[i]();
}
}
4.runtime_init()
unattachedCategories.init分类表的初始化allocatedClasses.init进行内存中类表的创建
void runtime_init(void)
{
objc::unattachedCategories.init(32);
objc::allocatedClasses.init();
}
5.exception_init()
完成objc异常处理系统的初始化，进行回调函数的设置，实现异常捕获处理。
/***********************************************************************
* exception_init
* Initialize libobjc's exception handling system.
* Called by map_images().
**********************************************************************/
void exception_init(void)
{
old_terminate = std::set_terminate(&_objc_terminate);
}
static void (*old_terminate)(void) = nil;
static void _objc_terminate(void)
{
if (PrintExceptions) {
_objc_inform("EXCEPTIONS: terminating");
}
if (! __cxa_current_exception_type()) {
// No current exception.
(*old_terminate)();
}
else {
// There is a current exception. Check if it's an objc exception.
@try {
__cxa_rethrow();
} @catch (id e) {
// It's an objc object. Call Foundation's handler, if any.
(*uncaught_handler)((id)e);
(*old_terminate)();
} @catch (...) {
// It's not an objc object. Continue to C++ terminate.
(*old_terminate)();
}
}
}
当出现一个异常，会判断是否为objc异常，如果是objc异常会执行回调函数uncaught_handler。全局搜索uncaught_handler，找到回调函数设置的方法。
objc_uncaught_exception_handler
objc_setUncaughtExceptionHandler(objc_uncaught_exception_handler fn)
{
objc_uncaught_exception_handler result = uncaught_handler;
uncaught_handler = fn;
return result;
}
在OC层，我们可以通过调用方法NSSetUncaughtExceptionHandler设置回调函数，回调函数会被赋值给uncaught_handler。
6.cache_init()
缓存条件的初始化。
void cache_t::init()
{
#if HAVE_TASK_RESTARTABLE_RANGES
mach_msg_type_number_t count = 0;
kern_return_t kr;
while (objc_restartableRanges[count].location) {
count++;
}
kr = task_restartable_ranges_register(mach_task_self(),
objc_restartableRanges, count);
if (kr == KERN_SUCCESS) return;
_objc_fatal("task_restartable_ranges_register failed (result 0x%x: %s)",
kr, mach_error_string(kr));
#endif // HAVE_TASK_RESTARTABLE_RANGES
}
7._imp_implementationWithBlock_init()
启动回调机制。通常这不会做什么，因为所有的初始化都是惰性的，但是对于某些进程，我们会迫不及待地加载trampolines dylib。
void
_imp_implementationWithBlock_init(void)
{
#if TARGET_OS_OSX
// Eagerly load libobjc-trampolines.dylib in certain processes. Some
// programs (most notably QtWebEngineProcess used by older versions of
// embedded Chromium) enable a highly restrictive sandbox profile which
// blocks access to that dylib. If anything calls
// imp_implementationWithBlock (as AppKit has started doing) then we'll
// crash trying to load it. Loading it here sets it up before the sandbox
// profile is enabled and blocks it.
//
// This fixes EA Origin (rdar://problem/50813789)
// and Steam (rdar://problem/55286131)
if (__progname &&
(strcmp(__progname, "QtWebEngineProcess") == 0 ||
strcmp(__progname, "Steam Helper") == 0)) {
Trampolines.Initialize();
}
#endif
}
8._dyld_objc_notify_register dyld注册
应用程序加载时，会调换用objc_init()，当执行_dyld_objc_notify_register注册函数时，会将三个方法注册到dyld中。
这三个方法是：
map_images：这里传入的是方法引用，也就是方法的实现地址。管理文件中和动态库中所有文件，如类class、协议protocol、方法selector、分类category的实现。load_images：该方法传入的是值，即方法实现。加载执行+load方法。unmap_image：dyld将image移除时，会触发该函数。
2. _read_images分析
map_images -> map_images_nolock -> _read_images
1.整体分析
深入研究map_images类的加载流程，通过解读注释和代码解析，找到核心函数_read_images。_read_images核心代码如下：
void _read_images(header_info **hList, uint32_t hCount, int totalClasses, int unoptimizedTotalClasses)
{
header_info *hi;
uint32_t hIndex;
size_t count;
size_t i;
Class *resolvedFutureClasses = nil;
size_t resolvedFutureClassCount = 0;
static bool doneOnce;
bool launchTime = NO;
TimeLogger ts(PrintImageTimes);
runtimeLock.assertLocked();
#define EACH_HEADER \
hIndex = 0; \
hIndex < hCount && (hi = hList[hIndex]); \
hIndex++
// 1.条件控制，进行一次的加载。将所有类放入一个表中
if (!doneOnce) {
doneOnce = YES;
launchTime = YES;
#if SUPPORT_NONPOINTER_ISA
// Disable non-pointer isa under some conditions.
# if SUPPORT_INDEXED_ISA
// Disable nonpointer isa if any image contains old Swift code
for (EACH_HEADER) {
if (hi->info()->containsSwift() &&
hi->info()->swiftUnstableVersion() < objc_image_info::SwiftVersion3)
{
DisableNonpointerIsa = true;
if (PrintRawIsa) {
_objc_inform("RAW ISA: disabling non-pointer isa because "
"the app or a framework contains Swift code "
"older than Swift 3.0");
}
break;
}
}
# endif
# if TARGET_OS_OSX
// Disable non-pointer isa if the app is too old
// (linked before OS X 10.11)
// if (!dyld_program_sdk_at_least(dyld_platform_version_macOS_10_11)) {
// DisableNonpointerIsa = true;
// if (PrintRawIsa) {
// _objc_inform("RAW ISA: disabling non-pointer isa because "
// "the app is too old.");
// }
// }
// Disable non-pointer isa if the app has a __DATA,__objc_rawisa section
// New apps that load old extensions may need this.
for (EACH_HEADER) {
if (hi->mhdr()->filetype != MH_EXECUTE) continue;
unsigned long size;
if (getsectiondata(hi->mhdr(), "__DATA", "__objc_rawisa", &size)) {
DisableNonpointerIsa = true;
if (PrintRawIsa) {
_objc_inform("RAW ISA: disabling non-pointer isa because "
"the app has a __DATA,__objc_rawisa section");
}
}
break; // assume only one MH_EXECUTE image
}
# endif
#endif
if (DisableTaggedPointers) {
disableTaggedPointers();
}
initializeTaggedPointerObfuscator();
if (PrintConnecting) {
_objc_inform("CLASS: found %d classes during launch", totalClasses);
}
// namedClasses
// Preoptimized classes don't go in this table.
// 4/3 is NXMapTable's load factor
// objc::unattachedCategories.init(32);
// objc::allocatedClasses.init();
int namedClassesSize =
(isPreoptimized() ? unoptimizedTotalClasses : totalClasses) * 4 / 3;
gdb_objc_realized_classes =
NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize);
ts.log("IMAGE TIMES: first time tasks");
}
// Fix up @selector references
// sel 名字 + 地址
// 2.修复预编译阶段的 `@selector` 的混乱问题
// 带地址的字符串匹配，不同库的坐标不一样，需要加载一块进行统一调度
static size_t UnfixedSelectors;
{
mutex_locker_t lock(selLock);
for (EACH_HEADER) {
if (hi->hasPreoptimizedSelectors()) continue;
bool isBundle = hi->isBundle();
SEL *sels = _getObjc2SelectorRefs(hi, &count);
UnfixedSelectors += count;
for (i = 0; i < count; i++) {
const char *name = sel_cname(sels[i]);
SEL sel = sel_registerNameNoLock(name, isBundle);
if (sels[i] != sel) {
sels[i] = sel;
}
}
}
}
ts.log("IMAGE TIMES: fix up selector references");
// Discover classes. Fix up unresolved future classes. Mark bundle classes.
bool hasDyldRoots = dyld_shared_cache_some_image_overridden();
// 3.初始化名称 - 错误混乱的类处理
for (EACH_HEADER) {
if (! mustReadClasses(hi, hasDyldRoots)) {
// Image is sufficiently optimized that we need not call readClass()
continue;
}
classref_t const *classlist = _getObjc2ClassList(hi, &count);
bool headerIsBundle = hi->isBundle();
bool headerIsPreoptimized = hi->hasPreoptimizedClasses();
for (i = 0; i < count; i++) {
Class cls = (Class)classlist[i];
Class newCls = readClass(cls, headerIsBundle, headerIsPreoptimized);
if (newCls != cls && newCls) {
// Class was moved but not deleted. Currently this occurs
// only when the new class resolved a future class.
// Non-lazily realize the class below.
resolvedFutureClasses = (Class *)
realloc(resolvedFutureClasses,
(resolvedFutureClassCount+1) * sizeof(Class));
resolvedFutureClasses[resolvedFutureClassCount++] = newCls;
}
}
}
ts.log("IMAGE TIMES: discover classes");
// Fix up remapped classes
// Class list and nonlazy class list remain unremapped.
// Class refs and super refs are remapped for message dispatching.
// 4.修复重映射⼀些没有被镜像⽂件加载进来的 类
if (!noClassesRemapped()) {
for (EACH_HEADER) {
Class *classrefs = _getObjc2ClassRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
// fixme why doesn't test future1 catch the absence of this?
classrefs = _getObjc2SuperRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
}
}
ts.log("IMAGE TIMES: remap classes");
#if SUPPORT_FIXUP
// Fix up old objc_msgSend_fixup call sites
// 5.修复一些消息
for (EACH_HEADER) {
message_ref_t *refs = _getObjc2MessageRefs(hi, &count);
if (count == 0) continue;
if (PrintVtables) {
_objc_inform("VTABLES: repairing %zu unsupported vtable dispatch "
"call sites in %s", count, hi->fname());
}
for (i = 0; i < count; i++) {
fixupMessageRef(refs+i);
}
}
ts.log("IMAGE TIMES: fix up objc_msgSend_fixup");
#endif
// Discover protocols. Fix up protocol refs.
// 6.读取协议
for (EACH_HEADER) {
extern objc_class OBJC_CLASS_$_Protocol;
Class cls = (Class)&OBJC_CLASS_$_Protocol;
ASSERT(cls);
NXMapTable *protocol_map = protocols();
bool isPreoptimized = hi->hasPreoptimizedProtocols();
// Skip reading protocols if this is an image from the shared cache
// and we support roots
// Note, after launch we do need to walk the protocol as the protocol
// in the shared cache is marked with isCanonical() and that may not
// be true if some non-shared cache binary was chosen as the canonical
// definition
if (launchTime && isPreoptimized) {
if (PrintProtocols) {
_objc_inform("PROTOCOLS: Skipping reading protocols in image: %s",
hi->fname());
}
continue;
}
bool isBundle = hi->isBundle();
protocol_t * const *protolist = _getObjc2ProtocolList(hi, &count);
for (i = 0; i < count; i++) {
readProtocol(protolist[i], cls, protocol_map,
isPreoptimized, isBundle);
}
}
ts.log("IMAGE TIMES: discover protocols");
// Fix up @protocol references
// Preoptimized images may have the right
// answer already but we don't know for sure.
// 7.修复没有被加载的协议
for (EACH_HEADER) {
// At launch time, we know preoptimized image refs are pointing at the
// shared cache definition of a protocol. We can skip the check on
// launch, but have to visit @protocol refs for shared cache images
// loaded later.
if (launchTime && hi->isPreoptimized())
continue;
protocol_t **protolist = _getObjc2ProtocolRefs(hi, &count);
for (i = 0; i < count; i++) {
remapProtocolRef(&protolist[i]);
}
}
ts.log("IMAGE TIMES: fix up @protocol references");
// Discover categories. Only do this after the initial category
// attachment has been done. For categories present at startup,
// discovery is deferred until the first load_images call after
// the call to _dyld_objc_notify_register completes. rdar://problem/53119145
// 8.分类处理
if (didInitialAttachCategories) {
for (EACH_HEADER) {
load_categories_nolock(hi);
}
}
ts.log("IMAGE TIMES: discover categories");
// Category discovery MUST BE Late to avoid potential races
// when other threads call the new category code before
// this thread finishes its fixups.
// +load handled by prepare_load_methods()
// Realize non-lazy classes (for +load methods and static instances)
// 9.类的加载处理 类实现
for (EACH_HEADER) {
classref_t const *classlist = hi->nlclslist(&count);
for (i = 0; i < count; i++) {
Class cls = remapClass(classlist[i]);
if (!cls) continue;
addClassTableEntry(cls);
if (cls->isSwiftStable()) {
if (cls->swiftMetadataInitializer()) {
_objc_fatal("Swift class %s with a metadata initializer "
"is not allowed to be non-lazy",
cls->nameForLogging());
}
// fixme also disallow relocatable classes
// We can't disallow all Swift classes because of
// classes like Swift.__EmptyArrayStorage
}
realizeClassWithoutSwift(cls, nil);
}
}
ts.log("IMAGE TIMES: realize non-lazy classes");
// Realize newly-resolved future classes, in case CF manipulates them
// 10.没有被处理的类 优化那些被侵犯的类
if (resolvedFutureClasses) {
for (i = 0; i < resolvedFutureClassCount; i++) {
Class cls = resolvedFutureClasses[i];
if (cls->isSwiftStable()) {
_objc_fatal("Swift class is not allowed to be future");
}
realizeClassWithoutSwift(cls, nil);
cls->setInstancesRequireRawIsaRecursively(false/*inherited*/);
}
free(resolvedFutureClasses);
}
ts.log("IMAGE TIMES: realize future classes");
if (DebugNonFragileIvars) {
realizeAllClasses();
}
-
1: 条件控制进⾏⼀次的加载
-
2: 修复预编译阶段的
@selector的混乱问题 -
3: 错误混乱的类处理
-
4:修复重映射⼀些没有被镜像⽂件加载进来的类
-
5: 修复⼀些消息!
-
6: 当我们类⾥⾯有协议的时候 :
readProtocol -
7: 修复没有被加载的协议
-
8: 分类处理
-
9: 类的加载处理
-
10 : 没有被处理的类 优化那些被侵犯的类
2.关键流程解析
1.条件控制，进行一次的加载
当doneOnce为NO时，即第一次进来时，会进入if判断里面，然后将doneOnce修改为YES，所以说这个判断只会进行一次，即第一次进来时。
// 表-查找快-将所有的类放在一个表中
gdb_objc_realized_classes =
NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize);
这里会创建一个哈希表gdb_objc_realized_classes，所有的类将放入这个表中，目的是方便快捷查找类。gdb_objc_realized_classes是命名类并且不在dyld共享缓存中，无论是否实现。
2.readClass初始化名称 - 错误混乱的类处理
在此部分会初始化类的名称。类已移动但未删除，对错误混乱的类进行处理。
for (EACH_HEADER) {
if (! mustReadClasses(hi, hasDyldRoots)) {
// Image is sufficiently optimized that we need not call readClass()
continue;
}
classref_t const *classlist = _getObjc2ClassList(hi, &count);
bool headerIsBundle = hi->isBundle();
bool headerIsPreoptimized = hi->hasPreoptimizedClasses();
for (i = 0; i < count; i++) {
Class cls = (Class)classlist[i];
Class newCls = readClass(cls, headerIsBundle, headerIsPreoptimized);
// 错误混乱的类处理
// 类的信息发生了结混乱, 类已经被和移动，但是没有删除。宁愿删除重建也不移动，消耗太大
if (newCls != cls && newCls) {
// Class was moved but not deleted. Currently this occurs
// only when the new class resolved a future class.
// Non-lazily realize the class below.
resolvedFutureClasses = (Class *)
realloc(resolvedFutureClasses,
(resolvedFutureClassCount+1) * sizeof(Class));
resolvedFutureClasses[resolvedFutureClassCount++] = newCls;
}
}
}
_getObjc2ClassList 从可执行文件machO中获取类列表，对类进行处理。进入readClass方法查看源码实现：
为了便于研究，我们可以对
cls进行过滤，过滤出我们要研究的类LGPerson。在此流程中会通过cls->mangledName();获取类的名称。mangledName源码实现如下：
const char *nonlazyMangledName() const {
return bits.safe_ro()->getName();
}
// 如果已经初始化 - 从ro取，否则从machO 数据中读取数据
const class_ro_t *safe_ro() const {
class_rw_t *maybe_rw = data();
if (maybe_rw->flags & RW_REALIZED) {
// maybe_rw is rw
return maybe_rw->ro();
} else {
// maybe_rw is actually ro
return (class_ro_t *)maybe_rw;
}
}
const char *getName() const {
return name.load(std::memory_order_acquire);
}
如果类已经实现，则从rw->ro中获取name；如果类没有实现，则从machO中获取的数据强转为ro再获取name。 继续跟踪代码，程序会运行到addNamedClass，通过该方法，将类名称添加到已命名的非元类映射。
static void addNamedClass(Class cls, const char *name, Class replacing = nil)
{
runtimeLock.assertLocked();
Class old;
if ((old = getClassExceptSomeSwift(name)) && old != replacing) {
inform_duplicate(name, old, cls);
// getMaybeUnrealizedNonMetaClass uses name lookups.
// Classes not found by name lookup must be in the
// secondary meta->nonmeta table.
addNonMetaClass(cls);
} else {
// 将名字插入到类对应的表中
NXMapInsert(gdb_objc_realized_classes, name, cls);
}
ASSERT(!(cls->data()->flags & RO_META));
// wrong: constructed classes are already realized when they get here
// ASSERT(!cls->isRealized());
}
即将名称更新到类对应的表中，而该表就是哈希表NXMapTable *gdb_objc_realized_classes;，可以理解为是一个查阅表，该表在[1. 条件控制，进行一次的加载]流程中已被创建。然后在调用addClassTableEntry，将类添加到内存中的类对应表中。 如果addMeta为true，也递归添加该类的元类。
static void
addClassTableEntry(Class cls, bool addMeta = true)
{
runtimeLock.assertLocked();
// This class is allowed to be a known class via the shared cache or via
// data segments, but it is not allowed to be in the dynamic table already.
auto &set = objc::allocatedClasses.get();
ASSERT(set.find(cls) == set.end());
if (!isKnownClass(cls))
set.insert(cls);
if (addMeta)
// 将类插入表中-递归
addClassTableEntry(cls->ISA(), false);
}
addClassTableEntry方法中的objc::allocatedClasses是不是很眼熟，没错在objc_init()中runtime_init()方法中出现过，allocatedClasses.init进行内存中类的表创建。

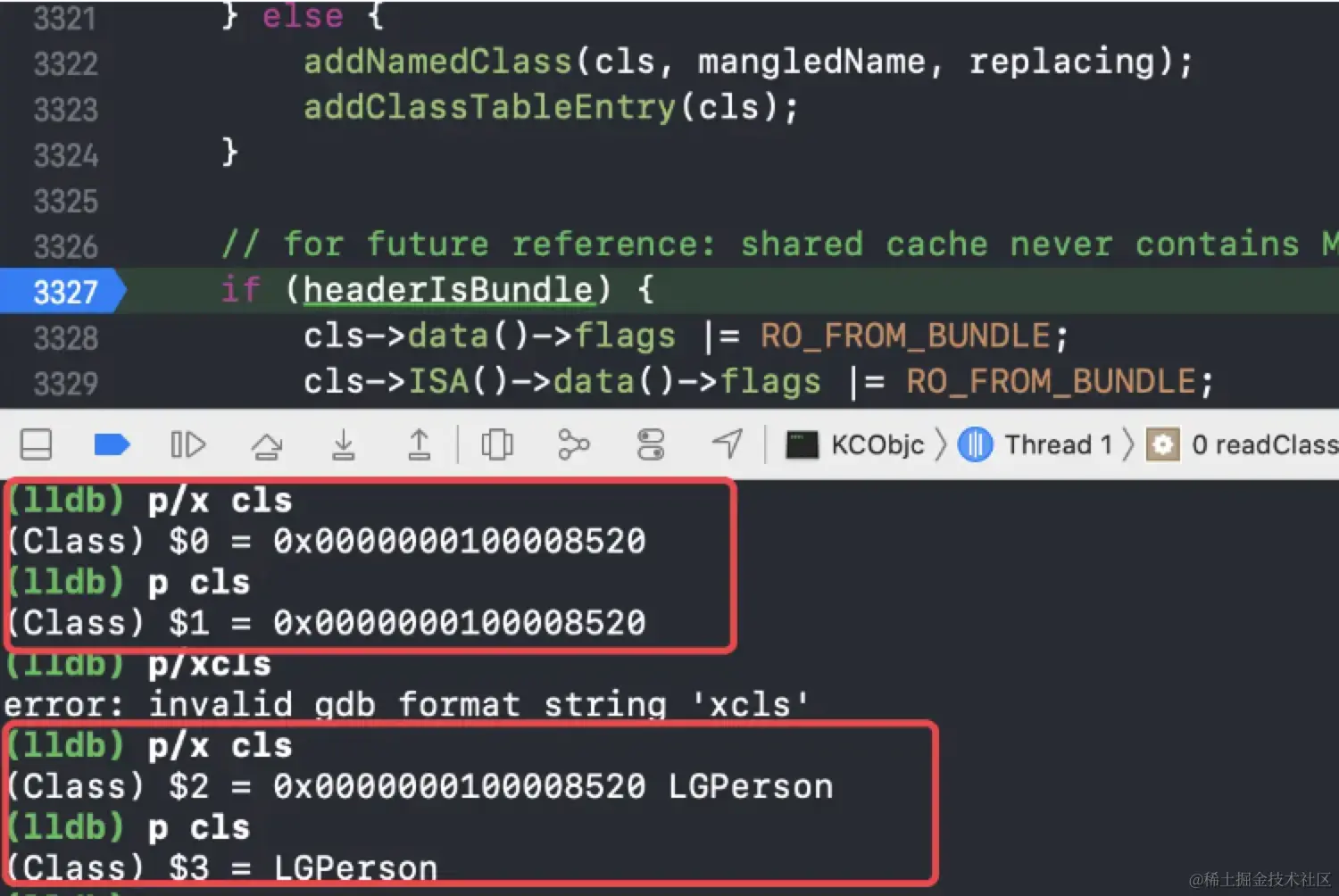

根据前面过滤的JhsPerson，跟进流程，打印类的信息。见下图：
根据
readClass运行结果，名称被添加到类信息中。
3.核心流程定位
通过上面的分析我们发现，第8步分类处理和第9步类的加载处理才涉及到类加载。并且采用LGPerson类名称过滤：
const char *mangledName = cls->nonlazyMangledName();
if (strcmp(mangledName, "LGPerson") == 0)
{
printf("LGPerson....");
}

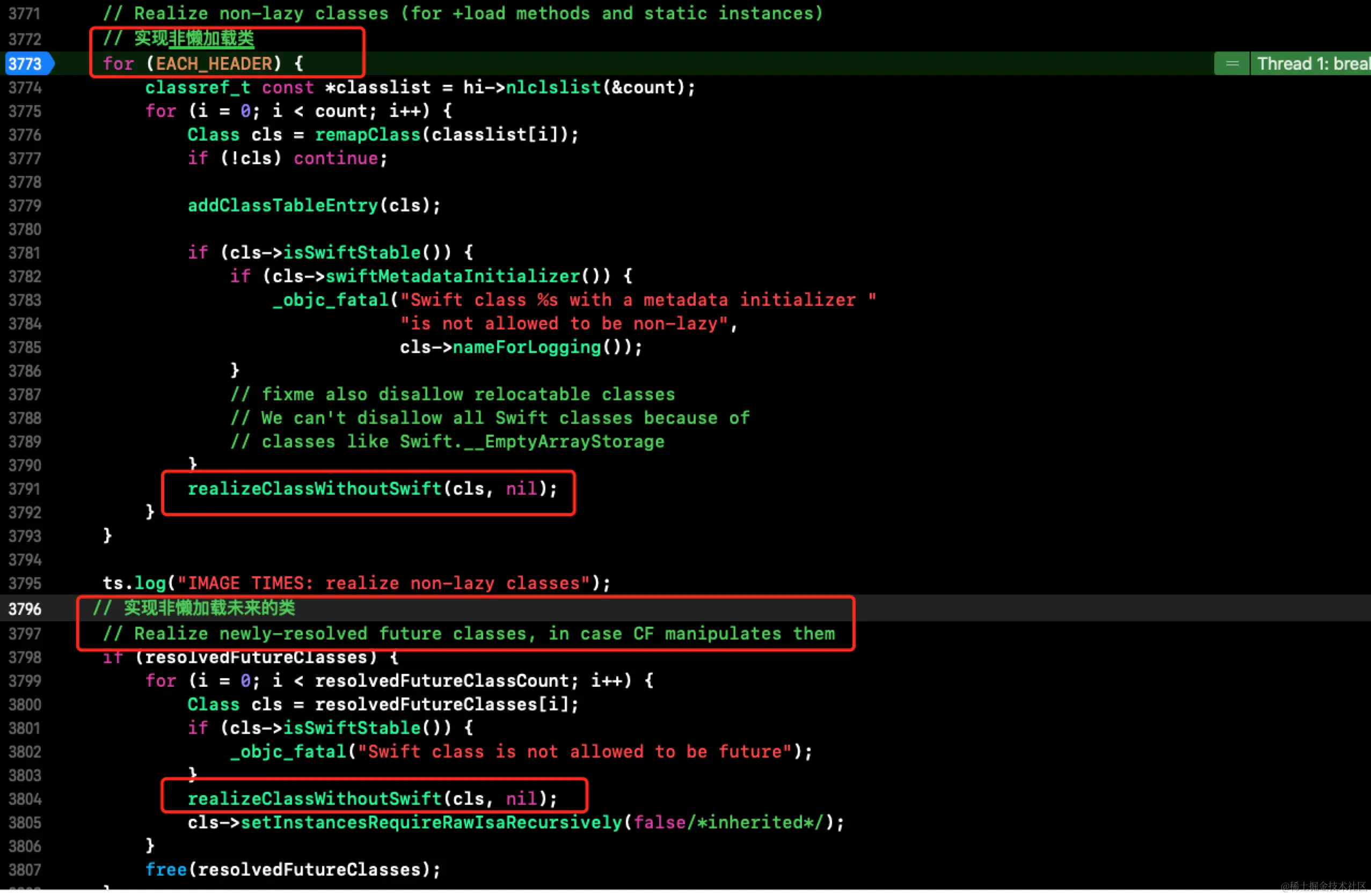

跟踪断点发现，一些修复的流程根本不会进入。继续跟踪代码，当运行到如下代码时，发现一些关键的注释，比如对非懒加载的类和未来类进行初始化。见下图：

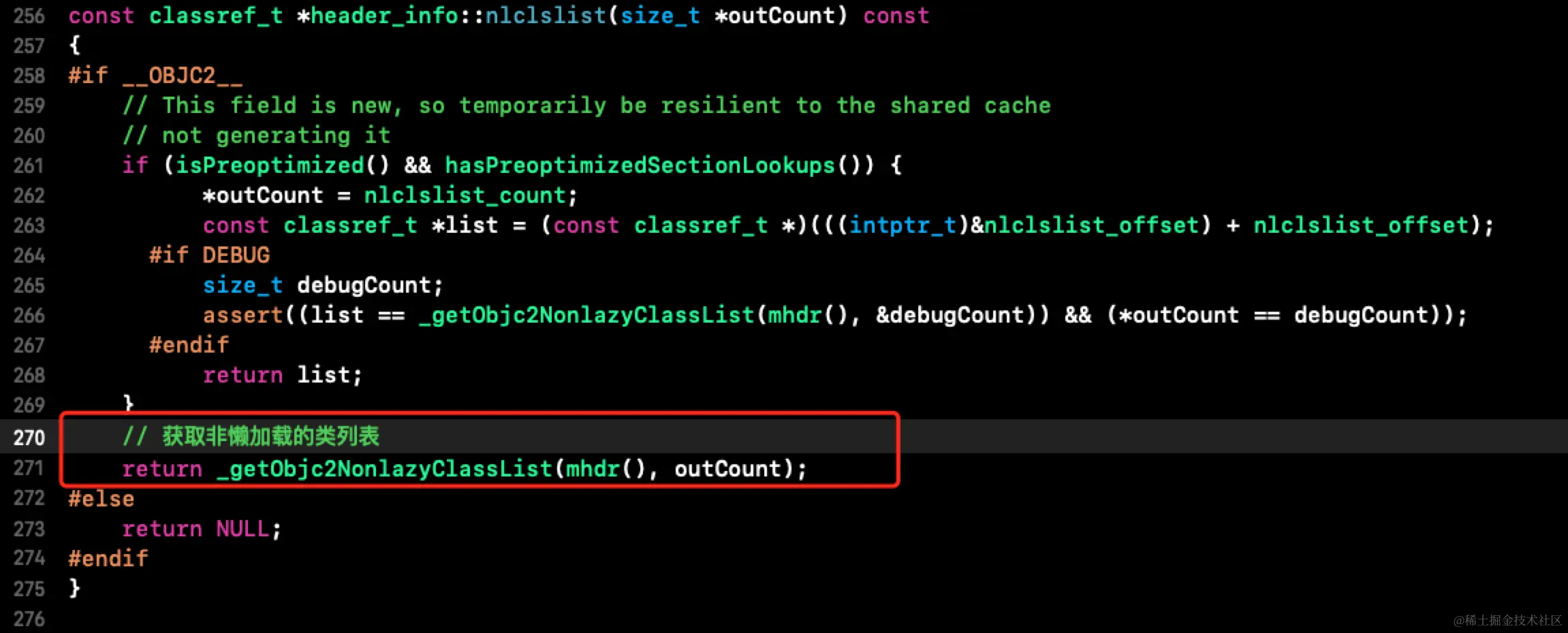

继续运行代码，很遗憾，没有进入到realizeClassWithoutSwift流程中，查看hi->nlclslist(&count)源码实现：

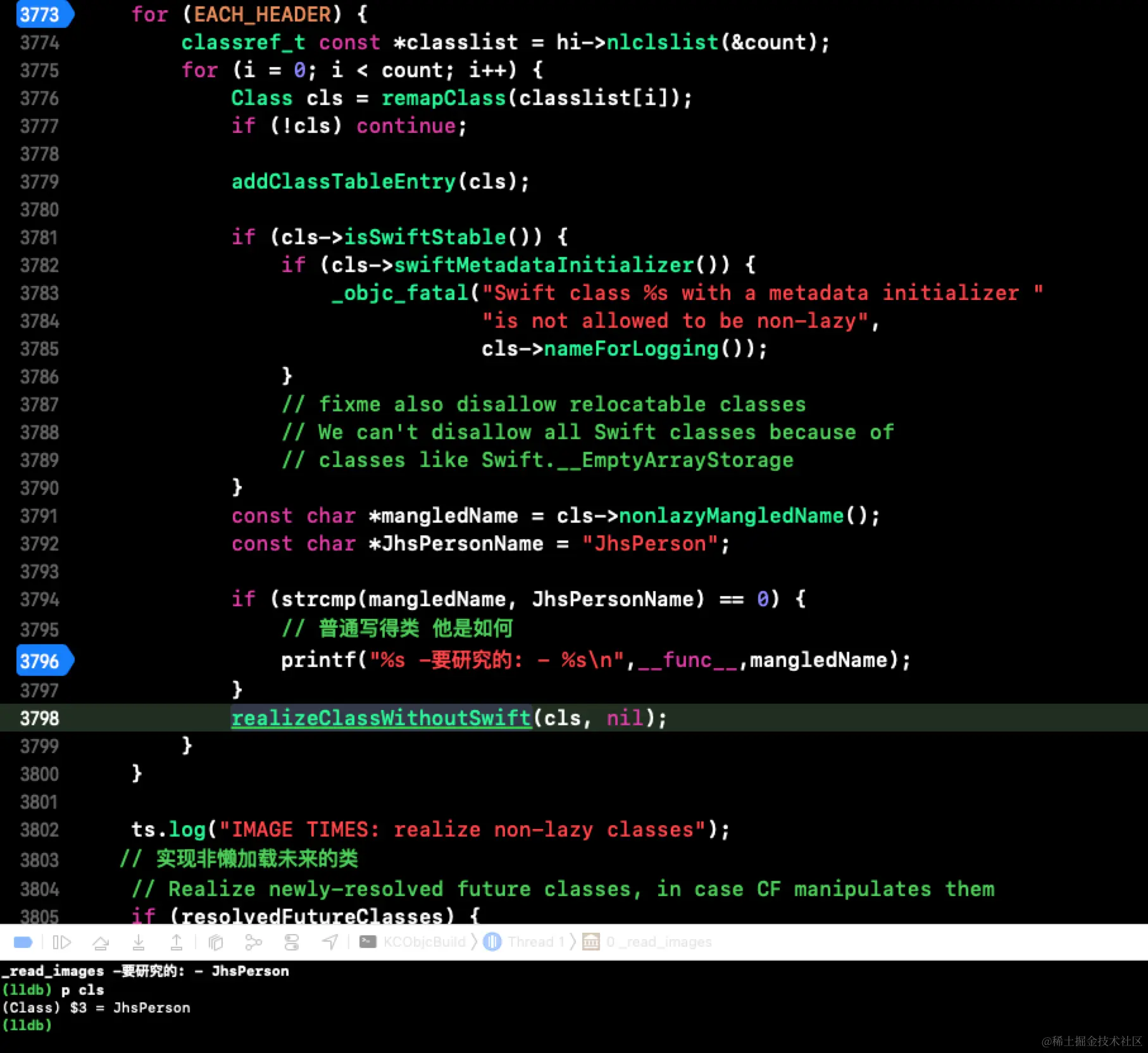

获取非懒加载的类列表，何为非懒加载？没错实现+load方法！我们在JhsPerson中添加load方法。重新运行并过滤JhsPerson类！见下图：

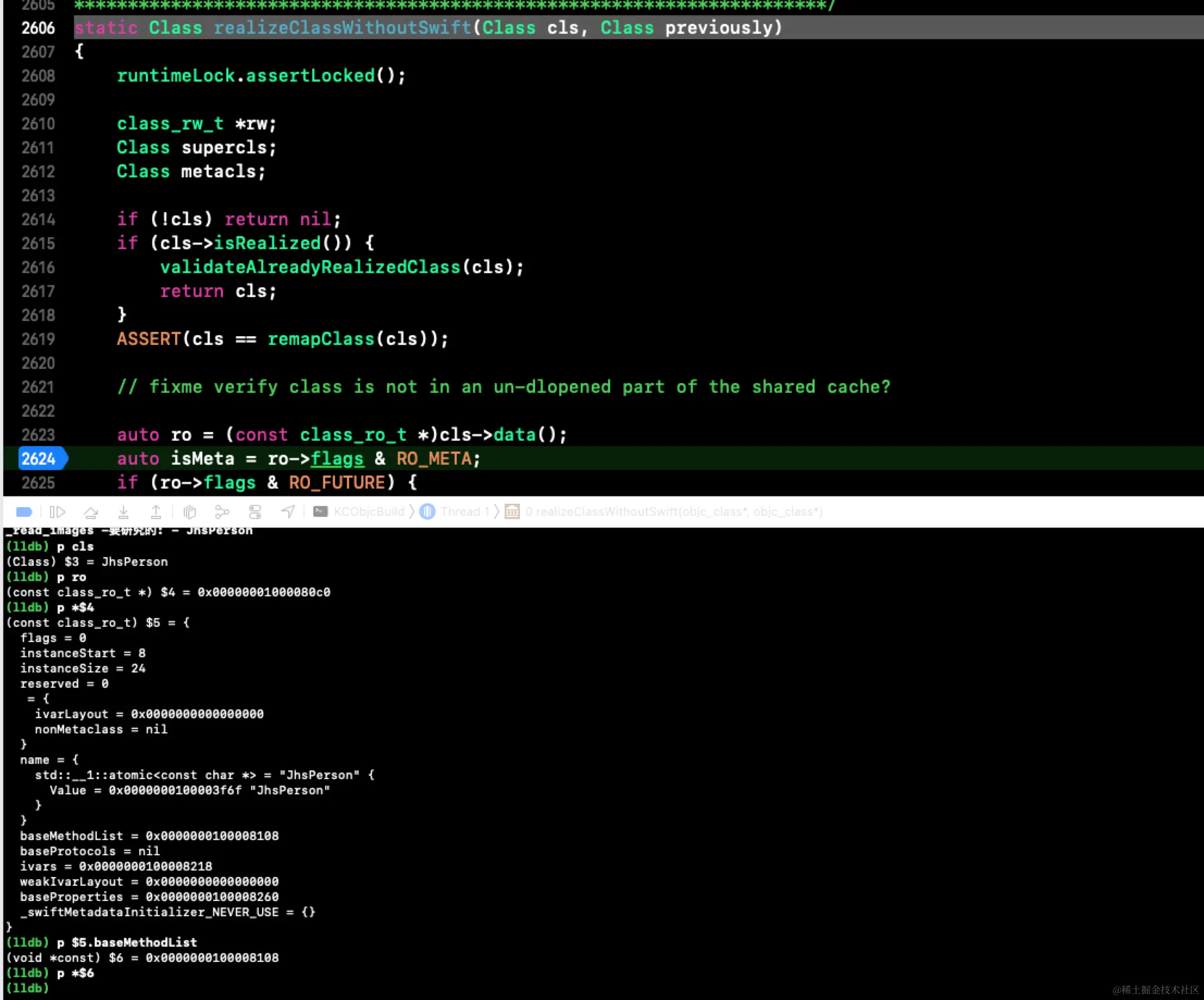

并且此时打印cls的ro数据，是无法获取的，无法实现结果变量：无法读取其内存。
很显然，realizeClassWithoutSwift才是我们的研究重点！
