本节目标

• 为什么要用 bloc
• bloc vs provider
• 学习路线推荐
• 安装 bloc vscode 插件
• 配置 bloc 依赖包
• 编写计算器示例

视频

www.bilibili.com/video/BV1ef…

代码

github.com/ducafecat/f…

正文

为什么要用 bloc

• 状态管理（这是必须的）

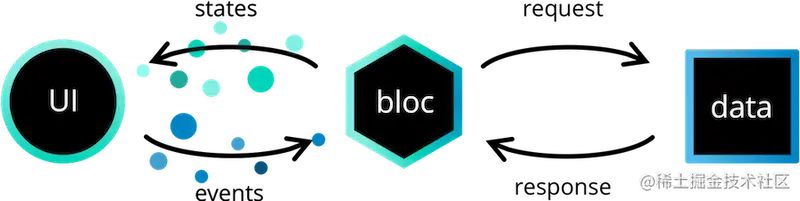

• 三层分离

  • 表现层（Presentation)
  • 业务逻辑（Business Logic)
  • 数据层（Data)
    • 数据源/库（Repository)
    • 数据提供者（Data Provider)

• 规范组内开发

• 方便的 测试、记录 用户行为

class SimpleBlocDelegate extends BlocDelegate {
  @override
  void onEvent(Bloc bloc, Object event) {
    super.onEvent(bloc, event);
    print('${bloc.runtimeType} $event');

    // 所有的UI事件
    // 可用 umeng 这样平台 进行跟踪
  }

  @override
  void onError(Bloc bloc, Object error, StackTrace stacktrace) {
    super.onError(bloc, error, stacktrace);
    print('${bloc.runtimeType} $error');

    // 所有发生的错误
    // 用 sentry 记录错误
  }

  @override
  void onTransition(Bloc bloc, Transition transition) {
    super.onTransition(bloc, transition);
    print(transition);

    // 所有的 State 变化
  }
}

bloc vs provider

• bloc 是一种 mvvm 基于 事件、状态 驱动的

• provider 是基于方法的

bloc 学习路线

• Flutter Bloc 快速上手 -> Stream -> Cubit -> Bloc

• 理解基于 mvvm 组件化拆分

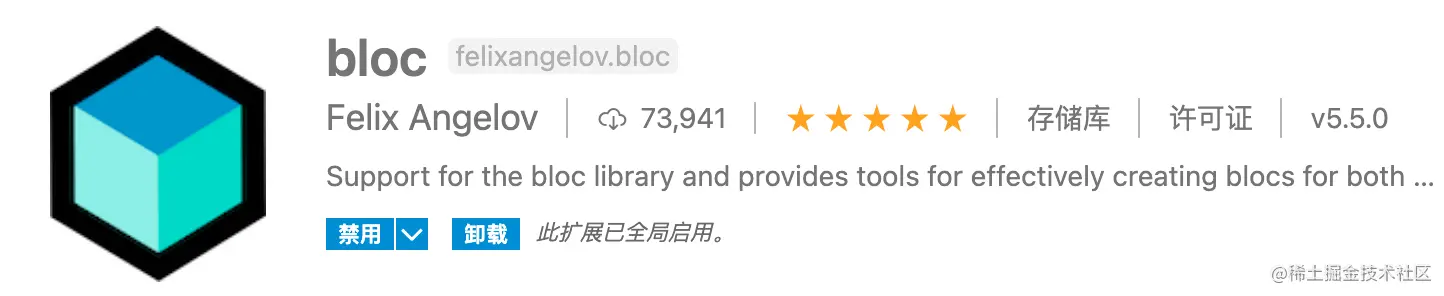

安装 bloc vscode 插件

bloc

创建项目

• pubspec.yaml

name: ducafecat_bloc_start_example
...
dependencies:
  ...

  bloc: ^6.1.0
  flutter_bloc: ^6.1.0
  equatable: ^1.2.5

• 目录结构

counter 计算器业务下创建 bloc view 目录，这样就分离了

编写 bloc

• lib/counter/bloc/counter_bloc.dart

import 'dart:async';

import 'package:bloc/bloc.dart';
import 'package:equatable/equatable.dart';
import 'package:meta/meta.dart';

part 'counter_event.dart';
part 'counter_state.dart';

class CounterBloc extends Bloc<CounterEvent, CounterState> {
  CounterBloc() : super(CounterInitial(0));

  int counterNum = 0;

  @override
  Stream<CounterState> mapEventToState(
    CounterEvent event,
  ) async* {
    if (event is CounterIncrement) {
      yield* _mapIncrementEventToState(event);
    } else if (event is CounterSubduction) {
      yield* _mapSubductionEventToState(event);
    }
  }

  Stream<CounterState> _mapIncrementEventToState(
      CounterIncrement event) async* {
    this.counterNum += 1;
    yield CounterChange(this.counterNum);
  }

  Stream<CounterState> _mapSubductionEventToState(
      CounterSubduction event) async* {
    this.counterNum -= 1;
    yield CounterChange(this.counterNum);
  }
}

• lib/counter/bloc/counter_event.dart

part of 'counter_bloc.dart';

@immutable
abstract class CounterEvent extends Equatable {
  @override
  List<Object> get props => [];
}

class CounterIncrement extends CounterEvent {}

class CounterSubduction extends CounterEvent {}

• lib/counter/bloc/counter_state.dart

part of 'counter_bloc.dart';

@immutable
abstract class CounterState extends Equatable {
  final int value;

  const CounterState(this.value);

  @override
  List<Object> get props => [value];
}

class CounterInitial extends CounterState {
  CounterInitial(int value) : super(value);
}

class CounterChange extends CounterState {
  CounterChange(int value) : super(value);
}

编写 view

• lib/counter/view/page.dart

import 'package:ducafecat_bloc_start_example/counter/bloc/counter_bloc.dart';
import 'package:ducafecat_bloc_start_example/counter/view/view.dart';
import 'package:flutter/material.dart';
import 'package:flutter_bloc/flutter_bloc.dart';

class CounterPage extends StatelessWidget {
  const CounterPage({Key key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return BlocProvider(
      create: (context) => CounterBloc(),
      child: CounterView(),
    );
  }
}

• lib/counter/view/view.dart

import 'package:ducafecat_bloc_start_example/counter/bloc/counter_bloc.dart';
import 'package:flutter/material.dart';
import 'package:flutter_bloc/flutter_bloc.dart';

class CounterView extends StatelessWidget {
  const CounterView({Key key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: Text('Counter')),
      body: Center(
        child: Column(
          children: [
            BlocBuilder<CounterBloc, CounterState>(
              builder: (context, state) {
                return Text('${state.value}');
              },
            ),
            RaisedButton(
              child: Text('加法'),
              onPressed: () {
                BlocProvider.of<CounterBloc>(context).add(CounterIncrement());
              },
            ),
            RaisedButton(
              child: Text('加法'),
              onPressed: () {
                BlocProvider.of<CounterBloc>(context).add(CounterSubduction());
              },
            )
          ],
        ),
      ),
    );
  }
}

替换主程序 widget

• lib/main.dart

class MyApp extends StatelessWidget {
  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      ...
      home: CounterPage(), //MyHomePage(title: 'Flutter Demo Home Page'),
    );
  }
}

参考

• bloclibrary.dev/
• pub.flutter-io.cn/packages/bl…
• pub.flutter-io.cn/packages/fl…
• pub.flutter-io.cn/packages/eq…
• pub.flutter-io.cn/packages/pr…

---
