Spring流程Debug

1.1 Spring测试环境搭建

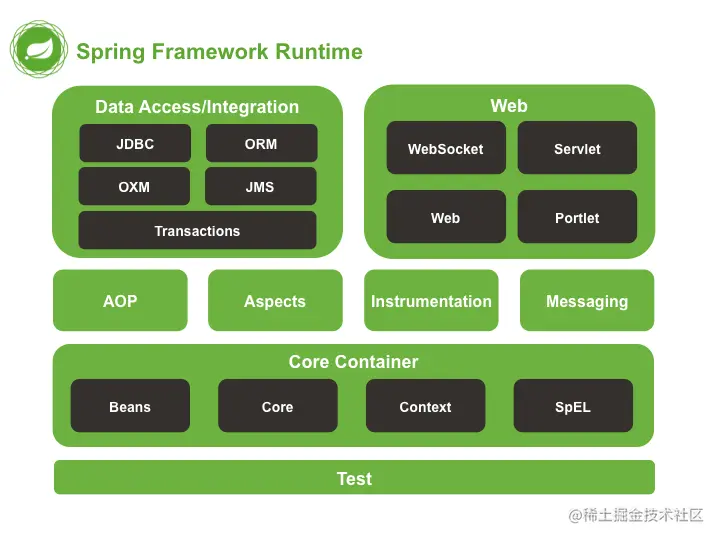

Spring模块概览，绿色是模块，Spring中八大模块，黑色表示该模块包含的jar包（组件）。例如我们想要用IOC容器，也就是绿色的CoreContainer，我们需要导入Beans，Core,Context,SpEL（spring-expression）四个包。Java2021最新面试题

• Test：测试相关
• Core Container：IOC容器
• AOP：面向切面编程
• Aspects：切面
• Instrumenttation：跟JDK关联，一般不用
• Messaging：消息服务，一般不用
• Data Access/Integration：数据访问与集成（JDBC访问，Transaction事务，ORM对象关系映射，OXM和XML映射一般不用，JMS为Java消息服务Java-message-service一般不用）
• Web：Web服务（WebSocket网络通信协议，Servlet, Web，Portlet一般不用）

最偷懒的方式，是直接导入Spring-Framework。但是可能导入不必要的包，导致项目打包后比较大

由于Spring-Content中的ApplicationContent是整个IOC的入口。我们导入Spring-context包即可

<!-- https://mvnrepository.com/artifact/org.springframework/spring-context -->
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>5.2.3.RELEASE</version>
</dependency>

我们导入spring-content后，默认会导入该组件的依赖jar，spring-content底层的依赖可以看到，实际上我们是导入了Core Container模块：

  <dependencies>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>5.2.3.RELEASE</version>
      <scope>compile</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-beans</artifactId>
      <version>5.2.3.RELEASE</version>
      <scope>compile</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>5.2.3.RELEASE</version>
      <scope>compile</scope>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-expression</artifactId>
      <version>5.2.3.RELEASE</version>
      <scope>compile</scope>
    </dependency>
  </dependencies>

新建Spring配置文件spring.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

    <!--注册一个对象，spring回自动创建这个对象-->
    <!--
    一个bean标签就表示一个对象
    id:这个对象的唯一标识
    class:注册对象的完全限定名
    -->
    <bean id="hello" class="com.xiaodai.service.Hello">
        <!--使用property标签给对象的属性赋值
        name:表示属性的名称
        value：表示属性的值
        -->
        <property name="id" value="1"></property>
        <property name="name" value="zhangsan"></property>
        <property name="age" value="18"></property>
    </bean>
</beans>

编写测试类：

import com.xiaodai.service.Hello;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class Test {

    public static void main(String[] args) {
        ApplicationContext applicationContext = new ClassPathXmlApplicationContext("spring.xml");
        Hello hello = applicationContext.getBean("hello", Hello.class);
        System.out.println(hello.getName());

    }

}

1.2 Debug容器创建过程

从测试类的new ClassPathXmlApplicationContext("spring.xml")开始debug，进入ClassPathXmlApplicationContext，可以看到:

	public ClassPathXmlApplicationContext(
			String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
			throws BeansException {

		super(parent);
		// 设置配置文件路径
		setConfigLocations(configLocations);
		if (refresh) {
		        // 核心步骤
			refresh();
		}
	}

加载配置文件后，进入refresh()方法，该方法是容器初始化的核心步骤。该方法包含十三个方法：

        @Override
	public void refresh() throws BeansException, IllegalStateException {
		synchronized (this.startupShutdownMonitor) {
			// Prepare this context for refreshing.
			/**
			 * 准备刷新，做一些最基本的准备化工作
			**/
			prepareRefresh();

			// Tell the subclass to refresh the internal bean factory.
			/**
			 * 获得一个刷新的bean容器，实质就是获取工厂。
			 * 加载xml等配置文件，用该文件产生的BeanDefinition来创建一个工厂
			**/
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// Prepare the bean factory for use in this context.
			/**
			 * 准备bean工厂
			**/
			prepareBeanFactory(beanFactory);

			try {
				// Allows post-processing of the bean factory in context subclasses.
				// 后置增强，方便扩展
				postProcessBeanFactory(beanFactory);

				// Invoke factory processors registered as beans in the context.
				// 实例化并且执行BeanFactoryPostProcessors
				invokeBeanFactoryPostProcessors(beanFactory);

				// Register bean processors that intercept bean creation.
				// 实例化并且注册所有的BeanPostProcessor
				registerBeanPostProcessors(beanFactory);

				// Initialize message source for this context.
				// 国际化设置，一般用不到
				initMessageSource();

				// Initialize event multicaster for this context.
				// 初始化应用程序的多波器和广播器
				initApplicationEventMulticaster();

				// Initialize other special beans in specific context subclasses.
				// 空方法，预留给子类做扩展
				onRefresh();

				// Check for listener beans and register them.
				// 注册监听器
				registerListeners();

				// Instantiate all remaining (non-lazy-init) singletons.
				// 工作中常用，面试常问。实例化所有非懒加载的实例对象
				finishBeanFactoryInitialization(beanFactory);

				// Last step: publish corresponding event.
				// 完成刷新
				finishRefresh();
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
			}
		}
	}

1.3 AbstractApplicationContext的refresh()包含的13个方法分析

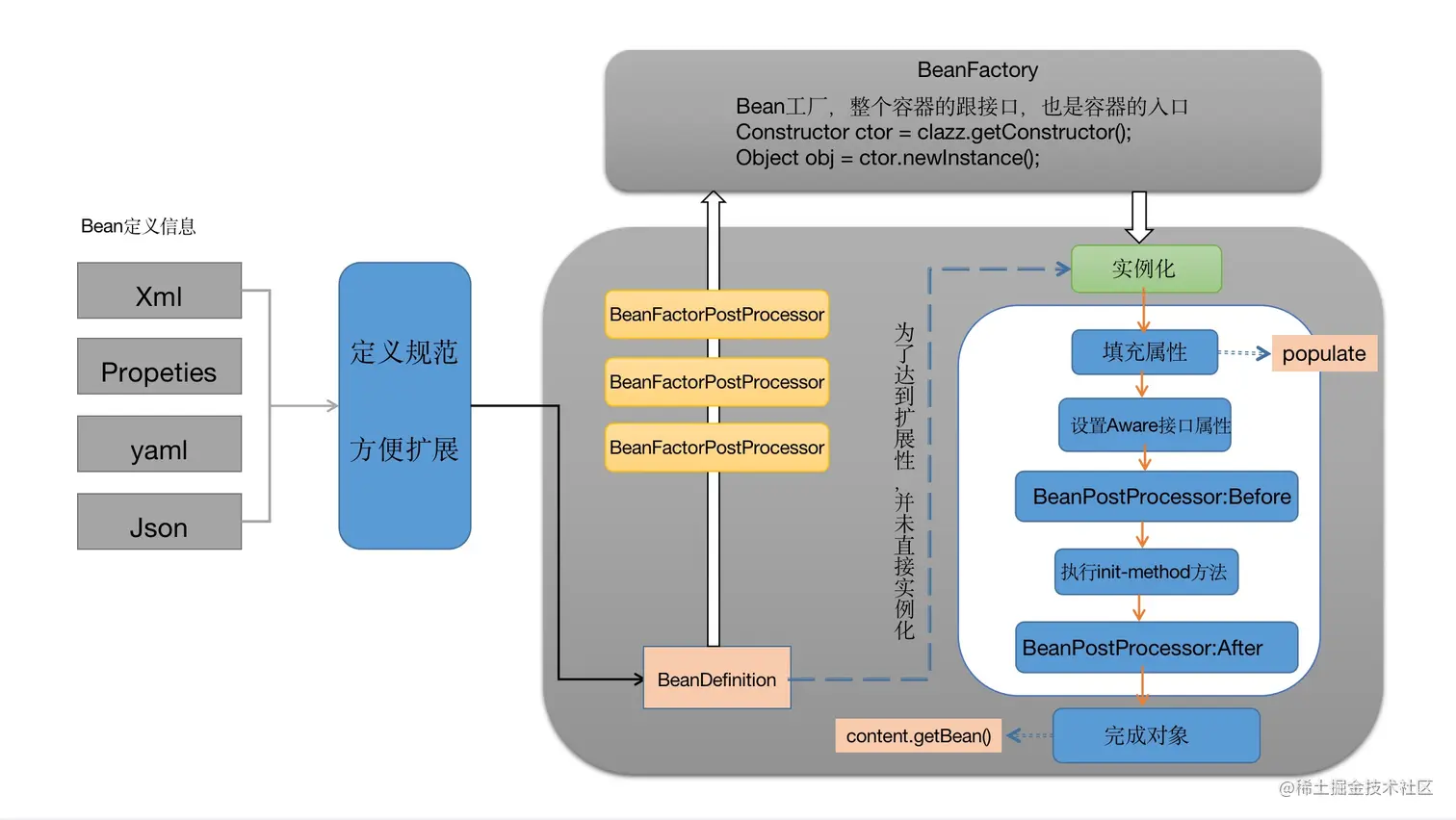

结合概览图一个一个方法分析：

方法1：prepareRefresh() => 准备工作

准备刷新，做一些最基本的准备化工作

	protected void prepareRefresh() {
		// Switch to active.
		// 设置开始时间
		this.startupDate = System.currentTimeMillis();
		// 关闭状态设置为false
		this.closed.set(false);
		// 活跃状态设置为true
		this.active.set(true);

        // 打印日志
		if (logger.isDebugEnabled()) {
			if (logger.isTraceEnabled()) {
				logger.trace("Refreshing " + this);
			}
			else {
				logger.debug("Refreshing " + getDisplayName());
			}
		}

		// Initialize any placeholder property sources in the context environment.
		// 初始化属性资源
		initPropertySources();

		// Validate that all properties marked as required are resolvable:
		// see ConfigurablePropertyResolver#setRequiredProperties
		// 获取环境信息，验证属性信息
		getEnvironment().validateRequiredProperties();

		// Store pre-refresh
		// 存储预刷新的一些应用信息的监听器
		ApplicationListeners...
		if (this.earlyApplicationListeners == null) {
			this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
		}
		else {
			// Reset local application listeners to pre-refresh state.
			this.applicationListeners.clear();
			this.applicationListeners.addAll(this.earlyApplicationListeners);
		}

		// Allow for the collection of early ApplicationEvents,
		// to be published once the multicaster is available...
		// 创建一些监听器事件的集合
		this.earlyApplicationEvents = new LinkedHashSet<>();
	}

总结：1.设置启动事件 2.设置关闭活跃的状态 3.获取环境对象并设置属性值 4.设置监听器以及需要发布事件的集合

重要的点：

• 获取环境信息，验证属性信息，getEnvironment().validateRequiredProperties();
• 存储预刷新的一些应用信息的监听器，在Spring中是空实现，但是SpringBoot中，是有具体的值的

方法2：obtainFreshBeanFactory() => 获得一个刷新的bean容器

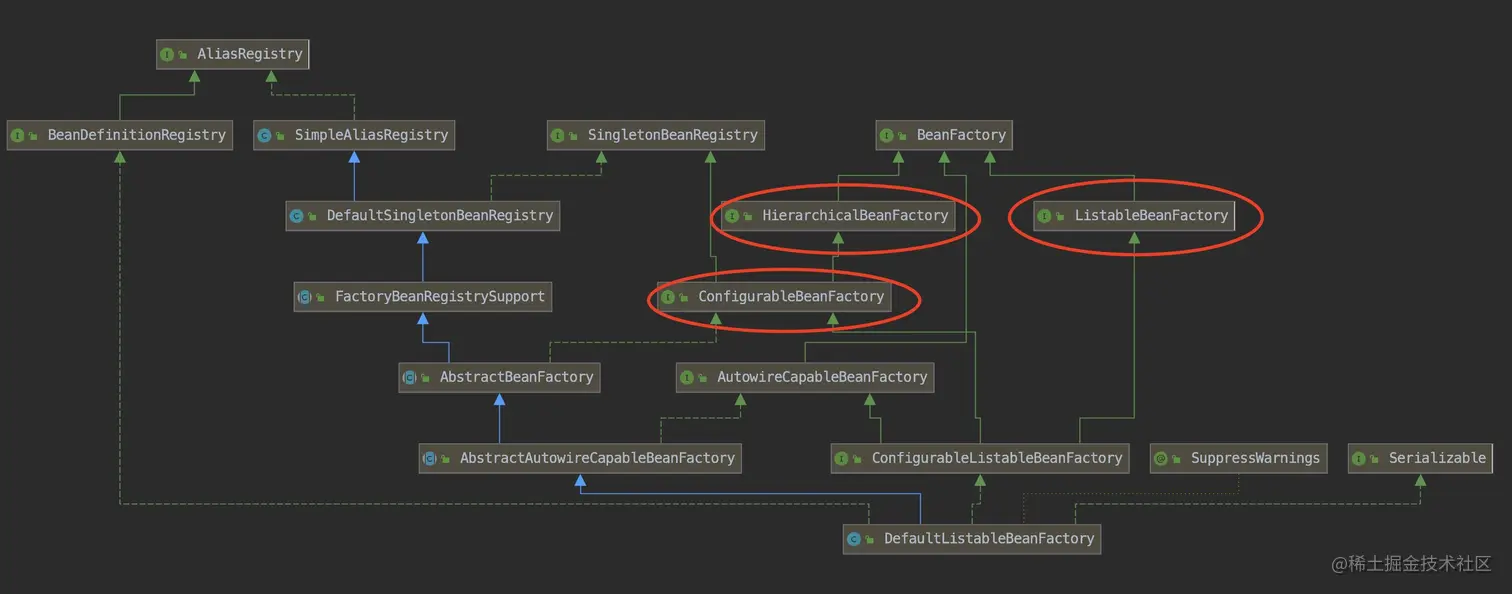

获得一个刷新的bean容器，实质就是获取工厂。创建容器对象DefaultListableBeanFactory;加载xml配置文件的属性到当前的工厂中，最重要的就是BeanDefinition

AbstractRefreshableApplicationContext:

    // 只要进到这个方法，那么我们创建的一定是一个新的工厂
	@Override
	protected final void refreshBeanFactory() throws BeansException {
		if (hasBeanFactory()) {
		    // 如果存在先销毁，后关闭
			destroyBeans();
			closeBeanFactory();
		}
		try {
		    // 创建bean工厂，这里使用的就是DefaultListableBeanFactory。此时创建的工厂里面的属性值都是默认值
			DefaultListableBeanFactory beanFactory = createBeanFactory();
			// 序列化id
			beanFactory.setSerializationId(getId());
			// 设置一些属性值
			customizeBeanFactory(beanFactory);
			// 加载bean的定义属性值。该方法有很多重载，非常复杂，核心是do操作
			// 完成配置文件或者配置类文件的加载
			loadBeanDefinitions(beanFactory);
			synchronized (this.beanFactoryMonitor) {
				this.beanFactory = beanFactory;
			}
		}
		catch (IOException ex) {
			throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
		}
	}

方法3：prepareBeanFactory(beanFactory) => 准备（初始化）Bean工厂

为方法2拿到的工厂，设置某些具体的值

	protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
		// Tell the internal bean factory to use the context's class loader etc.
		// 为bean工厂设置类加载器
		beanFactory.setBeanClassLoader(getClassLoader());
		// 设置SPEL解析器
		beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
		beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

		// Configure the bean factory with context callbacks.
		// 添加一个BeanPostProcessor
		beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
		// 忽略对应接口的实现
		beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
		beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
		beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
		beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
		beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
		beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);

		// BeanFactory interface not registered as resolvable type in a plain factory.
		// MessageSource registered (and found for autowiring) as a bean.
        // 注册一些依赖
		beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
		beanFactory.registerResolvableDependency(ResourceLoader.class, this);
		beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
		beanFactory.registerResolvableDependency(ApplicationContext.class, this);

		// Register early post-processor for detecting inner beans as
		// ApplicationListeners添加一个BeanPostProcessor增强器
		ApplicationListeners.
		beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));

		// Detect a LoadTimeWeaver and prepare for weaving, if found.
		if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
			beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
			// Set a temporary ClassLoader for type matching.
			beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
		}

		// Register default environment beans.
		if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
			beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
		}
		if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
			beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
		}
		if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
			beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
		}
	}

方法4：postProcessBeanFactory(beanFactory) => 后置增强Bean(扩展实现)

空方法，方便扩展

方法5：invokeBeanFactoryPostProcessors(beanFactory) => 执行BFPP

实例化并且执行BeanFactoryPostProcessors

	/**
	 * Instantiate and invoke all registered BeanFactoryPostProcessor beans,
	 * respecting explicit order if given.
	 * <p>Must be called before singleton instantiation.
	 * 单例对象之前一定调用，因为单例bean创建后就只有一份
	 */
	protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
		PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

		// Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
		// (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
		if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
			beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
			beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
		}
	}

方法6：registerBeanPostProcessors(beanFactory) => 注册BPP

实例化并且注册所有的BeanPostProcessor。实例化Bean之前的准备工作

	/**
	 * Instantiate and register all BeanPostProcessor beans,
	 * respecting explicit order if given.
	 * <p>Must be called before any instantiation of application beans.
	 */
	protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {
		PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
	}

方法7：initMessageSource() => 国际化设置

方法8：initApplicationEventMulticaster() => 初始化应用程序的多波器和广播器

也属于准备工作

方法9：onRefresh() => 预留给子类做扩展

空方法

方法10：registerListeners() => 注册监听器

也属于准备工作

	/**
	 * Add beans that implement ApplicationListener as listeners.
	 * Doesn't affect other listeners, which can be added without being beans.
	 */
	protected void registerListeners() {
		// Register statically specified listeners first.
		for (ApplicationListener<?> listener : getApplicationListeners()) {
			getApplicationEventMulticaster().addApplicationListener(listener);
		}

		// Do not initialize FactoryBeans here: We need to leave all regular beans
		// uninitialized to let post-processors apply to them!
		String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
		for (String listenerBeanName : listenerBeanNames) {
			getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
		}

		// Publish early application events now that we finally have a multicaster...
		Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
		this.earlyApplicationEvents = null;
		if (earlyEventsToProcess != null) {
			for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
				getApplicationEventMulticaster().multicastEvent(earlyEvent);
			}
		}
	}

方法11：finishBeanFactoryInitialization(beanFactory) => 实例化所有单例对象

面试常问，工作常用。过程比较复杂

	/**
	 * Finish the initialization of this context's bean factory,
	 * initializing all remaining singleton beans.
	 */
	protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
		// Initialize conversion service for this context.
		/**
		 * 把类型转化操作，设置到当前的beanFactory里面去
		**/
		if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
				beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
			beanFactory.setConversionService(
					beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
		}

		// Register a default embedded value resolver if no bean post-processor
		// (such as a PropertyPlaceholderConfigurer bean) registered any before:
		// at this point, primarily for resolution in annotation attribute values.
		/**
		 * 判断当前的beanFactory有没有内置的值处理器
		**/
		if (!beanFactory.hasEmbeddedValueResolver()) {
			beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
		}

		// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
		/**
		 * 织入Aware
		**/
		String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
		for (String weaverAwareName : weaverAwareNames) {
			getBean(weaverAwareName);
		}

		// Stop using the temporary ClassLoader for type matching.
		// 设置类加载器
		beanFactory.setTempClassLoader(null);

		// Allow for caching all bean definition metadata, not expecting further changes.
		/**
		 * 冻结：某些bean不需要进行修改操作了，放入
		**/
		beanFactory.freezeConfiguration();

		// Instantiate all remaining (non-lazy-init) singletons.
		/**
		 * 实例化所有非懒加载的实例对象(重要)
		**/
		beanFactory.preInstantiateSingletons();
	}

实例化所有非懒加载的实例对象方法：

	@Override
	public void preInstantiateSingletons() throws BeansException {
		if (logger.isTraceEnabled()) {
			logger.trace("Pre-instantiating singletons in " + this);
		}

		// Iterate over a copy to allow for init methods which in turn register new bean definitions.
		// While this may not be part of the regular factory bootstrap, it does otherwise work fine.
		/**
		 * 拿到所有注册bean的名称
		 **/
		List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);

		// Trigger initialization of all non-lazy singleton beans...
		// 循环去创建我们需要的单例对象
		for (String beanName : beanNames) {
		    // 拿到bean的定义信息，就是我们在xml配置文件里面指定的一些属性
			RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
			// 是否是抽象的，是否是单例的，是否是懒加载的
			if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
			    // 判断当前类是否实现了factoryBean接口。一般没实现，直接进入下面的getBean
				if (isFactoryBean(beanName)) {
					Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
					if (bean instanceof FactoryBean) {
						final FactoryBean<?> factory = (FactoryBean<?>) bean;
						boolean isEagerInit;
						if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
							isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>)
											((SmartFactoryBean<?>) factory)::isEagerInit,
									getAccessControlContext());
						}
						else {
							isEagerInit = (factory instanceof SmartFactoryBean &&
									((SmartFactoryBean<?>) factory).isEagerInit());
						}
						if (isEagerInit) {
							getBean(beanName);
						}
					}
				}
				else {
				    // 通过beanName。拿到bean
					getBean(beanName);
				}
			}
		}

		// Trigger post-initialization callback for all applicable beans...
		for (String beanName : beanNames) {
			Object singletonInstance = getSingleton(beanName);
			if (singletonInstance instanceof SmartInitializingSingleton) {
				final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
				if (System.getSecurityManager() != null) {
					AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
						smartSingleton.afterSingletonsInstantiated();
						return null;
					}, getAccessControlContext());
				}
				else {
					smartSingleton.afterSingletonsInstantiated();
				}
			}
		}
	}

重要方法：

• getMergedLocalBeanDefinition

  /**
   * Return a merged RootBeanDefinition, traversing the parent bean definition
   * if the specified bean corresponds to a child bean definition.
   * @param beanName the name of the bean to retrieve the merged definition for
   * @return a (potentially merged) RootBeanDefinition for the given bean
   * @throws NoSuchBeanDefinitionException if there is no bean with the given name
   * @throws BeanDefinitionStoreException in case of an invalid bean definition
   */
   // 返回一个合并好的RootBeanDefinition。整合子类和父类
  protected RootBeanDefinition getMergedLocalBeanDefinition(String beanName) throws BeansException {
  	// Quick check on the concurrent map first, with minimal locking.
  	RootBeanDefinition mbd = this.mergedBeanDefinitions.get(beanName);
  	if (mbd != null && !mbd.stale) {
  		return mbd;
  	}
  	return getMergedBeanDefinition(beanName, getBeanDefinition(beanName));
  }


• getBean() => doGetBean()

  /**
   * Return an instance, which may be shared or independent, of the specified bean.
   * @param name the name of the bean to retrieve
   * @param requiredType the required type of the bean to retrieve
   * @param args arguments to use when creating a bean instance using explicit arguments
   * (only applied when creating a new instance as opposed to retrieving an existing one)
   * @param typeCheckOnly whether the instance is obtained for a type check,
   * not for actual use
   * @return an instance of the bean
   * @throws BeansException if the bean could not be created
   */
  @SuppressWarnings("unchecked")
  protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
  		@Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {

      // 获取beanName
  	final String beanName = transformedBeanName(name);
  	Object bean;

  	// Eagerly check singleton cache for manually registered singletons.
  	// 单例检查，如果一级，二级，三级缓存中存在该Bean,直接获取到了
  	Object sharedInstance = getSingleton(beanName);
  	if (sharedInstance != null && args == null) {
  		if (logger.isTraceEnabled()) {
  			if (isSingletonCurrentlyInCreation(beanName)) {
  				logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
  						"' that is not fully initialized yet - a consequence of a circular reference");
  			}
  			else {
  				logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
  			}
  		}
  		bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
  	}

  	else {
  		// Fail if we're already creating this bean instance:
  		// We're assumably within a circular reference.
  		// 如果是单例对象的话，尝试解决循环依赖问题
  		if (isPrototypeCurrentlyInCreation(beanName)) {
  			throw new BeanCurrentlyInCreationException(beanName);
  		}

  		// Check if bean definition exists in this factory.
  		// 获取父类容器
  		BeanFactory parentBeanFactory = getParentBeanFactory();
  		if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
  			// Not found -> check parent.
  			String nameToLookup = originalBeanName(name);
  			if (parentBeanFactory instanceof AbstractBeanFactory) {
  				return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
  						nameToLookup, requiredType, args, typeCheckOnly);
  			}
  			else if (args != null) {
  				// Delegation to parent with explicit args.
  				return (T) parentBeanFactory.getBean(nameToLookup, args);
  			}
  			else if (requiredType != null) {
  				// No args -> delegate to standard getBean method.
  				return parentBeanFactory.getBean(nameToLookup, requiredType);
  			}
  			else {
  				return (T) parentBeanFactory.getBean(nameToLookup);
  			}
  		}

          // 标志位。如果不是类型检查，表示要创建bean,此处在集合中做一个记录
  		if (!typeCheckOnly) {
  			markBeanAsCreated(beanName);
  		}

  		try {
  		    // 获取beanDefinition
  			final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
  			// 检测beanDefinition
  			checkMergedBeanDefinition(mbd, beanName, args);

  			// Guarantee initialization of beans that the current bean depends on.
  			// 检查当前的bean是否有其他依赖的bean
  			String[] dependsOn = mbd.getDependsOn();
  			if (dependsOn != null) {
  			    // 如果有依赖的bean,我们要先递归解决其他依赖的bean
  				for (String dep : dependsOn) {
  					if (isDependent(beanName, dep)) {
  						throw new BeanCreationException(mbd.getResourceDescription(), beanName,
  								"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
  					}
  					registerDependentBean(dep, beanName);
  					try {
  						getBean(dep);
  					}
  					catch (NoSuchBeanDefinitionException ex) {
  						throw new BeanCreationException(mbd.getResourceDescription(), beanName,
  								"'" + beanName + "' depends on missing bean '" + dep + "'", ex);
  					}
  				}
  			}

  			// Create bean instance.
  			// 是否是单例的
  			if (mbd.isSingleton()) {
  				sharedInstance = getSingleton(beanName, () -> {
  					try {
  						return createBean(beanName, mbd, args);
  					}
  					catch (BeansException ex) {
  						// Explicitly remove instance from singleton cache: It might have been put there
  						// eagerly by the creation process, to allow for circular reference resolution.
  						// Also remove any beans that received a temporary reference to the bean.
  						destroySingleton(beanName);
  						throw ex;
  					}
  				});
  				bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
  			}

  			else if (mbd.isPrototype()) {
  				// It's a prototype -> create a new instance.
  				Object prototypeInstance = null;
  				try {
  					beforePrototypeCreation(beanName);
  					prototypeInstance = createBean(beanName, mbd, args);
  				}
  				finally {
  					afterPrototypeCreation(beanName);
  				}
  				bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
  			}

  			else {
  				String scopeName = mbd.getScope();
  				final Scope scope = this.scopes.get(scopeName);
  				if (scope == null) {
  					throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
  				}
  				try {
  					Object scopedInstance = scope.get(beanName, () -> {
  						beforePrototypeCreation(beanName);
  						try {
  							return createBean(beanName, mbd, args);
  						}
  						finally {
  							afterPrototypeCreation(beanName);
  						}
  					});
  					bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
  				}
  				catch (IllegalStateException ex) {
  					throw new BeanCreationException(beanName,
  							"Scope '" + scopeName + "' is not active for the current thread; consider " +
  							"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
  							ex);
  				}
  			}
  		}
  		catch (BeansException ex) {
  			cleanupAfterBeanCreationFailure(beanName);
  			throw ex;
  		}
  	}

  	// Check if required type matches the type of the actual bean instance.
  	if (requiredType != null && !requiredType.isInstance(bean)) {
  		try {
  			T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
  			if (convertedBean == null) {
  				throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
  			}
  			return convertedBean;
  		}
  		catch (TypeMismatchException ex) {
  			if (logger.isTraceEnabled()) {
  				logger.trace("Failed to convert bean '" + name + "' to required type '" +
  						ClassUtils.getQualifiedName(requiredType) + "'", ex);
  			}
  			throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
  		}
  	}
  	return (T) bean;
  }


• getSingleton

  /**
   * Return the (raw) singleton object registered under the given name,
   * creating and registering a new one if none registered yet.
   * @param beanName the name of the bean
   * @param singletonFactory the ObjectFactory to lazily create the singleton
   * with, if necessary
   * @return the registered singleton object
   */
  public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
  	Assert.notNull(beanName, "Bean name must not be null");
  	synchronized (this.singletonObjects) {
  		Object singletonObject = this.singletonObjects.get(beanName);
  		if (singletonObject == null) {
  			if (this.singletonsCurrentlyInDestruction) {
  				throw new BeanCreationNotAllowedException(beanName,
  						"Singleton bean creation not allowed while singletons of this factory are in destruction " +
  						"(Do not request a bean from a BeanFactory in a destroy method implementation!)");
  			}
  			if (logger.isDebugEnabled()) {
  				logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
  			}
  			beforeSingletonCreation(beanName);
  			boolean newSingleton = false;
  			boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
  			if (recordSuppressedExceptions) {
  				this.suppressedExceptions = new LinkedHashSet<>();
  			}
  			try {
  			    // 实际上就是调用了CreateBean
  				singletonObject = singletonFactory.getObject();
  				newSingleton = true;
  			}
  			catch (IllegalStateException ex) {
  				// Has the singleton object implicitly appeared in the meantime ->
  				// if yes, proceed with it since the exception indicates that state.
  				singletonObject = this.singletonObjects.get(beanName);
  				if (singletonObject == null) {
  					throw ex;
  				}
  			}
  			catch (BeanCreationException ex) {
  				if (recordSuppressedExceptions) {
  					for (Exception suppressedException : this.suppressedExceptions) {
  						ex.addRelatedCause(suppressedException);
  					}
  				}
  				throw ex;
  			}
  			finally {
  				if (recordSuppressedExceptions) {
  					this.suppressedExceptions = null;
  				}
  				afterSingletonCreation(beanName);
  			}
  			if (newSingleton) {
  				addSingleton(beanName, singletonObject);
  			}
  		}
  		return singletonObject;
  	}
  }


• doCreateBean => 通过上方法的singletonObject = singletonFactory.getObject();进入的

  /**
   * Actually create the specified bean. Pre-creation processing has already happened
   * at this point, e.g. checking {@code postProcessBeforeInstantiation} callbacks.
   * <p>Differentiates between default bean instantiation, use of a
   * factory method, and autowiring a constructor.
   * @param beanName the name of the bean
   * @param mbd the merged bean definition for the bean
   * @param args explicit arguments to use for constructor or factory method invocation
   * @return a new instance of the bean
   * @throws BeanCreationException if the bean could not be created
   * @see #instantiateBean
   * @see #instantiateUsingFactoryMethod
   * @see #autowireConstructor
   */
  protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args)
  		throws BeanCreationException {

  	// Instantiate the bean.
  	BeanWrapper instanceWrapper = null;
  	if (mbd.isSingleton()) {
  		instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
  	}
  	if (instanceWrapper == null) {
  	    /**
  	     * 核心的创建实例化Bean的过程
  	    **/
  		instanceWrapper = createBeanInstance(beanName, mbd, args);
  	}
  	final Object bean = instanceWrapper.getWrappedInstance();
  	Class<?> beanType = instanceWrapper.getWrappedClass();
  	if (beanType != NullBean.class) {
  		mbd.resolvedTargetType = beanType;
  	}

  	// Allow post-processors to modify the merged bean definition.
  	synchronized (mbd.postProcessingLock) {
  		if (!mbd.postProcessed) {
  			try {
  				applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
  			}
  			catch (Throwable ex) {
  				throw new BeanCreationException(mbd.getResourceDescription(), beanName,
  						"Post-processing of merged bean definition failed", ex);
  			}
  			mbd.postProcessed = true;
  		}
  	}

  	// Eagerly cache singletons to be able to resolve circular references
  	// even when triggered by lifecycle interfaces like BeanFactoryAware.
  	boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
  			isSingletonCurrentlyInCreation(beanName));

  	/**
  	 * 解决循环依赖。使用三级缓存
  	**/
  	if (earlySingletonExposure) {
  		if (logger.isTraceEnabled()) {
  			logger.trace("Eagerly caching bean '" + beanName +
  					"' to allow for resolving potential circular references");
  		}
  		addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
  	}

  	// Initialize the bean instance.
  	Object exposedObject = bean;
  	try {
  	    /**
  	     * 填充属性，上文的实例化只是默认属性值。填充属性是初始化的第一步，第二步是执行init方法
  	    **/
  		populateBean(beanName, mbd, instanceWrapper);
  		/**
  		 * 执行init方法
  		**/
  		exposedObject = initializeBean(beanName, exposedObject, mbd);
  	}
  	catch (Throwable ex) {
  		if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
  			throw (BeanCreationException) ex;
  		}
  		else {
  			throw new BeanCreationException(
  					mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
  		}
  	}

  	if (earlySingletonExposure) {
  		Object earlySingletonReference = getSingleton(beanName, false);
  		if (earlySingletonReference != null) {
  			if (exposedObject == bean) {
  				exposedObject = earlySingletonReference;
  			}
  			else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
  				String[] dependentBeans = getDependentBeans(beanName);
  				Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
  				for (String dependentBean : dependentBeans) {
  					if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
  						actualDependentBeans.add(dependentBean);
  					}
  				}
  				if (!actualDependentBeans.isEmpty()) {
  					throw new BeanCurrentlyInCreationException(beanName,
  							"Bean with name '" + beanName + "' has been injected into other beans [" +
  							StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
  							"] in its raw version as part of a circular reference, but has eventually been " +
  							"wrapped. This means that said other beans do not use the final version of the " +
  							"bean. This is often the result of over-eager type matching - consider using " +
  							"'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.");
  				}
  			}
  		}
  	}

  	// Register bean as disposable.
  	try {
  	    /**
  	     * 需要销毁的时候，销毁的钩子函数
  	    **/
  		registerDisposableBeanIfNecessary(beanName, bean, mbd);
  	}
  	catch (BeanDefinitionValidationException ex) {
  		throw new BeanCreationException(
  				mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
  	}

  	return exposedObject;
  }


面试题：为甚么循环依赖的解决要使用三级缓存？

• createBeanInstance => 核心的创建和实例化bean的过程，由doCreateBean调用

大量的反射出现在该方法中，用来创建对象

	/**
	 * Create a new instance for the specified bean, using an appropriate instantiation strategy:
	 * factory method, constructor autowiring, or simple instantiation.
	 * @param beanName the name of the bean
	 * @param mbd the bean definition for the bean
	 * @param args explicit arguments to use for constructor or factory method invocation
	 * @return a BeanWrapper for the new instance
	 * @see #obtainFromSupplier
	 * @see #instantiateUsingFactoryMethod
	 * @see #autowireConstructor
	 * @see #instantiateBean
	 */
	protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
		// Make sure bean class is actually resolved at this point.
		Class<?> beanClass = resolveBeanClass(mbd, beanName);

		if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
			throw new BeanCreationException(mbd.getResourceDescription(), beanName,
					"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
		}

		Supplier<?> instanceSupplier = mbd.getInstanceSupplier();
		if (instanceSupplier != null) {
			return obtainFromSupplier(instanceSupplier, beanName);
		}

		if (mbd.getFactoryMethodName() != null) {
			return instantiateUsingFactoryMethod(beanName, mbd, args);
		}

		// Shortcut when re-creating the same bean...
		boolean resolved = false;
		boolean autowireNecessary = false;
		if (args == null) {
			synchronized (mbd.constructorArgumentLock) {
				if (mbd.resolvedConstructorOrFactoryMethod != null) {
					resolved = true;
					autowireNecessary = mbd.constructorArgumentsResolved;
				}
			}
		}
		if (resolved) {
			if (autowireNecessary) {
				return autowireConstructor(beanName, mbd, null, null);
			}
			else {
				return instantiateBean(beanName, mbd);
			}
		}

		// Candidate constructors for autowiring?
		// 构造器
		Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
		if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||
				mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
			return autowireConstructor(beanName, mbd, ctors, args);
		}

		// Preferred constructors for default construction?
		ctors = mbd.getPreferredConstructors();
		if (ctors != null) {
			return autowireConstructor(beanName, mbd, ctors, null);
		}

		// No special handling: simply use no-arg constructor.
		/**
		 * 默认无参构造
		 **/
		return instantiateBean(beanName, mbd);
	}

• instantiateBean(beanName, mbd) => 默认无参构造

  /**
   * Instantiate the given bean using its default constructor.
   * @param beanName the name of the bean
   * @param mbd the bean definition for the bean
   * @return a BeanWrapper for the new instance
   */
  protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
  	try {
  		Object beanInstance;
  		final BeanFactory parent = this;
  		if (System.getSecurityManager() != null) {
  			beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () ->
  			        // 实例化只会分配内存空间，设置默认值
  					getInstantiationStrategy().instantiate(mbd, beanName, parent),
  					getAccessControlContext());
  		}
  		else {
  			beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
  		}
  		BeanWrapper bw = new BeanWrapperImpl(beanInstance);
  		initBeanWrapper(bw);
  		return bw;
  	}
  	catch (Throwable ex) {
  		throw new BeanCreationException(
  				mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
  	}
  }


• instantiate

  @Override
  public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
  	// Don't override the class with CGLIB if no overrides.
  	if (!bd.hasMethodOverrides()) {
  		Constructor<?> constructorToUse;
  		synchronized (bd.constructorArgumentLock) {
  			constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
  			if (constructorToUse == null) {
  				final Class<?> clazz = bd.getBeanClass();
  				if (clazz.isInterface()) {
  					throw new BeanInstantiationException(clazz, "Specified class is an interface");
  				}
  				try {
  					if (System.getSecurityManager() != null) {
  						constructorToUse = AccessController.doPrivileged(
  								(PrivilegedExceptionAction<Constructor<?>>) clazz::getDeclaredConstructor);
  					}
  					else {
  						constructorToUse = clazz.getDeclaredConstructor();
  					}
  					bd.resolvedConstructorOrFactoryMethod = constructorToUse;
  				}
  				catch (Throwable ex) {
  					throw new BeanInstantiationException(clazz, "No default constructor found", ex);
  				}
  			}
  		}
  		return BeanUtils.instantiateClass(constructorToUse);
  	}
  	else {
  		// Must generate CGLIB subclass.
  		return instantiateWithMethodInjection(bd, beanName, owner);
  	}
  }


• BeanUtils.instantiateClass => 通过构造器反射创建bean

  /**
   * Convenience method to instantiate a class using the given constructor.
   * <p>Note that this method tries to set the constructor accessible if given a
   * non-accessible (that is, non-public) constructor, and supports Kotlin classes
   * with optional parameters and default values.
   * @param ctor the constructor to instantiate
   * @param args the constructor arguments to apply (use {@code null} for an unspecified
   * parameter, Kotlin optional parameters and Java primitive types are supported)
   * @return the new instance
   * @throws BeanInstantiationException if the bean cannot be instantiated
   * @see Constructor#newInstance
   */
  public static <T> T instantiateClass(Constructor<T> ctor, Object... args) throws BeanInstantiationException {
  	Assert.notNull(ctor, "Constructor must not be null");
  	try {
  		ReflectionUtils.makeAccessible(ctor);
  		if (KotlinDetector.isKotlinReflectPresent() && KotlinDetector.isKotlinType(ctor.getDeclaringClass())) {
  			return KotlinDelegate.instantiateClass(ctor, args);
  		}
  		else {
  			Class<?>[] parameterTypes = ctor.getParameterTypes();
  			Assert.isTrue(args.length <= parameterTypes.length, "Can't specify more arguments than constructor parameters");
  			Object[] argsWithDefaultValues = new Object[args.length];
  			for (int i = 0 ; i < args.length; i++) {
  				if (args[i] == null) {
  					Class<?> parameterType = parameterTypes[i];
  					argsWithDefaultValues[i] = (parameterType.isPrimitive() ? DEFAULT_TYPE_VALUES.get(parameterType) : null);
  				}
  				else {
  					argsWithDefaultValues[i] = args[i];
  				}
  			}
  			return ctor.newInstance(argsWithDefaultValues);
  		}
  	}
  	catch (InstantiationException ex) {
  		throw new BeanInstantiationException(ctor, "Is it an abstract class?", ex);
  	}
  	catch (IllegalAccessException ex) {
  		throw new BeanInstantiationException(ctor, "Is the constructor accessible?", ex);
  	}
  	catch (IllegalArgumentException ex) {
  		throw new BeanInstantiationException(ctor, "Illegal arguments for constructor", ex);
  	}
  	catch (InvocationTargetException ex) {
  		throw new BeanInstantiationException(ctor, "Constructor threw exception", ex.getTargetException());
  	}
  }


方法12：finishRefresh() => 完成刷新

	/**
	 * Finish the refresh of this context, invoking the LifecycleProcessor's
	 * onRefresh() method and publishing the
	 * {@link org.springframework.context.event.ContextRefreshedEvent}.
	 */
	protected void finishRefresh() {
		// Clear context-level resource caches (such as ASM metadata from scanning).
		//
		clearResourceCaches();

		// Initialize lifecycle processor for this context.
		initLifecycleProcessor();

		// Propagate refresh to lifecycle processor first.
		getLifecycleProcessor().onRefresh();

		// Publish the final event.
		publishEvent(new ContextRefreshedEvent(this));

		// Participate in LiveBeansView MBean, if active.
		LiveBeansView.registerApplicationContext(this);
	}

方法13：resetCommonCaches() => 缓存重置

	/**
	 * Reset Spring's common reflection metadata caches, in particular the
	 * {@link ReflectionUtils}, {@link AnnotationUtils}, {@link ResolvableType}
	 * and {@link CachedIntrospectionResults} caches.
	 * @since 4.2
	 * @see ReflectionUtils#clearCache()
	 * @see AnnotationUtils#clearCache()
	 * @see ResolvableType#clearCache()
	 * @see CachedIntrospectionResults#clearClassLoader(ClassLoader)
	 */
	protected void resetCommonCaches() {
		ReflectionUtils.clearCache();
		AnnotationUtils.clearCache();
		ResolvableType.clearCache();
		CachedIntrospectionResults.clearClassLoader(getClassLoader());
	}

最后回顾整个流程概览图：

作者：x1aoda1

来源：www.cnblogs.com/darope/p/13…
