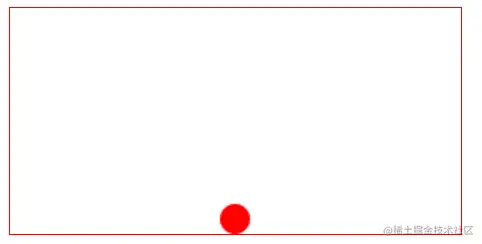

1、非弹性碰撞
非弹性碰撞指的是在物体碰撞过程中，物体运动方向（速度方向）瞬间发生改变，现实情况状态下，碰撞之后动能会发生损失，相应的速度也会变小，如果不是重力加速运动，加速度大小也会相应减少
<template>
<div id="app">
<canvas id="canvas"></canvas>
</div>
</template>
<script>
export default {
name: "App",
mounted() {
const eleCvas = document.getElementById("canvas");
const cxt = eleCvas.getContext("2d");
//初始化数据
//Y轴初始速度为0，重力加速度为0.2，反弹系数为-0.8
let vy = 0;
const gravity = 0.2;
const bounce = -0.8;
const r = 10; let x = eleCvas.width/2 , y = 0;
cxt.fillStyle = "red";
(function drawFrame() {
y += vy;
//边界检测
if (y > eleCvas.height - r) {
y = eleCvas.height - r;
//速度反向并且减小
vy = vy * bounce;
// 处理无限循环
if (vy > -0.2) {
return
}
}
cxt.clearRect(0, 0, eleCvas.width, eleCvas.height);
window.requestAnimationFrame(drawFrame);
cxt.beginPath();
cxt.arc(x, y, r, 0, (360 * Math.PI) / 180, true);
cxt.closePath();
cxt.fill();
vy += gravity;
})();
}
};
</script>
<style>
#app {
text-align: center;
}
canvas {
border: 1px solid red;
}
</style>
总结： v = -fv;a = -fa;v:速度a:加速度f:动能衰减率（0<f<1）
2、弹性碰撞
弹性碰撞指的是物体在碰撞过程中，物体运动方向（速度方向）瞬间发生改变，碰撞之后动能不会发生损失
<template>
<div id="app">
<canvas id="canvas"></canvas>
</div>
</template>
<script>
// 小球
class Ball {
constructor() {
this.x = 0;
this.y = 0;
this.radius = 15;
}
draw(cxt) {
cxt.save();
cxt.translate(this.x, this.y);
cxt.fillStyle = "red";
cxt.beginPath();
cxt.arc(0, 0, this.radius, 0, Math.PI * 2);
cxt.fill();
cxt.restore();
}
}
// 弹簧
export default {
name: "App",
mounted() {
const eleCvas = document.getElementById("canvas");
const cxt = eleCvas.getContext("2d");
const ball = new Ball();
let vx = 3;
let vy = 2;
ball.x = eleCvas.width / 2;
ball.y = eleCvas.height / 2;
const {width, height} = eleCvas;
(function drawFrame() {
window.requestAnimationFrame(drawFrame);
cxt.clearRect(0, 0, width,height);
ball.x += vx;
ball.y += vy;
// 边界处理
if (ball.x > width - ball.radius) {
ball.x = width - ball.radius;
vx = -vx;
}
if (ball.x < ball.radius) {
ball.x = ball.radius;
vx = -vx;
}
if (ball.y > height - ball.radius) {
ball.y = height - ball.radius;
vy = -vy;
}
if (ball.y < ball.radius) {
ball.y = ball.radius;
vy = -vy;
}
ball.draw(cxt);
})();
}
};
</script>
<style>
#app {
text-align: center;
}
canvas {
border: 1px solid red;
}
</style>
总结：v = -v;a = -a;v:速度a:加速度

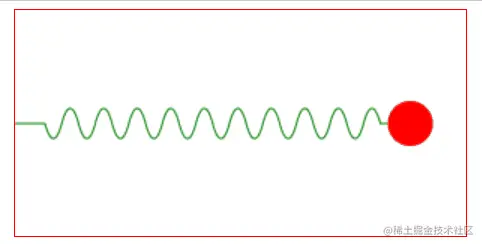

3、胡克定律（弹簧）
胡克定律F=kX 方向沿恢复形变方向 k：劲度系数(N/m) X：形变量(m)
<template>
<div id="app">
<canvas id="canvas"></canvas>
</div>
</template>
<script>
// 小球
class Ball {
constructor() {
this.x = 0;
this.y = 0;
this.radius = 15;
}
draw(cxt) {
cxt.save();
cxt.translate(this.x, this.y);
cxt.fillStyle = "red";
cxt.beginPath();
cxt.arc(0, 0, this.radius, 0, Math.PI * 2);
cxt.fill();
cxt.restore();
}
}
// 弹簧
class Spring {
constructor(length) {
// 弹簧底座位置坐标
this.x = 0;
this.y = 0;
this.angle = 0;
// 弹簧长度
this.length = length;
}
draw(cxt) {
cxt.save();
cxt.translate(this.x, this.y);
cxt.rotate(this.angle);
cxt.strokeStyle = "green";
cxt.beginPath();
cxt.moveTo(0, 0);
var n = 20; // 上下峰值总个数
var h = 20; // 底部直线长度
var d = (this.length - 2 * h) / n;
cxt.lineTo(h, 0);
for (var i = 0; i < n; i++) {
var dir = i % 2 == 0 ? 1 : -1;
cxt.quadraticCurveTo(h + d * (i + 0.5), 20 * dir, h + d * (i + 1), 0);
}
cxt.lineTo(this.length, 0);
cxt.stroke();
cxt.restore();
}
}
export default {
name: "App",
mounted() {
const eleCvas = document.getElementById("canvas");
const cxt = eleCvas.getContext("2d");
// 初始弹簧长度
const initLength = 200;
// 振幅
const amplitude = 120;
const k = 0.01;
const spring = new Spring(initLength);
const ball = new Ball();
spring.x = 0;
spring.y = eleCvas.height / 2;
ball.x = eleCvas.width / 2;
ball.y = eleCvas.height / 2;
ball.x += amplitude;
var vx = 0;
(function drawFrame() {
window.requestAnimationFrame(drawFrame);
cxt.clearRect(0, 0, eleCvas.width, eleCvas.height);
var x = ball.x - spring.x - initLength;
// k 劲度系数 x 形变量(m) 又力为 f = ma 当m为1时 f = a; 这样力可以做为加速度使用
var f = -k * x;
vx += f;
// 定义时间为1 则得到下面球的位置
ball.x += vx;
spring.length = ball.x - spring.x;
spring.draw(cxt);
ball.draw(cxt);
})();
}
};
</script>
<style>
#app {
text-align: center;
}
canvas {
border: 1px solid red;
}
</style>
总结：f = -k * x; vx += f; 这里关键是力和胡克定律公式通过 求解代数方程的方式得到代码模拟公式
