服务端的实现
服务端首先是使用build模式创建一个RPC.Server对象
public Server build() throws IOException, HadoopIllegalArgumentException {
if (this.conf == null) {
throw new HadoopIllegalArgumentException("conf is not set");
}
if (this.protocol == null) {
throw new HadoopIllegalArgumentException("protocol is not set");
}
if (this.instance == null) {
throw new HadoopIllegalArgumentException("instance is not set");
}
return getProtocolEngine(this.protocol, this.conf).getServer(
this.protocol, this.instance, this.bindAddress, this.port,
this.numHandlers, this.numReaders, this.queueSizePerHandler,
this.verbose, this.conf, this.secretManager, this.portRangeConfig);
}
可以看到和客户端一样是通过getProtocolEngine得到不同的ProtocolEngine类来生成不同的Server对象，同样我们来看默认的ProtocolEngine类WritableRpcEngine。调用了WritableRpcEngine的getServer的方法。
public RPC.Server getServer(Class<?> protocolClass,
Object protocolImpl, String bindAddress, int port,
int numHandlers, int numReaders, int queueSizePerHandler,
boolean verbose, Configuration conf,
SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig)
throws IOException {
return new Server(protocolClass, protocolImpl, conf, bindAddress, port,
numHandlers, numReaders, queueSizePerHandler, verbose, secretManager,
portRangeConfig);
}
public static class Server extends RPC.Server {
...
/**
* Construct an RPC server.
* @param protocolClass - the protocol being registered
* can be null for compatibility with old usage (see below for details)
* @param protocolImpl the protocol impl that will be called
* @param conf the configuration to use
* @param bindAddress the address to bind on to listen for connection
* @param port the port to listen for connections on
* @param numHandlers the number of method handler threads to run
* @param verbose whether each call should be logged
*/
public Server(Class<?> protocolClass, Object protocolImpl,
Configuration conf, String bindAddress, int port,
int numHandlers, int numReaders, int queueSizePerHandler,
boolean verbose, SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig)
throws IOException {
super(bindAddress, port, null, numHandlers, numReaders,
queueSizePerHandler, conf,
classNameBase(protocolImpl.getClass().getName()), secretManager,
portRangeConfig);
this.verbose = verbose;
Class<?>[] protocols;
if (protocolClass == null) { // derive protocol from impl
/*
* In order to remain compatible with the old usage where a single
* target protocolImpl is suppled for all protocol interfaces, and
* the protocolImpl is derived from the protocolClass(es)
* we register all interfaces extended by the protocolImpl
*/
protocols = RPC.getProtocolInterfaces(protocolImpl.getClass());
} else {
if (!protocolClass.isAssignableFrom(protocolImpl.getClass())) {
throw new IOException("protocolClass "+ protocolClass +
" is not implemented by protocolImpl which is of class " +
protocolImpl.getClass());
}
// register protocol class and its super interfaces
registerProtocolAndImpl(RPC.RpcKind.RPC_WRITABLE, protocolClass, protocolImpl);
protocols = RPC.getProtocolInterfaces(protocolClass);
}
for (Class<?> p : protocols) {
if (!p.equals(VersionedProtocol.class)) {
registerProtocolAndImpl(RPC.RpcKind.RPC_WRITABLE, p, protocolImpl);
}
}
}
}
// Register protocol and its impl for rpc calls
void registerProtocolAndImpl(RpcKind rpcKind, Class<?> protocolClass,
Object protocolImpl) {
String protocolName = RPC.getProtocolName(protocolClass);
long version;
try {
version = RPC.getProtocolVersion(protocolClass);
} catch (Exception ex) {
LOG.warn("Protocol " + protocolClass +
" NOT registered as cannot get protocol version ");
return;
}
getProtocolImplMap(rpcKind).put(new ProtoNameVer(protocolName, version),
new ProtoClassProtoImpl(protocolClass, protocolImpl));
LOG.debug("RpcKind = " + rpcKind + " Protocol Name = " + protocolName + " version=" + version +
" ProtocolImpl=" + protocolImpl.getClass().getName() +
" protocolClass=" + protocolClass.getName());
}
Map<ProtoNameVer, ProtoClassProtoImpl> getProtocolImplMap(RPC.RpcKind rpcKind) {
if (protocolImplMapArray.size() == 0) {// initialize for all rpc kinds
for (int i=0; i <= RpcKind.MAX_INDEX; ++i) {
protocolImplMapArray.add(
new HashMap<ProtoNameVer, ProtoClassProtoImpl>(10));
}
}
return protocolImplMapArray.get(rpcKind.ordinal());
}
WritableRpcEngine是继承自RPC.Server，而RPC.Server是继承ipc的Server的，getServer直接初始化了WritableRpcEngine.Server对象，可以看到在初始化的过程中，首先是调用了父类的构造函数，接着将协议的具体实现类根据RPC_WRITABLE和协议接口名放入到缓存中。接着我们来看父类的构造函数。
public abstract static class Server extends org.apache.hadoop.ipc.Server {
...
protected Server(String bindAddress, int port,
Class<? extends Writable> paramClass, int handlerCount,
int numReaders, int queueSizePerHandler,
Configuration conf, String serverName,
SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig) throws IOException {
super(bindAddress, port, paramClass, handlerCount, numReaders, queueSizePerHandler,
conf, serverName, secretManager, portRangeConfig);
initProtocolMetaInfo(conf);
}
private void initProtocolMetaInfo(Configuration conf) {
RPC.setProtocolEngine(conf, ProtocolMetaInfoPB.class,
ProtobufRpcEngine.class);
ProtocolMetaInfoServerSideTranslatorPB xlator =
new ProtocolMetaInfoServerSideTranslatorPB(this);
BlockingService protocolInfoBlockingService = ProtocolInfoService
.newReflectiveBlockingService(xlator);
addProtocol(RpcKind.RPC_PROTOCOL_BUFFER, ProtocolMetaInfoPB.class,
protocolInfoBlockingService);
}
...
}
public abstract class Server {
protected Server(String bindAddress, int port,
Class<? extends Writable> rpcRequestClass, int handlerCount,
int numReaders, int queueSizePerHandler, Configuration conf,
String serverName, SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig)
throws IOException {
this.bindAddress = bindAddress;
this.conf = conf;
this.portRangeConfig = portRangeConfig;
this.port = port;
this.rpcRequestClass = rpcRequestClass;
this.handlerCount = handlerCount;
this.socketSendBufferSize = 0;
...
listener = new Listener();
this.port = listener.getAddress().getPort();
connectionManager = new ConnectionManager();
this.rpcMetrics = RpcMetrics.create(this, conf);
this.rpcDetailedMetrics = RpcDetailedMetrics.create(this.port);
this.tcpNoDelay = conf.getBoolean(
CommonConfigurationKeysPublic.IPC_SERVER_TCPNODELAY_KEY,
CommonConfigurationKeysPublic.IPC_SERVER_TCPNODELAY_DEFAULT);
this.setLogSlowRPC(conf.getBoolean(
CommonConfigurationKeysPublic.IPC_SERVER_LOG_SLOW_RPC,
CommonConfigurationKeysPublic.IPC_SERVER_LOG_SLOW_RPC_DEFAULT));
// Create the responder here
responder = new Responder();
...
}
}

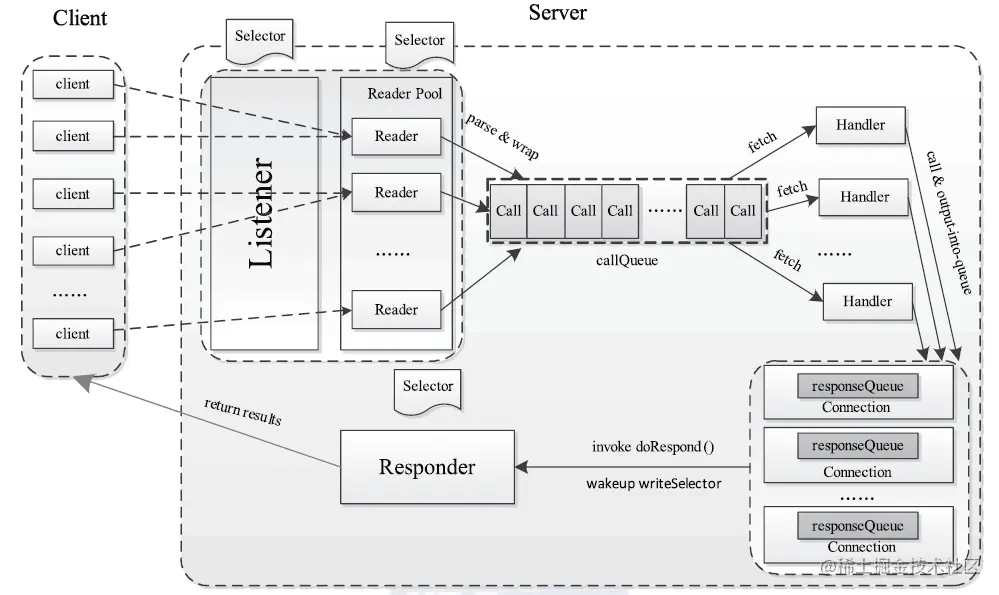

可以看到父类的初始化主要是对一些变量的赋值，最主要的是初始化了listener和responder对象。
/** Listens on the socket. Creates jobs for the handler threads*/
private class Listener extends Thread {
private ServerSocketChannel acceptChannel = null; //the accept channel
private Selector selector = null; //the selector that we use for the server
private Reader[] readers = null;
private int currentReader = 0;
private InetSocketAddress address; //the address we bind at
private int backlogLength = conf.getInt(
CommonConfigurationKeysPublic.IPC_SERVER_LISTEN_QUEUE_SIZE_KEY,
CommonConfigurationKeysPublic.IPC_SERVER_LISTEN_QUEUE_SIZE_DEFAULT);
public Listener() throws IOException {
address = new InetSocketAddress(bindAddress, port);
// Create a new server socket and set to non blocking mode
acceptChannel = ServerSocketChannel.open();
acceptChannel.configureBlocking(false);
// Bind the server socket to the local host and port
bind(acceptChannel.socket(), address, backlogLength, conf, portRangeConfig);
port = acceptChannel.socket().getLocalPort(); //Could be an ephemeral port
// create a selector;
selector= Selector.open();
//如果没有指定值，readThreads默认为1
readers = new Reader[readThreads];
for (int i = 0; i < readThreads; i++) {
Reader reader = new Reader(
"Socket Reader #" + (i + 1) + " for port " + port);
readers[i] = reader;
reader.start();
}
// Register accepts on the server socket with the selector.
acceptChannel.register(selector, SelectionKey.OP_ACCEPT);
this.setName("IPC Server listener on " + port);
this.setDaemon(true);
}
...
}
Listener初始化了ServerSocketChannel，绑定了指定的一个或者一串中的一个端口，初始化了Selector,向其中注册了”连接就绪“的事件。并定义启动了几个读线程（Reader类）。Reader类主要用于读取客户端发送的信息，范序列化，生成相应的Call对象。每个Reader类中都有一个Selector，用于监听“读就绪”事件。在Listener的选择器中收到连接就绪的事件就会socketChannel封装进Connection中，将读事件注册给Reader的选择器，有相应的reader来负责读取信息。（下文会详细看到）现在先大致看一下responder类。
// Sends responses of RPC back to clients.
private class Responder extends Thread {
private final Selector writeSelector;
private int pending; // connections waiting to register
final static int PURGE_INTERVAL = 900000; // 15mins
Responder() throws IOException {
this.setName("IPC Server Responder");
this.setDaemon(true);
writeSelector = Selector.open(); // create a selector
pending = 0;
}
@Override
public void run() {
LOG.info(Thread.currentThread().getName() + ": starting");
SERVER.set(Server.this);
try {
doRunLoop();
} finally {
LOG.info("Stopping " + Thread.currentThread().getName());
try {
writeSelector.close();
} catch (IOException ioe) {
LOG.error("Couldn't close write selector in " + Thread.currentThread().getName(), ioe);
}
}
}
...
}
可以看到responder也是一个线程类，这个线程类主要是将RPC的相应信息传给客户端，可以看到其内部也有一个selector对象，主要是一些写事件会注册在其中。 在初始化Listener和Responder对象，生成Server实例之后，就需要调用Server.start()来启动服务端。
public synchronized void start() {
responder.start();
listener.start();
handlers = new Handler[handlerCount];
for (int i = 0; i < handlerCount; i++) {
handlers[i] = new Handler(i);
handlers[i].start();
}
}
分别启动了listener、responder和handlers的线程。接下来看listener的run方法
public void run() {
LOG.info(Thread.currentThread().getName() + ": starting");
SERVER.set(Server.this);
connectionManager.startIdleScan();
while (running) {
SelectionKey key = null;
try {
getSelector().select(); //阻塞直到注册的socket管道有事件触发为止
Iterator<SelectionKey> iter = getSelector().selectedKeys().iterator();
while (iter.hasNext()) {
key = iter.next();
iter.remove();
try {
if (key.isValid()) {
if (key.isAcceptable())
doAccept(key);
}
} catch (IOException e) {
}
key = null;
}
} catch (OutOfMemoryError e) {
// we can run out of memory if we have too many threads
// log the event and sleep for a minute and give
// some thread(s) a chance to finish
LOG.warn("Out of Memory in server select", e);
closeCurrentConnection(key, e);
connectionManager.closeIdle(true);
try { Thread.sleep(60000); } catch (Exception ie) {}
} catch (Exception e) {
closeCurrentConnection(key, e);
}
}
LOG.info("Stopping " + Thread.currentThread().getName());
synchronized (this) {
try {
acceptChannel.close();
selector.close();
} catch (IOException e) { }
selector= null;
acceptChannel= null;
// close all connections
connectionManager.stopIdleScan();
connectionManager.closeAll();
}
}
void doAccept(SelectionKey key) throws InterruptedException, IOException, OutOfMemoryError {
ServerSocketChannel server = (ServerSocketChannel) key.channel();
SocketChannel channel;
while ((channel = server.accept()) != null) {
channel.configureBlocking(false);
channel.socket().setTcpNoDelay(tcpNoDelay);
channel.socket().setKeepAlive(true);
Reader reader = getReader(); //数组递增，获取下一个reader
Connection c = connectionManager.register(channel); //构造Connection对象并放入connectionManager管理，如果connectionManager的最大连接数将无法建立连接
// If the connectionManager can't take it, close the connection.
if (c == null) {
if (channel.isOpen()) {
IOUtils.cleanup(null, channel);
}
connectionManager.droppedConnections.getAndIncrement();
continue;
}
//将其添加到SelectionKey中，当发生错误时可以从SelectionKey中获得Connection将其关闭
key.attach(c); // so closeCurrentConnection can get the object
reader.addConnection(c);
}
}
listener线程等待注册的连接事件触发，调用doAccept函数，doAccept中获得连接的socket,构造一个Connection对象放入connectionManager的缓存中（内部有一个Set connections变量），这个Connection类是ipc.Server的内部类，和上述Client中的内部类不同。接着在递增的取出一个reader将connection放入reader内部的阻塞队列中。
public void addConnection(Connection conn) throws InterruptedException {
//pendingConnections为阻塞队列 BlockingQueue<Connection>
pendingConnections.put(conn);
//唤醒readSelector
readSelector.wakeup();
}
接着我们来看Reader的run方法
public void run() {
LOG.info("Starting " + Thread.currentThread().getName());
try {
doRunLoop();
} finally {
try {
readSelector.close();
} catch (IOException ioe) {
LOG.error("Error closing read selector in " + Thread.currentThread().getName(), ioe);
}
}
}
private synchronized void doRunLoop() {
while (running) {
SelectionKey key = null;
try {
// consume as many connections as currently queued to avoid
// unbridled acceptance of connections that starves the select
int size = pendingConnections.size();
for (int i=size; i>0; i--) {
Connection conn = pendingConnections.take();
conn.channel.register(readSelector, SelectionKey.OP_READ, conn);
}
readSelector.select(); //不用经过判断，如果没有channel触发事件，阻塞直到有一个注册的事件就绪为止或者调用weakup()
Iterator<SelectionKey> iter = readSelector.selectedKeys().iterator();
while (iter.hasNext()) {
key = iter.next();
iter.remove();
try {
if (key.isReadable()) {
doRead(key);
}
} catch (CancelledKeyException cke) {
// something else closed the connection, ex. responder or
// the listener doing an idle scan. ignore it and let them
// clean up.
LOG.info(Thread.currentThread().getName() +
": connection aborted from " + key.attachment());
}
key = null;
}
} catch (InterruptedException e) {
if (running) { // unexpected -- log it
LOG.info(Thread.currentThread().getName() + " unexpectedly interrupted", e);
}
} catch (IOException ex) {
LOG.error("Error in Reader", ex);
} catch (Throwable re) {
LOG.fatal("Bug in read selector!", re);
ExitUtil.terminate(1, "Bug in read selector!");
}
}
}
从阻塞队列中取出connection，在readSelector注册读事件，选择器响应，调用doRead方法
void doRead(SelectionKey key) throws InterruptedException {
int count = 0;
Connection c = (Connection)key.attachment();
if (c == null) {
return;
}
c.setLastContact(Time.now());
try {
count = c.readAndProcess();
} catch (InterruptedException ieo) {
...
}
}
public int readAndProcess()
throws WrappedRpcServerException, IOException, InterruptedException {
while (true) {
/* Read at most one RPC. If the header is not read completely yet
* then iterate until we read first RPC or until there is no data left.
*/
int count = -1;
//dataLengthBuffer为四个字节，可能是接受报头，也可能是数据的长度
if (dataLengthBuffer.remaining() > 0) {
count = channelRead(channel, dataLengthBuffer);
if (count < 0 || dataLengthBuffer.remaining() > 0)
return count;
}
/**
* 如果connectionHeaderRead是true,
* 表示已经读过连接头，那么不需要读取头部数据，dataLengthBuffer存储的数据的长度。
* 如果connectionHeaderRead是false,
* 表示dataLengthBuffer读取的是hrpc
* +----------------------------------+
* | "hrpc" 4 bytes |
* +----------------------------------+
* | Version (1 byte) |
* +----------------------------------+
* | Service Class (1 byte) |
* +----------------------------------+
* | AuthProtocol (1 byte) |
* +----------------------------------+
*/
if (!connectionHeaderRead) {
//Every connection is expected to send the header.
//connectionHeaderBuf主要存放后三个字节
if (connectionHeaderBuf == null) {
connectionHeaderBuf = ByteBuffer.allocate(3);
}
count = channelRead(channel, connectionHeaderBuf);
if (count < 0 || connectionHeaderBuf.remaining() > 0) {
return count;
}
int version = connectionHeaderBuf.get(0);
// TODO we should add handler for service class later
this.setServiceClass(connectionHeaderBuf.get(1));
dataLengthBuffer.flip();
// Check if it looks like the user is hitting an IPC port
// with an HTTP GET - this is a common error, so we can
// send back a simple string indicating as much.
if (HTTP_GET_BYTES.equals(dataLengthBuffer)) {
setupHttpRequestOnIpcPortResponse();
return -1;
}
//RpcConstants.HEADER为“hrpc”
if (!RpcConstants.HEADER.equals(dataLengthBuffer)
|| version != CURRENT_VERSION) {
//Warning is ok since this is not supposed to happen.
LOG.warn("Incorrect header or version mismatch from " +
hostAddress + ":" + remotePort +
" got version " + version +
" expected version " + CURRENT_VERSION);
setupBadVersionResponse(version);
return -1;
}
// this may switch us into SIMPLE
authProtocol = initializeAuthContext(connectionHeaderBuf.get(2));
dataLengthBuffer.clear();
connectionHeaderBuf = null;
connectionHeaderRead = true;
continue;
}
//分配空间为dataLength的长度
if (data == null) {
dataLengthBuffer.flip();
dataLength = dataLengthBuffer.getInt();
checkDataLength(dataLength);
data = ByteBuffer.allocate(dataLength);
}
//读取数据
count = channelRead(channel, data);
//第一次是读取PRC的context，connectionContextRead为false,读取完context后为true
if (data.remaining() == 0) {
dataLengthBuffer.clear();
data.flip();
boolean isHeaderRead = connectionContextRead;
//如果是context,则读取context,否则读取其数据
processOneRpc(data.array());
data = null;
if (!isHeaderRead) {
continue;
}
}
return count;
}
}
/**
* Process an RPC Request - handle connection setup and decoding of
* request into a Call
* @param buf - contains the RPC request header and the rpc request
* @throws IOException - internal error that should not be returned to
* client, typically failure to respond to client
* @throws WrappedRpcServerException - an exception to be sent back to
* the client that does not require verbose logging by the
* Listener thread
* @throws InterruptedException
*/
private void processOneRpc(byte[] buf)
throws IOException, WrappedRpcServerException, InterruptedException {
int callId = -1;
int retry = RpcConstants.INVALID_RETRY_COUNT;
try {
final DataInputStream dis =
new DataInputStream(new ByteArrayInputStream(buf));
final RpcRequestHeaderProto header =
decodeProtobufFromStream(RpcRequestHeaderProto.newBuilder(), dis);
callId = header.getCallId();
retry = header.getRetryCount();
if (LOG.isDebugEnabled()) {
LOG.debug(" got #" + callId);
}
checkRpcHeaders(header);
//这里通过callId来判数据是context还是实际数据，如果是context,callId为CONNECTION_CONTEXT_CALL_ID = -3，否则callId > 0
if (callId < 0) { // callIds typically used during connection setup
//connectionContextRead在该方法中赋值为true
processRpcOutOfBandRequest(header, dis);
} else if (!connectionContextRead) {
throw new WrappedRpcServerException(
RpcErrorCodeProto.FATAL_INVALID_RPC_HEADER,
"Connection context not established");
} else {
//读取数据
processRpcRequest(header, dis);
}
} catch (WrappedRpcServerException wrse) { // inform client of error
Throwable ioe = wrse.getCause();
final Call call = new Call(callId, retry, null, this);
setupResponse(authFailedResponse, call,
RpcStatusProto.FATAL, wrse.getRpcErrorCodeProto(), null,
ioe.getClass().getName(), ioe.getMessage());
call.sendResponse();
throw wrse;
}
}
/**
* Process an RPC Request - the connection headers and context must
* have been already read
* @param header - RPC request header
* @param dis - stream to request payload
* @throws WrappedRpcServerException - due to fatal rpc layer issues such
* as invalid header or deserialization error. In this case a RPC fatal
* status response will later be sent back to client.
* @throws InterruptedException
*/
private void processRpcRequest(RpcRequestHeaderProto header,
DataInputStream dis) throws WrappedRpcServerException,
InterruptedException {
Class<? extends Writable> rpcRequestClass =
getRpcRequestWrapper(header.getRpcKind());
if (rpcRequestClass == null) {
LOG.warn("Unknown rpc kind " + header.getRpcKind() +
" from client " + getHostAddress());
final String err = "Unknown rpc kind in rpc header" +
header.getRpcKind();
throw new WrappedRpcServerException(
RpcErrorCodeProto.FATAL_INVALID_RPC_HEADER, err);
}
Writable rpcRequest;
try { //Read the rpc request
//利用反射实例化对象，并读取信息，得到调用方法和参数的数据。如果是WritableRpcEngine，对应的是Invocation
rpcRequest = ReflectionUtils.newInstance(rpcRequestClass, conf);
rpcRequest.readFields(dis);
} catch (Throwable t) { // includes runtime exception from newInstance
LOG.warn("Unable to read call parameters for client " +
getHostAddress() + "on connection protocol " +
this.protocolName + " for rpcKind " + header.getRpcKind(), t);
String err = "IPC server unable to read call parameters: "+ t.getMessage();
throw new WrappedRpcServerException(
RpcErrorCodeProto.FATAL_DESERIALIZING_REQUEST, err);
}
Span traceSpan = null;
if (header.hasTraceInfo()) {
// If the incoming RPC included tracing info, always continue the trace
TraceInfo parentSpan = new TraceInfo(header.getTraceInfo().getTraceId(),
header.getTraceInfo().getParentId());
traceSpan = Trace.startSpan(rpcRequest.toString(), parentSpan).detach();
}
//将信息封装成Call对象，包括callId,调用对象信息的等，和Client的Call相对应
Call call = new Call(header.getCallId(), header.getRetryCount(),
rpcRequest, this, ProtoUtil.convert(header.getRpcKind()),
header.getClientId().toByteArray(), traceSpan);
if (callQueue.isClientBackoffEnabled()) {
// if RPC queue is full, we will ask the RPC client to back off by
// throwing RetriableException. Whether RPC client will honor
// RetriableException and retry depends on client ipc retry policy.
// For example, FailoverOnNetworkExceptionRetry handles
// RetriableException.
queueRequestOrAskClientToBackOff(call);
} else {
callQueue.put(call); // queue the call; maybe blocked here
}
incRpcCount(); // Increment the rpc count
}
内部调用了Connection.readAndProcess方法，dataLengthBuffer可能读取到连接头，如果是连接头则dataLengthBuffer里的内容是“hrpc”,否则dataLengthBuffer读取的是数据的长度，这里有分context和实际的数据，这个都由processOneRpc处理，这里通过callId是否小于0来判断是否是context（context的callId为-3），如果是context，则会将connectionContextRead设置true，最后通过processRpcRequest方法读取实际数据。通过反射机制创建具体的Writable子类，通过ReadFile的发序列化得到内容，最后将CallId，Wriable等封装进Call中（和Client的Call相对应），放入callQueue这个队列值，而callQueue中的Call的处理是交给Handler处理。我们来看Handler的run方法。
private class Handler extends Thread {
public Handler(int instanceNumber) {
this.setDaemon(true);
this.setName("IPC Server handler "+ instanceNumber + " on " + port);
}
@Override
public void run() {
LOG.debug(Thread.currentThread().getName() + ": starting");
SERVER.set(Server.this);
ByteArrayOutputStream buf =
new ByteArrayOutputStream(INITIAL_RESP_BUF_SIZE);
while (running) {
TraceScope traceScope = null;
try {
//从阻塞队列中取出一个Call对象
final Call call = callQueue.take(); // pop the queue; maybe blocked here
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": " + call + " for RpcKind " + call.rpcKind);
}
if (!call.connection.channel.isOpen()) {
LOG.info(Thread.currentThread().getName() + ": skipped " + call);
continue;
}
String errorClass = null;
String error = null;
RpcStatusProto returnStatus = RpcStatusProto.SUCCESS;
RpcErrorCodeProto detailedErr = null;
Writable value = null;
//放入ThreadLocal，以便获取当前处理的call等信息
CurCall.set(call);
if (call.traceSpan != null) {
traceScope = Trace.continueSpan(call.traceSpan);
}
try {
// Make the call as the user via Subject.doAs, thus associating
// the call with the Subject
//调用call调用对应的方法
if (call.connection.user == null) {
value = call(call.rpcKind, call.connection.protocolName, call.rpcRequest,
call.timestamp);
} else {
value =
call.connection.user.doAs
(new PrivilegedExceptionAction<Writable>() {
@Override
public Writable run() throws Exception {
// make the call
return call(call.rpcKind, call.connection.protocolName,
call.rpcRequest, call.timestamp);
}
}
);
}
} catch (Throwable e) {
...
}
CurCall.set(null);
synchronized (call.connection.responseQueue) {
setupResponse(buf, call, returnStatus, detailedErr,
value, errorClass, error);
// Discard the large buf and reset it back to smaller size
// to free up heap.
if (buf.size() > maxRespSize) {
LOG.warn("Large response size " + buf.size() + " for call "
+ call.toString());
buf = new ByteArrayOutputStream(INITIAL_RESP_BUF_SIZE);
}
call.sendResponse();
}
} catch (InterruptedException e) {
...
} finally {
...
}
}
LOG.debug(Thread.currentThread().getName() + ": exiting");
}
}
可以看到handler的run方法，从callQueue阻塞队列中取出Call对象，接着调用call方法来执行指定的方法，我们接着来看call方法。
/** Called for each call.
* call的接口方法
*/
public abstract Writable call(RPC.RpcKind rpcKind, String protocol,
Writable param, long receiveTime) throws Exception;
//具体实现
@Override
public Writable call(RPC.RpcKind rpcKind, String protocol,
Writable rpcRequest, long receiveTime) throws Exception {
return getRpcInvoker(rpcKind).call(this, protocol, rpcRequest,
receiveTime);
}
public static RpcInvoker getRpcInvoker(RPC.RpcKind rpcKind) {
RpcKindMapValue val = rpcKindMap.get(rpcKind);
return (val == null) ? null : val.rpcInvoker;
}
可以看到实际到最好是调用看RpcInvoker的具体实现类的call方法，而该类是从rpcKindMap中通过rpcKind取出的，那么这个RpcInvoker的具体实现类是什么时候放进去的，具体是什么。追踪rpcKindMap使用的地方可以看到。
public class WritableRpcEngine implements RpcEngine {
/**
* Register the rpcRequest deserializer for WritableRpcEngine
*/
private static synchronized void initialize() {
org.apache.hadoop.ipc.Server.registerProtocolEngine(RPC.RpcKind.RPC_WRITABLE,
Invocation.class, new Server.WritableRpcInvoker());
isInitialized = true;
}
}
public static void registerProtocolEngine(RPC.RpcKind rpcKind,
Class<? extends Writable> rpcRequestWrapperClass,
RpcInvoker rpcInvoker) {
RpcKindMapValue old =
rpcKindMap.put(rpcKind, new RpcKindMapValue(rpcRequestWrapperClass, rpcInvoker));
if (old != null) {
rpcKindMap.put(rpcKind, old);
throw new IllegalArgumentException("ReRegistration of rpcKind: " +
rpcKind);
}
LOG.debug("rpcKind=" + rpcKind +
", rpcRequestWrapperClass=" + rpcRequestWrapperClass +
", rpcInvoker=" + rpcInvoker);
}
可以看出在当初WritableRpcEngine类加载时就已经将对应的初始化的Server.WritableRpcInvoker类放入rpcKindMap中，所以如果是采用WritableRpcEngine类的，那现在从rpcKindMap取出的就是Server.WritableRpcInvoker类。具体看该类下的call方法如果通过反射技术调用过程得到具体的值。
static class WritableRpcInvoker implements RpcInvoker {
@Override
public Writable call(org.apache.hadoop.ipc.RPC.Server server,
String protocolName, Writable rpcRequest, long receivedTime)
throws IOException, RPC.VersionMismatch {
//得到当初客户端序列化的Invocation对象
Invocation call = (Invocation)rpcRequest;
if (server.verbose) log("Call: " + call);
// Verify writable rpc version
if (call.getRpcVersion() != writableRpcVersion) {
// Client is using a different version of WritableRpc
throw new RpcServerException(
"WritableRpc version mismatch, client side version="
+ call.getRpcVersion() + ", server side version="
+ writableRpcVersion);
}
long clientVersion = call.getProtocolVersion();
final String protoName;
ProtoClassProtoImpl protocolImpl;
if (call.declaringClassProtocolName.equals(VersionedProtocol.class.getName())) {
// VersionProtocol methods are often used by client to figure out
// which version of protocol to use.
//
// Versioned protocol methods should go the protocolName protocol
// rather than the declaring class of the method since the
// the declaring class is VersionedProtocol which is not
// registered directly.
// Send the call to the highest protocol version
VerProtocolImpl highest = server.getHighestSupportedProtocol(
RPC.RpcKind.RPC_WRITABLE, protocolName);
if (highest == null) {
throw new RpcServerException("Unknown protocol: " + protocolName);
}
protocolImpl = highest.protocolTarget;
} else {
protoName = call.declaringClassProtocolName;
// Find the right impl for the protocol based on client version.
//根据协议名和客户端的版本号，RpcKind来找到具体实现类
ProtoNameVer pv =
new ProtoNameVer(call.declaringClassProtocolName, clientVersion);
protocolImpl =
server.getProtocolImplMap(RPC.RpcKind.RPC_WRITABLE).get(pv);
if (protocolImpl == null) { // no match for Protocol AND Version
VerProtocolImpl highest =
server.getHighestSupportedProtocol(RPC.RpcKind.RPC_WRITABLE,
protoName);
if (highest == null) {
throw new RpcServerException("Unknown protocol: " + protoName);
} else { // protocol supported but not the version that client wants
throw new RPC.VersionMismatch(protoName, clientVersion,
highest.version);
}
}
}
// Invoke the protocol method
long startTime = Time.now();
int qTime = (int) (startTime-receivedTime);
Exception exception = null;
try {
//根据方法名来找到方法，利用反射来调用该方法得到结果
Method method =
protocolImpl.protocolClass.getMethod(call.getMethodName(),
call.getParameterClasses());
method.setAccessible(true);
server.rpcDetailedMetrics.init(protocolImpl.protocolClass);
Object value =
method.invoke(protocolImpl.protocolImpl, call.getParameters());
if (server.verbose) log("Return: "+value);
//封装进ObjectWritable类中返回
return new ObjectWritable(method.getReturnType(), value);
} catch (InvocationTargetException e) {
Throwable target = e.getTargetException();
if (target instanceof IOException) {
exception = (IOException)target;
throw (IOException)target;
} else {
IOException ioe = new IOException(target.toString());
ioe.setStackTrace(target.getStackTrace());
exception = ioe;
throw ioe;
}
} catch (Throwable e) {
if (!(e instanceof IOException)) {
LOG.error("Unexpected throwable object ", e);
}
IOException ioe = new IOException(e.toString());
ioe.setStackTrace(e.getStackTrace());
exception = ioe;
throw ioe;
} finally {
int processingTime = (int) (Time.now() - startTime);
if (LOG.isDebugEnabled()) {
String msg = "Served: " + call.getMethodName() +
" queueTime= " + qTime +
" procesingTime= " + processingTime;
if (exception != null) {
msg += " exception= " + exception.getClass().getSimpleName();
}
LOG.debug(msg);
}
String detailedMetricsName = (exception == null) ?
call.getMethodName() :
exception.getClass().getSimpleName();
server.rpcMetrics.addRpcQueueTime(qTime);
server.rpcMetrics.addRpcProcessingTime(processingTime);
server.rpcDetailedMetrics.addProcessingTime(detailedMetricsName,
processingTime);
if (server.isLogSlowRPC()) {
server.logSlowRpcCalls(call.getMethodName(), processingTime);
}
}
}
}
WritableRpcInvoker的call方法中将rpcRequest转型为Invocation对象，取出其中的协议名和版本号，根据其从server.getProtocolImplMap中得到协议具体实现类对象，从而通过方法名利用反射调用相应的方法，返回结果封装进ObjectWritable中。至于是如何得到协议具体实现类对象的，可以从以下方法中看出。
Map<ProtoNameVer, ProtoClassProtoImpl> getProtocolImplMap(RPC.RpcKind rpcKind) {
if (protocolImplMapArray.size() == 0) {// initialize for all rpc kinds
for (int i=0; i <= RpcKind.MAX_INDEX; ++i) {
protocolImplMapArray.add(
new HashMap<ProtoNameVer, ProtoClassProtoImpl>(10));
}
}
return protocolImplMapArray.get(rpcKind.ordinal());
}
根据rpcKind从protocolImplMapArray取出Map<ProtoNameVer, ProtoClassProtoImpl>对象，再根据ProtoNameVer取出具体实例对象。
public Server(Class<?> protocolClass, Object protocolImpl,
Configuration conf, String bindAddress, int port,
int numHandlers, int numReaders, int queueSizePerHandler,
boolean verbose, SecretManager<? extends TokenIdentifier> secretManager,
String portRangeConfig)
throws IOException {
super(bindAddress, port, null, numHandlers, numReaders,
queueSizePerHandler, conf,
classNameBase(protocolImpl.getClass().getName()), secretManager,
portRangeConfig);
this.verbose = verbose;
Class<?>[] protocols;
if (protocolClass == null) { // derive protocol from impl
/*
* In order to remain compatible with the old usage where a single
* target protocolImpl is suppled for all protocol interfaces, and
* the protocolImpl is derived from the protocolClass(es)
* we register all interfaces extended by the protocolImpl
*/
protocols = RPC.getProtocolInterfaces(protocolImpl.getClass());
} else {
if (!protocolClass.isAssignableFrom(protocolImpl.getClass())) {
throw new IOException("protocolClass "+ protocolClass +
" is not implemented by protocolImpl which is of class " +
protocolImpl.getClass());
}
// register protocol class and its super interfaces
//将protocolClass和protocolImpl放入map中
registerProtocolAndImpl(RPC.RpcKind.RPC_WRITABLE, protocolClass, protocolImpl);
//得到protocolClass的所有接口
protocols = RPC.getProtocolInterfaces(protocolClass);
}
//将protocolClass的所有接口和protocolImpl放入map中
for (Class<?> p : protocols) {
if (!p.equals(VersionedProtocol.class)) {
//
registerProtocolAndImpl(RPC.RpcKind.RPC_WRITABLE, p, protocolImpl);
}
}
}
void registerProtocolAndImpl(RpcKind rpcKind, Class<?> protocolClass,
Object protocolImpl) {
String protocolName = RPC.getProtocolName(protocolClass);
long version;
try {
version = RPC.getProtocolVersion(protocolClass);
} catch (Exception ex) {
LOG.warn("Protocol " + protocolClass +
" NOT registered as cannot get protocol version ");
return;
}
//放入map中
getProtocolImplMap(rpcKind).put(new ProtoNameVer(protocolName, version),
new ProtoClassProtoImpl(protocolClass, protocolImpl));
LOG.debug("RpcKind = " + rpcKind + " Protocol Name = " + protocolName + " version=" + version +
" ProtocolImpl=" + protocolImpl.getClass().getName() +
" protocolClass=" + protocolClass.getName());
}
可以从上面看出，在初始化Server对象时，就已经将协议具体类和其所有接口类放入一个Map中，而这个map根据rpcKind放在了列表的rpcKind位置处。
现在回到Handler的run方法中，在调用call方法获得结果值后，调用setupResponse和call.sendResponse()方法，我们来具体看看这两个方法。
/**
* Setup response for the IPC Call.
*
* @param responseBuf buffer to serialize the response into
* @param call {@link Call} to which we are setting up the response
* @param status of the IPC call
* @param rv return value for the IPC Call, if the call was successful
* @param errorClass error class, if the the call failed
* @param error error message, if the call failed
* @throws IOException
*/
private static void setupResponse(ByteArrayOutputStream responseBuf,
Call call, RpcStatusProto status, RpcErrorCodeProto erCode,
Writable rv, String errorClass, String error)
throws IOException {
responseBuf.reset();
DataOutputStream out = new DataOutputStream(responseBuf);
//构造响应数据头
RpcResponseHeaderProto.Builder headerBuilder = RpcResponseHeaderProto.newBuilder();
headerBuilder.setClientId(ByteString.copyFrom(call.clientId));
headerBuilder.setCallId(call.callId);
headerBuilder.setRetryCount(call.retryCount);
headerBuilder.setStatus(status);
headerBuilder.setServerIpcVersionNum(CURRENT_VERSION);
if (status == RpcStatusProto.SUCCESS) {
RpcResponseHeaderProto header = headerBuilder.build();
final int headerLen = header.getSerializedSize();
int fullLength = CodedOutputStream.computeRawVarint32Size(headerLen) +
headerLen;
try {
if (rv instanceof ProtobufRpcEngine.RpcWrapper) {
ProtobufRpcEngine.RpcWrapper resWrapper =
(ProtobufRpcEngine.RpcWrapper) rv;
fullLength += resWrapper.getLength();
out.writeInt(fullLength);
header.writeDelimitedTo(out);
rv.write(out);
} else { // Have to serialize to buffer to get len
//写入数据长度，数据头，数据内容（序列化响应返回的内容）
final DataOutputBuffer buf = new DataOutputBuffer();
rv.write(buf);
byte[] data = buf.getData();
fullLength += buf.getLength();
out.writeInt(fullLength);
header.writeDelimitedTo(out);
out.write(data, 0, buf.getLength());
}
} catch (Throwable t) {
LOG.warn("Error serializing call response for call " + call, t);
// Call back to same function - this is OK since the
// buffer is reset at the top, and since status is changed
// to ERROR it won't infinite loop.
setupResponse(responseBuf, call, RpcStatusProto.ERROR,
RpcErrorCodeProto.ERROR_SERIALIZING_RESPONSE,
null, t.getClass().getName(),
StringUtils.stringifyException(t));
return;
}
} else { // Rpc Failure
headerBuilder.setExceptionClassName(errorClass);
headerBuilder.setErrorMsg(error);
headerBuilder.setErrorDetail(erCode);
RpcResponseHeaderProto header = headerBuilder.build();
int headerLen = header.getSerializedSize();
final int fullLength =
CodedOutputStream.computeRawVarint32Size(headerLen) + headerLen;
out.writeInt(fullLength);
header.writeDelimitedTo(out);
}
//将其设置在Call对象中
call.setResponse(ByteBuffer.wrap(responseBuf.toByteArray()));
}
setupResponse中主要是序列化响应的对象，并将其放入Call对象的rpcResponse中。接着就需要将Call传递给Responder来处理了。可以从Call.sendResponse()看到。
//Call.sendResponse()
@InterfaceStability.Unstable
@InterfaceAudience.LimitedPrivate({"HDFS"})
public void sendResponse() throws IOException {
int count = responseWaitCount.decrementAndGet();
assert count >= 0 : "response has already been sent";
if (count == 0) {
connection.sendResponse(this);
}
}
//Connection.sendResponse(Call call)
private void sendResponse(Call call) throws IOException {
responder.doRespond(call);
}
//
// Enqueue a response from the application.
//
void doRespond(Call call) throws IOException {
synchronized (call.connection.responseQueue) {
// must only wrap before adding to the responseQueue to prevent
// postponed responses from being encrypted and sent out of order.
if (call.connection.useWrap) {
ByteArrayOutputStream response = new ByteArrayOutputStream();
wrapWithSasl(response, call);
call.setResponse(ByteBuffer.wrap(response.toByteArray()));
}
//放入responseQueue中
call.connection.responseQueue.addLast(call);
if (call.connection.responseQueue.size() == 1) {
processResponse(call.connection.responseQueue, true);
}
}
}
// Processes one response. Returns true if there are no more pending
// data for this channel.
//
private boolean processResponse(LinkedList<Call> responseQueue,
boolean inHandler) throws IOException {
boolean error = true;
boolean done = false; // there is more data for this channel.
int numElements = 0;
Call call = null;
try {
synchronized (responseQueue) {
//
// If there are no items for this channel, then we are done
//
numElements = responseQueue.size();
if (numElements == 0) {
error = false;
return true; // no more data for this channel.
}
//
// Extract the first call
// 从列表中取出第一个元素
//
call = responseQueue.removeFirst();
SocketChannel channel = call.connection.channel;
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": responding to " + call);
}
//
// Send as much data as we can in the non-blocking fashion
// 尝试一次性发送结果
//
int numBytes = channelWrite(channel, call.rpcResponse);
if (numBytes < 0) {
return true;
}
//如果没有余留，则表示发送成功
if (!call.rpcResponse.hasRemaining()) {
//Clear out the response buffer so it can be collected
call.rpcResponse = null;
call.connection.decRpcCount();
if (numElements == 1) { // last call fully processes.
done = true; // no more data for this channel.
} else {
done = false; // more calls pending to be sent.
}
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": responding to " + call
+ " Wrote " + numBytes + " bytes.");
}
} else {
//
// If we were unable to write the entire response out, then
// insert in Selector queue.
// 否则需要放入列表中，向responser的writeSelector注册写事件
//
call.connection.responseQueue.addFirst(call);
if (inHandler) {
// set the serve time when the response has to be sent later
call.timestamp = Time.now();
incPending();
try {
// Wakeup the thread blocked on select, only then can the call
// to channel.register() complete.
writeSelector.wakeup();
//向选择器注册
channel.register(writeSelector, SelectionKey.OP_WRITE, call);
} catch (ClosedChannelException e) {
//Its ok. channel might be closed else where.
done = true;
} finally {
decPending();
}
}
if (LOG.isDebugEnabled()) {
LOG.debug(Thread.currentThread().getName() + ": responding to " + call
+ " Wrote partial " + numBytes + " bytes.");
}
}
error = false; // everything went off well
}
} finally {
if (error && call != null) {
LOG.warn(Thread.currentThread().getName()+", call " + call + ": output error");
done = true; // error. no more data for this channel.
closeConnection(call.connection);
}
}
return done;
}
可以看到，最后放到了responseQueue中，responseQueue是一个列表，不是一个阻塞对列，每个Call封装了从客户端反序列化的对象信息，发送回客户端的数据还有Connection(每一个客户端和服务端维持一个Connection，因此call.connection.responseQueue代表着连接着同个客户端的响应消息发送队列，发送到同个客户端的call存放在同一个responseQueue中)。当responseQueue的长度为1时会调用processResponse，但如果存在一些特殊情况（返回的结果数量太大或者网络缓慢），没能一次性将结果发送，则会向Responser的selector注册写事件，由Responser将响应结果采用异步的方式继续发送未发送完的数据。来看Responser的run方法。
@Override
public void run() {
LOG.info(Thread.currentThread().getName() + ": starting");
SERVER.set(Server.this);
try {
doRunLoop();
} finally {
LOG.info("Stopping " + Thread.currentThread().getName());
try {
writeSelector.close();
} catch (IOException ioe) {
LOG.error("Couldn't close write selector in " + Thread.currentThread().getName(), ioe);
}
}
}
private void doRunLoop() {
long lastPurgeTime = 0; // last check for old calls.
while (running) {
try {
waitPending(); // If a channel is being registered, wait.
writeSelector.select(PURGE_INTERVAL);
Iterator<SelectionKey> iter = writeSelector.selectedKeys().iterator();
while (iter.hasNext()) {
SelectionKey key = iter.next();
iter.remove();
try {
if (key.isWritable()) {
doAsyncWrite(key);
}
} catch (CancelledKeyException cke) {
// something else closed the connection, ex. reader or the
// listener doing an idle scan. ignore it and let them clean
// up
Call call = (Call)key.attachment();
if (call != null) {
LOG.info(Thread.currentThread().getName() +
": connection aborted from " + call.connection);
}
} catch (IOException e) {
LOG.info(Thread.currentThread().getName() + ": doAsyncWrite threw exception " + e);
}
}
//等待时间设置，如果消息超过该时间还没有发送成功，则会执行后面的代码，关闭管道
long now = Time.now();
if (now < lastPurgeTime + PURGE_INTERVAL) {
continue;
}
lastPurgeTime = now;
//
// If there were some calls that have not been sent out for a
// long time, discard them.
//
if(LOG.isDebugEnabled()) {
LOG.debug("Checking for old call responses.");
}
ArrayList<Call> calls;
// get the list of channels from list of keys.
// 搜集超过时间还未发送的call
synchronized (writeSelector.keys()) {
calls = new ArrayList<Call>(writeSelector.keys().size());
iter = writeSelector.keys().iterator();
while (iter.hasNext()) {
SelectionKey key = iter.next();
Call call = (Call)key.attachment();
if (call != null && key.channel() == call.connection.channel) {
calls.add(call);
}
}
}
//逐个关闭
for(Call call : calls) {
doPurge(call, now);
}
} catch (OutOfMemoryError e) {
//
// we can run out of memory if we have too many threads
// log the event and sleep for a minute and give
// some thread(s) a chance to finish
//
LOG.warn("Out of Memory in server select", e);
try { Thread.sleep(60000); } catch (Exception ie) {}
} catch (Exception e) {
LOG.warn("Exception in Responder", e);
}
}
}
private void doAsyncWrite(SelectionKey key) throws IOException {
Call call = (Call)key.attachment();
if (call == null) {
return;
}
if (key.channel() != call.connection.channel) {
throw new IOException("doAsyncWrite: bad channel");
}
synchronized(call.connection.responseQueue) {
if (processResponse(call.connection.responseQueue, false)) {
try {
key.interestOps(0);
} catch (CancelledKeyException e) {
/* The Listener/reader might have closed the socket.
* We don't explicitly cancel the key, so not sure if this will
* ever fire.
* This warning could be removed.
*/
LOG.warn("Exception while changing ops : " + e);
}
}
}
}
Responser异步继续发送在选择器中注册的写事件中的响应消息（还是调用），并设定超时时间，超过时间还未发送则对其进行关闭。
总体流程
客户端
客户端实际时使用了动态代理在在Invoker方法中发送了远程过程调用的请求到服务端，并等待接受结果。
服务端
服务端采用reactor基于事件驱动的设计模式，利用JDK自带的socket通信机制和线程池完成。
参考
bigdatadecode.club/Hadoop%20RP…
《Hadoop技术内幕：深入解析YARN架构设计与实现原理》,图片也来自此。
