实现原理

首先来看一下官方文档的介绍


org.springframework.web.servlet public interface HandlerInterceptor

Workflow interface that allows for customized handler execution chains. Applications can register any number of existing or custom interceptors for certain groups of handlers, to add common preprocessing behavior without needing to modify each handler implementation.
A HandlerInterceptor gets called before the appropriate HandlerAdapter triggers the execution of the handler itself. This mechanism can be used for a large field of preprocessing aspects, e.g. for authorization checks, or common handler behavior like locale or theme changes. Its main purpose is to allow for factoring out repetitive handler code.
In an asynchronous processing scenario, the handler may be executed in a separate thread while the main thread exits without rendering or invoking the postHandle and afterCompletion callbacks. When concurrent handler execution completes, the request is dispatched back in order to proceed with rendering the model and all methods of this contract are invoked again. For further options and details see org.springframework.web.servlet.AsyncHandlerInterceptor
Typically an interceptor chain is defined per HandlerMapping bean, sharing its granularity. To be able to apply a certain interceptor chain to a group of handlers, one needs to map the desired handlers via one HandlerMapping bean. The interceptors themselves are defined as beans in the application context, referenced by the mapping bean definition via its "interceptors" property (in XML: a <list> of <ref>).
HandlerInterceptor is basically similar to a Servlet Filter, but in contrast to the latter it just allows custom pre-processing with the option of prohibiting the execution of the handler itself, and custom post-processing. Filters are more powerful, for example they allow for exchanging the request and response objects that are handed down the chain. Note that a filter gets configured in web.xml, a HandlerInterceptor in the application context.
As a basic guideline, fine-grained handler-related preprocessing tasks are candidates for HandlerInterceptor implementations, especially factored-out common handler code and authorization checks. On the other hand, a Filter is well-suited for request content and view content handling, like multipart forms and GZIP compression. This typically shows when one needs to map the filter to certain content types (e.g. images), or to all requests.

Since:
20.06.2003
See Also:
HandlerExecutionChain.getInterceptors, org.springframework.web.servlet.handler.HandlerInterceptorAdapter, org.springframework.web.servlet.handler.AbstractHandlerMapping.setInterceptors, org.springframework.web.servlet.handler.UserRoleAuthorizationInterceptor, org.springframework.web.servlet.i18n.LocaleChangeInterceptor, org.springframework.web.servlet.theme.ThemeChangeInterceptor, javax.servlet.Filter
  Maven: org.springframework:spring-webmvc:5.1.6.RELEASE

重点
HandlerInterceptor is basically similar to a Servlet Filter(控制器拦截器作用就和servlet拦截器完全一样), but in contrast to the latter it just allows custom pre-processing with the option of prohibiting the execution of the handler itself, and custom post-processing. Filters are more powerful, for example they allow for exchanging the request and response objects that are handed down the chain.

Note that a filter gets configured in web.xml, a HandlerInterceptor in the application context.(用的时候需要在配置文件配置控制器拦截器)

总结
关键两点
1.spring的控制器拦截器的作用和servlet拦截器作用完全一样
2.用的时候需要在配置文件配置

servlet里的拦截器也是一样，也需要在配置文件里配置拦截器。

实现拦截器

几个点
1.要实现拦截器接口HandlerInterceptor。
2.主要是实现之前和之后的方法。

package sample.tomcat.intecepter;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

/**
 * @author gzh
 * @createTime 2021/2/14 11:07 AM
 */
public class LoggerInterceptor implements HandlerInterceptor {
	private static Log log = LogFactory.getLog(LoggerInterceptor.class);

	@Override
	public boolean preHandle(HttpServletRequest request,
			HttpServletResponse response, Object handler) throws Exception {
		log.info("preHandle");
		return true;
	}

	@Override
	public void postHandle(HttpServletRequest request, HttpServletResponse response,
			Object handler, ModelAndView modelAndView) throws Exception {
		log.info("postHandle");
	}
}

配置拦截器

几个点
1.配置接口WebMvcConfigurer
以前spring都是在xml配置文件里配置，现在springboot都是直接在配置类里面配置。

2.实现配置接口
添加自定义拦截器即可。

package sample.tomcat.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import sample.tomcat.intecepter.LoggerInterceptor;

/**
 * @author gzh
 * @createTime 2021/2/14 11:06 AM
 */
@Configuration
public class WebMvcConfig implements WebMvcConfigurer {
	@Override
	public void addInterceptors(InterceptorRegistry registry) {
		registry.addInterceptor(new LoggerInterceptor());
	}

}

HandlerInterceptor接口和HandlerInterceptorAdapter抽象类的区别？

一个是接口。

一个是抽象类，抽象类的作用是实现接口并且实现了接口的部分功能，或者根本没有实现任何功能，而只是覆盖了接口的方法，方法内容都是空的，即没有干任何实际的事情，这个时候的作用就是纯粹为了让自定义拦截器类少写一些代码，说白了就是让自定义拦截器少实现一些方法，因为自定义拦截器不一定每次都关注接口的所有方法，我们很可能只需要实现接口的某一些方法，抽象类就是干这个的，即自定义拦截器通过继承抽象类而不是实现接口，从而避免实现接口的所有方法，只需要实现某一些方法即可，也避免了代码的臃肿，因为自定义拦截器里的那些空方法都是无效代码，现在都统一移到了抽象类，而不是在每个自定义拦截器类里写同样的无效代码。

接口HandlerInterceptor-源码

/**
 * Workflow interface that allows for customized handler execution chains.
 * Applications can register any number of existing or custom interceptors
 * for certain groups of handlers, to add common preprocessing behavior
 * without needing to modify each handler implementation.
 *
 * <p>A HandlerInterceptor gets called before the appropriate HandlerAdapter
 * triggers the execution of the handler itself. This mechanism can be used
 * for a large field of preprocessing aspects, e.g. for authorization checks,
 * or common handler behavior like locale or theme changes. Its main purpose
 * is to allow for factoring out repetitive handler code.
 *
 * <p>In an asynchronous processing scenario, the handler may be executed in a
 * separate thread while the main thread exits without rendering or invoking the
 * {@code postHandle} and {@code afterCompletion} callbacks. When concurrent
 * handler execution completes, the request is dispatched back in order to
 * proceed with rendering the model and all methods of this contract are invoked
 * again. For further options and details see
 * {@code org.springframework.web.servlet.AsyncHandlerInterceptor}
 *
 * <p>Typically an interceptor chain is defined per HandlerMapping bean,
 * sharing its granularity. To be able to apply a certain interceptor chain
 * to a group of handlers, one needs to map the desired handlers via one
 * HandlerMapping bean. The interceptors themselves are defined as beans
 * in the application context, referenced by the mapping bean definition
 * via its "interceptors" property (in XML: a &lt;list&gt; of &lt;ref&gt;).
 *
 * <p>HandlerInterceptor is basically similar to a Servlet Filter, but in
 * contrast to the latter it just allows custom pre-processing with the option
 * of prohibiting the execution of the handler itself, and custom post-processing.
 * Filters are more powerful, for example they allow for exchanging the request
 * and response objects that are handed down the chain. Note that a filter
 * gets configured in web.xml, a HandlerInterceptor in the application context.
 *
 * <p>As a basic guideline, fine-grained handler-related preprocessing tasks are
 * candidates for HandlerInterceptor implementations, especially factored-out
 * common handler code and authorization checks. On the other hand, a Filter
 * is well-suited for request content and view content handling, like multipart
 * forms and GZIP compression. This typically shows when one needs to map the
 * filter to certain content types (e.g. images), or to all requests.
 *
 * @author Juergen Hoeller
 * @since 20.06.2003
 * @see HandlerExecutionChain#getInterceptors
 * @see org.springframework.web.servlet.handler.HandlerInterceptorAdapter
 * @see org.springframework.web.servlet.handler.AbstractHandlerMapping#setInterceptors
 * @see org.springframework.web.servlet.handler.UserRoleAuthorizationInterceptor
 * @see org.springframework.web.servlet.i18n.LocaleChangeInterceptor
 * @see org.springframework.web.servlet.theme.ThemeChangeInterceptor
 * @see javax.servlet.Filter
 */
public interface HandlerInterceptor {

	/**
	 * Intercept the execution of a handler. Called after HandlerMapping determined
	 * an appropriate handler object, but before HandlerAdapter invokes the handler.
	 * <p>DispatcherServlet processes a handler in an execution chain, consisting
	 * of any number of interceptors, with the handler itself at the end.
	 * With this method, each interceptor can decide to abort the execution chain,
	 * typically sending a HTTP error or writing a custom response.
	 * <p><strong>Note:</strong> special considerations apply for asynchronous
	 * request processing. For more details see
	 * {@link org.springframework.web.servlet.AsyncHandlerInterceptor}.
	 * <p>The default implementation returns {@code true}.
	 * @param request current HTTP request
	 * @param response current HTTP response
	 * @param handler chosen handler to execute, for type and/or instance evaluation
	 * @return {@code true} if the execution chain should proceed with the
	 * next interceptor or the handler itself. Else, DispatcherServlet assumes
	 * that this interceptor has already dealt with the response itself.
	 * @throws Exception in case of errors
	 */
	default boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {

		return true;
	}

	/**
	 * Intercept the execution of a handler. Called after HandlerAdapter actually
	 * invoked the handler, but before the DispatcherServlet renders the view.
	 * Can expose additional model objects to the view via the given ModelAndView.
	 * <p>DispatcherServlet processes a handler in an execution chain, consisting
	 * of any number of interceptors, with the handler itself at the end.
	 * With this method, each interceptor can post-process an execution,
	 * getting applied in inverse order of the execution chain.
	 * <p><strong>Note:</strong> special considerations apply for asynchronous
	 * request processing. For more details see
	 * {@link org.springframework.web.servlet.AsyncHandlerInterceptor}.
	 * <p>The default implementation is empty.
	 * @param request current HTTP request
	 * @param response current HTTP response
	 * @param handler handler (or {@link HandlerMethod}) that started asynchronous
	 * execution, for type and/or instance examination
	 * @param modelAndView the {@code ModelAndView} that the handler returned
	 * (can also be {@code null})
	 * @throws Exception in case of errors
	 */
	default void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,
			@Nullable ModelAndView modelAndView) throws Exception {
	}

	/**
	 * Callback after completion of request processing, that is, after rendering
	 * the view. Will be called on any outcome of handler execution, thus allows
	 * for proper resource cleanup.
	 * <p>Note: Will only be called if this interceptor's {@code preHandle}
	 * method has successfully completed and returned {@code true}!
	 * <p>As with the {@code postHandle} method, the method will be invoked on each
	 * interceptor in the chain in reverse order, so the first interceptor will be
	 * the last to be invoked.
	 * <p><strong>Note:</strong> special considerations apply for asynchronous
	 * request processing. For more details see
	 * {@link org.springframework.web.servlet.AsyncHandlerInterceptor}.
	 * <p>The default implementation is empty.
	 * @param request current HTTP request
	 * @param response current HTTP response
	 * @param handler handler (or {@link HandlerMethod}) that started asynchronous
	 * execution, for type and/or instance examination
	 * @param ex exception thrown on handler execution, if any
	 * @throws Exception in case of errors
	 */
	default void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler,
			@Nullable Exception ex) throws Exception {
	}

}

抽象类HandlerInterceptorAdapter-源码


/**
 * Abstract adapter class for the {@link AsyncHandlerInterceptor} interface,
 * for simplified implementation of pre-only/post-only interceptors.
 *
 * @author Juergen Hoeller
 * @since 05.12.2003
 */
public abstract class HandlerInterceptorAdapter implements AsyncHandlerInterceptor {

	/**
	 * This implementation always returns {@code true}.
	 */
	@Override
	public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {

		return true;
	}

	/**
	 * This implementation is empty.
	 */
	@Override
	public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler,
			@Nullable ModelAndView modelAndView) throws Exception {
	}

	/**
	 * This implementation is empty.
	 */
	@Override
	public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler,
			@Nullable Exception ex) throws Exception {
	}

	/**
	 * This implementation is empty.
	 */
	@Override
	public void afterConcurrentHandlingStarted(HttpServletRequest request, HttpServletResponse response,
			Object handler) throws Exception {
	}

}

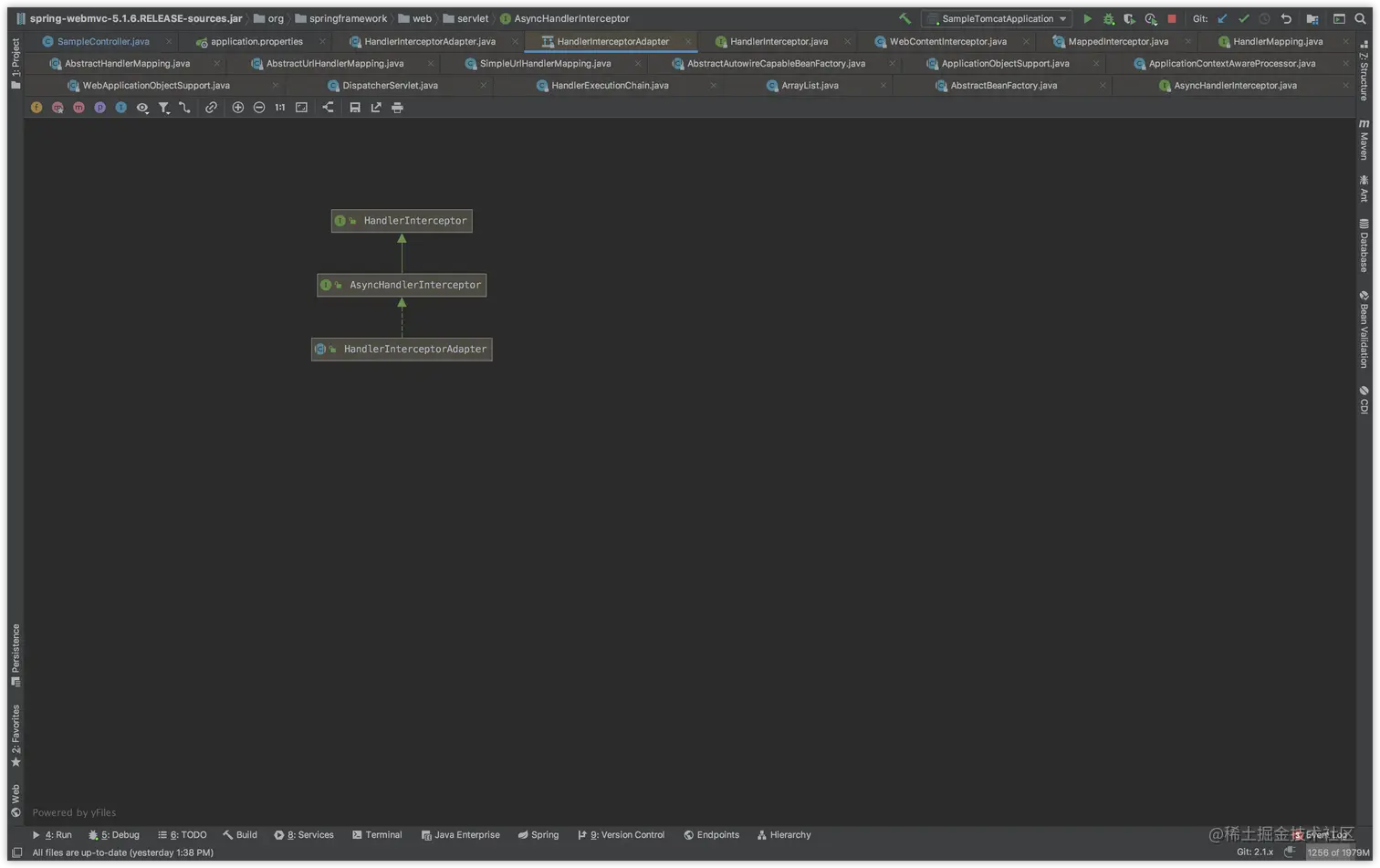

类继承图

default方法

可以看到上面接口的方法是默认方法。

接口里的默认方法，和抽象类的作用类似，就是有一个默认的实现，或者干脆什么都不做，就是一个空的实现，主要是为了实现类不用实现接口的所有方法。

默认方法在jdk8才开始出现，以前的抽象类主要是想避免实现类实现接口的所有方法，而jdk8的默认方法则是解决如果接口变更了，不需要修改所有的实现类。

例子1

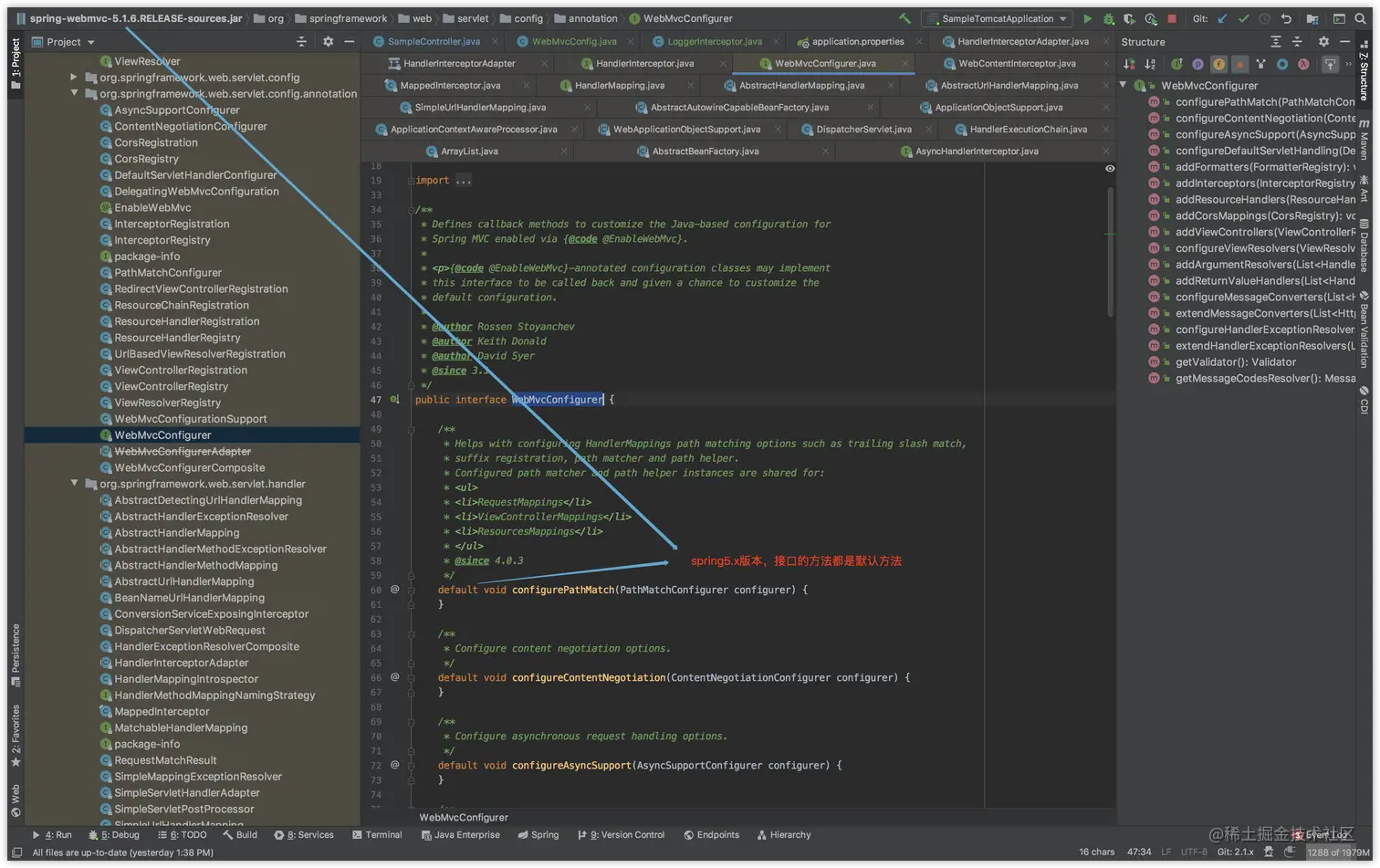

springboot里的配置类都要实现的接口WebMvcConfigurer，里面的方法全部都是默认方法，我们实现的时候只需要挑自己想实现的就可以。

例子2
spring4.x的版本，接口的方法都是非默认方法。而spring5.x的版本，接口的方法都是默认方法。

方法体

1.默认方法
有方法体，即有{...}，和类里面的方法完全一样。

2.非默认方法
不需要方法体，即没有{}，直接以;结束方法申明。

总结

如果是jdk8(jdk8才支持接口里的默认方法)并且拦截器接口是默认方法(即spring版本是5.x)，那么自定义拦截器是实现接口还是继承抽象类是没有任何区别的，也就是说，都可以，都行，反正少写一些代码的目的已经达到了。

其实拦截器抽象类HandlerInterceptorAdapter老早以前就有(2003年就有)，那个时候jdk不支持接口的默认方法，才用这种方法。

现在有了jdk8和spring5.x，直接用接口HandlerInterceptor即可，没有必要再用抽象类HandlerInterceptorAdapter。
