Rocketmq
www.wolai.com/6N83o5wVjDP…
经过我的思考，认为还是wolai的双向链接比较使用，更方便大家学习，所以我把对于源码的分析分享出来，有兴趣的同学可以看看，打开的时候可能会比较卡，因为源码比较多。
nameserver
创建NamesrvController
public static void main(String[] args) {
main0(args);
}
public static NamesrvController main0(String[] args) {
try {
NamesrvController controller = createNamesrvController(args);
[start](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#mZJNueC7KvPQLQnySTGshx)(controller);
String tip = "The Name Server boot success. serializeType=" + RemotingCommand.getSerializeTypeConfigInThisServer();
log.info(tip);
System.out.printf("%s%n", tip);
return controller;
} catch (Throwable e) {
e.printStackTrace();
System.exit(-1);
}
return null;
}
启动NamesrvController
public static NamesrvController start(final NamesrvController controller) throws Exception {
if (null == controller) {
throw new IllegalArgumentException("NamesrvController is null");
}
//重点是初始化控制器
boolean initResult = controller.[initialize](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#oZ6vAgSSkE86BVkV6GAkwC)();
if (!initResult) {
controller.shutdown();
System.exit(-3);
}
Runtime.getRuntime().addShutdownHook(new ShutdownHookThread(log, new Callable<Void>() {
@Override
public Void call() throws Exception {
controller.shutdown();
return null;
}
}));
controller.start();
return controller;
}
初始化NamesrvController
public boolean initialize() {
this.kvConfigManager.load();
//new 一个远程通信服务器
this.remotingServer = new NettyRemotingServer(this.nettyServerConfig, this.brokerHousekeepingService);
//这个processor就是nameserver用来处理网络请求的组件
this.[registerProcessor](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#xeaR9CJcfEJtDJU4gqQGpg)();
//启动一个线程每隔10秒来查看目前不活跃的broker
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
NamesrvController.this.routeInfoManager.[scanNotActiveBroker](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#q3ZLx7p2uaSGT5fJXmxKbU)();
}
}, 5, 10, TimeUnit.SECONDS);
}
public void scanNotActiveBroker() {
//遍历一下brokerLiveTable。查看每个broker最新的心跳时间
Iterator<Entry<String, BrokerLiveInfo>> it = this.brokerLiveTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, BrokerLiveInfo> next = it.next();
long last = next.getValue().getLastUpdateTimestamp();
//判断超过120秒没有回复就默认broker死亡，就会将这个broker移除brokerLiveTable
if ((last + BROKER_CHANNEL_EXPIRED_TIME) < System.currentTimeMillis()) {
RemotingUtil.closeChannel(next.getValue().getChannel());
it.remove();
log.warn("The broker channel expired, {} {}ms", next.getKey(), BROKER_CHANNEL_EXPIRED_TIME);
this.onChannelDestroy(next.getKey(), next.getValue().getChannel());
}
}
}
使用netty
public NettyRemotingServer(final NettyServerConfig nettyServerConfig,
final ChannelEventListener channelEventListener) {
super(nettyServerConfig.getServerOnewaySemaphoreValue(), nettyServerConfig.getServerAsyncSemaphoreValue());
this.serverBootstrap = new ServerBootstrap();
this.nettyServerConfig = nettyServerConfig;
this.channelEventListener = channelEventListener;
}
ServerBootstrap是netty的一个核心组件，通过这个可以让netty来监听一个端口上的网络请求
NettyRemotingServer是rocketmq自己开发的网络通信组件，但是底层是基于netty的ServerBootstrap
broker注册到nameserver
private void registerProcessor() {
if (namesrvConfig.isClusterTest()) {
this.remotingServer.registerDefaultProcessor(new ClusterTestRequestProcessor(this, namesrvConfig.getProductEnvName()),
this.remotingExecutor);
} else {
//nameservier默认的请求注册进入了，都交给nettyserver来进行处理
this.remotingServer.registerDefaultProcessor(new [DefaultRequestProcessor](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#aUm5RgwN4WAKaVJnWMNpPE)(this), this.remotingExecutor);
}
}
switch (request.getCode()) {
case RequestCode.PUT_KV_CONFIG:
return this.putKVConfig(ctx, request);
case RequestCode.GET_KV_CONFIG:
return this.getKVConfig(ctx, request);
case RequestCode.DELETE_KV_CONFIG:
return this.deleteKVConfig(ctx, request);
case RequestCode.QUERY_DATA_VERSION:
return queryBrokerTopicConfig(ctx, request);
//将broker的请求注册到nameserver中
case RequestCode.REGISTER_BROKER:
Version brokerVersion = MQVersion.value2Version(request.getVersion());
if (brokerVersion.ordinal() >= MQVersion.Version.V3_0_11.ordinal()) {
return this.registerBrokerWithFilterServer(ctx, request);
} else {
//注册broker到nameserver
return this.[registerBroker](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#ohpVMmi7gJ2v7rfRZrLsiH)(ctx, request);
}
//调用了namesrvController.getRouteInfoManager().registerBroker方法真正将broker注册到nameserver中了
RegisterBrokerResult result = this.namesrvController.getRouteInfoManager().[registerBroker](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#e2cEqQuc6yWcATRjhvEuvC)(
requestHeader.getClusterName(),
requestHeader.getBrokerAddr(),
requestHeader.getBrokerName(),
requestHeader.getBrokerId(),
requestHeader.getHaServerAddr(),
topicConfigWrapper,
null,
ctx.channel()
);
public RegisterBrokerResult registerBroker(
final String clusterName,
final String brokerAddr,
final String brokerName,
final long brokerId,
final String haServerAddr,
final TopicConfigSerializeWrapper topicConfigWrapper,
final List<String> filterServerList,
final Channel channel) {
RegisterBrokerResult result = new RegisterBrokerResult();
try {
try {
//加锁，同一时间只能有一个线程访问
this.lock.writeLock().lockInterruptibly();
//根据clusterName获取到了一个set，之后每隔30秒发送的请求是没有影响的，set会自动去重的
Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
if (null == brokerNames) {
brokerNames = new HashSet<String>();
this.clusterAddrTable.put(clusterName, brokerNames);
}
//将broker添加到一个集群里面
brokerNames.add(brokerName);
boolean registerFirst = false;
//根据brokername获取到brokerdata
//brokerAddrTable存放了所有broker的详细路由信息
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
//如果broker第第一次进行注册，brokerDate会是null，会new一个BrokerData，将路由信息放入brokerAddrTable中
if (null == brokerData) {
registerFirst = true;
brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
this.brokerAddrTable.put(brokerName, brokerData);
}
Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs();
//Switch slave to master: first remove <1, IP:PORT> in namesrv, then add <0, IP:PORT>
//The same IP:PORT must only have one record in brokerAddrTable
Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> item = it.next();
if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) {
it.remove();
}
}
String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
registerFirst = registerFirst || (null == oldAddr);
if (null != topicConfigWrapper
&& MixAll.MASTER_ID == brokerId) {
if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion())
|| registerFirst) {
ConcurrentMap<String, TopicConfig> tcTable =
topicConfigWrapper.getTopicConfigTable();
if (tcTable != null) {
for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
this.createAndUpdateQueueData(brokerName, entry.getValue());
}
}
}
}
//这里是broker心跳的核心处理逻辑
//默认每隔30秒就会有一个新的BrokerLiveInfo被put到brokerLiveTable，覆盖上一次的心跳时间
//BrokerLiveInfo里面的这个 System.currentTimeMillis(),当前时间戳就是broker最新的心跳时间
BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,
new BrokerLiveInfo(
System.currentTimeMillis(),
topicConfigWrapper.getDataVersion(),
channel,
haServerAddr));
if (null == prevBrokerLiveInfo) {
log.info("new broker registered, {} HAServer: {}", brokerAddr, haServerAddr);
}
if (filterServerList != null) {
if (filterServerList.isEmpty()) {
this.filterServerTable.remove(brokerAddr);
} else {
this.filterServerTable.put(brokerAddr, filterServerList);
}
}
if (MixAll.MASTER_ID != brokerId) {
String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
if (masterAddr != null) {
BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
if (brokerLiveInfo != null) {
result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
result.setMasterAddr(masterAddr);
}
}
}
} finally {
this.lock.writeLock().unlock();
}
} catch (Exception e) {
log.error("registerBroker Exception", e);
}
return result;
}
Broker
创建createBrokerController
BrokerStartup类下的部分代码
public static void main(String[] args) {
start([createBrokerController](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#ujNew37bsqQRy46iRfc8dq)(args));
}
public static BrokerController start(BrokerController controller) {
try {
controller.start();
String tip = "The broker[" + controller.getBrokerConfig().getBrokerName() + ", "
+ controller.getBrokerAddr() + "] boot success. serializeType=" + RemotingCommand.getSerializeTypeConfigInThisServer();
if (null != controller.getBrokerConfig().getNamesrvAddr()) {
tip += " and name server is " + controller.getBrokerConfig().getNamesrvAddr();
}
log.info(tip);
System.out.printf("%s%n", tip);
return controller;
} catch (Throwable e) {
e.printStackTrace();
System.exit(-1);
}
return null;
}
public static BrokerController createBrokerController(String[] args) {
final BrokerConfig brokerConfig = new BrokerConfig();
final NettyServerConfig nettyServerConfig = new NettyServerConfig();
final NettyClientConfig nettyClientConfig = new NettyClientConfig();
final MessageStoreConfig messageStoreConfig = new MessageStoreConfig();
}
可以看到broker不仅是netty的服务端，也是netty的客户端

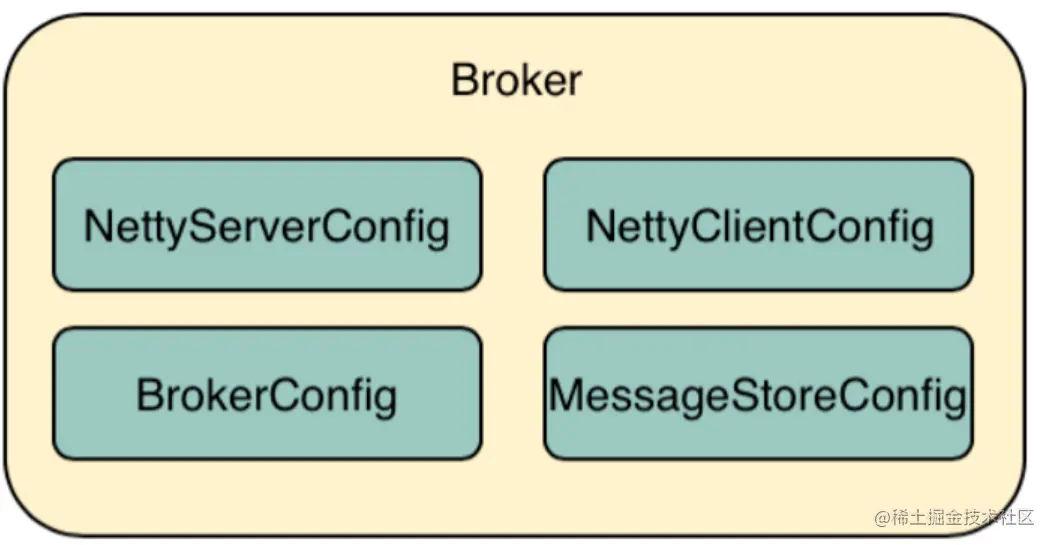

broker中主要就是这四个配置
启动BrokerController
public void start() throws Exception {
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
//将broker注册到nameserver上
BrokerController.this.[registerBrokerAll](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#nC6LdbVyTf3KAYy7uAp5pk)(true, false, brokerConfig.isForceRegister());
} catch (Throwable e) {
log.error("registerBrokerAll Exception", e);
}
}
//心跳机制 启动一个定时任务，每隔一段时间就发送一次注册请求，默认为30秒一次
//默认情况下，第一次发送请求将broker的数据放入到nameserver的routerInfoManager的路由数据表中，但是后续每隔30秒发送的注册本质上是broker给nameserver发送心跳
}, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)), TimeUnit.MILLISECONDS);
if (this.brokerStatsManager != null) {
this.brokerStatsManager.start();
}
if (this.brokerFastFailure != null) {
this.brokerFastFailure.start();
}
}
public synchronized void registerBrokerAll(final boolean checkOrderConfig, boolean oneway, boolean forceRegister) {
TopicConfigSerializeWrapper topicConfigWrapper = this.getTopicConfigManager().buildTopicConfigSerializeWrapper();
if (!PermName.isWriteable(this.getBrokerConfig().getBrokerPermission())
|| !PermName.isReadable(this.getBrokerConfig().getBrokerPermission())) {
ConcurrentHashMap<String, TopicConfig> topicConfigTable = new ConcurrentHashMap<String, TopicConfig>();
for (TopicConfig topicConfig : topicConfigWrapper.getTopicConfigTable().values()) {
TopicConfig tmp =
new TopicConfig(topicConfig.getTopicName(), topicConfig.getReadQueueNums(), topicConfig.getWriteQueueNums(),
this.brokerConfig.getBrokerPermission());
topicConfigTable.put(topicConfig.getTopicName(), tmp);
}
topicConfigWrapper.setTopicConfigTable(topicConfigTable);
}
if (forceRegister || needRegister(this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.brokerConfig.getRegisterBrokerTimeoutMills())) {
//真正进行注册broker
[doRegisterBrokerAll](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#uWMwQs37dpBBMNYjhRvo5q)(checkOrderConfig, oneway, topicConfigWrapper);
}
}

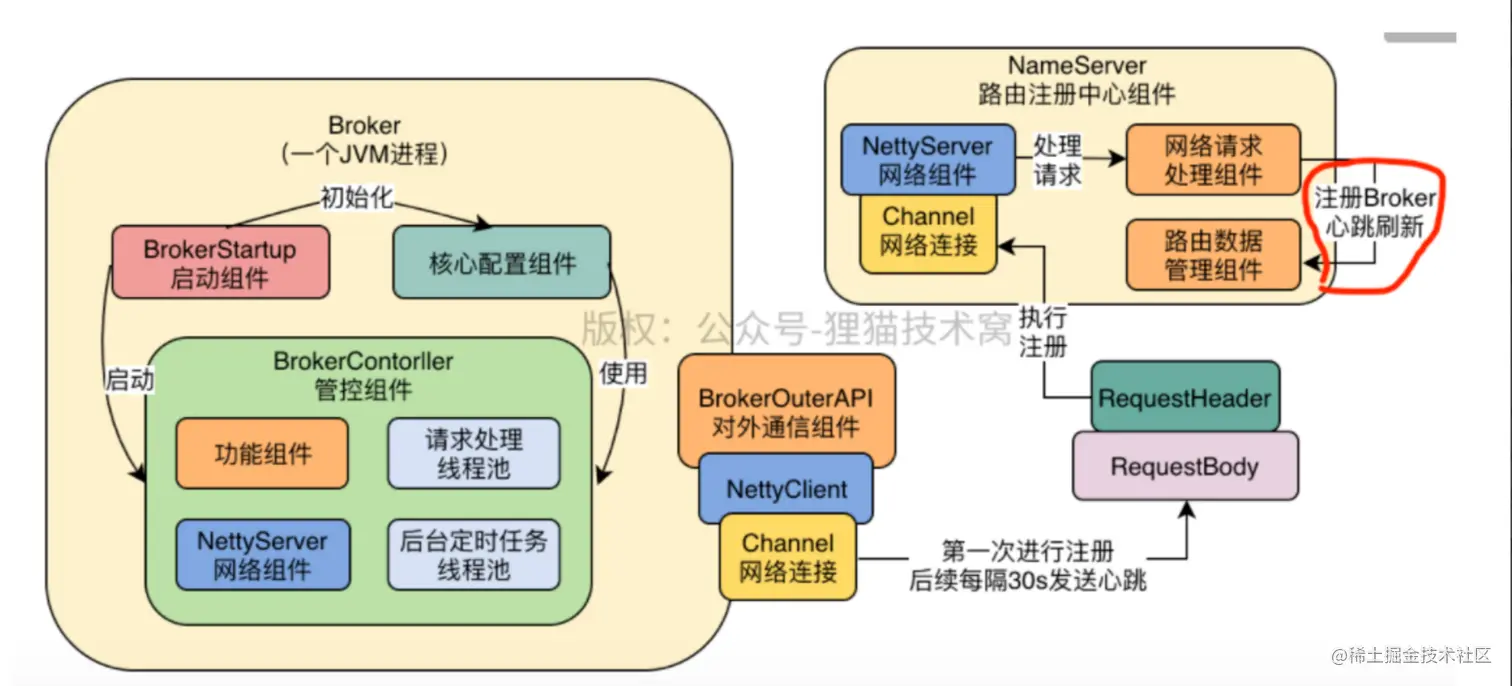

将broker注册到nameserver
private void doRegisterBrokerAll(boolean checkOrderConfig, boolean oneway,
TopicConfigSerializeWrapper topicConfigWrapper) {
//为什么是个list啊？ 因为broker要注册到所有的nameserver中，保证数据一致性
//可以看到主要是调用这个brokerOuterAPI的registerBrokerAll的方法来进行注册的
List<RegisterBrokerResult> registerBrokerResultList = this.[brokerOuterAPI](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#ekWqiqosdHtdLZqUw7GmRb).registerBrokerAll(
this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.getHAServerAddr(),
topicConfigWrapper,
this.filterServerManager.buildNewFilterServerList(),
oneway,
this.brokerConfig.getRegisterBrokerTimeoutMills(),
this.brokerConfig.isCompressedRegister());
if (registerBrokerResultList.size() > 0) {
RegisterBrokerResult registerBrokerResult = registerBrokerResultList.get(0);
if (registerBrokerResult != null) {
if (this.updateMasterHAServerAddrPeriodically && registerBrokerResult.getHaServerAddr() != null) {
this.messageStore.updateHaMasterAddress(registerBrokerResult.getHaServerAddr());
}
this.slaveSynchronize.setMasterAddr(registerBrokerResult.getMasterAddr());
if (checkOrderConfig) {
this.getTopicConfigManager().updateOrderTopicConfig(registerBrokerResult.getKvTable());
}
}
}
}
public class [BrokerOuterAPI ](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#iVQ6rcKRgkypjCDTQ4KCAV){
private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.BROKER_LOGGER_NAME);
private final RemotingClient remotingClient;
private final TopAddressing topAddressing = new TopAddressing(MixAll.getWSAddr());
private String nameSrvAddr = null;
private BrokerFixedThreadPoolExecutor brokerOuterExecutor = new BrokerFixedThreadPoolExecutor(4, 10, 1, TimeUnit.MINUTES,
new ArrayBlockingQueue<Runnable>(32), new ThreadFactoryImpl("brokerOutApi_thread_", true));
//可以看到这个类的主要作用就是调用netty的方法来进行通信
public BrokerOuterAPI(final NettyClientConfig nettyClientConfig) {
this(nettyClientConfig, null);
}
public BrokerOuterAPI(final NettyClientConfig nettyClientConfig, RPCHook rpcHook) {
this.remotingClient = new NettyRemotingClient(nettyClientConfig);
this.remotingClient.registerRPCHook(rpcHook);
}
public void start() {
this.remotingClient.start();
}
public void shutdown() {
this.remotingClient.shutdown();
this.brokerOuterExecutor.shutdown();
}
}
BrokerOuterAPI
private RegisterBrokerResult registerBroker(
final String namesrvAddr,
final boolean oneway,
final int timeoutMills,
final RegisterBrokerRequestHeader requestHeader,
final byte[] body
) throws RemotingCommandException, MQBrokerException, RemotingConnectException, RemotingSendRequestException, RemotingTimeoutException,
InterruptedException {
RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.REGISTER_BROKER, requestHeader);
request.setBody(body);
//不用等待注册结果
//属于特殊请求
if (oneway) {
try {
this.remotingClient.invokeOneway(namesrvAddr, request, timeoutMills);
} catch (RemotingTooMuchRequestException e) {
// Ignore
}
return null;
}
//这里的remotingClient实际上就是nettyClient，其实就是用nettyClient用来发送网络请求出去
RemotingCommand response = this.remotingClient.[invokeSync](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#4ZdQeXeRpSrwgZUhBqgA6e)(namesrvAddr, request, timeoutMills);
assert response != null;
switch (response.getCode()) {
case ResponseCode.SUCCESS: {
RegisterBrokerResponseHeader responseHeader =
(RegisterBrokerResponseHeader) response.decodeCommandCustomHeader(RegisterBrokerResponseHeader.class);
RegisterBrokerResult result = new RegisterBrokerResult();
result.setMasterAddr(responseHeader.getMasterAddr());
result.setHaServerAddr(responseHeader.getHaServerAddr());
if (response.getBody() != null) {
result.setKvTable(KVTable.decode(response.getBody(), KVTable.class));
}
return result;
}
default:
break;
}
throw new MQBrokerException(response.getCode(), response.getRemark());
}
@Override
public RemotingCommand invokeSync(String addr, final RemotingCommand request, long timeoutMillis)
throws InterruptedException, RemotingConnectException, RemotingSendRequestException, RemotingTimeoutException {
//获取当前时间
long beginStartTime = System.currentTimeMillis();
//broker与nameserver建立Channel
final Channel channel = this.[getAndCreateChannel](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#mneyNAgdbj71ZX5KiDnoXZ)(addr);
//判断channel 是正常的，就可以发送请求了
if (channel != null && channel.isActive()) {
try {
doBeforeRpcHooks(addr, request);
long costTime = System.currentTimeMillis() - beginStartTime;
if (timeoutMillis < costTime) {
throw new RemotingTimeoutException("invokeSync call timeout");
}
RemotingCommand response = this.invokeSyncImpl(channel, request, timeoutMillis - costTime);
doAfterRpcHooks(RemotingHelper.parseChannelRemoteAddr(channel), request, response);
return response;
} catch (RemotingSendRequestException e) {
log.warn("invokeSync: send request exception, so close the channel[{}]", addr);
this.closeChannel(addr, channel);
throw e;
} catch (RemotingTimeoutException e) {
if (nettyClientConfig.isClientCloseSocketIfTimeout()) {
this.closeChannel(addr, channel);
log.warn("invokeSync: close socket because of timeout, {}ms, {}", timeoutMillis, addr);
}
log.warn("invokeSync: wait response timeout exception, the channel[{}]", addr);
throw e;
}
} else {
this.closeChannel(addr, channel);
throw new RemotingConnectException(addr);
}
}
private Channel getAndCreateChannel(final String addr) throws RemotingConnectException, InterruptedException {
if (null == addr) {
return getAndCreateNameserverChannel();
}
ChannelWrapper cw = this.channelTables.get(addr);
if (cw != null && cw.isOK()) {
return cw.getChannel();
}
//看看具体如果来创建连接
return this.[createChannel](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#uBrUDByW23ndeK9rk9oFgQ)(addr);
}
创建一个channel连接
private Channel createChannel(final String addr) throws InterruptedException {
//尝试获取缓存里面的连接，如果缓存里面有，就会直接返回连接
ChannelWrapper cw = this.channelTables.get(addr);
if (cw != null && cw.isOK()) {
return cw.getChannel();
}
//还是获取缓存的连接
if (this.lockChannelTables.tryLock(LOCK_TIMEOUT_MILLIS, TimeUnit.MILLISECONDS)) {
try {
boolean createNewConnection;
cw = this.channelTables.get(addr);
if (cw != null) {
if (cw.isOK()) {
return cw.getChannel();
} else if (!cw.getChannelFuture().isDone()) {
createNewConnection = false;
} else {
this.channelTables.remove(addr);
createNewConnection = true;
}
} else {
createNewConnection = true;
}
//创建新的连接
if (createNewConnection) {
ChannelFuture channelFuture = this.bootstrap.connect(RemotingHelper.string2SocketAddress(addr));
log.info("createChannel: begin to connect remote host[{}] asynchronously", addr);
cw = new ChannelWrapper(channelFuture);
this.channelTables.put(addr, cw);
}
} catch (Exception e) {
log.error("createChannel: create channel exception", e);
} finally {
this.lockChannelTables.unlock();
}
} else {
log.warn("createChannel: try to lock channel table, but timeout, {}ms", LOCK_TIMEOUT_MILLIS);
}
//返回创建的连接
if (cw != null) {
ChannelFuture channelFuture = cw.getChannelFuture();
if (channelFuture.awaitUninterruptibly(this.nettyClientConfig.getConnectTimeoutMillis())) {
if (cw.isOK()) {
log.info("createChannel: connect remote host[{}] success, {}", addr, channelFuture.toString());
return cw.getChannel();
} else {
log.warn("createChannel: connect remote host[" + addr + "] failed, " + channelFuture.toString(), channelFuture.cause());
}
} else {
log.warn("createChannel: connect remote host[{}] timeout {}ms, {}", addr, this.nettyClientConfig.getConnectTimeoutMillis(),
channelFuture.toString());
}
}
return null;
}
channel发送请求
public RemotingCommand invokeSyncImpl(final Channel channel, final RemotingCommand request,
final long timeoutMillis)
throws InterruptedException, RemotingSendRequestException, RemotingTimeoutException {
final int opaque = request.getOpaque();
try {
final ResponseFuture responseFuture = new ResponseFuture(channel, opaque, timeoutMillis, null, null);
this.responseTable.put(opaque, responseFuture);
final SocketAddress addr = channel.remoteAddress();
//前面的可以不同看
//基于netty来开发，核心就是通过channel将请求发送出去
channel.writeAndFlush(request).addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture f) throws Exception {
if (f.isSuccess()) {
responseFuture.setSendRequestOK(true);
return;
} else {
responseFuture.setSendRequestOK(false);
}
responseTable.remove(opaque);
responseFuture.setCause(f.cause());
responseFuture.putResponse(null);
log.warn("send a request command to channel <" + addr + "> failed.");
}
});
RemotingCommand responseCommand = responseFuture.waitResponse(timeoutMillis);
//等待请求返回结果
if (null == responseCommand) {
if (responseFuture.isSendRequestOK()) {
throw new RemotingTimeoutException(RemotingHelper.parseSocketAddressAddr(addr), timeoutMillis,
responseFuture.getCause());
} else {
throw new RemotingSendRequestException(RemotingHelper.parseSocketAddressAddr(addr), responseFuture.getCause());
}
}
return responseCommand;
} finally {
this.responseTable.remove(opaque);
}
}
Commitlog
更新消息
this.reputMessageService.setReputFromOffset(maxPhysicalPosInLogicQueue);
this.[reputMessageService](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#7CxPxuA2Dxznbk7MEChhC4).start();
@Override
public void run() {
DefaultMessageStore.log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
try {
//可以看出线程每隔一秒就会将最近写入commitlog的数据转发一次，通过doReput方法转发到consumerqueue和IndexFile中
Thread.sleep(1);
this.[doReput](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#352bBK5KFFF42u9pwkbyvZ)();
} catch (Exception e) {
DefaultMessageStore.log.warn(this.getServiceName() + " service has exception. ", e);
}
}
DefaultMessageStore.log.info(this.getServiceName() + " service end");
}
private void doReput() {
if (this.reputFromOffset < DefaultMessageStore.this.commitLog.getMinOffset()) {
log.warn("The reputFromOffset={} is smaller than minPyOffset={}, this usually indicate that the dispatch behind too much and the commitlog has expired.",
this.reputFromOffset, DefaultMessageStore.this.commitLog.getMinOffset());
this.reputFromOffset = DefaultMessageStore.this.commitLog.getMinOffset();
}
for (boolean doNext = true; this.isCommitLogAvailable() && doNext; ) {
if (DefaultMessageStore.this.getMessageStoreConfig().isDuplicationEnable()
&& this.reputFromOffset >= DefaultMessageStore.this.getConfirmOffset()) {
break;
}
SelectMappedBufferResult result = DefaultMessageStore.this.commitLog.getData(reputFromOffset);
if (result != null) {
try {
this.reputFromOffset = result.getStartOffset();
for (int readSize = 0; readSize < result.getSize() && doNext; ) {
//从commitlog中获取到了一个DispatchRequest ，拿到了一份需要转发的消息，也就是从commitlog中拿到的
DispatchRequest dispatchRequest =
DefaultMessageStore.this.commitLog.checkMessageAndReturnSize(result.getByteBuffer(), false, false);
int size = dispatchRequest.getBufferSize() == -1 ? dispatchRequest.getMsgSize() : dispatchRequest.getBufferSize();
if (dispatchRequest.isSuccess()) {
if (size > 0) {
DefaultMessageStore.this.[doDispatch](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#xtofhvsgcLViWtJ9HPJM7K)(dispatchRequest);
if (BrokerRole.SLAVE != DefaultMessageStore.this.getMessageStoreConfig().getBrokerRole()
&& DefaultMessageStore.this.brokerConfig.isLongPollingEnable()) {
DefaultMessageStore.this.messageArrivingListener.arriving(dispatchRequest.getTopic(),
dispatchRequest.getQueueId(), dispatchRequest.getConsumeQueueOffset() + 1,
dispatchRequest.getTagsCode(), dispatchRequest.getStoreTimestamp(),
dispatchRequest.getBitMap(), dispatchRequest.getPropertiesMap());
}
this.reputFromOffset += size;
readSize += size;
if (DefaultMessageStore.this.getMessageStoreConfig().getBrokerRole() == BrokerRole.SLAVE) {
DefaultMessageStore.this.storeStatsService
.getSinglePutMessageTopicTimesTotal(dispatchRequest.getTopic()).incrementAndGet();
DefaultMessageStore.this.storeStatsService
.getSinglePutMessageTopicSizeTotal(dispatchRequest.getTopic())
.addAndGet(dispatchRequest.getMsgSize());
}
} else if (size == 0) {
this.reputFromOffset = DefaultMessageStore.this.commitLog.rollNextFile(this.reputFromOffset);
readSize = result.getSize();
}
} else if (!dispatchRequest.isSuccess()) {
if (size > 0) {
log.error("[BUG]read total count not equals msg total size. reputFromOffset={}", reputFromOffset);
this.reputFromOffset += size;
} else {
doNext = false;
// If user open the dledger pattern or the broker is master node,
// it will not ignore the exception and fix the reputFromOffset variable
if (DefaultMessageStore.this.getMessageStoreConfig().isEnableDLegerCommitLog() ||
DefaultMessageStore.this.brokerConfig.getBrokerId() == MixAll.MASTER_ID) {
log.error("[BUG]dispatch message to consume queue error, COMMITLOG OFFSET: {}",
this.reputFromOffset);
this.reputFromOffset += result.getSize() - readSize;
}
}
}
}
} finally {
result.release();
}
} else {
doNext = false;
}
}
}
public void doDispatch(DispatchRequest req) {
//这个就是把commitlog的消息转发到IndexFIle和Consumer
//CommitLogDispatcher有两个实现类一个[CommitLogDispatcherBuildConsumeQueue](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#fjm1dcTMNF7XK3xjCi3DwP)，一个[CommitLogDispatcherBuildIndex](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#knzMdn5XEfi1m9Z1nDpHzK)
for (CommitLogDispatcher dispatcher : this.dispatcherList) {
dispatcher.dispatch(req);
}
}
class CommitLogDispatcherBuildIndex implements CommitLogDispatcher {
//将从commitlog更新的数据写入IndexFile
@Override
public void dispatch(DispatchRequest request) {
if (DefaultMessageStore.this.messageStoreConfig.isMessageIndexEnable()) {
DefaultMessageStore.this.indexService.buildIndex(request);
}
}
}
class CommitLogDispatcherBuildConsumeQueue implements CommitLogDispatcher {
//将将从commitlog更新的数据写入到Consumer
@Override
public void dispatch(DispatchRequest request) {
final int tranType = MessageSysFlag.getTransactionValue(request.getSysFlag());
switch (tranType) {
case MessageSysFlag.TRANSACTION_NOT_TYPE:
case MessageSysFlag.TRANSACTION_COMMIT_TYPE:
DefaultMessageStore.this.putMessagePositionInfo(request);
break;
case MessageSysFlag.TRANSACTION_PREPARED_TYPE:
case MessageSysFlag.TRANSACTION_ROLLBACK_TYPE:
break;
}
}
}
刷新数据
//将数据刷新到磁盘
[handleDiskFlush](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#qnN3jH1P98ywnmQPBRbVjB)(result, putMessageResult, msg);
//将数据同步给slave服务器
[handleHA](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#fMTNs8Fg7URauRzriM5RvQ)(result, putMessageResult, msg);
数据刷新到磁盘
public void handleDiskFlush(AppendMessageResult result, PutMessageResult putMessageResult, MessageExt messageExt) {
// Synchronization flush
//简单来讲就是构建了一个GroupCommitRequest ，调用request.waitForFlsh()
if (FlushDiskType.SYNC_FLUSH == this.defaultMessageStore.getMessageStoreConfig().getFlushDiskType()) {
final GroupCommitService service = (GroupCommitService) this.flushCommitLogService;
if (messageExt.isWaitStoreMsgOK()) {
GroupCommitRequest request = new GroupCommitRequest(result.getWroteOffset() + result.getWroteBytes());
service.putRequest(request);
CompletableFuture<PutMessageStatus> flushOkFuture = request.future();
PutMessageStatus flushStatus = null;
try {
flushStatus = flushOkFuture.get(this.defaultMessageStore.getMessageStoreConfig().getSyncFlushTimeout(),
TimeUnit.MILLISECONDS);
} catch (InterruptedException | ExecutionException | TimeoutException e) {
//flushOK=false;
}
if (flushStatus != PutMessageStatus.PUT_OK) {
log.error("do groupcommit, wait for flush failed, topic: " + messageExt.getTopic() + " tags: " + messageExt.getTags()
+ " client address: " + messageExt.getBornHostString());
putMessageResult.setPutMessageStatus(PutMessageStatus.FLUSH_DISK_TIMEOUT);
}
} else {
service.wakeup();
}
}
//上面其实就是构建了一个GroupCommitService，使用GroupCommitService的future方法来实现刷新,刷新失败会调用GroupCommitService的 [doCommit](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#21NnMzMbx8dbxYeHL4T9ck)方法来强制刷新
// Asynchronous flush
else {
if (!this.defaultMessageStore.getMessageStoreConfig().isTransientStorePoolEnable()) {
[flushCommitLogService](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#fGKZXLcyRC2LaN43ECXtV6).wakeup();
} else {
commitLogService.wakeup();
}
}
}
private void doCommit() {
synchronized (this.requestsRead) {
if (!this.requestsRead.isEmpty()) {
for (GroupCommitRequest req : this.requestsRead) {
// There may be a message in the next file, so a maximum of
// two times the flush
boolean flushOK = false;
for (int i = 0; i < 2 && !flushOK; i++) {
flushOK = CommitLog.this.mappedFileQueue.getFlushedWhere() >= req.getNextOffset();
if (!flushOK) {
CommitLog.this.mappedFileQueue.[flush](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#97xE2YqbcCMN9a39ScCeja)(0);
}
}
req.wakeupCustomer(flushOK ? PutMessageStatus.PUT_OK : PutMessageStatus.FLUSH_DISK_TIMEOUT);
}
long storeTimestamp = CommitLog.this.mappedFileQueue.getStoreTimestamp();
if (storeTimestamp > 0) {
CommitLog.this.defaultMessageStore.getStoreCheckpoint().setPhysicMsgTimestamp(storeTimestamp);
}
this.requestsRead.clear();
} else {
// Because of individual messages is set to not sync flush, it
// will come to this process
CommitLog.this.mappedFileQueue.flush(0);
}
}
}
public boolean flush(final int flushLeastPages) {
boolean result = true;
MappedFile mappedFile = this.findMappedFileByOffset(this.flushedWhere, this.flushedWhere == 0);
if (mappedFile != null) {
long tmpTimeStamp = mappedFile.getStoreTimestamp();
int offset = mappedFile.[flush](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#dZ5oreavcNE9KaXMCeKvGB)(flushLeastPages);
long where = mappedFile.getFileFromOffset() + offset;
result = where == this.flushedWhere;
this.flushedWhere = where;
if (0 == flushLeastPages) {
this.storeTimestamp = tmpTimeStamp;
}
}
return result;
}
public int flush(final int flushLeastPages) {
if (this.isAbleToFlush(flushLeastPages)) {
if (this.hold()) {
int value = getReadPosition();
try {
//We only append data to fileChannel or mappedByteBuffer, never both.
if (writeBuffer != null || this.fileChannel.position() != 0) {
this.fileChannel.force(false);
} else {
//java Nio包下的force方法，来强制将数据刷新到磁盘中
this.mappedByteBuffer.force();
}
} catch (Throwable e) {
log.error("Error occurred when force data to disk.", e);
}
this.flushedPosition.set(value);
this.release();
} else {
log.warn("in flush, hold failed, flush offset = " + this.flushedPosition.get());
this.flushedPosition.set(getReadPosition());
}
}
return this.getFlushedPosition();
}
public void handleHA(AppendMessageResult result, PutMessageResult putMessageResult, MessageExt messageExt) {
if (BrokerRole.SYNC_MASTER == this.defaultMessageStore.getMessageStoreConfig().getBrokerRole()) {
HAService service = this.defaultMessageStore.getHaService();
if (messageExt.isWaitStoreMsgOK()) {
// Determine whether to wait
if (service.isSlaveOK(result.getWroteOffset() + result.getWroteBytes())) {
GroupCommitRequest request = new GroupCommitRequest(result.getWroteOffset() + result.getWroteBytes());
service.putRequest(request);
service.getWaitNotifyObject().wakeupAll();
PutMessageStatus replicaStatus = null;
try {
replicaStatus = request.future().get(this.defaultMessageStore.getMessageStoreConfig().getSyncFlushTimeout(),
TimeUnit.MILLISECONDS);
} catch (InterruptedException | ExecutionException | TimeoutException e) {
}
if (replicaStatus != PutMessageStatus.PUT_OK) {
log.error("do sync transfer other node, wait return, but failed, topic: " + messageExt.getTopic() + " tags: "
+ messageExt.getTags() + " client address: " + messageExt.getBornHostNameString());
putMessageResult.setPutMessageStatus(PutMessageStatus.FLUSH_SLAVE_TIMEOUT);
}
}
// Slave problem
else {
// Tell the producer, slave not available
putMessageResult.setPutMessageStatus(PutMessageStatus.SLAVE_NOT_AVAILABLE);
}
}
}
}
abstract class FlushCommitLogService extends ServiceThread {
//异步刷新的话，每隔10秒刷新一次
protected static final int RETRY_TIMES_OVER = 10;
}
class CommitRealTimeService extends FlushCommitLogService {
private long lastCommitTimestamp = 0;
@Override
public String getServiceName() {
return CommitRealTimeService.class.getSimpleName();
}
@Override
public void run() {
CommitLog.log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
int interval = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitIntervalCommitLog();
int commitDataLeastPages = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitCommitLogLeastPages();
int commitDataThoroughInterval =
CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitCommitLogThoroughInterval();
long begin = System.currentTimeMillis();
if (begin >= (this.lastCommitTimestamp + commitDataThoroughInterval)) {
this.lastCommitTimestamp = begin;
commitDataLeastPages = 0;
}
try {
boolean result = CommitLog.this.mappedFileQueue.commit(commitDataLeastPages);
long end = System.currentTimeMillis();
if (!result) {
this.lastCommitTimestamp = end; // result = false means some data committed.
//now wake up flush thread.
flushCommitLogService.wakeup();
}
if (end - begin > 500) {
log.info("Commit data to file costs {} ms", end - begin);
}
this.waitForRunning(interval);
} catch (Throwable e) {
CommitLog.log.error(this.getServiceName() + " service has exception. ", e);
}
}
boolean result = false;
for (int i = 0; i < RETRY_TIMES_OVER && !result; i++) {
result = CommitLog.this.mappedFileQueue.commit(0);
CommitLog.log.info(this.getServiceName() + " service shutdown, retry " + (i + 1) + " times " + (result ? "OK" : "Not OK"));
}
CommitLog.log.info(this.getServiceName() + " service end");
}
}

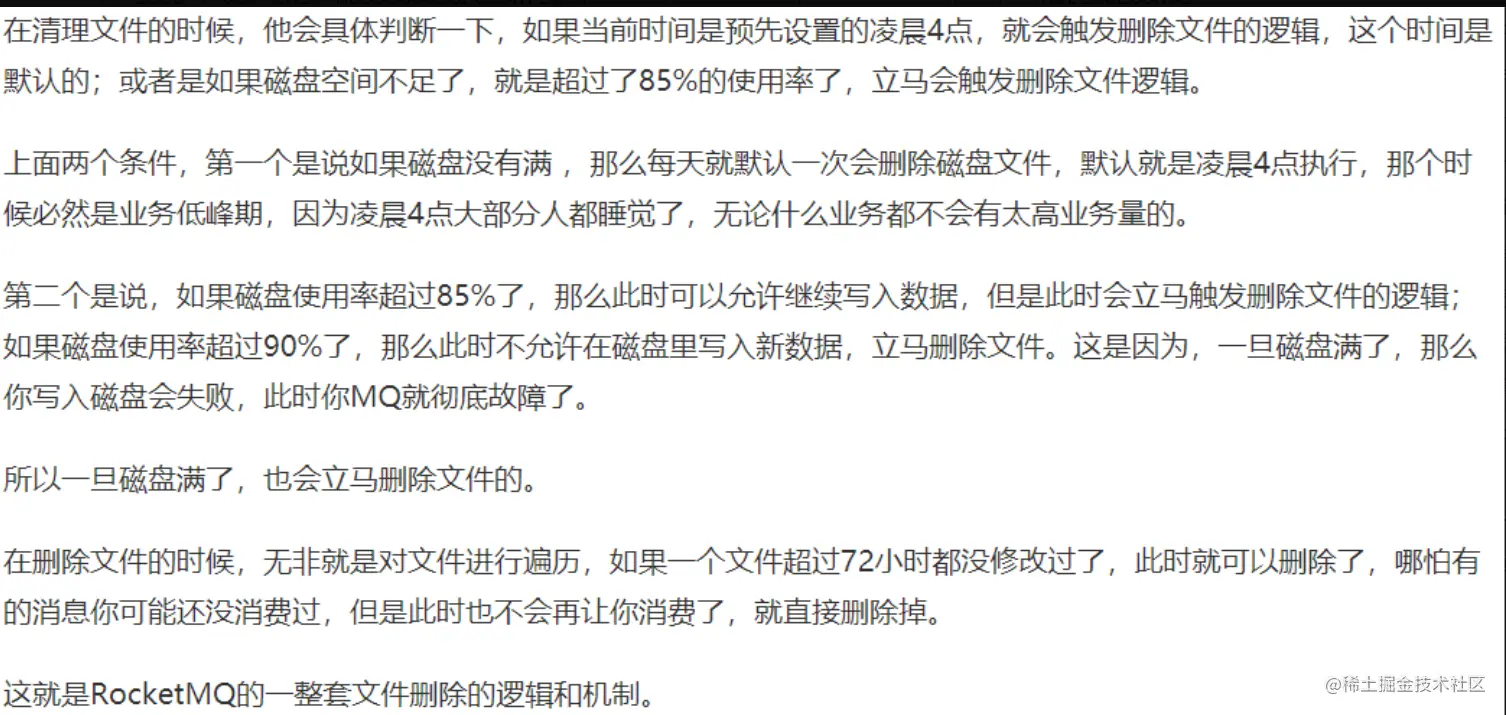

定时清理磁盘
每隔10秒去清楚超过72小时的consumerqueue和commitlog
private void addScheduleTask() {
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
DefaultMessageStore.this.[cleanFilesPeriodically](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#wKhYoUHE38zft3h6vt1sJJ)();
}
}, 1000 * 60, this.messageStoreConfig.getCleanResourceInterval(), TimeUnit.MILLISECONDS);
}
private void cleanFilesPeriodically() {
this.cleanCommitLogService.run();
this.cleanConsumeQueueService.run();
}
Producer
逻辑
当第一次拉取的时候才会去获取topic的路由数据，包括哪个broker上有哪个topic，哪个topic有多少个messagequeue
private SendResult sendDefaultImpl(
Message msg,
final CommunicationMode communicationMode,
final SendCallback sendCallback,
final long timeout
) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
this.makeSureStateOK();
Validators.checkMessage(msg, this.defaultMQProducer);
final long invokeID = random.nextLong();
long beginTimestampFirst = System.currentTimeMillis();
long beginTimestampPrev = beginTimestampFirst;
long endTimestamp = beginTimestampFirst;
//尝试从缓存获取到topic的路由信息
TopicPublishInfo topicPublishInfo = this.[tryToFindTopicPublishInfo](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#45tYkLapizxRt3qf8tMaQA)(msg.getTopic());
}
private TopicPublishInfo tryToFindTopicPublishInfo(final String topic) {
TopicPublishInfo topicPublishInfo = this.topicPublishInfoTable.get(topic);
if (null == topicPublishInfo || !topicPublishInfo.ok()) {
this.topicPublishInfoTable.putIfAbsent(topic, new TopicPublishInfo());
//如何从nameserver中获取路由数据，并且更新到缓存中
this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic)；
topicPublishInfo = this.topicPublishInfoTable.get(topic);
}
if (topicPublishInfo.isHaveTopicRouterInfo() || topicPublishInfo.ok()) {
return topicPublishInfo;
} else {
this.mQClientFactory.updateTopicRouteInfoFromNameServer(topic, true, this.defaultMQProducer);
topicPublishInfo = this.topicPublishInfoTable.get(topic);
return topicPublishInfo;
}
}
在topic中如何选择一个messagequeue
public MessageQueue selectOneMessageQueue(final TopicPublishInfo tpInfo, final String lastBrokerName) {
return this.mqFaultStrategy.[selectOneMessageQueue](https://www.wolai.com/6N83o5wVjDPTY1TqnHk8DV#9TDJjmHngLReD7mw5Pkip)(tpInfo, lastBrokerName);
}
public MessageQueue selectOneMessageQueue(final TopicPublishInfo tpInfo, final String lastBrokerName) {
if (this.sendLatencyFaultEnable) {
try {
int index = tpInfo.getSendWhichQueue().getAndIncrement();
for (int i = 0; i < tpInfo.getMessageQueueList().size(); i++) {
int pos = Math.abs(index++) % tpInfo.getMessageQueueList().size();
if (pos < 0)
pos = 0;
MessageQueue mq = tpInfo.getMessageQueueList().get(pos);
if (latencyFaultTolerance.isAvailable(mq.getBrokerName())) {
if (null == lastBrokerName || mq.getBrokerName().equals(lastBrokerName))
return mq;
}
}
final String notBestBroker = latencyFaultTolerance.pickOneAtLeast();
int writeQueueNums = tpInfo.getQueueIdByBroker(notBestBroker);
if (writeQueueNums > 0) {
final MessageQueue mq = tpInfo.selectOneMessageQueue();
if (notBestBroker != null) {
mq.setBrokerName(notBestBroker);
mq.setQueueId(tpInfo.getSendWhichQueue().getAndIncrement() % writeQueueNums);
}
return mq;
} else {
latencyFaultTolerance.remove(notBestBroker);
}
} catch (Exception e) {
log.error("Error occurred when selecting message queue", e);
}
return tpInfo.selectOneMessageQueue();
}
return tpInfo.selectOneMessageQueue(lastBrokerName);
}
producer将信息发送给broker
private SendResult sendKernelImpl(final Message msg,
final MessageQueue mq,
final CommunicationMode communicationMode,
final SendCallback sendCallback,
final TopicPublishInfo topicPublishInfo,
final long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
long beginStartTime = System.currentTimeMillis();
String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
if (null == brokerAddr) {
tryToFindTopicPublishInfo(mq.getTopic());
brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(mq.getBrokerName());
}
Consumer
启动类
DefaultMQPushConsumerImpl
public synchronized void start() throws MQClientException {
switch (this.serviceState) {
case CREATE_JUST:
log.info("the consumer [{}] start beginning. messageModel={}, isUnitMode={}", this.defaultMQPushConsumer.getConsumerGroup(),
this.defaultMQPushConsumer.getMessageModel(), this.defaultMQPushConsumer.isUnitMode());
this.serviceState = ServiceState.START_FAILED;
this.checkConfig();
this.copySubscription();
if (this.defaultMQPushConsumer.getMessageModel() == MessageModel.CLUSTERING) {
this.defaultMQPushConsumer.changeInstanceNameToPID();
}
this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQPushConsumer, this.rpcHook);
}
