一、需求来源

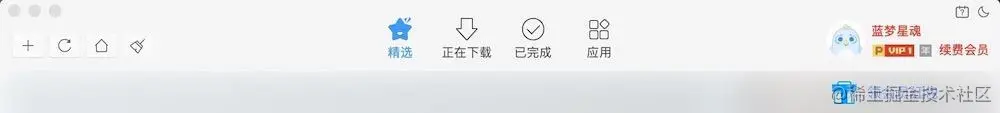

mac 工具栏开发，非常常见的一种功能，但是中文资源异常的少见，或者是xib 形式，花了一天时间查看了大量的国外相关资料博客最终纯代码实现。

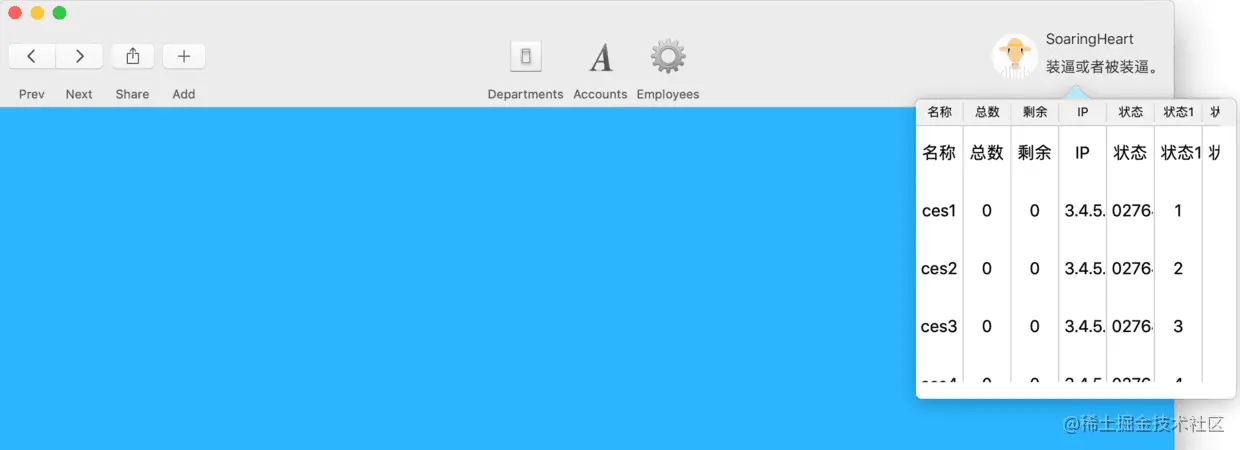

二、使用示例
import Cocoa
import SwiftExpand
class NNTabViewController: NSWindowController {
// var toolbar: NSToolbar?
lazy var toolbar: NSToolbar = {
let toolbar = NSToolbar(identifier:"ScreenNameToolbarIdentifier")
toolbar.allowsUserCustomization = true
toolbar.delegate = self
return toolbar
}()
let toolbarItems: [[String: String]] = [
["title": "irrelevant :)", "icon": "", "identifier": "NavigationGroupToolbarItem"],
["title": "Share", "icon": NSImage.shareTemplateName, "identifier": "ShareToolbarItem"],
["title": "Add", "icon": NSImage.addTemplateName, "identifier": "AddToolbarItem"],
["title": "Departments",
"icon": "NSPreferencesGeneral",
"identifier": "DepartmentViewController"],
["title": "Accounts",
"icon": "NSFontPanel",
"identifier": "AccountViewController"],
["title": "Employees",
"icon": "NSAdvanced",
"identifier": "EmployeeViewController"],
["title": "", "icon": "", "identifier": "NNUserInfoView"],
]
var toolbarTabsIdentifiers: [NSToolbarItem.Identifier] {
var list = toolbarItems.compactMap { $0["identifier"] }.map{ NSToolbarItem.Identifier(rawValue: $0) }
list.insert(NSToolbarItem.Identifier.flexibleSpace, at: 3)
list.insert(NSToolbarItem.Identifier.flexibleSpace, at: list.count - 1)
// list.append(NSToolbarItem.Identifier.flexibleSpace)
return list
}
var currentVC: NSViewController!
var currentIdentifier = ""
// **MARK: -lifecycle**
override init(window: NSWindow?) {
super.init(window: window)
// toolbar = NSToolbar(identifier:"ScreenNameToolbarIdentifier")
// toolbar?.displayMode = .iconAndLabel
// toolbar?.allowsUserCustomization = true
// toolbar?.delegate = self
window?.toolbar = toolbar
}
required init?(coder: NSCoder) {
fatalError("init(coder:) has not been implemented")
}
override func windowDidLoad() {
super.windowDidLoad()
// Do view setup here.
}
// **MARK: -funtions**
@objc func handleSegmentSelected(_ sender: NSSegmentedControl){
print("\(#function):\(sender.selectedSegment)")
}
@objc func handleBtnSelected(_ sender: NSButton){
print("\(#function):\(sender)")
}
@objc func handleItemSelected(_ sender: NSToolbarItem){
print("\(#function):\(sender.itemIdentifier.rawValue)_\(sender.label)")
loadViewWithIdentifier(itemIdentifier: sender.itemIdentifier.rawValue, withAnimation: true)
}
@objc func handleViewSelected(_ sender: NNUserInfoView){
print("\(#function):\(sender)")
}
func loadViewWithIdentifier(itemIdentifier: String, withAnimation shouldAnimate:Bool){
let VCIdentifiers: [String] = ["DepartmentViewController", "AccountViewController", "EmployeeViewController"]
if VCIdentifiers.contains(itemIdentifier) == false {
return
}
// print("\(#function):\(itemIdentifier)")
if (currentIdentifier == itemIdentifier){
return
}
currentIdentifier = itemIdentifier
guard let itemDict: [String : String] = toolbarItems.filter({ $0["identifier"] == itemIdentifier }).first
else { return }
if (itemIdentifier == "DepartmentViewController"){
currentVC = DepartmentViewController()
}
else if (itemIdentifier == "AccountViewController"){
currentVC = AccountViewController()
}
else if (itemIdentifier == "EmployeeViewController"){
currentVC = EmployeeViewController()
}
guard let window = self.window else { return }
// print(currentVC as Any)
let newView = currentVC.view
let windowRect = window.frame
let currentViewRect = newView.frame
// print(windowRect as Any)
let originY = windowRect.origin.y + (windowRect.size.height - currentViewRect.size.height)
let newFrame = NSMakeRect(windowRect.origin.x, originY, currentViewRect.size.width, currentViewRect.size.height)
window.title = currentVC.title ?? itemDict["title"]!;
window.contentView = newView
window.setFrame(newFrame, display: true, animate: shouldAnimate)
}
lazy var popover: NSPopover = {
let controller = ListViewController()
controller.preferredContentSize = CGSize(width: kScreenWidth*0.15, height: kScreenHeight*0.25)
let popView = NSPopover(vc: controller)
return popView
}()
func showPopoverController(_ sender: NSView) {
popover.show(sender, preferredEdge: .maxY)
}
}
extension NNTabViewController: NSToolbarDelegate{
func toolbar(_ toolbar: NSToolbar, itemForItemIdentifier itemIdentifier: NSToolbarItem.Identifier, willBeInsertedIntoToolbar flag: Bool) -> NSToolbarItem? {
guard let itemDict: [String : String] = toolbarItems.filter({ $0["identifier"] == itemIdentifier.rawValue }).first
else { return nil }
let toolbarItem: NSToolbarItem
if itemIdentifier.rawValue == "NavigationGroupToolbarItem" {
let group = NSToolbarItemGroup(itemIdentifier: itemIdentifier)
let itemA = NSToolbarItem(itemIdentifier: NSToolbarItem.Identifier(rawValue: "PrevToolbarItem"))
itemA.label = "Prev"
let itemB = NSToolbarItem(itemIdentifier: NSToolbarItem.Identifier(rawValue: "NextToolbarItem"))
itemB.label = "Next"
// let segmented = NSSegmentedControl(frame: NSRect(x: 0, y: 0, width: 85, height: 40))
// segmented.segmentStyle = .texturedRounded
// segmented.trackingMode = .momentary
// segmented.segmentCount = 2
// // Don't set a label: these would appear inside the button
// segmented.setImage(NSImage(named: NSImage.goBackTemplateName)!, forSegment: 0)
// segmented.setWidth(40, forSegment: 0)
// segmented.setImage(NSImage(named: NSImage.goForwardTemplateName)!, forSegment: 1)
// segmented.setWidth(40, forSegment: 1)
let items: [Any] = [NSImage(named: NSImage.goBackTemplateName)!, NSImage(named: NSImage.goForwardTemplateName)!, ]
let segmented = NSSegmentedControl.create(NSRect(x: 0, y: 0, width: items.count*40, height: 40), items: items)
segmented.target = self
segmented.action = #selector(handleSegmentSelected(_:))
// `group.label` would overwrite segment labels
group.paletteLabel = "Navigation"
group.subitems = [itemA, itemB]
group.view = segmented
toolbarItem = group
} else if ["ShareToolbarItem", "AddToolbarItem"].contains(itemIdentifier.rawValue) {
let iconImage = NSImage(named: itemDict["icon"]!)
let button = NSButton(frame: NSRect(x: 0, y: 0, width: 40, height: 40))
button.title = ""
button.image = iconImage
button.bezelStyle = .texturedRounded
button.target = self
// button.action = #selector(handleBtnSelected(_:))
button.action = Selector(("handleBtnSelected:"))
toolbarItem = NSToolbarItem(itemIdentifier: itemIdentifier)
toolbarItem.label = itemDict["title"]!
toolbarItem.view = button
} else if ["NNUserInfoView", ].contains(itemIdentifier.rawValue) {
let userView = NNUserInfoView(frame: NSRect(x: 0, y: 0, width: 160, height: 50))
userView.name = "SoaringHeart"
userView.desc = "装逼或者被装逼。"
userView.delegate = self
toolbarItem = NSToolbarItem(itemIdentifier: itemIdentifier)
toolbarItem.label = itemDict["title"]!
toolbarItem.target = self
toolbarItem.action = #selector(handleViewSelected(_:))
toolbarItem.view = userView
} else {
let iconImage = NSImage(named: itemDict["icon"]!)
toolbarItem = NSToolbarItem(itemIdentifier: itemIdentifier)
toolbarItem.label = itemDict["title"]!
toolbarItem.image = iconImage
toolbarItem.target = self
toolbarItem.action = #selector(handleItemSelected(_:))
}
return toolbarItem
}
func toolbarDefaultItemIdentifiers(_ toolbar: NSToolbar) -> [NSToolbarItem.Identifier] {
return self.toolbarTabsIdentifiers;
}
func toolbarAllowedItemIdentifiers(_ toolbar: NSToolbar) -> [NSToolbarItem.Identifier] {
return self.toolbarDefaultItemIdentifiers(toolbar)
}
func toolbarSelectableItemIdentifiers(_ toolbar: NSToolbar) -> [NSToolbarItem.Identifier] {
return self.toolbarDefaultItemIdentifiers(toolbar)
}
func toolbarWillAddItem(_ notification: Notification) {
print("toolbarWillAddItem", (notification.userInfo?["item"] as? NSToolbarItem)?.itemIdentifier ?? "")
}
func toolbarDidRemoveItem(_ notification: Notification) {
print("toolbarDidRemoveItem", (notification.userInfo?["item"] as? NSToolbarItem)?.itemIdentifier ?? "")
}
}
extension NNTabViewController: NSToolbarItemValidation{
func validateToolbarItem(_ item: NSToolbarItem) -> Bool {
return true
}
}
extension NNTabViewController: NNUserInfoViewDelegate{
func userInfoView(_ userView: NNUserInfoView, state: NSResponder.MouseState, event: NSEvent) {
switch state {
case .entered:
print("\(#function):进入区域")
showPopoverController(userView)
case .exited:
print("\(#function):离开区域")
case .down:
print("\(#function):点击")
case .up:
print("\(#function):抬起")
default:
break
}
}
}
