[Spring]Spring基于注解容器组件扫描过程

JayminAuthor
291 阅读10分钟

AnnotationConfigApplicationContext

在了解注解容器类之前，有必要谈谈XML容器的由来。由于早期的Java版本并没有支持注解，所以当时的Spring选择了XML这种语言来描述Bean，后续Java在1.5发布了注解后，Spring在3.0开始大批量引入Annotation。而基于注解注册和组件扫描的容器上下文即为-AnnotationConfigApplicationContext,以下是该类的注释信息:

独立的应用程序上下文，接受Component类作为输入-特别是使用@Configuration注释的类，还可以使用javax.inject注释使用普通的@Component类型和符合JSR-330的类。
允许使用register（Class ...）一对一地注册类，以及使用scan（String ...）进行类路径扫描。 如果有多个@Configuration类，则在较新的类中定义的@Bean方法将覆盖在较早的类中定义的方法。可以利用此属性通过一个额外的@Configuration类来故意覆盖某些Bean定义。

简单的注解容器demo代码

package com.xjm.bean.init;

import com.AnnotationContextDemo;
import com.xjm.controller.HelloController;
import com.xjm.model.Person;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

import java.util.Arrays;
import java.util.Map;

/**
 * @author jaymin
 * 2020/11/28 18:19
 */
@Configuration
@ComponentScan(value = "com.xjm")
public class BeanDefinitionDemoByAnnotation {
	public static void main(String[] args) {
		ApplicationContext applicationContext = new AnnotationConfigApplicationContext(AnnotationContextDemo.class);
		Person kobe = (Person) applicationContext.getBean("Kobe");
		Map<String, Person> beansOfType = applicationContext.getBeansOfType(Person.class);
		beansOfType.entrySet().stream().forEach(System.out::println);
		Person james = (Person) applicationContext.getBean("James");
		System.out.println(kobe.toString());
		System.out.println(james.toString());
	}
}

AnnotatedBeanDefinition

Spring为注解订制的BeanDefinition.可以从中读取到AnnotationMetadata,即注解元数据。
关于注解元数据,推荐一下这篇文章->Spring 注解编程之 AnnotationMetadata
Spring中解析配置类一般用到AnnotatedGenericBeanDefinition，其内置了StandardAnnotationMetadata来解析配置类上的注解信息.

AnnotatedBeanDefinitionReader

沿着new AnnotationConfigApplicationContext(AnnotationContextDemo.class)这段代码进入到容器上下文的初始化过程，会找到这段代码:

// this()
public AnnotationConfigApplicationContext() {
	this.reader = new AnnotatedBeanDefinitionReader(this);
	this.scanner = new ClassPathBeanDefinitionScanner(this);
}
public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
	this();
	// 注册的事情委托给了AnnotatedBeanDefinitionReader.register
	// 包装传入的 Class生成 BeanDefinition。注册到 BeanDefinitionRegistry
	register(componentClasses);
	refresh();
}
  • AnnotatedBeanDefinitionReader: 如果你读过XML的BeanDefinition的注册过程，应该清楚,解析BeanDefinition和注册BeanDefinition都是交由BeanDefinitionReader来执行的。从类的命名上我们可以得知，这是一个基于注解的BeanDefinitionReader.
  • DefaultListableBeanFactory: 不仅如此，AnnotationConfigApplicationContext还继承 了GenericApplicationContext,前文说过，调用类的初始化方法时，默认会调用父类的构造方法:
public class GenericApplicationContext extends AbstractApplicationContext implements BeanDefinitionRegistry {

    private final DefaultListableBeanFactory beanFactory;
    // 实例化的时候初始化DefaultListableBeanFactory
	public GenericApplicationContext() {
	this.beanFactory = new DefaultListableBeanFactory();
}
}

提前初始化DefaultListableBeanFactory是为了提前注册容器内置的BeanDefinition.
this.reader = new AnnotatedBeanDefinitionReader(this);，在这里的this指向的是AnnotationConfigApplicationContext,AnnotatedBeanDefinitionReader会将容器上下文作为registry,在注册的时候则会调用this.beanFactory.registerBeanDefinition(beanName, beanDefinition);对BeanDefinition进行注册.

register(componentClasses)流程

  • 委派AnnotatedBeanDefinitionReader进行注册
public void register(Class<?>... componentClasses) {
Assert.notEmpty(componentClasses, "At least one component class must be specified");
this.reader.register(componentClasses);
}
  • AnnotatedBeanDefinitionReader#register

循环注册传入的多个componentClasses

public void register(Class<?>... componentClasses) {
for (Class<?> componentClass : componentClasses) {
	registerBean(componentClass);
}
}
  • AnnotatedBeanDefinitionReader#registerBean(java.lang.Class<?>)

执行注册Bean的逻辑，很有意思的一件事是，Spring中doxxx()的方法，一般就是真正的执行方法。

<T> void doRegisterBean(Class<T> beanClass, @Nullable Supplier<T> instanceSupplier, @Nullable String name,
		@Nullable Class<? extends Annotation>[] qualifiers, BeanDefinitionCustomizer... definitionCustomizers) {
	// 将配置类装载到AnnotatedGenericBeanDefinition,通过内置的StandardAnnotationMetadata来获取注解元数据
	AnnotatedGenericBeanDefinition abd = new AnnotatedGenericBeanDefinition(beanClass);
	// 根据Condition的条件判断是否跳过该bean的注册
	if (this.conditionEvaluator.shouldSkip(abd.getMetadata())) {
		return;
	}
	// 设置初始化的回调函数，传入一个函数式接口->supplier
	abd.setInstanceSupplier(instanceSupplier);
	ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(abd);
	// 解析scope的值,默认为singleton
	abd.setScope(scopeMetadata.getScopeName());
	// 判断是否含有beanName，如果没有则调用自动生成器进行生成
	String beanName = (name != null ? name : this.beanNameGenerator.generateBeanName(abd, this.registry));
	// 解析部分注解: @DependsOn、@Lazy、@Primary、@Role
	AnnotationConfigUtils.processCommonDefinitionAnnotations(abd);
	// qualifier,多个实现类时，通过这个注解来区分加载的bean
	if (qualifiers != null) {
		for (Class<? extends Annotation> qualifier : qualifiers) {
			if (Primary.class == qualifier) {
				abd.setPrimary(true);
			}
			else if (Lazy.class == qualifier) {
				abd.setLazyInit(true);
			}
			else {
				abd.addQualifier(new AutowireCandidateQualifier(qualifier));
			}
		}
	}
	// 用户自定义BeanDefinition,用于定制化场景
	// 自定义bean注册，手动向容器中以lambda表达式的方式注册bean
	// applicationContext.registerBean(xxxService.class, () -> new xxxService());
	for (BeanDefinitionCustomizer customizer : definitionCustomizers) {
		customizer.customize(abd);
	}
	// 包装BeanDefinition到BeanDefinitionHolder
	BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(abd, beanName);
	// 是否需要根据scope生成动态代理对象
	definitionHolder = AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
	// 注册BeanDefinition
	BeanDefinitionReaderUtils.registerBeanDefinition(definitionHolder, this.registry);
}

关于@Conditional的注解解释:可以参考这两篇博客:
@Conditional 原理
Spring 之 Condition 条件注解 实践和源码学习

组件扫描过程

从上文可以看到register只是注册了componentClasses，而基于这些配置类的组件扫描，则是在容器的refresh中进行处理的。这里的componentClasses指的是在配置类，即AnnotationConfigApplicationContext的构造函数中传入的配置类.

  • AbstractApplicationContext#refresh

关注这个方法，这里是注解解析注册的入口,对比XML的入口: ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();，可以发现两者的注册入口是不一样的。

// Invoke factory processors registered as beans in the context.
// 激活在容器中注册为bean的工厂处理器。
invokeBeanFactoryPostProcessors(beanFactory);
  • AbstractApplicationContext#invokeBeanFactoryPostProcessors

十分关键的方法，在这里容器会开始激活BeanFactoryPostProcessors.

	/**
	 * Instantiate and invoke all registered BeanFactoryPostProcessor beans,
	 * respecting explicit order if given.
	 * <p>Must be called before singleton instantiation.<br>
	 * 实例化并调用所有注册的BeanFactoryPostProcessor Bean，并遵循显式顺序（如果给定）。<br>
	 * 必须在单例实例化之前调用。
	 */
	protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
		// 委托类处理,这里的beanFactory为DefaultListableBeanFactory
		PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

		// Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
		// (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
		// 如果找到一个LoadTimeWeaver,那么就准备将后置处理器"织入"bean工厂
		// 例如:(一个@Bean方法通过ConfigurationClassPostProcessor来注册)
		if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
			beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
			beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
		}
	}

关注PostProcessorRegistrationDelegate这个委托类,这里容器将激活BeanFactoryPostProcessor的任务委托给了这个final的PostProcessorRegistrationDelegate类中的静态方法:

BeanFactoryPostProcessor

这里主要是给用户做扩展，你可以实现这个接口来对beanFactory做一些修改.

@FunctionalInterface
public interface BeanFactoryPostProcessor {

	/**
	 * Modify the application context's internal bean factory after its standard
	 * initialization. All bean definitions will have been loaded, but no beans
	 * will have been instantiated yet. This allows for overriding or adding
	 * properties even to eager-initializing beans.
	 * @param beanFactory the bean factory used by the application context
	 * @throws org.springframework.beans.BeansException in case of errors
	 */
	void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException;

}

Spring中主要有两类的BeanFactoryPostPorcessor:

  • BeanDefinitionRegistryPostProcessor: 扩展自BeanFactoryPostProcessor，执行的优先级优于一般的BeanFactoryPostProcessor,用于注册其他BeanDefinition.
  • BeanFactoryPostProcessor: 常规的BeanFactoryPostProcessor,会在BeanDefinitionRegistryPostProcessor执行完后按顺序执行。
  • PostProcessorRegistrationDelegate#invokeBeanFactoryPostProcessors( ConfigurableListableBeanFactory beanFactory, List beanFactoryPostProcessors)
	public static void invokeBeanFactoryPostProcessors(
			ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

		// Invoke BeanDefinitionRegistryPostProcessors first, if any.
		// 如果有BeanDefinitionRegistryPostProcessors的话优先执行
		Set<String> processedBeans = new HashSet<>();
		// 如果是BeanDefinitionRegistry类型
		if (beanFactory instanceof BeanDefinitionRegistry) {
			BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
			// 用于记录常规的BeanFactoryPostProcessor
			List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
			// 用于记录BeanDefinitionRegistryPostProcessor
			List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();
			// 遍历所有参数传递进来的BeanFactoryPostProcessor(没有作为bean注册在容器中)
			// 将所有参数传入的BeanFactoryPostProcessor分为两组:
			// BeanDefinitionRegistryPostProcessor->postProcessBeanDefinitionRegistry
			// 常规的BeanFactoryPostProcessor只做记录不做处理
			for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
				if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
					BeanDefinitionRegistryPostProcessor registryProcessor =
							(BeanDefinitionRegistryPostProcessor) postProcessor;
					registryProcessor.postProcessBeanDefinitionRegistry(registry);
					registryProcessors.add(registryProcessor);
				}
				else {
					regularPostProcessors.add(postProcessor);
				}
			}

			// Do not initialize FactoryBeans here: We need to leave all regular beans
			// uninitialized to let the bean factory post-processors apply to them!
			// Separate between BeanDefinitionRegistryPostProcessors that implement
			// PriorityOrdered, Ordered, and the rest.
			// 用于记录当前正要执行的BeanDefinitionRegistryPostProcessor
			List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

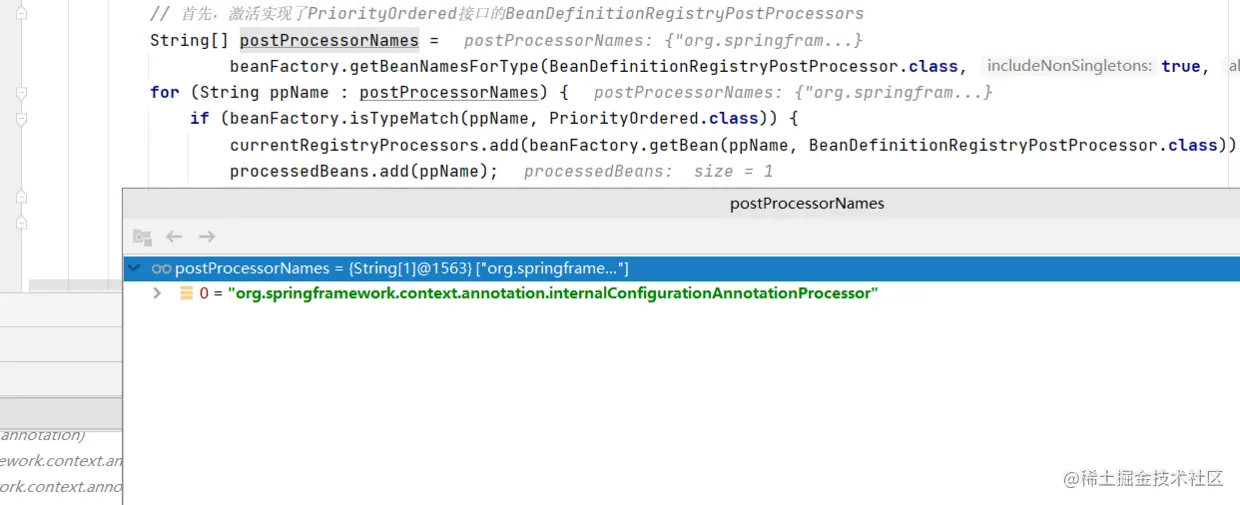

			// First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
			// 首先，激活实现了PriorityOrdered接口的BeanDefinitionRegistryPostProcessors
			String[] postProcessorNames =
					beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
			for (String ppName : postProcessorNames) {
				if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					processedBeans.add(ppName);
				}
			}
			// 按优先级排序
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			// 按顺序执行BeanDefinitionRegistryPostProcessors
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			// Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
			// 其次，对实现了Ordered接口的BeanDefinitionRegistryPostProcessors进行调用
			postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
			for (String ppName : postProcessorNames) {
				if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
					currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
					processedBeans.add(ppName);
				}
			}
			sortPostProcessors(currentRegistryProcessors, beanFactory);
			registryProcessors.addAll(currentRegistryProcessors);
			invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
			currentRegistryProcessors.clear();

			// Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
			// 最后执行没有实现上述两个接口的BeanDefinitionRegistryPostProcessors
			boolean reiterate = true;
			while (reiterate) {
				reiterate = false;
				postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
				for (String ppName : postProcessorNames) {
					if (!processedBeans.contains(ppName)) {
						currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
						processedBeans.add(ppName);
						reiterate = true;
					}
				}
				sortPostProcessors(currentRegistryProcessors, beanFactory);
				registryProcessors.addAll(currentRegistryProcessors);
				invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
				currentRegistryProcessors.clear();
			}

			// Now, invoke the postProcessBeanFactory callback of all processors handled so far.
			// 现在，调用到目前为止已处理的所有处理器的postProcessBeanFactory回调
			// 由于BeanDefinitionRegistryPostProcessors继承自BeanFactoryPostProcessor,所以也会调用其
			// postProcessBeanFactory()的方法
			invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
			invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
		}

		else {
			// Invoke factory processors registered with the context instance.
			// 调用在上下文实例中注册的BeanFactoryPostProcessors,如果都是常规的BeanFactoryPostProcessor会执行这个
			invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
		}

		// Do not initialize FactoryBeans here: We need to leave all regular beans
		// uninitialized to let the bean factory post-processors apply to them!
		String[] postProcessorNames =
				beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

		// Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
		// Ordered, and the rest.
		List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
		List<String> orderedPostProcessorNames = new ArrayList<>();
		List<String> nonOrderedPostProcessorNames = new ArrayList<>();
		for (String ppName : postProcessorNames) {
			if (processedBeans.contains(ppName)) {
				// skip - already processed in first phase above
			}
			else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
				priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
			}
			else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
				orderedPostProcessorNames.add(ppName);
			}
			else {
				nonOrderedPostProcessorNames.add(ppName);
			}
		}

		// First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
		sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
		invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

		// Next, invoke the BeanFactoryPostProcessors that implement Ordered.
		List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>();
		for (String postProcessorName : orderedPostProcessorNames) {
			orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		sortPostProcessors(orderedPostProcessors, beanFactory);
		invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

		// Finally, invoke all other BeanFactoryPostProcessors.
		List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>();
		for (String postProcessorName : nonOrderedPostProcessorNames) {
			nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
		}
		invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

		// Clear cached merged bean definitions since the post-processors might have
		// modified the original metadata, e.g. replacing placeholders in values...
		beanFactory.clearMetadataCache();
	}

很长的篇幅，其实这里主要是做激活BeanFactoryPostProcessors的操作.值得一提的是，Spring会按照@PriorityOrder和Order来执行BeanFactoryPostProcessors.

internalConfigurationAnnotationProcessor

Spring内置的BeanFactoryRegistryPostProcessor,通过以下的语句从DefaultListableFactory中获取到的postProcessorNames可以看到. 接下来通过getBean将该BeanFactoryRegistryPostProcessor加入到currentRegistryProcessors中进行激活。 内置的后置处理器

String[] postProcessorNames =
beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
	for (String ppName : postProcessorNames) {
		if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
			currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
			processedBeans.add(ppName);
		}
	}
// 按优先级排序
sortPostProcessors(currentRegistryProcessors, beanFactory);
registryProcessors.addAll(currentRegistryProcessors);
// 按顺序执行BeanDefinitionRegistryPostProcessors
invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
currentRegistryProcessors.clear();
  • PostProcessorRegistrationDelegate#invokeBeanDefinitionRegistryPostProcessors

这里将收集到的BeanDefinitionRegistryPostProcessors进行循环激活，并传入容器进行注册.

	private static void invokeBeanDefinitionRegistryPostProcessors(
			Collection<? extends BeanDefinitionRegistryPostProcessor> postProcessors, BeanDefinitionRegistry registry) {

		for (BeanDefinitionRegistryPostProcessor postProcessor : postProcessors) {
			postProcessor.postProcessBeanDefinitionRegistry(registry);
		}
	}
  • ConfigurationClassPostProcessor#postProcessBeanDefinitionRegistry

为当前postProcessBeanDefinitionRegistry生成一个注册表id，防止二次执行，随后进行配置类的解析.通常为@Configuration所注释的类.

	public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
		// 注册表id
		int registryId = System.identityHashCode(registry);
		// 如果注册过了，那么不需要二次注册
		if (this.registriesPostProcessed.contains(registryId)) {
			throw new IllegalStateException(
					"postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
		}
		if (this.factoriesPostProcessed.contains(registryId)) {
			throw new IllegalStateException(
					"postProcessBeanFactory already called on this post-processor against " + registry);
		}
		this.registriesPostProcessed.add(registryId);

		processConfigBeanDefinitions(registry);
	}
  • ConfigurationClassPostProcessor#processConfigBeanDefinitions

又是一段很长的逻辑，我们抓住重点分析.
首先在register()方法中Spring已经将配置类进行了注册，那么接下来Spring会对该配置类做一些检测。
在进行完资源环境的加载后，Spring根据当前参数new了一个ConfigurationClassParser,用以解析每一个被@Configuration所注解的类.
最后调用parser.parse(candidates);来解析配置类。

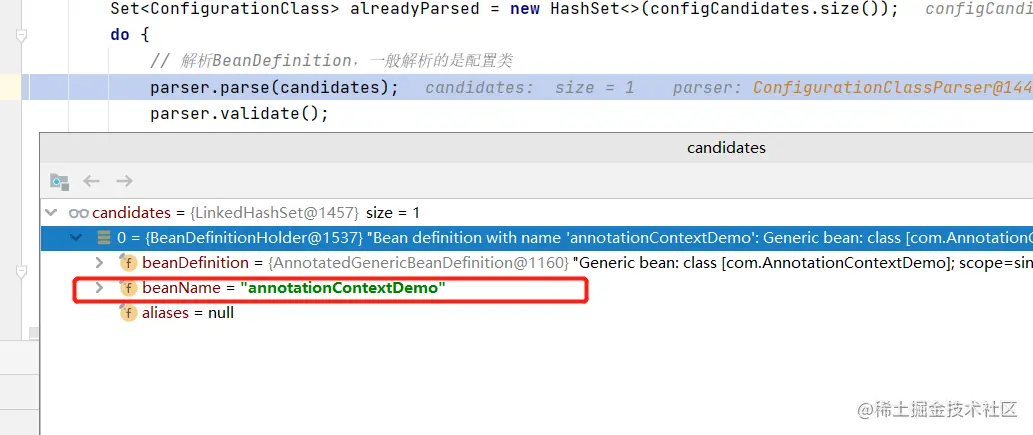

配置类

	public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
		List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
		// 获取当前注册器中的候选BeanDefinitionNames
		String[] candidateNames = registry.getBeanDefinitionNames();

		for (String beanName : candidateNames) {
			BeanDefinition beanDef = registry.getBeanDefinition(beanName);
			// Full和Lite模式的配置类
			if (ConfigurationClassUtils.isFullConfigurationClass(beanDef) ||
					ConfigurationClassUtils.isLiteConfigurationClass(beanDef)) {
				if (logger.isDebugEnabled()) {
					logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
				}
			}
			//检查给定的bean定义是否适合配置类（或在配置/组件类中声明的嵌套组件类，也要自动注册），并进行相应标记。
			else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
				configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
			}
		}

		// Return immediately if no @Configuration classes were found
		if (configCandidates.isEmpty()) {
			return;
		}

		// Sort by previously determined @Order value, if applicable
		// 根据@Order的顺序对BeanDefinition列表进行排序
		configCandidates.sort((bd1, bd2) -> {
			int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
			int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
			return Integer.compare(i1, i2);
		});

		// Detect any custom bean name generation strategy supplied through the enclosing application context
		// 检测通过封闭的应用程序上下文提供的任何自定义bean名称生成策略
		// 由于传入的是DefaultLitableFactory，它是SingletonBeanRegistry的子类,因此会执行这段逻辑
		SingletonBeanRegistry sbr = null;
		if (registry instanceof SingletonBeanRegistry) {
			sbr = (SingletonBeanRegistry) registry;
			if (!this.localBeanNameGeneratorSet) {
				BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(CONFIGURATION_BEAN_NAME_GENERATOR);
				if (generator != null) {
					this.componentScanBeanNameGenerator = generator;
					this.importBeanNameGenerator = generator;
				}
			}
		}

		if (this.environment == null) {
			this.environment = new StandardEnvironment();
		}

		// Parse each @Configuration class
		// 解析每一个@Configuration的class,resourceLoader为注解容器，registry为DefaultListableFactory
		ConfigurationClassParser parser = new ConfigurationClassParser(
				this.metadataReaderFactory, this.problemReporter, this.environment,
				this.resourceLoader, this.componentScanBeanNameGenerator, registry);

		Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
		Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
		do {
			// 解析BeanDefinition，一般解析的是配置类
			parser.parse(candidates);
			parser.validate();

			Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
			configClasses.removeAll(alreadyParsed);

			// Read the model and create bean definitions based on its content
			if (this.reader == null) {
				this.reader = new ConfigurationClassBeanDefinitionReader(
						registry, this.sourceExtractor, this.resourceLoader, this.environment,
						this.importBeanNameGenerator, parser.getImportRegistry());
			}
			this.reader.loadBeanDefinitions(configClasses);
			alreadyParsed.addAll(configClasses);

			candidates.clear();
			if (registry.getBeanDefinitionCount() > candidateNames.length) {
				String[] newCandidateNames = registry.getBeanDefinitionNames();
				Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
				Set<String> alreadyParsedClasses = new HashSet<>();
				for (ConfigurationClass configurationClass : alreadyParsed) {
					alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
				}
				for (String candidateName : newCandidateNames) {
					if (!oldCandidateNames.contains(candidateName)) {
						BeanDefinition bd = registry.getBeanDefinition(candidateName);
						if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
								!alreadyParsedClasses.contains(bd.getBeanClassName())) {
							candidates.add(new BeanDefinitionHolder(bd, candidateName));
						}
					}
				}
				candidateNames = newCandidateNames;
			}
		}
		while (!candidates.isEmpty());

		// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
		if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
			sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
		}

		if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
			// Clear cache in externally provided MetadataReaderFactory; this is a no-op
			// for a shared cache since it'll be cleared by the ApplicationContext.
			((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
		}
	}
  • ConfigurationClassParser#parse(org.springframework.core.type.AnnotationMetadata, java.lang.String)
	// 解析配置类
	protected final void parse(AnnotationMetadata metadata, String beanName) throws IOException {
		processConfigurationClass(new ConfigurationClass(metadata, beanName));
	}
  • ConfigurationClassParser#processConfigurationClass

关注sourceClass = doProcessConfigurationClass(configClass, sourceClass);这段代码,开始真正解析配置类了.

	protected void processConfigurationClass(ConfigurationClass configClass) throws IOException {
		// 根据@Condition的条件来判断是否需要跳过
		if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
			return;
		}

		ConfigurationClass existingClass = this.configurationClasses.get(configClass);
		if (existingClass != null) {
			if (configClass.isImported()) {
				if (existingClass.isImported()) {
					existingClass.mergeImportedBy(configClass);
				}
				// Otherwise ignore new imported config class; existing non-imported class overrides it.
				return;
			}
			else {
				// Explicit bean definition found, probably replacing an import.
				// Let's remove the old one and go with the new one.
				this.configurationClasses.remove(configClass);
				this.knownSuperclasses.values().removeIf(configClass::equals);
			}
		}

		// Recursively process the configuration class and its superclass hierarchy.
		SourceClass sourceClass = asSourceClass(configClass);
		do {
			sourceClass = doProcessConfigurationClass(configClass, sourceClass);
		}
		while (sourceClass != null);

		this.configurationClasses.put(configClass, configClass);
	}
  • #doProcessConfigurationClass

调用ComponentScanAnnotationParser.parse(AnnotationAttributes componentScan, final String declaringClass)完成组件扫描. componentScan

	protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass)
			throws IOException {

		if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
			// Recursively process any member (nested) classes first
			processMemberClasses(configClass, sourceClass);
		}

		// Process any @PropertySource annotations
		for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
				sourceClass.getMetadata(), PropertySources.class,
				org.springframework.context.annotation.PropertySource.class)) {
			if (this.environment instanceof ConfigurableEnvironment) {
				processPropertySource(propertySource);
			}
			else {
				logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
						"]. Reason: Environment must implement ConfigurableEnvironment");
			}
		}

		// Process any @ComponentScan annotations
		Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
				sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
		if (!componentScans.isEmpty() &&
				!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
			// 循环componentScan实例
			for (AnnotationAttributes componentScan : componentScans) {
				// The config class is annotated with @ComponentScan -> perform the scan immediately
				Set<BeanDefinitionHolder> scannedBeanDefinitions =
						this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
				// Check the set of scanned definitions for any further config classes and parse recursively if needed
				for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
					BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
					if (bdCand == null) {
						bdCand = holder.getBeanDefinition();
					}
					if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
						parse(bdCand.getBeanClassName(), holder.getBeanName());
					}
				}
			}
		}

		// Process any @Import annotations
		processImports(configClass, sourceClass, getImports(sourceClass), true);

		// Process any @ImportResource annotations
		AnnotationAttributes importResource =
				AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
		if (importResource != null) {
			String[] resources = importResource.getStringArray("locations");
			Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
			for (String resource : resources) {
				String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
				configClass.addImportedResource(resolvedResource, readerClass);
			}
		}

		// Process individual @Bean methods
		Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
		for (MethodMetadata methodMetadata : beanMethods) {
			configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
		}

		// Process default methods on interfaces
		processInterfaces(configClass, sourceClass);

		// Process superclass, if any
		if (sourceClass.getMetadata().hasSuperClass()) {
			String superclass = sourceClass.getMetadata().getSuperClassName();
			if (superclass != null && !superclass.startsWith("java") &&
					!this.knownSuperclasses.containsKey(superclass)) {
				this.knownSuperclasses.put(superclass, configClass);
				// Superclass found, return its annotation metadata and recurse
				return sourceClass.getSuperClass();
			}
		}

		// No superclass -> processing is complete
		return null;
	}
  • ComponentScanAnnotationParser#parse

解析basePackage,然后执行doScan();

	public Set<BeanDefinitionHolder> parse(AnnotationAttributes componentScan, final String declaringClass) {
		ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(this.registry,
				componentScan.getBoolean("useDefaultFilters"), this.environment, this.resourceLoader);

		Class<? extends BeanNameGenerator> generatorClass = componentScan.getClass("nameGenerator");
		boolean useInheritedGenerator = (BeanNameGenerator.class == generatorClass);
		scanner.setBeanNameGenerator(useInheritedGenerator ? this.beanNameGenerator :
				BeanUtils.instantiateClass(generatorClass));

		ScopedProxyMode scopedProxyMode = componentScan.getEnum("scopedProxy");
		if (scopedProxyMode != ScopedProxyMode.DEFAULT) {
			scanner.setScopedProxyMode(scopedProxyMode);
		}
		else {
			Class<? extends ScopeMetadataResolver> resolverClass = componentScan.getClass("scopeResolver");
			scanner.setScopeMetadataResolver(BeanUtils.instantiateClass(resolverClass));
		}

		scanner.setResourcePattern(componentScan.getString("resourcePattern"));

		for (AnnotationAttributes filter : componentScan.getAnnotationArray("includeFilters")) {
			for (TypeFilter typeFilter : typeFiltersFor(filter)) {
				scanner.addIncludeFilter(typeFilter);
			}
		}
		for (AnnotationAttributes filter : componentScan.getAnnotationArray("excludeFilters")) {
			for (TypeFilter typeFilter : typeFiltersFor(filter)) {
				scanner.addExcludeFilter(typeFilter);
			}
		}

		boolean lazyInit = componentScan.getBoolean("lazyInit");
		if (lazyInit) {
			scanner.getBeanDefinitionDefaults().setLazyInit(true);
		}

		Set<String> basePackages = new LinkedHashSet<>();
		String[] basePackagesArray = componentScan.getStringArray("basePackages");
		for (String pkg : basePackagesArray) {
			String[] tokenized = StringUtils.tokenizeToStringArray(this.environment.resolvePlaceholders(pkg),
					ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
			Collections.addAll(basePackages, tokenized);
		}
		for (Class<?> clazz : componentScan.getClassArray("basePackageClasses")) {
			basePackages.add(ClassUtils.getPackageName(clazz));
		}
		if (basePackages.isEmpty()) {
			basePackages.add(ClassUtils.getPackageName(declaringClass));
		}

		scanner.addExcludeFilter(new AbstractTypeHierarchyTraversingFilter(false, false) {
			@Override
			protected boolean matchClassName(String className) {
				return declaringClass.equals(className);
			}
		});
		return scanner.doScan(StringUtils.toStringArray(basePackages));
	}
  • ClassPathBeanDefinitionScanner#doScan

其中核心方法为->findCandidateComponents.它负责扫描到basePakckage路径下的Class，进而装配一个BeanDefinitionHolder的Set集合。
registerBeanDefinition(definitionHolder, this.registry);执行注册逻辑，到了这里与XML一致。

	protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
		Assert.notEmpty(basePackages, "At least one base package must be specified");
		Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
		for (String basePackage : basePackages) {
			// 根据basePackage生成候选的BeanDefinition集合
			Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
			for (BeanDefinition candidate : candidates) {
				ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
				candidate.setScope(scopeMetadata.getScopeName());
				String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
				if (candidate instanceof AbstractBeanDefinition) {
					postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
				}
				if (candidate instanceof AnnotatedBeanDefinition) {
					AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
				}
				if (checkCandidate(beanName, candidate)) {
					BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
					definitionHolder =
							AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
					beanDefinitions.add(definitionHolder);
					registerBeanDefinition(definitionHolder, this.registry);
				}
			}
		}
		return beanDefinitions;
	}
  • ClassPathScanningCandidateComponentProvider#scanCandidateComponents

可见，这里将basePackage解析成符合ant风格的表达式，然后再用ResourceLoader进行扫描获取Resource.再通过MetadataReader来读取类注解信息，然后装配到一个Set集合中，集合中装载的是每个BeanDefinition

	private Set<BeanDefinition> scanCandidateComponents(String basePackage) {
		Set<BeanDefinition> candidates = new LinkedHashSet<>();
		try {
			// 将basePackage中的.替换成/。举个例子: com.xjm->classpath*:com/xim/**/*.class
			String packageSearchPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
					resolveBasePackage(basePackage) + '/' + this.resourcePattern;
			// 获取资源
			Resource[] resources = getResourcePatternResolver().getResources(packageSearchPath);
			boolean traceEnabled = logger.isTraceEnabled();
			boolean debugEnabled = logger.isDebugEnabled();
			for (Resource resource : resources) {
				if (traceEnabled) {
					logger.trace("Scanning " + resource);
				}
				if (resource.isReadable()) {
					try {
						// MetadataReader->类和注解的元信息读取方法
						MetadataReader metadataReader = getMetadataReaderFactory().getMetadataReader(resource);
						// excludeFilters和includeFilters决定
						if (isCandidateComponent(metadataReader)) {
							ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
							sbd.setSource(resource);
							if (isCandidateComponent(sbd)) {
								if (debugEnabled) {
									logger.debug("Identified candidate component class: " + resource);
								}
								candidates.add(sbd);
							}
							else {
								if (debugEnabled) {
									logger.debug("Ignored because not a concrete top-level class: " + resource);
								}
							}
						}
						else {
							if (traceEnabled) {
								logger.trace("Ignored because not matching any filter: " + resource);
							}
						}
					}
					catch (Throwable ex) {
						throw new BeanDefinitionStoreException(
								"Failed to read candidate component class: " + resource, ex);
					}
				}
				else {
					if (traceEnabled) {
						logger.trace("Ignored because not readable: " + resource);
					}
				}
			}
		}
		catch (IOException ex) {
			throw new BeanDefinitionStoreException("I/O failure during classpath scanning", ex);
		}
		return candidates;
	}

总体流程

流程

总结

  • 注解容器的BeanDefinition较为特殊，包含类的注解元信息。
  • 组件扫描往往基于一个配置类进行资源定位，使用@ComponentScan()可以指定basePackage.
  • 容器先为配置类进行注册，随后在refresh()中对BeanDefinitionRegistryPostProcessor进行激活,这是组件扫描的入口
  • 组件扫描通过将basePackage进行路径转换，随后用ResourceLoader进行资源定位加载Resources.最后通过AnnotationTypeFilter对@Component和其派生注解标注的类过滤出需要注册的Class文件。最后装载到一个装载BeanDefinition的Set集合.
  • 注解的BeanDefinition和XML的BeanDefinition注册流程入口皆为:BeanDefinitionReaderUtils.registerBeanDefinition(definitionHolder, registry);
avatar
文章
阅读
粉丝
