一、kafka简述
1、简介
kafka是一个高吞吐的分布式消息队列系统。特点是生产者消费者模式，先进先出（FIFO）保证顺序，自己不丢数据，默认每隔7天清理数据。消息列队常见场景：系统之间解耦合、峰值压力缓冲、异步通信。
2、集群介绍

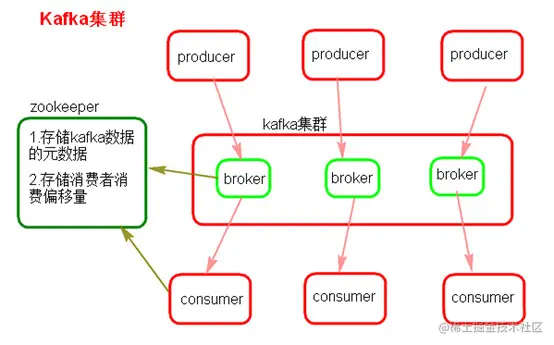

（1）Kafka架构是由producer（消息生产者）、consumer（消息消费者）、borker(kafka集群的server，负责处理消息读、写请求，存储消息，在kafka cluster这一层这里，其实里面是有很多个broker)、topic（消息队列/分类相当于队列，里面有生产者和消费者模型）、zookeeper(元数据信息存在zookeeper中，包括：存储消费偏移量，topic话题信息，partition信息) 这些部分组成。
（2）kafka里面的消息是有topic来组织的，简单的我们可以想象为一个队列，一个队列就是一个topic，然后它把每个topic又分为很多个partition，这个是为了做并行的，在每个partition内部消息强有序，相当于有序的队列，其中每个消息都有个序号offset，比如0到12，从前面读往后面写。一个partition对应一个broker，一个broker可以管多个partition，比如说，topic有6个partition，有两个broker，那每个broker就管3个partition。这个partition可以很简单想象为一个文件，当数据发过来的时候它就往这个partition上面append，追加就行，消息不经过内存缓冲，直接写入文件，kafka和很多消息系统不一样，很多消息系统是消费完了我就把它删掉，而kafka是根据时间策略删除，而不是消费完就删除，在kafka里面没有一个消费完这么个概念，只有过期这样一个概念。
（3）producer自己决定往哪个partition里面去写，这里有一些的策略，譬如如果hash，不用多个partition之间去join数据了。consumer自己维护消费到哪个offset，每个consumer都有对应的group，group内是queue消费模型（各个consumer消费不同的partition，因此一个消息在group内只消费一次），group间是publish-subscribe消费模型，各个group各自独立消费，互不影响，因此一个消息在被每个group消费一次。
3、leader负载均衡机制
当一个broker停止或者crashes时，所有本来将它作为leader的分区将会把leader转移到其他broker上去，极端情况下，会导致同一个leader管理多个分区，导致负载不均衡，同时当这个broker重启时，如果这个broker不再是任何分区的leader,kafka的client也不会从这个broker来读取消息，从而导致资源的浪费。
kafka中有一个被称为优先副本（preferred replicas）的概念。如果一个分区有3个副本，且这3个副本的优先级别分别为0,1,2，根据优先副本的概念，0会作为leader 。当0节点的broker挂掉时，会启动1这个节点broker当做leader。当0节点的broker再次启动后，会自动恢复为此partition的leader。不会导致负载不均衡和资源浪费，这就是leader的均衡机制。
在配置文件conf/ server.properties中配置开启（默认就是开启）：
auto.leader.rebalance.enable true
二、集群配置
1、zookeeper安装与配置
（1）下载并解压
去下载mirrors.tuna.tsinghua.edu.cn/apache/zook…
在node01 /opt/bigdata/下 解压 tar -zxvf zookeeper-3.4.6.tar.gz
（2）编辑配置
配置hosts vim /etc/hosts
1. 192.168.172.73 node03
2. 192.168.172.72 node02
3. 192.168.172.71 node01
配置zookeeper环境变量
1. export ZOOKEEPER_HOME=/opt/bigdata/zookeeper-3.4.6 #zookeeper安装路径
2. export PATH=$ZOOKEEPER_HOME/bin:$PATH
配置zoo.cfg
在/opt/bigdata下，复制cp zookeeper-3.4.5/conf/zoo_sample.cfg zookeeper-3.4.5/conf/zoo.cfg
编辑：vim zookeeper-3.4.5/conf/zoo.cfg
1. # The number of milliseconds of each tick
2. tickTime=2000
3. # The number of ticks that the initial
4. # synchronization phase can take
5. initLimit=10
6. # The number of ticks that can pass between
7. # sending a request and getting an acknowledgement
8. syncLimit=5
9. # the directory where the snapshot is stored.
10. # do not use /tmp for storage, /tmp here is just
11. # example sakes.
12. dataDir=/opt/bigdata/data/zookeeper/zkdata #zookeeper数据存放路径
13. dataLogDir=/opt/bigdata/data/zookeeper/zkdatalog #zookeeper日志存放路径
14. # the port at which the clients will connect
15. clientPort=2181 ##zookeeper对外通信端口
17. server.1=node01:2888:3888
18. server.2=node02:2888:3888
19. server.3=node03:2888:3888
20. #
21. # Be sure to read the maintenance section of the
22. # administrator guide before turning on autopurge.
23. #
24. # http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
25. #
26. # The number of snapshots to retain in dataDir
27. #autopurge.snapRetainCount=3
28. # Purge task interval in hours
29. # Set to "0" to disable auto purge feature
30. #autopurge.purgeInterval=1
分别在node01、node02、node03下/opt/bigdata/data/zookeeper/zkdata
vim myid 新建myid文件，内容分别为1、2、3保存
（3）节点分发
在node01 /opt/bigdata下 scp远程复制，分别分发到node02、node03对应目录下
1. scp -r zookeeper-3.4.6 node02:`pwd`
2. scp -r zookeeper-3.4.6 node03:`pwd`
（4）启动zookeeper集群
分别在node01、node02、node03下执行 zkServer.sh start命令启动zookeeper
稍等片刻，分别在node01、node02、node03下执行zkServer.sh status命令，查看状态
1. [root@node01 ~]# zkServer.sh status
2. JMX enabled by default
3. Using config: /opt/bigdata/zookeeper-3.4.5/bin/../conf/zoo.cfg
4. Mode: leader
5. [root@node02 bigdata]# zkServer.sh status
6. JMX enabled by default
7. Using config: /opt/bigdata/zookeeper-3.4.5/bin/../conf/zoo.cfg
8. Mode: follower
9. [root@node03 ~]# zkServer.sh status
10. JMX enabled by default
11. Using config: /opt/bigdata/zookeeper-3.4.5/bin/../conf/zoo.cfg
12. Mode: follower
3、kafka安装与配置
（1）下载并解压
wget mirror.bit.edu.cn/apache/kafk… 去下载
在node01上 /opt/bigdata/下 解压
tar zxvf kafka_2.11-1.1.0.tgz
（2）编辑配置
在/opt/bigdata/下 vim kafka_2.11-1.1.0/config/server.properties编辑配置
这里重点修改三个参数broker.id标识本机、log.dirs是kafka接收消息存放路径、
zookeeper.connect指定连接的zookeeper集群地址
其他参数保持默认即可，也可自己根据情况修改
1. ############################# Server Basics #############################
2. # The id of the broker. This must be set to a unique integer for each broker.
3. broker.id=1
4. ############################# Socket Server Settings #############################
5. listeners=PLAINTEXT://:9092
7. # The port the socket server listens on
8. #port=9092
10. # Hostname the broker will bind to. If not set, the server will bind to all interfaces
11. #host.name=localhost
13. # Hostname the broker will advertise to producers and consumers. If not set, it uses the
14. # value for "host.name" if configured. Otherwise, it will use the value returned from
15. # java.net.InetAddress.getCanonicalHostName().
16. #advertised.host.name=<hostname routable by clients>
18. # The port to publish to ZooKeeper for clients to use. If this is not set,
19. # it will publish the same port that the broker binds to.
20. #advertised.port=<port accessible by clients>
22. # The number of threads handling network requests
23. num.network.threads=3
25. # The number of threads doing disk I/O
26. num.io.threads=8
28. # The send buffer (SO_SNDBUF) used by the socket server
29. socket.send.buffer.bytes=102400
31. # The receive buffer (SO_RCVBUF) used by the socket server
32. socket.receive.buffer.bytes=102400
34. # The maximum size of a request that the socket server will accept (protection against OOM)
35. socket.request.max.bytes=104857600
37. ############################# Log Basics #############################
38. # A comma seperated list of directories under which to store log files
39. log.dirs=/opt/bigdata/kafka_2.11-1.1.0/kafka-logs
41. # The default number of log partitions per topic. More partitions allow greater
42. # parallelism for consumption, but this will also result in more files across
43. # the brokers.
44. num.partitions=1
46. # The number of threads per data directory to be used for log recovery at startup and flushing at shutdown.
47. # This value is recommended to be increased for installations with data dirs located in RAID array.
48. num.recovery.threads.per.data.dir=1
50. ############################# Log Flush Policy #############################
51. # The number of messages to accept before forcing a flush of data to disk
52. #log.flush.interval.messages=10000
54. # The maximum amount of time a message can sit in a log before we force a flush
55. #log.flush.interval.ms=1000
57. ############################# Log Retention Policy #############################
58. # The following configurations control the disposal of log segments. The policy can
59. # be set to delete segments after a period of time, or after a given size has accumulated.
60. # A segment will be deleted whenever *either* of these criteria are met. Deletion always happens
61. # from the end of the log.
63. # The minimum age of a log file to be eligible for deletion
64. log.retention.hours=168
66. # A size-based retention policy for logs. Segments are pruned from the log as long as the remaining
67. # segments don't drop below log.retention.bytes.
68. #log.retention.bytes=1073741824
70. # The maximum size of a log segment file. When this size is reached a new log segment will be created.
71. log.segment.bytes=1073741824
73. # The interval at which log segments are checked to see if they can be deleted according
74. # to the retention policies
75. log.retention.check.interval.ms=300000
77. # If log.cleaner.enable=true is set the cleaner will be enabled and individual logs can then be marked for log compaction.
78. log.cleaner.enable=false
80. ############################# Zookeeper #############################
81. zookeeper.connect=node01:2181,node02:2181,node03:2181
83. # Timeout in ms for connecting to zookeeper
84. zookeeper.connection.timeout.ms=6000
（3）节点分发
在 /opt/bigdata下 远程复制到node01、node02对应路径下，当然复制时需要ssh免登录
1. scp -r kafka_2.11-1.1.0 node02:`pwd`
2. scp -r kafka_2.11-1.1.0 node03:`pwd`
分别修改server.properties对应的broker.id为2、3即可
（4）启动kafka集群
kafka集群启动前要启动zookeeper集群，若zookeeper集群没启动，首先启动
在/opt/bigdata下 ，三个节点分别执行如下命令，启动kafka集群
./kafka_2.11-1.1.0/bin/kafka-server-start.sh -daemon ./kafka_2.11-1.1.0/config/server.properties &
（5）基本操作
1)、创建topic
./kafka_2.11/bin/kafka-topics.sh --create --zookeeper node02:2181,node03:2181,node04:2181 --replication-factor 3 --partitions 6 --topic kfk_test
2)、列出创建的topic
./kafka_2.11/bin/kafka-topics.sh --list --zookeeper node02:2181,node03:2181,node04:2181
3)、生成数据
./kafka_2.11/bin/kafka-console-producer.sh -broker-list node02:9092,node03:9092,node04:9092 --topic kfk_test
4)、消费生产数据
1. kafka 0.9版本之前用zookeeper
2. ./kafka_2.11/bin/kafka-console-consumer.sh --zookeeper node02:2181,node03:2181,node04:2181 --from-beginning --topic kfk_test
4. kafka 0.9版本之后不推荐zookeeper方式,仍然支持，但逐渐会被取消，推荐bootstrap-server方式
5. ./kafka_2.11/bin/kafka-console-consumer.sh --bootstrap-server node02:9092,node03:9092,node04:9092 --from-beginning --topic kfk_test
5)、查看指定topic信息
./kafka_2.11/bin/kafka-topics.sh --describe --zookeeper node02:2181,node03:2181,node04:2181 --topic kfk_test
信息如下：
1. Topic:kfk_test PartitionCount:6 ReplicationFactor:3 Configs:
2. Topic: kfk_test Partition: 0 Leader: 1 Replicas: 1,3,2 Isr: 2,3,1
3. Topic: kfk_test Partition: 1 Leader: 2 Replicas: 2,1,3 Isr: 2,3,1
4. Topic: kfk_test Partition: 2 Leader: 3 Replicas: 3,2,1 Isr: 2,3,1
5. Topic: kfk_test Partition: 3 Leader: 1 Replicas: 1,2,3 Isr: 2,3,1
6. Topic: kfk_test Partition: 4 Leader: 2 Replicas: 2,3,1 Isr: 2,3,1
7. Topic: kfk_test Partition: 5 Leader: 3 Replicas: 3,1,2 Isr: 2,3,1
可以看到6个分区，每个分区3个副本
partiton： partion id 分区id
leader：当前负责读写的lead broker id ，就是server.properties的broker.id
replicas：当前partition的所有replication broker list
isr：（in-sync replicas）relicas的子集，只包含出于活动状态的broker，离线或挂掉的broker不在此列表
6)、删除指定的topic
删除kafka中的topic
./kafka_2.11/bin/kafka-topics.sh --delete --zookeeper node02:2181,node03:2181,node04:2181 --topic kfk_test
删除zookeeper中的topic信息
1. rmr /brokers/topics/kfk_test
3. rmr /config/topics/kfk_test
5. rmr /admin/delete_topics/kfk_test
7. rmr /consumers/kfk_test-group
删除topic数据相关的目录
rm -rf /var/local/kafka/data/kfk_test*
