前言
weak为ios的一个修饰符，修饰的变量具备如下特征，不会对指向对象进行retain(即引用计数+1)，对象释放时weak会指向nil，调用方法不会崩溃
探究weak之前先看看怎么找到的weak怎么调用的方法吧
首先创建一个obj指向，NSObject类型的对象
NSObject *objc = [NSObject alloc];
__weak id obj = objc;

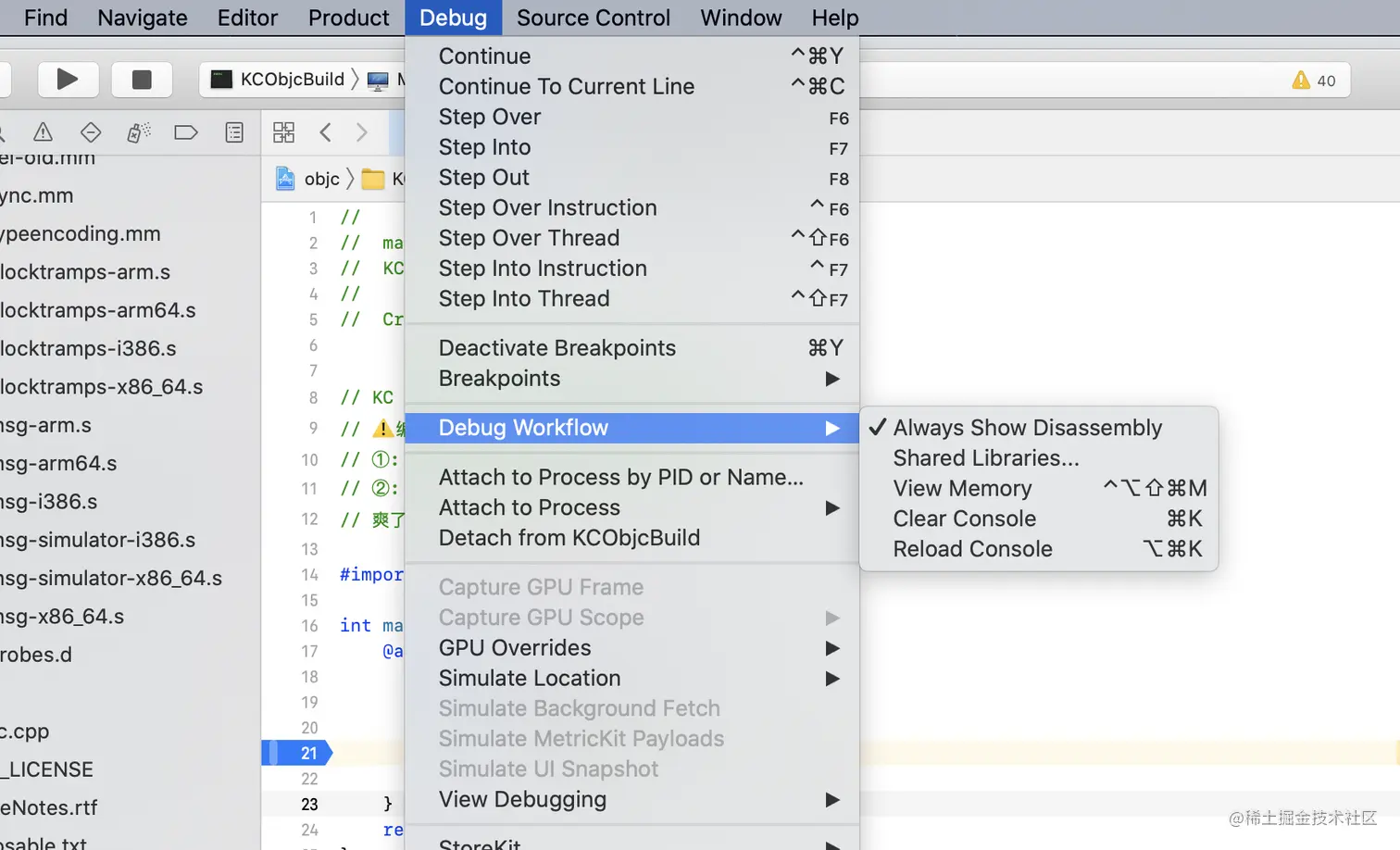

然后打开xcode的debug的workflow为Always Show Disassembly
这样打断点到weak那一行，即可了解到weak初始化变量时，经历了哪些方法
紧接着会发现，调用了objc_initWeak方法来初始化weak修饰的变量
下面来探究下objc_initWeak
objc_initWeak
在objc-8.8.2中搜索objc_initWeak方法，即可搜索到下面源码实现，我们来看看它做了什么
//*location为weak修饰的变量的指针地址，newObj为实际引用的对象
id
objc_initWeak(id *location, id newObj)
{
if (!newObj) {
*location = nil;
return nil;
}
//继续调用storeWeak
return storeWeak<DontHaveOld, DoHaveNew, DoCrashIfDeallocating>
(location, (objc_object*)newObj);
}
storeWeak
在objc_initWeak之后调用了storeWeak方法
其主要逻辑为从哈希表中移除老的引用，加入新的引用，可以直接定位到与weak相关，从weak_unregister_no_lock方法开始查看
static id
storeWeak(id *location, objc_object *newObj)
{
ASSERT(haveOld || haveNew);
if (!haveNew) ASSERT(newObj == nil);
Class previouslyInitializedClass = nil;
id oldObj;
//新旧哈希表
SideTable *oldTable;
SideTable *newTable;
// Acquire locks for old and new values.
// Order by lock address to prevent lock ordering problems.
// Retry if the old value changes underneath us.
retry:
if (haveOld) {
oldObj = *location;
oldTable = &SideTables()[oldObj];
} else {
oldTable = nil;
}
if (haveNew) {
newTable = &SideTables()[newObj];
} else {
newTable = nil;
}
SideTable::lockTwo<haveOld, haveNew>(oldTable, newTable);
if (haveOld && *location != oldObj) {
SideTable::unlockTwo<haveOld, haveNew>(oldTable, newTable);
goto retry;
}
// Prevent a deadlock between the weak reference machinery
// and the +initialize machinery by ensuring that no
// weakly-referenced object has an un-+initialized isa.
if (haveNew && newObj) {
Class cls = newObj->getIsa();
if (cls != previouslyInitializedClass &&
!((objc_class *)cls)->isInitialized())
{
SideTable::unlockTwo<haveOld, haveNew>(oldTable, newTable);
class_initialize(cls, (id)newObj);
// If this class is finished with +initialize then we're good.
// If this class is still running +initialize on this thread
// (i.e. +initialize called storeWeak on an instance of itself)
// then we may proceed but it will appear initializing and
// not yet initialized to the check above.
// Instead set previouslyInitializedClass to recognize it on retry.
previouslyInitializedClass = cls;
goto retry;
}
}
// Clean up old value, if any.
//如果存在旧的引用，则在weak_table中移除旧的引用
if (haveOld) {
weak_unregister_no_lock(&oldTable->weak_table, oldObj, location);
}
// Assign new value, if any.
//存在新的引用则在哈希表中加入新的引用
if (haveNew) {
newObj = (objc_object *)
weak_register_no_lock(&newTable->weak_table, (id)newObj, location,
crashIfDeallocating ? CrashIfDeallocating : ReturnNilIfDeallocating);
// weak_register_no_lock returns nil if weak store should be rejected
// Set is-weakly-referenced bit in refcount table.
if (!newObj->isTaggedPointerOrNil()) {
newObj->setWeaklyReferenced_nolock();
}
// Do not set *location anywhere else. That would introduce a race.
*location = (id)newObj;
}
else {
// No new value. The storage is not changed.
}
SideTable::unlockTwo<haveOld, haveNew>(oldTable, newTable);
// This must be called without the locks held, as it can invoke
// arbitrary code. In particular, even if _setWeaklyReferenced
// is not implemented, resolveInstanceMethod: may be, and may
// call back into the weak reference machinery.
callSetWeaklyReferenced((id)newObj);
return (id)newObj;
}
weak_unregister_no_lock
当存在旧的引用是时，会调用weak_unregister_no_lock会进入到哈希表中，筛选移除掉旧的引用值，首先找到对象在weakTable中以referent为key获取到的entry，调用remove_referrer方法，从entry中删除弱旧的引用关系
void
weak_unregister_no_lock(weak_table_t *weak_table, id referent_id,
id *referrer_id)
{
//拿出weak实际引用的对象
objc_object *referent = (objc_object *)referent_id;
//拿出weak指针修饰的对象
objc_object **referrer = (objc_object **)referrer_id;
weak_entry_t *entry;
if (!referent) return; //引用对象已经销毁结束
//从弱引用表中找到referent所在的入口entry，如果存在则调用remove_referrer进行移除操作
if ((entry = weak_entry_for_referent(weak_table, referent))) {
//删除旧的引用关系
remove_referrer(entry, referrer);
查看该entry是否引用为空
bool empty = true;
if (entry->out_of_line() && entry->num_refs != 0) {
empty = false;
}
else {
for (size_t i = 0; i < WEAK_INLINE_COUNT; i++) {
if (entry->inline_referrers[i]) {
empty = false;
break;
}
}
}
//如果为空，则从weak_table中移除该entry
if (empty) {
weak_entry_remove(weak_table, entry);
}
}
}
//删除旧的引用
static void remove_referrer(weak_entry_t *entry, objc_object **old_referrer)
{
if (! entry->out_of_line()) {
for (size_t i = 0; i < WEAK_INLINE_COUNT; i++) {
if (entry->inline_referrers[i] == old_referrer) {
entry->inline_referrers[i] = nil;
return;
}
}
_objc_inform("Attempted to unregister unknown __weak variable "
"at %p. This is probably incorrect use of "
"objc_storeWeak() and objc_loadWeak(). "
"Break on objc_weak_error to debug.\n",
old_referrer);
objc_weak_error();
return;
}
size_t begin = w_hash_pointer(old_referrer) & (entry->mask);
size_t index = begin;
size_t hash_displacement = 0;
//从entry中遍历找到旧的引用old_referrer，如果找一圈找不到直接结束
while (entry->referrers[index] != old_referrer) {
index = (index+1) & entry->mask;
if (index == begin) bad_weak_table(entry);
hash_displacement++;
if (hash_displacement > entry->max_hash_displacement) {
_objc_inform("Attempted to unregister unknown __weak variable "
"at %p. This is probably incorrect use of "
"objc_storeWeak() and objc_loadWeak(). "
"Break on objc_weak_error to debug.\n",
old_referrer);
objc_weak_error();
return;
}
}
//找到了旧的易用对象所在索引直接置空，整体数量-1
entry->referrers[index] = nil;
entry->num_refs--;
}
介绍完毕后通过weak_unregister_no_lock方法，移除旧的弱引用关系逻辑后，开始通过weak_register_no_lock方法加入新的弱引用逻辑
weak_register_no_lock
weak_register_no_lock为注册新的弱引用关系，首先通过实际引用的对象referent_id，从weak_table中找到对应的entry，然后直接追加进入，否则创建新的entry，插入新的引用
id
weak_register_no_lock(weak_table_t *weak_table, id referent_id,
id *referrer_id, WeakRegisterDeallocatingOptions deallocatingOptions)
{
objc_object *referent = (objc_object *)referent_id;
objc_object **referrer = (objc_object **)referrer_id;
if (referent->isTaggedPointerOrNil()) return referent_id;
// ensure that the referenced object is viable
if (deallocatingOptions == ReturnNilIfDeallocating ||
deallocatingOptions == CrashIfDeallocating) {
bool deallocating;
if (!referent->ISA()->hasCustomRR()) {
deallocating = referent->rootIsDeallocating();
}
else {
// Use lookUpImpOrForward so we can avoid the assert in
// class_getInstanceMethod, since we intentionally make this
// callout with the lock held.
auto allowsWeakReference = (BOOL(*)(objc_object *, SEL))
lookUpImpOrForwardTryCache((id)referent, @selector(allowsWeakReference),
referent->getIsa());
if ((IMP)allowsWeakReference == _objc_msgForward) {
return nil;
}
deallocating =
! (*allowsWeakReference)(referent, @selector(allowsWeakReference));
}
if (deallocating) {
if (deallocatingOptions == CrashIfDeallocating) {
_objc_fatal("Cannot form weak reference to instance (%p) of "
"class %s. It is possible that this object was "
"over-released, or is in the process of deallocation.",
(void*)referent, object_getClassName((id)referent));
} else {
return nil;
}
}
}
// now remember it and where it is being stored
//首先通过referent为key，从weak_table中找到该引用对象在弱引用表对应的entry
weak_entry_t *entry;
if ((entry = weak_entry_for_referent(weak_table, referent))) {
//已经存在该entry，则直接追加新的亦可能用
append_referrer(entry, referrer);
}
else {
//添加新的entry
weak_entry_t new_entry(referent, referrer);
weak_grow_maybe(weak_table); //根据需要扩展weak_table
//加入新的引用
weak_entry_insert(weak_table, &new_entry);
}
// Do not set *referrer. objc_storeWeak() requires that the
// value not change.
return referent_id;
}
append_referrer
append_referrer为向entry中添加新的弱引用关系
static void append_referrer(weak_entry_t *entry, objc_object **new_referrer)
{
//尝试将新的引用new_referrer方法到inline_referrers中
if (! entry->out_of_line()) {
// Try to insert inline.
for (size_t i = 0; i < WEAK_INLINE_COUNT; i++) {
if (entry->inline_referrers[i] == nil) {
entry->inline_referrers[i] = new_referrer;
return;
}
}
// Couldn't insert inline. Allocate out of line.
weak_referrer_t *new_referrers = (weak_referrer_t *)
calloc(WEAK_INLINE_COUNT, sizeof(weak_referrer_t));
// This constructed table is invalid, but grow_refs_and_insert
// will fix it and rehash it.
for (size_t i = 0; i < WEAK_INLINE_COUNT; i++) {
new_referrers[i] = entry->inline_referrers[i];
}
entry->referrers = new_referrers;
entry->num_refs = WEAK_INLINE_COUNT;
entry->out_of_line_ness = REFERRERS_OUT_OF_LINE;
entry->mask = WEAK_INLINE_COUNT-1;
entry->max_hash_displacement = 0;
}
ASSERT(entry->out_of_line());
//查看是否需要扩展entry，如果需要扩展并插入
if (entry->num_refs >= TABLE_SIZE(entry) * 3/4) {
return grow_refs_and_insert(entry, new_referrer);
}
//找到为nil的索引位置，放入新的引用，然后数量+1
size_t begin = w_hash_pointer(new_referrer) & (entry->mask);
size_t index = begin;
size_t hash_displacement = 0;
while (entry->referrers[index] != nil) {
hash_displacement++;
index = (index+1) & entry->mask;
if (index == begin) bad_weak_table(entry);
}
if (hash_displacement > entry->max_hash_displacement) {
entry->max_hash_displacement = hash_displacement;
}
weak_referrer_t &ref = entry->referrers[index];
ref = new_referrer;
entry->num_refs++;
}
weak_entry_insert
在weak_register_no_lock中，当entry不存在的时候开始创建entry，并调用weak_entry_insert方法开始插入新的引用
static void weak_entry_insert(weak_table_t *weak_table, weak_entry_t *new_entry)
{
//获取weak_entries
weak_entry_t *weak_entries = weak_table->weak_entries;
ASSERT(weak_entries != nil);
与append_referrer相似，找到为nil的索引位置，放入新的引用，然后数量+1
size_t begin = hash_pointer(new_entry->referent) & (weak_table->mask);
size_t index = begin;
size_t hash_displacement = 0;
while (weak_entries[index].referent != nil) {
index = (index+1) & weak_table->mask;
if (index == begin) bad_weak_table(weak_entries);
hash_displacement++;
}
weak_entries[index] = *new_entry;
weak_table->num_entries++;
if (hash_displacement > weak_table->max_hash_displacement) {
weak_table->max_hash_displacement = hash_displacement;
}
}
weak的创建方法就到此位置了，下面介绍weak引用的销毁
weak_clear_no_lock
当weak所指向的对象销毁时，会走起dealloc方法，然后rootDealloc，在object_dispose，在objc_destructInstance，在clearDeallocating，在sidetable_clearDeallocating，再sidetable_clearDeallocating，最后会走到weak_clear_no_lock方法里面
weak_clear_no_lock会从weak_table中通过referent_id为key，获取到entry，从中移除引用关系，源码实现如下
void
weak_clear_no_lock(weak_table_t *weak_table, id referent_id)
{
//弱引用对象
objc_object *referent = (objc_object *)referent_id;
//找到该对象对应的entry
weak_entry_t *entry = weak_entry_for_referent(weak_table, referent);
if (entry == nil) {
/// XXX shouldn't happen, but does with mismatched CF/objc
//printf("XXX no entry for clear deallocating %p\n", referent);
return;
}
// zero out references
//弱引用修饰的指针集合
weak_referrer_t *referrers;
size_t count;
从entry中获取referrers的集合
if (entry->out_of_line()) {
referrers = entry->referrers;
count = TABLE_SIZE(entry);
}
else {
referrers = entry->inline_referrers;
count = WEAK_INLINE_COUNT;
}
//将referrers集合中的指向即将销毁的该对象的指针指向为空，这样在使用weak修饰的变量，就相当于用nil调用方法发送消息
for (size_t i = 0; i < count; ++i) {
objc_object **referrer = referrers[i];
if (referrer) {
//一致则置空对该对象的所有指向，全部置nil
if (*referrer == referent) {
*referrer = nil;
}
else if (*referrer) {
_objc_inform("__weak variable at %p holds %p instead of %p. "
"This is probably incorrect use of "
"objc_storeWeak() and objc_loadWeak(). "
"Break on objc_weak_error to debug.\n",
referrer, (void*)*referrer, (void*)referent);
objc_weak_error();
}
}
}
//如果 entry中的referrers不存在移除，根据是否为空销毁掉空集合
weak_entry_remove(weak_table, entry);
}
static void weak_entry_remove(weak_table_t *weak_table, weak_entry_t *entry)
{
// remove entry
if (entry->out_of_line()) free(entry->referrers); //销毁referrers引用
bzero(entry, sizeof(*entry));
weak_table->num_entries--; //entry数量减少1
weak_compact_maybe(weak_table); //根据需要精简weak_table
}
至此weak的的创建和销毁介绍的差不多了
总结
创建一个weak对象
经过如下步骤:
先从SideTables表中找到弱引用表weak_table，weak_table也为散列表
从weak_table中，通过referent找到或者创建weak_entry，weak_entry为弱引用结构
如果存在老的引用关系(即：weak指针指向了另一个对象），需要到过去的对象中移除对该weak的引用，避免老的对象销毁时，将新的weak指针置为空，操作出现异常问题
如果weak_entry存在则通过append_referrer方法将新的弱引用追加进去，否则通过被引用对象referent创建新的entry，加入到weak_table中，然后通过weak_entry_insert插入新的引用
当被引用对象referent被销毁时
经过如下步骤：
通过dealloc中，找到weak_table
通过当前对象找到其所在的entry
将entry其里面的引用关系删除，并将referrers(即weak引用该对象的指针集合)，全部指向nil
然后从weak_table中移除entry，销毁entry
注意：
此时对象已经销毁，weak所修饰的对象也不是指向已经销毁对象，而是指向nil，因此通过此nil调用方法不会崩溃
而weak所修饰的对象的生命周期，跟持有者有关系，其可能为一个临时变量，随着该栈pop被释放，可能为属性，随着持有者释放，也跟随释放
