本篇文章研究soul的divide插件的底层原理，负载均衡，ip端口探活。
- 启动soul-admin, 使用默认配置，以websocket的方式进行数据同步
- 启动soul-bootstrap，使用默认配置，以websocket的方式进行数据同步
- 启动soul-examples-http
divide插件的底层原理：
1、soul-examples-http启动时往soul-admin的后PluginList->divide加载数据原理分析
soul-examples-http 启动时，在加载Bean后会调用SpringMvcClientBeanPostProcessor的postProcessAfterInitialization的方法（实现了BeanPostProcessor的postProcessAfterInitialization方法），对加@SoulSpringMvcClient注解的方法或controller 进行解析，对数据进行封装，调用soul-admin的/soul-client/springmvc-register方法，保存到数据库，展示到soul-admin的后PluginList->divide。代码如下
public class SpringMvcClientBeanPostProcessor implements BeanPostProcessor {
private final ThreadPoolExecutor executorService;
private final String url;
private final SoulSpringMvcConfig soulSpringMvcConfig;
/**
* Instantiates a new Soul client bean post processor.
*
* @param soulSpringMvcConfig the soul spring mvc config
*/
public SpringMvcClientBeanPostProcessor(final SoulSpringMvcConfig soulSpringMvcConfig) {
ValidateUtils.validate(soulSpringMvcConfig);
this.soulSpringMvcConfig = soulSpringMvcConfig;
url = soulSpringMvcConfig.getAdminUrl() + "/soul-client/springmvc-register";
executorService = new ThreadPoolExecutor(1, 1, 0L, TimeUnit.MILLISECONDS, new LinkedBlockingQueue<>());
}
@Override
public Object postProcessAfterInitialization(@NonNull final Object bean, @NonNull final String beanName) throws BeansException {
if (soulSpringMvcConfig.isFull()) {
return bean;
}
Controller controller = AnnotationUtils.findAnnotation(bean.getClass(), Controller.class);
RestController restController = AnnotationUtils.findAnnotation(bean.getClass(), RestController.class);
RequestMapping requestMapping = AnnotationUtils.findAnnotation(bean.getClass(), RequestMapping.class);
if (controller != null || restController != null || requestMapping != null) {
SoulSpringMvcClient clazzAnnotation = AnnotationUtils.findAnnotation(bean.getClass(), SoulSpringMvcClient.class);
String prePath = "";
if (Objects.nonNull(clazzAnnotation)) {
if (clazzAnnotation.path().indexOf("*") > 1) {
String finalPrePath = prePath;
executorService.execute(() -> RegisterUtils.doRegister(buildJsonParams(clazzAnnotation, finalPrePath), url,
RpcTypeEnum.HTTP));
return bean;
}
prePath = clazzAnnotation.path();
}
final Method[] methods = ReflectionUtils.getUniqueDeclaredMethods(bean.getClass());
for (Method method : methods) {
SoulSpringMvcClient soulSpringMvcClient = AnnotationUtils.findAnnotation(method, SoulSpringMvcClient.class);
if (Objects.nonNull(soulSpringMvcClient)) {
String finalPrePath = prePath;
executorService.execute(() -> RegisterUtils.doRegister(buildJsonParams(soulSpringMvcClient, finalPrePath), url,
RpcTypeEnum.HTTP));
}
}
}
return bean;
}
private String buildJsonParams(final SoulSpringMvcClient soulSpringMvcClient, final String prePath) {
String contextPath = soulSpringMvcConfig.getContextPath();
String appName = soulSpringMvcConfig.getAppName();
Integer port = soulSpringMvcConfig.getPort();
String path = contextPath + prePath + soulSpringMvcClient.path();
String desc = soulSpringMvcClient.desc();
String configHost = soulSpringMvcConfig.getHost();
String host = StringUtils.isBlank(configHost) ? IpUtils.getHost() : configHost;
String configRuleName = soulSpringMvcClient.ruleName();
String ruleName = StringUtils.isBlank(configRuleName) ? path : configRuleName;
SpringMvcRegisterDTO registerDTO = SpringMvcRegisterDTO.builder()
.context(contextPath)
.host(host)
.port(port)
.appName(appName)
.path(path)
.pathDesc(desc)
.rpcType(soulSpringMvcClient.rpcType())
.enabled(soulSpringMvcClient.enabled())
.ruleName(ruleName)
.registerMetaData(soulSpringMvcClient.registerMetaData())
.build();
return OkHttpTools.getInstance().getGson().toJson(registerDTO);
}
}
@RestController
@RequestMapping("/soul-client")
public class SoulClientController {
private final SoulClientRegisterService soulClientRegisterService;
/**
* Instantiates a new Soul client controller.
*
* @param soulClientRegisterService the soul client register service
*/
public SoulClientController(final SoulClientRegisterService soulClientRegisterService) {
this.soulClientRegisterService = soulClientRegisterService;
}
/**
* Register spring mvc string.
*
* @param springMvcRegisterDTO the spring mvc register dto
* @return the string
*/
@PostMapping("/springmvc-register")
public String registerSpringMvc(@RequestBody final SpringMvcRegisterDTO springMvcRegisterDTO) {
return soulClientRegisterService.registerSpringMvc(springMvcRegisterDTO);
}
、、、
}
@Override
@Transactional
public String registerSpringMvc(final SpringMvcRegisterDTO dto) {
if (dto.isRegisterMetaData()) {
MetaDataDO exist = metaDataMapper.findByPath(dto.getPath());
if (Objects.isNull(exist)) {
saveSpringMvcMetaData(dto);
}
}
String selectorId = handlerSpringMvcSelector(dto);
handlerSpringMvcRule(selectorId, dto);
return SoulResultMessage.SUCCESS;
}
private void saveSpringMvcMetaData(final SpringMvcRegisterDTO dto) {
Timestamp currentTime = new Timestamp(System.currentTimeMillis());
MetaDataDO metaDataDO = MetaDataDO.builder()
.appName(dto.getAppName())
.path(dto.getPath())
.pathDesc(dto.getPathDesc())
.rpcType(dto.getRpcType())
.enabled(dto.isEnabled())
.id(UUIDUtils.getInstance().generateShortUuid())
.dateCreated(currentTime)
.dateUpdated(currentTime)
.build();
metaDataMapper.insert(metaDataDO);
// publish AppAuthData's event
eventPublisher.publishEvent(new DataChangedEvent(ConfigGroupEnum.META_DATA, DataEventTypeEnum.CREATE,
Collections.singletonList(MetaDataTransfer.INSTANCE.mapToData(metaDataDO))));
}
private void handlerSpringMvcRule(final String selectorId, final SpringMvcRegisterDTO dto) {
RuleDO ruleDO = ruleMapper.findByName(dto.getRuleName());
if (Objects.isNull(ruleDO)) {
registerRule(selectorId, dto.getPath(), dto.getRpcType(), dto.getRuleName());
}
}
private void registerRule(final String selectorId, final String path, final String rpcType, final String ruleName) {
RuleHandle ruleHandle = RuleHandleFactory.ruleHandle(RpcTypeEnum.acquireByName(rpcType), path);
RuleDTO ruleDTO = RuleDTO.builder()
.selectorId(selectorId)
.name(ruleName)
.matchMode(MatchModeEnum.AND.getCode())
.enabled(Boolean.TRUE)
.loged(Boolean.TRUE)
.sort(1)
.handle(ruleHandle.toJson())
.build();
RuleConditionDTO ruleConditionDTO = RuleConditionDTO.builder()
.paramType(ParamTypeEnum.URI.getName())
.paramName("/")
.paramValue(path)
.build();
if (path.indexOf("*") > 1) {
ruleConditionDTO.setOperator(OperatorEnum.MATCH.getAlias());
} else {
ruleConditionDTO.setOperator(OperatorEnum.EQ.getAlias());
}
ruleDTO.setRuleConditions(Collections.singletonList(ruleConditionDTO));
ruleService.register(ruleDTO);
}
2、通过soul-bootstrap访问soul-examples-http原理分析
在soul-admin的后台，System Manage->Plugin 我们只把divide插件打开。我们知道所有web请求的入口是WebHandler，通过网关soul-bootstrap可以访问soul-examples-http，必定是在WebHandler的handle方法里面做了转发，我们找到WebHandler的实现类SoulWebHandler，发现里面的handle方法查询了所有的SoulPlugin, 通过判断是启用状态的Plugin, 执行里面的execute方法。查询对应的Selector、Rule数据。遍历解析到对应的uri进行请求。
public final class SoulWebHandler implements WebHandler {
private final List<SoulPlugin> plugins;
private final Scheduler scheduler;
/**
* Instantiates a new Soul web handler.
*
* @param plugins the plugins
*/
public SoulWebHandler(final List<SoulPlugin> plugins) {
this.plugins = plugins;
String schedulerType = System.getProperty("soul.scheduler.type", "fixed");
if (Objects.equals(schedulerType, "fixed")) {
int threads = Integer.parseInt(System.getProperty(
"soul.work.threads", "" + Math.max((Runtime.getRuntime().availableProcessors() << 1) + 1, 16)));
scheduler = Schedulers.newParallel("soul-work-threads", threads);
} else {
scheduler = Schedulers.elastic();
}
}
/**
* Handle the web server exchange.
*
* @param exchange the current server exchange
* @return {@code Mono<Void>} to indicate when request handling is complete
*/
@Override
public Mono<Void> handle(@NonNull final ServerWebExchange exchange) {
MetricsTrackerFacade.getInstance().counterInc(MetricsLabelEnum.REQUEST_TOTAL.getName());
Optional<HistogramMetricsTrackerDelegate> startTimer = MetricsTrackerFacade.getInstance().histogramStartTimer(MetricsLabelEnum.REQUEST_LATENCY.getName());
return new DefaultSoulPluginChain(plugins).execute(exchange).subscribeOn(scheduler)
.doOnSuccess(t -> startTimer.ifPresent(time -> MetricsTrackerFacade.getInstance().histogramObserveDuration(time)));
}
private static class DefaultSoulPluginChain implements SoulPluginChain {
private int index;
private final List<SoulPlugin> plugins;
/**
* Instantiates a new Default soul plugin chain.
*
* @param plugins the plugins
*/
DefaultSoulPluginChain(final List<SoulPlugin> plugins) {
this.plugins = plugins;
}
/**
* Delegate to the next {@code WebFilter} in the chain.
*
* @param exchange the current server exchange
* @return {@code Mono<Void>} to indicate when request handling is complete
*/
@Override
public Mono<Void> execute(final ServerWebExchange exchange) {
return Mono.defer(() -> {
if (this.index < plugins.size()) {
SoulPlugin plugin = plugins.get(this.index++);
Boolean skip = plugin.skip(exchange);
if (skip) {
return this.execute(exchange);
}
return plugin.execute(exchange, this);
}
return Mono.empty();
});
}
}
}
@Override
protected Mono<Void> doExecute(final ServerWebExchange exchange, final SoulPluginChain chain, final SelectorData selector, final RuleData rule) {
String body = exchange.getAttribute(Constants.DUBBO_PARAMS);
SoulContext soulContext = exchange.getAttribute(Constants.CONTEXT);
assert soulContext != null;
MetaData metaData = exchange.getAttribute(Constants.META_DATA);
if (!checkMetaData(metaData)) {
assert metaData != null;
log.error(" path is :{}, meta data have error.... {}", soulContext.getPath(), metaData.toString());
exchange.getResponse().setStatusCode(HttpStatus.INTERNAL_SERVER_ERROR);
Object error = SoulResultWrap.error(SoulResultEnum.META_DATA_ERROR.getCode(), SoulResultEnum.META_DATA_ERROR.getMsg(), null);
return WebFluxResultUtils.result(exchange, error);
}
if (StringUtils.isNoneBlank(metaData.getParameterTypes()) && StringUtils.isBlank(body)) {
exchange.getResponse().setStatusCode(HttpStatus.INTERNAL_SERVER_ERROR);
Object error = SoulResultWrap.error(SoulResultEnum.DUBBO_HAVE_BODY_PARAM.getCode(), SoulResultEnum.DUBBO_HAVE_BODY_PARAM.getMsg(), null);
return WebFluxResultUtils.result(exchange, error);
}
Object result = alibabaDubboProxyService.genericInvoker(body, metaData);
if (Objects.nonNull(result)) {
exchange.getAttributes().put(Constants.DUBBO_RPC_RESULT, result);
} else {
exchange.getAttributes().put(Constants.DUBBO_RPC_RESULT, Constants.DUBBO_RPC_RESULT_EMPTY);
}
exchange.getAttributes().put(Constants.CLIENT_RESPONSE_RESULT_TYPE, ResultEnum.SUCCESS.getName());
return chain.execute(exchange);
}
private RuleData matchRule(final ServerWebExchange exchange, final Collection<RuleData> rules) {
return rules.stream()
.filter(rule -> filterRule(rule, exchange))
.findFirst().orElse(null);
}
private Boolean filterRule(final RuleData ruleData, final ServerWebExchange exchange) {
return ruleData.getEnabled() && MatchStrategyUtils.match(ruleData.getMatchMode(), ruleData.getConditionDataList(), exchange);
}
public static boolean match(final Integer strategy, final List<ConditionData> conditionDataList, final ServerWebExchange exchange) {
String matchMode = MatchModeEnum.getMatchModeByCode(strategy);
MatchStrategy matchStrategy = ExtensionLoader.getExtensionLoader(MatchStrategy.class).getJoin(matchMode);
return matchStrategy.match(conditionDataList, exchange);
}
@Override
public Boolean match(final List<ConditionData> conditionDataList, final ServerWebExchange exchange) {
return conditionDataList
.stream()
.allMatch(condition -> OperatorJudgeFactory.judge(condition, buildRealData(condition, exchange)));
}
String buildRealData(final ConditionData condition, final ServerWebExchange exchange) {
String realData = "";
ParamTypeEnum paramTypeEnum = ParamTypeEnum.getParamTypeEnumByName(condition.getParamType());
switch (paramTypeEnum) {
case HEADER:
final HttpHeaders headers = exchange.getRequest().getHeaders();
final List<String> list = headers.get(condition.getParamName());
if (CollectionUtils.isEmpty(list)) {
return realData;
}
realData = Objects.requireNonNull(headers.get(condition.getParamName())).stream().findFirst().orElse("");
break;
case URI:
realData = exchange.getRequest().getURI().getPath();
break;
case QUERY:
final MultiValueMap<String, String> queryParams = exchange.getRequest().getQueryParams();
realData = queryParams.getFirst(condition.getParamName());
break;
case HOST:
realData = HostAddressUtils.acquireHost(exchange);
break;
case IP:
realData = HostAddressUtils.acquireIp(exchange);
break;
case POST:
final SoulContext soulContext = exchange.getAttribute(Constants.CONTEXT);
realData = (String) ReflectUtils.getFieldValue(soulContext, condition.getParamName());
break;
default:
break;
}
return realData;
}
public class MatchOperatorJudge implements OperatorJudge {
@Override
public Boolean judge(final ConditionData conditionData, final String realData) {
if (Objects.equals(ParamTypeEnum.URI.getName(), conditionData.getParamType())) {
return PathMatchUtils.match(conditionData.getParamValue().trim(), realData);
}
return realData.contains(conditionData.getParamValue().trim());
}
}

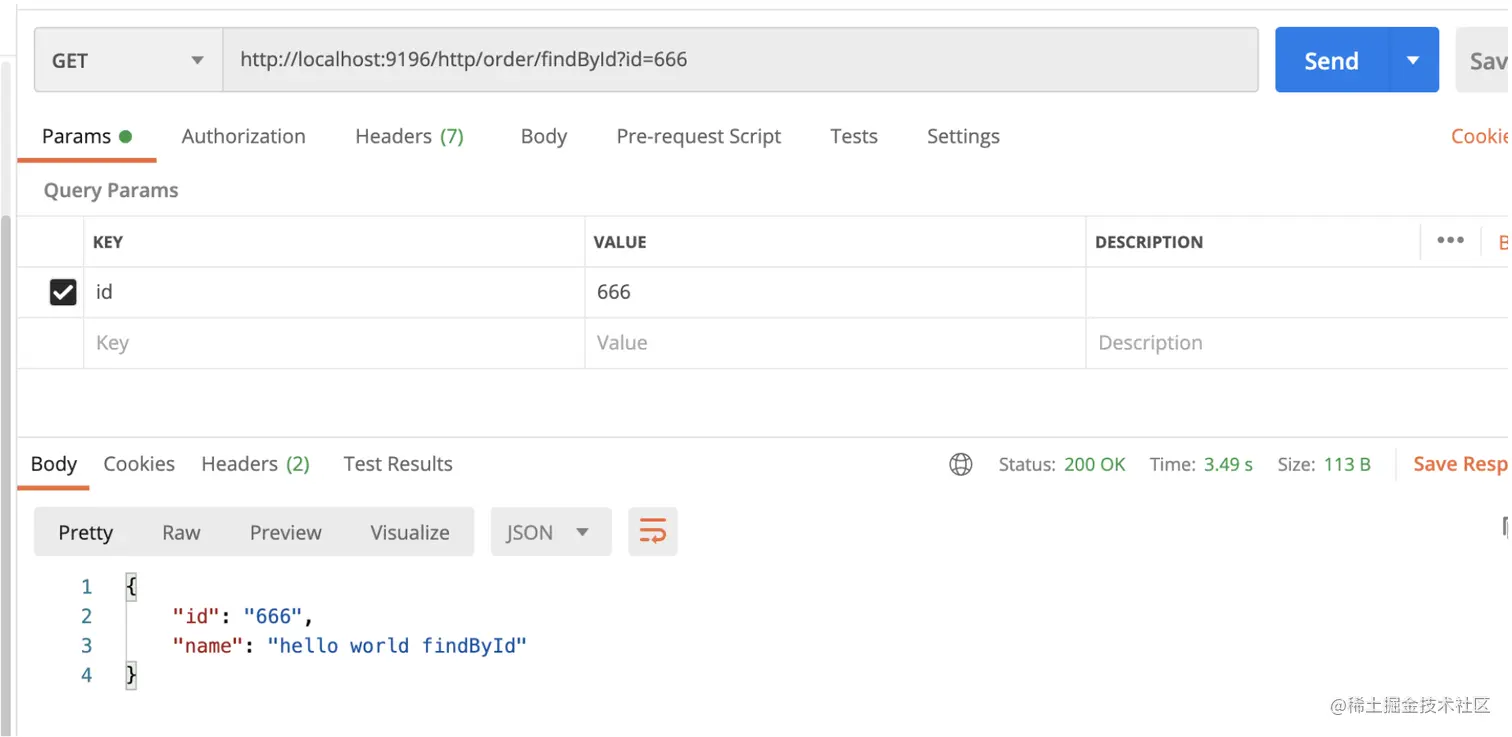

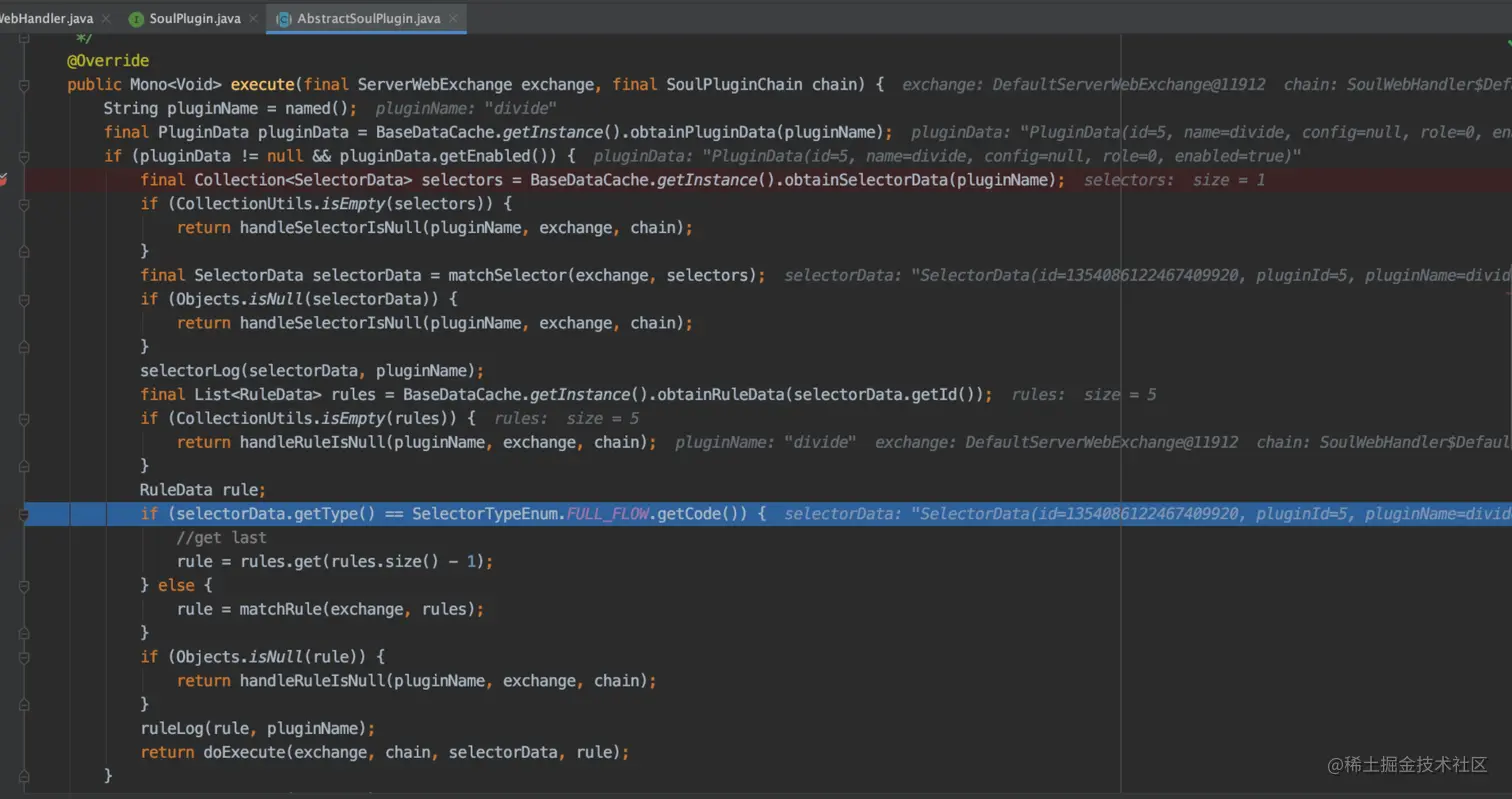

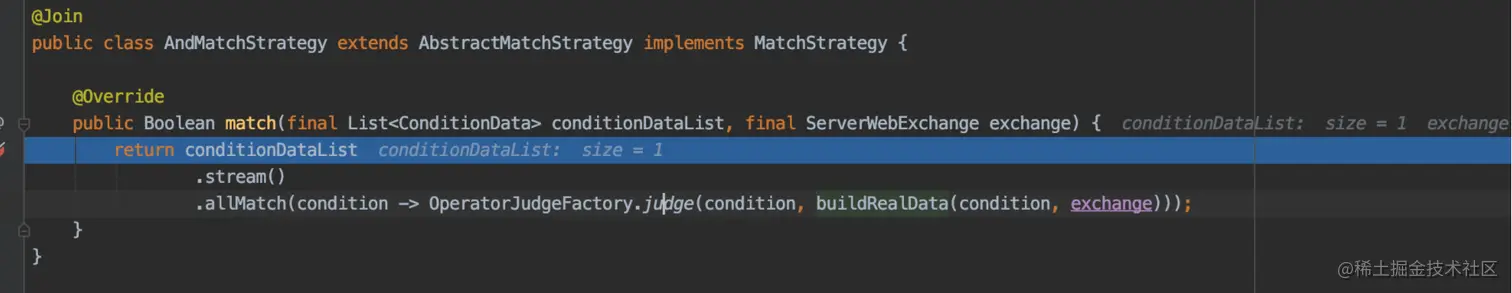

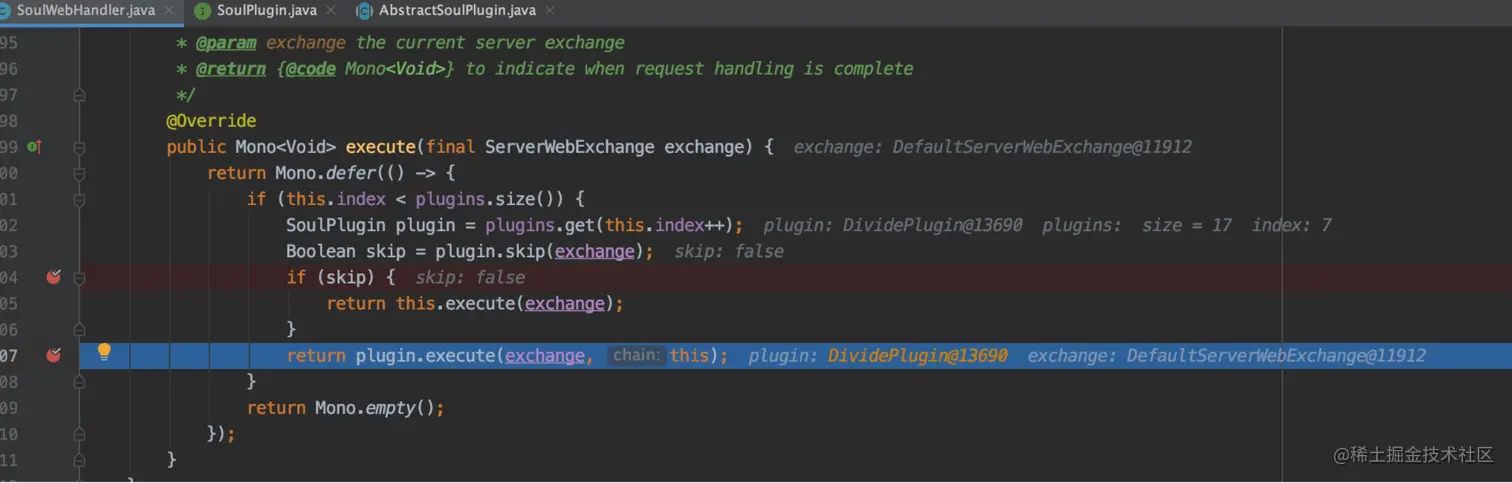

下面进行debug验证，推论正确：
divide插件的负载均衡：

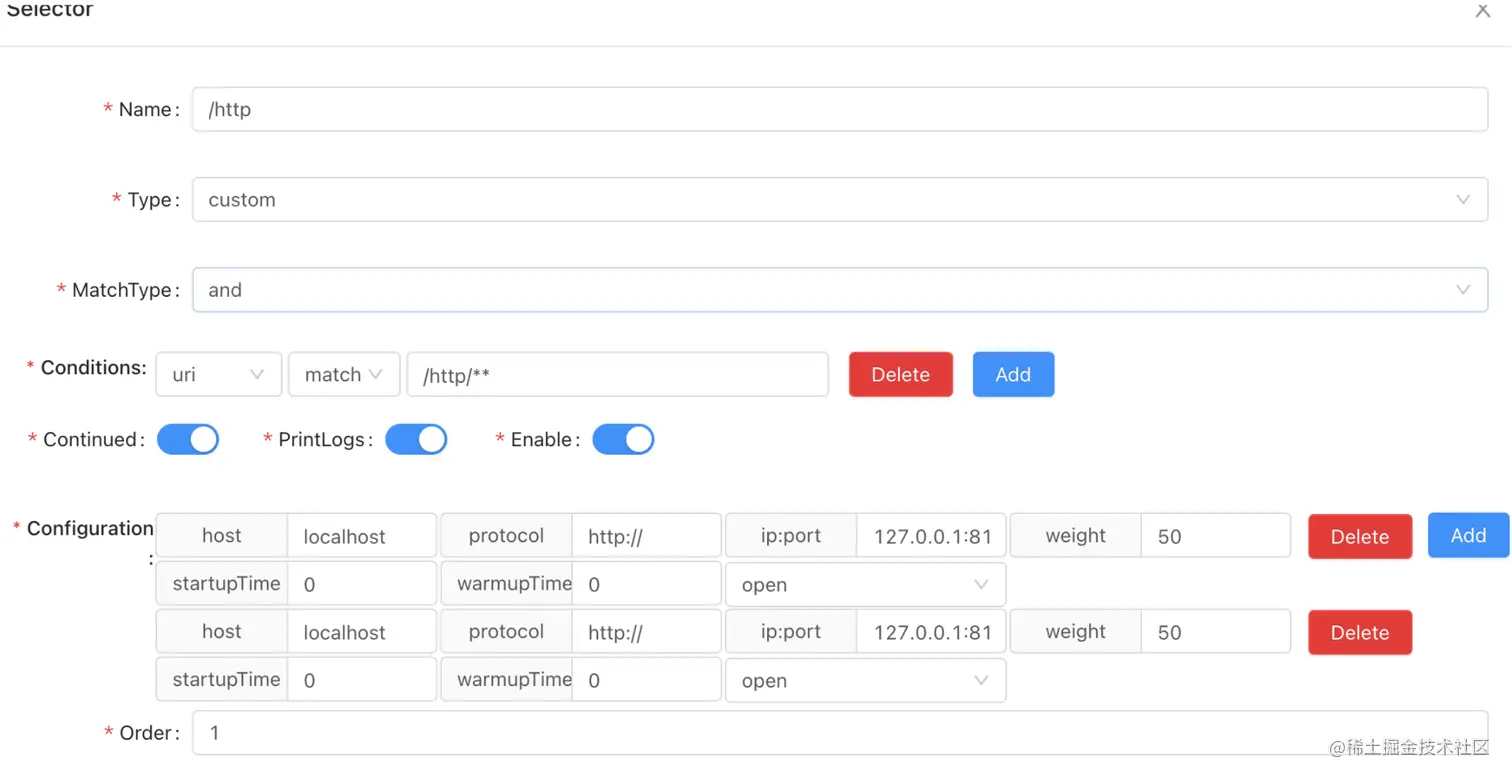

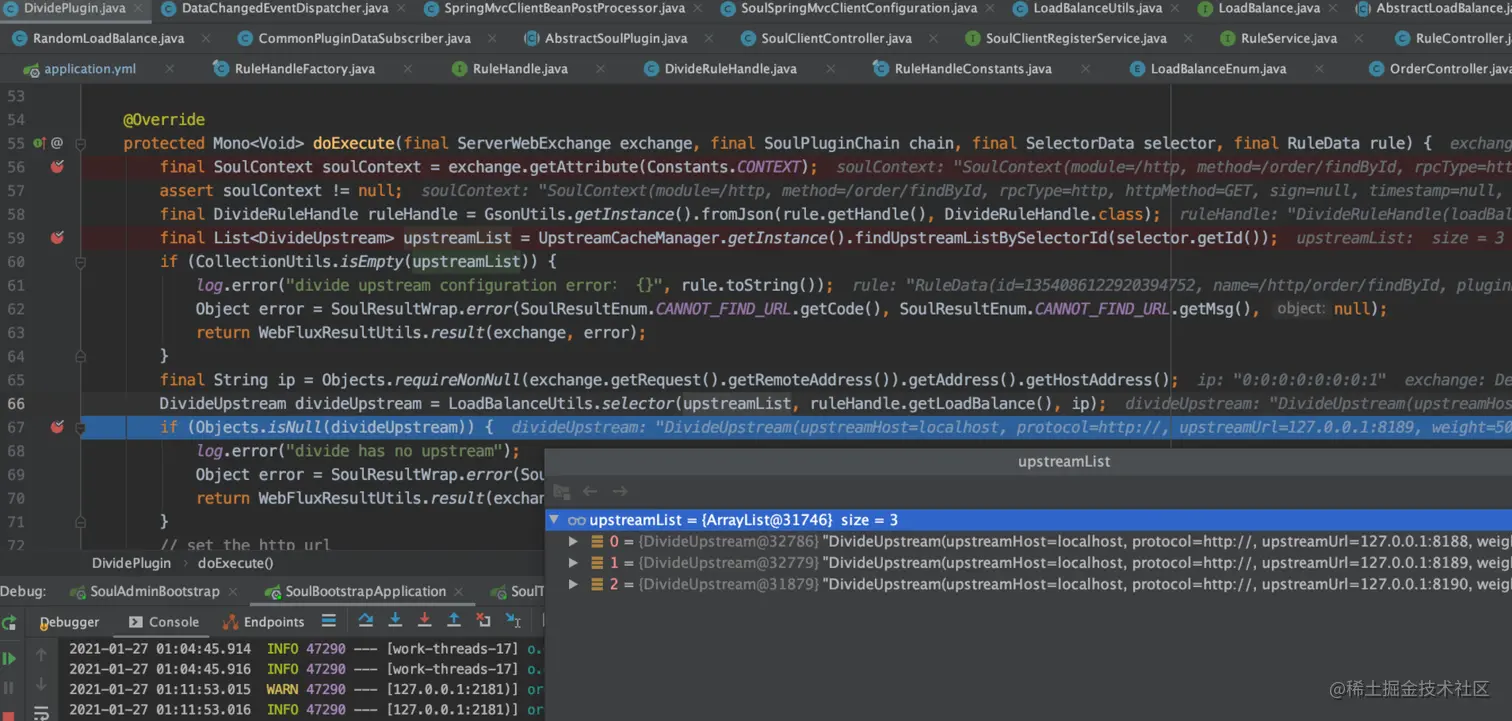

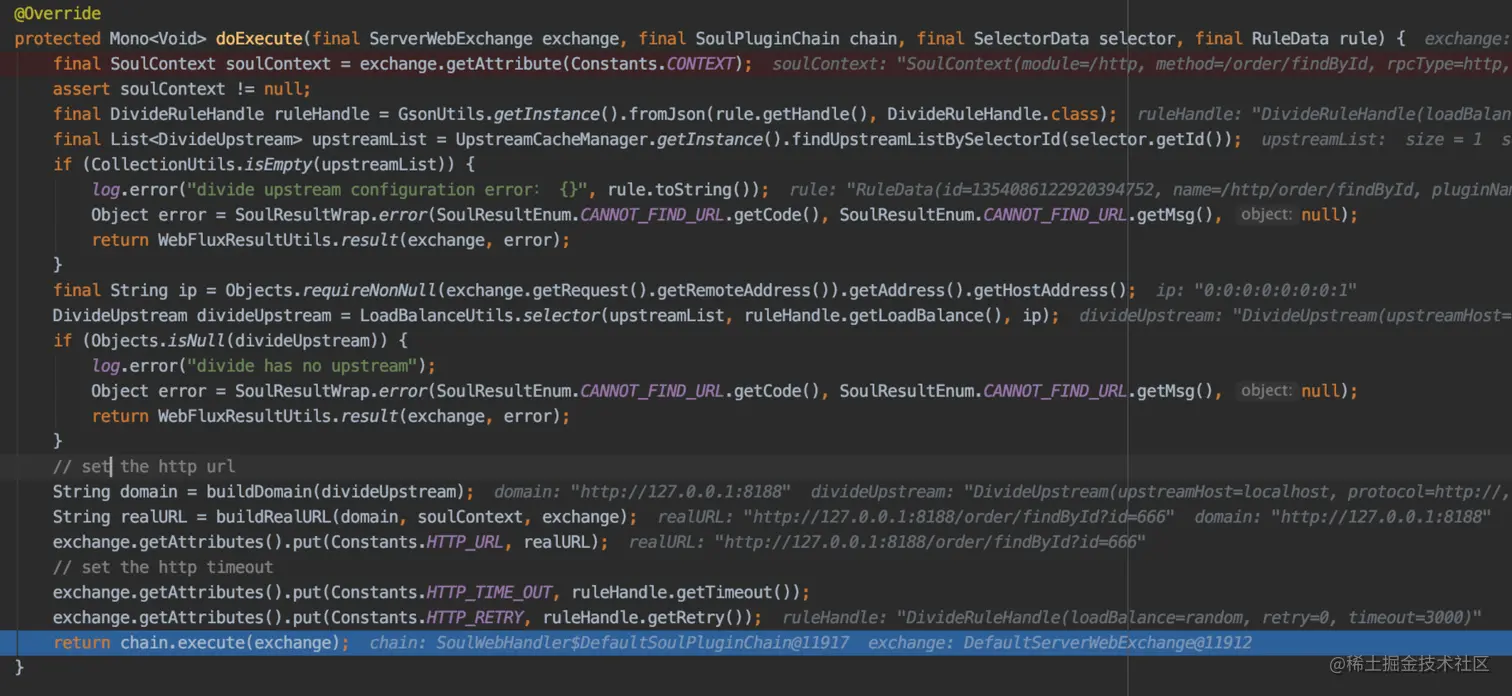

为了验证负载均衡，我们再启动一个soul-examples-http， 端口号改为8189。这时我们看soul-admin的PluginList->divide 的SelectList列表， 编辑，我们发现刚才启动的http服务也注册上来了。注册的http请求默认都是random算法，保存在rule的handle里面。注册的服务节点信息保存到selector的handle里面。启动注册的流程和上面一样
代码分析：
新启动网关调用逻辑和上面一样，负载均衡算法代码部门如下：
@Slf4j
public class DividePlugin extends AbstractSoulPlugin {
@Override
protected Mono<Void> doExecute(final ServerWebExchange exchange, final SoulPluginChain chain, final SelectorData selector, final RuleData rule) {
final SoulContext soulContext = exchange.getAttribute(Constants.CONTEXT);
assert soulContext != null;
final DivideRuleHandle ruleHandle = GsonUtils.getInstance().fromJson(rule.getHandle(), DivideRuleHandle.class);
final List<DivideUpstream> upstreamList = UpstreamCacheManager.getInstance().findUpstreamListBySelectorId(selector.getId());
if (CollectionUtils.isEmpty(upstreamList)) {
log.error("divide upstream configuration error： {}", rule.toString());
Object error = SoulResultWrap.error(SoulResultEnum.CANNOT_FIND_URL.getCode(), SoulResultEnum.CANNOT_FIND_URL.getMsg(), null);
return WebFluxResultUtils.result(exchange, error);
}
final String ip = Objects.requireNonNull(exchange.getRequest().getRemoteAddress()).getAddress().getHostAddress();
// 负载均衡算法，计算调用哪个服务
DivideUpstream divideUpstream = LoadBalanceUtils.selector(upstreamList, ruleHandle.getLoadBalance(), ip);
if (Objects.isNull(divideUpstream)) {
log.error("divide has no upstream");
Object error = SoulResultWrap.error(SoulResultEnum.CANNOT_FIND_URL.getCode(), SoulResultEnum.CANNOT_FIND_URL.getMsg(), null);
return WebFluxResultUtils.result(exchange, error);
}
// set the http url
String domain = buildDomain(divideUpstream);
String realURL = buildRealURL(domain, soulContext, exchange);
exchange.getAttributes().put(Constants.HTTP_URL, realURL);
// set the http timeout
exchange.getAttributes().put(Constants.HTTP_TIME_OUT, ruleHandle.getTimeout());
exchange.getAttributes().put(Constants.HTTP_RETRY, ruleHandle.getRetry());
return chain.execute(exchange);
}
、、、
}
public class LoadBalanceUtils {
/**
* Selector divide upstream.
*
* @param upstreamList the upstream list
* @param algorithm the loadBalance algorithm
* @param ip the ip
* @return the divide upstream
*/
public static DivideUpstream selector(final List<DivideUpstream> upstreamList, final String algorithm, final String ip) {
LoadBalance loadBalance = ExtensionLoader.getExtensionLoader(LoadBalance.class).getJoin(algorithm);
return loadBalance.select(upstreamList, ip);
}
}
public abstract class AbstractLoadBalance implements LoadBalance {
/**
* Do select divide upstream.
*
* @param upstreamList the upstream list
* @param ip the ip
* @return the divide upstream
*/
protected abstract DivideUpstream doSelect(List<DivideUpstream> upstreamList, String ip);
@Override
public DivideUpstream select(final List<DivideUpstream> upstreamList, final String ip) {
if (CollectionUtils.isEmpty(upstreamList)) {
return null;
}
if (upstreamList.size() == 1) {
return upstreamList.get(0);
}
return doSelect(upstreamList, ip);
}
protected int getWeight(final DivideUpstream upstream) {
if (!upstream.isStatus()) {
return 0;
}
int weight = getWeight(upstream.getTimestamp(), getWarmup(upstream.getWarmup(), Constants.DEFAULT_WARMUP), upstream.getWeight());
return weight;
}
private int getWeight(final long timestamp, final int warmup, final int weight) {
if (weight > 0 && timestamp > 0) {
int uptime = (int) (System.currentTimeMillis() - timestamp);
if (uptime > 0 && uptime < warmup) {
return calculateWarmupWeight(uptime, warmup, weight);
}
}
return weight;
}
private int getWarmup(final int warmup, final int defaultWarmup) {
if (warmup > 0) {
return warmup;
}
return defaultWarmup;
}
private int calculateWarmupWeight(final int uptime, final int warmup, final int weight) {
int ww = (int) ((float) uptime / ((float) warmup / (float) weight));
return ww < 1 ? 1 : (ww > weight ? weight : ww);
}
}
@Join
public class RandomLoadBalance extends AbstractLoadBalance {
private static final Random RANDOM = new Random();
@Override
public DivideUpstream doSelect(final List<DivideUpstream> upstreamList, final String ip) {
int totalWeight = calculateTotalWeight(upstreamList);
boolean sameWeight = isAllUpStreamSameWeight(upstreamList);
if (totalWeight > 0 && !sameWeight) {
return random(totalWeight, upstreamList);
}
// If the weights are the same or the weights are 0 then random
return random(upstreamList);
}
private boolean isAllUpStreamSameWeight(final List<DivideUpstream> upstreamList) {
boolean sameWeight = true;
int length = upstreamList.size();
for (int i = 0; i < length; i++) {
int weight = getWeight(upstreamList.get(i));
if (i > 0 && weight != getWeight(upstreamList.get(i - 1))) {
// Calculate whether the weight of ownership is the same
sameWeight = false;
break;
}
}
return sameWeight;
}
private int calculateTotalWeight(final List<DivideUpstream> upstreamList) {
// total weight
int totalWeight = 0;
for (DivideUpstream divideUpstream : upstreamList) {
int weight = getWeight(divideUpstream);
// Cumulative total weight
totalWeight += weight;
}
return totalWeight;
}
private DivideUpstream random(final int totalWeight, final List<DivideUpstream> upstreamList) {
// If the weights are not the same and the weights are greater than 0, then random by the total number of weights
int offset = RANDOM.nextInt(totalWeight);
// Determine which segment the random value falls on
for (DivideUpstream divideUpstream : upstreamList) {
offset -= getWeight(divideUpstream);
if (offset < 0) {
return divideUpstream;
}
}
return upstreamList.get(0);
}
private DivideUpstream random(final List<DivideUpstream> upstreamList) {
return upstreamList.get(RANDOM.nextInt(upstreamList.size()));
}
}
soul-examples-http服务的ip端口探活
这块待定，有空再写
