soul源码研究-nacos同步数据

DY624
634 阅读4分钟

今天我们研究下soul 的nacos同步数据到网关这块。

1、把nacos启动起来

安装nacos

> docker pull nacos/nacos-server

启动nacos服务

> docker run --name nacos -d -p 8848:8848 -e MODE=standalone nacos/nacos-server

访问nacos服务

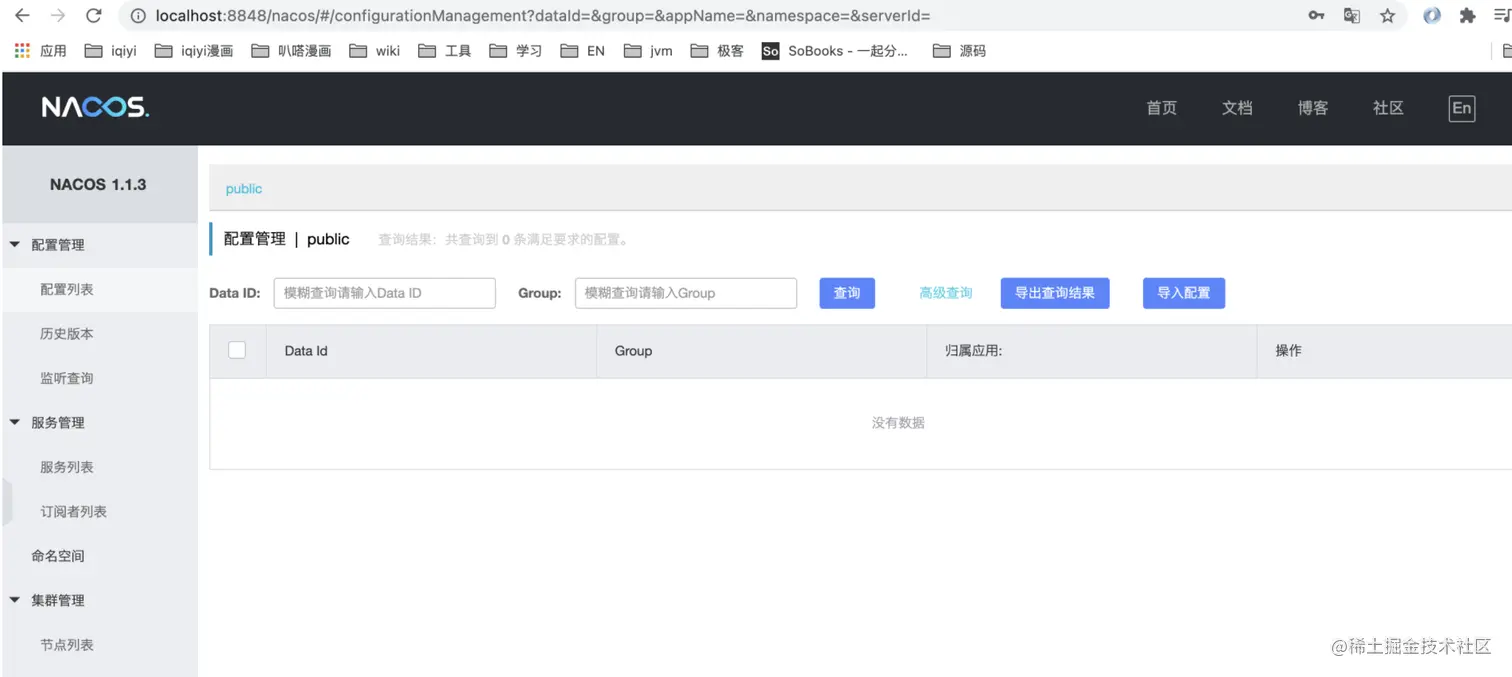

> 登陆 http://localhost:8848/nacos, username:nacos, password:nacos。nacos服务正常

2、启动sole-admin

  1. 配置 application.xml 配置文件，只打开nacos配置。

    soul:
  database:
    dialect: mysql
    init_script: "META-INF/schema.sql"
    init_enable: true
  sync:
    websocket:
      enabled: false
#      zookeeper:
#          url: localhost:2181
#          sessionTimeout: 5000
#          connectionTimeout: 2000
#      http:
#        enabled: true
      nacos:
        url: localhost:8848
        namespace: 1c10d748-af86-43b9-8265-75f487d20c6c
        acm:
          enabled: false
          endpoint: acm.aliyun.com
          namespace:
          accessKey:
          secretKey:

  2. 启动 SoulAdminBootstrap。

3、启动sole-bootstrap

  1. pom.xml新增nacos依赖

    <dependency>
    <groupId>org.dromara</groupId>
    <artifactId>soul-spring-boot-starter-sync-data-nacos</artifactId>
    <version>${project.version}</version>
</dependency>

  2. 配置application-local.yml，只打开nacos配置

    soul :
    file:
      enabled: true
    corss:
      enabled: true
#    dubbo :
#      parameter: multi
    sync:
#        websocket :
#             urls: ws://localhost:9095/websocket

#        zookeeper:
#             url: localhost:2181
#             sessionTimeout: 5000
#             connectionTimeout: 2000
#        http:
#             url : http://localhost:9095
        nacos:
            url: localhost:8848
            namespace: 1c10d748-af86-43b9-8265-75f487d20c6c
            acm:
              enabled: false
              endpoint: acm.aliyun.com
              namespace:
              accessKey:
              secretKey:

  3. 启动SoulBootstrapApplication。

源码解析：

1、 分析soul-admin的nacos源码部分

  1. 我们从soul-admin的application.xml的配置文件分析，查询soul.sync.nacos 引用的地方，找到了DataSyncConfiguration 的 NacosListener 和 NacosSyncDataConfiguration， 这两个一个是作为soul-admin启动时加载的类，一个是作为soul-bootstrap启动时加载的类。通过前面几篇文章的分析，我们知道 soul-admin启动时加载soul配置的时DataSyncConfiguration 的 NacosListener。之后还会执行DataChangedEventDispatcher的afterPropertiesSet方法，初始化listeners数据，进行数据变更事件的监听。

    @Configuration
public class DataSyncConfiguration {

    /**
     * The type Nacos listener.
     */
    @Configuration
    @ConditionalOnProperty(prefix = "soul.sync.nacos", name = "url")
    @Import(NacosConfiguration.class)
    static class NacosListener {

        /**
         * Data changed listener data changed listener.
         *
         * @param configService the config service
         * @return the data changed listener
         */
        @Bean
        @ConditionalOnMissingBean(NacosDataChangedListener.class)
        public DataChangedListener nacosDataChangedListener(final ConfigService configService) {
            return new NacosDataChangedListener(configService);
        }
    }
    、、、
}

    @Component
public class DataChangedEventDispatcher implements ApplicationListener<DataChangedEvent>, InitializingBean {

    private ApplicationContext applicationContext;

    private List<DataChangedListener> listeners;

    public DataChangedEventDispatcher(final ApplicationContext applicationContext) {
        this.applicationContext = applicationContext;
    }

    @Override
    @SuppressWarnings("unchecked")
    public void onApplicationEvent(final DataChangedEvent event) {
        for (DataChangedListener listener : listeners) {
            switch (event.getGroupKey()) {
                case APP_AUTH:
                    listener.onAppAuthChanged((List<AppAuthData>) event.getSource(), event.getEventType());
                    break;
                case PLUGIN:
                    listener.onPluginChanged((List<PluginData>) event.getSource(), event.getEventType());
                    break;
                case RULE:
                    listener.onRuleChanged((List<RuleData>) event.getSource(), event.getEventType());
                    break;
                case SELECTOR:
                    listener.onSelectorChanged((List<SelectorData>) event.getSource(), event.getEventType());
                    break;
                case META_DATA:
                    listener.onMetaDataChanged((List<MetaData>) event.getSource(), event.getEventType());
                    break;
                default:
                    throw new IllegalStateException("Unexpected value: " + event.getGroupKey());
            }
        }
    }

    @Override
    public void afterPropertiesSet() {
        Collection<DataChangedListener> listenerBeans = applicationContext.getBeansOfType(DataChangedListener.class).values();
        this.listeners = Collections.unmodifiableList(new ArrayList<>(listenerBeans));
    }
}

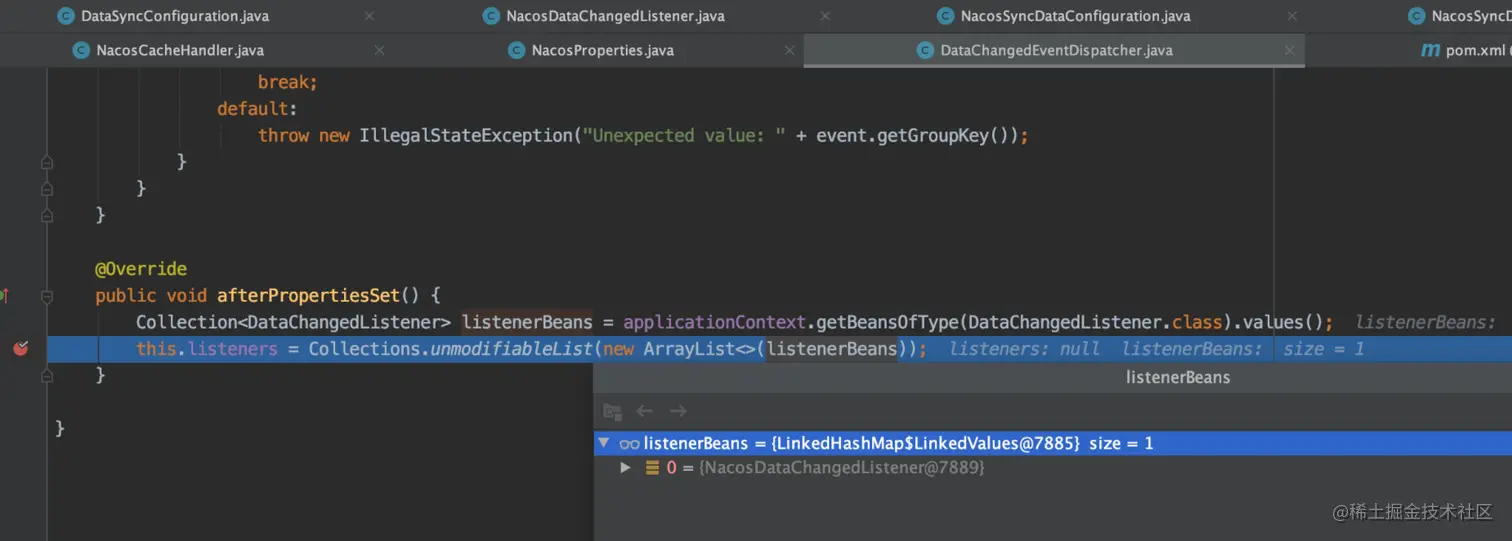

    1. 我们debug进行验证，发现情况和我们预估的一样。

2、 分析soul-bootstrap的nacos源码部分

  1. 我们从soul-admin的application-local.yml的配置文件分析，查询soul.sync.nacos 引用的地方，

    @Configuration
@ConditionalOnClass(NacosSyncDataService.class)
@ConditionalOnProperty(prefix = "soul.sync.nacos", name = "url")
@Slf4j
public class NacosSyncDataConfiguration {

    /**
     * Nacos sync data service.
     *
     * @param configService     the config service
     * @param pluginSubscriber the plugin subscriber
     * @param metaSubscribers   the meta subscribers
     * @param authSubscribers   the auth subscribers
     * @return the sync data service
     */
    @Bean
    public SyncDataService nacosSyncDataService(final ObjectProvider<ConfigService> configService, final ObjectProvider<PluginDataSubscriber> pluginSubscriber,
                                           final ObjectProvider<List<MetaDataSubscriber>> metaSubscribers, final ObjectProvider<List<AuthDataSubscriber>> authSubscribers) {
        log.info("you use nacos sync soul data.......");
        return new NacosSyncDataService(configService.getIfAvailable(), pluginSubscriber.getIfAvailable(),
                metaSubscribers.getIfAvailable(Collections::emptyList), authSubscribers.getIfAvailable(Collections::emptyList));
    }

    /**
     * Nacos config service config service.
     *
     * @param nacosConfig the nacos config
     * @return the config service
     * @throws Exception the exception
     */
    @Bean
    public ConfigService nacosConfigService(final NacosConfig nacosConfig) throws Exception {
        Properties properties = new Properties();
        if (nacosConfig.getAcm() != null && nacosConfig.getAcm().isEnabled()) {
            properties.put(PropertyKeyConst.ENDPOINT, nacosConfig.getAcm().getEndpoint());
            properties.put(PropertyKeyConst.NAMESPACE, nacosConfig.getAcm().getNamespace());
            properties.put(PropertyKeyConst.ACCESS_KEY, nacosConfig.getAcm().getAccessKey());
            properties.put(PropertyKeyConst.SECRET_KEY, nacosConfig.getAcm().getSecretKey());
        } else {
            properties.put(PropertyKeyConst.SERVER_ADDR, nacosConfig.getUrl());
            properties.put(PropertyKeyConst.NAMESPACE, nacosConfig.getNamespace());
        }
        return NacosFactory.createConfigService(properties);
    }

    /**
     * Http config http config.
     *
     * @return the http config
     */
    @Bean
    @ConfigurationProperties(prefix = "soul.sync.nacos")
    public NacosConfig nacosConfig() {
        return new NacosConfig();
    }
}

    public class NacosSyncDataService extends NacosCacheHandler implements AutoCloseable, SyncDataService {

    /**
     * Instantiates a new Nacos sync data service.
     *
     * @param configService         the config service
     * @param pluginDataSubscriber the plugin data subscriber
     * @param metaDataSubscribers   the meta data subscribers
     * @param authDataSubscribers   the auth data subscribers
     */
    public NacosSyncDataService(final ConfigService configService, final PluginDataSubscriber pluginDataSubscriber,
                                final List<MetaDataSubscriber> metaDataSubscribers, final List<AuthDataSubscriber> authDataSubscribers) {

        super(configService, pluginDataSubscriber, metaDataSubscribers, authDataSubscribers);
        start();
    }

    /**
     * 从nacos中读取全量数据并增添监听器监听数据变化并通知订阅者缓存和刷新数据
     */
    public void start() {
        watcherData(PLUGIN_DATA_ID, this::updatePluginMap);
        watcherData(SELECTOR_DATA_ID, this::updateSelectorMap);
        watcherData(RULE_DATA_ID, this::updateRuleMap);
        watcherData(META_DATA_ID, this::updateMetaDataMap);
        watcherData(AUTH_DATA_ID, this::updateAuthMap);
    }

    @Override
    public void close() {
        LISTENERS.forEach((dataId, lss) -> {
            lss.forEach(listener -> getConfigService().removeListener(dataId, GROUP, listener));
            lss.clear();
        });
        LISTENERS.clear();
    }
}

    @Slf4j
public class NacosCacheHandler {

    protected static final String GROUP = "DEFAULT_GROUP";

    protected static final String PLUGIN_DATA_ID = "soul.plugin.json";

    protected static final String SELECTOR_DATA_ID = "soul.selector.json";

    protected static final String RULE_DATA_ID = "soul.rule.json";

    protected static final String AUTH_DATA_ID = "soul.auth.json";

    protected static final String META_DATA_ID = "soul.meta.json";

    protected static final Map<String, List<Listener>> LISTENERS = Maps.newConcurrentMap();

    @Getter
    private final ConfigService configService;

    private final PluginDataSubscriber pluginDataSubscriber;

    private final List<MetaDataSubscriber> metaDataSubscribers;

    private final List<AuthDataSubscriber> authDataSubscribers;

    public NacosCacheHandler(final ConfigService configService, final PluginDataSubscriber pluginDataSubscriber,
                             final List<MetaDataSubscriber> metaDataSubscribers,
                             final List<AuthDataSubscriber> authDataSubscribers) {
        this.configService = configService;
        this.pluginDataSubscriber = pluginDataSubscriber;
        this.metaDataSubscribers = metaDataSubscribers;
        this.authDataSubscribers = authDataSubscribers;
    }

    protected void updatePluginMap(final String configInfo) {
        try {
            // Fix bug #656(https://github.com/dromara/soul/issues/656)
            List<PluginData> pluginDataList = new ArrayList<>(GsonUtils.getInstance().toObjectMap(configInfo, PluginData.class).values());
            pluginDataList.forEach(pluginData -> Optional.ofNullable(pluginDataSubscriber).ifPresent(subscriber -> {
                subscriber.unSubscribe(pluginData);
                subscriber.onSubscribe(pluginData);
            }));
        } catch (JsonParseException e) {
            log.error("sync plugin data have error:", e);
        }
    }

    protected void updateSelectorMap(final String configInfo) {
        try {
            List<SelectorData> selectorDataList = GsonUtils.getInstance().toObjectMapList(configInfo, SelectorData.class).values().stream().flatMap(Collection::stream).collect(Collectors.toList());
            selectorDataList.forEach(selectorData -> Optional.ofNullable(pluginDataSubscriber).ifPresent(subscriber -> {
                subscriber.unSelectorSubscribe(selectorData);
                subscriber.onSelectorSubscribe(selectorData);
            }));
        } catch (JsonParseException e) {
            log.error("sync selector data have error:", e);
        }
    }

    protected void updateRuleMap(final String configInfo) {
        try {
            List<RuleData> ruleDataList = GsonUtils.getInstance().toObjectMapList(configInfo, RuleData.class).values()
                    .stream().flatMap(Collection::stream)
                    .collect(Collectors.toList());
            ruleDataList.forEach(ruleData -> Optional.ofNullable(pluginDataSubscriber).ifPresent(subscriber -> {
                subscriber.unRuleSubscribe(ruleData);
                subscriber.onRuleSubscribe(ruleData);
            }));
        } catch (JsonParseException e) {
            log.error("sync rule data have error:", e);
        }
    }

    protected void updateMetaDataMap(final String configInfo) {
        try {
            List<MetaData> metaDataList = new ArrayList<>(GsonUtils.getInstance().toObjectMap(configInfo, MetaData.class).values());
            metaDataList.forEach(metaData -> metaDataSubscribers.forEach(subscriber -> {
                subscriber.unSubscribe(metaData);
                subscriber.onSubscribe(metaData);
            }));
        } catch (JsonParseException e) {
            log.error("sync meta data have error:", e);
        }
    }

    protected void updateAuthMap(final String configInfo) {
        try {
            List<AppAuthData> appAuthDataList = new ArrayList<>(GsonUtils.getInstance().toObjectMap(configInfo, AppAuthData.class).values());
            appAuthDataList.forEach(appAuthData -> authDataSubscribers.forEach(subscriber -> {
                subscriber.unSubscribe(appAuthData);
                subscriber.onSubscribe(appAuthData);
            }));
        } catch (JsonParseException e) {
            log.error("sync auth data have error:", e);
        }
    }

    @SneakyThrows
    private String getConfigAndSignListener(final String dataId, final Listener listener) {
        return configService.getConfigAndSignListener(dataId, GROUP, 6000, listener);
    }

    protected void watcherData(final String dataId, final OnChange oc) {
        Listener listener = new Listener() {
            @Override
            public void receiveConfigInfo(final String configInfo) {
                oc.change(configInfo);
            }

            @Override
            public Executor getExecutor() {
                return null;
            }
        };
        oc.change(getConfigAndSignListener(dataId, listener));
        LISTENERS.getOrDefault(dataId, new ArrayList<>()).add(listener);
    }

    protected interface OnChange {

        void change(String changeData);
    }
}

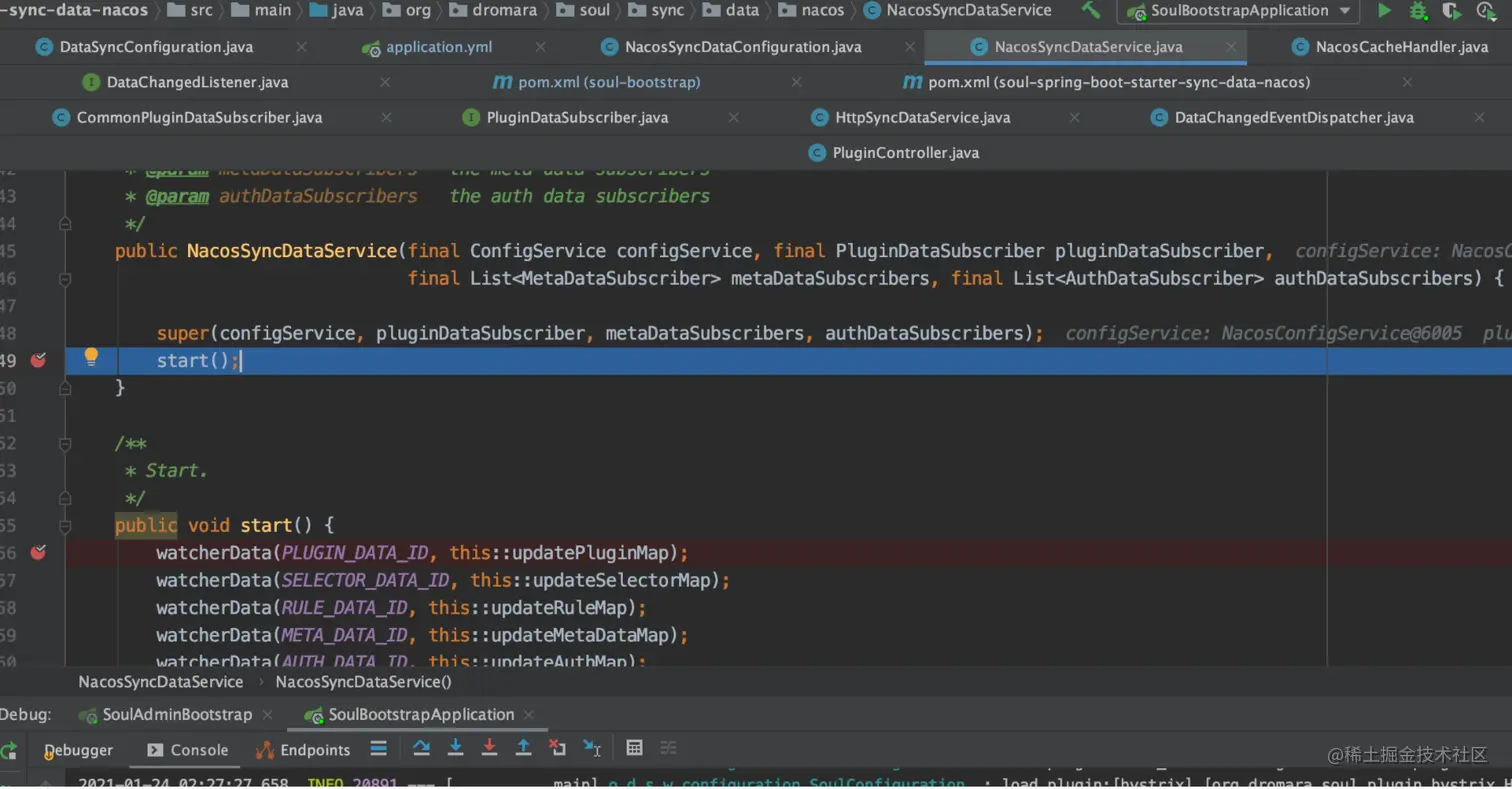

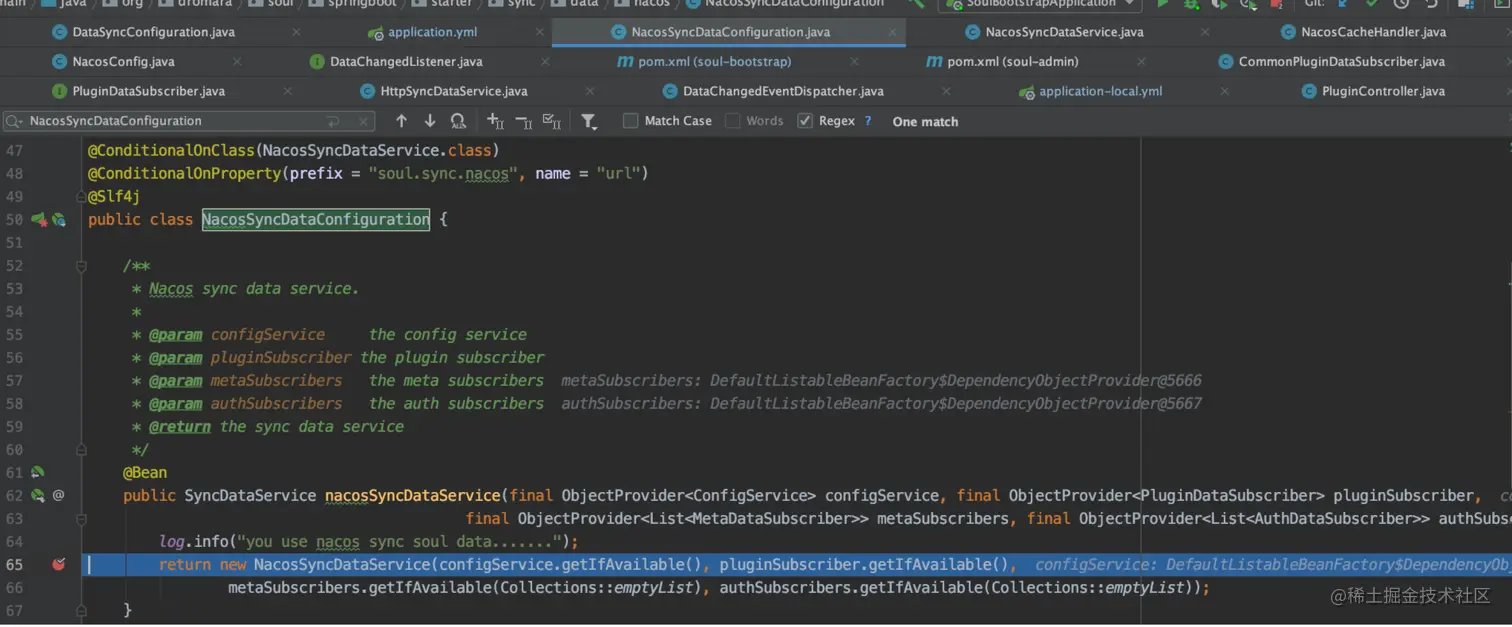

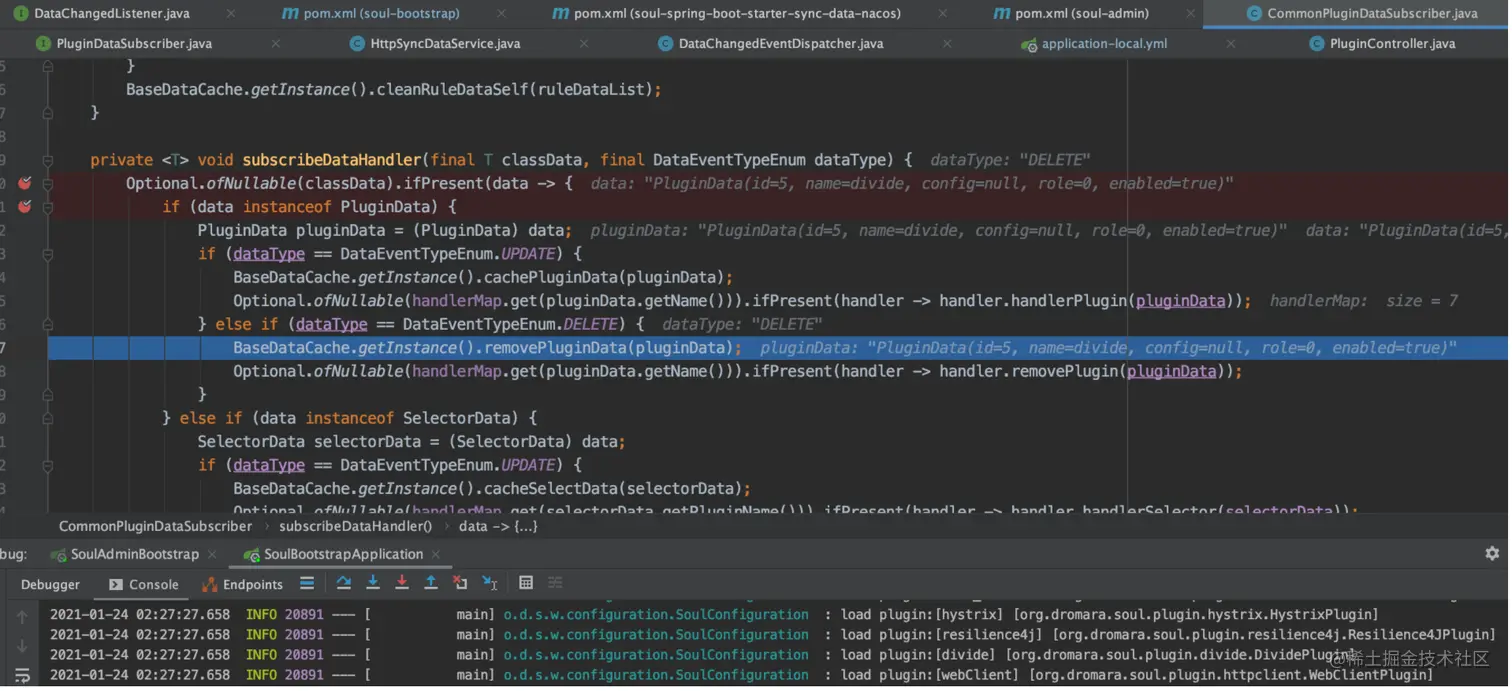

  2. 我们debug进行验证

总结

至此，我们清楚了http长轮询的使用情况。
