Mutex数据结构
type Mutex struct {
state int32
sema uint32
}

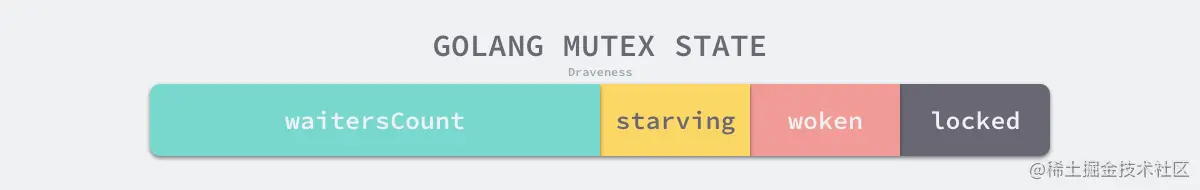

其中state字段会包含四个字段意思
在默认情况下，互斥锁的所有状态位都是 0，int32 中的不同位分别表示了不同的状态：
- mutexLocked — 表示互斥锁的锁定状态；
- mutexWoken — 表示当前正在有Goroutine在竞争锁，后面会进行详解；
- mutexStarving — 当前的互斥锁进入饥饿状态；
- waitersCount — 当前互斥锁上等待的 Goroutine 个数；
1. 锁的获取
首先看下lock方法的逻辑，源码sync/mutex.go
func (m *Mutex) Lock() {
// Fast path: grab unlocked mutex.
if atomic.CompareAndSwapInt32(&m.state, 0, mutexLocked) {
if race.Enabled {
race.Acquire(unsafe.Pointer(m))
}
return
}
// Slow path (outlined so that the fast path can be inlined)
m.lockSlow()
}
通过cas方式尝试获取锁，成功后立马返回，若通过cas获取失败了，则使用locksSlow方法获取 locksSlow方法主要会经过以下逻辑：
- 先判断当前Goroutine是否可以满足自旋条件，若满足则会进行4次自旋
if old&(mutexLocked|mutexStarving) == mutexLocked && runtime_canSpin(iter) {
// Active spinning makes sense.
// Try to set mutexWoken flag to inform Unlock
// to not wake other blocked goroutines.
//首次自旋时，设置mutexWoken，说明当前正在有Goroutine尝试获取锁，这样在释放锁的时候，在正常模式下就不会唤醒阻塞队列里的Goroutine
if !awoke && old&mutexWoken == 0 && old>>mutexWaiterShift != 0 &&
atomic.CompareAndSwapInt32(&m.state, old, old|mutexWoken) {
awoke = true
}
//具体自旋方法，让cpu空转
runtime_doSpin()
iter++
old = m.state
continue
}
- 设置state中新的状态值
new := old
// Don't try to acquire starving mutex, new arriving goroutines must queue.
//如果当前state状态不是饥饿模式，则把mutexLocked标志位设置为1
if old&mutexStarving == 0 {
new |= mutexLocked
}
//如果当前state中，已经被锁定或处于饥饿模式，则把等待数锁的个数加一
if old&(mutexLocked|mutexStarving) != 0 {
new += 1 << mutexWaiterShift
}
// The current goroutine switches mutex to starvation mode.
// But if the mutex is currently unlocked, don't do the switch.
// Unlock expects that starving mutex has waiters, which will not
// be true in this case.
//如果当前获取锁处于饥饿模式，则把mutexStarving标志位设置为1
if starving && old&mutexLocked != 0 {
new |= mutexStarving
}
if awoke {
// The goroutine has been woken from sleep,
// so we need to reset the flag in either case.
if new&mutexWoken == 0 {
throw("sync: inconsistent mutex state")
}
new &^= mutexWoken
}
- 设置好state新的值后，然后尝试再次通过cas方式获取锁
//尝试通过cas方式获取锁
if atomic.CompareAndSwapInt32(&m.state, old, new) {
//判断通过cas获取锁是否成功，成功则立马返回，因为new中statemutexLocked|mutexStarving这两个标志位肯定有一个是为1的，假如为0，说明old state中，这两个初始值都为0，所以可以认为cas获取成功
if old&(mutexLocked|mutexStarving) == 0 {
break // locked the mutex with CAS
}
//如果cas获取锁没有成功，则走以下流程
// If we were already waiting before, queue at the front of the queue.
queueLifo := waitStartTime != 0
if waitStartTime == 0 {
waitStartTime = runtime_nanotime()
}
//runtime_SemacquireMutex会将当前Goroutine加入到阻塞队列中，同时触发当前m重新调度选取Goroutine执行
//阻塞的
runtime_SemacquireMutex(&m.sema, queueLifo, 1)
//当Goroutine被重新获得m执行时，会判断Goroutine阻塞等待了多长时间，
//若大于某个阈值，说明阻塞队列中可能存在较多待执行的Goroutine，所以此时要把本地starving变量设置为true，让前面阻塞的Goroutine得到执行的机会
starving = starving || runtime_nanotime()-waitStartTime > starvationThresholdNs
old = m.state
if old&mutexStarving != 0 {
//如果Goroutine被唤醒后，发现当前是饥饿模式，则当前Goroutine直接获取锁
// If this goroutine was woken and mutex is in starvation mode,
// ownership was handed off to us but mutex is in somewhat
// inconsistent state: mutexLocked is not set and we are still
// accounted as waiter. Fix that.
if old&(mutexLocked|mutexWoken) != 0 || old>>mutexWaiterShift == 0 {
throw("sync: inconsistent mutex state")
}
//设置mutexLocked标志位
delta := int32(mutexLocked - 1<<mutexWaiterShift)
if !starving || old>>mutexWaiterShift == 1 {
// Exit starvation mode.
// Critical to do it here and consider wait time.
// Starvation mode is so inefficient, that two goroutines
// can go lock-step infinitely once they switch mutex
// to starvation mode.
delta -= mutexStarving
}
atomic.AddInt32(&m.state, delta)
break
}
//假如当前处于正常模式，则会重新参与锁的竞争
awoke = true
iter = 0
} else {
old = m.state
}
这里面逻辑细节其实比较多：
- 首先通过cas方式尝试获取锁，获取到则里面返回，否则继续执行
- 执行runtime_SemacquireMutex方法，该方法会将当前Goroutine加入到等待队列中，同时重新触发Goroutine的调度
- 当当前Goroutine被唤醒后，会继续执行下面代码，这个时候会判断Goroutine的等待时间，若超过阈值，则会将本地变量starving设置为true
- 被唤醒的Goroutine发现当前锁已经是饥饿模式时，表示当前Goroutine可以立马获取到锁，不需要再进行竞争获取锁
- 如果被唤醒的Goroutine发现当前state不是饥饿模式，则会重新参与锁的竞争
2. 锁的释放
锁的释放代码则相对简单，先看下代码
func (m *Mutex) Unlock() {
if race.Enabled {
_ = m.state
race.Release(unsafe.Pointer(m))
}
// 修改锁的锁定状态
new := atomic.AddInt32(&m.state, -mutexLocked)
if new != 0 {
// Outlined slow path to allow inlining the fast path.
// To hide unlockSlow during tracing we skip one extra frame when tracing GoUnblock.
//尝试着唤醒等待队列中的一个Goroutine，
m.unlockSlow(new)
}
从上面代码可以看出，锁状态先于Goroutine的唤醒，所以会存在一个问题，刚进来的Goroutine由于锁状态的改变可以立马抢占锁，而等待队列中的Goroutine还在被唤醒中，此时已经慢了一拍了。
在unlockSlow中释放锁主要有两个细节逻辑：
- 假如当前处于饥饿模式，则直接唤醒等待队列中一个Goroutine
- 假如当前处于正常模式且mutexWoken为true，说明已经有Goroutine在自旋获取锁，此时不需要唤醒等待队列中的Goroutine
其中mutexWoken重点介绍下，mutexWoken若为true可以看到在/sync/mutex.go中lockSlow方法中：
- 表示当前有Goroutine正在通过自旋方式获取锁
if old&(mutexLocked|mutexStarving) == mutexLocked && runtime_canSpin(iter) {
// Active spinning makes sense.
// Try to set mutexWoken flag to inform Unlock
// to not wake other blocked goroutines.
if !awoke && old&mutexWoken == 0 && old>>mutexWaiterShift != 0 &&
atomic.CompareAndSwapInt32(&m.state, old, old|mutexWoken) {
awoke = true
}
runtime_doSpin()
iter++
old = m.state
continue
}
表示当前有Goroutine正在通过自旋的方式获取锁，设置mutexWoken标志后，在正常模式下，在unlock方法中就不会从等待锁的阻塞队列中唤醒一个Goroutine，这样保证当前自旋的Goroutine有更大的概率获取到锁
