Dagger 基础知识页面介绍了 Dagger 可以如何帮助您在应用中自动注入依赖项。使用 Dagger,您就不必编写冗长乏味且容易出错的样板代码。
注意:使用 Hilt 可在 Android 上实现依赖项注入。Hilt 在 Dagger 的基础上构建而成,提供了一种在 Android 应用中纳入 Dagger 依赖项注入框架的标准方法。
1. 最佳做法摘要
注意:如果您已熟悉 Dagger,请查看以下最佳做法。如果不熟悉,请先阅读上述页面的内容,然后再返回本页面。
-
如果有可能,请通过
@Inject
进行构造函数注入,以向 Dagger 图中添加类型。如果没有可能,请执行以下操作:- 使用
@Binds
告知 Dagger 接口应采用哪种实现。 - 使用
@Provides
告知 Dagger 如何提供您的项目所不具备的类。
- 使用
-
您只能在组件中声明一次模块。
-
根据注释的使用生命周期,为作用域注释命名。示例包括
@ApplicationScope
、@LoggedUserScope
和@ActivityScope
。
2. 添加依赖项
如需在项目中使用 Dagger,请在 build.gradle
文件中向应用添加以下依赖项。您可以在此 GitHub 项目中找到最新版本的 Dagger。
apply plugin: 'kotlin-kapt'
dependencies {
implementation 'com.google.dagger:dagger:2.x'
kapt 'com.google.dagger:dagger-compiler:2.x'
}
3. Android 中的 Dagger

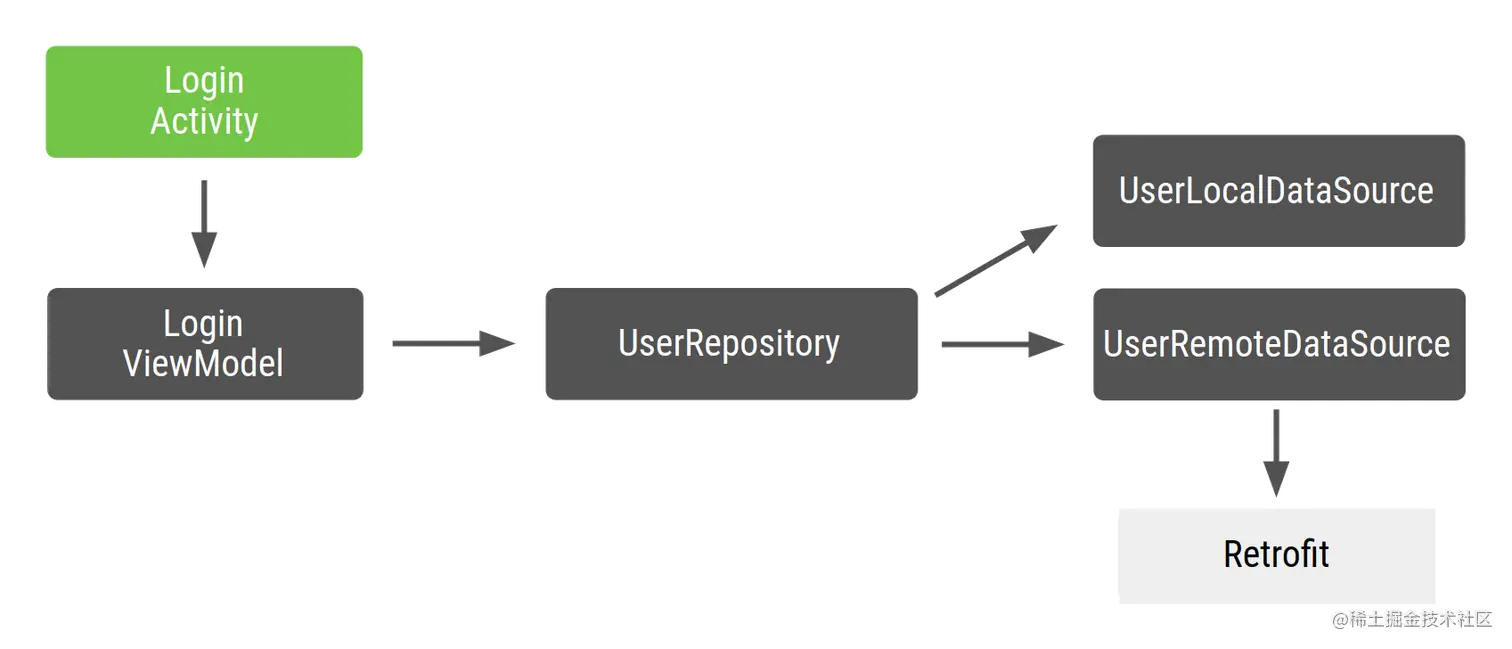

假设有一个示例 Android 应用的依赖关系图如图 1 所示。
在 Android 中,您通常会创建一个位于应用类中的 Dagger 图,因为只要应用处于运行状态,您就希望该图的实例在内存中。这样,就将该图附加到应用生命周期。在某些情况下,您可能还希望在该图中提供应用上下文。为此,您还需要使该图位于应用类中。这种方法的一个优势在于,该图可供其他 Android 框架类使用。此外,它还允许您在测试中使用自定义应用类,从而简化了测试。
由于生成该图的接口带有 @Component
注释,因此您可以将其命名为 ApplicationComponent
或 ApplicationGraph
。您通常会将该组件的实例保留在自定义应用类中,并在每次需要应用图时调用该实例,如以下代码段所示:
// Definition of the Application graph
@Component
interface ApplicationComponent { ... }
// appComponent lives in the Application class to share its lifecycle
class MyApplication: Application() {
// Reference to the application graph that is used across the whole app
val appComponent = DaggerApplicationComponent.create()
}
由于某些 Android 框架类(如 Activity 和 Fragment)由系统实例化,因此 Dagger 无法为您创建这些类。具体而言,对于 Activity,任何初始化代码都需要放入 onCreate()
方法中。这意味着,无法像在前面的示例中那样,在类的构造函数中使用 @Inject
注释(构造函数注入)。必须改为使用字段注入。
注意:Dagger 基础知识页面介绍了如何在构造函数中使用 Dagger @Inject 注释。此注释会告知 Dagger 如何创建类的实例。
您希望 Dagger 为您填充 Activity 所需的依赖项,而不是在 onCreate()
方法中创建这些依赖项。对于字段注入,应将 @Inject
注释应用于您要从 Dagger 图中获取的字段。
class LoginActivity: Activity() {
// You want Dagger to provide an instance of LoginViewModel from the graph
@Inject lateinit var loginViewModel: LoginViewModel
}
为简单起见,LoginViewModel 不是 Android 架构组件 ViewModel,而只是充当 ViewModel 的常规类。如需详细了解如何注入这些类,请参阅 dev-dagger 分支中的官方 Android Blueprints Dagger 实现中的代码。
有关 Dagger 的一个注意事项是,注入的字段不能为私有字段。这些字段的公开范围必须至少为软件包私有,如前面的代码所示。
注意:字段注入只能在无法使用构造函数注入的 Android 框架类中使用。
3.1 注入 Activity
Dagger 需要知道 LoginActivity 必须访问该图才能提供其所需的 ViewModel。在 Dagger 基础知识页面中,您使用 @Component
接口从该图中获取了一些对象,方法是提供了一些函数,让其返回类型为您要从该图中获取的内容。在这种情况下,您需要告知 Dagger 要求注入依赖项的对象(在本例中为 LoginActivity)。为此,您应提供一个函数,让该函数将请求注入的对象作为参数。
@Component
interface ApplicationComponent {
// This tells Dagger that LoginActivity requests injection so the graph needs to
// satisfy all the dependencies of the fields that LoginActivity is requesting.
fun inject(activity: LoginActivity)
}
此函数会告知 Dagger LoginActivity
希望访问该图并请求注入。Dagger 需要满足 LoginActivity
所需的所有依赖项(LoginViewModel
具有自己的依赖项)。如果您有多个请求注入的类,则必须通过这些类的确切类型在组件中明确声明它们。例如,如果您有请求注入的 LoginActivity
和 RegistrationActivity
,则需要两种 inject() 方法,而不是涵盖这两种情况的一种通用方法。通用 inject() 方法不会告知 Dagger 需要提供的内容。接口中的函数可以具有任何名称,但在它们以参数形式接收要注入的对象时将其称为 inject() 是 Dagger 中的一种惯例。
如需在 Activity 中注入对象,您应使用应用类中定义的 appComponent
并调用 inject() 方法,传入请求注入的 Activity 实例。
使用 Activity 时,应在调用 super.onCreate()
之前在 Activity 的 onCreate()
方法中注入 Dagger,以避免出现 Fragment 恢复问题。在 super.onCreate()
中的恢复阶段,Activity 会附加可能需要访问 Activity 绑定的 Fragment。
使用 Fragment 时,应在 Fragment 的 onAttach()
方法中注入 Dagger。在这种情况下,此操作可以在调用 super.onAttach()
之前或之后完成。
class LoginActivity: Activity() {
// You want Dagger to provide an instance of LoginViewModel from the graph
@Inject lateinit var loginViewModel: LoginViewModel
override fun onCreate(savedInstanceState: Bundle?) {
// Make Dagger instantiate @Inject fields in LoginActivity
(applicationContext as MyApplication).appComponent.inject(this)
// Now loginViewModel is available
super.onCreate(savedInstanceState)
}
}
// @Inject tells Dagger how to create instances of LoginViewModel
class LoginViewModel @Inject constructor(
private val userRepository: UserRepository
) { ... }
下面我们告知 Dagger 如何提供剩余依赖项以构建该图:
class UserRepository @Inject constructor(
private val localDataSource: UserLocalDataSource,
private val remoteDataSource: UserRemoteDataSource
) { ... }
class UserLocalDataSource @Inject constructor() { ... }
class UserRemoteDataSource @Inject constructor(
private val loginService: LoginRetrofitService
) { ... }
3.2 Dagger 模块
在本例中,您使用的是 Retrofit 网络库。UserRemoteDataSource
依赖于 LoginRetrofitService
。不过,创建 LoginRetrofitService
实例的方法与您到目前为止一直执行的操作有所不同。它不是类实例化,而是调用 Retrofit.Builder()
并传入不同参数以配置登录服务的结果。
除了 @Inject 注释之外,还有一种方法可告知 Dagger 如何提供类实例,即使用 Dagger 模块中的信息。Dagger 模块是一个带有 @Module
注释的类。您可以在其中使用 @Provides
注释定义依赖项。
// @Module informs Dagger that this class is a Dagger Module
@Module
class NetworkModule {
// @Provides tell Dagger how to create instances of the type that this function
// returns (i.e. LoginRetrofitService).
// Function parameters are the dependencies of this type.
@Provides
fun provideLoginRetrofitService(): LoginRetrofitService {
// Whenever Dagger needs to provide an instance of type LoginRetrofitService,
// this code (the one inside the @Provides method) is run.
return Retrofit.Builder()
.baseUrl("https://example.com")
.build()
.create(LoginService::class.java)
}
}
注意:您可以在 Dagger 模块中使用 @Provides 注释告知 Dagger 如何提供您的项目所不具备的类(例如,Retrofit 的实例)。
对于接口的实现,最佳做法是使用 @Binds,如“在 Android 应用中使用 Dagger”Codelab 中所述。
模块是一种以语义方式封装有关如何提供对象信息的方法。可以看到,您调用了 NetworkModule 类,以对提供网络相关对象的逻辑进行分组。如果应用扩展了,您还可以在此处添加如何提供 OkHttpClient 或者如何配置 Gson 或 Moshi 的逻辑。
@Provides
方法的依赖项是该方法的参数。对于上述方法,可以提供没有依赖项的 LoginRetrofitService
,因为该方法没有参数。如果您已将 OkHttpClient
声明为参数,Dagger 将需要提供图中的 OkHttpClient
实例以满足 LoginRetrofitService
的依赖项要求。例如:
@Module
class NetworkModule {
// Hypothetical dependency on LoginRetrofitService
@Provides
fun provideLoginRetrofitService(
okHttpClient: OkHttpClient
): LoginRetrofitService { ... }
}
为了使 Dagger 图了解此模块,您必须将其添加到 @Component
接口,如下所示:
// The "modules" attribute in the @Component annotation tells Dagger what Modules
// to include when building the graph
@Component(modules = [NetworkModule::class])
interface ApplicationComponent {
...
}
如需将类型添加到 Dagger 图,建议的方法是使用构造函数注入(即在类的构造函数上使用 @Inject
注释)。有时,此方法不可行,您必须使用 Dagger 模块。例如,您希望 Dagger 使用计算结果确定如何创建对象实例时。每当必须提供该类型的实例时,Dagger 就会运行 @Provides
方法中的代码。

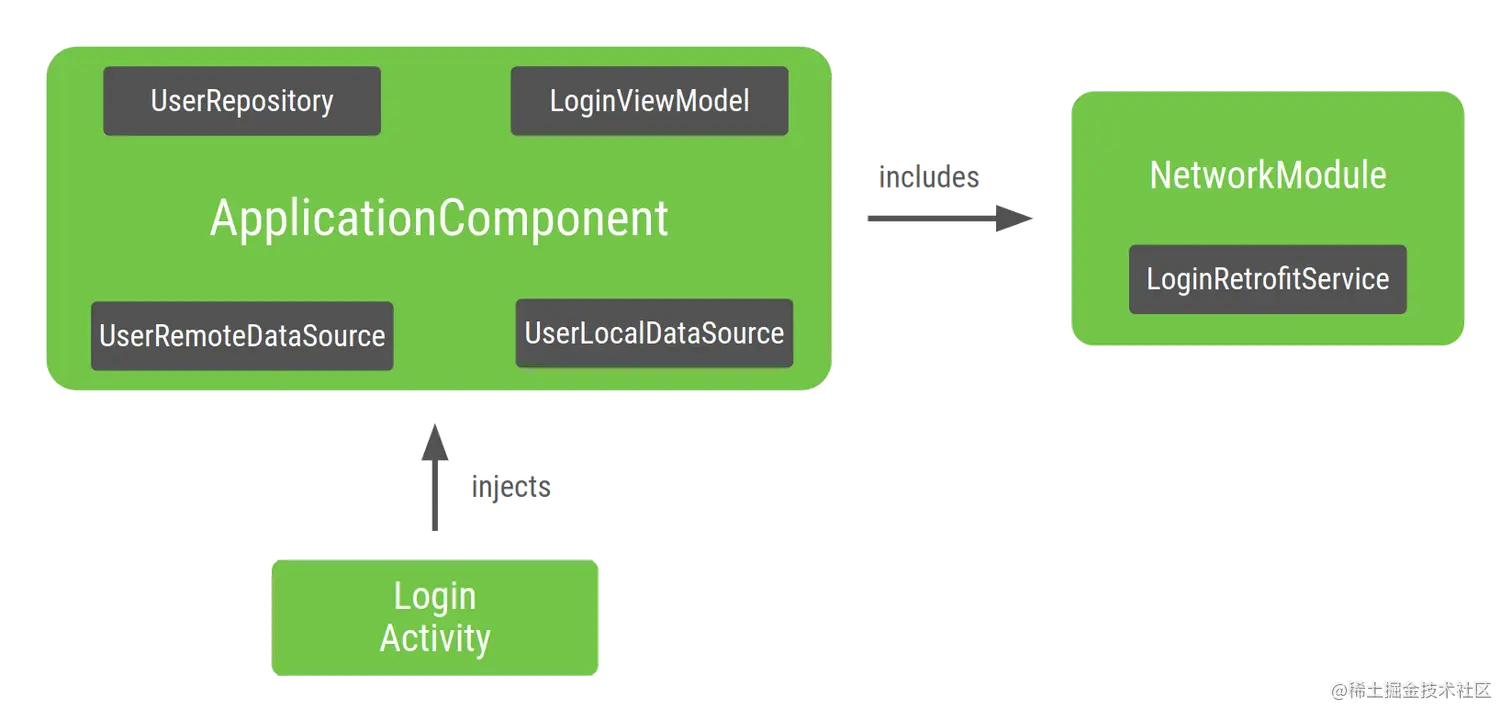

示例中的 Dagger 图目前如下所示:
图的入口点为 LoginActivity。由于 LoginActivity 注入了 LoginViewModel,因此 Dagger 构建的图知道如何提供 LoginViewModel 的实例,以及如何以递归方式提供其依赖项的实例。Dagger 知道如何执行此操作,因为类的构造函数上有 @Inject 注释。
在由 Dagger 生成的 ApplicationComponent 内,有一种 factory 类型方法,可用于获取它知道如何提供的所有类的实例。在本例中,Dagger 委托给 ApplicationComponent 中包含的 NetworkModule 来获取 LoginRetrofitService 的实例。
3.3 Dagger 作用域
Dagger 基础知识页面提到了作用域,作用域可以用来在组件中指定某个类型的唯一实例。这就是将类型的作用域限定为组件生命周期的意义所在。
由于您可能希望在应用的其他功能中使用 UserRepository
,并且可能不希望在每次需要时创建新对象,因此您可以将其指定为整个应用中的唯一实例。这同样适用于 LoginRetrofitService
:创建成本可能很高,并且您还希望重复使用该对象的唯一实例。UserRemoteDataSource
实例的创建成本并不那么高,因此没有必要将其作用域限定为组件的生命周期。
@Singleton 是 javax.inject
软件包随附的唯一一个作用域注释。您可以使用它为 ApplicationComponent
以及要在整个应用中重复使用的对象添加注释。
注意:您可以使用任何作用域注释在组件中指定某个类型的唯一实例,只要该组件和类型带有该注释即可。@Singleton 随附于 Dagger 库,通常用于为应用组件添加注释,但您可以创建具有不同名称的自定义注释(例如 @ApplicationScope)。
@Singleton
@Component(modules = [NetworkModule::class])
interface ApplicationComponent {
fun inject(activity: LoginActivity)
}
@Singleton
class UserRepository @Inject constructor(
private val localDataSource: UserLocalDataSource,
private val remoteDataSource: UserRemoteDataSource
) { ... }
@Module
class NetworkModule {
// Way to scope types inside a Dagger Module
@Singleton
@Provides
fun provideLoginRetrofitService(): LoginRetrofitService { ... }
}
注意:使用作用域注释的模块只能在带有相同作用域注释的组件中使用。
请注意,在将作用域应用于对象时,不要引发内存泄漏。只要限定作用域的组件在内存中,创建的对象就也在内存中。因为 ApplicationComponent 是在应用启动时(在应用类中)创建的,所以它会随着应用的销毁而被销毁。因此,UserRepository 的唯一实例将始终保留在内存中,直到应用被销毁。
注意:使用构造函数注入(通过 @Inject)时,应在类中添加作用域注释;使用 Dagger 模块时,应在 @Provides 方法中添加作用域注释。
3.4 Dagger 子组件
如果登录流程(由单个 LoginActivity 管理)由多个 Fragment 组成,您应在所有 Fragment 中重复使用 LoginViewModel 的同一实例。@Singleton
无法为 LoginViewModel 添加注释以重复使用该实例,原因如下:
-
流程结束后,LoginViewModel 的实例将继续保留在内存中。
-
您希望为每个登录流程使用不同的 LoginViewModel 实例。例如,如果用户退出,您希望使用不同的 LoginViewModel 实例,而不是用户首次登录时的实例。
如需将 LoginViewModel 的作用域限定为 LoginActivity 的生命周期,您需要为登录流程创建新组件(新子图)和新作用域。
我们来创建一个特定于登录流程的图。
@Component
interface LoginComponent {}
现在,LoginActivity 应从 LoginComponent 获得注入,因为它具有特定于登录的配置。这可免于从 ApplicationComponent 类注入 LoginActivity。
@Component
interface LoginComponent {
fun inject(activity: LoginActivity)
}
LoginComponent 必须能够访问 ApplicationComponent 中的对象,因为 LoginViewModel 依赖于 UserRepository。如需告知 Dagger 您希望新组件使用其他组件的一部分,方法是使用 Dagger 子组件。新组件必须是包含共享资源的组件的子组件。
子组件是继承并扩展父组件的对象图的组件。因此,父组件中提供的所有对象也将在子组件中提供。这样,子组件中的对象就可以依赖于父组件提供的对象。
如需创建子组件的实例,您需要父组件的实例。因此,父组件向子组件提供的对象的作用域仍限定为父组件。
在本例中,您必须将 LoginComponent 定义为 ApplicationComponent 的子组件。为此,请使用 @Subcomponent
为 LoginComponent 添加注释:
// @Subcomponent annotation informs Dagger this interface is a Dagger Subcomponent
@Subcomponent
interface LoginComponent {
// This tells Dagger that LoginActivity requests injection from LoginComponent
// so that this subcomponent graph needs to satisfy all the dependencies of the
// fields that LoginActivity is injecting
fun inject(loginActivity: LoginActivity)
}
您还必须在 LoginComponent 内定义子组件 factory,以便 ApplicationComponent 知道如何创建 LoginComponent 的实例。
@Subcomponent
interface LoginComponent {
// Factory that is used to create instances of this subcomponent
@Subcomponent.Factory
interface Factory {
fun create(): LoginComponent
}
fun inject(loginActivity: LoginActivity)
}
如需告知 Dagger LoginComponent 是 ApplicationComponent 的子组件,您必须通过以下方式予以指明:
- 创建新的 Dagger 模块(例如 SubcomponentsModule),并将子组件的类传递给注释的 subcomponents 属性。
// The "subcomponents" attribute in the @Module annotation tells Dagger what
// Subcomponents are children of the Component this module is included in.
@Module(subcomponents = LoginComponent::class)
class SubcomponentsModule {}
- 将新模块(即 SubcomponentsModule)添加到 ApplicationComponent:
// Including SubcomponentsModule, tell ApplicationComponent that
// LoginComponent is its subcomponent.
@Singleton
@Component(modules = [NetworkModule::class, SubcomponentsModule::class])
interface ApplicationComponent {
}
请注意,ApplicationComponent 不再需要注入 LoginActivity,因为现在由 LoginComponent 负责注入,因此您可以从 ApplicationComponent 中移除 inject() 方法。
ApplicationComponent 的使用者需要知道如何创建 LoginComponent 的实例。父组件必须在其接口中添加方法,确保使用者能够根据父组件的实例创建子组件的实例:
- 提供在接口中创建 LoginComponent 实例的 factory:
@Singleton
@Component(modules = [NetworkModule::class, SubcomponentsModule::class])
interface ApplicationComponent {
// This function exposes the LoginComponent Factory out of the graph so consumers
// can use it to obtain new instances of LoginComponent
fun loginComponent(): LoginComponent.Factory
}
3.5 为子组件分配作用域
如果您构建项目,可以创建 ApplicationComponent 和 LoginComponent 的实例。ApplicationComponent 会附加到应用的生命周期,因为只要应用在内存中,您就希望使用图的同一实例。
LoginComponent 的生命周期是什么?需要 LoginComponent 的其中一项原因是,您需要在与登录相关的 Fragment 之间共享 LoginViewModel 的同一实例。此外,每当有新的登录流程时,您都希望使用不同的 LoginViewModel 实例。LoginActivity 表示 LoginComponent 的正确生命周期:对于每个新 Activity,您都需要 LoginComponent 的新实例以及可使用该 LoginComponent 实例的 Fragment。
由于 LoginComponent 会附加到 LoginActivity 生命周期,因此您必须在 Activity 中保留对该组件的引用,方式与在应用类中保留对 applicationComponent 的引用相同。这样,Fragment 就可以访问该组件了。
class LoginActivity: Activity() {
// Reference to the Login graph
lateinit var loginComponent: LoginComponent
...
}
请注意,由于您不希望变量 loginComponent 由 Dagger 提供,因此该变量不带 @Inject
注释。
您可以使用 ApplicationComponent 获取对 LoginComponent 的引用,然后注入 LoginActivity,如下所示:
class LoginActivity: Activity() {
// Reference to the Login graph
lateinit var loginComponent: LoginComponent
// Fields that need to be injected by the login graph
@Inject lateinit var loginViewModel: LoginViewModel
override fun onCreate(savedInstanceState: Bundle?) {
// Creation of the login graph using the application graph
loginComponent = (applicationContext as MyDaggerApplication)
.appComponent.loginComponent().create()
// Make Dagger instantiate @Inject fields in LoginActivity
loginComponent.inject(this)
// Now loginViewModel is available
super.onCreate(savedInstanceState)
}
}
LoginComponent 是在 Activity 的 onCreate() 方法中创建的,将随着 Activity 的销毁而被隐式销毁。
每次请求时,LoginComponent 必须始终提供 LoginViewModel 的同一实例。您可以通过创建自定义注释作用域并使用该作用域为 LoginComponent 和 LoginViewModel 添加注释确保这一点。请注意,不可使用 @Singleton
注释,因为该注释已被父组件使用,并且使对象成为应用单例(整个应用中的唯一实例)。您需要创建不同的注释作用域。
注意:作用域限定规则如下:
- 如果某个类型标记有作用域注释,该类型就只能由带有相同作用域注释的组件使用。
- 如果某个组件标记有作用域注释,该组件就只能提供带有该注释的类型或不带注释的类型。
- 子组件不能使用其某一父组件使用的作用域注释。 组件还涉及此上下文中的子组件。
在这种情况下,您可能已将此作用域命名为 @LoginScope
,但这种做法并不理想。作用域注释的名称不应明确指明其实现目的。相反,作用域注释应根据其生命周期进行命名,因为注释可以由同级组件(如 RegistrationComponent 和 SettingsComponent)重复使用。因此,您应将其命名为 @ActivityScope
而不是 @LoginScope
。
// Definition of a custom scope called ActivityScope
@Scope
@Retention(value = AnnotationRetention.RUNTIME)
annotation class ActivityScope
// Classes annotated with @ActivityScope are scoped to the graph and the same
// instance of that type is provided every time the type is requested.
@ActivityScope
@Subcomponent
interface LoginComponent { ... }
// A unique instance of LoginViewModel is provided in Components
// annotated with @ActivityScope
@ActivityScope
class LoginViewModel @Inject constructor(
private val userRepository: UserRepository
) { ... }
现在,如果您有两个需要 LoginViewModel 的 Fragment,系统就会为它们提供同一实例。例如,如果您有 LoginUsernameFragment 和 LoginPasswordFragment,它们需要由 LoginComponent 注入:
@ActivityScope
@Subcomponent
interface LoginComponent {
@Subcomponent.Factory
interface Factory {
fun create(): LoginComponent
}
// All LoginActivity, LoginUsernameFragment and LoginPasswordFragment
// request injection from LoginComponent. The graph needs to satisfy
// all the dependencies of the fields those classes are injecting
fun inject(loginActivity: LoginActivity)
fun inject(usernameFragment: LoginUsernameFragment)
fun inject(passwordFragment: LoginPasswordFragment)
}
组件访问位于 LoginActivity 对象中的组件的实例。LoginUserNameFragment 的示例代码显示在以下代码段中:
class LoginUsernameFragment: Fragment() {
// Fields that need to be injected by the login graph
@Inject lateinit var loginViewModel: LoginViewModel
override fun onAttach(context: Context) {
super.onAttach(context)
// Obtaining the login graph from LoginActivity and instantiate
// the @Inject fields with objects from the graph
(activity as LoginActivity).loginComponent.inject(this)
// Now you can access loginViewModel here and onCreateView too
// (shared instance with the Activity and the other Fragment)
}
}
同样适用于 LoginPasswordFragment:
class LoginPasswordFragment: Fragment() {
// Fields that need to be injected by the login graph
@Inject lateinit var loginViewModel: LoginViewModel
override fun onAttach(context: Context) {
super.onAttach(context)
(activity as LoginActivity).loginComponent.inject(this)
// Now you can access loginViewModel here and onCreateView too
// (shared instance with the Activity and the other Fragment)
}
}

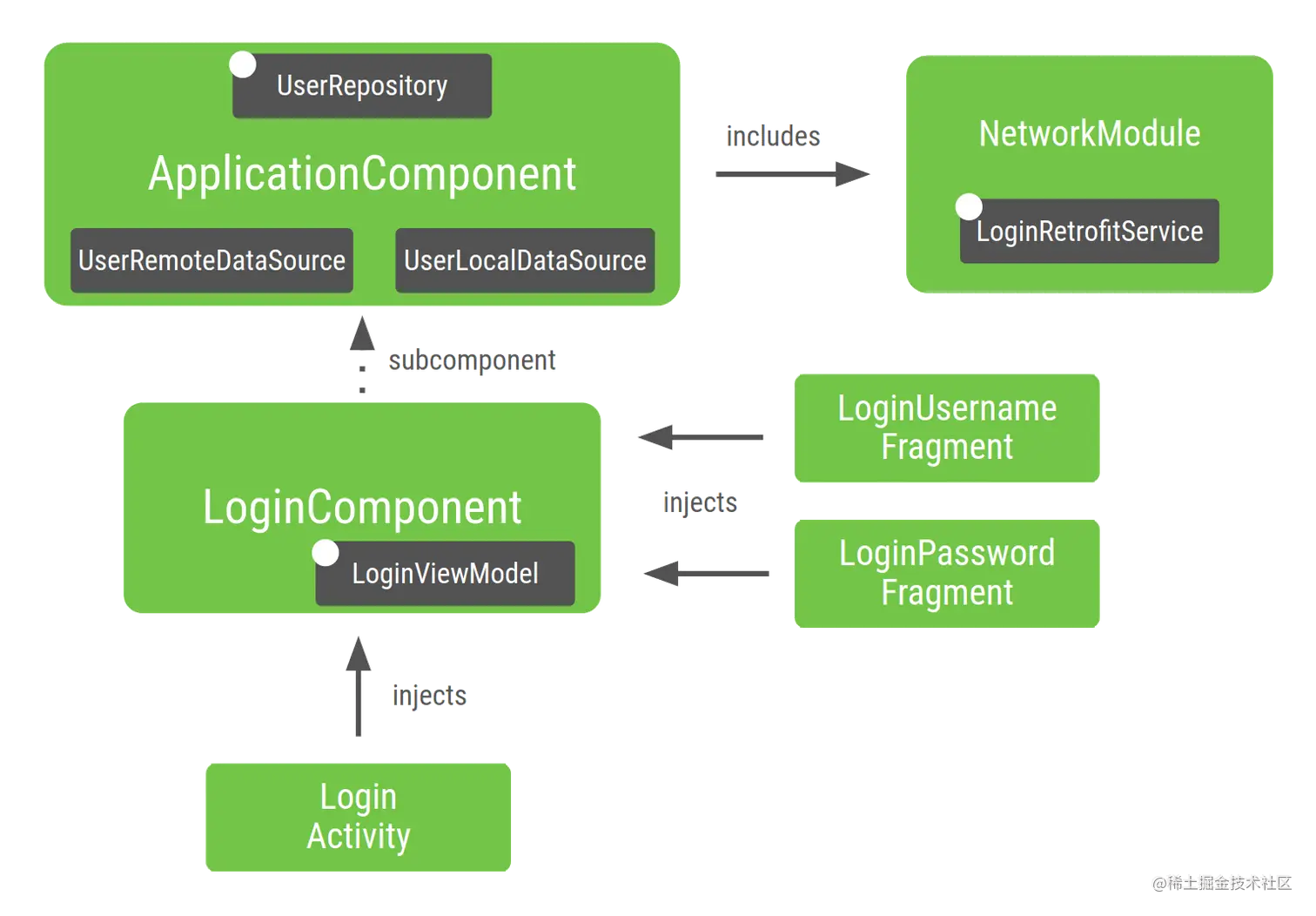

图 3 显示了新子组件的 Dagger 图。带有白色圆点的类(UserRepository、LoginRetrofitService 和 LoginViewModel)是唯一实例作用域限定为各自组件的类。
下面我们详细介绍该图的各个部分:
-
NetworkModule(以及由此产生的 LoginRetrofitService)包含在 ApplicationComponent 中,因为您在组件中指定了它。
-
UserRepository 保留在 ApplicationComponent 中,因为其作用域限定为 ApplicationComponent。如果项目扩大,您会希望跨不同功能(例如注册)共享同一实例。
由于 UserRepository 是 ApplicationComponent 的一部分,其依赖项(即 UserLocalDataSource 和 UserRemoteDataSource)也必须位于此组件中,以便能够提供 UserRepository 的实例。
-
LoginViewModel 包含在 LoginComponent 中,因为只有 LoginComponent 注入的类才需要它。LoginViewModel 未包含在 ApplicationComponent 中,因为 ApplicationComponent 中的任何依赖项都不需要 LoginViewModel。
同样,如果您尚未将 UserRepository 的作用域限定为 ApplicationComponent,Dagger 会自动将 UserRepository 及其依赖项作为 LoginComponent 的一部分包含在内,因为这是目前使用 UserRepository 的唯一位置。
除了将对象作用域限定为不同的生命周期之外,创建子组件是分别封装应用的不同部分的良好做法。
根据应用流程构建应用以创建不同的 Dagger 子图有助于在内存和启动时间方面实现性能和扩容性更强的应用。
注意:如果您需要使容器在出现设备旋转等配置更改后继续存在,请遵循保存界面状态指南。您可能需要采用与处理进程终止相同的方式处理配置更改;否则,您的应用可能会在低端设备上丢失状态。
4. 构建 Dagger 图的最佳做法
为应用构建 Dagger 图时:
- 创建组件时,您应该考虑什么元素会决定该组件的生命周期。在本示例中,应用类负责 ApplicationComponent,而 LoginActivity 负责 LoginComponent。
请仅在必要时使用作用域限定。过度使用作用域限定可能会对应用的运行时性能产生负面影响:只要组件在内存中,对象就会在内存中;获取限定作用域的对象的成本更高。当 Dagger 提供对象时,它使用 DoubleCheck
锁定,而不是 factory 类型提供程序。
5. 测试使用 Dagger 的项目
使用 Dagger 之类的依赖项注入框架的一个好处是,它可以让您更轻松地测试代码。
5.1 单元测试
您不必使用 Dagger 进行单元测试。测试使用构造函数注入的类时,您无需使用 Dagger 实例化该类。您可以直接调用其构造函数,传入虚假或模拟依赖项,就像它们不带注释时所做的一样。
例如,在测试 LoginViewModel
时:
@ActivityScope
class LoginViewModel @Inject constructor(
private val userRepository: UserRepository
) { ... }
class LoginViewModelTest {
@Test
fun `Happy path`() {
// You don't need Dagger to create an instance of LoginViewModel
// You can pass a fake or mock UserRepository
val viewModel = LoginViewModel(fakeUserRepository)
assertEquals(...)
}
}
5.2 端到端测试
对于集成测试,最佳做法是创建用于测试的 TestApplicationComponent
。正式版和测试版使用不同的组件配置。
这需要在应用中进行更多前期模块设计。测试组件扩展了正式版组件并安装了一组不同的模块。
// TestApplicationComponent extends from ApplicationComponent to have them both
// with the same interface methods. You need to include the modules of the
// component here as well, and you can replace the ones you want to override.
// This sample uses FakeNetworkModule instead of NetworkModule
@Singleton
@Component(modules = [FakeNetworkModule::class, SubcomponentsModule::class])
interface TestApplicationComponent : ApplicationComponent {
}
FakeNetworkModule 包含原始 NetworkModule 的虚假实现。您可以通过它提供任何想要替换的虚假实例或模拟。
// In the FakeNetworkModule, pass a fake implementation of LoginRetrofitService
// that you can use in your tests.
@Module
class FakeNetworkModule {
@Provides
fun provideLoginRetrofitService(): LoginRetrofitService {
return FakeLoginService()
}
}
在集成或端到端测试中,您应使用创建 TestApplicationComponent(而非 ApplicationComponent)的 TestApplication。
// Your test application needs an instance of the test graph
class MyTestApplication: MyApplication() {
override val appComponent = DaggerTestApplicationComponent.create()
}
然后,此测试应用会用于自定义 TestRunner,您将使用它来运行插桩测试。如需了解详情,请参阅“在 Android 应用中使用 Dagger”Codelab。
6. 使用 Dagger 模块
Dagger 模块是一种以语义方式封装如何提供对象的方法。您可以在组件中添加模块,但也可以在其他模块内添加模块。此功能非常强大,但很容易被误用。
将模块添加到组件或其他模块后,该模块就已经在 Dagger 图中;Dagger 可以在该组件中提供这些对象。添加模块之前,请通过以下方法检查该模块是否已成为 Dagger 图的一部分:检查该模块是否已添加到组件中;或者编译项目,然后检查 Dagger 能否找到该模块所需的依赖项。
良好做法是模块只在组件中声明一次,特定高级 Dagger 用例除外。
假设图的配置方式如下。ApplicationComponent
包括 Module1
和 Module2
,Module1
包括 ModuleX
。
@Component(modules = [Module1::class, Module2::class])
interface ApplicationComponent { ... }
@Module(includes = [ModuleX::class])
class Module1 { ... }
@Module
class Module2 { ... }
如果 Module2 现在依赖于 ModuleX 提供的类。错误做法是将 ModuleX 包含在 Module2 中,因为这样 ModuleX 在图中就出现了两次,如以下代码段所示:
// Bad practice: ModuleX is declared multiple times in this Dagger graph
@Component(modules = [Module1::class, Module2::class])
interface ApplicationComponent { ... }
@Module(includes = [ModuleX::class])
class Module1 { ... }
@Module(includes = [ModuleX::class])
class Module2 { ... }
您应改为执行以下某项操作:
- 重构模块,并将共同模块提取到组件中。
- 使用两个模块共享的对象创建一个新模块,并将其提取到组件中。 如果不以这种方式进行重构,就会导致许多模块相互包含而没有清晰的结构,并且更难以了解每个依赖项的来源。
良好做法(选项 1):在 Dagger 图中声明一次 ModuleX。
@Component(modules = [Module1::class, Module2::class, ModuleX::class])
interface ApplicationComponent { ... }
@Module
class Module1 { ... }
@Module
class Module2 { ... }
良好做法(选项 2):将 ModuleX
中 Module1
和 Module2
的共同依赖项提取到包含在该组件中的名为 ModuleXCommon
的新模块。然后,使用特定于每个模块的依赖项创建名为 ModuleXWithModule1Dependencies
和 ModuleXWithModule2Dependencies
的另外两个模块。所有模块在 Dagger 图中都只声明一次。
@Component(modules = [Module1::class, Module2::class, ModuleXCommon::class])
interface ApplicationComponent { ... }
@Module
class ModuleXCommon { ... }
@Module
class ModuleXWithModule1SpecificDependencies { ... }
@Module
class ModuleXWithModule2SpecificDependencies { ... }
@Module(includes = [ModuleXWithModule1SpecificDependencies::class])
class Module1 { ... }
@Module(includes = [ModuleXWithModule2SpecificDependencies::class])
class Module2 { ... }
7. 总结
查看最佳做法部分(如果您尚未查看)。如需了解如何在 Android 应用中使用 Dagger,请参阅“在 Android 应用中使用 Dagger”Codelab。
