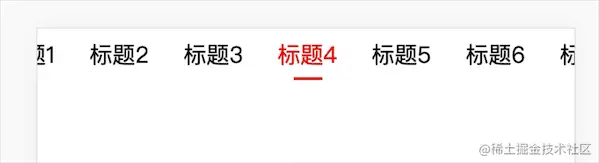

今天要实现的效果是标题栏切换，使用JS写的。效果就是下面图片显示的，当点击某一个标题的时候，标题下面有一个线条会高亮，然后标题还会往中间移动，有效的防止栏后面标题被遮挡的问题。
包括掘金首页标题栏也是这种效果。
上代码！！！主要的JS有80几行，比较复杂的就是让标题往中间移动这个过度的动画效果。
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
* {
margin: 0;
padding: 0;
}
ul,
li {
list-style: none;
}
html,
body {
width: 100%;
height: 100%;
}
::-webkit-scrollbar {
display: none;
/* Chrome Safari */
}
.wrapper {
position: relative;
width: 100%;
overflow-y: hidden;
overflow-x: scroll;
}
.list {
display: flex;
flex-wrap: nowrap;
}
.item {
text-align: center;
line-height: 36px;
padding: 0 12px;
white-space: nowrap;
}
.line {
position: absolute;
text-align: center;
left: 0;
bottom: 0;
width: 0;
transform: translate3d(0, 0, 0);
transition: transform 0.3s ease-out;
display: none;
}
.inner {
width: 20px;
height: 2px;
background: red;
display: inline-block;
vertical-align: bottom;
}
</style>
</head>
<body>
<div class="wrapper" id="wrapper">
<ul class="list" id="list">
<li class="item" data-index="0">标题1</li>
<li class="item" data-index="1">标题2</li>
<li class="item" data-index="2">标题3</li>
<li class="item" data-index="3">标题4</li>
<li class="item" data-index="4">标题5</li>
<li class="item" data-index="5">标题6</li>
<li class="item" data-index="6">标题7</li>
<li class="item" data-index="7">标题8</li>
<li class="item" data-index="8">标题9</li>
<li class="item" data-index="9">标题10</li>
<li class="item" data-index="10">标题11</li>
</ul>
<div class="line" id="line">
<span class="inner"></span>
</div>
</div>
<script>
const list = document.getElementsByClassName('item')
const line = document.getElementById('line')
const listWrapper = document.getElementById('list')
const wrapper = document.getElementById('wrapper')
const resut = []
let allWidth = 0
for (let i = 0; i < list.length; i++) {
const element = list[i]
allWidth += element.offsetWidth
resut.push({
width: element.offsetWidth,
left: element.offsetLeft
})
}
line.style.width = `${resut[0].width}px`
line.style.display = 'block'
let current = 0
let timer = null
listWrapper.onclick = function (e) {
// 快速点击需要立即停止动画
clearInterval(timer)
const index = e.target.dataset.index
const width = resut[index].width
line.style.width = `${width}px`
const left = resut[index].left
line.style.transform = `translate3d(${left}px, 0, 0)`
list[current].style.color = ''
list[index].style.color = 'red'
current = index
}
line.addEventListener('transitionend', function () {
const elementLeft = Math.floor(list[current].getBoundingClientRect().left)
const scrollLeft = wrapper.scrollLeft
const middle = Math.floor(window.innerWidth / 2) - Math.floor(resut[current].width / 2)
const minScroll = 0
const maxScroll = allWidth - window.innerWidth
let targetScrollLeft = scrollLeft + (elementLeft - middle)
if (targetScrollLeft < minScroll) {
targetScrollLeft = minScroll
}
if (targetScrollLeft > maxScroll) {
targetScrollLeft = maxScroll
}
if (allWidth > window.innerWidth && scrollLeft !== targetScrollLeft) {
animationScroll(targetScrollLeft)
}
}, false)
function animationScroll(distance) {
const minScroll = 0
const maxScroll = allWidth - window.innerWidth
const scrollLeft = wrapper.scrollLeft
const step = Math.floor(Math.abs((scrollLeft - distance) / 200 * 20))
let temp = 0
timer = setInterval(() => {
// 手动触发的滚动需要立即停止动画
if (temp && wrapper.scrollLeft !== temp) {
return clearInterval(timer)
}
if (distance > scrollLeft) {
const current = wrapper.scrollLeft + step
// 左移动
if (current > distance || current >= maxScroll) {
clearInterval(timer)
wrapper.scrollLeft = distance
} else {
wrapper.scrollLeft = current
temp = current
}
} else {
const current = wrapper.scrollLeft - step
// 右移动
if (current < distance || current <= minScroll) {
clearInterval(timer)
wrapper.scrollLeft = distance
} else {
wrapper.scrollLeft = current
temp = current
}
}
}, 20);
}
</script>
</body>
</html>
