介绍
用户执行Flink任务的时候，会首先生成StreamGraph，其是根据用户通过Stream API编写的代码生成的用来表示程序的拓扑结构。这篇文章主要阐述调用Stream API的内部实现以及StreamGraph生成的过程。
本文使用的WordCount代码比较简单，由addSource()、flatMap()、keyBy()、sum()、addSink()五个方法组成，如下所示。
注意：本文使用的Flink版本是1.10。
public class WordCountDemo {
private static final Logger log = LoggerFactory.getLogger(WordCountDemo.class);
public static void main(String[] args) throws Exception {
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
DataStream<String> sourceStream = env.addSource(new SourceFunction<String>() {
private volatile boolean flag = true;
private Random random = new Random();
@Override
public void run(SourceContext<String> ctx) throws Exception {
while (flag) {
ctx.collect("name" + random.nextInt(10) + "," + "name" + random.nextInt(10));
Thread.sleep(1000);
}
}
@Override
public void cancel() {
this.flag = false;
}
});
DataStream<Tuple2<String, Integer>> pairStream = sourceStream.flatMap(new FlatMapFunction<String, Tuple2<String, Integer>>() {
@Override
public void flatMap(String value, Collector<Tuple2<String, Integer>> ctx) throws Exception {
String[] names = value.split(",");
for (int i = 0; i < names.length; i++) {
ctx.collect(Tuple2.of(names[i], 1));
}
}
});
DataStream<Tuple2<String, Integer>> summedStream = pairStream
.keyBy(0)
.sum(1);
summedStream.addSink(new SinkFunction<Tuple2<String, Integer>>() {
@Override
public void invoke(Tuple2<String, Integer> value, Context context) throws Exception {
log.info(value.toString());
}
});
env.execute();
}
}
源码阅读
WordCount中算子源码阅读
Flink任务的执行，首先需要获得StreamExecutionEnvironment执行环境env。当然，这部分内容不是本篇重点，不会具体讲述。主要根据执行环境获得StreamExecutionEnvironment对象，并设置默认的并行度。
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
为了更好地、更简洁的阅读源码，我们以每一个调用的API为维度，分别进行阅读、记录。
addSource()
public <OUT> DataStreamSource<OUT> addSource(SourceFunction<OUT> function, String sourceName, TypeInformation<OUT> typeInfo) {
if (typeInfo == null && function instanceof ResultTypeQueryable) {
typeInfo = ((ResultTypeQueryable<OUT>) function).getProducedType();
}
if (typeInfo == null) {
try {
typeInfo = TypeExtractor.createTypeInfo(SourceFunction.class,
function.getClass(), 0, null, null);
} catch (final InvalidTypesException e) {
typeInfo = (TypeInformation<OUT>) new MissingTypeInfo(sourceName, e);
}
}
boolean isParallel = function instanceof ParallelSourceFunction;
clean(function);
final StreamSource<OUT, ?> sourceOperator = new StreamSource<>(function);
return new DataStreamSource<>(this, typeInfo, sourceOperator, isParallel, sourceName);
}
addSource()方法，主要完成以下几件事：
- 通过TypeExtractor工具类获取当前SourceFunction中的输出数据的数据类型。
- 根据当前
SourceFunction是否是实现于ParallelSourceFunction接口判断是否需要并行化发送数据。 - 对function进行清除闭环操作。
- 生成
StreamSource对象。 - 构建
DataStreamSource对象。 上述1、3两点在之前的文章已有叙述，这里不再赘述。主要分析4、5两点做的事。
StreamSource继承AbstractUdfStreamOperator抽象类，其是用户自定义function算子的基类。初始化StreamSource对象，实际上也会初始化AbstractUdfStreamOperator对象，并且，指定当前算子在flink拓扑中的链接位置（ChainingStrategy.HEAD），也会将function保存到AbstractUdfStreamOperator对象中。
/**
* {@link StreamOperator} for streaming sources.
*/
public class StreamSource<OUT, SRC extends SourceFunction<OUT>> extends AbstractUdfStreamOperator<OUT, SRC> {
...
public StreamSource(SRC sourceFunction) {
super(sourceFunction);
this.chainingStrategy = ChainingStrategy.HEAD;
}
...
}
/**
* This is used as the base class for operators that have a user-defined
* function. This class handles the opening and closing of the user-defined functions,
* as part of the operator life cycle.
*
* @param <OUT>
* The output type of the operator
* @param <F>
* The type of the user function
*/
@PublicEvolving
public abstract class AbstractUdfStreamOperator<OUT, F extends Function>
extends AbstractStreamOperator<OUT>
implements OutputTypeConfigurable<OUT> {
...
/** The user function. */
protected final F userFunction;
public AbstractUdfStreamOperator(F userFunction) {
this.userFunction = requireNonNull(userFunction);
...
}
...
}
DataStreamSource表示flink拓扑的起点，继承SingleOutputStreamOperator类，而SingleOutputStreamOperator类继承DataStream类。初始化StreamSource对象，首先会根据StreamSource对象operator、数据流中的数据类型outTypeInfo、并行度等信息生成SourceTransformation对象，最后根据StreamExecutionEnvironment对象environment以及SourceTransformation对象生成DataStream对象并返回。
/**
* The DataStreamSource represents the starting point of a DataStream.
*
* @param <T> Type of the elements in the DataStream created from the this source.
*/
@Public
public class DataStreamSource<T> extends SingleOutputStreamOperator<T> {
boolean isParallel;
public DataStreamSource(StreamExecutionEnvironment environment,
TypeInformation<T> outTypeInfo, StreamSource<T, ?> operator,
boolean isParallel, String sourceName) {
super(environment, new SourceTransformation<>(sourceName, operator, outTypeInfo, environment.getParallelism()));
this.isParallel = isParallel;
if (!isParallel) {
setParallelism(1);
}
}
...
}
/**
* {@code SingleOutputStreamOperator} represents a user defined transformation
* applied on a {@link DataStream} with one predefined output type.
*
* @param <T> The type of the elements in this stream.
*/
@Public
public class SingleOutputStreamOperator<T> extends DataStream<T> {
...
protected SingleOutputStreamOperator(StreamExecutionEnvironment environment, Transformation<T> transformation) {
super(environment, transformation);
}
...
}
public class DataStream<T> {
protected final StreamExecutionEnvironment environment;
protected final Transformation<T> transformation;
/**
* Create a new {@link DataStream} in the given execution environment with
* partitioning set to forward by default.
*/
public DataStream(StreamExecutionEnvironment environment, Transformation<T> transformation) {
this.environment = Preconditions.checkNotNull(environment, "Execution Environment must not be null.");
this.transformation = Preconditions.checkNotNull(transformation, "Stream Transformation must not be null.");
}
...
}
SourceTransformation类继承PhysicalTransformation类，其继承Transformation类。Transformation类表示创建DataStream对象的操作。Transformation并不一定与运行时的物理操作相对应，有些操作仅是逻辑概念，如union、split/select、partitioning等。生成SourceTransformation对象的时候，首先通过SimpleOperatorFactory.of(operator)获得与operator类型相对应的用于包裹StreamOperator对象operator的工厂类并赋值给SourceTransformation对象的实例operatorFactory，最后生成Transformation对象。Transformation对象会初始化id，name，outputType，parallelism，slotSharingGroup等当前算子的实际值。
public class SourceTransformation<T> extends PhysicalTransformation<T> {
private final StreamOperatorFactory<T> operatorFactory;
/**
* Creates a new {@code SourceTransformation} from the given operator.
*
* @param name The name of the {@code SourceTransformation}, this will be shown in Visualizations and the Log
* @param operator The {@code StreamSource} that is the operator of this Transformation
* @param outputType The type of the elements produced by this {@code SourceTransformation}
* @param parallelism The parallelism of this {@code SourceTransformation}
*/
public SourceTransformation(
String name,
StreamSource<T, ?> operator,
TypeInformation<T> outputType,
int parallelism) {
this(name, SimpleOperatorFactory.of(operator), outputType, parallelism);
}
public SourceTransformation(
String name,
StreamOperatorFactory<T> operatorFactory,
TypeInformation<T> outputType,
int parallelism) {
super(name, outputType, parallelism);
this.operatorFactory = operatorFactory;
}
...
}
/**
* A {@link Transformation} that creates a physical operation. It enables setting {@link ChainingStrategy}.
*
* @param <T> The type of the elements that result from this {@code Transformation}
* @see Transformation
*/
@Internal
public abstract class PhysicalTransformation<T> extends Transformation<T> {
/**
* Creates a new {@code Transformation} with the given name, output type and parallelism.
*
* @param name The name of the {@code Transformation}, this will be shown in Visualizations and the Log
* @param outputType The output type of this {@code Transformation}
* @param parallelism The parallelism of this {@code Transformation}
*/
PhysicalTransformation(
String name,
TypeInformation<T> outputType,
int parallelism) {
super(name, outputType, parallelism);
}
...
}
/**
* A {@code Transformation} represents the operation that creates a
* DataStream. Every DataStream has an underlying
* {@code Transformation} that is the origin of said DataStream.
*
* <p>API operations such as DataStream#map create
* a tree of {@code Transformation}s underneath. When the stream program is to be executed
* this graph is translated to a StreamGraph using StreamGraphGenerator.
*
* <p>A {@code Transformation} does not necessarily correspond to a physical operation
* at runtime. Some operations are only logical concepts. Examples of this are union,
* split/select data stream, partitioning.
*
* <p>The following graph of {@code Transformations}:
* <pre>{@code
* Source Source
* + +
* | |
* v v
* Rebalance HashPartition
* + +
* | |
* | |
* +------>Union<------+
* +
* |
* v
* Split
* +
* |
* v
* Select
* +
* v
* Map
* +
* |
* v
* Sink
* }</pre>
*
* <p>Would result in this graph of operations at runtime:
* <pre>{@code
* Source Source
* + +
* | |
* | |
* +------->Map<-------+
* +
* |
* v
* Sink
* }</pre>
*
* <p>The information about partitioning, union, split/select end up being encoded in the edges
* that connect the sources to the map operation.
*
* @param <T> The type of the elements that result from this {@code Transformation}
*/
@Internal
public abstract class Transformation<T> {
...
/**
* Creates a new {@code Transformation} with the given name, output type and parallelism.
*
* @param name The name of the {@code Transformation}, this will be shown in Visualizations and the Log
* @param outputType The output type of this {@code Transformation}
* @param parallelism The parallelism of this {@code Transformation}
*/
public Transformation(String name, TypeInformation<T> outputType, int parallelism) {
this.id = getNewNodeId();
this.name = Preconditions.checkNotNull(name);
this.outputType = outputType;
this.parallelism = parallelism;
this.slotSharingGroup = null;
}
...
}
SimpleOperatorFactory.of(operator)对象的实现比较简单，主要根据operator变量类型获得对应的SimpleOperatorFactory实例。以当前WordCount任务为例，此处会初始化SimpleUdfStreamOperatorFactory实例，并且分别将当前operator变量赋值给其operator变量及其父类的operator变量。
public class SimpleOperatorFactory<OUT> implements StreamOperatorFactory<OUT> {
private final StreamOperator<OUT> operator;
/**
* Create a SimpleOperatorFactory from existed StreamOperator.
*/
@SuppressWarnings("unchecked")
public static <OUT> SimpleOperatorFactory<OUT> of(StreamOperator<OUT> operator) {
if (operator == null) {
return null;
} else if (operator instanceof StreamSource &&
((StreamSource) operator).getUserFunction() instanceof InputFormatSourceFunction) {
return new SimpleInputFormatOperatorFactory<OUT>((StreamSource) operator);
} else if (operator instanceof StreamSink &&
((StreamSink) operator).getUserFunction() instanceof OutputFormatSinkFunction) {
return new SimpleOutputFormatOperatorFactory<>((StreamSink) operator);
} else if (operator instanceof AbstractUdfStreamOperator) { // 执行这里
return new SimpleUdfStreamOperatorFactory<OUT>((AbstractUdfStreamOperator) operator);
} else {
return new SimpleOperatorFactory<>(operator);
}
}
...
}
public class SimpleUdfStreamOperatorFactory<OUT> extends SimpleOperatorFactory<OUT> implements UdfStreamOperatorFactory<OUT> {
private final AbstractUdfStreamOperator<OUT, ?> operator;
public SimpleUdfStreamOperatorFactory(AbstractUdfStreamOperator<OUT, ?> operator) {
super(operator);
this.operator = operator;
}
...
}
AbstractUdfStreamOperator 与 SingleOutputStreamOperator的区分？乍一看，两个变量名很相似，但是，分别实现着不同的功能。AbstractUdfStreamOperator类主要用于保存userFunction变量，以及调用userFunction变量的open和close、以及initializeState、snapshotState等重要的方法。SingleOutputStreamOperator类继承DataStream类，flink中很多api返回值都是该类的实例，如flatMap、map、process等方法。
flatMap()
public <R> SingleOutputStreamOperator<R> flatMap(FlatMapFunction<T, R> flatMapper) {
TypeInformation<R> outType = TypeExtractor.getFlatMapReturnTypes(clean(flatMapper),
getType(), Utils.getCallLocationName(), true);
return flatMap(flatMapper, outType);
}
public <R> SingleOutputStreamOperator<R> flatMap(FlatMapFunction<T, R> flatMapper, TypeInformation<R> outputType) {
return transform("Flat Map", outputType, new StreamFlatMap<>(clean(flatMapper)));
}
flatMap()方法主要完成如下几件事：
- 通过TypeExtractor工具类获取当前FlatMapFunction中的输出数据的数据类型
- 根据flatMapper变量生成StreamFlatMap对象。
- 调用
transform()方法完成赋值AbstractUdfStreamOperator#userFunction变量、生成Transformation实例、初始化DataStream等重要工作工作。StreamFlatMap类继承AbstractUdfStreamOperator并实现OneInputStreamOperator接口，与初始化StreamSource实例相似,将flatMapper变量赋值给userFunction变量，设置chainingStrategy为ChainingStrategy.ALWAYS，这里不做赘述。
/**
* A {@link StreamOperator} for executing {@link FlatMapFunction FlatMapFunctions}.
*/
@Internal
public class StreamFlatMap<IN, OUT>
extends AbstractUdfStreamOperator<OUT, FlatMapFunction<IN, OUT>>
implements OneInputStreamOperator<IN, OUT> {
...
public StreamFlatMap(FlatMapFunction<IN, OUT> flatMapper) {
super(flatMapper);
chainingStrategy = ChainingStrategy.ALWAYS;
}
...
}
这里我们重点阅读transform()方法，跟着源码一起进入底层api世界。首先，初始化包裹operator变量的实例SimpleOperatorFactory，addSource()小段里面有详细介绍，这里不做赘述，然后作为参数传入doTransform()方法。
public <R> SingleOutputStreamOperator<R> transform(
String operatorName,
TypeInformation<R> outTypeInfo,
OneInputStreamOperator<T, R> operator) {
return doTransform(operatorName, outTypeInfo, SimpleOperatorFactory.of(operator));
}
doTransform()实现结构比较清晰、明确。为了方便描述，部分解释直接在源码中进行说明。OneInputTransformation 继承 PhysicalTransformation 类，间接继承 Transformation 类。与其他Transformation不同的是，OneInputTransformation类包含了指定上游Transformation实例的input字段，在初始化的时候进行赋值。紧接着，根据environment变量、resultTransform变量初始化SingleOutputStreamOperator实例，即为当前 flatMap 算子生成 DataStream 。每一个算子底层都会生成一个 transformation 变量，StreamExecutionEnvironment实例提供数据类型是ArrayList<Transformation<?>>的变量 transformations，用于保存某些算子底层生成的transformation变量，在执行execute()方法时候调用执行以生成StreamGraph。
protected <R> SingleOutputStreamOperator<R> doTransform(
String operatorName,
TypeInformation<R> outTypeInfo,
StreamOperatorFactory<R> operatorFactory) {
// 当前transformation表示上一个算子的Transformation实例，用来检查上一个算子的数据输出类型能否正确推断出来
transformation.getOutputType();
OneInputTransformation<T, R> resultTransform = new OneInputTransformation<>(
this.transformation,
operatorName,
operatorFactory,
outTypeInfo,
environment.getParallelism());
SingleOutputStreamOperator<R> returnStream = new SingleOutputStreamOperator(environment, resultTransform);
getExecutionEnvironment().addOperator(resultTransform);
return returnStream;
}
/**
* This Transformation represents the application of a
* {@link org.apache.flink.streaming.api.operators.OneInputStreamOperator} to one input
* {@link Transformation}.
*
* @param <IN> The type of the elements in the input {@code Transformation}
* @param <OUT> The type of the elements that result from this {@code OneInputTransformation}
*/
@Internal
public class OneInputTransformation<IN, OUT> extends PhysicalTransformation<OUT> {
private final Transformation<IN> input;
...
public OneInputTransformation(
Transformation<IN> input,
String name,
StreamOperatorFactory<OUT> operatorFactory,
TypeInformation<OUT> outputType,
int parallelism) {
super(name, outputType, parallelism);
this.input = input;
this.operatorFactory = operatorFactory;
}
...
}
keyBy()
keyBy()我们着重阅读初始化 PartitionTransformation 实例、生成 KeyedStream对象方面，其他方面，如生成 KeySelector 、KeyGroupStreamPartitioner 等跟 keyBy 特性相关的代码细节，与生成拓扑图StreamGraph没有必然的联系，我们这里不做介绍，对于这方面的内容，读者可以参考这篇文章Flink KeyBy源码分析。
public KeyedStream<T, Tuple> keyBy(int... fields) {
if (getType() instanceof BasicArrayTypeInfo || getType() instanceof PrimitiveArrayTypeInfo) {
return keyBy(KeySelectorUtil.getSelectorForArray(fields, getType()));
} else {
return keyBy(new Keys.ExpressionKeys<>(fields, getType()));
}
}
private KeyedStream<T, Tuple> keyBy(Keys<T> keys) {
return new KeyedStream<>(this, clean(KeySelectorUtil.getSelectorForKeys(keys,
getType(), getExecutionConfig())));
}
KeyedStream 继承 DataStream类，在初始化 KeyedStream 对象的时候，需要创建PartitionTransformation对象并对其input、partitioner等重要字段进行赋值。
public class KeyedStream<T, KEY> extends DataStream<T> {
/**
* The key selector that can get the key by which the stream if partitioned from the elements.
*/
private final KeySelector<T, KEY> keySelector;
/** The type of the key by which the stream is partitioned. */
private final TypeInformation<KEY> keyType;
/**
* Creates a new {@link KeyedStream} using the given {@link KeySelector}
* to partition operator state by key.
*
* @param dataStream
* Base stream of data
* @param keySelector
* Function for determining state partitions
*/
public KeyedStream(DataStream<T> dataStream, KeySelector<T, KEY> keySelector) {
this(dataStream, keySelector, TypeExtractor.getKeySelectorTypes(keySelector, dataStream.getType()));
}
/**
* Creates a new {@link KeyedStream} using the given {@link KeySelector}
* to partition operator state by key.
*
* @param dataStream
* Base stream of data
* @param keySelector
* Function for determining state partitions
*/
public KeyedStream(DataStream<T> dataStream, KeySelector<T, KEY> keySelector, TypeInformation<KEY> keyType) {
this(
dataStream,
new PartitionTransformation<>(
dataStream.getTransformation(),
new KeyGroupStreamPartitioner<>(keySelector, StreamGraphGenerator.DEFAULT_LOWER_BOUND_MAX_PARALLELISM)),
keySelector,
keyType);
}
/**
* Creates a new {@link KeyedStream} using the given {@link KeySelector} and {@link TypeInformation}
* to partition operator state by key, where the partitioning is defined by a {@link Parti tionTransformation}.
*
* @param stream
* Base stream of data
* @param partiti onTransformation
* Function that determines how the keys are distributed to downstream operator(s)
* @param keySelector
* Function to extract keys from the base stream
* @param keyType
* Defines the type of the extracted keys
*/
@Internal
KeyedStream(
DataStream<T> stream,
PartitionTransformation<T> partitionTransformation,
KeySelector<T, KEY> keySelector,
TypeInformation<KEY> keyType) {
super(stream.getExecutionEnvironment(), partitionTransformation);
this.keySelector = clean(keySelector);
this.keyType = validateKeyType(keyType);
}
...
}
/**
* This transformation represents a change of partitioning of the input elements.
*
* <p>This does not create a physical operation, it only affects how upstream operations are
* connected to downstream operations.
*
* @param <T> The type of the elements that result from this {@code PartitionTransformation}
*/
@Internal
public class PartitionTransformation<T> extends Transformation<T> {
private final Transformation<T> input;
private final StreamPartitioner<T> partitioner;
private final ShuffleMode shuffleMode;
...
/**
* Creates a new {@code PartitionTransformation} from the given input and
* {@link StreamPartitioner}.
*
* @param input The input {@code Transformation}
* @param partitioner The {@code StreamPartitioner}
* @param shuffleMode The {@code ShuffleMode}
*/
public PartitionTransformation(
Transformation<T> input,
StreamPartitioner<T> partitioner,
ShuffleMode shuffleMode) {
super("Partition", input.getOutputType(), input.getParallelism());
this.input = input;
this.partitioner = partitioner;
this.shuffleMode = checkNotNull(shuffleMode);
}
...
}
PartitionTransformation 并不会向上面使用到的SourceTransformation、OneInputTransformation一样生成算子节点，其只会影响上游算子到下游算子的连接方式以及上游数据的分发到下游分区的可能情况。
sum()
sum()方法是 KeyedStream 的成员方法，意味着该方法只能跟在 keyBy() 方法的后面，与该方法相似的方法还有很多，比如说min()、max()、reduce()，这里，我们不关注这些方法的内部逻辑，如若需要读者可以前往进行Flink reduce、sum、aggregate等方法的源码分析阅读参考。sum()方法内部实际上调用aggregate()方法。SumAggregator是对聚合后数据求和操作的实现，继承AggregationFunction类，间接实现了ReduceFunction接口。
public SingleOutputStreamOperator<T> sum(int positionToSum) {
return aggregate(new SumAggregator<>(positionToSum, getType(), getExecutionConfig()));
}
public class SumAggregator<T> extends AggregationFunction<T> {
...
public SumAggregator(int pos, TypeInformation<T> typeInfo, ExecutionConfig config) {
...
}
...
}
aggregate()方法首先初始化StreamGroupedReduce对象，然后调用transform()方法获得当前算子的DataStream对象。transform()实现于上文所述一致，这里不再赘述。
protected SingleOutputStreamOperator<T> aggregate(AggregationFunction<T> aggregate) {
StreamGroupedReduce<T> operator = new StreamGroupedReduce<T>(
clean(aggregate), getType().createSerializer(getExecutionConfig()));
return transform("Keyed Aggregation", getType(), operator);
}
StreamGroupedReduce 继承 AbstractUdfStreamOperator 抽象类，在构造StreamGroupedReduce对象的时候，将aggregate变量赋值给AbstractUdfStreamOperator#userFunction变量，并将对StreamGroupedReduce对象的成员变量TypeSerializer serializer进行赋值。
public class StreamGroupedReduce<IN> extends AbstractUdfStreamOperator<IN, ReduceFunction<IN>>
implements OneInputStreamOperator<IN, IN> {
...
private TypeSerializer<IN> serializer;
public StreamGroupedReduce(ReduceFunction<IN> reducer, TypeSerializer<IN> serializer){
super(reducer);
this.serializer = serializer;
}
...
}
addSink()
addSink() 与 addSource()方法整体类似。addSink()主要完成如下几件事：
- 生成
StreamSink对象； - 生成
DataStreamSink对象； - 将当前算子对应的
Transformation实例添加到StreamExecutionEnvironment持有的transformations集合中。
public DataStreamSink<T> addSink(SinkFunction<T> sinkFunction) {
// 当前transformation表示上一个算子的Transformation实例，用来检查上一个算子的数据输出类型能否正确推断出来
transformation.getOutputType();
if (sinkFunction instanceof InputTypeConfigurable) {
((InputTypeConfigurable) sinkFunction).setInputType(getType(), getExecutionConfig());
}
StreamSink<T> sinkOperator = new StreamSink<>(clean(sinkFunction));
DataStreamSink<T> sink = new DataStreamSink<>(this, sinkOperator);
getExecutionEnvironment().addOperator(sink.getTransformation());
return sink;
}
StreamSink 继承 AbstractUdfStreamOperator类，并将变量sinkFunction赋值给userFunction变量，并设置当前算子的chainStrategy为ChainingStrategy.ALWAYS。
public class StreamSink<IN> extends AbstractUdfStreamOperator<Object, SinkFunction<IN>>
implements OneInputStreamOperator<IN, Object> {
...
public StreamSink(SinkFunction<IN> sinkFunction) {
super(sinkFunction);
chainingStrategy = ChainingStrategy.ALWAYS;
}
...
很意外，DataStreamSink并没有继承DataStream类，其只有一个成员变量transformation以及若干个基础方法，如name()、setParallelism()等，当然，这也符合现实情况。初始化DataStreamSink对象，实际上也是为了对其变量transformation进行赋值。
@Public
public class DataStreamSink<T> {
private final SinkTransformation<T> transformation;
protected DataStreamSink(DataStream<T> inputStream, StreamSink<T> operator) {
this.transformation = new SinkTransformation<T>(inputStream.getTransformation(), "Unnamed", operator, inputStream.getExecutionEnvironment().getParallelism());
}
...
}
SinkTransformation 同样继承了 PhysicalTransformation类，也间接继承了 Transformation 抽象类。逻辑与之前类似，这里不做赘述。
public class SinkTransformation<T> extends PhysicalTransformation<Object> {
private final Transformation<T> input;
...
public SinkTransformation(
Transformation<T> input,
String name,
StreamSink<T> operator,
int parallelism) {
this(input, name, SimpleOperatorFactory.of(operator), parallelism);
}
public SinkTransformation(
Transformation<T> input,
String name,
StreamOperatorFactory<Object> operatorFactory,
int parallelism) {
super(name, TypeExtractor.getForClass(Object.class), parallelism);
this.input = input;
this.operatorFactory = operatorFactory;
}
...
}
WordCount任务调用api原理的思维导图
该图是对上述算子源码的总结，可以在阅读源码的时候，结合该图对源码进行理解、记忆。
生成StreamGraph过程阅读

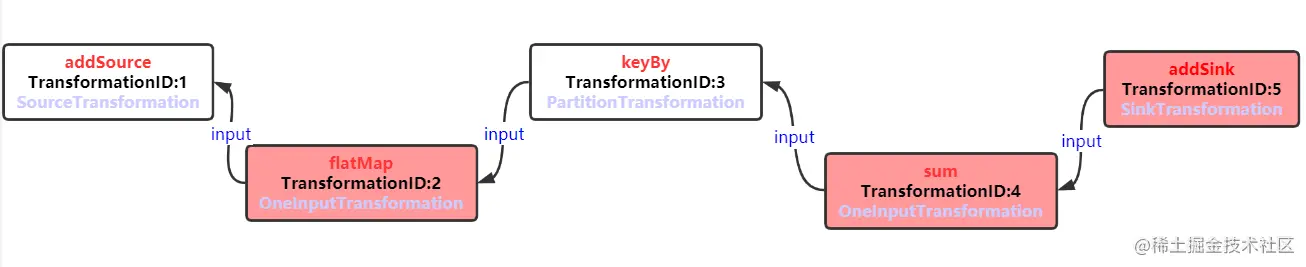

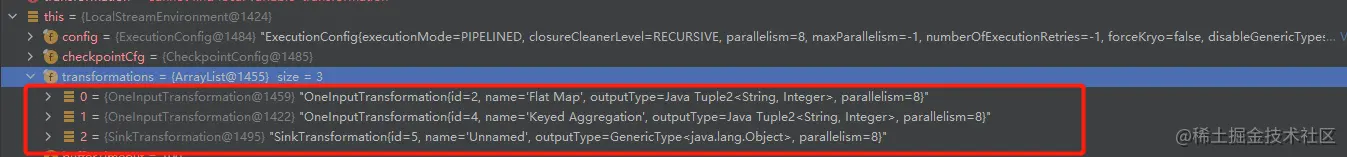

在这里，我们首先来看下WordCount任务中各个算子下的Transformation信息，以及其中的连接关系等。由下图我们可以知道，当前任务包括5个算子，TransformationID从1到5，其中，flatMap、sum、addSink底层的 transformation 会保存到 StreamExecutionEnvironment 对象持有的 transformations 变量中。
StreamGraph的生成发生在用户调用execute()方法里，通过getStreamGraph()获得当前任务的StreamGraph拓扑图。
public JobExecutionResult execute(String jobName) throws Exception {
Preconditions.checkNotNull(jobName, "Streaming Job name should not be null.");
return execute(getStreamGraph(jobName));
}
在getStreamGraph()方法中，我们可以知道实际上是通过StreamGraphGenerator#generate()方法获得的。另外，使用getStreamGraphGenerator()初始化StreamGraphGenerator对象的时候，会将transformations等重要变量赋值给StreamGraphGenerator对象的变量transformations等。StreamGraph就是围绕transformations变量生成的。接下来，我们主要来看generate()方法的实现细节。
public StreamGraph getStreamGraph(String jobName, boolean clearTransformations) {
StreamGraph streamGraph = getStreamGraphGenerator().setJobName(jobName).generate();
if (clearTransformations) {
this.transformations.clear();
}
return streamGraph;
}
private StreamGraphGenerator getStreamGraphGenerator() {
...
return new StreamGraphGenerator(transformations, config, checkpointCfg)
.setStateBackend(defaultStateBackend)
.setChaining(isChainingEnabled)
.setUserArtifacts(cacheFile)
.setTimeCharacteristic(timeCharacteristic)
.setDefaultBufferTimeout(bufferTimeout);
}
在generate()方法中，首先生成StreamGraph对象，初始化用于保存已经遍历到的transform的集合alreadyTransformed变量，通过for循环遍历transformations中的transformation变量，完成StreamGraph的构建工作。
public StreamGraph generate() {
streamGraph = new StreamGraph(executionConfig, checkpointConfig, savepointRestoreSettings);
...
alreadyTransformed = new HashMap<>();
for (Transformation<?> transformation: transformations) {
transform(transformation);
}
final StreamGraph builtStreamGraph = streamGraph;
...
return builtStreamGraph;
}
下面的代码，是生成StreamGraph的核心代码，也是比较难懂的一块。在transform(transform)方法中，如果当前transform变量之前已经遍历到的话，则直接返回，紧接着，设置并行度并且检查当前transform包含的outputType变量是否正常等操作。接下来，会根据当前transform变量具体实际情况调用transformXXXX()方法，而这个transformXXXX()方法底层大部分也是递归调用transform()方法。
private Collection<Integer> transform(Transformation<?> transform) {
// 因为采取的是向前递归的方式，当前transform可能在遍历之前tranform的时候已经遍历过并且以及记录在alreadyTransformed集合中，
// 因此，可以直接返回。
if (alreadyTransformed.containsKey(transform)) {
return alreadyTransformed.get(transform);
}
LOG.debug("Transforming " + transform);
if (transform.getMaxParallelism() <= 0) {
// 为当前算子节点设置最大并行度
...
}
// 如果当前transform的数据输出类型没有推断出来，则直接抛出异常。
transform.getOutputType();
Collection<Integer> transformedIds;
if (transform instanceof OneInputTransformation<?, ?>) {
transformedIds = transformOneInputTransform((OneInputTransformation<?, ?>) transform);
} else if (transform instanceof TwoInputTransformation<?, ?, ?>) {
transformedIds = transformTwoInputTransform((TwoInputTransformation<?, ?, ?>) transform);
} else if (transform instanceof SourceTransformation<?>) {
transformedIds = transformSource((SourceTransformation<?>) transform);
} else if (transform instanceof SinkTransformation<?>) {
transformedIds = transformSink((SinkTransformation<?>) transform);
} else if (transform instanceof UnionTransformation<?>) {
transformedIds = transformUnion((UnionTransformation<?>) transform);
} else if (transform instanceof SplitTransformation<?>) {
transformedIds = transformSplit((SplitTransformation<?>) transform);
} else if (transform instanceof SelectTransformation<?>) {
transformedIds = transformSelect((SelectTransformation<?>) transform);
} else if (transform instanceof FeedbackTransformation<?>) {
transformedIds = transformFeedback((FeedbackTransformation<?>) transform);
} else if (transform instanceof CoFeedbackTransformation<?>) {
transformedIds = transformCoFeedback((CoFeedbackTransformation<?>) transform);
} else if (transform instanceof PartitionTransformation<?>) {
transformedIds = transformPartition((PartitionTransformation<?>) transform);
} else if (transform instanceof SideOutputTransformation<?>) {
transformedIds = transformSideOutput((SideOutputTransformation<?>) transform);
} else {
throw new IllegalStateException("Unknown transformation: " + transform);
}
// 将当前transform添加到alreadyTransformed集合中，如果调用该方法的时候，当前alreadyTransformed集合中包含了该transform，则直接返回即可。
if (!alreadyTransformed.containsKey(transform)) {
alreadyTransformed.put(transform, transformedIds);
}
// 省略部分是对StreamGraph当前节点做各种配置，如uid、bufferTimeOut等，这里不做扩展介绍
...
return transformedIds;
}
首先，来看执行的第一个transformation(OneInputTransformation{id=2, name='Flat Map', outputType=Java Tuple2<String, Integer>, parallelism=8})。执行transformOneInputTransform(transformation)方法。
private <IN, OUT> Collection<Integer> transformOneInputTransform(OneInputTransformation<IN, OUT> transform) {
// 可以看到，StreamGraph的生成是从当前的节点向前递归迭代生成的。
// 返回值是inputIds，顾名思义，记录的是当前transformation的输入transformation的下标。
Collection<Integer> inputIds = transform(transform.getInput());
// 因为当前节点可能在之前的递归迭代中遍历生成SteamNode，可以直接返回当前transform的id了
if (alreadyTransformed.containsKey(transform)) {
return alreadyTransformed.get(transform);
}
// 获得当前transform的slotSharingGroup，默认是“default”
String slotSharingGroup = determineSlotSharingGroup(transform.getSlotSharingGroup(), inputIds);
// addOperator() 方法主要 生成StreamNode节点，并对输入输出的数据类型设置序列化器
streamGraph.addOperator(transform.getId(),
slotSharingGroup,
transform.getCoLocationGroupKey(),
transform.getOperatorFactory(),
transform.getInputType(),
transform.getOutputType(),
transform.getName());
if (transform.getStateKeySelector() != null) {
TypeSerializer<?> keySerializer = transform.getStateKeyType().createSerializer(executionConfig);
streamGraph.setOneInputStateKey(transform.getId(), transform.getStateKeySelector(), keySerializer);
}
// 为当前StreamNode设置并行度及最大并行度
int parallelism = transform.getParallelism() != ExecutionConfig.PARALLELISM_DEFAULT ?
transform.getParallelism() : executionConfig.getParallelism();
streamGraph.setParallelism(transform.getId(), parallelism);
streamGraph.setMaxParallelism(transform.getId(), transform.getMaxParallelism());
// StreamNode之间通过StreamEdge进行连接。当前步骤主要就是通过StreamEdge连接上下游的StreamNode
for (Integer inputId: inputIds) {
streamGraph.addEdge(inputId, transform.getId(), 0);
}
// 返回当前遍历的transformId
return Collections.singleton(transform.getId());
}
递归遍历第一个算子，也就是调用transformSource()方法。与上述过程基本上相似，只不过差异主要体现在addSource()方法，我们后续详细介绍。
private <T> Collection<Integer> transformSource(SourceTransformation<T> source) {
String slotSharingGroup = determineSlotSharingGroup(source.getSlotSharingGroup(), Collections.emptyList());
// addSource() 底层调用addOperator()方法
streamGraph.addSource(source.getId(),
slotSharingGroup,
source.getCoLocationGroupKey(),
source.getOperatorFactory(),
null,
source.getOutputType(),
"Source: " + source.getName());
if (source.getOperatorFactory() instanceof InputFormatOperatorFactory) {
streamGraph.setInputFormat(source.getId(),
((InputFormatOperatorFactory<T>) source.getOperatorFactory()).getInputFormat());
}
int parallelism = source.getParallelism() != ExecutionConfig.PARALLELISM_DEFAULT ?
source.getParallelism() : executionConfig.getParallelism();
streamGraph.setParallelism(source.getId(), parallelism);
streamGraph.setMaxParallelism(source.getId(), source.getMaxParallelism());
return Collections.singleton(source.getId());
}
public <IN, OUT> void addSource(Integer vertexID,
@Nullable String slotSharingGroup,
@Nullable String coLocationGroup,
StreamOperatorFactory<OUT> operatorFactory,
TypeInformation<IN> inTypeInfo,
TypeInformation<OUT> outTypeInfo,
String operatorName) {
addOperator(vertexID, slotSharingGroup, coLocationGroup, operatorFactory, inTypeInfo, outTypeInfo, operatorName);
sources.add(vertexID);
}
determineSlotSharingGroup()方法主要用于获得当前transform的slotSharingGroup值，默认是default。
private String determineSlotSharingGroup(String specifiedGroup, Collection<Integer> inputIds) {
if (specifiedGroup != null) {
return specifiedGroup;
} else {
String inputGroup = null;
// 如果用户并没有指定当前transform的slotSharingGroup，那么其由上游的transform的slot决定的。
// 1）如果当前transform是source节点，默认是default
// 2）如果当前transform只有一个上游，默认是default
// 3）如果当前transform当前有多个上游，如果上游的slotSharingGroup都是一致的话，
// 就用这个slotSharingGroup值，否则，为default
for (int id: inputIds) {
String inputGroupCandidate = streamGraph.getSlotSharingGroup(id);
if (inputGroup == null) {
inputGroup = inputGroupCandidate;
} else if (!inputGroup.equals(inputGroupCandidate)) {
return DEFAULT_SLOT_SHARING_GROUP;
}
}
return inputGroup == null ? DEFAULT_SLOT_SHARING_GROUP : inputGroup;
}
}
接下来，我们重点看下addOperator()方法的实现。该方法主要生成StreamNode节点，并对输入输出的数据类型设置序列化器。
public <IN, OUT> void addOperator(
Integer vertexID,
@Nullable String slotSharingGroup,
@Nullable String coLocationGroup,
StreamOperatorFactory<OUT> operatorFactory,
TypeInformation<IN> inTypeInfo,
TypeInformation<OUT> outTypeInfo,
String operatorName) {
// 根据当前节点的位置，调用addNode的方法参数也不一致。Source节点传入SourceStreamTask，
// 其他则传入OneInputStreamTask。
if (operatorFactory.isStreamSource()) {
addNode(vertexID, slotSharingGroup, coLocationGroup, SourceStreamTask.class, operatorFactory, operatorName);
} else {
addNode(vertexID, slotSharingGroup, coLocationGroup, OneInputStreamTask.class, operatorFactory, operatorName);
}
// 为当前StreamNode的输入输出数据类型设置序列化器
TypeSerializer<IN> inSerializer = inTypeInfo != null && !(inTypeInfo instanceof MissingTypeInfo) ? inTypeInfo.createSerializer(executionConfig) : null;
TypeSerializer<OUT> outSerializer = outTypeInfo != null && !(outTypeInfo instanceof MissingTypeInfo) ? outTypeInfo.createSerializer(executionConfig) : null;
setSerializers(vertexID, inSerializer, null, outSerializer);
if (operatorFactory.isOutputTypeConfigurable() && outTypeInfo != null) {
// sets the output type which must be know at StreamGraph creation time
operatorFactory.setOutputType(outTypeInfo, executionConfig);
}
if (operatorFactory.isInputTypeConfigurable()) {
operatorFactory.setInputType(inTypeInfo, executionConfig);
}
if (LOG.isDebugEnabled()) {
LOG.debug("Vertex: {}", vertexID);
}
}
public void setSerializers(Integer vertexID, TypeSerializer<?> in1, TypeSerializer<?> in2, TypeSerializer<?> out) {
StreamNode vertex = getStreamNode(vertexID);
vertex.setSerializerIn1(in1);
vertex.setSerializerIn2(in2);
vertex.setSerializerOut(out);
}
跟着上一步，通过下面的代码，我们可以看到addNode()方法主要用于根据transform信息生成对应的StreamNode节点。
protected StreamNode addNode(Integer vertexID,
@Nullable String slotSharingGroup,
@Nullable String coLocationGroup,
Class<? extends AbstractInvokable> vertexClass,
StreamOperatorFactory<?> operatorFactory,
String operatorName) {
if (streamNodes.containsKey(vertexID)) {
throw new RuntimeException("Duplicate vertexID " + vertexID);
}
StreamNode vertex = new StreamNode(
vertexID,
slotSharingGroup,
coLocationGroup,
operatorFactory,
operatorName,
new ArrayList<OutputSelector<?>>(),
vertexClass);
streamNodes.put(vertexID, vertex);
return vertex;
}
StreamNode之间通过StreamEdge进行连接，addEdge()用于连接上下游StreamNode，其实际上调用的是addEdgeInternal()方法。addEdgeInternal()方法会判断当前上游节点是虚拟节点还是说StreamNode，并进行递归调用。
public void addEdge(Integer upStreamVertexID, Integer downStreamVertexID, int typeNumber) {
addEdgeInternal(upStreamVertexID,
downStreamVertexID,
typeNumber,
null,
new ArrayList<String>(),
null,
null);
}
private void addEdgeInternal(Integer upStreamVertexID,
Integer downStreamVertexID,
int typeNumber,
StreamPartitioner<?> partitioner,
List<String> outputNames,
OutputTag outputTag,
ShuffleMode shuffleMode) {
// 三种虚拟节点，我们当前仅介绍virtualPartitionNode，另外两个类似，故不做过多介绍。
if (virtualSideOutputNodes.containsKey(upStreamVertexID)) {
int virtualId = upStreamVertexID;
upStreamVertexID = virtualSideOutputNodes.get(virtualId).f0;
if (outputTag == null) {
outputTag = virtualSideOutputNodes.get(virtualId).f1;
}
addEdgeInternal(upStreamVertexID, downStreamVertexID, typeNumber, partitioner, null, outputTag, shuffleMode);
} else if (virtualSelectNodes.containsKey(upStreamVertexID)) {
int virtualId = upStreamVertexID;
upStreamVertexID = virtualSelectNodes.get(virtualId).f0;
if (outputNames.isEmpty()) {
// selections that happen downstream override earlier selections
outputNames = virtualSelectNodes.get(virtualId).f1;
}
addEdgeInternal(upStreamVertexID, downStreamVertexID, typeNumber, partitioner, outputNames, outputTag, shuffleMode);
} else if (virtualPartitionNodes.containsKey(upStreamVertexID)) {
// 获取虚拟节点的上游，将虚拟节点的上下游StreamNode进行连接，通过递归调用addEdgeInternal()方法实现。
int virtualId = upStreamVertexID;
upStreamVertexID = virtualPartitionNodes.get(virtualId).f0;
if (partitioner == null) {
partitioner = virtualPartitionNodes.get(virtualId).f1;
}
shuffleMode = virtualPartitionNodes.get(virtualId).f2;
// 在本案例中，upStreamVertexID = 6，downStreamVertexID = 4，递归调用addEdgeInternal，
// 实际上连接的是StreamNode 2和StreamNode 4节点。
addEdgeInternal(upStreamVertexID, downStreamVertexID, typeNumber, partitioner, outputNames, outputTag, shuffleMode);
} else {
// 根据vertexID获得上下游的StreamNode
StreamNode upstreamNode = getStreamNode(upStreamVertexID);
StreamNode downstreamNode = getStreamNode(downStreamVertexID);
// 显然，在StreamGraph生成期间，确定了StreamNode之间的生成策略
// 1、上下游并行度一致，partitioner为ForwardPartitioner
// 2、上下游并行度不一致，partitioner为RebalacePartitioner
// 3、HASH
if (partitioner == null && upstreamNode.getParallelism() == downstreamNode.getParallelism()) {
partitioner = new ForwardPartitioner<Object>();
} else if (partitioner == null) {
partitioner = new RebalancePartitioner<Object>();
}
if (partitioner instanceof ForwardPartitioner) {
if (upstreamNode.getParallelism() != downstreamNode.getParallelism()) {
throw new UnsupportedOperationException("Forward partitioning does not allow " +
"change of parallelism. Upstream operation: " + upstreamNode + " parallelism: " + upstreamNode.getParallelism() +
", downstream operation: " + downstreamNode + " parallelism: " + downstreamNode.getParallelism() +
" You must use another partitioning strategy, such as broadcast, rebalance, shuffle or global.");
}
}
if (shuffleMode == null) {
shuffleMode = ShuffleMode.UNDEFINED;
}
// 通过StreamEdge连接上下游的StreamNode
StreamEdge edge = new StreamEdge(upstreamNode, downstreamNode, typeNumber, outputNames, partitioner, outputTag, shuffleMode);
getStreamNode(edge.getSourceId()).addOutEdge(edge);
getStreamNode(edge.getTargetId()).addInEdge(edge);
}
}
跟完上述的代码，我们可以知道addSource、flatMap两个算子对应的StreamNode已经形成了，并通过StreamEdge对象为两者建立了连接。
接下来，执行的第二个transformation(OneInputTransformation{id=4, name='Keyed Aggregation', outputType=Java Tuple2<String, Integer>, parallelism=8})。同样的，其会向前遍历第三个算子keyBy，即执行transformPartition()方法。对于keyBy算子产生的Transformation实例，我们会创建一个virtual node。
private <T> Collection<Integer> transformPartition(PartitionTransformation<T> partition) {
// 获得PartitionTransformation上游的Transformation
Transformation<T> input = partition.getInput();
List<Integer> resultIds = new ArrayList<>();
// 同样的，向前遍历transform，获得当前transform的上游transformedIds都有哪些
Collection<Integer> transformedIds = transform(input);
for (Integer transformedId: transformedIds) {
// 针对上游的每一个transformation，都会生成一个VirtualPartitionNode记录。当然VirtualPartitionNode并不是一个具体类，
// 其只是一个包含了当前虚拟ID、上游TransformationID以及Partitioner的Map元素，并被保存到virtualPartitionNodes集合中。
int virtualId = Transformation.getNewNodeId();
streamGraph.addVirtualPartitionNode(
transformedId, virtualId, partition.getPartitioner(),partition.getShuffleMode());
resultIds.add(virtualId);
}
return resultIds;
}
// private Map<Integer, Tuple3<Integer, StreamPartitioner<?>, ShuffleMode>> virtualPartitionNodes;
public void addVirtualPartitionNode(
Integer originalId,
Integer virtualId,
StreamPartitioner<?> partitioner,
ShuffleMode shuffleMode) {
if (virtualPartitionNodes.containsKey(virtualId)) {
throw new IllegalStateException("Already has virtual partition node with id " + virtualId);
}
virtualPartitionNodes.put(virtualId, new Tuple3<>(originalId, partitioner, shuffleMode));
}
通过对第二个transformation的遍历，我们可以知道，对于keyBy算子形成的transformation，并没有形成StreamNode节点，而是形成了包含virtualId、上游transformationId、Partitioner等信息的VirtualPartitionNode记录。
接下来，我们遍历最后一个transformation（SinkTransformation{id=5, name='Unnamed', outputType=GenericType<java.lang.Object>, parallelism=12}）。当前SinkTransformation调用的是transformSink()方法。
private <T> Collection<Integer> transformSink(SinkTransformation<T> sink) {
// 递归遍历前一个transform，当然之前已经遍历了，之前返回前一个transformId
Collection<Integer> inputIds = transform(sink.getInput());
String slotSharingGroup = determineSlotSharingGroup(sink.getSlotSharingGroup(), inputIds);
// addSink方法底层调用的是addOperator方法，用于 生成StreamNode节点，并对输入输出的数据类型设置序列化器
streamGraph.addSink(sink.getId(),
slotSharingGroup,
sink.getCoLocationGroupKey(),
sink.getOperatorFactory(),
sink.getInput().getOutputType(),
null,
"Sink: " + sink.getName());
StreamOperatorFactory operatorFactory = sink.getOperatorFactory();
if (operatorFactory instanceof OutputFormatOperatorFactory) {
streamGraph.setOutputFormat(sink.getId(), ((OutputFormatOperatorFactory) operatorFactory).getOutputFormat());
}
int parallelism = sink.getParallelism() != ExecutionConfig.PARALLELISM_DEFAULT ?
sink.getParallelism() : executionConfig.getParallelism();
streamGraph.setParallelism(sink.getId(), parallelism);
streamGraph.setMaxParallelism(sink.getId(), sink.getMaxParallelism());
// 使用StreamEdge连接当前StreamNode与上游StreamNode
for (Integer inputId: inputIds) {
streamGraph.addEdge(inputId,
sink.getId(),
0);
}
if (sink.getStateKeySelector() != null) {
TypeSerializer<?> keySerializer = sink.getStateKeyType().createSerializer(executionConfig);
streamGraph.setOneInputStateKey(sink.getId(), sink.getStateKeySelector(), keySerializer);
}
return Collections.emptyList();
}
经过上面的代码，我们可以获得当前WordeCount的StreamGraph。
