本文介绍了so结构，记录了so文件的解析方法和过程，为后续so库加解密打基础。
1.so文件是什么？
so文件是Linux下的程序函数库,即编译好的可以供其他程序使用的代码和数据，也叫动态链接库。
2.so的结构是怎样的？
文件格式被称为ELF文件格式。

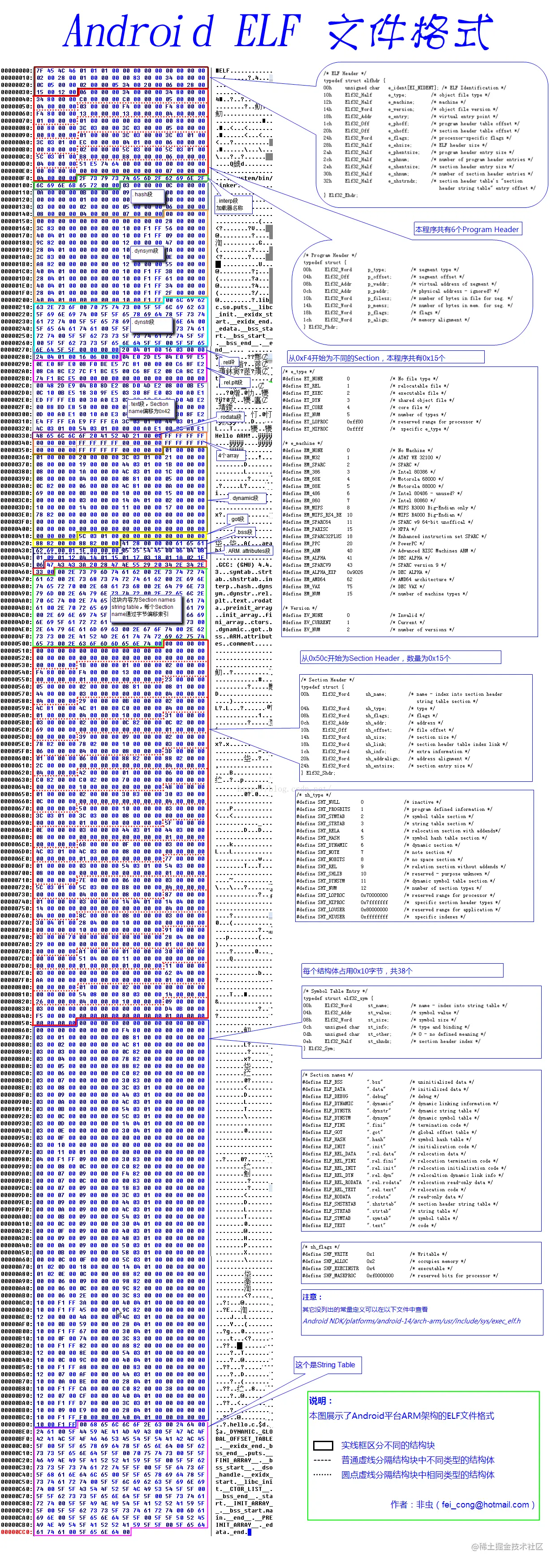

二进制结构图(飞虫大神)如下：

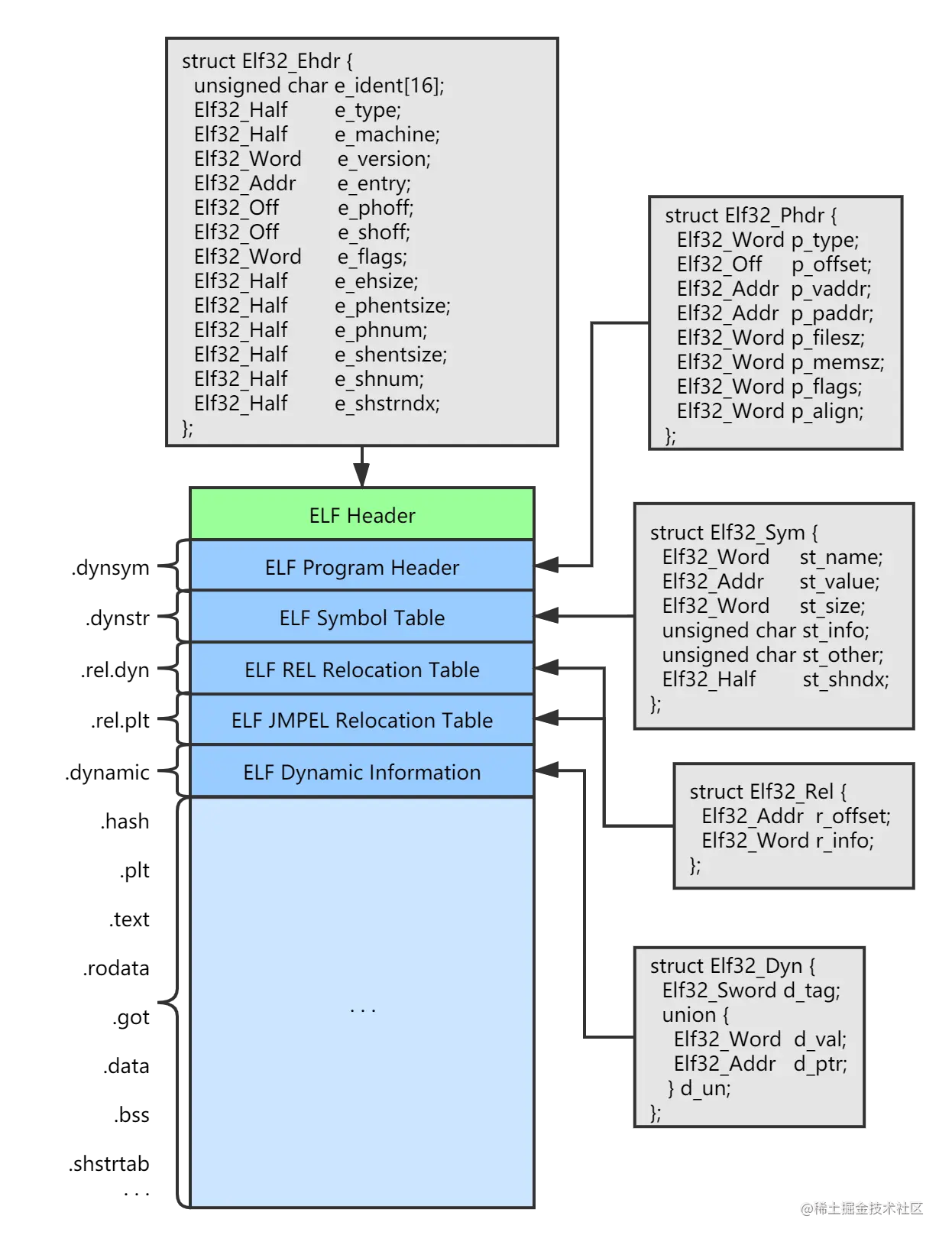

头文件结构图如下：

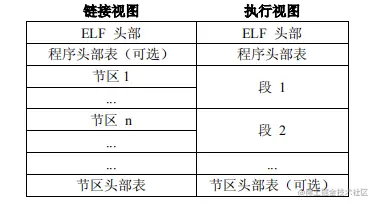

总体结构图如下：
结构字段详解请参考滕启明老师的【ELF文件格式分析】：
链接：pan.baidu.com/s/1GEzePWkK…
提取码：ibcq
结构查看工具：IDA Pro，可自行在网上搜索下载。
2.1 ELF Header
ELF头结构，仅有一个，位于文件起始位置，长度为sizeof(ELF32_Ehdr)的部分。
struct Elf32_Ehdr {
unsigned char e_ident[EI_NIDENT]; // 文件标识ELF，32位还是64位
Elf32_Half e_type;
Elf32_Half e_machine;
Elf32_Word e_version;
Elf32_Addr e_entry;
Elf32_Off e_phoff; // Program header的文件中的偏移
Elf32_Off e_shoff; // Section header在文件中的偏移
Elf32_Word e_flags;
Elf32_Half e_ehsize; // ELF 文件头本身的大小
Elf32_Half e_phentsize; // Program header 表的大小
Elf32_Half e_phnum; // Program header 表的数量
Elf32_Half e_shentsize; // Section表大小
Elf32_Half e_shnum; // Section表数量
Elf32_Half e_shstrndx; // Section字符串表所在的Section在Section表中的下标
};
// c++文件流解析--fstream ioFile
Elf32_Ehdr* elf32Ehdr; // ELF Header 文件头
elf32Ehdr = new Elf32_Ehdr[1];
ioFile.seekg(0, ios::beg);
ioFile.read((char*) elf32Ehdr, sizeof(Elf32_Ehdr));
// 字节数组解析--char* fileContent
Elf32_Ehdr* elf32Ehdr = (Elf32_Ehdr*) fileContent;
2.2 Program Header
程序头结构，紧接着ELF header之后，可能有多个。起始位置elf32Ehdr->e_phoff，个数为elf32Ehdr->e_phnum，长度为sizeof(Elf32_Phdr) * elf32Ehdr->e_phnum。
struct Elf32_Phdr {
Elf32_Word p_type; // 段类型
Elf32_Off p_offset; // 段在文件中的偏移
Elf32_Addr p_vaddr; // 段的第一个字节在虚拟地址空间的起始位置，整个程序表头中
Elf32_Addr p_paddr; // 段的物理装载地址，即 LMA（Load Memory Address），一般情况下 p_paddr 和 p_vaddr 是相同的
Elf32_Word p_filesz; // 段在 ELF 文件中所占空间的长度，可能为 0
Elf32_Word p_memsz; // 段在进程虚拟空间中所占空间的长度，可能为 0
Elf32_Word p_flags; // 段的权限属性，比如可读 "R"，可写 "W" 和可执行 "X"
Elf32_Word p_align; // 段的对齐属性，实际对齐字节等于 2 的 p_align 次方
};
// c++解析Program Header
Elf32_Phdr* elf32Phdr = new Elf32_Phdr[elf32Ehdr->e_phnum];
ioFile.seekg(elf32Ehdr->e_phoff, ios::beg);
ioFile.read((char*) elf32Phdr, sizeof(Elf32_Phdr) * elf32Ehdr->e_phnum);
// 字符数组解析
Elf32_Phdr* elf32Phdr = (Elf32_Phdr*) &fileContent[elf32Ehdr->e_phoff];
2.3 Section Header
节头结构，位于文件的末尾，可能有多个。起始位置elf32Ehdr->e_shoff，个数为elf32Ehdr->e_shnum，长度为sizeof(Elf32_Shdr) * elf32Ehdr->e_shnum。
struct Elf32_Shdr {
Elf32_Word sh_name; // 段名，位于 .shstrtab 的字符串表。sh_name 是段名在其中的偏移
Elf32_Word sh_type; // 段类型（SHT_*）
Elf32_Word sh_flags; // 段标志位（SHF_*）
Elf32_Addr sh_addr; // 段的虚拟地址，前提是该段可被加载，否则为 0
Elf32_Off sh_offset; // 段偏移，前提是该段存在于文件中，否则无意义
Elf32_Word sh_size; // 段的长度
Elf32_Word sh_link; // 段的链接信息
Elf32_Word sh_info; // 段的额外信息
Elf32_Word sh_addralign; // 段地址对齐
Elf32_Word sh_entsize; // 项的长度
};
// c++解析节点信息
Elf32_Shdr* elf32Shdr = new Elf32_Shdr[elf32Ehdr->e_shnum];
Elf32_Shdr* elf32ShdrPointer = elf32Shdr;
ioFile.seekg(elf32Ehdr->e_shoff, ios::beg);
ioFile.read((char*) elf32ShdrPointer, sizeof(Elf32_Shdr) * elf32Ehdr->e_shnum);
// 字符数组解析
Elf32_Shdr* elf32Shdr = (Elf32_Shdr *) &fileContent[elf32Ehdr->e_shoff];
2.4 .shstrtab字符串表
字符串表保存了表名称等，格式是\0abc\0efg\0acxd\0，c++中字符串以\0结尾。上面解析的Section Header里面的name都是字符串表中的偏移，比如字符串表的起始位置是1000，Section Header name=5，那么该Section Header的名字偏移就是1000+5，即efg.
// c++文件解析，这里解析只是解析出了Section name的字符串，后面再修正吧，如果使用printf("%s\n", shstrtabSection)打印，会输出空白，因为起始字符就是\0，需要使用循环打印字符。
Elf32_Off shstrtabOffset = elf32Shdr[elf32Ehdr->e_shstrndx].sh_offset;
char* buffer= new char[1];
int strTableSize = 0;
ioFile.seekg(shstrtabOffset, ios::beg);
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
buffer[0] = '\0';
do {
ioFile.read(buffer, sizeof(char));
strTableSize++;
} while (buffer[0] != '\0');
}
shstrtabSection = new char[strTableSize];
ioFile.seekg(shstrtabOffset, ios::beg);
ioFile.read(shstrtabSection, sizeof(char) * strTableSize);
// 字符数组解析
Elf32_Off shstrtabOffset = elf32Shdr[elf32Ehdr->e_shstrndx].sh_offset;
char* shstrtabSection = &fileContent[shstrtabOffset];
2.5 其他Section
解析方法都类似
Elf32_Hash elf32Hash; // .hash结构
Elf32_Dyn* elf32Dyn; // .dynamic 动态节区
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_HASH && strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".hash") == 0) {
ioFile.seekg(offset, ios::beg);
ioFile.read((char*)&elf32Hash.nbucket, sizeof(Elf32_Word));
ioFile.read((char*)&elf32Hash.nchain, sizeof(Elf32_Word));
elf32Hash.bucketArr = new Elf32_Word[elf32Hash.nbucket];
elf32Hash.chainArr = new Elf32_Word[elf32Hash.nchain];
ioFile.read((char*) elf32Hash.bucketArr, sizeof(Elf32_Word) * elf32Hash.nbucket);
ioFile.read((char*) elf32Hash.chainArr, sizeof(Elf32_Word) * elf32Hash.nchain);
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_DYNAMIC &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".dynamic") == 0) {
Elf32_Word count = size / elf32Shdr[i].sh_entsize;
elf32Dyn = new Elf32_Dyn[count];
ioFile.seekg(offset, ios::beg);
ioFile.read((char *) elf32Dyn, size);
}
}
3.命令行查看so结构
使用readelf命令可查看，具体使用方式可参考：readelf命令使用说明
我这里使用使用命令将信息全部读取并且存储到一个文件里面，方便后续解析时对比解析数据是否正确。
// 读取xxx.so的数据并且保存到当前目录info.txt文件里面，这样可以对比解析的正确性
realelf -a xxx.so > info.txt
ELF Header:
Magic: 7f 45 4c 46 01 01 01 00 00 00 00 00 00 00 00 00 // 第五位1代表32位，2代表64位。
Class: ELF32 // 32位ELF文件
Data: 2's complement, little endian
Version: 1 (current)
OS/ABI: UNIX - System V
ABI Version: 0
Type: DYN (Shared object file)
Machine: ARM
Version: 0x1
Entry point address: 0x0
Start of program headers: 52 (bytes into file) // program headers起始偏移量是52
Start of section headers: 12920 (bytes into file) // section headers起始偏移量是12920
Flags: 0x5000200, Version5 EABI, soft-float ABI
Size of this header: 52 (bytes) // ELF Header的大小
Size of program headers: 32 (bytes) // program headers的大小
Number of program headers: 8 // program header的数量
Size of section headers: 40 (bytes) // section header的大小
Number of section headers: 27 // section header的数量
Section header string table index: 26 // 解析出来的Section headers列表，列表里第26个就是这个字符串表
Program Headers: // 移动到Offset位置，解析FileSiz长度的数据，就是该Program Header的数据
Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align
PHDR 0x000034 0x00000034 0x00000034 0x00100 0x00100 R 0x4
LOAD 0x000000 0x00000000 0x00000000 0x02de7 0x02de7 R E 0x1000
LOAD 0x002e08 0x00003e08 0x00003e08 0x00204 0x00209 RW 0x1000
DYNAMIC 0x002e58 0x00003e58 0x00003e58 0x00110 0x00110 RW 0x4
NOTE 0x000134 0x00000134 0x00000134 0x000bc 0x000bc R 0x4
GNU_STACK 0x000000 0x00000000 0x00000000 0x00000 0x00000 RW 0x10
EXIDX 0x002630 0x00002630 0x00002630 0x001a0 0x001a0 R 0x4
GNU_RELRO 0x002e08 0x00003e08 0x00003e08 0x001f8 0x001f8 RW 0x4
Section Headers: // 移动到Off位置，解析Size长度的数据，就是该Section Header
[Nr] Name Type Addr Off Size ES Flg Lk Inf Al
[ 0] NULL 00000000 000000 000000 00 0 0 0
[ 1] .note.android.ide NOTE 00000134 000134 000098 00 A 0 0 4
[ 2] .note.gnu.build-i NOTE 000001cc 0001cc 000024 00 A 0 0 4
[ 3] .dynsym DYNSYM 000001f0 0001f0 000350 10 A 4 1 4
[ 4] .dynstr STRTAB 00000540 000540 000373 00 A 0 0 1
[ 5] .gnu.hash GNU_HASH 000008b4 0008b4 00015c 04 A 3 0 4
[ 6] .hash HASH 00000a10 000a10 000170 04 A 3 0 4
[ 7] .gnu.version VERSYM 00000b80 000b80 00006a 02 A 3 0 2
[ 8] .gnu.version_d VERDEF 00000bec 000bec 00001c 00 A 4 1 4
[ 9] .gnu.version_r VERNEED 00000c08 000c08 000040 00 A 4 2 4
[10] .rel.dyn REL 00000c48 000c48 0000c8 08 A 3 0 4
[11] .rel.plt REL 00000d10 000d10 0000f0 08 AI 3 20 4
[12] .plt PROGBITS 00000e00 000e00 00017c 00 AX 0 0 4
[13] .text PROGBITS 00000f7c 000f7c 0016b4 00 AX 0 0 4
[14] .ARM.exidx ARM_EXIDX 00002630 002630 0001a0 08 AL 13 0 4
[15] .ARM.extab PROGBITS 000027d0 0027d0 000180 00 A 0 0 4
[16] .rodata PROGBITS 00002950 002950 000497 01 AMS 0 0 1
[17] .fini_array FINI_ARRAY 00003e08 002e08 000008 04 WA 0 0 4
[18] .data.rel.ro PROGBITS 00003e10 002e10 000048 00 WA 0 0 4
[19] .dynamic DYNAMIC 00003e58 002e58 000110 08 WA 4 0 4
[20] .got PROGBITS 00003f68 002f68 000098 00 WA 0 0 4
[21] .data PROGBITS 00004000 003000 00000c 00 WA 0 0 4
[22] .bss NOBITS 0000400c 00300c 000005 00 WA 0 0 4
[23] .comment PROGBITS 00000000 00300c 000109 01 MS 0 0 1
[24] .note.gnu.gold-ve NOTE 00000000 003118 00001c 00 0 0 4
[25] .ARM.attributes ARM_ATTRIBUTES 00000000 003134 000034 00 0 0 1
[26] .shstrtab STRTAB 00000000 003168 00010f 00 0 0 1
4.c++解析ELF
4.1 解析方式
解析分两种
- 文件流
不用全部加载到内存，并且可以随时修改文件内容，就是解析稍微麻烦。 - 字符串
全部加载到内存中之后，只需要使用指针指向偏移的位置即可，解析简单。
后续要做so加密，所以使用的文件流读取的形式，可以修改so文件实现加密。然后so库加载之后再使用解析字符串的方式来解密，搭配使用。
4.2 解析逻辑
4.2.1 准备资源
elf.h
ELF文件的解析，需要使用到elf.h这个头文件，linux环境是自带了这个，但是windows没有，不过android sdk里面有，可以拷贝出来使用，路径是：AndroidSdk\ndk-bundle\sysroot\usr\include\linux\elf.h，将这个头文件拷贝到工程里面去，此时会提示Elf32_Half这几个未定义，在刚刚那个目录下寻找types.h，可以将这里面的拷贝到elf.h里面去。
gcc
加密逻辑使用c或者c++编写代码之后，再用gcc编译，这个Linux支持，windows需要安装软件，可自行百度。
Hello World!
先编译一个最简单的程序试试吧。
// linux
g++ xxx.cpp
./a.out
// windows
g++ xxx.cpp
a.exe
4.2.2 代码
创建解析的ElfParser.cpp文件（下面只贴32位的解析，64位的解析只需要替换32变成64即可）
#include <iostream>
#include "ElfParser.h" // 可先不管
using namespace std;
void parseSoByPath(const string& soPath) {
printf("parseSoByPath soPath=%s\n", soPath.c_str());
fstream ioFile;
ioFile.open(soPath.c_str(), ios::in | ios::out); // 读写方式打开文件
if (!ioFile) {
printf("open %s failed!\n", soPath.c_str());
return;
}
char* soPathArr = new char[strlen(soPath.c_str())];
strcpy(soPathArr, soPath.c_str());
if (isElf64(ioFile)) { // 判断是32位还是64位
ELF64Struct elf64Struct;
elf64Struct.fileName = soPathArr;
elf64Struct.parseSo(ioFile);
elf64Struct.encryptSo(ioFile);
// elf64Struct.decryptSo(ioFile);
} else {
ELF32Struct elf32Struct;
elf32Struct.fileName = soPathArr;
elf32Struct.parseSo(ioFile);
elf32Struct.encryptSo(ioFile);
// elf32Struct.decryptSo(ioFile);
}
ioFile.close();
/*fstream ioFile;
ioFile.open(soPath.c_str(), ios::in | ios::out);
if (!ioFile) {
printf("open %s failed!\n", soPath.c_str());
return;
}
ioFile.seekg(0, ios::end);
long long int fileSize = ioFile.tellg();
char* fileContent = new char[fileSize];
ioFile.seekg(0, ios::beg);
ioFile.read(fileContent, fileSize);
ioFile.close();
char* soPathArr = new char[strlen(soPath.c_str())];
strcpy(soPathArr, soPath.c_str());
if (isElf64(fileContent)) {
ELF64Struct elf64Struct;
elf64Struct.fileName = soPathArr;
elf64Struct.parseSo(fileContent);
elf64Struct.encryptSo(fileContent);
elf64Struct.decryptSo(fileContent);
} else {
ELF32Struct elf32Struct;
elf32Struct.fileName = soPathArr;
elf32Struct.parseSo(fileContent);
// elf32Struct.encryptSo(fileContent);
elf32Struct.decryptSo(fileContent);
}
ioFile.close();*/
}
int main() {
// 指定路径
string filePath[] = {
"../resources/arm64-v8a/libDataEncryptionLib.so",
"../resources/armeabi-v7a/libDataEncryptionLib.so",
"../resources/x86/libDataEncryptionLib.so",
"../resources/x86_64/libDataEncryptionLib.so"
};
for (int i = 0; i < sizeof(filePath) / sizeof(filePath[0]); ++i) {
parseSoByPath(filePath[i]);
}
return 0;
}
ElfParser.h文件(不要复制，参考即可)
#include <string>
#include <fstream>
#include <string.h>
#include <unistd.h>
#include <sys/mman.h>
#ifndef ANDROID_PROGRAM
#define ANDROID_PROGRAM
#define PAGE_SIZE 4096
#include "include/c_log.h"
#include "include/elf.h"
#else
#include "include/android_log.h"
#include <elf.h>
#endif
/**
* 判断是否是64位的elf文件
* @param ioFile
* @return
*/
int isElf64(fstream& ioFile) {
// 读取ELF头部信息，判断32位还是64位
Elf64_Ehdr elf64Ehdr;
ioFile.seekg(0, ios::beg);
ioFile.read((char*)&elf64Ehdr, sizeof(Elf64_Ehdr));
if (elf64Ehdr.e_ident[EI_CLASS] == 2) {
return 1;
}
return 0;
}
/**
* 判断是否是64位的elf文件
* @param ioFile
* @return
*/
int isElf64(char* fileContent) {
// 读取ELF头部信息，判断32位还是64位
Elf64_Ehdr* elf64Ehdr = (Elf64_Ehdr*) fileContent;
if (elf64Ehdr->e_ident[EI_CLASS] == 2) {
return 1;
}
return 0;
}
class ELF32Struct {
private:
public:
char* fileName;
void parseSo(fstream& ioFile);
void encryptSo(fstream& ioFile);
void decryptSo(fstream& ioFile);
void encryptOrDecryptSo(fstream &ioFile, int isDecrypt);
void parseSo(char* fileContent);
void encryptSo(char* fileContent);
void decryptSo(char* fileContent);
void encryptOrDecryptSo(char* fileContent, int isDecrypt);
void decryptSo(unsigned long long base);
};
class ELF64Struct {
private:
public:
char* fileName;
void parseSo(fstream& ioFile);
void encryptSo(fstream& ioFile);
void decryptSo(fstream& ioFile);
void encryptOrDecryptSo(fstream &ioFile, int isDecrypt);
void parseSo(char* fileContent);
void encryptSo(char* fileContent);
void decryptSo(char* fileContent);
void encryptOrDecryptSo(char* fileContent, int isDecrypt);
void decryptSo(unsigned long long base);
};
void ELF32Struct::parseSo(fstream &ioFile) {
LOGD("\n--ELF32Struct start-------------------------------------------\n");
LOGD("filePath=%s\n", fileName);
Elf32_Ehdr* elf32Ehdr; // ELF Header 文件头
Elf32_Shdr* elf32Shdr; // Section Header list 节区头列表
char* shstrtabSection; // .shstrtab 字符串表
char* dynstrSection; // .dynstr 符号字符串表
Elf32_Sym* elf32Sym; // .dynsym 符号表
Elf32_Word elf32SymSize;
Elf32_Rel* elf32Rel; // .rel.dyn 重定位
Elf32_Hash elf32Hash; // .hash结构
Elf32_Dyn* elf32Dyn; // .dynamic 动态节区
Elf32_Phdr* elf32Phdr; // Segment/Program Header list，段/程序头列表
// 读取ELF文件头部信息，判断是32位还是64位
// 读取elf头
elf32Ehdr = new Elf32_Ehdr[1];
ioFile.seekg(0, ios::beg);
ioFile.read((char*) elf32Ehdr, sizeof(Elf32_Ehdr));
if (printELFHeader == 1) {
// 输入ELF头部信息
LOGD("\nELF Header:\n");
LOGD(" %s ", "Magic:"); // 输出魔术
for (int i = 0; i < sizeof(elf32Ehdr->e_ident) / sizeof(elf32Ehdr->e_ident[0]); ++i) {
LOGD("%2.2x ", elf32Ehdr->e_ident[i]);
}
LOGD("\n");
LOGD(" %-38s%s\n", "Type:", tranElfHeaderType(elf32Ehdr->e_type).c_str());
LOGD(" %-38s%d\n", "Machine:", elf32Ehdr->e_machine);
LOGD(" %-38s%d\n", "Entry point address:", elf32Ehdr->e_entry);
LOGD(" %-38s%d\n", "Start of program headers:", elf32Ehdr->e_phoff);
LOGD(" %-38s%d\n", "Start of section headers:", elf32Ehdr->e_shoff);
LOGD(" %-38s%d\n", "Size of this header:", elf32Ehdr->e_ehsize);
LOGD(" %-38s%d\n", "Size of program headers:", elf32Ehdr->e_phentsize);
LOGD(" %-38s%d\n", "Number of program headers:", elf32Ehdr->e_phnum);
LOGD(" %-38s%d\n", "Size of section headers:", elf32Ehdr->e_shentsize);
LOGD(" %-38s%d\n", "Number of section headers:", elf32Ehdr->e_shnum);
LOGD(" %-38s%d\n", "Section header string table index:", elf32Ehdr->e_shstrndx);
}
// 解析Program Header，段信息
elf32Phdr = new Elf32_Phdr [elf32Ehdr->e_phnum];
ioFile.seekg(elf32Ehdr->e_phoff, ios::beg);
ioFile.read((char*) elf32Phdr, sizeof(Elf32_Phdr) * elf32Ehdr->e_phnum);
if (printProgramHeader == 1) {
LOGD("\n\nProgram Headers:\n");
LOGD(" %-14s %-8s %-10s %-10s %-7s %-7s %3s %6s\n", "Type", "Offset", "VirtAddr", "PhysAddr", "FileSiz", "MemSiz", "Flg", "Align");
for (int i = 0; i < elf32Ehdr->e_phnum; ++i) {
LOGD(" %-14s 0x%-6.6x 0x%-8.8x 0x%-8.8x 0x%-5.5x 0x%-5.5x %-3x %-6x\n",
tranProgramHeaderType(elf32Phdr[i].p_type).c_str(),
elf32Phdr[i].p_offset,
elf32Phdr[i].p_vaddr,
elf32Phdr[i].p_paddr,
elf32Phdr[i].p_filesz,
elf32Phdr[i].p_memsz,
elf32Phdr[i].p_flags,
elf32Phdr[i].p_align
);
}
}
// 解析Section，节点信息
elf32Shdr = new Elf32_Shdr[elf32Ehdr->e_shnum];
Elf32_Shdr* elf32ShdrPointer = elf32Shdr;
ioFile.seekg(elf32Ehdr->e_shoff, ios::beg);
ioFile.read((char*) elf32ShdrPointer, sizeof(Elf32_Shdr) * elf32Ehdr->e_shnum);
// string table偏移量
Elf32_Off shstrtabOffset = elf32Shdr[elf32Ehdr->e_shstrndx].sh_offset;
char* buffer= new char[1];
int strTableSize = 0;
ioFile.seekg(shstrtabOffset, ios::beg);
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
buffer[0] = '\0';
do {
ioFile.read(buffer, sizeof(char));
strTableSize++;
} while (buffer[0] != '\0');
}
shstrtabSection = new char[strTableSize];
ioFile.seekg(shstrtabOffset, ios::beg);
ioFile.read(shstrtabSection, sizeof(char) * strTableSize);
if (printSectionHeader == 1) {
LOGD("\n\nSection Headers:\n");
// 输出Section头部信息
LOGD(" %s%-26s%-16s%-9s%-7s%-7s%-3s%-4s%-4s%-4s%-3s\n", "[Nr]", "Name", "Type", "Addr", "Off", "Size", "ES", "Flg", "lk", "Inf", "Al");
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
LOGD(" [%2d]%-25s %-15s %-8.8x %-6.6x %-6.6x %-2.2x %3s %2x %4x %2x \n",
i,
shstrtabSection + elf32Shdr[i].sh_name,
tranSectionHeaderType(elf32Shdr[i].sh_type).c_str(),
elf32Shdr[i].sh_addr,
elf32Shdr[i].sh_offset,
elf32Shdr[i].sh_size,
elf32Shdr[i].sh_entsize,
tranSectionHeaderFlagType(elf32Shdr[i].sh_flags).c_str(),
elf32Shdr[i].sh_link,
elf32Shdr[i].sh_info,
elf32Shdr[i].sh_addralign
);
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
// 读取Section .dynstr 动态链接的字符串
if (elf32Shdr[i].sh_type == SHT_STRTAB &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".dynstr") == 0) {
dynstrSection = new char[size];
ioFile.seekg(offset, ios::beg);
ioFile.read(dynstrSection, sizeof(char) * size);
if (printDynstr == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
for (int j = 0; j < size; ++j) {
if (j == 0) {
LOGD("%s\n", dynstrSection);
}
if (dynstrSection[j] == 0 && j != size - 1) {
LOGD("%s\n", dynstrSection + (j + 1));
}
}
}
break;
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_DYNSYM &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".dynsym") == 0) {
elf32SymSize = size / elf32Shdr[i].sh_entsize;
elf32Sym = new Elf32_Sym[elf32SymSize];
ioFile.seekg(offset, ios::beg);
ioFile.read((char *) elf32Sym, sizeof(Elf32_Sym) * elf32SymSize);
if (printDynsym == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD(" %-4s %-8s %-5s %7s %6s %8s %-4s %s\n", "Num:", "Value", "Size", "Type",
"Bind", "Vis", "Ndx", "Name");
for (int j = 0; j < elf32SymSize; ++j) {
LOGD(" %-3d: ", j);
LOGD("%-8.8x ", elf32Sym[j].st_value);
LOGD("%-5d ", elf32Sym[j].st_size);
LOGD("%7s ", "");
LOGD("%6s ", "");
LOGD("%8s ", "");
LOGD("%-4x ", elf32Sym[j].st_shndx);
LOGD("%s", dynstrSection + elf32Sym[j].st_name);
LOGD("\n");
}
}
break;
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_HASH && strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".hash") == 0) {
ioFile.seekg(offset, ios::beg);
ioFile.read((char*)&elf32Hash.nbucket, sizeof(Elf32_Word));
ioFile.read((char*)&elf32Hash.nchain, sizeof(Elf32_Word));
elf32Hash.bucketArr = new Elf32_Word[elf32Hash.nbucket];
elf32Hash.chainArr = new Elf32_Word[elf32Hash.nchain];
ioFile.read((char*) elf32Hash.bucketArr, sizeof(Elf32_Word) * elf32Hash.nbucket);
ioFile.read((char*) elf32Hash.chainArr, sizeof(Elf32_Word) * elf32Hash.nchain);
if (printHash == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD(" nbucket=%d:\n", elf32Hash.nbucket);
LOGD(" [%2s] %8.8s\n", "Nr", "value");
for (Elf32_Word j = 0; j < elf32Hash.nbucket; ++j) {
LOGD(" [%2d] ", j);
LOGD(" %8.8d", elf32Hash.bucketArr[j]);
LOGD("\n");
}
LOGD(" nchain=%d:\n", elf32Hash.nchain);
LOGD(" [%2s] %8.8s\n", "Nr", "value");
for (Elf32_Word j = 0; j < elf32Hash.nchain; ++j) {
LOGD(" [%2d] ", i);
LOGD(" %8.8d", elf32Hash.chainArr[j]);
LOGD("\n");
}
}
break;
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_REL &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".rel.dyn") == 0) {
int count = size / elf32Shdr[i].sh_entsize;
elf32Rel = new Elf32_Rel[count];
ioFile.seekg(offset, ios::beg);
ioFile.read((char *) elf32Rel, sizeof(Elf32_Rel) * count);
if (printRelDyn == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD("%8s %8s %14s %10s %s\n", "Offset", "Info", "Type", "Sym.Value", "Sym.Name");
for (int j = 0; j < count; ++j) {
LOGD("%-8.8x: ", elf32Rel[j].r_offset);
LOGD("%-8.8x ", elf32Rel[j].r_info);
LOGD("%14s ", "");
LOGD("%10s ", "");
LOGD("%s", "");
LOGD("\n");
}
}
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_DYNAMIC &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".dynamic") == 0) {
Elf32_Word count = size / elf32Shdr[i].sh_entsize;
elf32Dyn = new Elf32_Dyn[count];
ioFile.seekg(offset, ios::beg);
ioFile.read((char *) elf32Dyn, size);
if (printDynamic == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD(" %-10s %-28s %s\n", "Tag", "Type", "Name/Value");
for (int j = 0; j < count; ++j) {
LOGD(" 0x%-8.8x ", elf32Dyn[j].d_tag);
LOGD("%-28s ", "");
LOGD("%s", "");
LOGD("\n");
}
}
}
}
LOGD("\n");
LOGD("\n--ELF32Struct end---------------------------------------------\n");
}
void ELF32Struct::parseSo(char* fileContent) {
LOGD("\n--ELF32Struct start-------------------------------------------\n");
LOGD("filePath=%s\n", fileName);
// 读取ELF文件头部信息，判断是32位还是64位
// 读取elf头
Elf32_Ehdr* elf32Ehdr = (Elf32_Ehdr*) fileContent;
if (printELFHeader == 1) {
// 输入ELF头部信息
LOGD("\nELF Header:\n");
LOGD(" %s ", "Magic:"); // 输出魔术
for (int i = 0; i < sizeof(elf32Ehdr->e_ident) / sizeof(elf32Ehdr->e_ident[0]); ++i) {
LOGD("%2.2x ", elf32Ehdr->e_ident[i]);
}
LOGD("\n");
LOGD(" %-38s%s\n", "Type:", tranElfHeaderType(elf32Ehdr->e_type).c_str());
LOGD(" %-38s%d\n", "Machine:", elf32Ehdr->e_machine);
LOGD(" %-38s%d\n", "Entry point address:", elf32Ehdr->e_entry);
LOGD(" %-38s%d\n", "Start of program headers:", elf32Ehdr->e_phoff);
LOGD(" %-38s%d\n", "Start of section headers:", elf32Ehdr->e_shoff);
LOGD(" %-38s%d\n", "Size of this header:", elf32Ehdr->e_ehsize);
LOGD(" %-38s%d\n", "Size of program headers:", elf32Ehdr->e_phentsize);
LOGD(" %-38s%d\n", "Number of program headers:", elf32Ehdr->e_phnum);
LOGD(" %-38s%d\n", "Size of section headers:", elf32Ehdr->e_shentsize);
LOGD(" %-38s%d\n", "Number of section headers:", elf32Ehdr->e_shnum);
LOGD(" %-38s%d\n", "Section header string table index:", elf32Ehdr->e_shstrndx);
}
// 解析Program Header，段信息
Elf32_Phdr* elf32Phdr = (Elf32_Phdr*) &fileContent[elf32Ehdr->e_phoff];
if (printProgramHeader == 1) {
LOGD("\n\nProgram Headers:\n");
LOGD(" %-14s %-8s %-10s %-10s %-7s %-7s %3s %6s\n", "Type", "Offset", "VirtAddr", "PhysAddr", "FileSiz", "MemSiz", "Flg", "Align");
for (int i = 0; i < elf32Ehdr->e_phnum; ++i) {
LOGD(" ");
LOGD("%-14x ", elf32Phdr[i].p_type/*tranProgramHeaderType(elf32Phdr[i].p_type).c_str()*/);
LOGD("0x%-6.6x ", elf32Phdr[i].p_offset);
LOGD("0x%-8.8x ", elf32Phdr[i].p_vaddr);
LOGD("0x%-8.8x ", elf32Phdr[i].p_paddr);
LOGD("0x%-5.5x ", elf32Phdr[i].p_filesz);
LOGD("0x%-5.5x ", elf32Phdr[i].p_memsz);
LOGD("%-3x ", elf32Phdr[i].p_flags);
LOGD("%-6x", elf32Phdr[i].p_align);
LOGD("\n");
}
}
// 解析Section，节点信息
Elf32_Shdr* elf32Shdr = (Elf32_Shdr *) &fileContent[elf32Ehdr->e_shoff];
// string table偏移量
Elf32_Off shstrtabOffset = elf32Shdr[elf32Ehdr->e_shstrndx].sh_offset;
char* shstrtabSection = &fileContent[shstrtabOffset];
if (printSectionHeader == 1) {
LOGD("\n\nSection Headers:\n");
// 输出Section头部信息
LOGD(" %s%-26s%-16s%-9s%-7s%-7s%-3s%-4s%-4s%-4s%-3s\n", "[Nr]", "Name", "Type", "Addr", "Off", "Size", "ES", "Flg", "lk", "Inf", "Al");
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
LOGD(" [%2d]", i);
LOGD("%-25x ", elf32Shdr[i].sh_name);
LOGD("%-15s ", tranSectionHeaderType(elf32Shdr[i].sh_type).c_str());
LOGD("%-8.8x ", elf32Shdr[i].sh_addr);
LOGD("%-6.6x ", elf32Shdr[i].sh_offset);
LOGD("%-6.6x ", elf32Shdr[i].sh_size);
LOGD("%-2.2x ", elf32Shdr[i].sh_entsize);
LOGD("%3s ", tranSectionHeaderFlagType(elf32Shdr[i].sh_flags).c_str());
LOGD("%2x ", elf32Shdr[i].sh_link);
LOGD("%4x ", elf32Shdr[i].sh_info);
LOGD("%2x ", elf32Shdr[i].sh_addralign);
LOGD("\n");
}
}
char* dynstrSection;
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
// 读取Section .dynstr 动态链接的字符串
if (elf32Shdr[i].sh_type == SHT_STRTAB &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".dynstr") == 0) {
dynstrSection = &fileContent[offset];
if (printDynstr == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
for (int j = 0; j < size; ++j) {
if (j == 0) {
LOGD("%s\n", dynstrSection);
}
if (dynstrSection[j] == 0 && j != size - 1) {
LOGD("%s\n", dynstrSection + (j + 1));
}
}
}
break;
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_DYNSYM &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".dynsym") == 0) {
Elf32_Word elf32SymSize = size / elf32Shdr[i].sh_entsize;
Elf32_Sym* elf32Sym = (Elf32_Sym*) &fileContent[offset];
if (printDynsym == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD(" %-4s %-8s %-5s %7s %6s %8s %-4s %s\n", "Num:", "Value", "Size", "Type",
"Bind", "Vis", "Ndx", "Name");
for (int j = 0; j < elf32SymSize; ++j) {
LOGD(" %-3d: ", j);
LOGD("%-8.8x ", elf32Sym[j].st_value);
LOGD("%-5d ", elf32Sym[j].st_size);
LOGD("%7s ", "");
LOGD("%6s ", "");
LOGD("%8s ", "");
LOGD("%-4x ", elf32Sym[j].st_shndx);
LOGD("%s", dynstrSection + elf32Sym[j].st_name);
LOGD("\n");
}
}
break;
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_HASH && strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".hash") == 0) {
Elf32_Hash elf32Hash;
elf32Hash.nbucket = *(Elf32_Word*) &fileContent[offset];
elf32Hash.nchain = *(Elf32_Word*) &fileContent[offset + sizeof(Elf32_Word)];
LOGD(" nbucket=%d:\n", elf32Hash.nbucket);
LOGD(" nchain=%d:\n", elf32Hash.nchain);
elf32Hash.bucketArr = (Elf32_Word *) &fileContent[offset + sizeof(Elf32_Word) * 2];
elf32Hash.chainArr = (Elf32_Word *) &fileContent[offset + sizeof(Elf32_Word) * (2 + elf32Hash.nbucket)];
if (printHash == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD(" nbucket=%d:\n", elf32Hash.nbucket);
LOGD(" [%2s] %8.8s\n", "Nr", "value");
for (Elf32_Word j = 0; j < elf32Hash.nbucket; ++j) {
LOGD(" [%2d] ", j);
LOGD(" %8.8d", elf32Hash.bucketArr[j]);
LOGD("\n");
}
LOGD(" nchain=%d:\n", elf32Hash.nchain);
LOGD(" [%2s] %8.8s\n", "Nr", "value");
for (Elf32_Word j = 0; j < elf32Hash.nchain; ++j) {
LOGD(" [%2d] ", j);
LOGD(" %8.8d", elf32Hash.chainArr[j]);
LOGD("\n");
}
}
break;
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_REL &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".rel.dyn") == 0) {
int count = size / elf32Shdr[i].sh_entsize;
Elf32_Rel* elf32Rel = (Elf32_Rel*) &fileContent[offset];
if (printRelDyn == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD("%8s %8s %14s %10s %s\n", "Offset", "Info", "Type", "Sym.Value", "Sym.Name");
for (int j = 0; j < count; ++j) {
LOGD("%-8.8x: ", elf32Rel[j].r_offset);
LOGD("%-8.8x ", elf32Rel[j].r_info);
LOGD("%14s ", "");
LOGD("%10s ", "");
LOGD("%s", "");
LOGD("\n");
}
}
break;
}
}
for (int i = 0; i < elf32Ehdr->e_shnum; ++i) {
Elf32_Off offset = elf32Shdr[i].sh_offset;
Elf32_Word size = elf32Shdr[i].sh_size;
if (offset == 0 || size == 0) {
continue;
}
if (elf32Shdr[i].sh_type == SHT_DYNAMIC &&
strcmp(shstrtabSection + elf32Shdr[i].sh_name, ".dynamic") == 0) {
Elf32_Word count = size / elf32Shdr[i].sh_entsize;
Elf32_Dyn* elf32Dyn = (Elf32_Dyn*) &fileContent[offset];
if (printDynamic == 1) {
LOGD("\n\n%s:\n", shstrtabSection + elf32Shdr[i].sh_name);
LOGD(" %-10s %-28s %s\n", "Tag", "Type", "Name/Value");
for (int j = 0; j < count; ++j) {
LOGD(" 0x%-8.8x ", elf32Dyn[j].d_tag);
LOGD("%-28s ", "");
LOGD("%s", "");
LOGD("\n");
}
}
}
}
LOGD("\n");
LOGD("\n--ELF32Struct end---------------------------------------------\n");
}
值得一提的是日志的输出，因为ElfParse.h这个头文件，我是本地运行和JNI共用的，我想实现在本地gcc编译时使用printf输出日志，在app jni调用是使用Log输出，所以定义了一个c_log.h，在本地编译时引入c_log.h，APP调用是引入android_log.h(见上一篇文章)。
c_log.h --封装了printf，适配了LOG
#ifndef SOLIBENCRYPTION_C_LOG_H
#define SOLIBENCRYPTION_C_LOG_H
#include <stdarg.h>
void LOG(const char* format, ...) {
va_list args;
va_start(args, format);
vprintf(format, args);
va_end(args);
}
void LOGV(const char* format, ...) {
va_list args;
va_start(args, format);
vprintf(format, args);
va_end(args);
}
void LOGD(const char* format, ...) {
va_list args;
va_start(args, format);
vprintf(format, args);
va_end(args);
}
void LOGI(const char* format, ...) {
va_list args;
va_start(args, format);
vprintf(format, args);
va_end(args);
}
void LOGW(const char* format, ...) {
va_list args;
va_start(args, format);
vprintf(format, args);
va_end(args);
}
void LOGE(const char* format, ...) {
va_list args;
va_start(args, format);
vprintf(format, args);
va_end(args);
}
void LOGF(const char* format, ...) {
va_list args;
va_start(args, format);
vprintf(format, args);
va_end(args);
}
#endif //SOLIBENCRYPTION_C_LOG_H
在ElfParser.h中
#ifndef ANDROID_PROGRAM
#define ANDROID_PROGRAM
#define PAGE_SIZE 4096
#include "include/c_log.h"
#include "include/elf.h"
#else
#include "include/android_log.h"
#include <elf.h>
#endif
ANDROID_PROGRAM这个变量，我在jni编译的SoDecrypt.cpp中定义了，然后加载ElfParse.h是判断这个变量已定义，就代表是jni环境，就去加载android_log.h。我本地编译的ElfParse.cpp里面没定义这个变量，这样就是去加载c_log.h了。
5.小结
- 前期需要准备NDK开发环境，可参考我前两篇文章，c/c++基础语法。
- 了解ELF大致结构，查看【ELF文件格式分析】，对比结构图详细了解下结构字段的含义。
- 使用命令readelf，保存到文件中，之后解析时可对比参考解析是否正确。
- 依次解析ELF Header, Program Headers, Section Headers，其他节点。
本文只作参考，复制粘贴代码容易忘，而且理解不深，只有碰到问题去解决了才能加深理解。
