jformer 是一个动态表单呈现组件，只需要传递 json 数据就可以显示出界面和功能, 这篇文章 实现了一个渲染处理简化element表单配置，现在实现通过 vjdesign 可视化设计器编辑表单
vjdesign 是一个 vue 界面可视化设计器，通过配置就可实现增加支持的组件和组件的属性

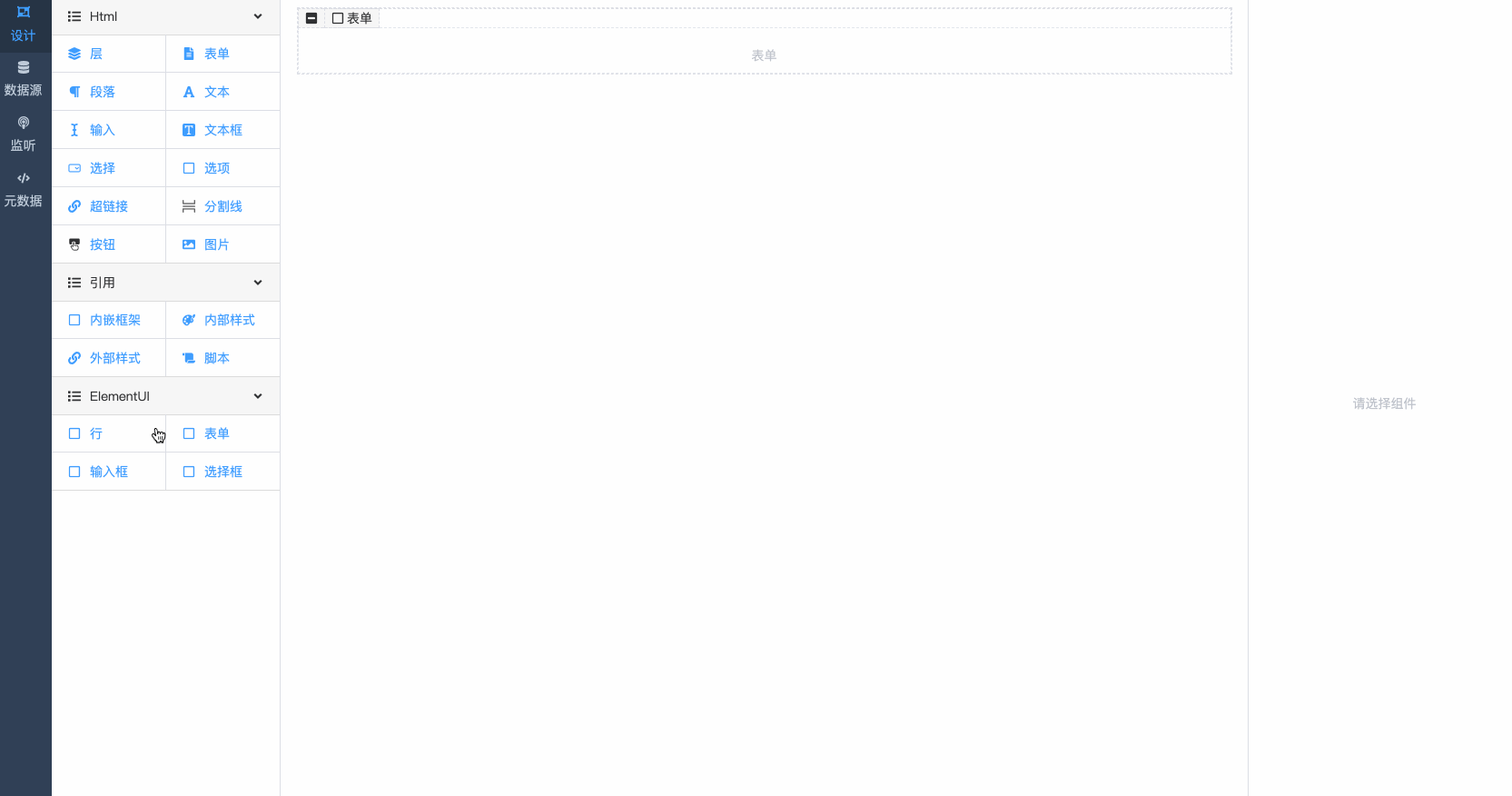

效果演示
完整示例
html 页
首先实现一个html页，读取 profile.json 配置文件实现支持element组件
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<meta http-equiv="X-UA-Compatible" content="ie=edge" />
<title>Static Template</title>
<script src="https://cdn.jsdelivr.net/npm/vue"></script>
<script src="https://cdn.jsdelivr.net/npm/vjdesign"></script>
<script src="https://cdn.jsdelivr.net/npm/element-ui/lib/index.js"></script>
<script src="./element-ext.js"></script>
<link
rel="stylesheet"
href="https://cdn.jsdelivr.net/npm/vjdesign/dist/vjdesign.css"
/>
<link
rel="stylesheet"
href="https://cdn.jsdelivr.net/npm/element-ui/lib/theme-chalk/index.css"
/>
<style>
html {
font-size: 14px;
}
#app {
position: absolute;
top: 0;
bottom: 0;
left: 0;
right: 0;
}
</style>
</head>
<body>
<div id="app">
<v-jdesign v-model="config" v-bind:profile="profile"></v-jdesign>
</div>
<script>
new Vue({
data() {
return { config: {}, profile: {} };
},
async mounted() {
const response = await fetch("./profile.json");
this.profile = await response.json();
}
}).$mount("#app");
</script>
</body>
</html>
provider 扩展实现
这里增加一个 colProps 属性来实现在表单组件外套一个 el-col 实现整体设置列宽
// 实现一个渲染处理 provider 实现在组件上定义 elForm
// 就可以自动在组件外层加上 el-form-item
const elementFormProps = (field) => {
if (!field.elForm) {
return;
}
// 复制组件原始配置
const originField = { ...field };
// 将组件名改成 el-form-item
field.component = "el-form-item";
// 将原组件的复制赋给组件下级实现改变界面结构
field.children = [originField];
// 将 elForm 属性作为 el-form-item 的属性
field.fieldOptions = {
props: field.elForm
};
// 如果组件关联了数据属性则将数据属性作为 el-form-item 的数据属性
if (originField.model) {
field.fieldOptions.props.prop = Array.isArray(originField.model)
? originField.model[0]
: originField.model;
}
// 删除 elForm 定义避免下级组件渲染处理时无限循环
delete field.elForm;
delete originField.elForm;
delete originField.colProps;
};
// 实现一个渲染处理 provider 实现在组件上定义 colProps 相关属性
// 就可以自动在组件外层加上 el-col
const colProps = (field) => {
if (!field.colProps) {
return;
}
const originField = { ...field };
field.component = "el-col";
field.children = [originField];
field.fieldOptions = {
props: field.colProps
};
delete field.colProps;
delete originField.colProps;
};
// 将定义的 provider 应用于 jformer
window.vjdesign.default.form.use(({ provider }) => {
// 分别注册 el-form-item 和 el-col 支持
provider(elementFormProps).withIndex(1);
provider(colProps).withIndex(2);
});
配置文件
{
"components": [
{
"name": "el-row",
"label": "行",
"group": "ElementUI",
"designer": "classContainer",
"properties": [
{
"name": "fieldOptions.props.gutter",
"label": "间隔",
"group": "组件",
"editor": "number"
}
]
},
{
"name": "el-form",
"label": "表单",
"group": "ElementUI",
"designer": "container",
"properties": [
{
"name": "fieldOptions.props.model",
"label": "表单数据",
"group": "数据"
},
{
"name": "fieldOptions.props.labelWidth",
"label": "前缀宽度",
"group": "组件"
}
]
},
{
"name": "el-input",
"label": "输入框",
"group": "ElementUI",
"properties": ["model", "elForm.label", "elForm.rules", "colProps.span"]
},
{
"name": "el-select",
"label": "选择框",
"group": "ElementUI",
"properties": ["model", "elForm.label", "elForm.rules", "colProps.span"]
}
],
"properties": [
{ "name": "elForm.label", "label": "前缀", "group": "表单" },
{
"name": "elForm.rules",
"label": "验证规则",
"group": "表单",
"properties": [
{
"name": "type",
"label": "类型",
"transform": false,
"editor": {
"name": "select",
"options": {
"items": [
{ "value": "string", "label": "字符串" },
{ "value": "number", "label": "数字" },
{ "value": "boolean", "label": "布尔" },
{ "value": "array", "label": "数组" }
]
}
}
},
{ "name": "required", "label": "是否必填", "editor": "switch" },
{ "name": "message", "label": "错误提示" },
{ "name": "min", "label": "最小值", "editor": "number" },
{ "name": "max", "label": "最大值", "editor": "number" },
{ "name": "pattern", "label": "正则" }
],
"editor": "array"
},
{
"name": "colProps.span",
"label": "列宽",
"group": "布局",
"editor": "number"
}
]
}
界面呈现
vjdesign 的 v-model 输出结果就是表单的配置，将配置赋给 jformer 相关属性就可呈现表单
<v-jdesign v-model="config" v-bind:profile="profile"></v-jdesign>
jformer 呈现方法如下，config.json 就是 vjdesign 的 v-model 输出结果
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<meta http-equiv="X-UA-Compatible" content="ie=edge" />
<title>Static Template</title>
<script src="https://cdn.jsdelivr.net/npm/vue"></script>
<script src="https://cdn.jsdelivr.net/npm/jformer"></script>
<script src="https://cdn.jsdelivr.net/npm/element-ui/lib/index.js"></script>
<!-- 记得引用 provider 的实现 -->
<script src="./element-ext.js"></script>
<link
rel="stylesheet"
href="https://cdn.jsdelivr.net/npm/element-ui/lib/theme-chalk/index.css"
/>
</head>
<body>
<div id="app">
<j-former v-bind:config="config"></j-former>
</div>
<script>
new Vue({
data() {
return {
config: {}
};
},
async mounted() {
// 读取 config
const response = await fetch("./config.json");
this.config = await response.json();
}
}).$mount("#app");
</script>
</body>
</html>
注意
还要记得将 provider 扩展实现
element-ext.js也引用进来，让 jformer 呈现时支持 elForm 和 colProps 两个属性的处理
示例完整实现： codesandbox.io/s/vjdesign-…
预览效果：kyjis.csb.app/
