Orange pi官网

http://www.orangepi.cn/

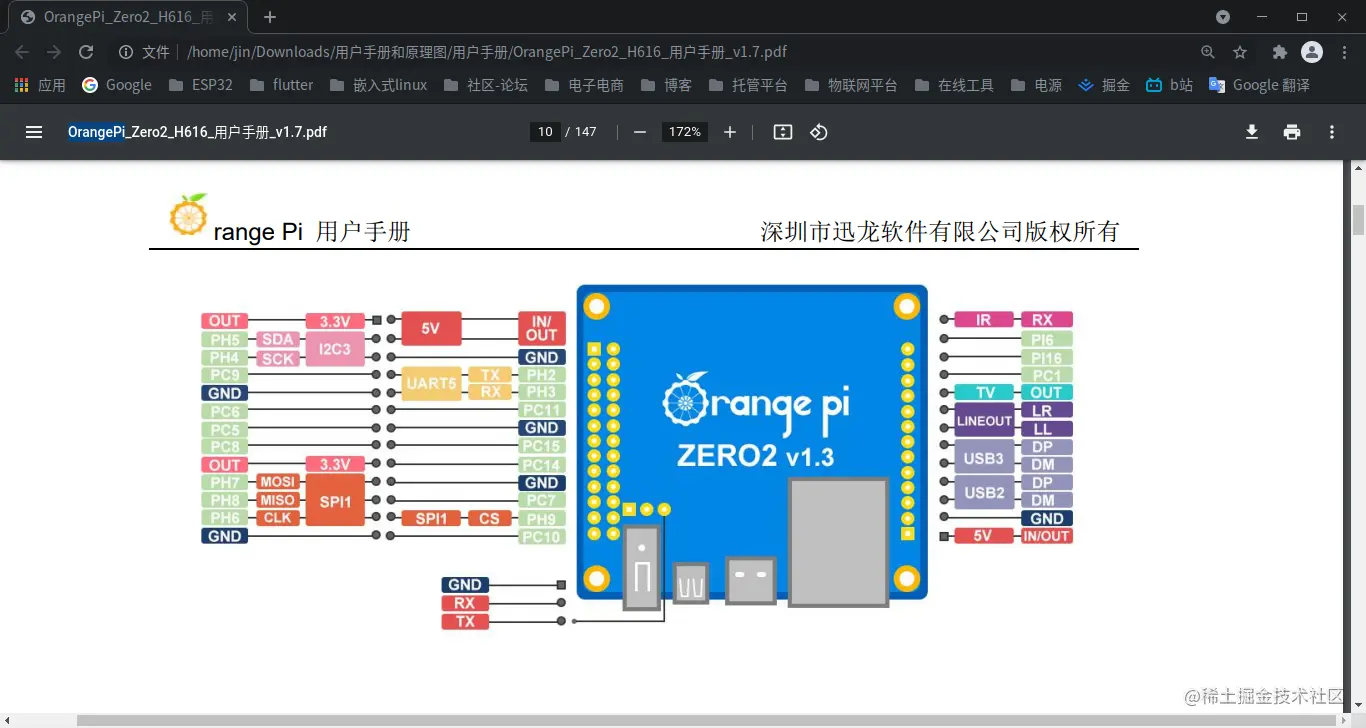

用户手册

1_GPIO

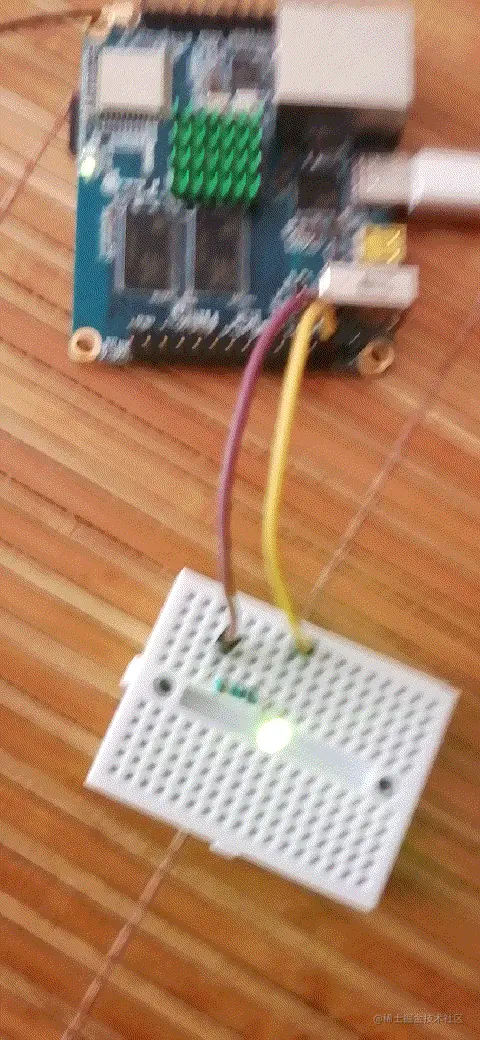

1.1_LED闪烁

import time
import board
import digitalio

print("hello blinky!")

led = digitalio.DigitalInOut(board.PC10)
led.direction = digitalio.Direction.OUTPUT

while True:
    led.value = True
    time.sleep(0.5)
    led.value = False
    time.sleep(0.5)

1.2_按钮控制LED

按钮需要上拉电阻

import time
import board
import digitalio

print("press the button!")

led = digitalio.DigitalInOut(board.PC10)
led.direction = digitalio.Direction.OUTPUT

button = digitalio.DigitalInOut(board.PC7)
button.direction = digitalio.Direction.INPUT

while True:
    led.value = not button.value # light when button is pressed!
