Flutter之Align

1、Align 介绍

Align 的作为一个参数，设置子 child 的对齐方式，比如居中，左上，右下等多个对齐方向

2、部分源码和功能

  const Align({
    Key key,
    this.alignment = Alignment.center,
    this.widthFactor,
    this.heightFactor,
    Widget child,
  }) : assert(alignment != null),
       assert(widthFactor == null || widthFactor >= 0.0),
       assert(heightFactor == null || heightFactor >= 0.0),
       super(key: key, child: child);

  /// The top left corner.
  static const Alignment topLeft = Alignment(-1.0, -1.0);
  /// The center point along the top edge.
  static const Alignment topCenter = Alignment(0.0, -1.0);
  /// The top right corner.
  static const Alignment topRight = Alignment(1.0, -1.0);
  /// The center point along the left edge.
  static const Alignment centerLeft = Alignment(-1.0, 0.0);
  /// The center point, both horizontally and vertically.
  static const Alignment center = Alignment(0.0, 0.0);
  /// The center point along the right edge.
  static const Alignment centerRight = Alignment(1.0, 0.0);
  /// The bottom left corner.
  static const Alignment bottomLeft = Alignment(-1.0, 1.0);
  /// The center point along the bottom edge.
  static const Alignment bottomCenter = Alignment(0.0, 1.0);
  /// The bottom right corner.
  static const Alignment bottomRight = Alignment(1.0, 1.0);

我们知道最左上角的坐标是 Alignment(-1.0, -1.0), 中心坐标是 Alignment(0.0, 0.0); 然后最右下角坐标是 Alignment(1.0, 1.0);

FractionalOffset 对其封装了大小范围是 (0~1),FractionalOffset(0, 0) 对于左上角，FractionalOffset(1, 1)对于右下角，FractionalOffset(0.5, 0.5)对于中间坐标

FractionalOffset(0.5, 0.5) == Alignment(0.0,0.0) == Alignment.center

3、测试代码

测试 1

  @override
  Widget build(BuildContext context) {
      return MaterialApp(
          title: 'open url',
          home: Scaffold(
            appBar: AppBar(
              // Here we take the value from the MyHomePage object that was created by
              // the App.build method, and use it to set our appbar title.
              title: Text('hello flutter'),
            ),
            body: Align(
              alignment: FractionalOffset(1, 0),
              child: Container(
                  color: Colors.red,
                  width: 100,
                  height: 100,
              ),
            ),
          ),
      );
  }

测试 2

  @override
  Widget build(BuildContext context) {
      return MaterialApp(
          title: 'open url',
          home: Scaffold(
            appBar: AppBar(
              // Here we take the value from the MyHomePage object that was created by
              // the App.build method, and use it to set our appbar title.
              title: Text('hello flutter'),
            ),
            body: Align(
              alignment: FractionalOffset(0.5, 0),
              child: Text("chenyu"),
            ),
          ),
      );
  }
}

4、运行效果

测试 1 结果

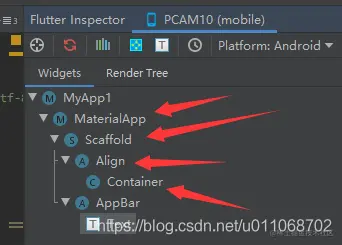

项目结构如下

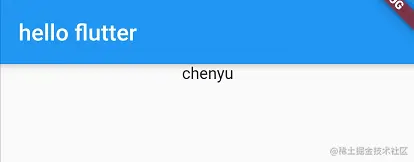

测试 2 结果
