一、背景
希望窗口从某些固定区域弹出,比如右下角(如果有自定义弹窗需求,这就很常见了)
二、如何修改弹出位置
其实非常简单
const newWindow = new BrowserWindow({
x: 400,
y: 400,
width: 400,
height: 600,
frame: false,
webPreferences: {
webSecurity: false,
nodeIntegration: process.env.ELECTRON_NODE_INTEGRATION,
enableRemoteModule: true,
preload: path.join(__dirname, 'preload.js'),
},
});
关键就是这个x,y了

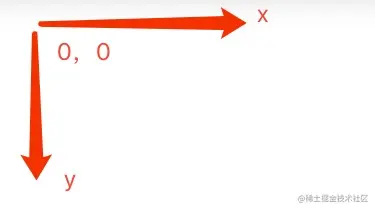

1.屏幕上的坐标轴
在屏幕上的坐标轴长这样
把你的鼠标放到屏幕四个角落,打印一下就可以验证了
const point = screen.getCursorScreenPoint();
console.log(point);
2.啥叫主屏幕
众所周知,用户可能有两个屏幕,甚至更多。
但主屏幕都只有一个。
现在来教大家如何区分主屏幕。

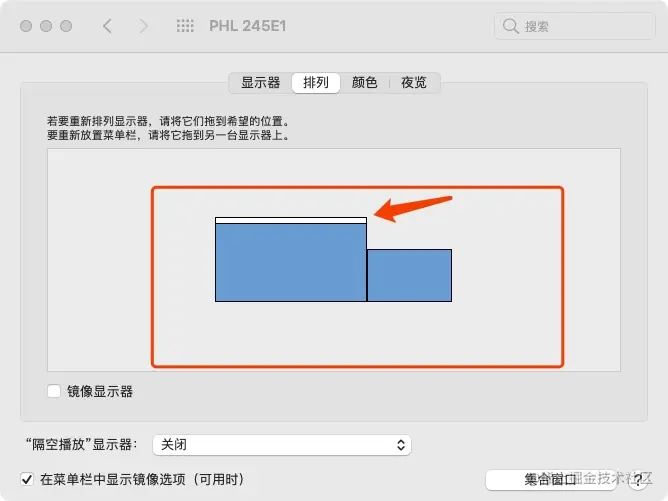

mac
设置-显示器-排列
注意上方这个白条,有白条的显示器叫做主屏幕

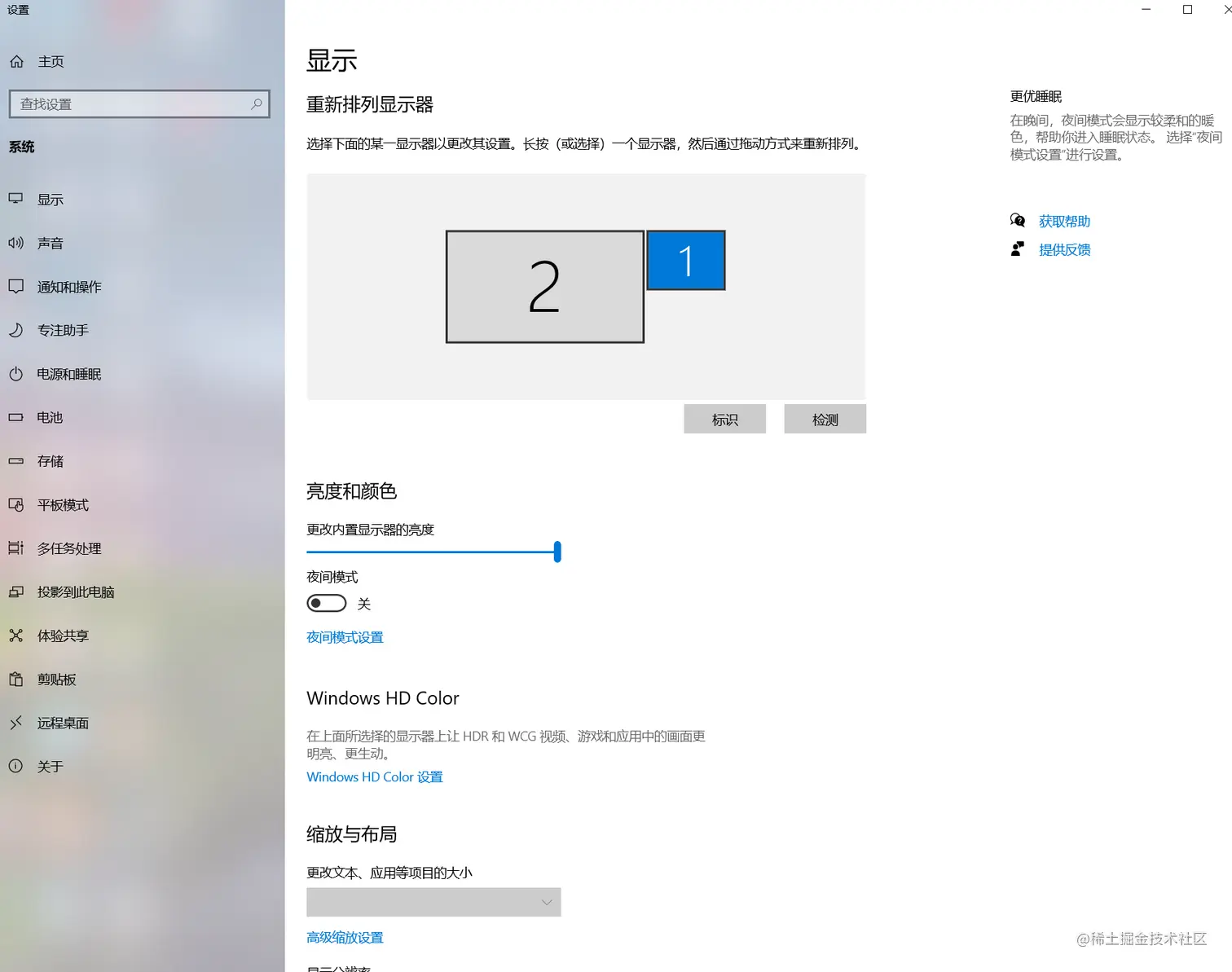

windows
桌面-右键-显示设置

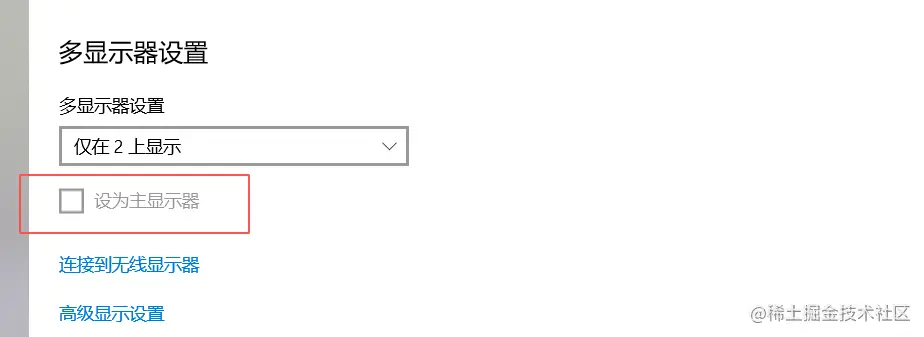

这个蓝色窗口,代表你选中的窗口信息。继续往下滚,这里哪个窗口勾选了主屏幕,哪个就是主屏幕
那么我们可以获取
//主屏幕
const display = screen.getPrimaryDisplay();
//当前鼠标所在屏幕
const point = screen.getCursorScreenPoint();
const display2 = screen.getDisplayNearestPoint(point);
因此,你可能还需要判断你期望的屏幕位置是否是主屏幕,是否要配合进行计算
三、非主屏幕的坐标原点不是从(0,0)开始的!请注意
把你的鼠标放到第二块屏幕上,打印一下就可以验证了
const point = screen.getCursorScreenPoint();
console.log(point);
