school-manager 校园管理后台服务

简介

school-manager 校园管理后台服务 实现了简单的校园管理业务。特点是环境基础良好和二次开发。

• 学校增删盖查
• 专业增删改查
• 班级层删改查
• 学生增删改查
• 老师增删改查 软件架构 nodejs (koa2 mongoose)
  element-ui
  admin-element

开发工具 数据库:mongodb
ide(项目开发工具):webstorm

项目步骤

• 1.安装 nodejs


• 2.安装 git


• 3.下载模板 vue-element-admin


  下载后进入项目安装依赖：


    npm install

• 删除多余界面 router/index
  删除后的界面如下

import Router from 'vue-router'

Vue.use(Router)

/* Layout */
import Layout from '@/layout'

/**
 * Note: sub-menu only appear when route children.length >= 1
 * Detail see: https://panjiachen.github.io/vue-element-admin-site/guide/essentials/router-and-nav.html
 *
 * hidden: true                   if set true, item will not show in the sidebar(default is false)
 * alwaysShow: true               if set true, will always show the root menu
 *                                if not set alwaysShow, when item has more than one children route,
 *                                it will becomes nested mode, otherwise not show the root menu
 * redirect: noRedirect           if set noRedirect will no redirect in the breadcrumb
 * name:'router-name'             the name is used by <keep-alive> (must set!!!)
 * meta : {
    roles: ['admin','editor']    control the page roles (you can set multiple roles)
    title: 'title'               the name show in sidebar and breadcrumb (recommend set)
    icon: 'svg-name'             the icon show in the sidebar
    breadcrumb: false            if set false, the item will hidden in breadcrumb(default is true)
    activeMenu: '/example/list'  if set path, the sidebar will highlight the path you set
  }
 */

/**
 * constantRoutes
 * a base page that does not have permission requirements
 * all roles can be accessed
 */
export const constantRoutes = [
  {
    path: '/login',
    component: () => import('@/views/login/index'),
    hidden: true
  },

  {
    path: '/404',
    component: () => import('@/views/404'),
    hidden: true
  },

  {
    path: '/',
    component: Layout,
    redirect: '/dashboard',
    children: [{
      path: 'dashboard',
      name: 'Dashboard',
      component: () => import('@/views/dashboard/index'),
      meta: { title: 'Dashboard', icon: 'dashboard' }
    }]
  },
  // 404 page must be placed at the end !!!
  { path: '*', redirect: '/404', hidden: true }
]

const createRouter = () => new Router({
  // mode: 'history', // require service support
  scrollBehavior: () => ({ y: 0 }),
  routes: constantRoutes
})

const router = createRouter()

// Detail see: https://github.com/vuejs/vue-router/issues/1234#issuecomment-357941465
export function resetRouter() {
  const newRouter = createRouter()
  router.matcher = newRouter.matcher // reset router
}

export default router

安装ES6语法插件

npm install --save es6-promise

在目录src/utils下创建Axios 插件（我创建的文件是http.js)：

import Vue from 'vue';
import Axios from 'axios';
import {Promise} from 'es6-promise';

import {MessageBox, Message} from 'element-ui'

Axios.defaults.timeout = 30000; // 1分钟
Axios.defaults.baseURL = '';

Axios.interceptors.request.use(function (config) {
  // Do something before request is sent
  //change method for get
  /*if(process.env.NODE_ENV == 'development'){
      config['method'] = 'GET';
      console.log(config)
  }*/
  if (config['MSG']) {
    // Vue.prototype.$showLoading(config['MSG']);
  } else {
    // Vue.prototype.$showLoading();
  }
  // if(user.state.token){//用户登录时每次请求将token放入请求头中
  //   config.headers["token"] = user.state.token;
  // }

  if (config['Content-Type'] === 'application/x-www-form-urlencoded;') {//默认发application/json请求，如果application/x-www-form-urlencoded;需要使用transformRequest对参数进行处理
    /*config['Content-Type'] = 'application/x-www-form-urlencoded;charset=UTF-8';*/
    config.headers['Content-Type'] = 'application/x-www-form-urlencoded;charset=UTF-8';
    config['transformRequest'] = function (obj) {
      var str = [];
      for (var p in obj)
        str.push(encodeURIComponent(p) + "=" + encodeURIComponent(obj[p]));
      return str.join("&")
    };
  }
  //config.header['Content-Type'] = 'application/x-www-form-urlencoded; charset=UTF-8';

  return config;
}, function (error) {
  // Do something with request error
  // Vue.$vux.loading.hide()
  return Promise.reject(error);
});

Axios.interceptors.response.use(
  response => {
    // Vue.$vux.loading.hide();
    return response.data;
  },
  error => {
    // Vue.$vux.loading.hide();
    if (error.response) {
      switch (error.response.status) {
        case 404:
          Message({
            message: '' || 'Error',
            type: 'error',
            duration: 5 * 1000
          })
          break;
        default:
          Message({
            message: '' || 'Error',
            type: 'error',
            duration: 5 * 1000
          })
      }
    } else if (error instanceof Error) {
      console.error(error);
    } else {
      Message({
        message: '' || 'Error',
        type: 'error',
        duration: 5 * 1000
      })
    }

    return Promise.reject(error.response);
  });

export default Vue.prototype.$http = Axios;

在vue.config.js配置axios代理：

      '/api': {
        target: `http://127.0.0.1:3000`,
        changeOrigin: true,
        pathRewrite: {
          ['^' + '/api']: ''
        }
      }
    },

main.js中加入http

import http from './utils/http'
Vue.use(http)

在src/views/dashboard/index.vue调用接口：

mounted(){
      this.$http.get('/api/users/add').then(res => {
        console.log('this.panels', res)
      })
}

构建服务

安装koa-generator框架起一个服务

npm install -g koa-generator

构建koa2项目

koa2 projectName

初始化项目，如果没有安装git会报错.

npm install

运行项目

npm run dev

出现结果如下代表运行成功：

[nodemon] 1.19.4
[nodemon] to restart at any time, enter `rs`
[nodemon] watching dir(s): *.*
[nodemon] watching extensions: js,mjs,json
[nodemon] starting `node bin/www`

在浏览器打开地址：
http://localhost:3000/
出现koa2的欢迎界面就代表成功了
安装本地mongodb或者在mongodb官网新建免费的云端服务器。

• 安装mongoose


npm install mongoose --save

• 创建的一个名为db的目录下创建config.js添加如下代码：


module.exports = {
    dbs: 'mongodb+srv://用户名:<需要修改>@cluster0-7d5kk.mongodb.net/数据库名?retryWrites=true&w=majority'
}

• 修改根目录app.js

const mongoose = require('mongoose')
const dbconfig = require('./db/config')
mongoose.connect(dbconfig.dbs, {useNewUrlParser: true,useUnifiedTopology: true})
const db = mongoose.connection
db.on('error', console.error.bind(console, 'connection error:'));
db.once('open', function() {
  console.log('mongoose 连接成功')
});

• 在目录db下创建目录models创建文件user.js添加代码：

const mongoose = require('mongoose')
const feld={
    name: String,
    age: Number,
    //人物标签
    labels:Number
}
//自动添加更新时间创建时间:
let personSchema = new mongoose.Schema(feld, {timestamps: {createdAt: 'created', updatedAt: 'updated'}})
module.exports= mongoose.model('User',personSchema)

• 在目录routes下创建user.js文件添加代码：

const mongoose = require('mongoose')
const feld={
    name: String,
    age: Number,
    //人物标签
    labels:Number
}
//自动添加更新时间创建时间:
let personSchema = new mongoose.Schema(feld, {timestamps: {createdAt: 'created', updatedAt: 'updated'}})
module.exports= mongoose.model('User',personSchema)

• 验证，如下结果代表成功连接数据库

[nodemon] 1.19.4
[nodemon] to restart at any time, enter `rs`
[nodemon] watching dir(s): *.*
[nodemon] watching extensions: js,mjs,json
[nodemon] starting `node bin/www`
mongoose 连接成功

连接组件

一、后台三步骤：
1、打开projectName文件，在models目录下创建school.js文件，接着文件操作：

const mongoose = require('mongoose')
const feld={
    name: String,
    //人物标签
    where:String,
    leixing: String
}
//自动添加更新时间创建时间:
let personSchema = new mongoose.Schema(feld, {timestamps: {createdAt: 'created', updatedAt: 'updated'}})
module.exports= mongoose.model('School',personSchema)

2、找到projectName下的routes目录：

const router = require('koa-router')()
//建立模块，require(“../db/models/文件名”)
let Model = require("../db/models/school");
router.prefix('/school')

router.get('/', function (ctx, next) {
    ctx.body = 'this is a users response!'
})

//数据库增删改查
router.post('/add', async function (ctx, next) {
    console.log(ctx.request.body)
    let model = new Model(ctx.request.body);
    model = await model.save();
    console.log('user',model)
    ctx.body = model
})

router.post('/find', async function (ctx, next) {
    let models = await Model.
    find({})
    ctx.body = models
})

router.post('/get', async function (ctx, next) {
    // let users = await User.
    // find({})
    console.log(ctx.request.body)
    let model = await Model.find(ctx.request.body)
    console.log(model)
    ctx.body = model
})

router.post('/update', async function (ctx, next) {
    console.log(ctx.request.body)
    let pbj = await Model.update({ _id: ctx.request.body._id }, ctx.request.body);
    ctx.body = pbj
})
router.post('/delete', async function (ctx, next) {
    console.log(ctx.request.body)
    await Model.remove({ _id: ctx.request.body._id });
    ctx.body = 'shibai '
})
module.exports = router

3.在app.js中挂载路由：

const school = require('./routes/school')
app.use(school.routes(), school.allowedMethods())

二、前台三步骤： 打开vue-admin-template-master文件，在src/views目录下创建一个school模块： 并在school目录下创建vue文件。

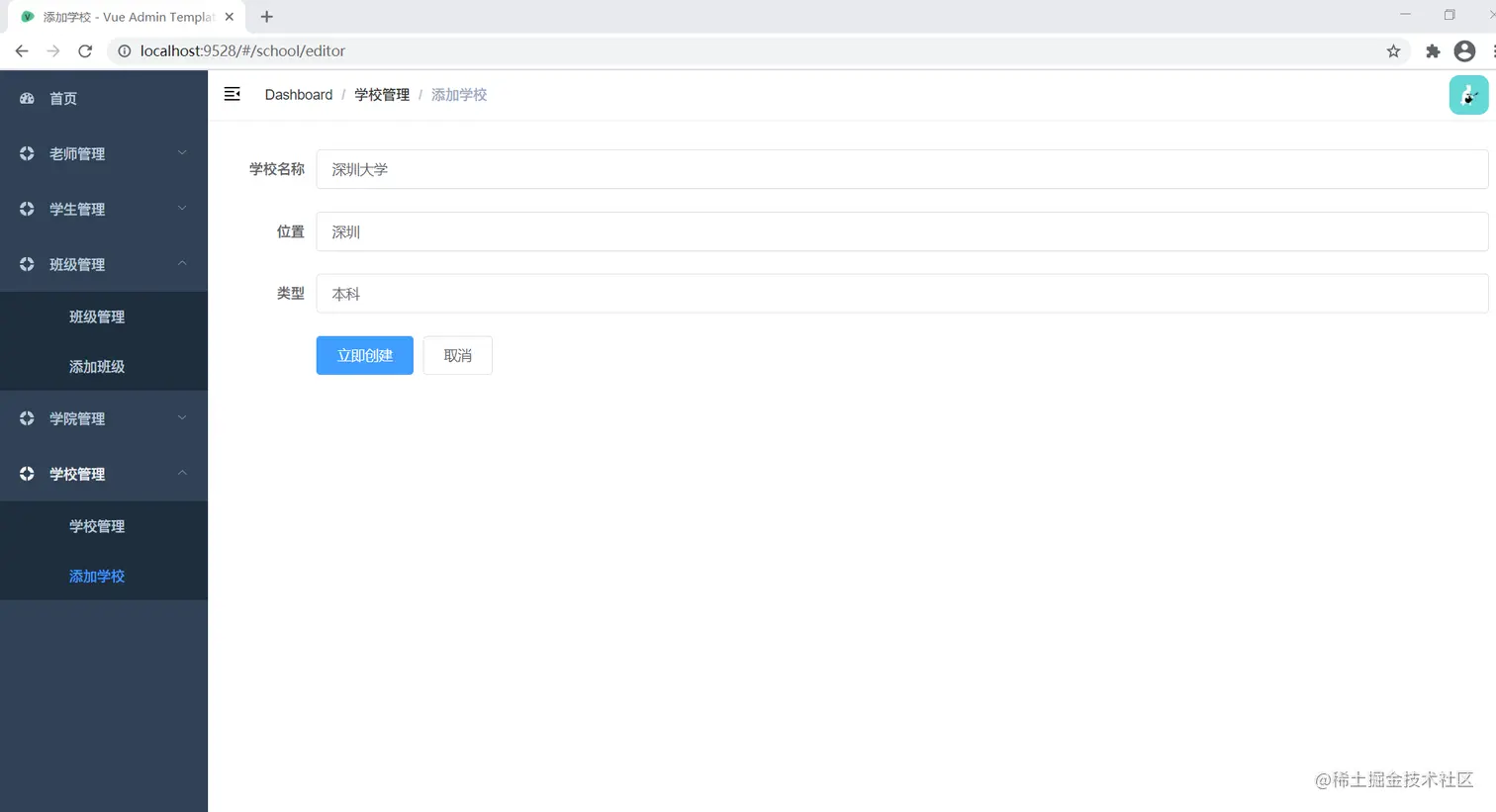

1.editor.vue为编辑文件，用于创建学校记录；

<template>
  <div class="dashboard-container">
    <el-form ref="form" :model="form" label-width="80px">
      <el-form-item label="学校名称">
        <el-input v-model="form.name"></el-input>
      </el-form-item>
      <el-form-item label="位置">
        <el-input v-model="form.where"></el-input>
      </el-form-item>
      <el-form-item label="类型">
        <el-input v-model="form.leixing"></el-input>
      </el-form-item>
      <el-form-item>
        <el-button type="primary" @click="onSubmit">立即创建</el-button>
        <el-button>取消</el-button>
      </el-form-item>

    </el-form>
  </div>
</template>

<script>
  import { mapGetters } from 'vuex'

  export default {
    name: 'school',
    computed: {
      ...mapGetters([
        'name'
      ])
    },
    data(){
      return{
        apiModel:'school',
        form:{}
      }
    },
    methods:{
      onSubmit(){
        console.log('222:', 222)
        if(this.form._id){
          this.$http.post(`/api/${this.apiModel}/update`,this.form).then(res => {
            console.log('bar:', res)
            this.$router.push({path:this.apiModel})
            this.form={}
          })
        }else
        {
          this.$http.post('/api/'+this.apiModel+'/add',this.form).then(res => {
            console.log('bar:', res)
            this.$router.push({path:this.apiModel})
            this.form={}
          })
        }
      }
    },
    mounted() {
      if(this.$route.query._id){
        this.$http.post('/api/'+this.apiModel+'/get',{_id:this.$route.query._id}).then(res => {
          if(res&&res.length>0){
            this.form = res[0]
          }
        })
      }
    }
  }
</script>

<style lang="scss" scoped>
  .dashboard {
    &-container {
      margin: 30px;
    }
    &-text {
      font-size: 30px;
      line-height: 46px;
    }
  }
</style>

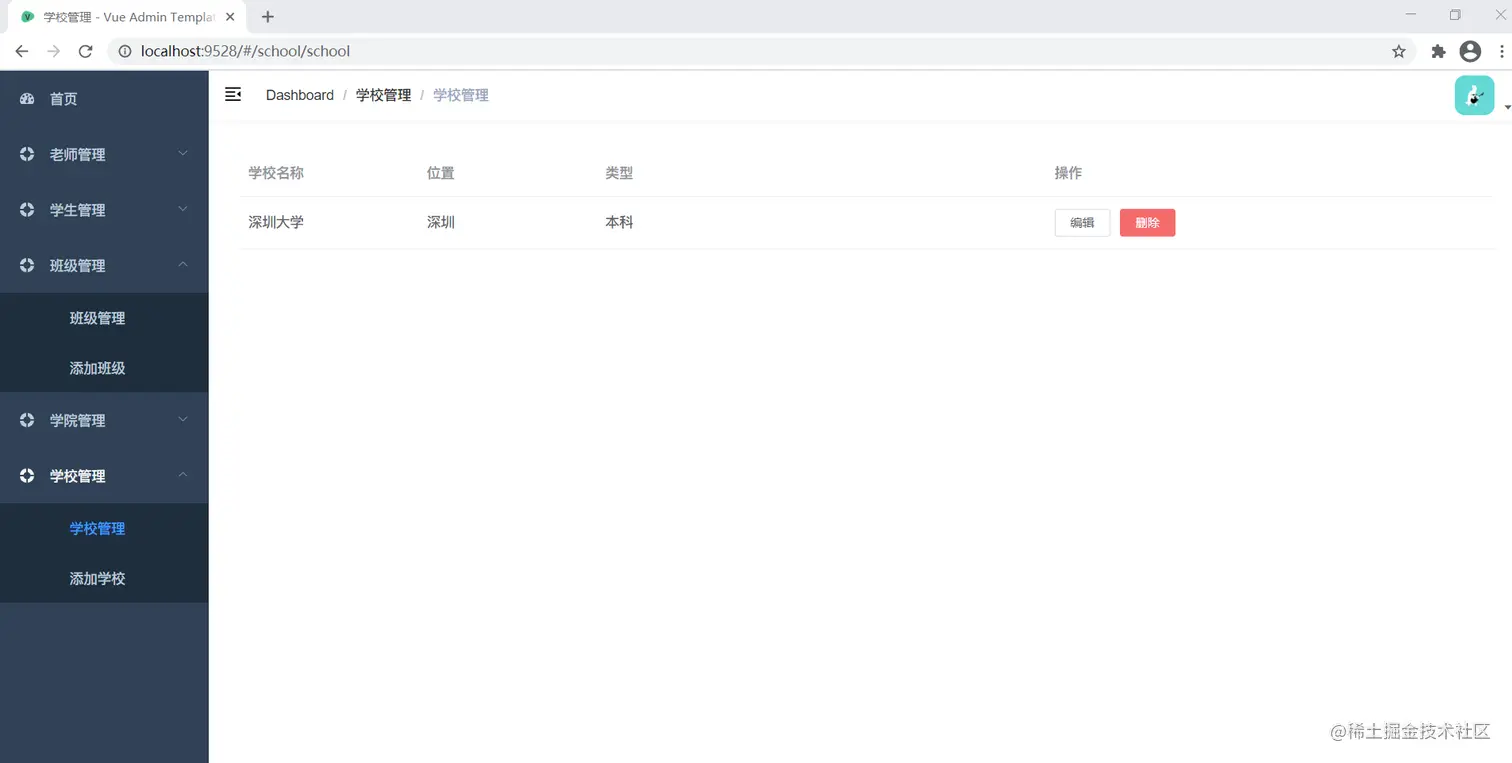

2.index.vue为目录文件，用于显示结果；

<template>
  <div class="dashboard-container">
    <el-table
      :data="users"
      style="width: 100%"
      :row-class-name="tableRowClassName">
<!--      <el-table-column-->
<!--        prop="_id"-->
<!--        label="学校_id"-->
<!--        width="180">-->
<!--      </el-table-column>-->
      <el-table-column
        prop="name"
        label="学校名称"
        width="180">
      </el-table-column>
      <el-table-column
        prop="where"
        label="位置"
        width="180">
      </el-table-column>
      <el-table-column
        prop="leixing"
        label="类型">
      </el-table-column>
      <el-table-column label="操作">
        <template slot-scope="scope">
          <el-button
            size="mini"
            @click="handleEdit(scope.$index, scope.row)">编辑
          </el-button>
          <el-button
            size="mini"
            type="danger"
            @click="handleDelete(scope.$index, scope.row)">删除
          </el-button>
        </template>
      </el-table-column>
    </el-table>
  </div>
</template>

<script>
  import { mapGetters } from 'vuex'

  export default {
    name: 'school',
    computed: {
      ...mapGetters([
        'name'
      ])
    },
    data() {
      return {
        apiModel:'school',
        users: {}
      }
    },
    methods: {
      onSubmit() {
        console.log(123434)
      },
      handleEdit(index, item) {
        this.$router.push({ path: '/'+this.apiModel+'/editor', query: {_id:item._id} })
      },
      handleDelete(index, item) {
        this.$http.post('/api/'+this.apiModel+'/delete', item).then(res => {
          console.log('res:', res)
          this.findUser()
        })

      },
      findUser(){
        this.$http.post('/api/'+this.apiModel+'/find', this.user).then(res => {
          console.log('res:', res)
          this.users = res
        })
      }
    },
    mounted() {
      this.findUser()
    }
  }
</script>

<style lang="scss" scoped>
  .dashboard {
    &-container {
      margin: 30px;
    }

    &-text {
      font-size: 30px;
      line-height: 46px;
    }
  }
</style>

3.在index.js中添加路由：

{
    path: '/school',
    component: Layout,
    meta: { title: '学校管理', icon: 'example' },
    redirect: 'school',
    children: [{
      path: 'school',
      name: 'school',
      component: () => import('@/views/school'),
      meta: { title: '学校管理', icon: 'school' }
    },
      {
        path: 'editor',
        name: 'editor',
        component: () => import('@/views/school/editor'),
        meta: { title: '添加学校', icon: 'school' }
      }]
  },

偷个懒其他组件都是一样构建组件

完成后！验证可交换就构建成功咯
具体代码地址 school-manager-admin 代码仓库：
gitee.com/xuqiangjie/…
