前言

个人学习过程中的记录，方便后续的复习，如果有错误或者更好的方法，希望大佬指出

路由跳转过程

页面的url变化（点击浏览器的箭头，直接输入地址，或者根据mode的不同，如history模式通过window.history.pushState,hash模式通过location.hash=xxxx来改变）被监听器监听到（window.addEventListener("popstate",function(){})或者window.onhashchange=function(){}）,需要注意的是pushState不会触发popstate事件，然后找到路由表中对应的路由，改变响应式的_route，最后通过RouterView组件渲染出来

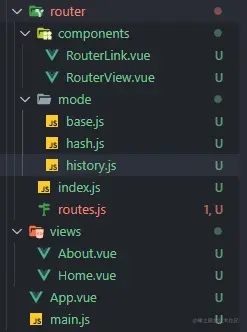

文件组成

hash和history有共同的方法，所以写一个base类，他们都可以继承base
routes.js是Router类 index.js则是使用router

RouterTable和Routers基础

先将RouterView和RouterLink变成全局组件，因为需要使用Vue.use()所以Router上面需要有一个install方法，RouterTable用来储存路由表，HistoryMode 则是history模式下相关的方法（为了更加直观，就不加上mode判断了）

import HistoryMode from "./mode/history";
import Vue from "vue";
import RouterView from "./components/RouterView.vue";
import RouterLink from "./components/RouterLink.vue";
Vue.component("RouterView", RouterView);
Vue.component("RouterLink", RouterLink);
class RouterTable {
  constructor(routes) {
    this.pathMap = new Map()
    this.init(routes)
  }
  init(routes) {
    const addRoute = (route) => {
      this.pathMap.set(route.path, route)
    }
    routes.forEach(route => addRoute(route))
  }
  math(path) {
    let find = this.pathMap.get(path)
    if (find) return find
  }
}

export default class Router {
  constructor({ routes = [] }) {
    this.routerTable = new RouterTable(routes)
    this.history = new HistoryMode()
  }

}

Router.install = () => {
  Vue.mixin({
    beforeCreate() {

    },
  });
};

history和hash模式的异同

搞清楚这两个模式有哪些异同，就知道了base hash history 这三个文件下面大概需要写那些东西,具体就不展开讲了，大概就是监听的方式不一致，获取url的方法不一样，跳转的处理不一样（但是跳转要改变的_route是一样的）

HistoryMode基础

先着重讲解history，hash只需要把上述不一样的地方改一改就可以了首先HistoryMode 的实例需要先调用监听方法，如果url变化，则需要获取url，并且调用跳转方法改变_route
transitionTo继承自BaseMode ，因为上面说了两种模式跳转页面都需要改变_route，这个方法可以直接写在BaseMode里面

import BaseMode from "./base";

export default class HistoryMode extends BaseMode {
  constructor(options) {
    super(options);
    this.initListener()
  }
  //监听
  initListener() {
    window.addEventListener('popstate', () => {
      this.transitionTo(this.getCurrentLocation())
    })
  }
  //获取url
  getCurrentLocation() {
    let path = window.location.pathname
    return path + window.location.search + window.location.hash
  }
}

BaseMode基础

那么怎么知道url改变的时候要改变那个实例上的_route呢，可以在install的时候，调用router实例中的init方法，传入一个回调，然后调用transitionTo的时候，调用回调，改变_route

export default class BaseMode {
//需要在Router中this.history = new HistoryMode()的时候将this传入
//this.history = new HistoryMode(this)
  constructor(router) {
    this.routerTable = router.routerTable
  }
  listen(cb) {
    this.cb = cb
  }
  transitionTo(route) {
  //跳转之前需要通过path获取路由信息，然后通过回调改变`_route`
    this.current =this.routerTable.math(route)
    this.cb(this.current)
  }
}

Router类中的init方法

  init(app) {
    const { history } = this
    history.listen((route) => {
      app._route = route
    })
  }

install

所有的vue component的_routerRoot、_router 都是一样的

vue router实例调用init方法，初始化

Router.install = () => {
  Vue.mixin({
    beforeCreate() {
      if (this.$options.router !== undefined) {
        this._routerRoot = this //可以让组件访问到vue实例以及上面的东西，如_router,_route
        this._router = this.$options.router
        this._router.init(this)
        Vue.util.defineReactive(this, '_route', this._router.history.current)
      } else {
        this._routerRoot = this.$parent && this.$parent._routerRoot || this
      }
    },
  });
};

RouterView

rener函数中获取当年路由信息，来渲染页面

<script>
export default {
  name: "RouterView",
  render() {
    const route = this._routerRoot._route;
    if (!route) return;
    const hook = {
      init(vnode) {
        route.instance = vnode.componentInstance;
      },
    };
    const { component } = route;
    return <component hook={hook} />;
  },
};
</script>

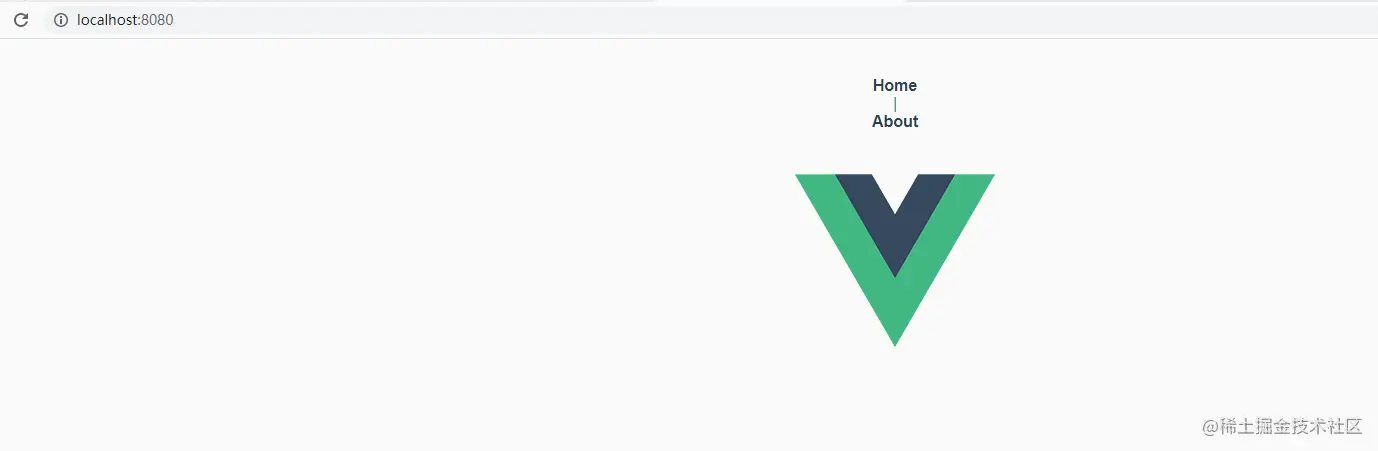

直接改变url展示

这个时候路由已经初具效果，可以通过改变url展示了

RouterLink

接下来要通过RouterLink改变，接下来就要写Router 上面的push方法

<template>
  <div>
    <a style="cursor: pointer" @click="jump">
      <slot></slot>
    </a>
  </div>
</template>

<script>
export default {
  props: {
    to: {
      type: String,
      required: true,
    },
  },
  data() {
    return {
      test: "123",
    };
  },
  methods: {
    jump(to) {
      const router = this._routerRoot._router;
      router.push(this.to);
    },
  },
};
</script>

Router补充

  push(to) {
    this.history.push(to)
  }

HistoryMode补充

  push(target) {
    this.transitionTo(target)
    window.history.pushState({ key: +new Date() }, "", target)
  }

完整演示

到这儿，history模式的低配版路由就写好了

HashMode

Router 中也需要进行少量的修改，这里就不贴代码了，可以优化成将mode作为参数传入，更具不同的mode进行不同的操作

import BaseHistory from "./base";
export default class HashHistory extends BaseHistory {
  constructor(options) {
    super(options)
    this.initListener()
  }
  initListener() {
    window.onhashchange = () => {
      this.transitionTo(this.getCurrentLocation())
    }
  }
  getCurrentLocation() {
    let path = decodeURI(window.location.hash) || "#/";
    let address = path.split('#')[1]
    //console.log(address, 'path')
    return address;
  }
  push(target) {
    this.transitionTo(target);
    window.location.hash = target
  }
}

路由导航守卫

全局守卫

//全局前置守卫
router.beforeEach((to, from, next) => {
  console.log("router.beforeEach", to, from);
  next();
});
//全局解析守卫
router.beforeResolve((to, from, next) => {
  console.log("router.beforeResolve", to, from);
  next();
});
//全局后置守卫
router.afterEach((to, from) => {
  console.log("router.afterEach", to, from);
});

路由独享守卫 beforeEnter

{
    path: "/",
    name: "Home",
    component: Home,
    beforeEnter: (to, from, next) => {
      console.log("/home.beforeEnter", to, from);
      next();
    },
  },

组件内守卫

组件类守卫就不写他的源码了

  beforeRouteEnter(to, from, next) {
    console.log("home-beforeRouteEnter", to, from);
    next();
  },
  beforeRouteUpdate(to, from, next) {
    console.log("home-beforeRouteUpdate", to, from);
    next();
  },
  beforeRouteLeave(to, from, next) {
    console.log("home-beforeRouteLeave", to, from);
    next();
  },

Router

写一个函数，触发全局路由守卫的时候调用这个函数，将需要执行的函数存入Hooks中

function registerHook(list, fn) {
  list.push(fn);
  return () => {
    let i = list.indexOf(fn);
    if (i > -1) list.splice(i, 1);
  };
}
export default class Router {
  constructor({ routes = [] }) {
   //......
    this.beforeHooks = [];
    this.resolveHooks = [];
    this.afterHooks = [];
  }
  beforeEach(fn) {
    registerHook(this.beforeHooks, fn);
  }
  beforeResolve(fn) {
    registerHook(this.resolveHooks, fn);
  }
  afterEach(fn) {
    registerHook(this.afterHooks, fn);
  }
}

BaseMode

因为路由守卫不管那个MODE都会有，所以在BaseMode中写相关方法
跳转的时候，先执行confirmTransition，在路由导航中进行确认，如果通过则执行onComplete，调用updateRoute，更新界面，执行afterEach，否则执行onAbort进行想要的操作

export default class BaseMode {
  constructor(router) {
    this.routerTable = router.routerTable;
    this.router = router;
  }
  listen(cb) {
    this.cb = cb;
  }
  transitionTo(target) {
    const route = this.routerTable.math(target);
    this.confirmTransition(route, () => {
      this.updateRoute(route);
    });
  }
  confirmTransition(route, onComplete, onAbort) {
   if (route == this.current) return;
  //由于路由导航传入的参数（函数）需要按顺序执行，所以将他们按执行顺序都放入一个数组中，使用类似迭代器来一次调用
    const queue = [
      ...this.router.beforeHooks,
      route.beforeEnter,
      ...this.router.resolveHooks,
    ];
    runQueue(queue, iterator, () => onComplete());
  }
  updateRoute(route) {
    let from = this.current;
    this.current = route;
    this.cb(this.current);
    this.router.afterHooks.forEach((hook) => {
      hook && hook(this.current, from);
    });
  }
}

runQueue

queue是传入的导航守卫传入的参数（函数）组成的数组，iter是一个类似迭代器的东西，end为queue里面所有函数执行完毕之后执行，更新路由，渲染页面

export function runQueue(queue, iter, end) {
  const step = (index) => {
    if (index >= queue.length) {
      end();
    } else {
      if (queue[index]) {
        iter(queue[index], () => {
          step(index + 1);
        });
      } else {
        step(index + 1);
      }
    }
  };
  step(0);
}

iterator

hook 就是beforeEach传入的参数(函数)，to 是route(接下来要跳转的页面)，from是this.current（离开的页面，此时this.current还没有更新，所以仍然是上一个页面的路由，next(beforeEach里的next)是一个回调，可以传false,error等参数，这里只演示false）

const iterator = (hook, next) => {
      hook(route,this.current,  (to) => {
        if (to === false) {
          onAbort && onAbort();
        } else {
          next();
        }
      });
    };

完整代码

BaseMode

import { runQueue } from "../../util/async";
export default class BaseMode {
  constructor(router) {
    this.routerTable = router.routerTable;
    this.router = router;
  }
  listen(cb) {
    this.cb = cb;
  }
  transitionTo(target) {
    const route = this.routerTable.math(target);
    this.confirmTransition(route, () => {
      this.updateRoute(route);
    });
  }
  confirmTransition(route, onComplete, onAbort) {
    if (route == this.current) return;
    const queue = [
      ...this.router.beforeHooks,
      route.beforeEnter,
      ...this.router.resolveHooks,
    ];
    const iterator = (hook, next) => {
      hook(this.current, route, (to) => {
        if (to === false) {
          onAbort && onAbort();
        } else {
          next();
        }
      });
    };
    runQueue(queue, iterator, () => onComplete());
  }
  updateRoute(route) {
    let from = this.current;
    this.current = route;
    this.cb(this.current);
    this.router.afterHooks.forEach((hook) => {
      hook && hook(this.current, from);
    });
  }
}

history和hash

import BaseMode from "./base";

export default class HistoryMode extends BaseMode {
  constructor(options) {
    super(options);
    this.initListener()
  }
  initListener() {
    window.addEventListener('popstate', () => {
      this.transitionTo(this.getCurrentLocation())
    })
  }
  getCurrentLocation() {
    let path = window.location.pathname
    return path + window.location.search + window.location.hash
  }
  push(target) {
    this.transitionTo(target)
    window.history.pushState({ key: +new Date() }, "", target)
  }
}

import BaseHistory from "./base";
export default class HashHistory extends BaseHistory {
  constructor(options) {
    super(options)
    this.initListener()
  }
  initListener() {
    window.onhashchange = () => {
      this.transitionTo(this.getCurrentLocation())
    }
  }
  getCurrentLocation() {
    let path = decodeURI(window.location.hash) || "#/";
    let address = path.split('#')[1]
    //console.log(address, 'path')
    return address;
  }
  push(target) {
    this.transitionTo(target);
    window.location.hash = target
  }
}

Router

import HistoryMode from "./mode/history";
import Vue from "vue";
import RouterView from "./components/RouterView.vue";
import RouterLink from "./components/RouterLink.vue";
Vue.component("RouterView", RouterView);
Vue.component("RouterLink", RouterLink);
class RouterTable {
  constructor(routes) {
    this.pathMap = new Map();
    this.init(routes);
  }
  init(routes) {
    const addRoute = (route) => {
      this.pathMap.set(route.path, route);
    };
    routes.forEach((route) => addRoute(route));
  }
  math(path) {
    let find = this.pathMap.get(path);
    if (find) return find;
  }
}
function registerHook(list, fn) {
  list.push(fn);
  return () => {
    let i = list.indexOf(fn);
    if (i > -1) list.splice(i, 1);
  };
}
export default class Router {
  constructor({ routes = [] }) {
    this.routerTable = new RouterTable(routes);
    this.history = new HistoryMode(this);
    this.beforeHooks = [];
    this.resolveHooks = [];
    this.afterHooks = [];
  }
  init(app) {
    const { history } = this;
    history.listen((route) => {
      app._route = route;
    });
    history.transitionTo(history.getCurrentLocation());
  }
  push(to) {
    this.history.push(to);
  }
  beforeEach(fn) {
    registerHook(this.beforeHooks, fn);
  }
  beforeResolve(fn) {
    registerHook(this.resolveHooks, fn);
  }
  afterEach(fn) {
    registerHook(this.afterHooks, fn);
  }
}

Router.install = () => {
  Vue.mixin({
    beforeCreate() {
      if (this.$options.router !== undefined) {
        this._routerRoot = this;
        this._router = this.$options.router;
        this._router.init(this);
        Vue.util.defineReactive(this, "_route", this._router.history.current);
      } else {
        this._routerRoot = (this.$parent && this.$parent._routerRoot) || this;
      }
    },
  });
};

rouerLink 和routerView

<template>
  <div>
    <a style="cursor: pointer" @click="jump">
      <slot></slot>
    </a>
  </div>
</template>

<script>
export default {
  name: "RouterLink",
  props: {
    to: {
      type: String,
      required: true,
    },
  },
  data() {
    return {
      test: "123",
    };
  },
  methods: {
    jump() {
      const router = this._routerRoot._router;
      router.push(this.to);
    },
  },
};
</script>

<script>
export default {
  name: "RouterView",
  render() {
    const route = this._routerRoot._route;
    if (!route) return;
    const { component } = route;
    return <component />;
  },
};
</script>

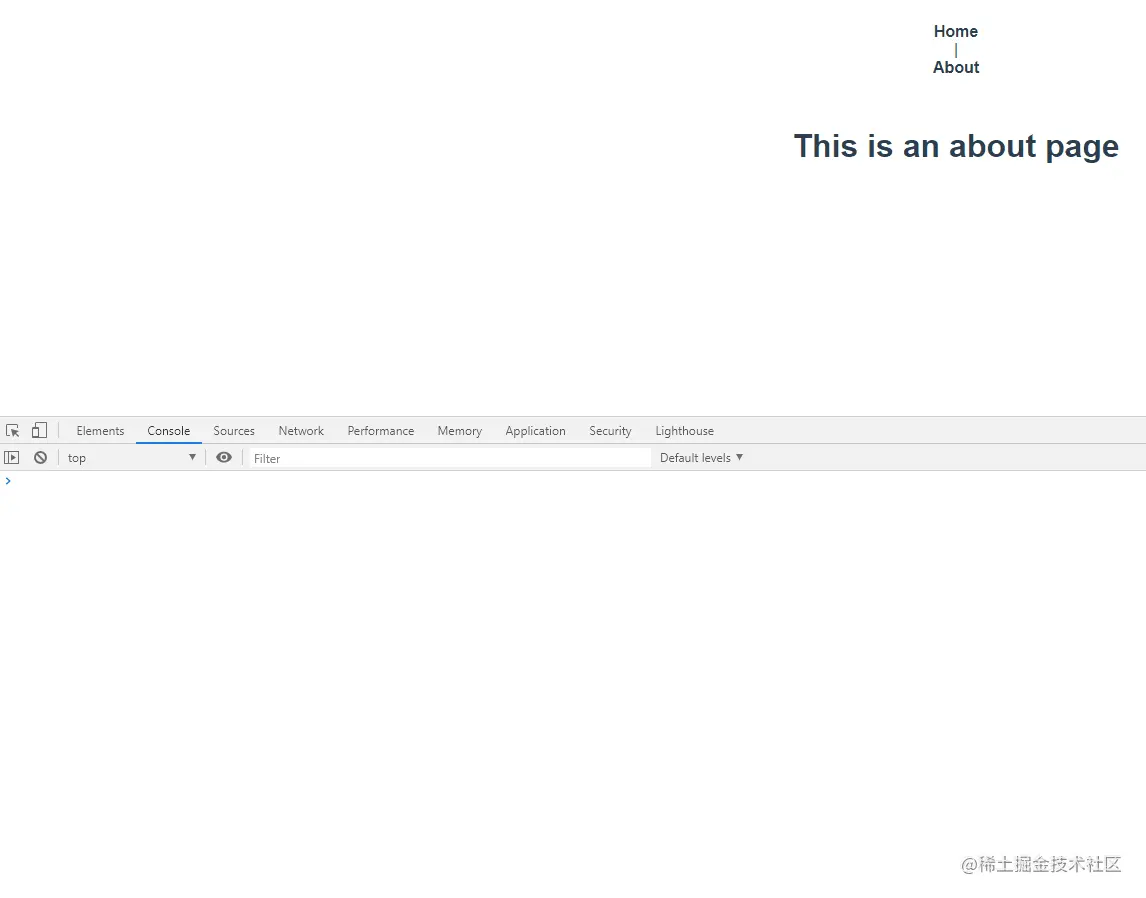

效果

结言

低配版的路由源码到此结束，部分是我自己的理解，可能有些许错误，希望看到的大佬不吝赐教

手写vue-Router源码

前言

路由跳转过程

文件组成

RouterTable和Routers基础

history和hash模式的异同

HistoryMode基础

BaseMode基础

Router类中的init方法

install

RouterView

直接改变url展示

RouterLink

Router补充

HistoryMode补充

完整演示

HashMode

路由导航守卫

全局守卫

路由独享守卫 beforeEnter

组件内守卫

Router

BaseMode

runQueue

iterator

完整代码

BaseMode

history和hash

Router

rouerLink 和routerView

效果

结言
