前言
- GALLERY -- 社区Demo
- Echarts 中文文档
- "echarts": "^4.9.0"
安装
npm install echarts --save
开始
Mock 数据
先准备一份 mock 数据（结构自定）：
/*
* 1. 有多条航线；
* 2. 且有出发地、目的地；
*/
const mockData = [
{
departData: {
name: '成都双流国际',
city: '成都',
country: { name: '中国', code: 'CN' },
coordinates: {
longitude: 103.9468994140625,
latitude: 30.57830047607422,
},
},
arriveData: {
name: '旧金山国际机场',
city: '旧金山',
country: { name: '美国', code: 'US' },
coordinates: {
longitude: -122.37529754638672,
latitude: 37.61859893798828,
},
},
},
{
departData: {
name: '成田国际',
city: '东京',
country: { name: '日本', code: 'JP' },
coordinates: {
longitude: 140.38560485839844,
latitude: 35.76530075073242,
},
},
arriveData: {
name: '巴黎戴高乐国际',
city: '巴黎',
country: { name: '法国', code: 'FR' },
coordinates: {
longitude: 2.547800064086914,
latitude: 49.009700775146484,
},
},
},
{
departData: {
name: '上海浦东',
city: '上海',
country: { name: '中国', code: 'CN' },
coordinates: {
longitude: 121.79219818115234,
latitude: 31.14389991760254,
},
},
arriveData: {
name: '台湾桃园国际',
city: '中国台北',
country: { name: '中国', code: 'CN' },
coordinates: {
longitude: 121.2322006225586,
latitude: 25.080299377441406,
},
},
},
{
departData: {
name: '成都双流国际',
city: '成都',
country: { name: '中国', code: 'CN' },
coordinates: {
longitude: 103.9468994140625,
latitude: 30.57830047607422,
},
},
arriveData: {
name: '上海浦东',
city: '上海',
country: { name: '中国', code: 'CN' },
coordinates: {
longitude: 121.79219818115234,
latitude: 31.14389991760254,
},
},
},
{
departData: {
name: '拉萨贡嘎国际',
city: '拉萨',
country: { name: '中国', code: 'CN' },
coordinates: {
longitude: 90.91220092773438,
latitude: 29.298099517822266,
},
},
arriveData: {
name: '布达佩斯李斯特•费伦茨国际',
city: '布达佩斯',
country: { name: '匈牙利', code: 'HU' },
coordinates: {
longitude: 19.233299255371094,
latitude: 47.43330001831055,
},
},
},
];
Page
详细信息请看标注（更多的参数请看官方配置表）：
import { useEffect } from 'react'; // React v17.0 不需要导入 React
import echarts from 'echarts';
import geoJson from 'echarts/map/json/world.json'; // 导入世界地图，该目录下还有很多地图，可自行查看
import './App.css';
const planePath =
'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z'; // 小飞机的图片，可更换
function App() {
useEffect(() => {
const echartsConDom = document.getElementById('echarts-container');
const myChart = echarts.init(echartsConDom); // 初始化
echarts.registerMap('world', geoJson);
// const IMG = myChart.getDataURL(); // 截图
// console.log(IMG);
// 将数据整理成 echarts 需要的格式结构
const convertData = (data) => {
const { departData, arriveData } = data;
const newData = [];
const obj = {
fromName: departData.name,
toName: arriveData.name,
coords: [
[departData.coordinates.longitude, departData.coordinates.latitude],
[arriveData.coordinates.longitude, arriveData.coordinates.latitude],
],
};
newData.push(obj);
return newData;
};
const series = [];
mockData.forEach((item, index) => {
const { departData, arriveData } = item;
series.push(
// 起点（按需求可省略）
{
name: departData.city,
type: 'effectScatter', // 指明图表类型
coordinateSystem: 'geo', // 指明绘制在geo坐标系上
zlevel: 2,
rippleEffect: {
brushType: 'stroke', // 波纹的绘制方式
},
label: {
show: false,
position: 'right',
formatter: '{b}',
},
// symbolSize: function(val) {
// return val[2] / 8;
// },
symbolSize: 6,
itemStyle: {
color: '#a6c84c',
},
data: [
{
name: departData.name,
value: [
departData.coordinates.longitude,
departData.coordinates.latitude,
],
},
],
},
// 线路
{
name: departData.name,
type: 'lines',
zlevel: 1,
effect: {
show: true,
period: 6,
trailLength: 0.7,
color: '#fff',
symbolSize: 3,
},
lineStyle: {
normal: {
color: '#a6c84c',
width: 0,
curveness: 0.2,
},
},
data: convertData(item),
},
// 轨迹图标
{
name: `${departData.name}=>${arriveData.name}`,
type: 'lines',
zlevel: 2,
symbol: ['none', 'arrow'],
symbolSize: 8,
effect: {
show: true,
period: 6,
trailLength: 0,
symbol: planePath,
symbolSize: 15,
},
lineStyle: {
color: '#a6c84c',
width: 1,
opacity: 0.6,
curveness: 0.2,
},
data: convertData(item),
},
// 终点
{
name: arriveData.city,
type: 'effectScatter',
coordinateSystem: 'geo',
zlevel: 2,
rippleEffect: {
brushType: 'stroke',
},
label: {
show: false,
position: 'right',
formatter: '{b}',
},
// symbolSize: function (val) {
// console.log(val,'vvvvla')
// return val[2] / 8;
// },
symbolSize: 6,
itemStyle: {
color: '#a6c84c',
},
data: [
{
name: arriveData.name,
value: [
arriveData.coordinates.longitude,
arriveData.coordinates.latitude,
],
},
],
}
);
});
const option = {
title: {

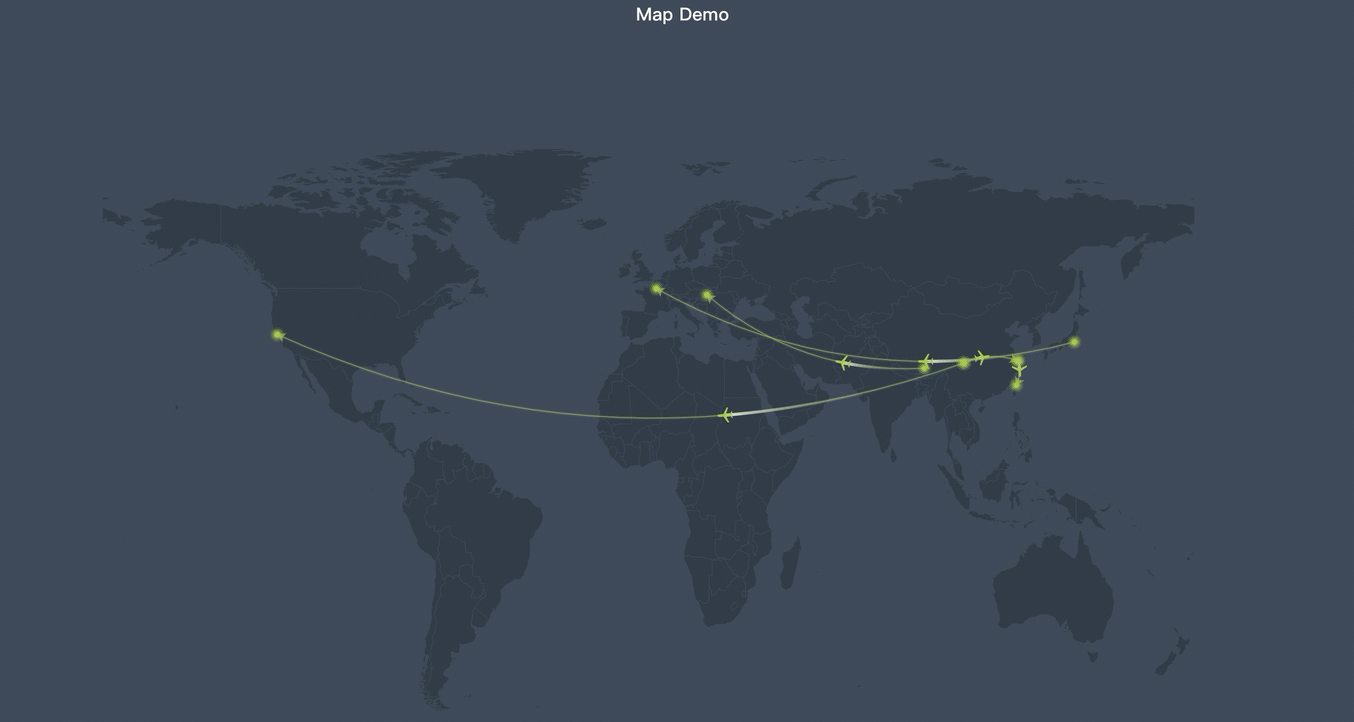

text: 'Map Demo',
left: 'center',
textStyle: {
color: '#fff',
},
},
backgroundColor: '#404a59',
geo: {
map: 'world', // 地图选择
silent: true, // 禁止图形响应鼠标事件
itemStyle: {
color: '#323c48', // 背景颜色
borderColor: '#404a59', // 边框颜色
},
label: {
show: false,
},
roam: true, // 是否开启鼠标缩放和平移漫游
emphasis: {
label: {
show: true,
},
itemStyle: {
color: '#2a333d',
},
},
},
tooltip: {
// alwaysShowContent: true, // 提示框总是显示（不再是鼠标离开就消失）
// enterable: true, // 允许提示框被点击
formatter: function(params) {
// const value = params.value;
// const a =
// '<br> <a href="http://www.baidu.com" style="color: red">查看详情</a>';
// return params.name + ': ' + value[2] + a;
return `${params.name}`;
},
}, // 配置提示框
series: series,
};
myChart.setOption(option);
}, []);
return (
<div className='App'>
<div id='echarts-container'></div>
</div>
);
}
export default App;
Happy Hacking!!! 🧑💻🧑💻🧑💻
