vue.js 3.0响应式系统原理实现

1）Vue.js 响应式回顾

• Proxy 对象实现属性监听
• 多层属性嵌套，在访问属性过程中处理下一级属性
• 默认监听动态添加的属性
• 默认监听属性的删除操作
• 默认监听数组索引和 length 属性
• 可以作为单独的模块使用

2）Proxy

'use strict'
    // 问题1： set 和 deleteProperty 中需要返回布尔类型的值
    //        在严格模式下，如果返回 false 的话会出现 Type Error 的异常
    const target = {
      foo: 'xxx',
      bar: 'yyy'
    }
    // Reflect.getPrototypeOf()
    // Object.getPrototypeOf()
    const proxy = new Proxy(target, {
      // 访问
      // receiver 表示当前的 proxy 对象或者继承的 proxy对象
      get (target, key, receiver) {
        // return target[key]
        // Reflect(用来操作对象的成员) 反射 es6中新增的成员 代码运行期间用来获取或者设置对象的成员
        // https://developer.mozilla.org/zh-CN/docs/Web/JavaScript/Reference/Global_Objects/Reflect
        return Reflect.get(target, key, receiver)
      },
      // 赋值
      set (target, key, value, receiver) {
        // target[key] = value
        return Reflect.set(target, key, value, receiver)
      },
      // 删除
      deleteProperty (target, key) {
        // delete target[key]
        return Reflect.deleteProperty(target, key)
      }
    })

    proxy.foo = 'zzz'
    // delete proxy.foo

    // 问题2：Proxy 和 Reflect 中使用的 receiver

    // Proxy 中 receiver：Proxy 或者继承 Proxy 的对象
    // Reflect 中 receiver：如果 target 对象中设置了 getter，getter 中的 this 指向 receiver

    const obj = {
      get foo() {
        console.log(this)
        return this.bar
      }
    }

    const proxy = new Proxy(obj, {
      get (target, key, receiver) {
        if (key === 'bar') {
          return 'value - bar'
        }
        return Reflect.get(target, key, receiver)
      }
    })
    console.log(proxy.foo)

3）reactive

• 接收一个参数，判断这参数是否是对象
• 创建拦截器对象 handler, 设置 get/set/deleteProperty
• 返回 Proxy 对象

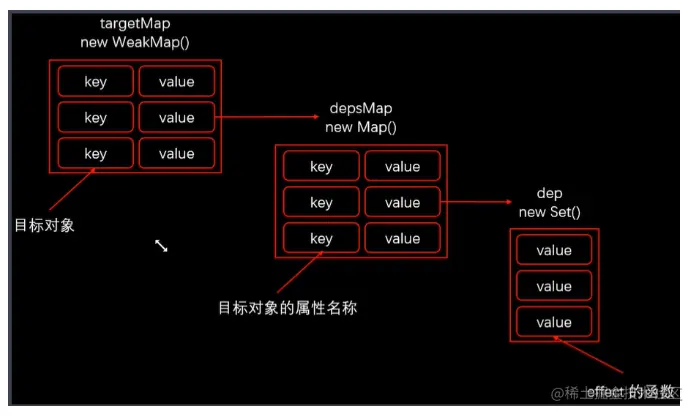

4）收集依赖

5）effect / track / trigger

• effect 跟踪属性变化并调用回调函数

• tarck 收集依赖

• trigger 触发更新

6）ref

把一个基本数据类型数据，转成响应式对象，后续通过 .value 使用

7）reactive vs ref

• ref 可以把基本数据类型数据，转成响应式对象
• ref 返回的对象，重新赋值成对象也是响应式的
• reactive 返回的对象，重新赋值丢失响应式
• reactive 返回的对象不可以解构

8）toRefs

将reactive()创建出来的响应式对象，转换为普通对象，只不过这个对象上的每个属性节点，都是ref()类型的响应式数据

9）实现代码

// index.js
// 判断是否是对象
const isObject = val => val!==null && typeof val ==='object'
// 判断是否是对象，如果是转换成响应式对象，不是则返回本身
const convert = target => isObject(target) ? reactive(target) : target
// 判断某个对象本身是否具有指定的属性
const hasOwnProperty = Object.prototype.hasOwnProperty
const hasOwn = (target, key) => hasOwnProperty.call(target, key)

export function reactive (target) {
    if(!isObject(target)) return target

    //
    const handler = {
        get (target, key, receiver) {
            // 收集依赖
            // console.log('get', target)
            track(target, key)

            const result = Reflect.get(target, key, receiver)

            return convert(result)
        },

        set (target, key, value, receiver) {
            const oldValue = Reflect.get(target, key, receiver)
            let result = true
            if (oldValue !== value) {
                result = Reflect.set(target, key, value, receiver)
                // 触发更新
                // console.log('set', key, value)
                trigger(target, key)
            }

            return result
        },

        deleteProperty (target, key) {
            const hadKey = hasOwn(target, key)
            const result = Reflect.deleteProperty(target, key)
            if (hadKey && result) {
                //触发更新
                // console.log('delete', key)
                trigger(target, key)
            }

            return result
        }
    }

    return new Proxy(target, handler)
}

let activeEffect = null
export function effect (callback) {
    activeEffect = callback
    callback()   // 访问响应式对象属性，去收集依赖
    activeEffect = null
}

let targetMap = new WeakMap()

// 收集依赖
export function track (target, key) {
    if (!activeEffect) return
    let depsMap = targetMap.get(target)
    if (!depsMap) {
        targetMap.set(target, (depsMap = new Map()))
    }
    let dep = depsMap.get(key)
    if (!dep) {
        depsMap.set(key, (dep = new Set()))
    }

    dep.add(activeEffect)
}

// 触发更新
export function trigger (target, key) {
    // console.log("🚀 ~ file: index.js ~ line 79 ~ trigger ~ target", target)
    // console.log("🚀 ~ file: index.js ~ line 87 ~ trigger ~ targetMap", targetMap)
    const depsMap = targetMap.get(target)

    // console.log("🚀 ~ file: index.js ~ line 80 ~ trigger ~ depsMap", depsMap)
    if (!depsMap) return
    const dep = depsMap.get(key)
    if (dep) {
        dep.forEach(effect => {
            effect()
        })
    }
}

export function ref (raw) {
    // 判断 raw 是否是 ref 创建的对象，如果是的话直接返回
    if (isObject(raw) && raw.__v_isRef) {
        return
    }

    // raw 如果是对象，调用 reactive 转换成响应式对象
    let value = convert(raw)

    const r = {
        __v_isRef: true,
        get value () {
            track(r, 'value')
            return value
        },
        set value (newValue) {
            if (newValue !== value) {
                raw = newValue
                value = convert(raw)
                trigger(r, 'value')
            }
        }
    }
    return r
}

export function toRefs (proxy) {
    const ret = proxy instanceof Array ? new Array(proxy.length) : {}

    for (const key in proxy) {
        ret[key] = toProxyRef(proxy, key)
    }

    return ret
}

function toProxyRef (proxy, key) {
    const r = {
        __v_isRef: true,
        get value () {
            return proxy[key]
        },
        set value (newValue) {
            proxy[key] = newValue
        }
    }
    return r
}

export function computed (getter) {
    const result = ref()

    // effect(() => (result.value = getter()))
    effect(() => result.value = getter())


    return result
}

10）测试代码

index.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
</head>
<body>
    <script type="module">
        import { reactive } from './index.js'

        const obj = reactive({
            name: 'xcc',
            age: 18
        })

        obj.name = 'nopear'
        delete obj.age
        console.log(obj)
    </script>
</body>
</html>

effect-demo.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
</head>
<body>
  <script type="module">
    // import { reactive, effect } from './node_modules/@vue/reactivity/dist/reactivity.esm-browser.js'
    import { reactive, effect } from './index.js'

    const product = reactive({
      name: 'iPhone',
      price: 5000,
      count: 3
    })
    let total = 0
    effect(() => {
        // console.log(111)
      total = product.price * product.count
    })
    console.log(total)

    product.price = 4000
    console.log(total)

    product.count = 1
    console.log(total)

  </script>
</body>
</html>

ref.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
</head>
<body>
  <script type="module">
    import { reactive, effect, ref } from './index.js'

    const price = ref(5000)
    const count = ref(3)

    let total = 0
    effect(() => {
      total = price.value * count.value
    })
    console.log(total)

    price.value = 4000
    console.log(total)

    count.value = 1
    console.log(total)

  </script>
</body>
</html>

toRefs.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
</head>
<body>
  <script type="module">
    import { reactive, effect, toRefs } from './index.js'

    function useProduct () {
      const product = reactive({
        name: 'iPhone',
        price: 5000,
        count: 3
      })

      return toRefs(product)
    }

    const { price, count } = useProduct()


    let total = 0
    effect(() => {
      total = price.value * count.value
    })
    console.log(total)

    price.value = 4000
    console.log(total)

    count.value = 1
    console.log(total)

  </script>
</body>
</html>

computed.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Document</title>
</head>
<body>
  <script type="module">
    import { reactive, effect, computed } from './index.js'

    const product = reactive({
      name: 'iPhone',
      price: 5000,
      count: 3
    })
    let total = computed(() => {
      return product.price * product.count
    })

    console.log(total.value)

    product.price = 4000
    console.log(total.value)

    product.count = 1
    console.log(total.value)

  </script>
</body>
</html>
