相信大家对Redis的expire命令都不陌生，日常工作中都使用过。但是大家了解expire的工作原理吗？ 今天我们就来简单讲解一下expire命令的实现和工作原理。之所以和Redis的缓存淘汰机制一起讨论，是因为很多人把他们搞混淆了，之后我们会详细说明的。
过期机制
> expire mykey 1000
当我们这样操作时，就为mykey设置了1000s的过期时间。Redis将这个key保存在服务端db的expires字典项中。
/* EXPIRE key seconds */
void expireCommand(client *c) {
expireGenericCommand(c,mstime(),UNIT_SECONDS);
}
void expireGenericCommand(client *c, long long basetime, int unit) {
...
/* EXPIRE with negative TTL, or EXPIREAT with a timestamp into the past
* should never be executed as a DEL when load the AOF or in the context
* of a slave instance.
*
* Instead we take the other branch of the IF statement setting an expire
* (possibly in the past) and wait for an explicit DEL from the master. */
// 从实例，并且已过期（如从AOF或RDB文件中初始化数据），改为删除命令，删除该key
if (when <= mstime() && !server.loading && !server.masterhost) {
...
} else {
setExpire(c,c->db,key,when);
...
}
...
}
1000s后，这个key就过期了，我们将访问不到这个key对应的值。 如果1000s后，key过期了，虽然我们访问不到了，但是，数据还在内存中吗？Redis已经将这条数据从内存中释放了吗？
Redis对过期的key有俩种处理方式，主动删除和被动删除。被动删除是指用户读取这个key时，判断这个key是否过期，如果过期了，则删除这个key，返回给客户端null。但是如果这个过期的key一直没人访问，难道这个key就一直在内存中吗？不是的，Redis有个定时任务，主动删除这个过期的key。
被动删除key
对Redis中的数据进行读、写操作时（覆盖操作除外，例如set），都会调用expireIfNeeded函数，判断key是否过期，如果key过期，在master节点，则删除，并向从节点、AOF文件发送del或unlink命令，然后返回null。如果是从节点，则直接返回null。
/* This function is called when we are going to perform some operation
* in a given key, but such key may be already logically expired even if
* it still exists in the database. The main way this function is called
* is via lookupKey*() family of functions.
*
* The behavior of the function depends on the replication role of the
* instance, because slave instances do not expire keys, they wait
* for DELs from the master for consistency matters. However even
* slaves will try to have a coherent return value for the function,
* so that read commands executed in the slave side will be able to
* behave like if the key is expired even if still present (because the
* master has yet to propagate the DEL).
*
* In masters as a side effect of finding a key which is expired, such
* key will be evicted from the database. Also this may trigger the
* propagation of a DEL/UNLINK command in AOF / replication stream.
*
* The return value of the function is 0 if the key is still valid,
* otherwise the function returns 1 if the key is expired. */
int expireIfNeeded(redisDb *db, robj *key) {
// key是否已过期，如果未过期，返回0
if (!keyIsExpired(db,key)) return 0;
/* If we are running in the context of a slave, instead of
* evicting the expired key from the database, we return ASAP:
* the slave key expiration is controlled by the master that will
* send us synthesized DEL operations for expired keys.
*
* Still we try to return the right information to the caller,
* that is, 0 if we think the key should be still valid, 1 if
* we think the key is expired at this time. */
if (server.masterhost != NULL) return 1;
/* Delete the key */
server.stat_expiredkeys++;
// 持久化、主从复制时，过期键的处理
propagateExpire(db,key,server.lazyfree_lazy_expire);
notifyKeyspaceEvent(NOTIFY_EXPIRED,
"expired",key,db->id);
// 删除过期的key
return server.lazyfree_lazy_expire ? dbAsyncDelete(db,key) :
dbSyncDelete(db,key);
}
代码注释写得很清楚了，逻辑也很简单，就不再赘述了。
主动删除key
Redis启动时，会初始化定时任务，
/* Create the timer callback, this is our way to process many background
* operations incrementally, like clients timeout, eviction of unaccessed
* expired keys and so forth. */
// 设置后台定时器事件，事件句柄为serverCron()
if (aeCreateTimeEvent(server.el, 1, serverCron, NULL, NULL) == AE_ERR) {
serverPanic("Can't create event loop timers.");
exit(1);
}
任务句柄为serverCron函数，每毫秒执行一次定时任务。
/* This is our timer interrupt, called server.hz times per second.
* Here is where we do a number of things that need to be done asynchronously.
* For instance:
*
* - Active expired keys collection (it is also performed in a lazy way on
* lookup).
* - Software watchdog.
* - Update some statistic.
* - Incremental rehashing of the DBs hash tables.
* - Triggering BGSAVE / AOF rewrite, and handling of terminated children.
* - Clients timeout of different kinds.
* - Replication reconnection.
* - Many more...
*
* Everything directly called here will be called server.hz times per second,
* so in order to throttle execution of things we want to do less frequently
* a macro is used: run_with_period(milliseconds) { .... }
*/
int serverCron(struct aeEventLoop *eventLoop, long long id, void *clientData) {
...
/* Handle background operations on Redis databases. */
databasesCron();
...
// redis.conf中server.hz默认值为10，每秒执行10次
return 1000/server.hz;
}
# Redis calls an internal function to perform many background tasks, like
# closing connections of clients in timeout, purging expired keys that are
# never requested, and so forth.
#
# Not all tasks are performed with the same frequency, but Redis checks for
# tasks to perform according to the specified "hz" value.
#
# By default "hz" is set to 10. Raising the value will use more CPU when
# Redis is idle, but at the same time will make Redis more responsive when
# there are many keys expiring at the same time, and timeouts may be
# handled with more precision.
#
# The range is between 1 and 500, however a value over 100 is usually not
# a good idea. Most users should use the default of 10 and raise this up to
# 100 only in environments where very low latency is required.
hz 10
/* This function handles 'background' operations we are required to do
* incrementally in Redis databases, such as active key expiring, resizing,
* rehashing. */
void databasesCron(void) {
/* Expire keys by random sampling. Not required for slaves
* as master will synthesize DELs for us. */
if (server.active_expire_enabled) {
if (server.masterhost == NULL) {
// 主实例(master)
activeExpireCycle(ACTIVE_EXPIRE_CYCLE_SLOW);
} else {
// 从实例(slave)
expireSlaveKeys();
}
}
...
}
activeExpireCycle函数执行过期缓存清理工作，
/* Try to expire a few timed out keys. The algorithm used is adaptive and
* will use few CPU cycles if there are few expiring keys, otherwise
* it will get more aggressive to avoid that too much memory is used by
* keys that can be removed from the keyspace.
*
* No more than CRON_DBS_PER_CALL databases are tested at every
* iteration.
*
* This kind of call is used when Redis detects that timelimit_exit is
* true, so there is more work to do, and we do it more incrementally from
* the beforeSleep() function of the event loop.
*
* Expire cycle type:
*
* If type is ACTIVE_EXPIRE_CYCLE_FAST the function will try to run a
* "fast" expire cycle that takes no longer than EXPIRE_FAST_CYCLE_DURATION
* microseconds, and is not repeated again before the same amount of time.
*
* If type is ACTIVE_EXPIRE_CYCLE_SLOW, that normal expire cycle is
* executed, where the time limit is a percentage of the REDIS_HZ period
* as specified by the ACTIVE_EXPIRE_CYCLE_SLOW_TIME_PERC define. */
void activeExpireCycle(int type) {
/* We can use at max ACTIVE_EXPIRE_CYCLE_SLOW_TIME_PERC percentage of CPU time
* per iteration. Since this function gets called with a frequency of
* server.hz times per second, the following is the max amount of
* microseconds we can spend in this function. */
// 1000000*25/10/100=25000微秒
timelimit = 1000000*ACTIVE_EXPIRE_CYCLE_SLOW_TIME_PERC/server.hz/100;
...
/* Continue to expire if at the end of the cycle more than 25%
* of the keys were expired. */
do {
...
// num <= 20
while (num--) {
...
// 从db->expires中获取任意一个key
if ((de = dictGetRandomKey(db->expires)) == NULL) break;
ttl = dictGetSignedIntegerVal(de)-now;
// 判断这个key是否已过期，如果已过期，向AOF文件、从节点发送unlink活del命令，然后删除该key数据
if (activeExpireCycleTryExpire(db,de,now)) expired++;
...
}
/* We don't repeat the cycle if there are less than 25% of keys
* found expired in the current DB. */
} while (expired > ACTIVE_EXPIRE_CYCLE_LOOKUPS_PER_LOOP/4);
}
大体逻辑是这样的：
每秒执行10次过期key清理操作：
- 从所有设置过期时间的key中，任意筛选20个可以（db->expires字典项中任意获取20个key）
- 删除过期的key
- 如果超过25%的key过期了，从步骤1重新开始。
这个算法基于概率实现的，并没有将所有的过期key都删除，防止线程阻塞，导致客户端响应变慢。如果主动删除漏了某个过期的key，没事，还有被动删除呢。如果被动删除也漏了，还有下面说的缓存淘汰机制呢。缓存淘汰机制也是基于概率算的，也可能有遗漏，具体下面会讲解，这是Redis为了高效、快速响应而做的牺牲。
一些小知识点
1. 系统时间不准确 比如我在主实例中：
> expire mykey 1000
然后从实例的系统时间往前调2000s，这个key同步到从实例时，Redis任务它过期了，从实例中就没有这个key了。Redis的时间都是基于服务器时间。
2. 过期时间清除
只有删除或覆盖键内容的命令（包括DEL，SET，GETSET和所有* STORE命令）才能清除过期时间。 这意味着所有在概念上更改存储在键上的值，而不用新键替换的操作都将保持过期时间不变。 例如，使用INCR递增键的值，使用LPUSH将新值推入列表或使用HSET更改哈希的字段值都是使超时保持不变的操作。
>lpush mylist q
"1"
>expire mylist 1000
"1"
>ttl mylist
"997"
>lpush mylist w
"2"
>ttl mylist
"985"
>set mykey a
"OK"
>expire mykey 1000
"1"
>ttl mykey
"990"
>set mykey b
"OK"
>ttl mykey
"-1"
缓存淘汰
Redis的数据都是保存在内存中的，内存不是无限的，总有用完的时候。当达到内存阈值时，Redis就会启动缓存淘汰策略，清理一部分内存。常用的缓存淘汰算法有LRU，在4.0版本时新增了LFU算法。
淘汰策略配置
1. maxmemory内存大小限制
redis.conf文件中配置：
maxmemory 100mb
或者Redis在运行时，使用CONFIG SET命令：
> config set maxmemory 100mb
2. 设置maxmemory-policy
Redis4.0之后有8种缓存淘汰配置：
- volatile-lru 使用LRU算法，从设置过期时间的key中选择淘汰数据
- allkeys-lru 使用LRU算法，从所有key中选择（推荐）
- volatile-lfu 使用LFU算法，从设置过期时间的key中选择
- allkeys-lfu 使用LFU算法，从所有key中选择（4.0版本以上推荐）
- volatile-random 从设置过期时间的key中随机选择
- allkeys-random 从所有key中随机选择
- volatile-ttl 将要过期的，ttl最小的数据
- noeviction 不淘汰数据，内存不够时，报错
为什么推荐使用allkeys-lru策略？
LFU毕竟是4.0版本后才有的，使用LRU不用担心版本不兼容- 随机选择的话，容易把热点数据给删除了，到时出现缓存击穿就GG了
- 如果设置过期时间的key较少，缓存淘汰的也就少了，内存很快也就不够用了
当然，如果你们公司规定了使用4.0版本以上的Redis，推荐使用allkeys-lfu。
3. 随机样例数量maxmemory_samples
随机采样的精度，也就是随机取出key的数目。该值越大, 越接近于真实的LRU算法，但是数值越大，相应消耗也变高，对性能有一定影响，默认值为5。
当一个命令到达Redis时，都会调用freeMemoryIfNeededAndSafe函数判断是否需要进行缓存淘汰以及执行哪种淘汰策略。
int processCommand(client *c) {
...
if (server.maxmemory && !server.lua_timedout) {
int out_of_memory = freeMemoryIfNeededAndSafe() == C_ERR;
...
}
...
}
近似LRU算法
Redis并没有使用真正的LRU算法，那样太耗内存了，Redis使用近似LRU算法，对少量key进行采样，然后从采样的key中驱出最久未使用的key，样例个数为maxmemory-samples，默认值为5。3.0版本进一步优化了该算法，使其执行效果更接近真正的LRU算法。
Redis的键和值都是redisObject对象：
typedef struct redisObject {
unsigned type:4;
unsigned encoding:4;
unsigned lru:LRU_BITS; /* LRU time (relative to global lru_clock) or
* LFU data (least significant 8 bits frequency
* and most significant 16 bits access time). */
int refcount;
void *ptr;
} robj;
redisObject有个24bits的空间lru，LRU算法时，用来存储低位的时间戳（以秒级为单位）。key被更新或访问时，都会更新这个时间戳，即LRU_CLOCK，
/* Return the LRU clock, based on the clock resolution. This is a time
* in a reduced-bits format that can be used to set and check the
* object->lru field of redisObject structures. */
unsigned int getLRUClock(void) {
return (mstime()/LRU_CLOCK_RESOLUTION) & LRU_CLOCK_MAX;
}
Redis3.0后，提供了一个待淘汰候选key的pool数组，大小为16个。执行缓存淘汰时，从所有db中筛选待淘汰候选key。
/* We don't want to make local-db choices when expiring keys,
* so to start populate the eviction pool sampling keys from
* every DB. */
for (i = 0; i < server.dbnum; i++) {
db = server.db+i;
dict = (server.maxmemory_policy & MAXMEMORY_FLAG_ALLKEYS) ?
db->dict : db->expires;
if ((keys = dictSize(dict)) != 0) {
// 构建待淘汰缓存池
evictionPoolPopulate(i, dict, db->dict, pool);
total_keys += keys;
}
}
这时有个idle空闲时间的概念，即key多长时间未被访问了（idle约等于LRU_CLOCK-lru），按照idle升序排序。从键空间（所有key或者设置过期时间的key）中随机选择maxmemory-samples个key，分别计算它们的空闲时间idle，只有当pool有空闲空间，或者空闲时间idle大于pool里最小的idle，才会进入pool，然后从pool中选择空闲时间最大的key淘汰掉。

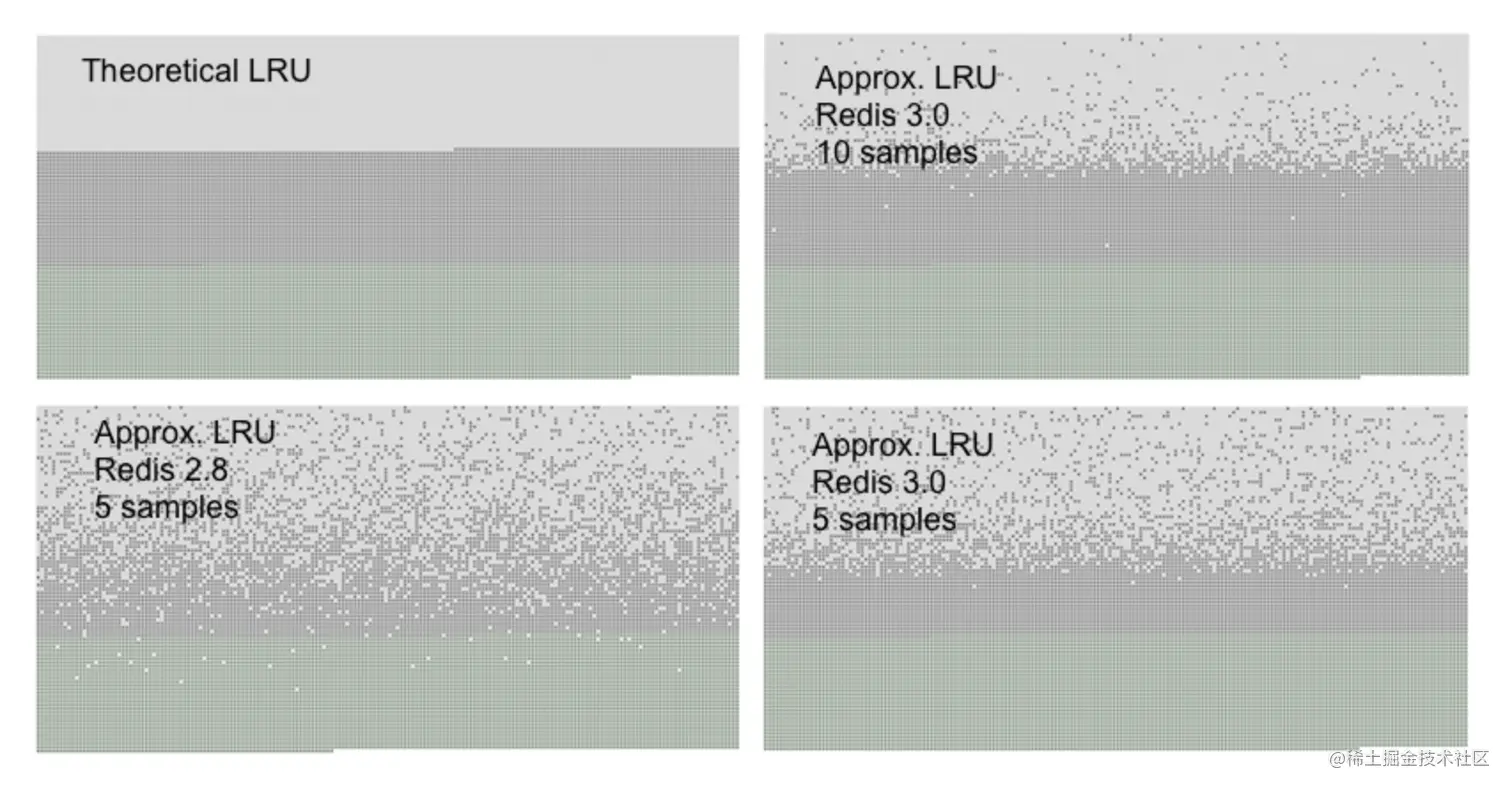

真实LRU算法与近似LRU的算法的对比图如下：
浅灰色带是已经被淘汰的对象，灰色带是没有被淘汰的对象，绿色带是新添加的对象。可以看出，maxmemory-samples值为5时Redis 3.0效果比Redis 2.8要好。maxmemory-samples值为10时，Redis 3.0已经非常接近理论的性能了。
LFU
LFU策略的配置：
除了上述的maxmemory、maxmemory-policy、maxmemory_samples外（maxmemory-policy配置volatile-lfu或allkeys-lfu），还有2个配置项：
# Redis LFU eviction (see maxmemory setting) can be tuned. However it is a good
# idea to start with the default settings and only change them after investigating
# how to improve the performances and how the keys LFU change over time, which
# is possible to inspect via the OBJECT FREQ command.
#
# There are two tunable parameters in the Redis LFU implementation: the
# counter logarithm factor and the counter decay time. It is important to
# understand what the two parameters mean before changing them.
#
# The LFU counter is just 8 bits per key, it's maximum value is 255, so Redis
# uses a probabilistic increment with logarithmic behavior. Given the value
# of the old counter, when a key is accessed, the counter is incremented in
# this way:
#
# 1. A random number R between 0 and 1 is extracted.
# 2. A probability P is calculated as 1/(old_value*lfu_log_factor+1).
# 3. The counter is incremented only if R < P.
#
# The default lfu-log-factor is 10. This is a table of how the frequency
# counter changes with a different number of accesses with different
# logarithmic factors:
#
# +--------+------------+------------+------------+------------+------------+
# | factor | 100 hits | 1000 hits | 100K hits | 1M hits | 10M hits |
# +--------+------------+------------+------------+------------+------------+
# | 0 | 104 | 255 | 255 | 255 | 255 |
# +--------+------------+------------+------------+------------+------------+
# | 1 | 18 | 49 | 255 | 255 | 255 |
# +--------+------------+------------+------------+------------+------------+
# | 10 | 10 | 18 | 142 | 255 | 255 |
# +--------+------------+------------+------------+------------+------------+
# | 100 | 8 | 11 | 49 | 143 | 255 |
# +--------+------------+------------+------------+------------+------------+
#
# NOTE: The above table was obtained by running the following commands:
#
# redis-benchmark -n 1000000 incr foo
# redis-cli object freq foo
#
# NOTE 2: The counter initial value is 5 in order to give new objects a chance
# to accumulate hits.
#
# The counter decay time is the time, in minutes, that must elapse in order
# for the key counter to be divided by two (or decremented if it has a value
# less <= 10).
#
# The default value for the lfu-decay-time is 1. A Special value of 0 means to
# decay the counter every time it happens to be scanned.
#
lfu-log-factor 10
lfu-decay-time 1
lfu-log-factor调整计数器counter的增长速度，lfu-log-factor越大，counter增长的越慢。lfu-decay-time以分钟为单位，控制counter的减少速度
Redis对象redisObject中的lru:
typedef struct redisObject {
unsigned type:4;
unsigned encoding:4;
unsigned lru:LRU_BITS; /* LRU time (relative to global lru_clock) or
* LFU data (least significant 8 bits frequency
* and most significant 16 bits access time). */
int refcount;
void *ptr;
} robj;
当使用LFU时，lru的后8位保存计数器counter，前16位保存访问时间（分钟级）。
Redis的LFU算法中，为每个key维护一个计数器。每次key被访问的时候，计数器增大。计数器越大，可以约等于访问越频繁
当数据被访问时，更新该值：
robj *lookupKey(redisDb *db, robj *key, int flags) {
...
if (server.maxmemory_policy & MAXMEMORY_FLAG_LFU) {
updateLFU(val);
}
...
}
更新lru
/* Update LFU when an object is accessed.
* Firstly, decrement the counter if the decrement time is reached.
* Then logarithmically increment the counter, and update the access time. */
void updateLFU(robj *val) {
unsigned long counter = LFUDecrAndReturn(val);
counter = LFULogIncr(counter);
val->lru = (LFUGetTimeInMinutes()<<8) | counter;
}
降低LFUDecrAndReturn
再增加计数器counter之前，先减少计数器。
/* If the object decrement time is reached decrement the LFU counter but
* do not update LFU fields of the object, we update the access time
* and counter in an explicit way when the object is really accessed.
* And we will times halve the counter according to the times of
* elapsed time than server.lfu_decay_time.
* Return the object frequency counter.
*
* This function is used in order to scan the dataset for the best object
* to fit: as we check for the candidate, we incrementally decrement the
* counter of the scanned objects if needed. */
unsigned long LFUDecrAndReturn(robj *o) {
unsigned long ldt = o->lru >> 8;
unsigned long counter = o->lru & 255;
unsigned long num_periods = server.lfu_decay_time ? LFUTimeElapsed(ldt) / server.lfu_decay_time : 0;
if (num_periods)
counter = (num_periods > counter) ? 0 : counter - num_periods;
return counter;
}
函数首先取得高16 bits的最近更新时间ldt与低8 bits的计数器counter，然后根据配置的lfu_decay_time计算是否降低或降低多少。
LFUTimeElapsed用来计算当前时间与ldt的差值：
/* Return the current time in minutes, just taking the least significant
* 16 bits. The returned time is suitable to be stored as LDT (last decrement
* time) for the LFU implementation. */
// 当前时间（分钟级），取低16位
unsigned long LFUGetTimeInMinutes(void) {
return (server.unixtime/60) & 65535;
}
/* Given an object last access time, compute the minimum number of minutes
* that elapsed since the last access. Handle overflow (ldt greater than
* the current 16 bits minutes time) considering the time as wrapping
* exactly once. */
unsigned long LFUTimeElapsed(unsigned long ldt) {
unsigned long now = LFUGetTimeInMinutes();
if (now >= ldt) return now-ldt;
return 65535-ldt+now;
}
当前时间（分钟级），取低16位，然后计算与ldt的差值now-ldt。当ldt > now时，默认为过了一个周期(16 bits，最大65535)，取值65535-ldt+now。
然后用差值与lfu_decay_time相除，LFUTimeElapsed(ldt) / server.lfu_decay_time，已过去n个lfu_decay_time，则将counter减少n，counter - num_periods。如果未过去lfu_decay_time，则counter不变。
这样做是为了防止一段时间内频繁访问的key，但是之后一段时间可能会很少被再访问到。只增加计数器，并不能体现计数器越大，约等于访问越频繁。
如果数据被频繁访问到，计数器就不会被减少。
**增加LFULogIncr
/* Logarithmically increment a counter. The greater is the current counter value
* the less likely is that it gets really implemented. Saturate it at 255. */
uint8_t LFULogIncr(uint8_t counter) {
if (counter == 255) return 255;
double r = (double)rand()/RAND_MAX;
double baseval = counter - LFU_INIT_VAL;
if (baseval < 0) baseval = 0;
double p = 1.0/(baseval*server.lfu_log_factor+1);
if (r < p) counter++;
return counter;
}
counter并不是简单的访问一次就+1，而是采用了一个0-1之间的控制因子p。counter最大值为255。取一个0-1之间的随机数r与p比较，当r<p时，才增加counter。p取决于当前counter值与lfu_log_factor因子，counter值与lfu_log_factor因子越大，p越小，r<p的概率也越小，counter增长的概率也就越小，counter增长与访问次数呈现对数增长的趋势，随着访问次数越来越大，counter增长的越来越慢。官方给出了一个统计结果：
+--------+------------+------------+------------+------------+------------+
| factor | 100 hits | 1000 hits | 100K hits | 1M hits | 10M hits |
+--------+------------+------------+------------+------------+------------+
| 0 | 104 | 255 | 255 | 255 | 255 |
+--------+------------+------------+------------+------------+------------+
| 1 | 18 | 49 | 255 | 255 | 255 |
+--------+------------+------------+------------+------------+------------+
| 10 | 10 | 18 | 142 | 255 | 255 |
+--------+------------+------------+------------+------------+------------+
| 100 | 8 | 11 | 49 | 143 | 255 |
+--------+------------+------------+------------+------------+------------+
新建的key问题 当创建新对象的时候，对象的counter如果为0，很容易就会被淘汰掉，所以Redis给每个新生key都设置一个初始counter
robj *createObject(int type, void *ptr) {
robj *o = zmalloc(sizeof(*o));
o->type = type;
o->encoding = OBJ_ENCODING_RAW;
o->ptr = ptr;
o->refcount = 1;
/* Set the LRU to the current lruclock (minutes resolution), or
* alternatively the LFU counter. */
if (server.maxmemory_policy & MAXMEMORY_FLAG_LFU) {
// 初始counter为5
o->lru = (LFUGetTimeInMinutes()<<8) | LFU_INIT_VAL;
} else {
o->lru = LRU_CLOCK();
}
return o;
}
LFU也有个待淘汰缓存池pool，它的逻辑和LRU中一模一样，只是idle的计算逻辑有点区别。
/* This is an helper function for freeMemoryIfNeeded(), it is used in order
* to populate the evictionPool with a few entries every time we want to
* expire a key. Keys with idle time smaller than one of the current
* keys are added. Keys are always added if there are free entries.
*
* We insert keys on place in ascending order, so keys with the smaller
* idle time are on the left, and keys with the higher idle time on the
* right. */
void evictionPoolPopulate(int dbid, dict *sampledict, dict *keydict, struct evictionPoolEntry *pool) {
...
// 随机样例
count = dictGetSomeKeys(sampledict,samples,server.maxmemory_samples);
for (j = 0; j < count; j++) {
unsigned long long idle;
...
/* Calculate the idle time according to the policy. This is called
* idle just because the code initially handled LRU, but is in fact
* just a score where an higher score means better candidate. */
if (server.maxmemory_policy & MAXMEMORY_FLAG_LRU) {
// LRU idle计算
idle = estimateObjectIdleTime(o);
} else if (server.maxmemory_policy & MAXMEMORY_FLAG_LFU) {
/* When we use an LRU policy, we sort the keys by idle time
* so that we expire keys starting from greater idle time.
* However when the policy is an LFU one, we have a frequency
* estimation, and we want to evict keys with lower frequency
* first. So inside the pool we put objects using the inverted
* frequency subtracting the actual frequency to the maximum
* frequency of 255. */
// LFU idle计算
idle = 255-LFUDecrAndReturn(o);
} else if (server.maxmemory_policy == MAXMEMORY_VOLATILE_TTL) {
/* In this case the sooner the expire the better. */
idle = ULLONG_MAX - (long)dictGetVal(de);
} else {
serverPanic("Unknown eviction policy in evictionPoolPopulate()");
}
...
}
}
idle = 255-LFUDecrAndReturn(o)，计算idle之前，先降低counter，防止上面说的，一段时间频繁访问的key，之后长时间未被访问。
后记
相信应该有很多人以为，Redis键过期了，如果被访问到，判断是否过期，如果已过期，删除掉。如果未被访问到，则由缓存淘汰策略回收。其实这是不对的。Redis的缓存过期是通过主动或被动删除的。缓存淘汰策略只是可能刚好筛选到了过期的key，它不管这个key是否已过期了，只要筛选到了，就删除这个key。
Redis缓存淘汰策略中的LRU和LFU，都维护一个待淘汰缓存池pool，都是取随机maxmemory-samples个样例数据，计算它们的idle（计算方式不一样），然后判断是否可以插入到pool中，之后取pool中idle最大的key淘汰掉。
PS。累~~，觉得不错的，就点个赞吧^_^
