Netty客户端启动源码阅读

public static void main(String[] args) throws InterruptedException {
    NioEventLoopGroup eventLoopGroup = new NioEventLoopGroup();
    try {
        Bootstrap bootstrap = new Bootstrap();
        bootstrap.group(eventLoopGroup)
                .localAddress(9000)
                .channel(NioSocketChannel.class)
                .handler(new ChannelInitializer<SocketChannel>() {
                    @Override
                    protected void initChannel(SocketChannel ch) throws Exception {
                        ChannelPipeline pipeline = ch.pipeline();
                        pipeline.addLast(new StringDecoder(CharsetUtil.UTF_8));
                        pipeline.addLast(new StringEncoder(CharsetUtil.UTF_8));
                        pipeline.addLast(new SomeSocketClientHandler());
                    }
                });
        //Clinet客户端启动流程,准备跟踪connect方法
        ChannelFuture future = bootstrap.connect("localhost", 8888).sync();
        future.channel().closeFuture().sync();
    } finally {
        if(eventLoopGroup != null) {
            eventLoopGroup.shutdownGracefully();
        }
    }
}

Bootstrap.java

public ChannelFuture connect(InetAddress inetHost, int inetPort) {
    return connect(new InetSocketAddress(inetHost, inetPort));
}

public ChannelFuture connect(SocketAddress remoteAddress) {
  			//数据校验
        if (remoteAddress == null) {
            throw new NullPointerException("remoteAddress");
        }
        validate();
        return doResolveAndConnect(remoteAddress, config.localAddress());
    }

    public Bootstrap validate() {
        super.validate();
        //核心处理器都没有，工作根本展开不了，抛出异常直接中断启动
        if (config.handler() == null) {
            throw new IllegalStateException("handler not set");
        }
        return this;
    }


    /** 所需数据校验完成，开始处理连接业务
     * @see #connect()
     */
    private ChannelFuture doResolveAndConnect(final SocketAddress remoteAddress, final SocketAddress localAddress) {
        // channel的创建、初始化与注册
        final ChannelFuture regFuture = initAndRegister();
        final Channel channel = regFuture.channel();

        if (regFuture.isDone()) {
            if (!regFuture.isSuccess()) {
                return regFuture;
            }
            // 解析server端地址并连接
            return doResolveAndConnect0(channel, remoteAddress, localAddress, channel.newPromise());
        } else {
            // Registration future is almost always fulfilled already, but just in case it's not.
            final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
            regFuture.addListener(new ChannelFutureListener() {
                @Override
                public void operationComplete(ChannelFuture future) throws Exception {
                    // Directly obtain the cause and do a null check so we only need one volatile read in case of a
                    // failure.
                    Throwable cause = future.cause();
                    if (cause != null) {
                        // Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
                        // IllegalStateException once we try to access the EventLoop of the Channel.
                        promise.setFailure(cause);
                    } else {
                        // Registration was successful, so set the correct executor to use.
                        // See https://github.com/netty/netty/issues/2586
                        promise.registered();
                        doResolveAndConnect0(channel, remoteAddress, localAddress, promise);
                    }
                }
            });
            return promise;
        }
    }

AbstractBootstrap.java

//初始化并注册
final ChannelFuture initAndRegister() {
    Channel channel = null;
    try {
        // 创建parentChannel
        // 其实这里面是使用反射newInstance 创建出一个Channel无参对象
        channel = channelFactory.newChannel();
        // 对象创建完后，开始初始化该channel
        init(channel);
    } catch (Throwable t) {
        if (channel != null) { // 若条件为true，说明channel创建成功，但初始化时出现问题
            // channel can be null if newChannel crashed (eg SocketException("too many open files"))
            // 将channel强制关闭
            channel.unsafe().closeForcibly();
            // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
            return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
        }
        // 代码能走到这里，说明创建channel过程中出现了问题
        // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
        return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
    }

    // 注册parentChannel(该过程中从group中选择出了eventLoop与channel进行了绑定，并创建启动了这个线程）
    ChannelFuture regFuture = config().group().register(channel);
    if (regFuture.cause() != null) {
        if (channel.isRegistered()) {
            channel.close();
        } else {
            channel.unsafe().closeForcibly();
        }
    }

    // If we are here and the promise is not failed, it's one of the following cases:
    // 1) If we attempted registration from the event loop, the registration has been completed at this point.
    //    i.e. It's safe to attempt bind() or connect() now because the channel has been registered.
    // 2) If we attempted registration from the other thread, the registration request has been successfully
    //    added to the event loop's task queue for later execution.
    //    i.e. It's safe to attempt bind() or connect() now:
    //         because bind() or connect() will be executed *after* the scheduled registration task is executed
    //         because register(), bind(), and connect() are all bound to the same thread.

    return regFuture;
}

跟踪init()方法其是一个抽象类在Clinet端和Server端中均被实现用来启动时处理不同端的业务启动流程，注意我们现在是客户端启动，所以跟踪的是Bootstrap.java中的init()。

Bootstrap.java

@Override
@SuppressWarnings("unchecked")
void init(Channel channel) throws Exception {
    // 获取到pipeline
    ChannelPipeline p = channel.pipeline();
    // 将Bootstrap中创建的ChannelInitializer处理器添加到pipeline
    p.addLast(config.handler());

    // 使用Bootstrap中的options初始化channel
    final Map<ChannelOption<?>, Object> options = options0();
    synchronized (options) {
      //设置option到当前channel中
        setChannelOptions(channel, options, logger);
    }

    // 使用Bootstrap中的attrs初始化channel
    final Map<AttributeKey<?>, Object> attrs = attrs0();
    synchronized (attrs) {
        for (Entry<AttributeKey<?>, Object> e: attrs.entrySet()) {
            channel.attr((AttributeKey<Object>) e.getKey()).set(e.getValue());
        }
    }
}

AbstractBootstrap.java

static void setChannelOptions(Channel channel, Map<ChannelOption<?>, Object> options, InternalLogger logger) {
    // 遍历options
    for (Map.Entry<ChannelOption<?>, Object> e: options.entrySet()) {
        // 将当前遍历的option初始化到channel
        setChannelOption(channel, e.getKey(), e.getValue(), logger);
    }
}

@SuppressWarnings("unchecked")
private static void setChannelOption(Channel channel, ChannelOption<?> option, Object value, InternalLogger logger) {
        try {
            // 将option写入到channel的config中
            if (!channel.config().setOption((ChannelOption<Object>) option, value)) {
                logger.warn("Unknown channel option '{}' for channel '{}'", option, channel);
            }
        } catch (Throwable t) {
            logger.warn(
                    "Failed to set channel option '{}' with value '{}' for channel '{}'", option, value, channel, t);
        }
    }

客户端初始化和注册就阅读完了，现在回到Bootstap.java中继续阅读**doResolveAndConnect()**方法。

/** 所需数据校验完成，开始处理连接业务
 * @see #connect()
 */
private ChannelFuture doResolveAndConnect(final SocketAddress remoteAddress, final SocketAddress localAddress) {
    // channel的创建、初始化与注册
    final ChannelFuture regFuture = initAndRegister();
    final Channel channel = regFuture.channel();

    if (regFuture.isDone()) {
        if (!regFuture.isSuccess()) {
            return regFuture;
        }
        // 解析server端地址并连接
        return doResolveAndConnect0(channel, remoteAddress, localAddress, channel.newPromise());
    } else {
        // Registration future is almost always fulfilled already, but just in case it's not.
        final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
        regFuture.addListener(new ChannelFutureListener() {
            @Override
            public void operationComplete(ChannelFuture future) throws Exception {
                // Directly obtain the cause and do a null check so we only need one volatile read in case of a
                // failure.
                Throwable cause = future.cause();
                if (cause != null) {
                    // Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
                    // IllegalStateException once we try to access the EventLoop of the Channel.
                    promise.setFailure(cause);
                } else {
                    // Registration was successful, so set the correct executor to use.
                    // See https://github.com/netty/netty/issues/2586
                    promise.registered();
                    doResolveAndConnect0(channel, remoteAddress, localAddress, promise);
                }
            }
        });
        return promise;
    }
}

//解析server端地址并连接
    private ChannelFuture doResolveAndConnect0(final Channel channel, SocketAddress remoteAddress,
                                               final SocketAddress localAddress, final ChannelPromise promise) {
        try {
            // 获取到channel所绑定的eventLoop
            final EventLoop eventLoop = channel.eventLoop();
            // 创建一个地址解析器
            final AddressResolver<SocketAddress> resolver = this.resolver.getResolver(eventLoop);

            // 若当前地址解析器不支持该地址格式，或该地址已经解析过了，怎么办？硬连
            // 若连接成功，则成功，失败就失败。无论成功还是失败，结果都写入到了promise中
            if (!resolver.isSupported(remoteAddress) || resolver.isResolved(remoteAddress)) {
                // Resolver has no idea about what to do with the specified remote address or it's resolved already.
                doConnect(remoteAddress, localAddress, promise);
                return promise;
            }

            // 处理地址没有解析且解析器也支持该地址格式的情况
            // 以异步的方式解析地址
            final Future<SocketAddress> resolveFuture = resolver.resolve(remoteAddress);

            // 处理解析完成的情况
            if (resolveFuture.isDone()) {
                final Throwable resolveFailureCause = resolveFuture.cause();
                // 若解析过程中出现异常，则关闭channel，否则连接解析的地址
                if (resolveFailureCause != null) {
                    // Failed to resolve immediately
                    channel.close();
                    promise.setFailure(resolveFailureCause);
                } else {
                    // Succeeded to resolve immediately; cached? (or did a blocking lookup)
                    // getNow() 从异步结果中获取解析结果
                    doConnect(resolveFuture.getNow(), localAddress, promise);
                }
                return promise;
            }

            // Wait until the name resolution is finished.
            // 若解析还没有完成，则为其添加监听器
            resolveFuture.addListener(new FutureListener<SocketAddress>() {
                // 回调
                // 若解析过程中出现异常，则关闭channel，否则连接解析的地址
                @Override
                public void operationComplete(Future<SocketAddress> future) throws Exception {
                    if (future.cause() != null) {
                        channel.close();
                        promise.setFailure(future.cause());
                    } else {
                        doConnect(future.getNow(), localAddress, promise);
                    }
                }
            });
        } catch (Throwable cause) {
            promise.tryFailure(cause);
        }
        return promise;
    }


private static void doConnect(
            final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise connectPromise) {

        //获取到当前Channel的eventLoop后的exeuct以异步的方式去连接服务端地址
        final Channel channel = connectPromise.channel();
        channel.eventLoop().execute(new Runnable() {
            @Override
            public void run() {
              //如果没有配置本机地址，则进行远程连接
                if (localAddress == null) {
                    channel.connect(remoteAddress, connectPromise);
                } else {
                  //准备跟踪
                    channel.connect(remoteAddress, localAddress, connectPromise);
                }
                connectPromise.addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
            }
        });
    }

继续跟踪阅读连接代码，AbstractChannel.java中的connect()

    @Override
    public ChannelFuture connect(SocketAddress remoteAddress, SocketAddress localAddress, ChannelPromise promise) {
        return pipeline.connect(remoteAddress, localAddress, promise);
    }


    @Override
    public final ChannelFuture connect(
            SocketAddress remoteAddress, SocketAddress localAddress, ChannelPromise promise) {
        //使用pipeline中的尾结点进行连接处理
        return tail.connect(remoteAddress, localAddress, promise);
    }

AbstractChannelHandlerContext.java

@Override
public ChannelFuture connect(
        final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise promise) {

    if (remoteAddress == null) {
        throw new NullPointerException("remoteAddress");
    }
    if (isNotValidPromise(promise, false)) {
        // cancelled
        return promise;
    }

    final AbstractChannelHandlerContext next = findContextOutbound(MASK_CONNECT);
    EventExecutor executor = next.executor();
    if (executor.inEventLoop()) {
      //准备跟踪
        next.invokeConnect(remoteAddress, localAddress, promise);
    } else {
        safeExecute(executor, new Runnable() {
            @Override
            public void run() {
                next.invokeConnect(remoteAddress, localAddress, promise);
            }
        }, promise, null);
    }
    return promise;
}

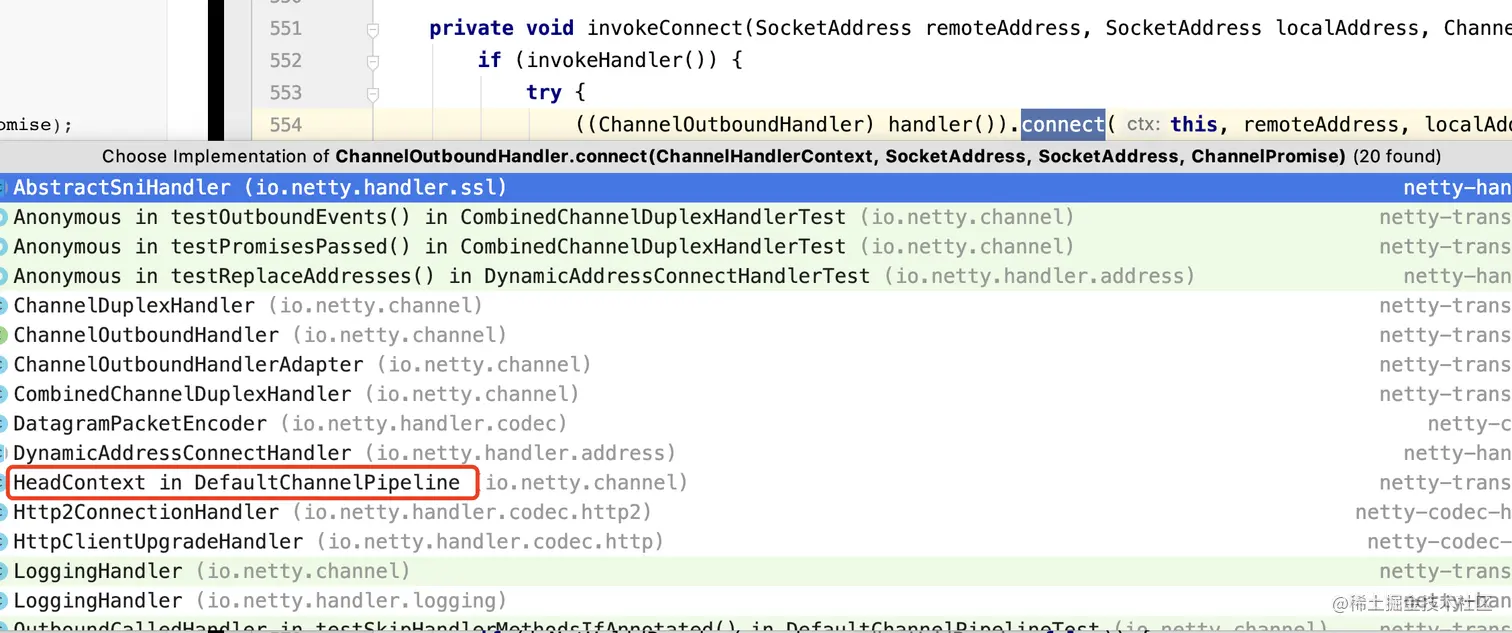

    private void invokeConnect(SocketAddress remoteAddress, SocketAddress localAddress, ChannelPromise promise) {
        if (invokeHandler()) {
            try {
              //准备跟踪
                ((ChannelOutboundHandler) handler()).connect(this, remoteAddress, localAddress, promise);
            } catch (Throwable t) {
                notifyOutboundHandlerException(t, promise);
            }
        } else {
            connect(remoteAddress, localAddress, promise);
        }
    }

DefultChannelPipeline.java

@Override
public void connect(
        ChannelHandlerContext ctx,
        SocketAddress remoteAddress, SocketAddress localAddress,
        ChannelPromise promise) {
    unsafe.connect(remoteAddress, localAddress, promise);
}

AbstractNioChannel.java

@Override
public final void connect(
        final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise promise) {
    if (!promise.setUncancellable() || !ensureOpen(promise)) {
        return;
    }

    try {
        if (connectPromise != null) {
            // Already a connect in process.
            throw new ConnectionPendingException();
        }

        boolean wasActive = isActive();
        //准备跟踪
        if (doConnect(remoteAddress, localAddress)) {
            fulfillConnectPromise(promise, wasActive);
        } else {
            connectPromise = promise;
            requestedRemoteAddress = remoteAddress;

            // Schedule connect timeout.
            int connectTimeoutMillis = config().getConnectTimeoutMillis();
            if (connectTimeoutMillis > 0) {
                connectTimeoutFuture = eventLoop().schedule(new Runnable() {
                    @Override
                    public void run() {
                        ChannelPromise connectPromise = AbstractNioChannel.this.connectPromise;
                        ConnectTimeoutException cause =
                                new ConnectTimeoutException("connection timed out: " + remoteAddress);
                        if (connectPromise != null && connectPromise.tryFailure(cause)) {
                            close(voidPromise());
                        }
                    }
                }, connectTimeoutMillis, TimeUnit.MILLISECONDS);
            }

            promise.addListener(new ChannelFutureListener() {
                @Override
                public void operationComplete(ChannelFuture future) throws Exception {
                    if (future.isCancelled()) {
                        if (connectTimeoutFuture != null) {
                            connectTimeoutFuture.cancel(false);
                        }
                        connectPromise = null;
                        close(voidPromise());
                    }
                }
            });
        }
    } catch (Throwable t) {
        promise.tryFailure(annotateConnectException(t, remoteAddress));
        closeIfClosed();
    }
}

NioSocketChannel.java

@Override
protected boolean doConnect(SocketAddress remoteAddress, SocketAddress localAddress) throws Exception {
    // 绑定bootstrap中指定的localAddress
    if (localAddress != null) {
        doBind0(localAddress);
    }

    boolean success = false;
    try {
        // 直接连接指定的server地址，其可能一次连接成功，也可能没有成功
        // 若没有成功，则该channel的连接就绪事件发生，为下一次selector的选择打下基础
        boolean connected = SocketUtils.connect(javaChannel(), remoteAddress);
        if (!connected) {
            // 若没有连接成功，则指定其所关注的事件为连接就绪事件
            selectionKey().interestOps(SelectionKey.OP_CONNECT);
        }
        success = true;
        return connected;
    } finally {
        if (!success) {
            doClose();
        }
    }
}

    private void doBind0(SocketAddress localAddress) throws Exception {
        //如果JDK版本大于等于7使用该方式进行连接
        if (PlatformDependent.javaVersion() >= 7) {
            SocketUtils.bind(javaChannel(), localAddress);
        } else {
            SocketUtils.bind(javaChannel().socket(), localAddress);
        }
    }

//end!!!
